时域多脉冲相关与聚类分析的抗同频干扰技术

doi:10.12305/j.issn.1001-506X.2026.04.09

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (4): 1186-1194.doi: 10.12305/j.issn.1001-506X.2026.04.09

• 传感器与信号处理 • 上一篇

时域多脉冲相关与聚类分析的抗同频干扰技术

刘硕(), 周宇(), 张哲昊, 尚嵩, 程松

西安电子科技大学雷达信号处理全国重点实验室，陕西西安 710071

收稿日期:2025-01-06 修回日期:2025-03-27 接受日期:2026-02-28 出版日期:2025-05-23 发布日期:2025-05-23
通讯作者: 周宇 E-mail:23021211522@stu.xidian.edu.cn;zhouyu@mail.xidian.edu.cn
作者简介:刘　硕（2001—），男，硕士研究生，主要研究方向为雷达系统仿真、同频干扰抑制
张哲昊（1997—），男，博士研究生，主要研究方向为雷达系统仿真
尚　嵩（1997—），男，博士研究生，主要研究方向为博弈对抗
程　松（1997—），男，博士研究生，主要研究方向为电子对抗

Anti-same-frequency interference technology based on time-domain multi-pulse correlation and clustering analysis

Shuo LIU(), Yu ZHOU(), Zhehao ZHANG, Song SHANG, Song CHENG

National Key Laboratory of Radar Signal Processing，Xidian University，Xi’an 710071，China

Received:2025-01-06 Revised:2025-03-27 Accepted:2026-02-28 Online:2025-05-23 Published:2025-05-23
Contact: Yu ZHOU E-mail:23021211522@stu.xidian.edu.cn;zhouyu@mail.xidian.edu.cn

摘要/Abstract

摘要：

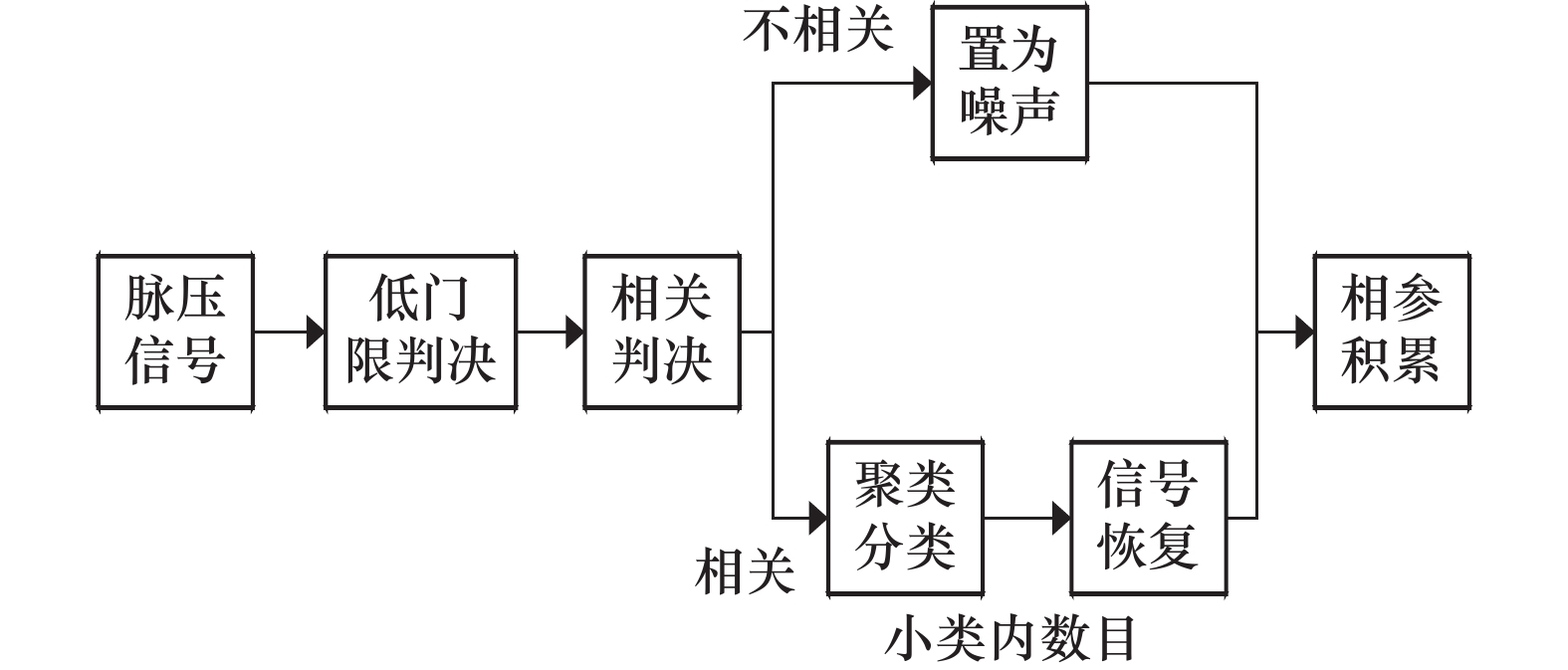

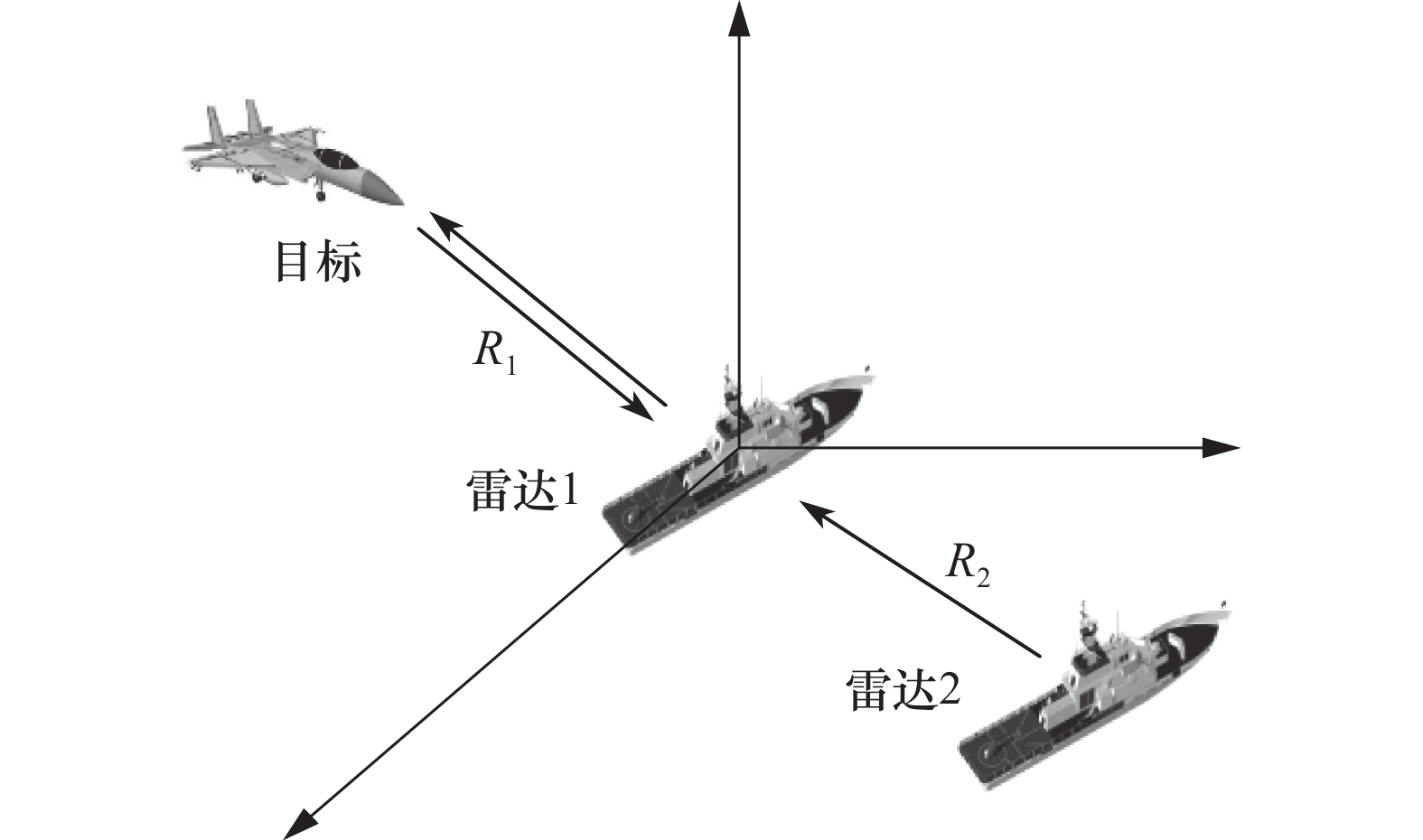

编队场景下，内部雷达产生的同频干扰，会导致目标的检测与跟踪性能下降，因此对于同频干扰的抑制很有必要。提出时域多脉冲相关与聚类分析的抗同频干扰技术，在时域多脉冲相关法判定为目标后，对目标数据进行聚类分析，将干扰数据恢复为目标信号，可同时满足假目标的剔除和真目标的检出。仿真实验表明，所提算法不受干扰环境影响而具有普适性；相比传统方法，所提算法能够提升目标的检测性能；在多部编队雷达同时开机的情况下，所提算法仍然保持一定的稳定性。

关键词: 信号处理, 目标检测, 聚类, 同频干扰, 时域多脉冲相关法

Abstract:

In formation scenarios, the same-frequency interference generated by internal radars can lead to a decline in the detection and tracking performance of targets. Therefore, it is necessary to suppress co-frequency interference. A time-domain multi-pulse correlation and cluster analysis anti-co-frequency interference technology is proposed. After the time-domain multi-pulse correlation method determines it as a target, cluster analysis is performed on the target data to restore the interference data to the target signal, which can simultaneously meet the requirements of eliminating false targets and detecting true targets. Simulation experiments show that the proposed algorithm is not affected by the interference environment and has universality. Compared with traditional methods, the proposed algorithm can improve the detection performance of targets. In the case of multiple formation radars operating simultaneously, the proposed algorithm still maintains a certain stability.

Key words: signal processing, object detection, clustering, same-frequency interference, time-domain multi-pulse correlation method

中图分类号:

TN 973

刘硕, 周宇, 张哲昊, 尚嵩, 程松. 时域多脉冲相关与聚类分析的抗同频干扰技术[J]. 系统工程与电子技术, 2026, 48(4): 1186-1194.

Shuo LIU, Yu ZHOU, Zhehao ZHANG, Song SHANG, Song CHENG. Anti-same-frequency interference technology based on time-domain multi-pulse correlation and clustering analysis[J]. Systems Engineering and Electronics, 2026, 48(4): 1186-1194.

图/表 18

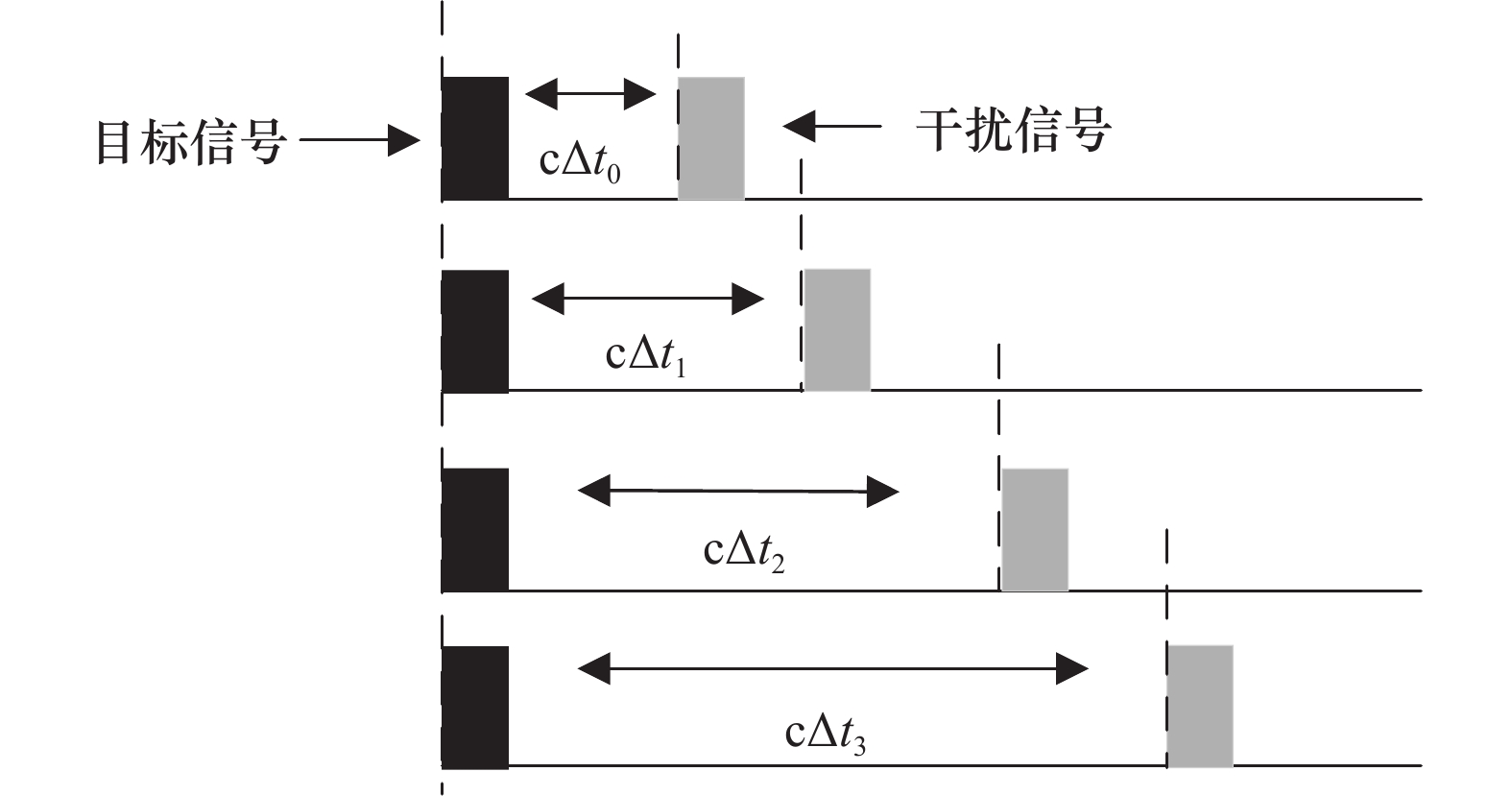

图1

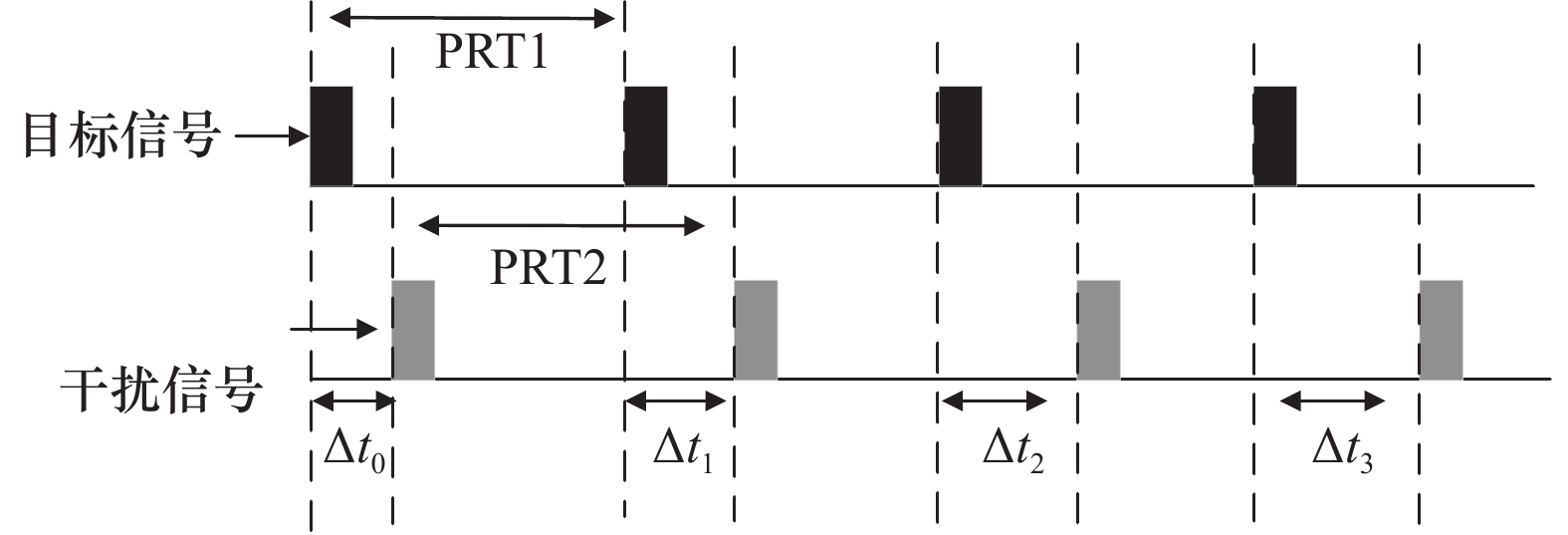

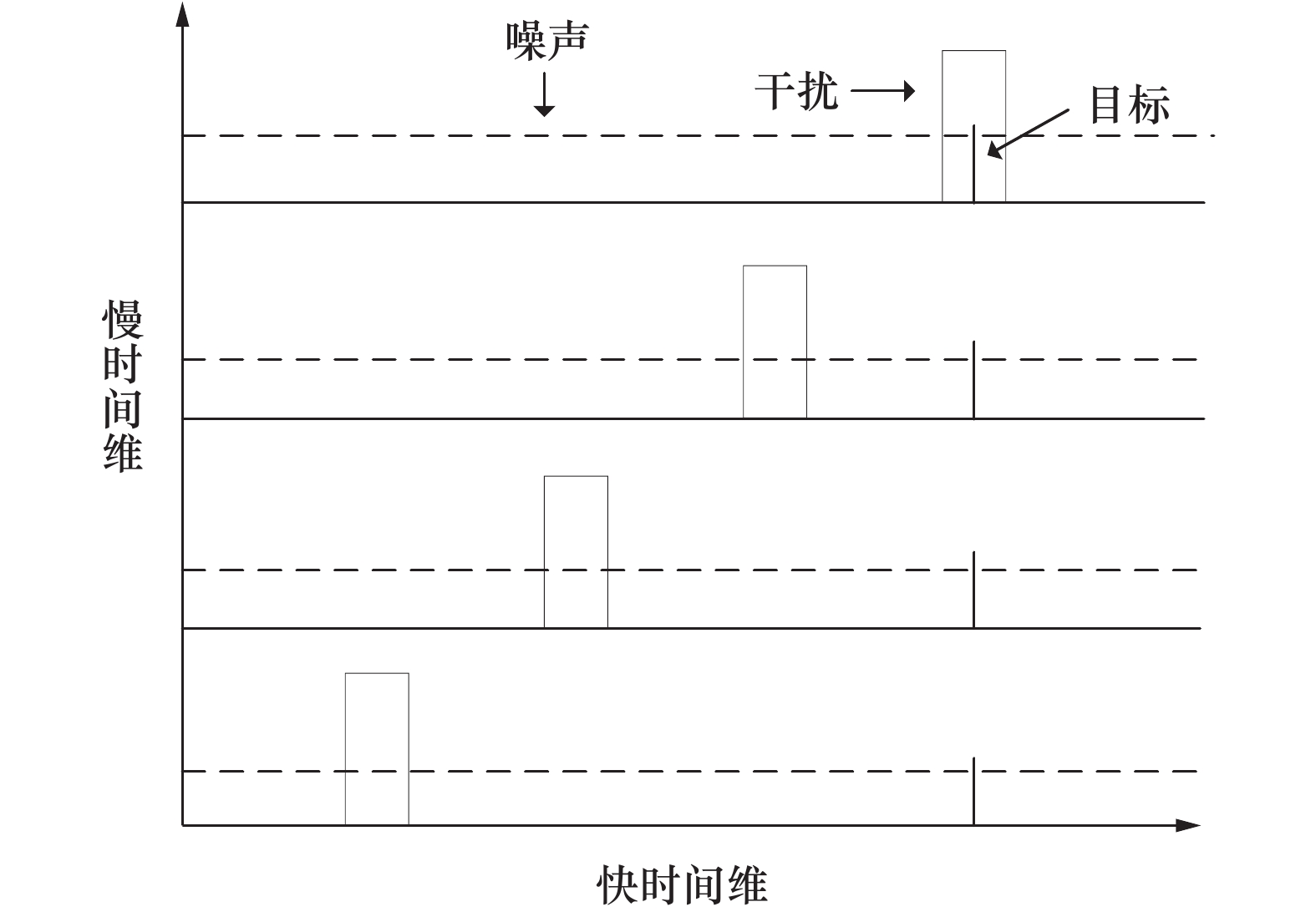

图2

图3

图4

图5

表1

表2

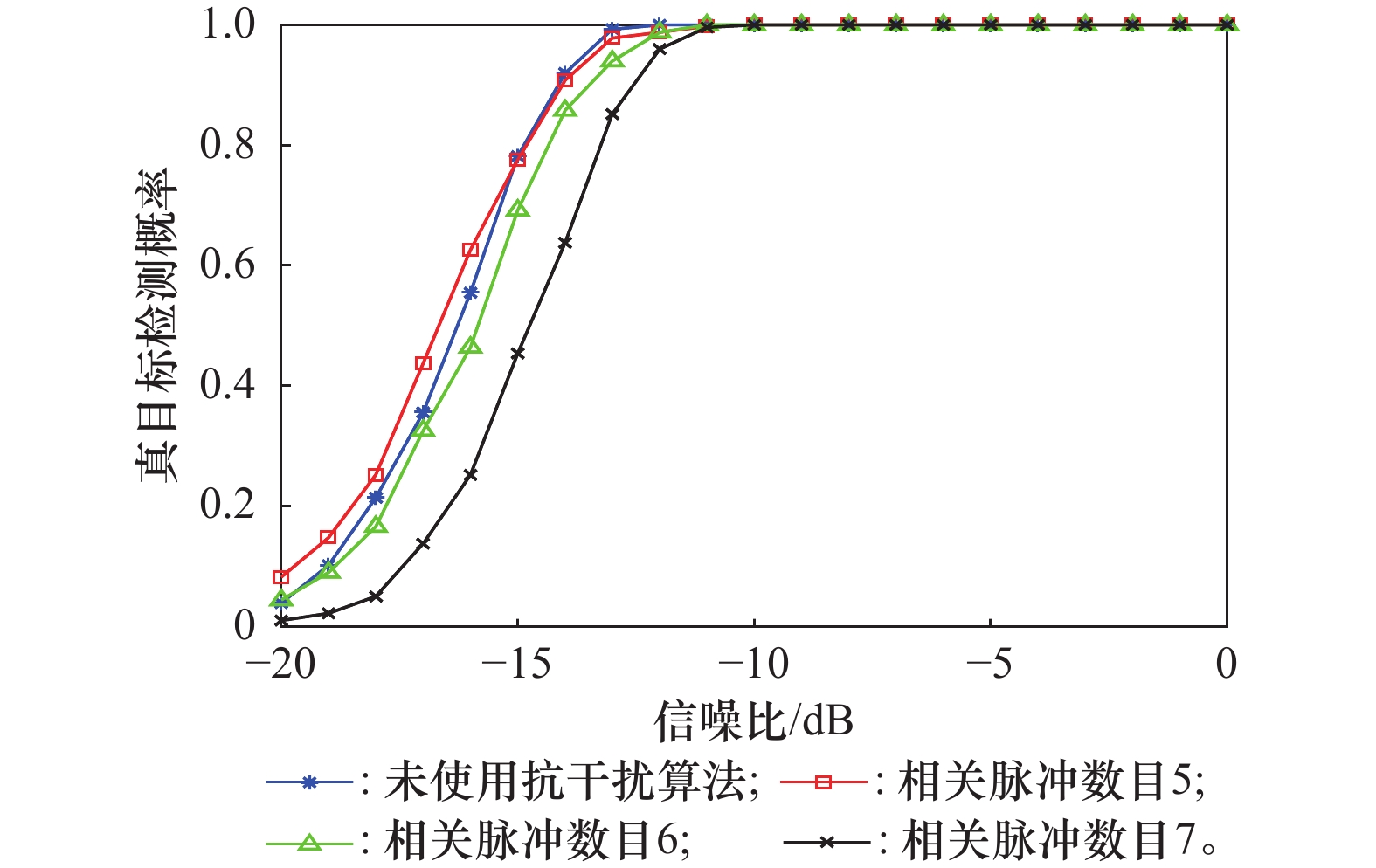

图6

表3

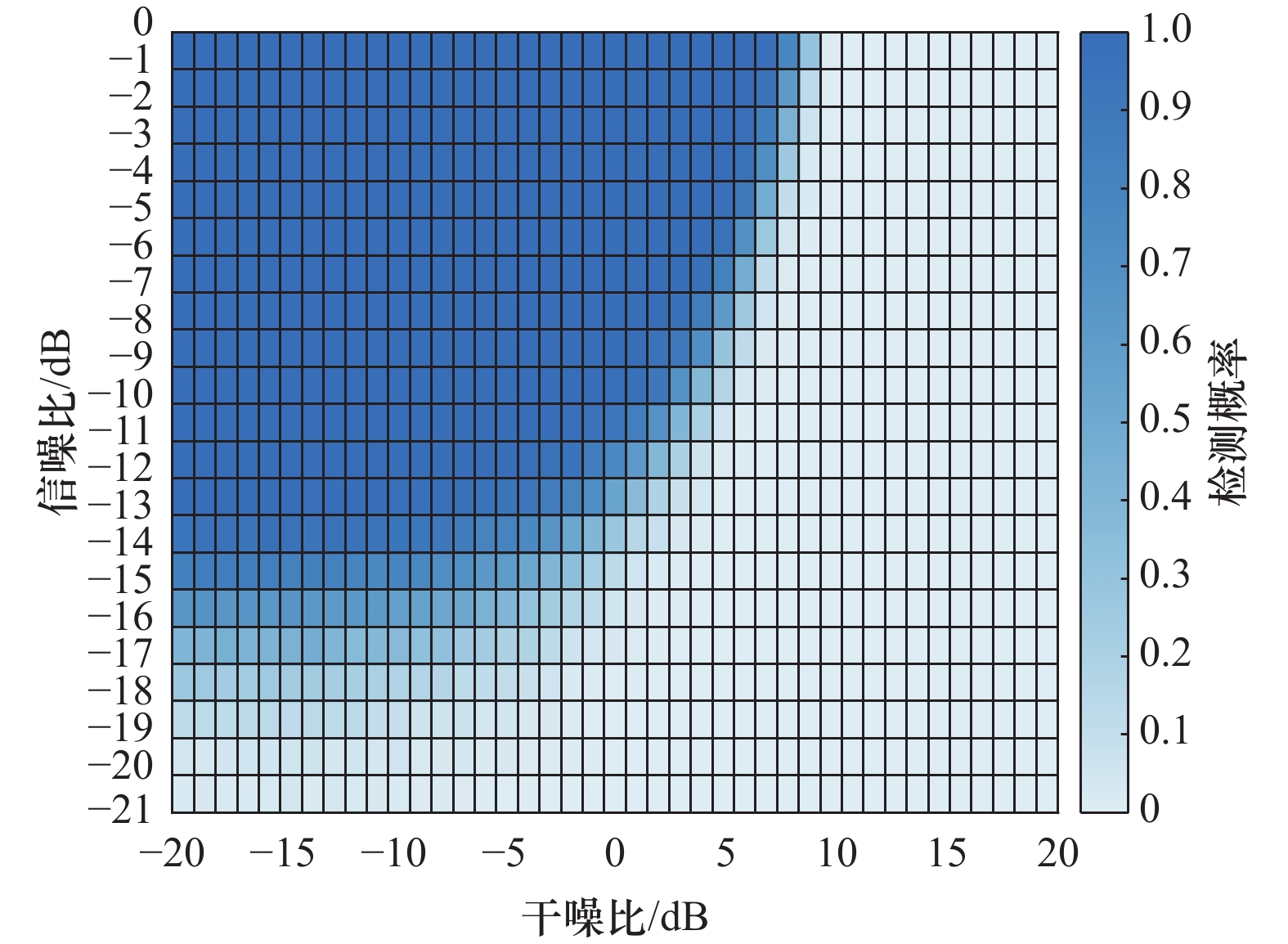

图7

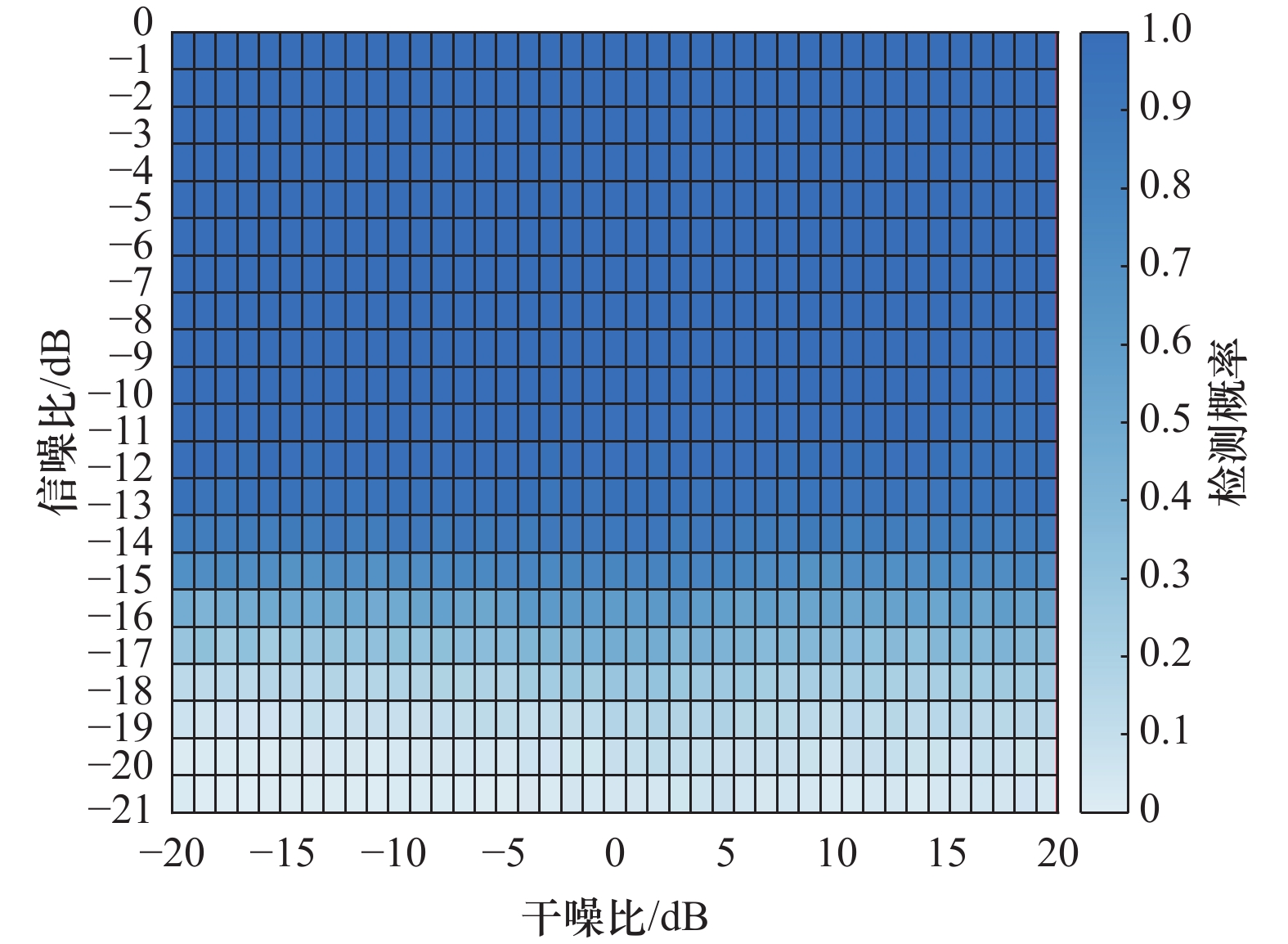

图8

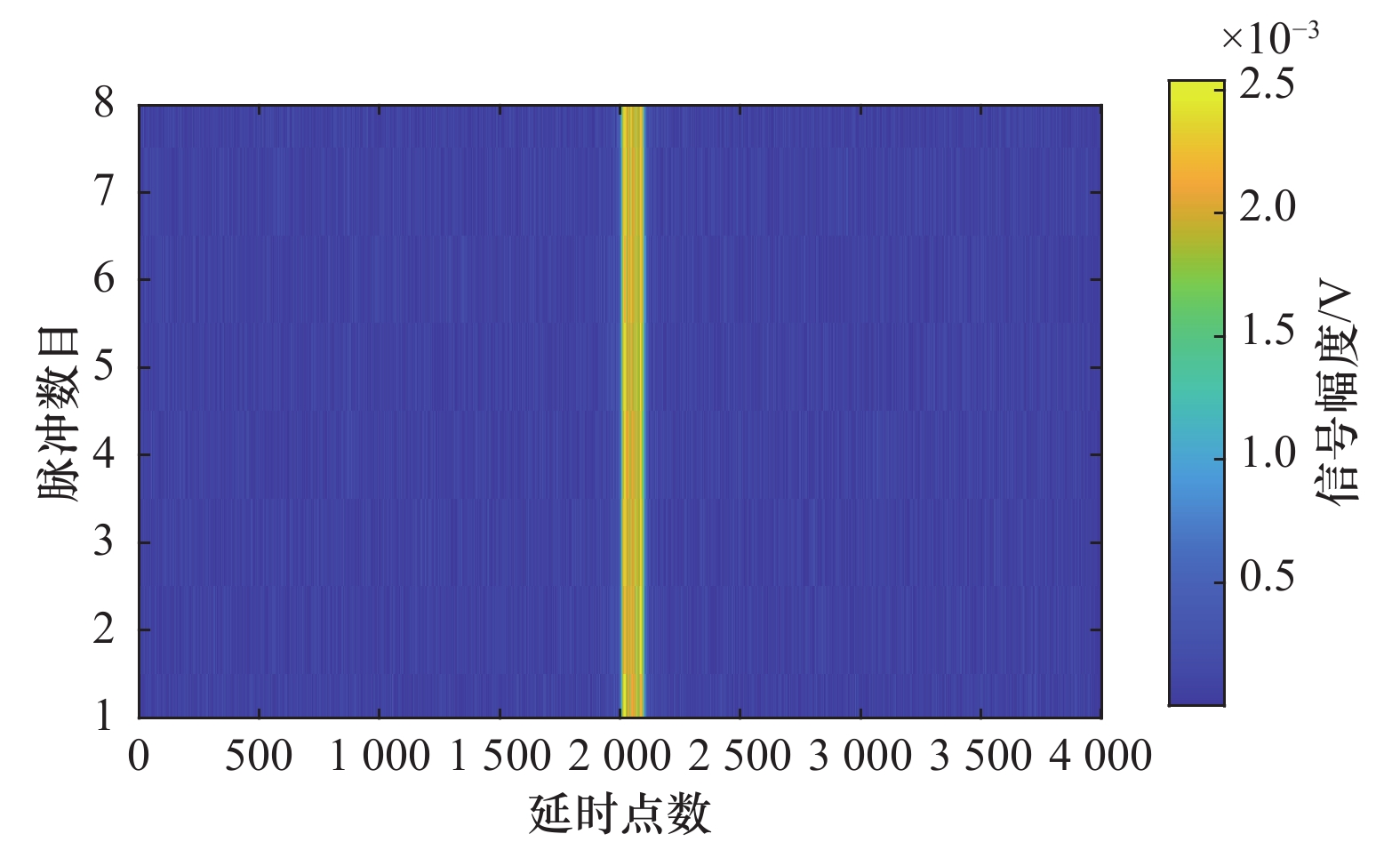

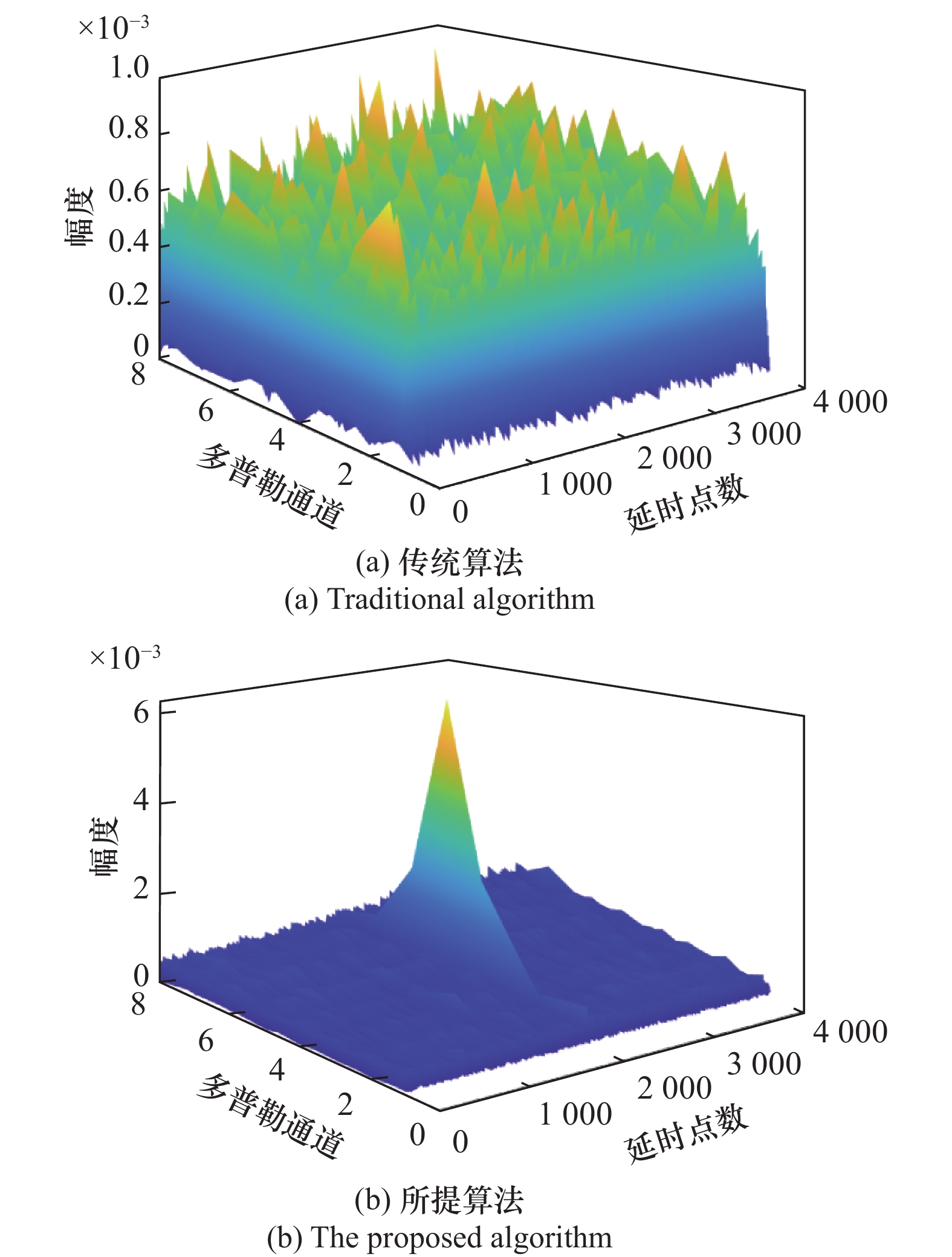

图9

图10

表4

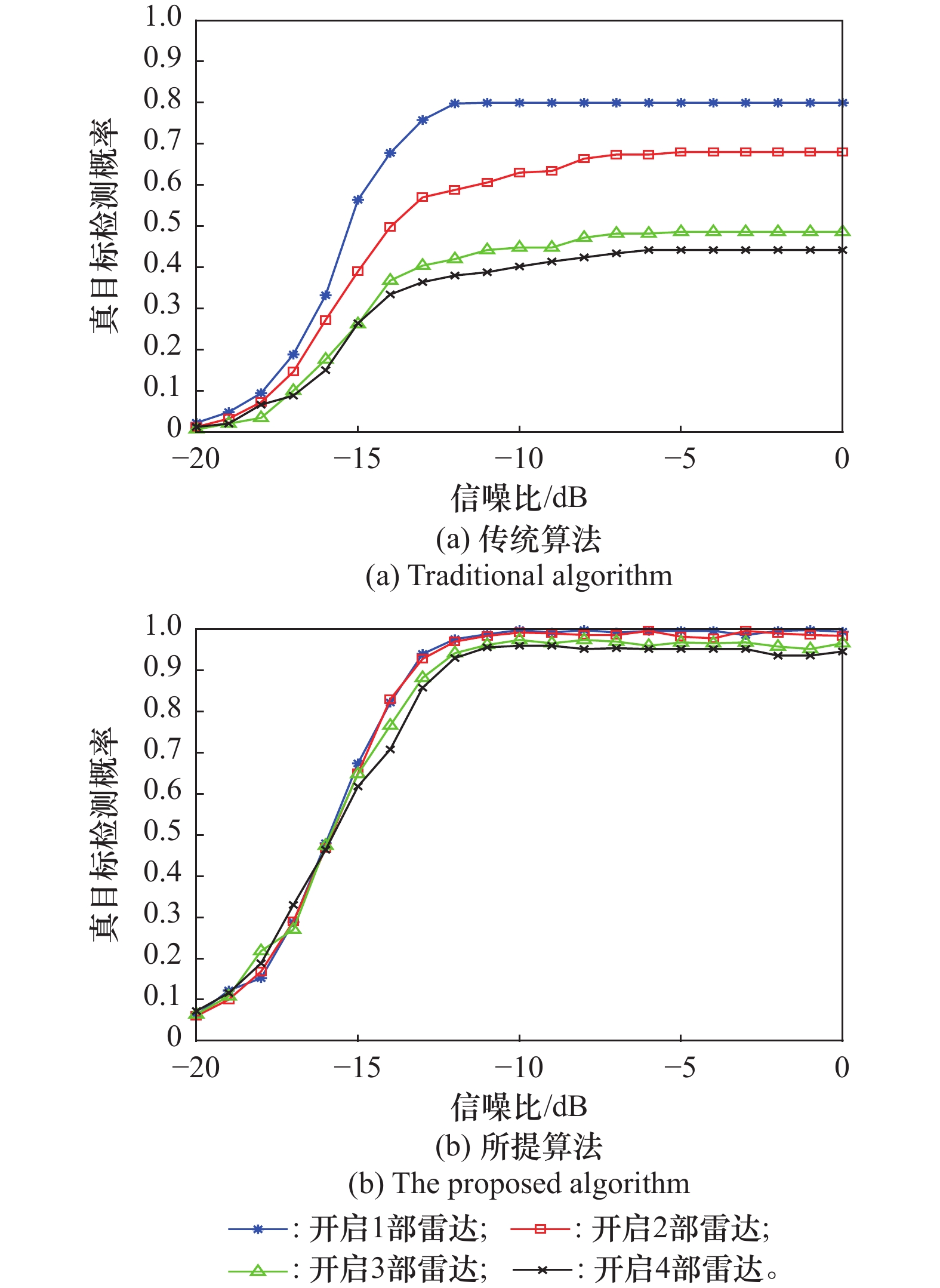

图11

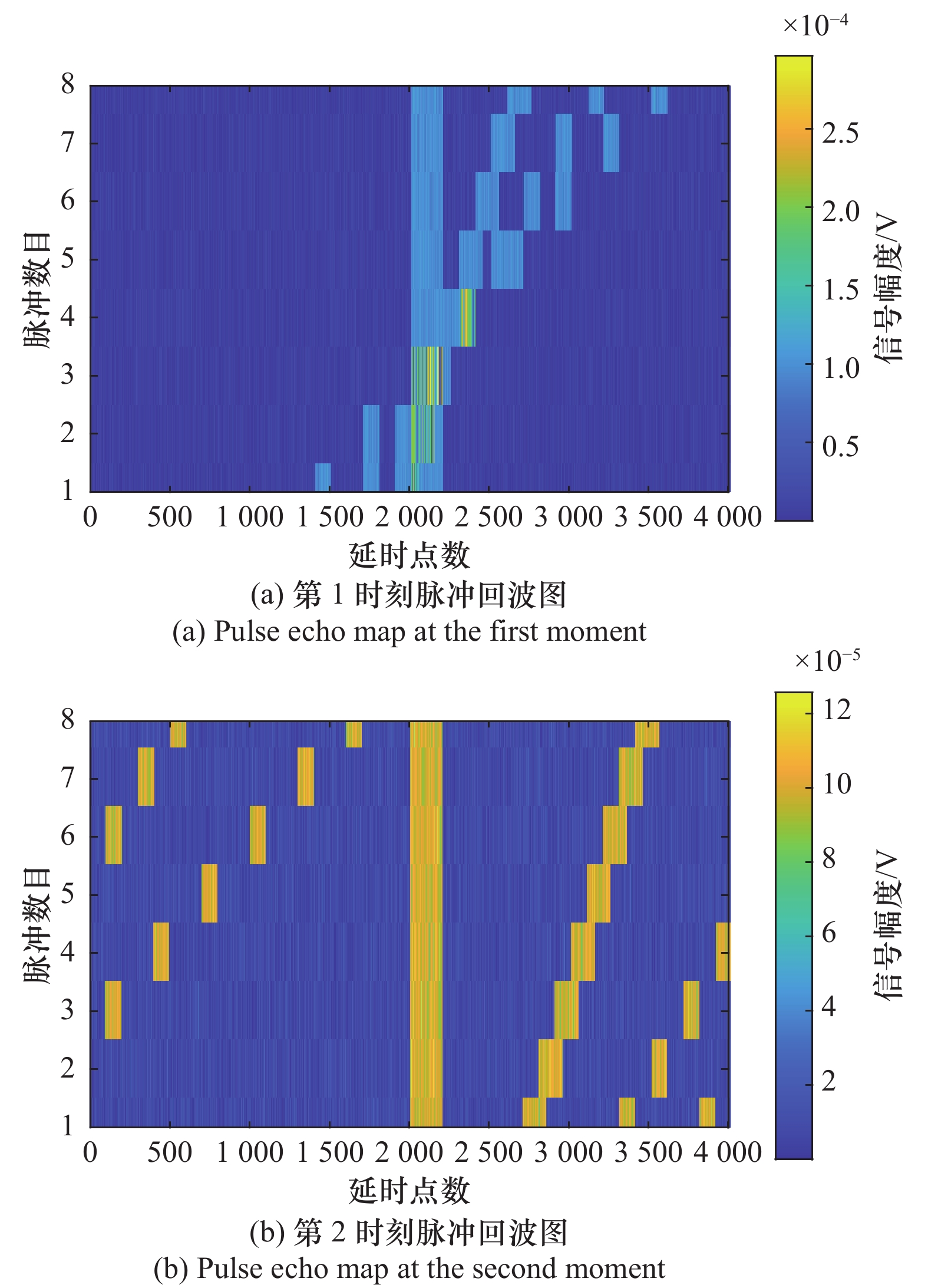

图12

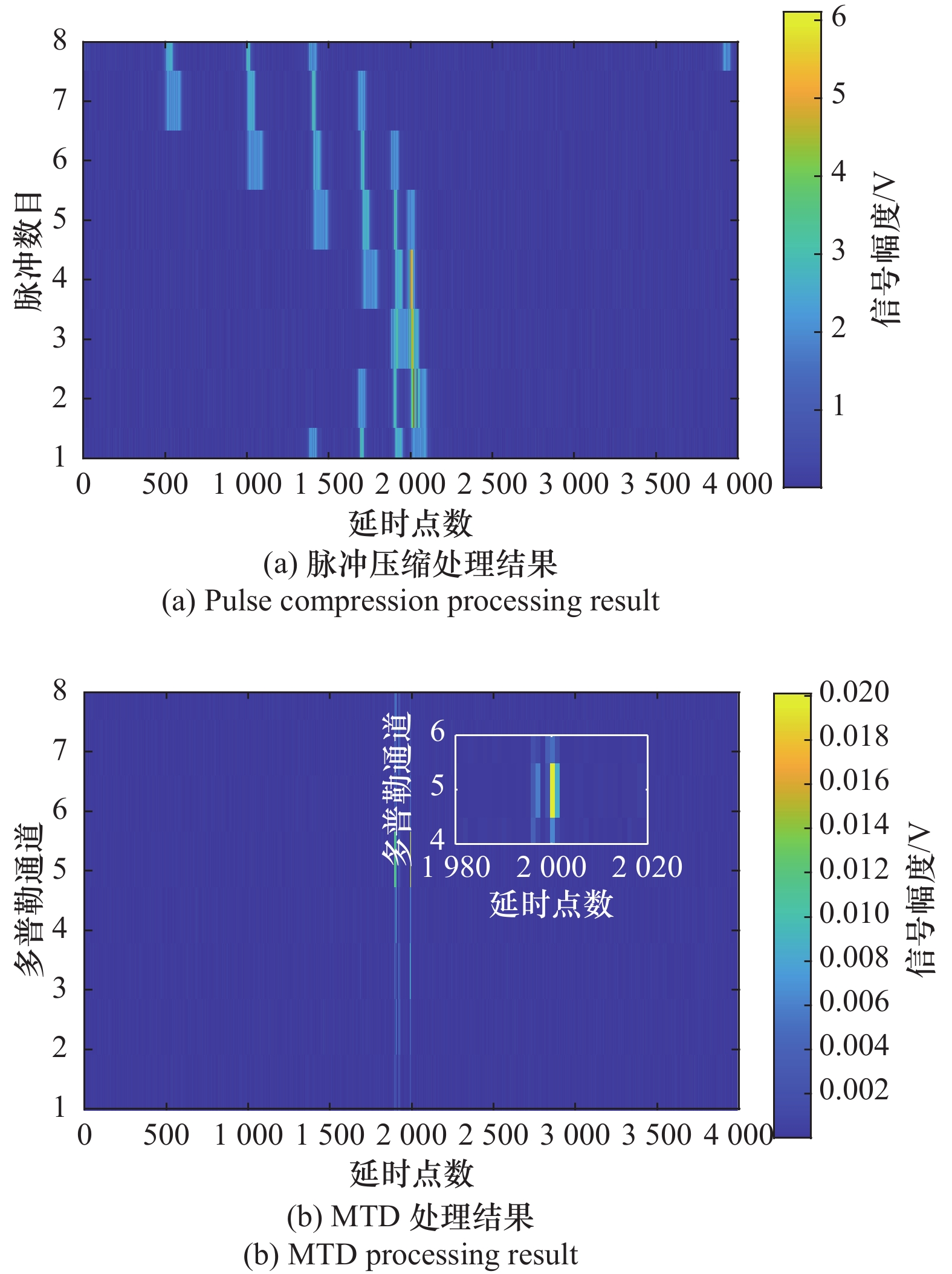

图13

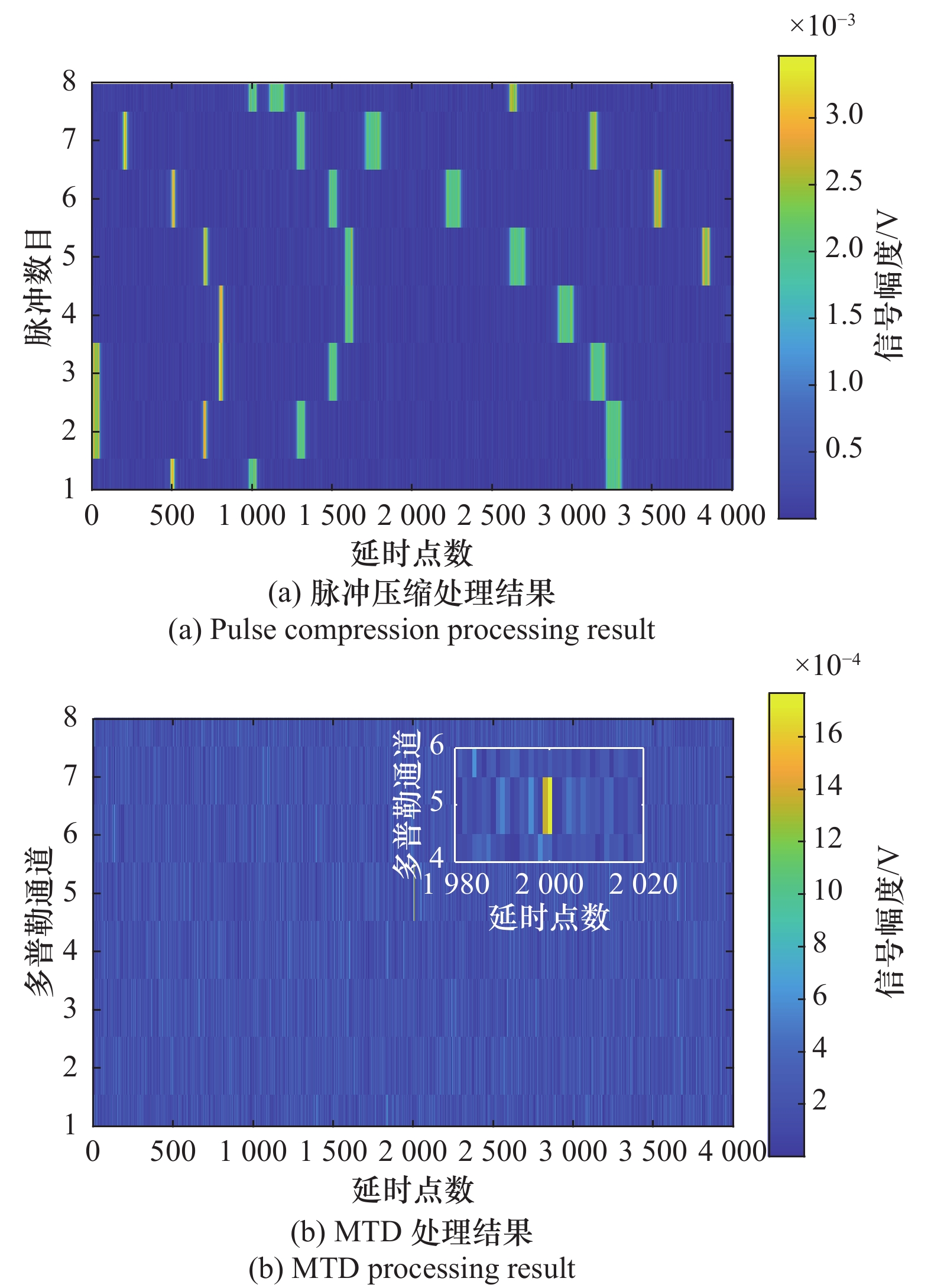

图14

参考文献 30

5	CHENG G J, FU X J, MA S S, et al. Anti-jamming technology of dense co-frequency synchronous range false targets[C]// Proc. of the CIE International Conference on Radar, 2016.
6	SARTO M S, D'ALOIA A G, TAMBURRANO A, et al. Synthesis, modeling, and experimental characterization of graphite nanoplatelet-based composites for EMC applications[J]. IEEE Trans. on Electromagnetic Compatibility, 2012, 54 (1): 17- 27. doi: 10.1109/TEMC.2011.2178853
7	LEI M , ZHANG J F. Study on anti-jamming frequency selection in radar netting[C]// Proc. of the 2nd IEEE International Conference on Computer and Communications, 2016: 1781−1784.
8	AXELSSON S R J. Analysis of random step frequency radar and comparison with experiments[J]. IEEE Trans. on Geoscience and Remote Sensing, 2007, 45 (4): 890- 904. doi: 10.1109/TGRS.2006.888865
9	XIAO S J, HE F M, LI B, et al. The influence of signal incident angle on generalized sidelobe cancellation system[J]. Journal of Physics: Conference Series, 2021, 1971 (1): 012080. doi: 10.1088/1742-6596/1971/1/012080
10	SHNIDMAN D A. SHNIDMAN N R. Sidelobe blanking with expanded models[J]. IEEE Trans. on Aerospace and Electronic Systems, 2011, 47 (2): 790- 805. doi: 10.1109/TAES.2011.5751226
11	BLUNT S D, MOKOLE E L. Overview of radar waveform diversity[J]. IEEE Aerospace and Electronic Systems Magazine, 2016, 31 (11): 2- 42. doi: 10.1109/MAES.2016.160071
12	MICHAL M. Waveform design for fast clutter cancellation in noise radars[C]// Proc. of the 11th European Radar Conference, 2014: 61−64.
13	ABDALLA A, WANG W Q, YUAN Z, et al. Subarray-based FDA radar to counteract deceptive ECM signals[J]. EURASIP Journal on Advances in Signal Processing, 2016, 2016 (1): 104. doi: 10.1186/s13634-016-0403-6
14	王健, 王宝, 万华. 脉冲多普勒雷达同频干扰研究[J]. 雷达科学与技术, 2014, 12 (4): 441- 445. doi: 10.3969/j.issn.1672-2337.2014.04.018
	WANG J, WANG B, WAN H. Study on co-frequency interference between pulse Doppler radars[J]. Radar Science and Technology, 2014, 12 (4): 441- 445. doi: 10.3969/j.issn.1672-2337.2014.04.018
15	HUGHES E. Piecewise cumulative Weibull modelling of radar cross section[C]//Proc. of the International Conference on Radar Systems, 2017.
16	WANG J F, LIU H B, NIU Y. Design and implementation of modulated stepped frequency radar signal[C]//Proc. of the IET International Radar Conference, 2013.
17	陈奕翰. 雷达抗同频干扰的智能优化算法研究[D]. 无锡: 江南大学, 2022.
	CHEN Y H. Research on intelligent optimization algorithm of radar anti-co-frequency interference[D]. Wuxi: Jiangnan University, 2022.
18	DENG W, WANG X, HUANG Z T. A data-driven target signal extraction method based on multimodal clues for co-channel interference cancellation[J]. IEEE Internet of Things Journal, 2025, 12 (7): 9127- 9141.
19	DENG W, WANG X, HUANG Z T. Co-channel multiuser modulation classification using data-driven blind signal separation[J]. IEEE Internet of Things Journal, 2024, 11 (8): 14829- 14843. doi: 10.1109/JIOT.2023.3345023
20	WANG F, WEI S, JIANG D F. Co-frequency interference suppression for aerostat passive bistatic radar[J]. Chinese Journal of Electronics, 2018, 27 (3): 658- 666. doi: 10.1049/cje.2017.08.017
21	ZHANG S Z, SHI W J. An ultrasonic time-of-flight extraction algorithm based on blind source separation in the presence of non-Gaussian co-frequency noise[C]//Proc. of the 18th Symposium on Piezoelectricity, Acoustic Waves, and Device Applications, 2024: 374−379.
22	FU W H, ZHOU Y F, ZHAO W S. Single-channel blind source separation algorithm for energy differential mixed signals[J]. Systems Engineering and Electronics, 2023, 45 (10): 3302- 3311.
23	HOU X Q, GAO Y. Single-channel blind separation of co-frequency signals based on convolutional network[J]. Digital Signal Processing, 2022, 129, 103654. doi: 10.1016/j.dsp.2022.103654
24	NASERI M, POORTER E D, MOERMAN I, et al. Blind co-channel interference cancellation using fast Fourier convolutions[C]// Proc. of the IEEE 99th Vehicular Technology Conference, 2024.
25	CUI Z P, LI Y X, GE S H, et al. Adaptive antenna array based non-cooperative co-channel interference cancellation system for ultrashort wave radios and non-ideality analysis[J]. IEEE Trans. on Vehicular Technology, 2024, 73 (1): 678- 690. doi: 10.1109/TVT.2023.3304307
26	夏栋, 张凯旋, 丁友宝, 等. 基于相位编码波形捷变和CFAR技术的抗同频干扰[J]. 系统工程与电子技术, 2022, 44 (4): 1210- 1219. doi: 10.12305/j.issn.1001-506X.2022.04.18
	XIA D, ZHANG K X, DING Y B, et al. Co-channel interference resistance based on agile wave form of phase encode and CFAR technology[J]. Systems Engineering and Electronics, 2022, 44 (4): 1210- 1219. doi: 10.12305/j.issn.1001-506X.2022.04.18
1	袁建军, 赵玉丽. 同频干扰产生机理及特征分析[J]. 计算机与数字工程, 2015, 43 (5): 812- 816. doi: 10.3969/j.issn1672-9722.2015.05.015
	YUAN J J, ZHAO Y L. Mechanism and characteristics of co-channel interference[J]. Computer & Digital Engineering, 2015, 43 (5): 812- 816. doi: 10.3969/j.issn1672-9722.2015.05.015
2	JOHNSTON S L. Radar electronic counter-countermeasures[J]. IEEE Trans. on Aerospace and Electronic Systems, 1978, AES-14 (1): 109- 117.
3	SUN Q, PENG F, LIU H L, et al. Research on the evaluation mechanism of spaceborne SAR system to ground-based radar co-frequency interference[C]// Proc. of the 3rd China International SAR Symposium, 2022.
4	陈伯孝. 现代雷达系统分析与设计[M]. 西安: 西安电子科技大学出版社, 2012.
	CHEN B X. Modern radar system analysis and design[M]. Xi’an: Xidian University Press, 2012.
27	KONG L J, LUO M F. Co-frequency interference suppression algorithm via maximum signal minus interference level[J]. Progress in Electromagnetics Research, 2010, 104, 183- 199. doi: 10.2528/PIER10032307
28	常艳, 付涛, 邵亮. 一种抗同频异步干扰方法的研究与实现[J]. 火力与指挥控制, 2019, 44 (10): 75- 79. doi: 10.3969/j.issn.1002-0640.2019.10.015
	CHANG Y, FU T, SHAO L. The research and realization of anti-asynchronous interference method[J]. Fire Control & Command Control, 2019, 44 (10): 75- 79. doi: 10.3969/j.issn.1002-0640.2019.10.015
29	KUMAR A, PAI P, VADIPILLA K, et al. A compact, programmable X-Band multi-channel RF receiver with high dynamic range for Doppler weather radar system[C]// Proc. of the International Radar Symposium, 2024: 173−178.
30	SARKAR U D, KAUNDINYA S, TAYLOR L, et al. Decompression-based receiver design for radar ice sounding applications[C]// Proc. of the IEEE International Geoscience and Remote Sensing Symposium, 2023: 211−214.

参数	参数值
虚警概率	10⁻⁷
保护单元	50
参考单元	10
脉冲数	8
相关脉冲数目	6

参数	参数值
信噪比/dB	[−20:1:0]
带宽/MHz	1
时宽/μs	50
初始时延	2000
PRT/ms	[2:0.05:2.35]

信号类别	信噪比/dB	带宽/MHz	时宽/μs	初始时延点数	PRT/ms
目标信号	[−20:1:0]	1	50	2000	[2:0.05:2.35]
干扰信号	[−20:1:20]	1	100	2000	2

信号类别	信噪比/dB	带宽/MHz	时宽/μs	初始时延点数	PRT/ms
目标信号	[−20:1:0]	1	50	2000	[2:0.05:2.35]
干扰信号1	20	1	100	2000	2
干扰信号2	20	1	75	1900	2.05
干扰信号3	20	0.75	50	1700	2.1
干扰信号4	20	0.5	50	1400	2.15
