基于聚类算法的星载ADS-B波束自适应调整方法

doi:10.12305/j.issn.1001-506X.2025.05.30

摘要/Abstract

摘要：

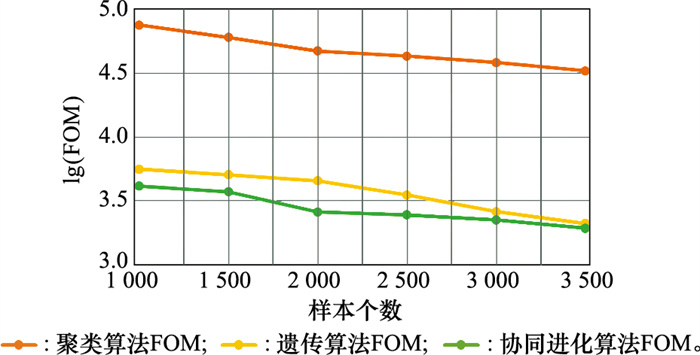

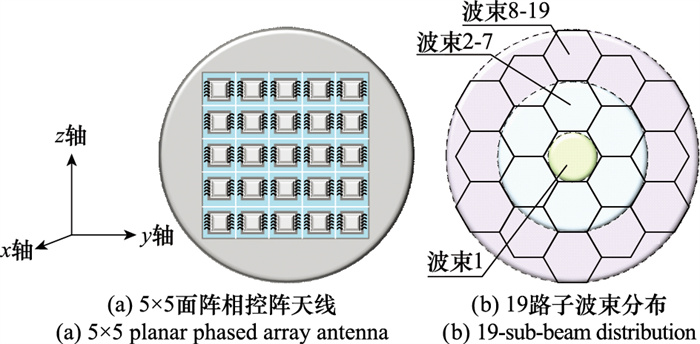

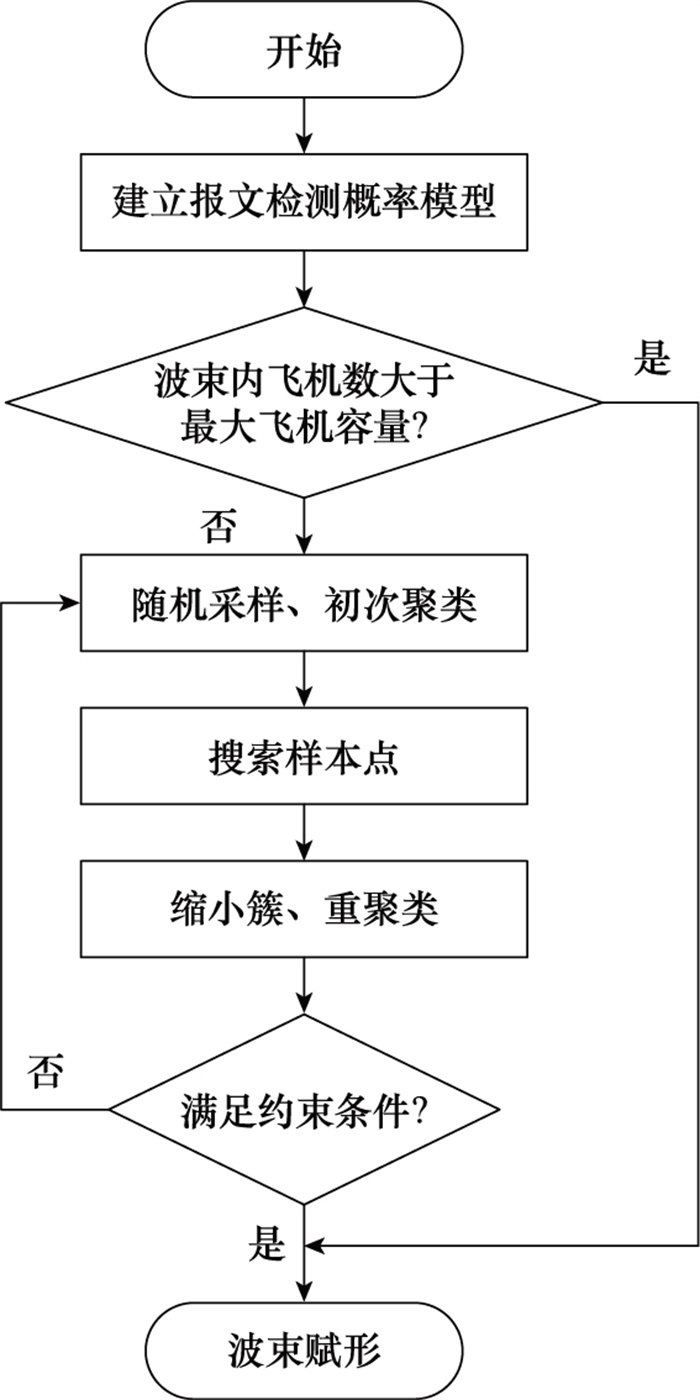

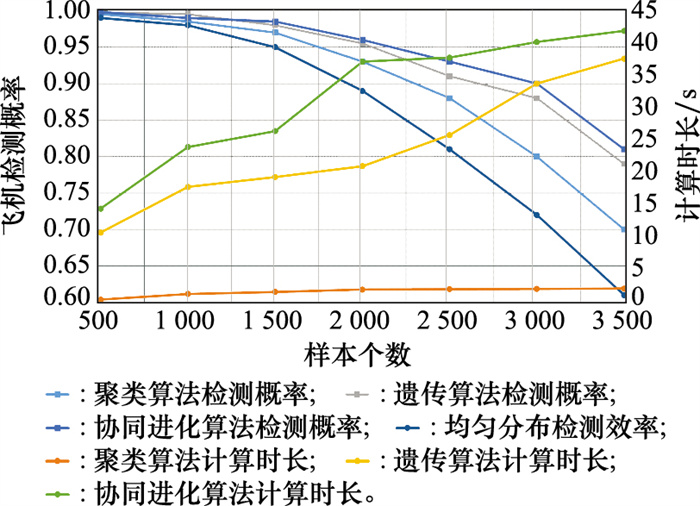

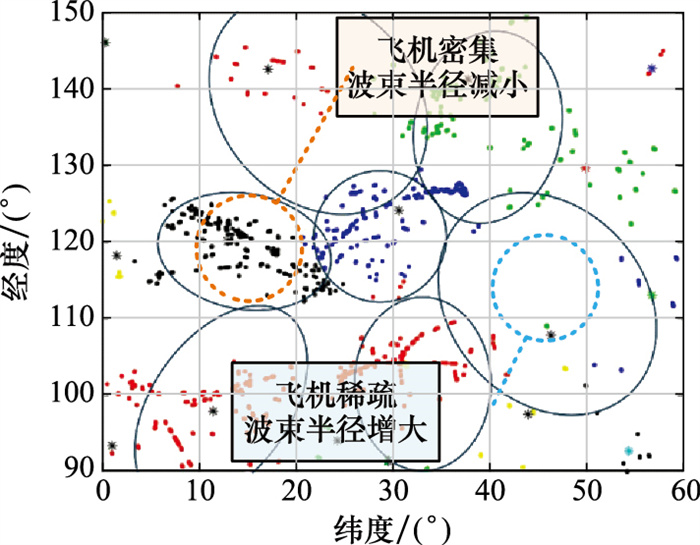

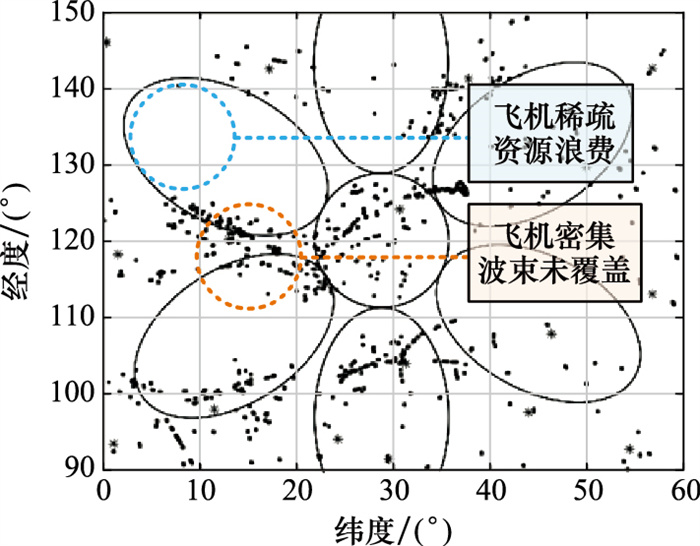

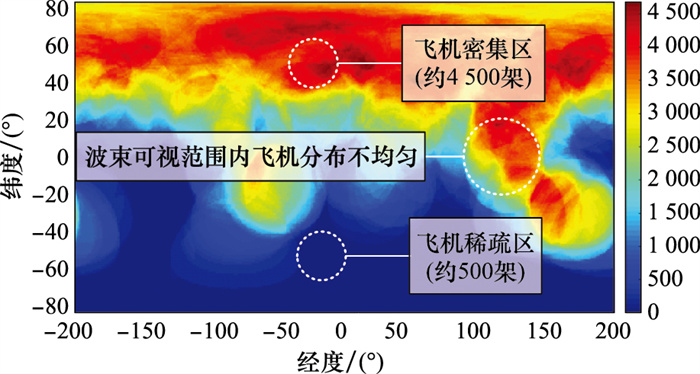

星载广播式自动相关监视(automatic dependent surveillance broadcast, ADS-B)技术有效地解决了地面基站无法覆盖全球空域的问题, 但仍面临星地传播距离远、损耗大、波束覆盖目标多、信号冲突严重等挑战。针对部分子波束内信号冲突严重、飞机漏检概率高的现象, 设计25阵元19子波束均匀分布的数字相控阵天线, 提出基于聚类算法的子波束优化方法。首先对样本进行基于代表点聚类, 再依据结果对波束指向和覆盖范围(或者覆盖半径)非线性优化, 以期降低信号冲突提高飞机检测概率。仿真结果表明, 飞机检测概率提高9%~13%, 比现有研究算法计算时长缩短87%~95%, 波束自适应算法品质因数提高85%~94%。

Abstract:

Satellite-based automatic dependent surveillance broadcast (ADS-B) has effectively solved the problem that terrestrial-based stations cannot cover the global airspace, but it still faces challenges such as long satellite-ground propagation distance, large attenuation, multiple beam coverage targets, and serious signal conflicts. A digital phased array antenna with 25 elements and 19 sub-beams evenly distributed is designed to solve the problem of serious signal conflict and high probability of aircraft missing detection. First, clustering using representatives is performed on the samples, and then nonlinear optimization of beam direction and coverage area is performed according to the results, in order to reduce signal conflict and improve aircraft detection probability. The simulation results show that the detection probability of aircraft is increased by 9%-13%, the calculation time is decreased by 87%-95%, and the figure of merit is increased by 85%-94% compared with the existing research algorithm.

Key words: satellite-based automatic dependent surveillance broadcast (ADS-B), digital phased array multi-beam synthesis, adaptive beamforming, clustering algorithm

中图分类号:

向怡然, 李松亭, 陈利虎. 基于聚类算法的星载ADS-B波束自适应调整方法[J]. 系统工程与电子技术, 2025, 47(5): 1680-1686.

Yiran XIANG, Songting LI, Lihu CHEN. Adaptive beamforming adjustment method for satellite-based ADS-B based on clustering algorithm[J]. Systems Engineering and Electronics, 2025, 47(5): 1680-1686.

图/表 11

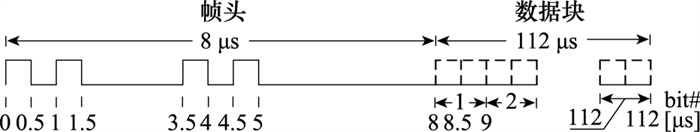

图1

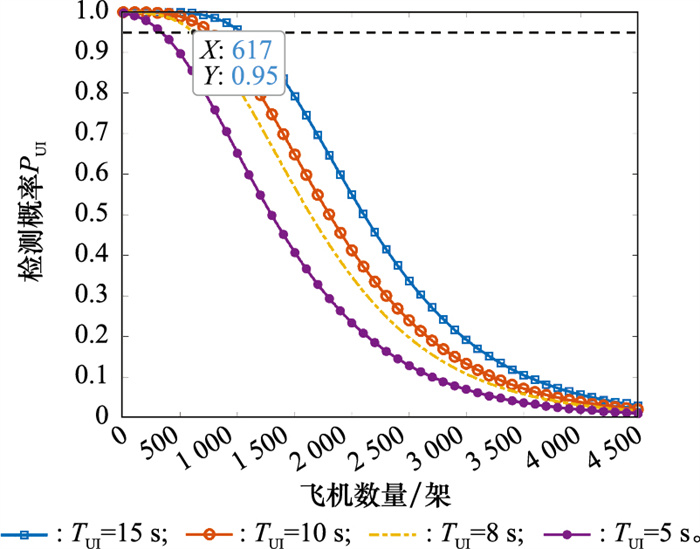

图2

图3

图4

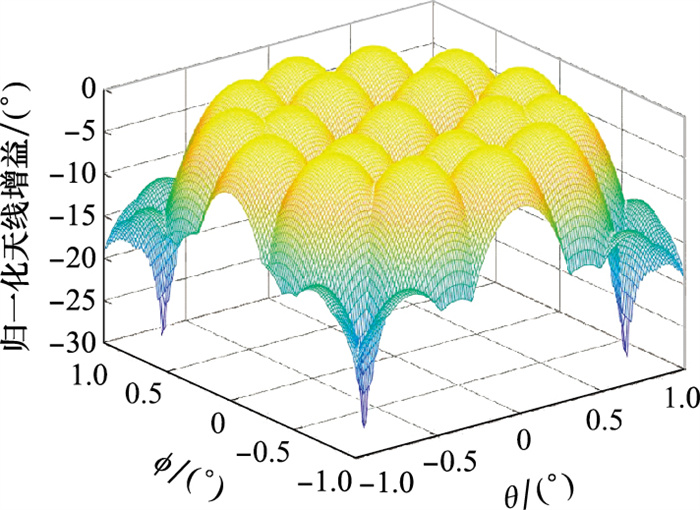

图5

表1

图6

图7

图8

图9

图10

参考文献 31

1	张学军,谭元晧,李雪缘,等.星基ADS-B系统及关键技术发展综述[J].北京航空航天大学学报,2022,48(9):1589-1604.
	ZHANGX J,TANY H,LIX Y,et al.Review on the development of space-based ADS-B system and key technologies[J].Journal of Beijing University of Aeronautics and Astronautics,2022,48(9):1589-1604.
2	TOMN,RICHARDR,YUVALB.Balloon-borne air traffic management (ATM) as a pre-cursor to space-based ATM[J].Acta Astronautica,2012,70,112-121. doi: 10.1016/j.actaastro.2011.06.013
3	HAVERKORTB,WOGNSENE R,HERMMANSH,et al.Mastering operational limitations of LEO satellites-the GomX-3 approach[J].Acta Astronautica,2018,151,726-735. doi: 10.1016/j.actaastro.2018.04.040
4	CHENL H,YUS Q,CHENQ,et al.Data reception analysis of ADS-B on board the Tian Tuo-3 satellite[J].Journal of Physics: Conference Series,2020,1438,012030. doi: 10.1088/1742-6596/1438/1/012030
5	LIS Y,CHENL H,CHENX Q,et al.Statistical analysis of the detection probability of the TianTuo-3 space-based AIS[J].Journal of Navigation,2018,71(2):467-481. doi: 10.1017/S0373463317000649
6	刘海涛,杨宁,李冬霞,等."北航空事卫星一号"监视载荷的统计性能[J].北京航空航天大学学报,2023,49(11):2883-2889.
	LIUH T,YANGN,LID X,et al.Statistical performance of the payload on "Kong Shi0-1"[J].Journal of Beijing University of Aeronautics and Astronautics,2023,49(11):2883-2889.
7	CHEN K, CHEN W W, JIA Z Q, et al. Design and implementation of electrical system for STU-2 cubesats[C]//Proc. of the International Astronautical Congress, 2016: 6587-6594.
8	GHULAMJ,RAMEEZA M,ELIASA,et al.Air traffic monitoring using optimized ADS-B CubeSat constellation[J].Astrodynamics,2024,8(1):189-208. doi: 10.1007/s42064-023-0189-x
9	MICHAEL A G, JOHN D, ANDY H. Aireon's initial on-orbit performance analysis of space-based ADS-B[C]//Proc. of the Integrated Communications, Navigation and Surveillance Confe-rence, 2017.
10	佚名."和德一号"卫星及"天行者"星座发布[J].卫星应用,2016(10):7.
	YIM.The "Hede 1" satellite and the "Skywalker" constellation were released[J].Satellite Application,2016(10):7.
11	余孙全. 星载ADS-B载荷关键技术研究[D]. 长沙: 国防科技大学, 2018.
	YU S Q. Research on the key technology of space-borned ADS-B[D]. Changsha: National University of Defense Technology, 2018.
12	YUS Q,CHENL H,LIS T,et al.Adaptive Multi-beamforming for space-based ADS-B[J].Journal of Navigation,2019,72(2):359-374. doi: 10.1017/S0373463318000735
13	余孙全, 陈利虎, 赵勇, 等. 一种星载ADS-B自适应波束形成方法及装置[P]. 中国: CN108418610B, 2018-08-17.
	YU S Q, CHEN L H, ZHAO Y, et al. The invention relates to a space-borne ADS-B adaptive beamforming method and device[P]. China: CN108418610B, 2018-08-17.
14	孙剑炜,王超,施庆展,等.基于遗传算法的相位调制波形智能优化[J].系统工程与电子技术,2022,44(3):722-729. doi: 10.12305/j.issn.1001-506X.2022.03.02
	SUNJ W,WANGC,SHIQ Z,et al.Intelligent optimization of phase modulation waveform based on genetic algorithm[J].Systems Engineering and Electronics,2022,44(3):722-729. doi: 10.12305/j.issn.1001-506X.2022.03.02
15	SAVIOS,ROBERTOD P.SOS: standard-compliant and packet loss tolerant security framework for ADS-B communications[J].IEEE Trans.on Dependable and Secure Computing,2021,18(4):1681-1698.
16	ZHENGX X,TANGB,PUH P.Research on channel optimization of ADS-B aviation target surveillance radar based on improved filtering algorithm[J].Complexity,2021,2021,9436589. doi: 10.1155/2021/9436589
17	LIX Y,ZHANGX J,TANY H,et al.Optimization of digital multi-beamforming for space-based ADS-B using distributed cooperative coevolution with an adaptive grouping strategy[J].Chinese Journal of Aeronautics,2023,36(10):391-408. doi: 10.1016/j.cja.2023.03.008
18	LIUH X,LIUF,ZHANGX J,et al.A formation reconfiguration algorithm for multi-UAVs based on distributed cooperative coevolutionary with an adaptive grouping strategy[J].Chinese Journal of Electronics,2020,29(5):841-851. doi: 10.1049/cje.2020.07.006
19	张学军, 谭元晧, 李雪缘. 一种基于协同进化的星基ADS-B多波束优化方法[P]. 中国: CN115795837A, 2023-03-14.
	ZHANG X J, TAN Y H, LI X Y. A multi-beam optimization method for space-based ADS-B based on coevolution[P]. China: CN115795837A, 2023-03-14.
20	RTCA DO-260C. Minimum operational performance standards for 1090 MHz extended squitter automatic dependent surveil-lance broadcast (ADS-B) and traffic information services broadcast (TIS-B)[S]. Washington D.C. : Radio Technical Commission for Aeronautics, 2013.
21	ALIB,OCHIENGW,ZAINUDINR.An analysis and model for automatic dependent surveillance broadcast (ADS-B) continuity[J].GPS Solutions,2017,21(4):1841-1854. doi: 10.1007/s10291-017-0657-y
22	CHENX,HED B,PENGC,et al.A secure and effective hierarchical identity-based signatare scheme for ADS-B systems[J].IEEE Trans.on Aerospare and Electronic Systems,2024,60(4):5157-5168. doi: 10.1109/TAES.2024.3386148
23	SUZ G,DENGQ A,HAOJ T.A study on the collision probability of satellite-based ADS-B messages based on homogeneous poisson process[J].International Journal of Aeronau-tical and Space Sciences,2020,21(3):845-857. doi: 10.1007/s42405-020-00251-0
24	WANGW Y,WUR B,LIANGJ L.ADS-B signal separation based on blind adaptive beamforming[J].IEEE Trans.on Vehicular Technology,2019,68(7):6547-6556. doi: 10.1109/TVT.2019.2914233
25	CHENL H,YUS Q,CHENQ,et al.5S: design and in-orbit demonstration of a multi-functional integrated satellite-based internet of things payload[J].IEEE Internet of Things Journal,2023,11(7):12864-12873.
26	POPESCUO.Power budgets for CubeSat radios to support ground communications and inter-satellite links[J].IEEE Access,2017,5,12618-12625. doi: 10.1109/ACCESS.2017.2721948
27	RØSTET,YANGK,WENC Y,et al.Satellite to buoy IoT communications in the Arctic Ocean[J].Frontiers in Marine Science,2023,10,1153798. doi: 10.3389/fmars.2023.1153798
28	YUS Q,CHENL H,FANC G,et al.Integrated antenna and receiver system with self-calibrating digital beamforming for space-based ADS-B[J].Acta Astronautica,2020,170,480-486. doi: 10.1016/j.actaastro.2020.02.001
29	MAOR Q,LINY,FUY Q,et al.Digital beamforming and receiving array research based on rydberg field probes[J].IEEE Trans.on Antennas and Propagation,2024,72(2):2025-2029. doi: 10.1109/TAP.2023.3327812
30	ZHU X F, LI X F, GONG X F. Performance analysis of ADS-B receiving system based on LEO satellite constellation[C]//Proc. of the 21st International Symposium on Communications and Information Technologies, 2022: 39-42.
31	KANTERSN C,GLAZUNOVA A.Stochastic array antenna figures-of-merit for quality-of-service-enhanced massive MIMO[J].Electronics Letters,2024,60(2):e13064. doi: 10.1049/ell2.13064

技术指标	参数值
发射机发射功率P_t/dBm	54
发射天线增益G_t/dBm	0
接收天线增益G_r/dBm	14
接收馈线损耗L_r/dB	1
载波频率f/MHz	1 090
轨道高度d/km	780
天线仰角θ/(°)(卫星波束可视范围)	5~90(θ_min~θ_max)
传输距离d/km(波束中心~波束边缘)	780~2 819(d_min~d_max)
自由空间链路衰减L_f/dB	151~162
接收机接收功率P_r/dBm	－84~－95
接收机噪声系数NF/dB	2.5
滤波器插损INL/dB	2
解调损失Loss/dB	2
接收机灵敏度P_s/dBm	-101.5
链路余量/dBm	6.5~17.5
