空间群目标ISAR成像与检测方法

doi:10.12305/j.issn.1001-506X.2025.06.13

摘要/Abstract

摘要：

应用窄带逆合成孔径雷达(inverse synthetic aperture radar, ISAR)成像处理方法有助于空间群目标的精确检测。然而, 由于群目标运动状态存在差异, 成像结果可能存在较严重的模糊, 进而限制对群内目标检测的能力。为此, 针对空间群目标提出一种基于ISAR处理架构的场景成像及目标检测方法。首先, 基于运动特征一致性关联, 从不同距离单元提取出Chirplet分量, 确保目标与分量间的对应关系。然后, 通过建立代价函数实现逐个目标解速度模糊, 获得目标运动参数有效估计。最后, 数值仿真的实验结果验证了所提方法的有效性以及对群目标检测性能的提升效果。

关键词: 窄带逆合成孔径雷达成像, 群目标检测, Chirplet分量关联, 速度模糊, 参数化平动补偿

Abstract:

The application of narrowband inverse synthetic aperture radar (ISAR)imaging processing methods contributes to the precise detection of space group target. However, due to variations in the motion states of group target, the imaging results may exhibit significant blurring, thereby limiting the capability to detect targets within the group. To address the above problem, a scenario imaging and target detection method for space group target based on ISAR processing framework is presented. Initially, Chirplet components extracted from different range cells based on motion feature consistency association ensure the correspondence between the target and its components. Subsequently, by establishing a cost function, individual target velocity deblurring is achieved, providing effective estimation of target motion parameters. Finally, experimental results from numerical simulations prove the effectiveness of the proposed method and its enhancement for group target detection performance.

Key words: narrowband inverse synthetic aperture radar (ISAR) imaging, group target detection, Chirplet component correlation, velocity blurring, parameterized motion compensation

中图分类号:

TN95

贾竣皓, 陈学斌, 李璋峰, 叶春茂. 空间群目标ISAR成像与检测方法[J]. 系统工程与电子技术, 2025, 47(6): 1843-1854.

Junhao JIA, Xuebin CHEN, Zhangfeng LI, Chunmao YE. ISAR imaging and detection method for space group target[J]. Systems Engineering and Electronics, 2025, 47(6): 1843-1854.

图/表 13

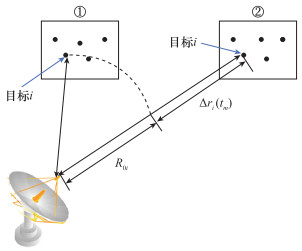

图1

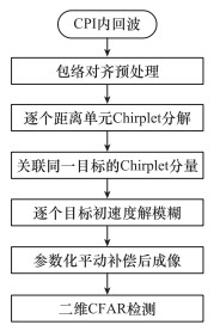

图2

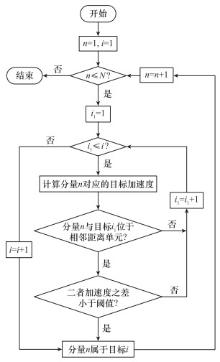

图3

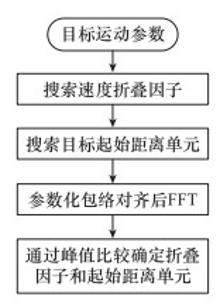

图4

表1

图5

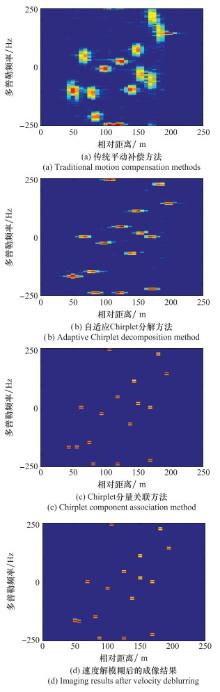

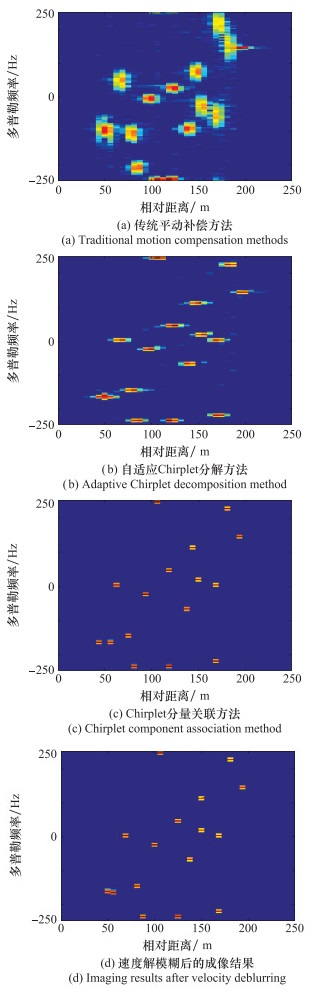

图6

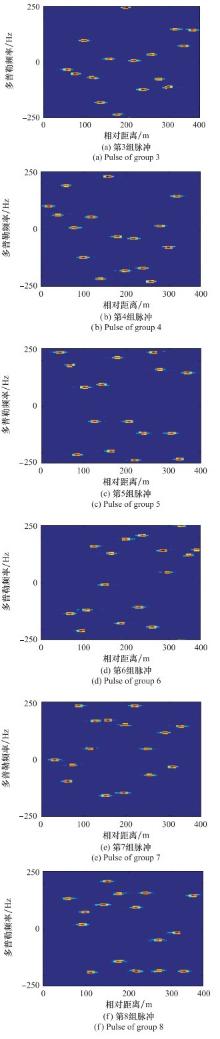

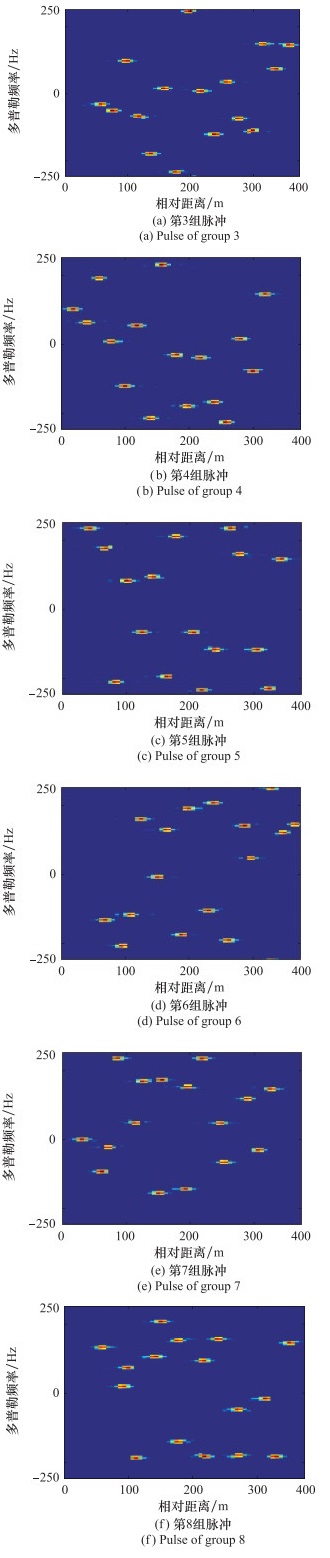

图7

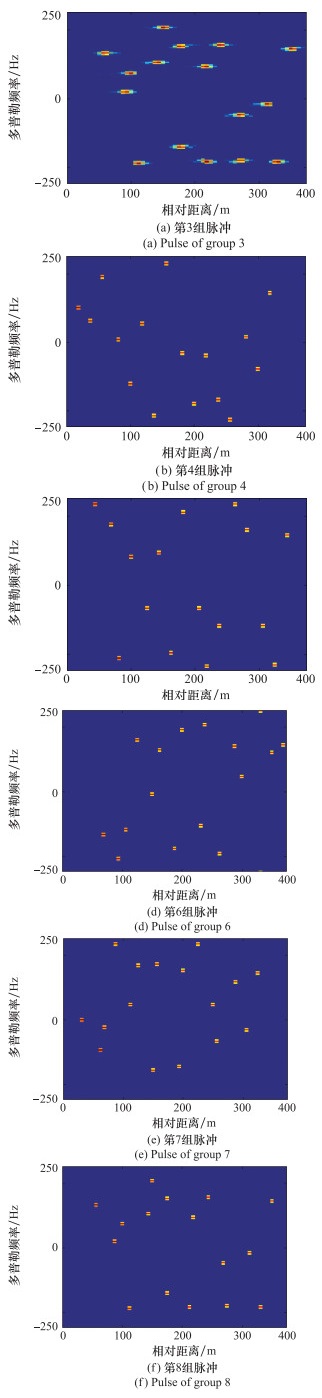

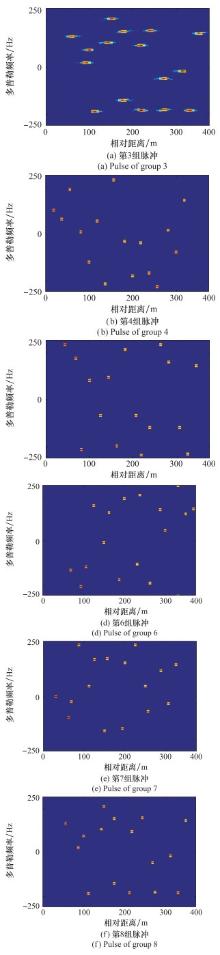

图8

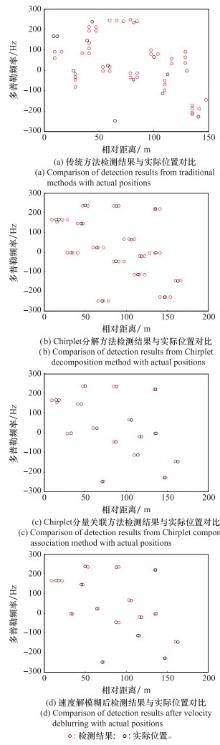

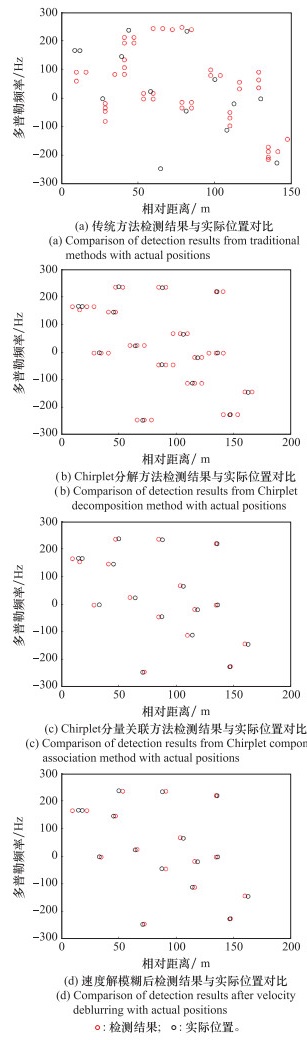

图9

表2

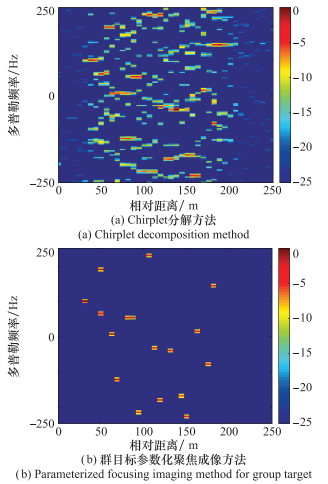

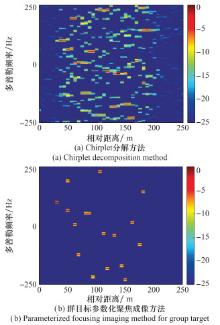

图10

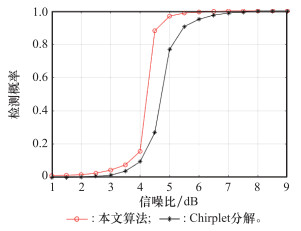

图11

参考文献 31

1	LI G C , LI G , YOU H . Distributed multiple resolvable group targets tracking based on hypergraph matching[J]. IEEE Sensors Journal, 2023, 23 (9): 9669- 9676. doi: 10.1109/JSEN.2023.3260866
2	SUN X Y , LI S X , GU P F , et al. Estimating number of group targets arranged in linear array via forward-backward matrix pencil method[J]. IET Radar, Sonar & Navigation, 2023, 17 (4): 642- 651.
3	ZHANG Y S , SONG Y P , ZHANG W P , et al. A discrete hough transform-based hierarchical statistics detection method for linearly distributed group targets in SAR images[J]. IEEE Sensors Journal, 2023, 23 (17): 19606- 19622. doi: 10.1109/JSEN.2023.3294225
4	HUANG B , ORLANDO D , WANG W Q , et al. Adaptive multiple targets detection for FDA-MIMO radar with Gaussian clutter[J]. Signal Processing, 2023, 205, 108893. doi: 10.1016/j.sigpro.2022.108893
5	GUO Y D, GONG J. Group targets tracking using maximum entropy fuzzy based on fire-fly algorithm and particle filter[C]//Proc. of the 7th International Forum on Electrical Engineering and Automation, 2020: 937-942.
6	靳俊峰, 曾怡, 廖圣龙. 弹道导弹群目标多普勒速度估计算法[J]. 雷达与对抗, 2019, 39 (1): 30-33, 38.
	JIN J F , ZENG Y , LIAO S L . Doppler velocity estimation algorithm for ballistic missile group targets[J]. Radar and Confrontation, 2019, 39 (1): 30-33, 38.
7	AN Q , YE C M , LU Y B , et al. A time-varying angle extraction method for refined proximity group targets tracking[J]. IET Signal Processing, 2023, 17 (4): e12213. doi: 10.1049/sil2.12213
8	黄强, 俞建国, 时鹏飞. 基于自适应压缩感知的复杂弹道群目标跟踪技术[J]. 系统工程与电子技术, 2020, 42 (8): 1710- 1717.
	HUANG Q , YU J G , SHI P F . Complex ballistic group targets tracking based on adaptive compressed sensing[J]. Systems Engineering and Electronics, 2020, 42 (8): 1710- 1717.
9	LIU F K , HUANG D R , GUO X R , et al. Unambiguous ISAR imaging method for complex maneuvering group targets[J]. Remote Sensing, 2022, 14 (11): 2554. doi: 10.3390/rs14112554
10	HUANG D R , ZHANG L , XING M D , et al. Doppler ambiguity removal and ISAR imaging of group targets with sparse decomposition[J]. IET Radar, Sonar & Navigation, 2016, 10 (9): 1711- 1719.
11	JIN K , LI G Q , LAI T , et al. A novel long-time coherent integration algorithm for Doppler-ambiguous radar maneuvering target detection[J]. IEEE Sensors Journal, 2020, 20 (16): 9394- 9407. doi: 10.1109/JSEN.2020.2988583
12	SUN Z , LI X L , CUI G L , et al. Hypersonic target detection and velocity estimation in coherent radar system based on scaled radon fourier transform[J]. IEEE Trans.on Vehicular Technology, 2020, 69 (6): 6525- 6540. doi: 10.1109/TVT.2020.2988990
13	ZHENG J B , ZHU K L , NIU Z Y , et al. Generalized Dechirp-Keystone transform for radar high-speed maneuvering target detection and localization[J]. Remote Sensing, 2021, 13 (17): 3367. doi: 10.3390/rs13173367
14	FU M Z , SUN H X , DENG Z M , et al. A novel method for fast detection of high-speed targets[J]. Signal Processing, 2021, 182, 107938. doi: 10.1016/j.sigpro.2020.107938
15	NIU Z Y , ZHENG J B , SU T , et al. Radar high-speed target detection based on improved minimalized windowed RFT[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2021, 14, 870- 886. doi: 10.1109/JSTARS.2020.3037089
16	YU W C , SU W M , GU H , et al. Maneuvering target detection method based on Keystone transform and Radon local mapping sparse-modified LYU's distribution[J]. Signal, Image and Video Processing, 2023, 17 (6): 2771- 2778. doi: 10.1007/s11760-023-02494-2
17	REN K , DU L , WANG B S , et al. Statistical compressive sensing and feature extraction of time-frequency spectrum from narrowband radar[J]. IEEE Trans.on Aerospace and Electronic Systems, 2020, 56 (1): 326- 342. doi: 10.1109/TAES.2019.2914518
18	REN M Q, TIAN Y H. Radar signal cognition based time-frequency transform and high order spectra analysis[C]//Proc. of the IEEE International Conference on Signal Processing, Communications and Computing, 2017.
19	JIN K , LAI T , ZHU S L , et al. Coherent detection and parameter estimation for radar high-speed maneuvering target based on FAF-LVD[J]. Circuits, Systems, and Signal Processing, 2020, 39 (5): 2600- 2622. doi: 10.1007/s00034-019-01280-1
20	CHEN X L , GUAN J , LIU N B , et al. Maneuvering target detection via radon-fractional Fourier transform-based long-time coherent integration[J]. IEEE Trans.on Signal Processing, 2014, 62 (4): 939- 953. doi: 10.1109/TSP.2013.2297682
21	CHEN X L , GUAN J , LIU N B , et al. Detection of a low observable sea-surface target with micromotion via the radon-linear canonical transform[J]. IEEE Geoscience and Remote Sensing Letters, 2014, 11 (7): 1225- 1229. doi: 10.1109/LGRS.2013.2290024
22	TIAN M M , LIAO G S , ZHU S Q , et al. A novel method for high-speed maneuvering target detection and motion parameters estimation[J]. Multidimensional Systems and Signal Processing, 2020, 31 (4): 1625- 1647. doi: 10.1007/s11045-020-00724-1
23	翟心蝶, 杨刚, 廉杰. 基于二阶Keystone的微弱运动目标检测[J]. 现代防御技术, 2021, 49 (3): 105- 114.
	ZHAI X D , YANG G , LIAN J . Weak moving target detection based on second-order Keystone transform[J]. Modern Defence Technology, 2021, 49 (3): 105- 114.
24	ZHU S Q , LIAO G S , YANG D , et al. A new method for radar high-speed maneuvering weak target detection and imaging[J]. IEEE Geoscience and Remote Sensing Letters, 2014, 11 (7): 1175- 1179. doi: 10.1109/LGRS.2013.2283887
25	TIAN J , CUI W , SHEN Q , et al. High-speed maneuvering target detection approach based on joint RFT and Keystone transform[J]. Science China Information Sciences, 2013, 56 (6): 1- 13.
26	全英汇, 高霞, 沙明辉, 等. 基于Ransac算法的捷变频联合正交频分复用雷达高速多目标参数估计[J]. 电子与信息学报, 2021, 43 (7): 1970- 1977.
	QUAN Y H , GAO X , SHA M H , et al. High speed multi-target parameter estimation for FA-OFDM radar based on Ransac algorithm[J]. Journal of Electronics and Information Technology, 2021, 43 (7): 1970- 1977.
27	全英汇, 高霞, 沙明辉, 等. 基于期望最大化算法的捷变频联合正交频分复用雷达高速多目标参数估计[J]. 电子与信息学报, 2020, 42 (7): 1611- 1618.
	QUAN Y H , GAO X , SHA M H , et al. High speed multi-target parameter estimation for FA-OFDM radar based on expectation maximization algorithm[J]. Journal of Electronics and Information Technology, 2020, 42 (7): 1611- 1618.
28	ZHAO J , ZHANG M , WANG X , et al. Parameters estimation and ISAR imaging of multiple maneuvering targets based on an order reduction method for cubic chirps[J]. Journal of Electromagnetic Waves and Applications, 2017, 31 (16): 1658- 1675. doi: 10.1080/09205071.2017.1359682
29	王勇, 姜义成. 基于自适应Chirplet分解的舰船目标ISAR成像[J]. 电子与信息学报, 2006, 28 (6): 982- 984.
	WANG Y , JIANG Y C . The ISAR imaging of ships based on adaptive Chirplet decomposition[J]. Journal of Electronics and Information Technology, 2006, 28 (6): 982- 984.
30	LIU Y, WANG L, BI G A, et al. Novel ISAR range alignment via minimizing the entropy of the sum range profile[C]//Proc. of the 21st International Radar Symposium, 2020: 135-138.
31	陈学斌, 叶春茂, 张彦, 等. 基于相位分析与散射点关联的速度估计方法[J]. 系统工程与电子技术, 2021, 43 (12): 3429- 3438. doi: 10.12305/j.issn.1001-506X.2021.12.03
	CHEN X B , YE C M , ZHANG Y , et al. Velocity estimation method based on phase analysis and scatterers association[J]. Systems Engineering and Electronics, 2021, 43 (12): 3429- 3438. doi: 10.12305/j.issn.1001-506X.2021.12.03

目标序号	初始距离/km	径向速度/(m/s)	径向加速度/(m/s²)	目标序号	初始距离/km	径向速度/(m/s)	径向加速度/(m/s²)
1	180+0.08	1 800	0	9	180	1 800-11.25	-2
2	180+0.07	1 800+7.5	-16	10	180-0.01	1 800+3.75	2
3	180+0.06	1 800+10	-14	11	180-0.02	1 800-2.25	4
4	180+0.05	1 800-10	-12	12	180-0.03	1 800+6.25	6
5	180+0.04	1 800+5	-10	13	180-0.04	1 800-3.75	8
6	180+0.03	1 800-5	-8	14	180-0.05	1 800+1.25	10
7	180+0.02	1 800-8.75	-6	15	180-0.06	1 800+11.25	12
8	180+0.01	1 800+8.75	-4	16	180-0.07	1 800-1.25	14

脉冲串序号	平均距离误差/m	平均多普勒频率误差/Hz	脉冲串序号	平均距离误差/m	平均多普勒频率误差/Hz
1	2.58	1.52	9	2.54	1.32
2	2.23	1.06	10	2.80	3.62
3	1.93	0.87	11	1.92	1.95
4	1.42	1.11	12	2.63	2.56
5	2.37	1.39	13	2.86	4.99
6	1.61	1.12	14	4.44	2.55
7	1.92	0.94	15	3.57	1.90
8	1.78	1.27	16	5.33	4.31
