垂直阵分集束控影区探测信号发射策略

doi:10.12305/j.issn.1001-506X.2025.08.04

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (8): 2454-2462.doi: 10.12305/j.issn.1001-506X.2025.08.04

• 电子技术 • 上一篇

垂直阵分集束控影区探测信号发射策略

蓝舒尧¹^,²^,³(), 李宇¹^,²^,*(), 张春华¹^,², 迟骋¹^,², 陈春辉¹^,²^,³

1. 中国科学院声学研究所，北京 100190
2. 中国科学院水下信息技术实验室，北京 100190
3. 中国科学院大学，北京 100049

收稿日期:2024-05-13 出版日期:2025-08-25 发布日期:2025-09-04
通讯作者: 李宇 E-mail:lanshuyao@mail.ioa.ac.cn;ly@mail.ioa.ac.cn
作者简介:蓝舒尧（1998—），男，博士研究生，主要研究方向为水声信号处理
张春华（1962—），男，研究员，博士，主要研究方向为水声信号处理
迟　骋（1989—），男，研究员，博士，主要研究方向为水声信号处理、水声成像、水下通信、多普勒流速测量、智能感知
陈春辉（1998—），男，博士研究生，主要研究方向为水声信号处理
基金资助:
国家自然科学基金（E2111301014）资助课题

Diversity shading vertical array signal transmission strategy for shadow zone detection

Shuyao LAN¹^,²^,³(), Yu LI¹^,²^,*(), Chunhua ZHANG¹^,², Cheng CHI¹^,², Chunhui CHEN¹^,²^,³

1. Institute of Acoustics，Chinese Academy of Sciences，Beijing 100190，China
2. Key Laboratory of Science and Technology on Advanced Underwater Acoustic Signal Processing，Chinese Academy of Sciences，Beijing 100190，China
3. University of Chinese Academy of Sciences，Beijing 100049，China

Received:2024-05-13 Online:2025-08-25 Published:2025-09-04
Contact: Yu LI E-mail:lanshuyao@mail.ioa.ac.cn;ly@mail.ioa.ac.cn

摘要/Abstract

摘要：

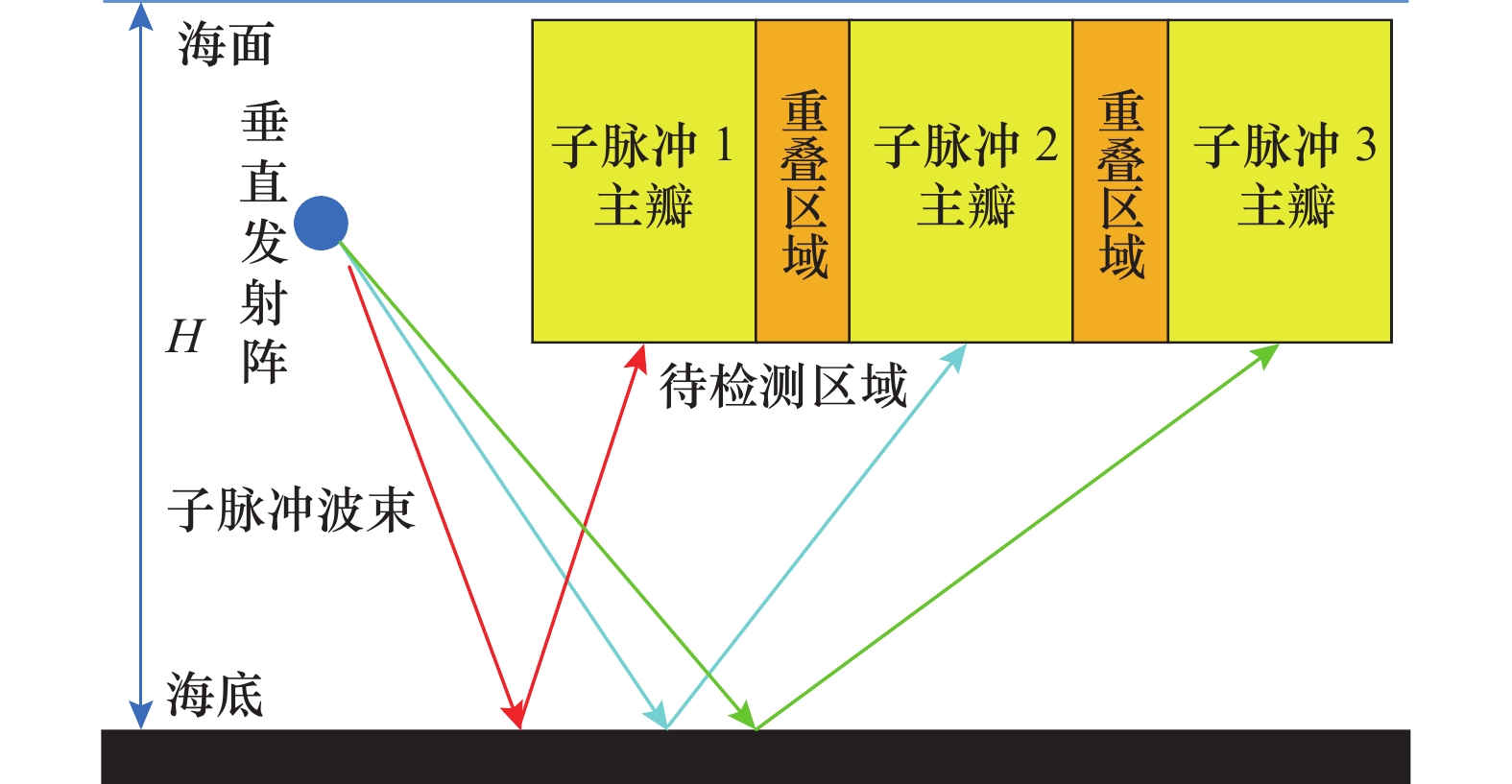

针对使用垂直发射阵指向性设计的方式进行影区探测时，传统束控方法波束主瓣随阵元数增加变窄，无法覆盖整个影区的问题，本文提出一种分集束控的信号发射策略，该策略下发射信号波形被设计为多个长度相等的子脉冲，并通过相位控制令不同子脉冲对准不同角度形成波束以照亮整个影区。文章给出了使发射增益最大化的参数选取方法，并提出通过多模板联合匹配滤波的方式，合理选择副本信号以达到将各子脉冲的能量叠加以达到进一步获取增益的目的。仿真结果表明，相比较于传统束控方法，所提出的发射策略能够达到照亮整个影区并取得高发射增益的效果，具有明显优势。

关键词: 影区目标检测, 垂直发射阵, 发射阵增益, 子脉冲, 束控

Abstract:

In response to the problem that while using the vertical transmission array directional design for shadow zone detection, the main lobe of the beam in traditional shading technique narrows with the increase of the array elements number and cannot cover the whole shadow zone, this paper proposes a signal transmission strategy of diversity shading. Under this strategy, the transmitted signal waveform is designed as multiple sub pulses of equal length, and different sub pulses are aligned at different angles through phase control to form a beam that illuminates the entire shadow zone. The article provides the parameter selection method for maximizing the transmission gain and proposes the use of multi template joint matching filtering to reasonably select replica signals to achieve the goal of superimposing the energy of each sub pulse and further obtaining gain. The simulation results show that compared to traditional shading method, the proposed emission strategy can simultaneously illuminate the entire shadow zone and achieve high transmission gain with significant advantages.

Key words: shadow zone target detection, vertical transmit array, transmission gain, subpulse, shading

中图分类号:

TB 566

蓝舒尧, 李宇, 张春华, 迟骋, 陈春辉. 垂直阵分集束控影区探测信号发射策略[J]. 系统工程与电子技术, 2025, 47(8): 2454-2462.

Shuyao LAN, Yu LI, Chunhua ZHANG, Cheng CHI, Chunhui CHEN. Diversity shading vertical array signal transmission strategy for shadow zone detection[J]. Systems Engineering and Electronics, 2025, 47(8): 2454-2462.

图/表 10

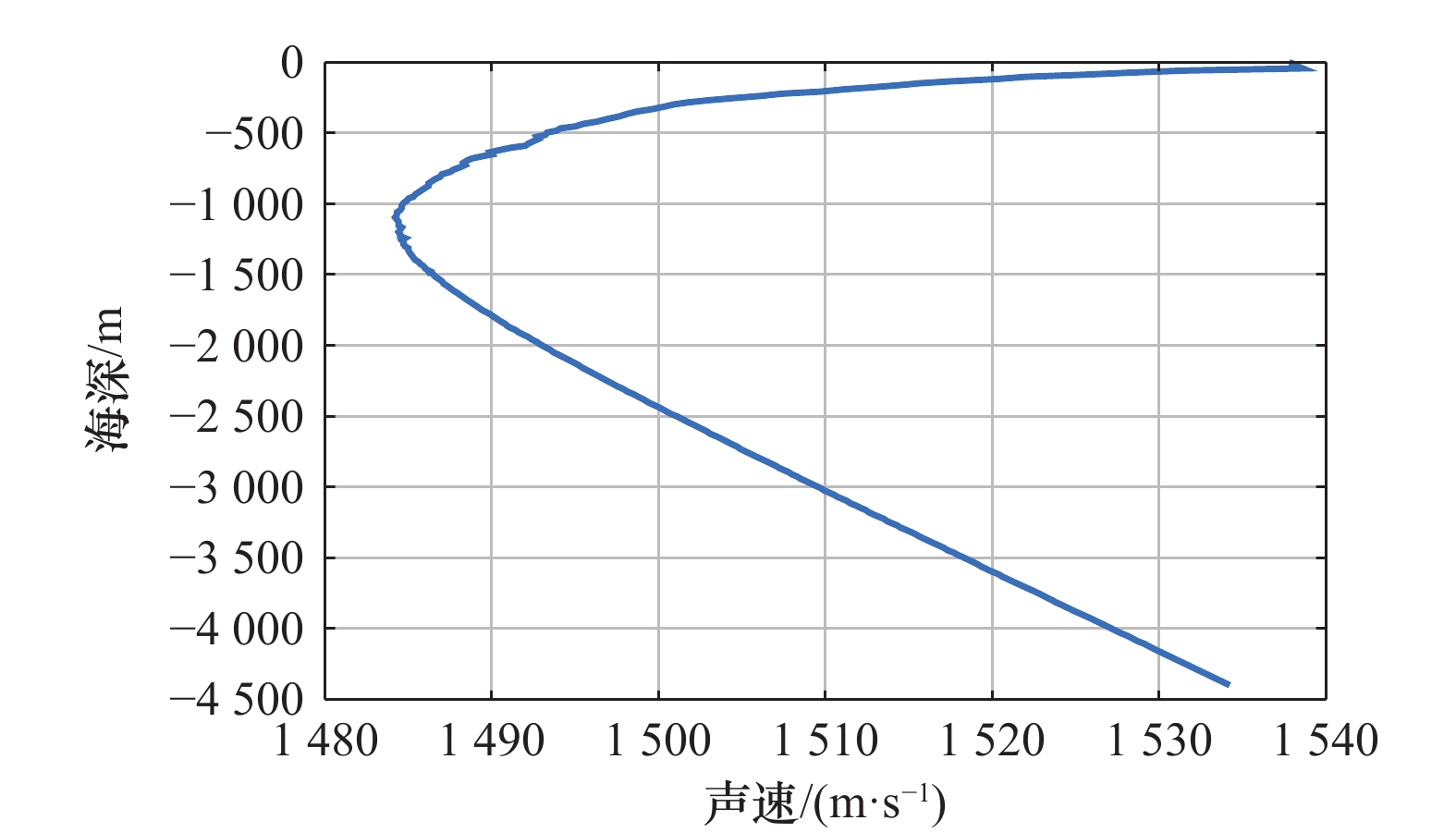

图1

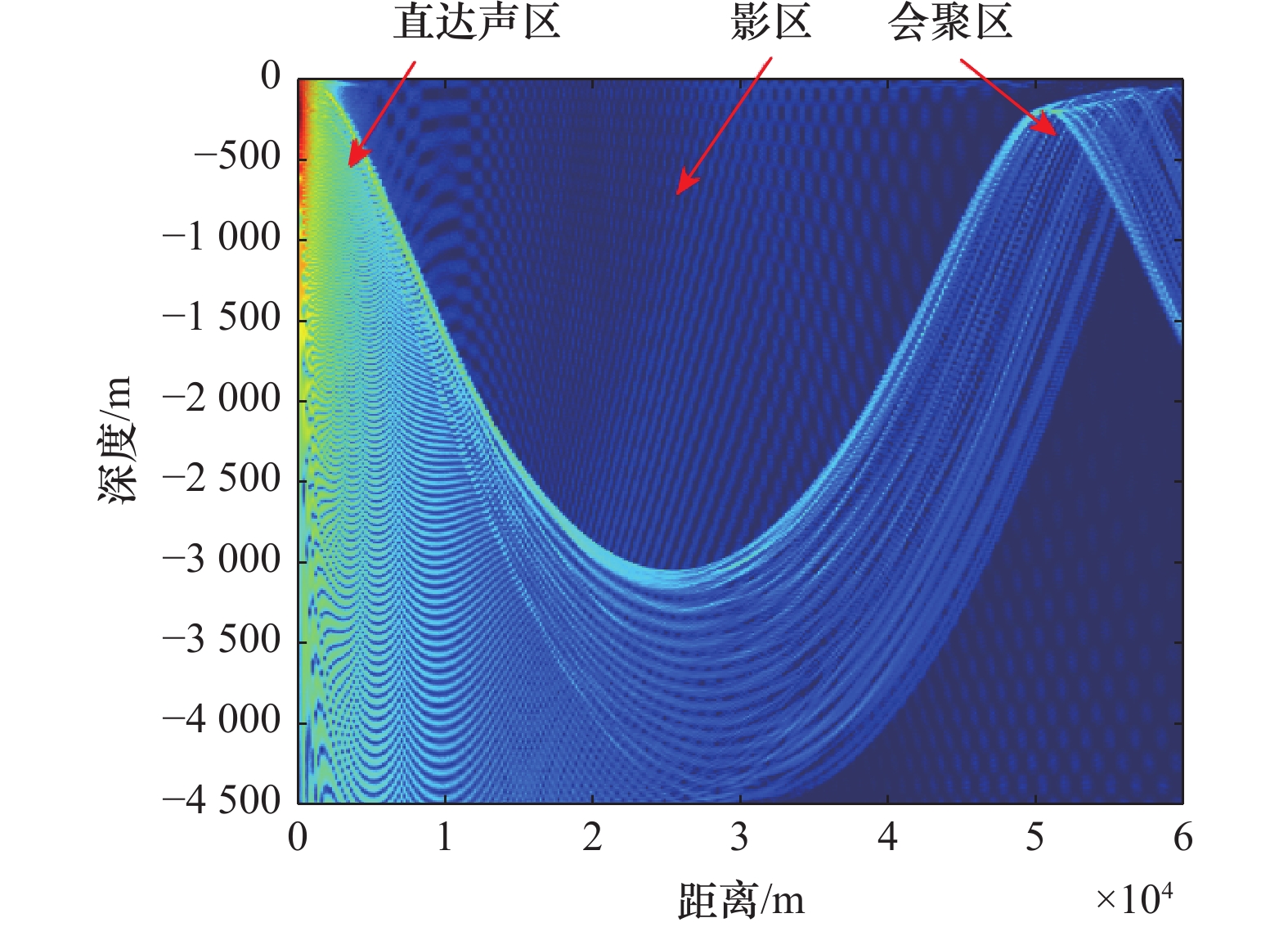

图2

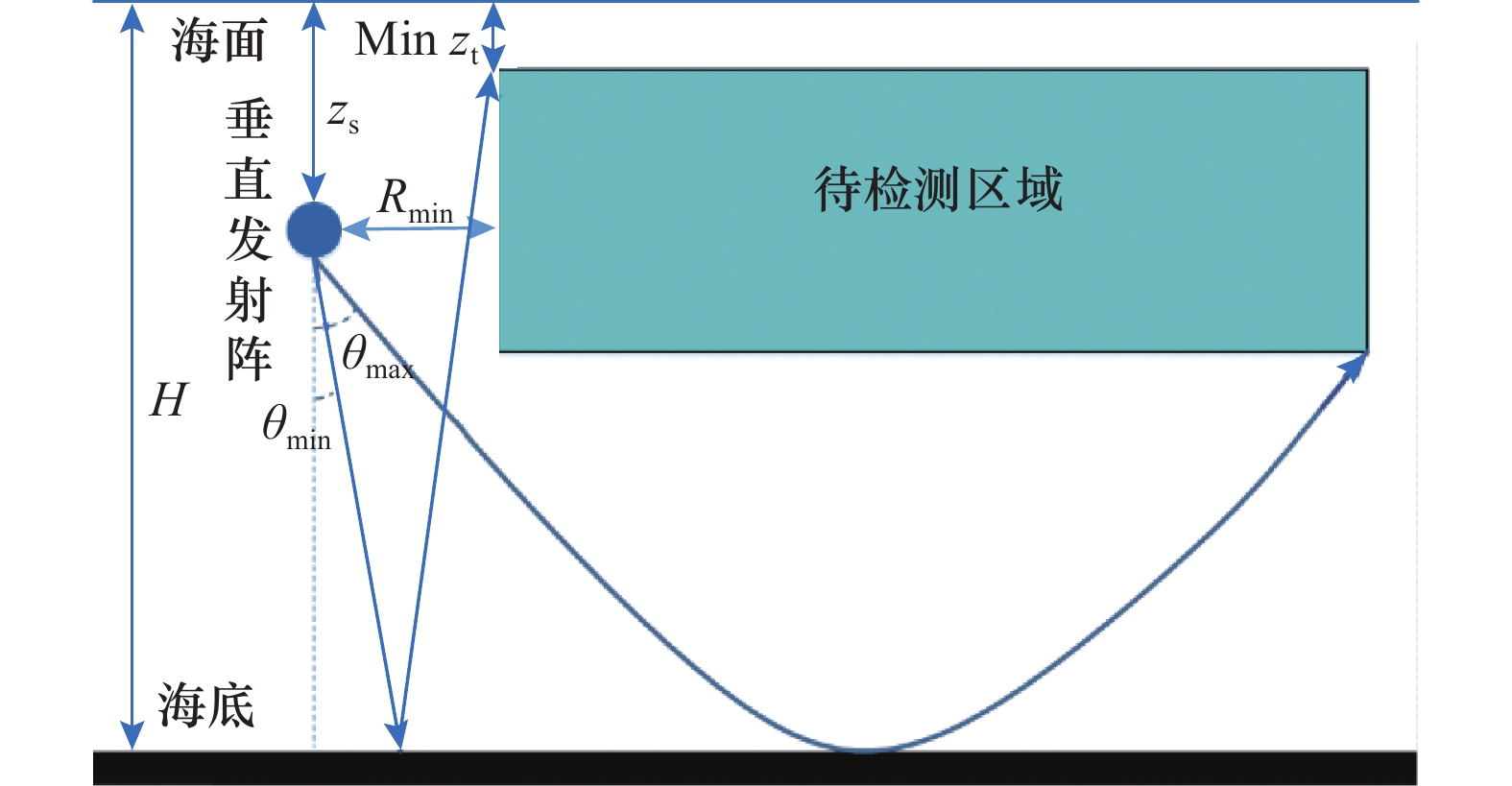

图3

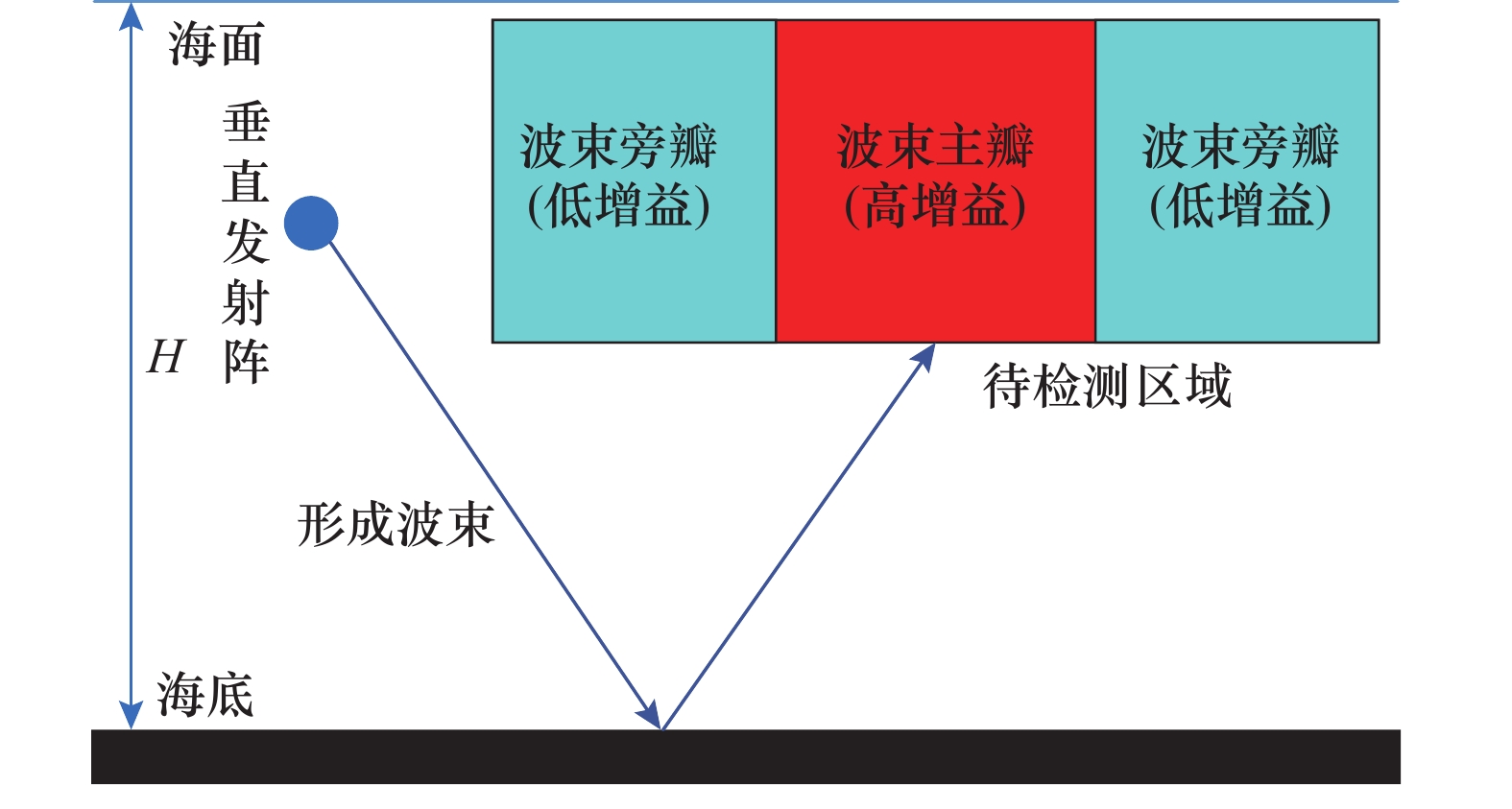

图4

图5

图6

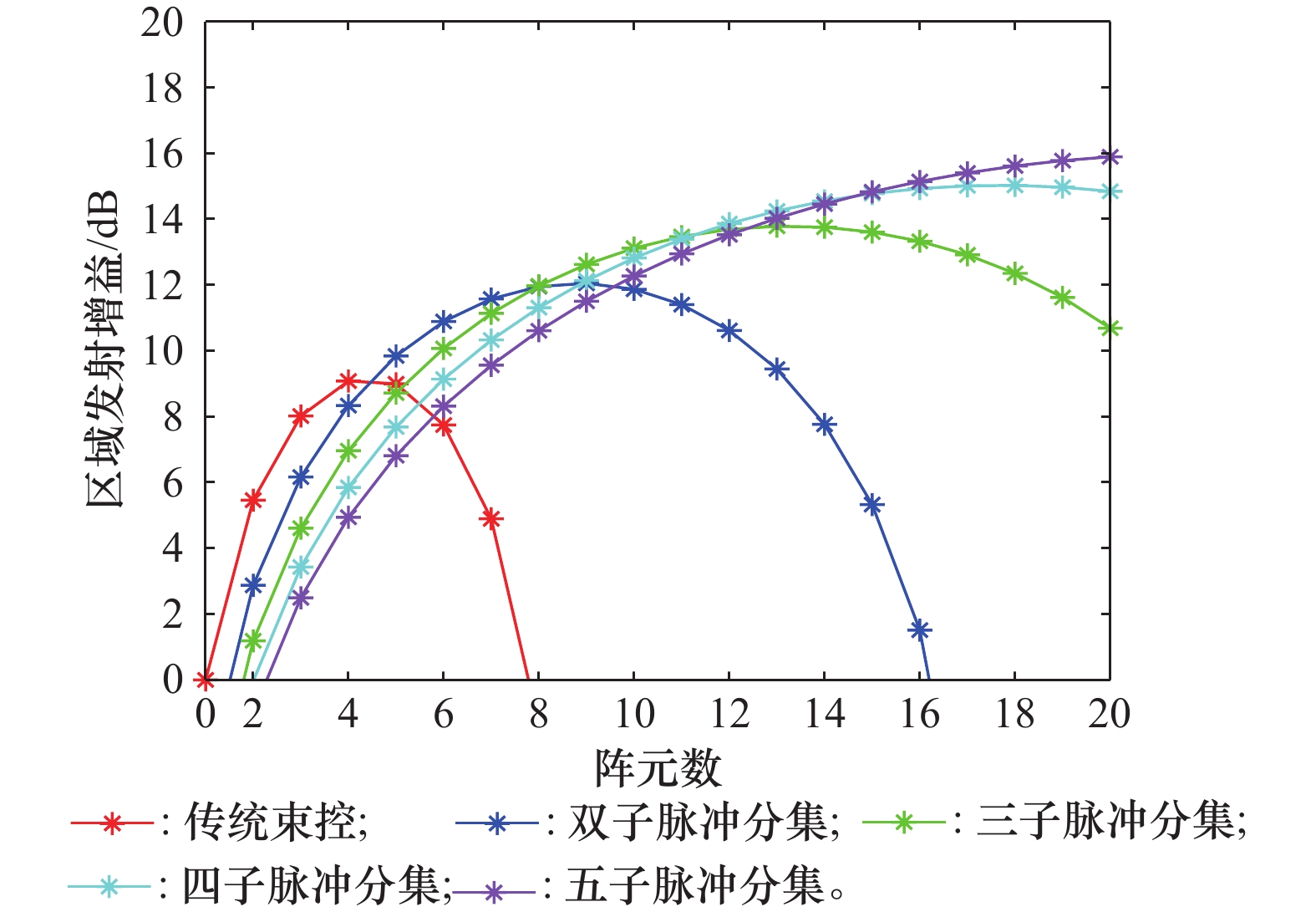

图7

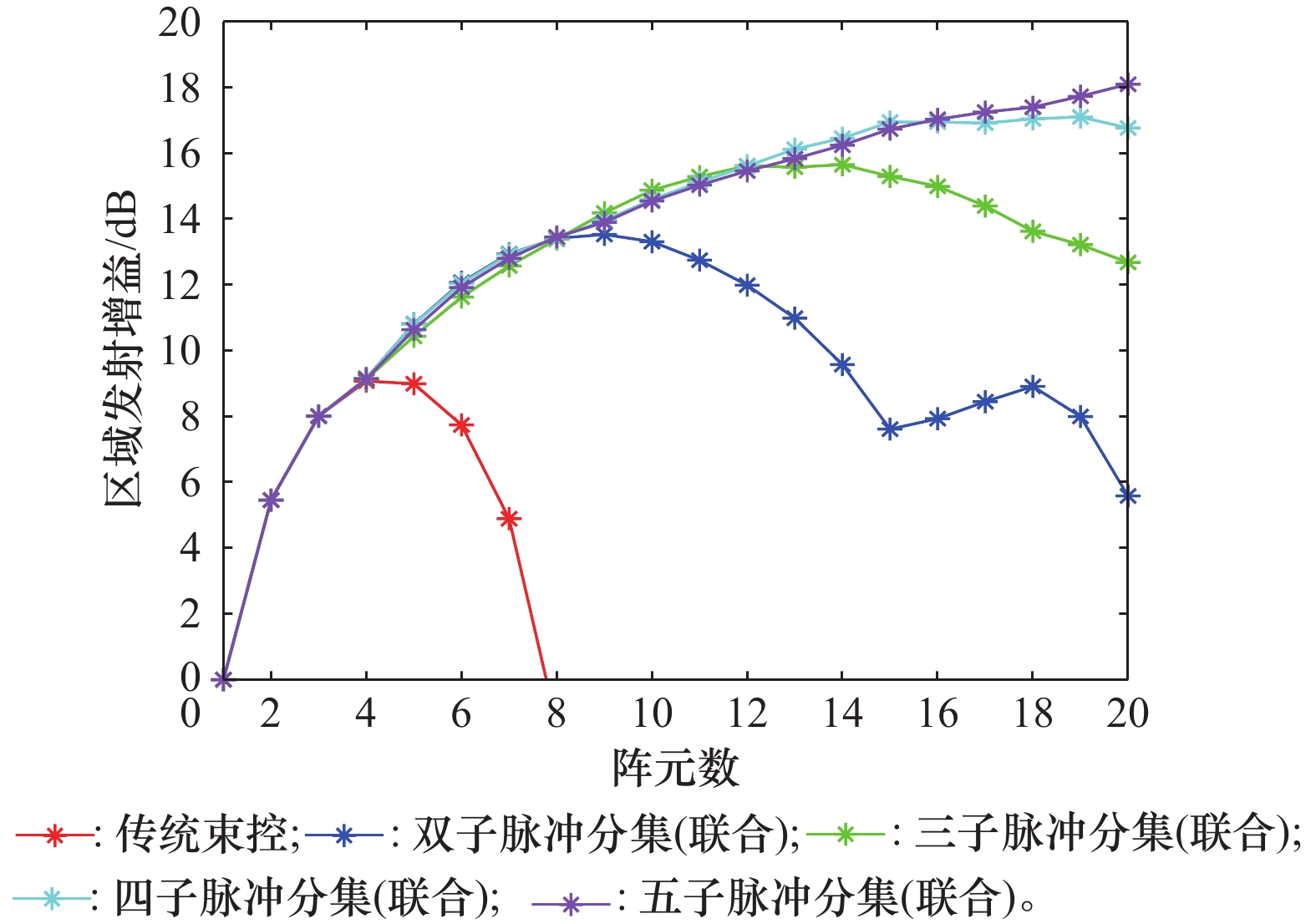

图8

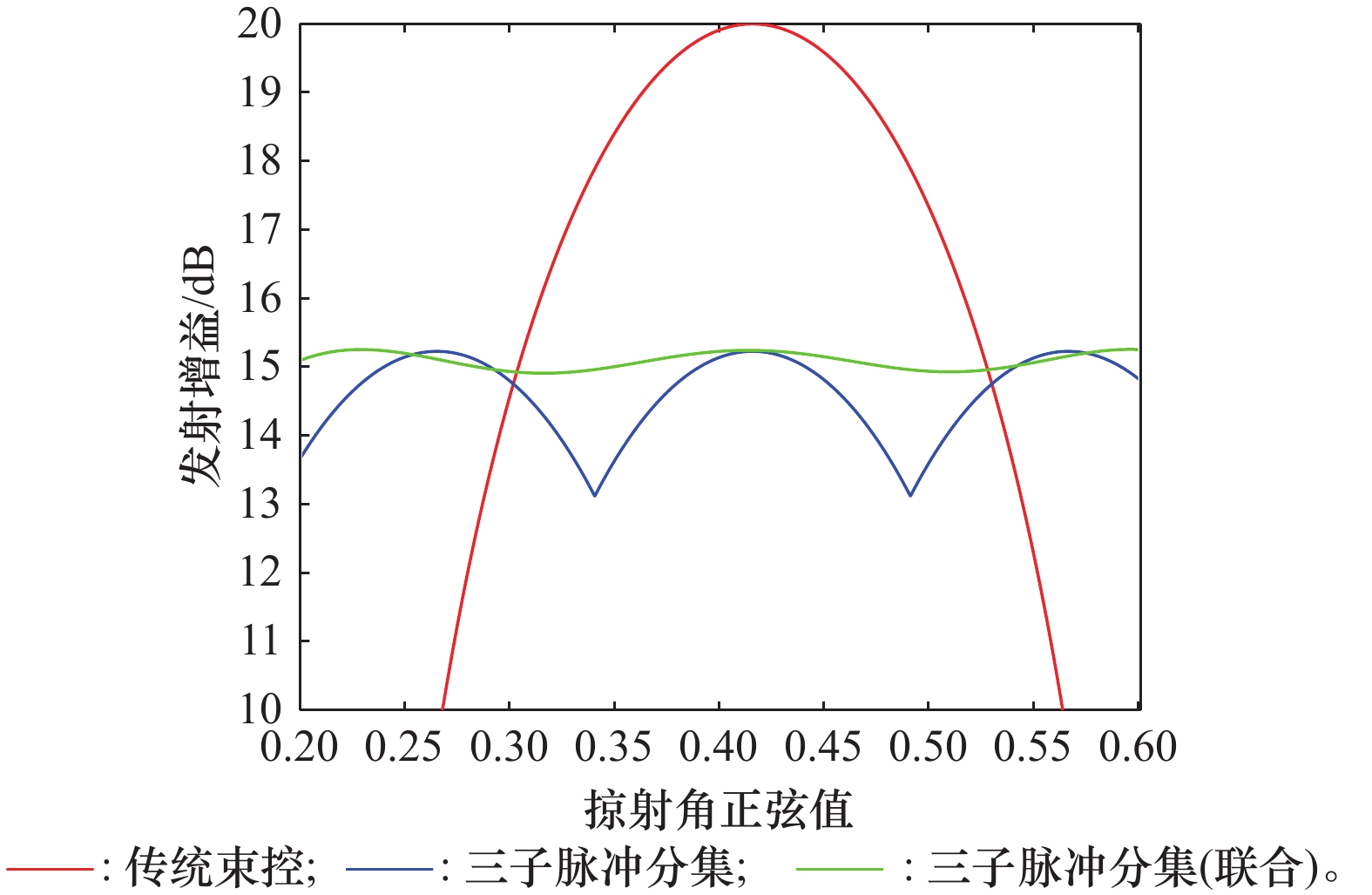

图9

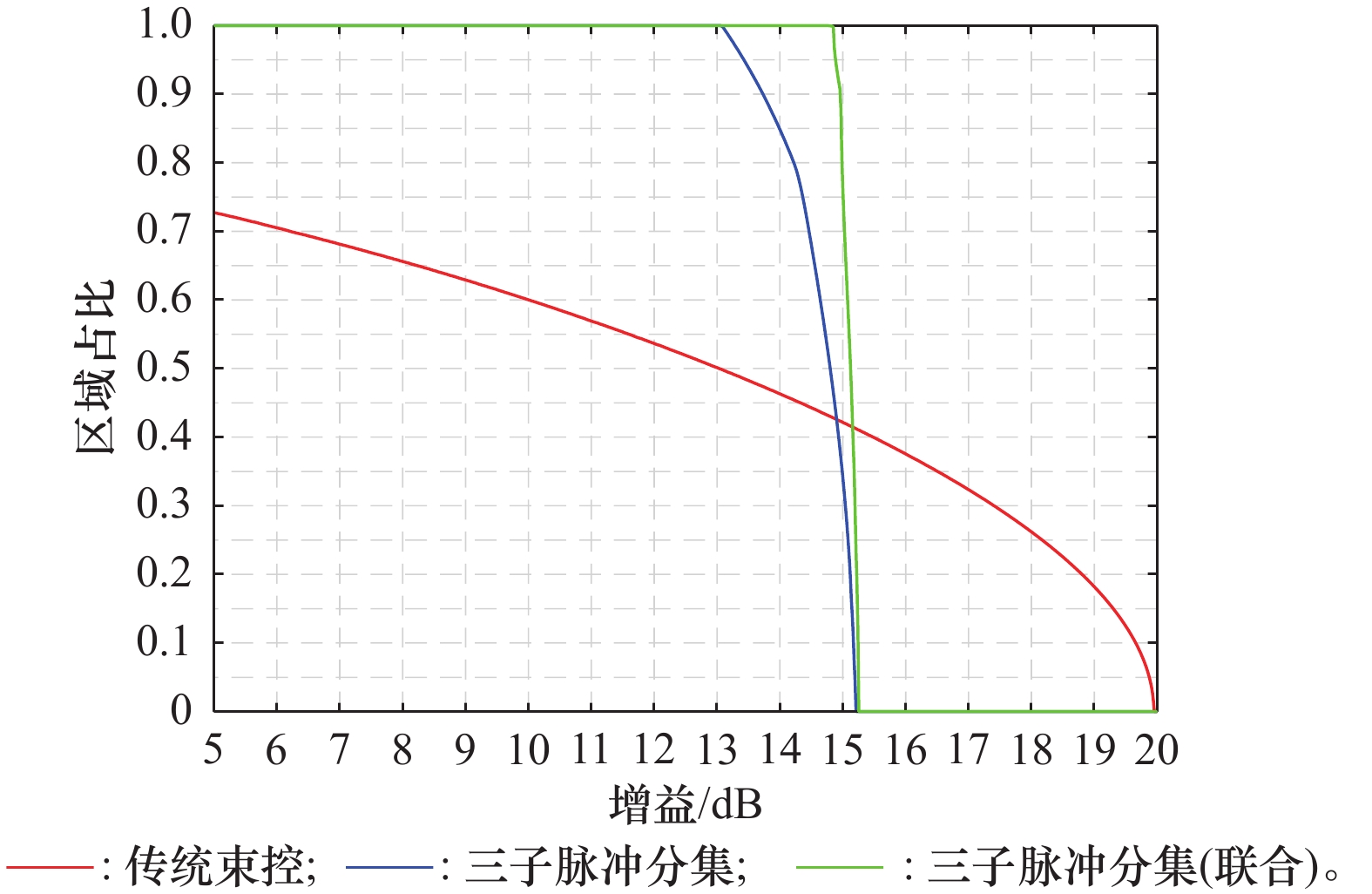

图10

参考文献 25

1	JENSEN F B, KUPERMAN W A, PORTER M B, et al. Computational ocean acoustics[M]. Berlin: Springer Science & Business Media, 2011.
2	汪德昭, 尚尔昌. 水声学[M]. 2版. 北京: 科学出版社, 2013.
	WANG D Z, SHANG E C, Underwater acoustics[M]. 2nd ed. Beijing: Science Press, 2013.
3	VIROVLYANSKY A L, KAZAROVA A Y, LYUBAVIN L Y. Ray-based description of shadow zone arrivals[J]. The Journal of the Acoustical Society of America, 2011, 129 (5): 2851- 2862. doi: 10.1121/1.3569733
4	UDOVYDCHENKOV I A, STEPHEN R A, DUDA T F, et al. Bottom interacting sound at 50 km range in a deep ocean environment[J]. The Journal of the Acoustical Society of America, 2012, 132 (4): 2224- 2231. doi: 10.1121/1.4747617
5	黄海宁, 李宇. 水声目标探测技术研究现状与展望[J]. 中国科学院院刊, 2019, 34 (3): 264- 271.
	HUANG H N, LI Y. Underwater acoustic detection: current status and future trends[J]. Bulletin of Chinese Academy of Sciences, 2019, 34 (3): 264- 271.
6	BOCCIA L, RUSSO I, AMENDOLA G, et al. Multilayer antenna-filter antenna for beam-steering transmit-array applications[J]. IEEE Trans. on Microwave Theory and Techniques, 2012, 60 (7): 2287- 2300. doi: 10.1109/TMTT.2012.2195673
7	PELLETTI C, ACHOUR M. Analog beamforming antenna for millimeter wave applications[P]. U. S: 11217902, 2022-01-04.
8	BJØRNØ L. Developments in sonar and array technologies[C]// Proc. of the IEEE Symposium on Underwater Technology and Workshop on Scientific Use of Submarine Cables and Related Technologies, 2011.
9	XU H, HE Z Y, SHI Q, et al. Transmitting beam control method of underwater acoustic transducer array based on global optimization[J]. IEEE Sensors Journal, 2023, 23 (15): 17491- 17498. doi: 10.1109/JSEN.2023.3289255
10	BEKKERMAN I, TABRIKIAN J. Target detection and localization using MIMO radars and sonars[J]. IEEE Trans. on Signal Processing, 2006, 54 (10): 3873- 3883. doi: 10.1109/TSP.2006.879267
11	何子述, 程子扬, 李军, 等. 集中式MIMO雷达研究综述[J]. 雷达学报, 2022, 11 (5): 805- 829. doi: 10.12000/JR22128
	HE Z S, CHENG Z Y, LI J, et al. A review of research on centralized MIMO radar[J]. Journal of Radars, 2022, 11 (5): 805- 829. doi: 10.12000/JR22128
12	KAAK T, SCHMIDT G. An introduction to real-time cognitive SONAR systems utilizing novel MIMO approaches[C]//Proc. of the DAGA Kiel, 2017: 48−51.
13	李宇, 王彪, 黄海宁, 等. MIMO探测声纳研究[J]. 声学技术, 2007, 26 (5): 47- 48.
	LI Y, WANG B, HUANG H N, et al. Study of the underwater MIMO sonar[J]. Technical Acoustics, 2007, 26 (5): 47- 48.
14	王福钋, 李淑秋, 李宇, 等. 迭代法MIMO声纳目标检测——一种凸显弱目标的方法[J]. 应用声学, 2010, 29 (1): 11- 16. doi: 10.3969/j.issn.1000-310X.2010.01.002
	WANG F B, LI S Q, LI Y, et al. An iterative way of MIMO sonar target detection: a method that protrudes the weak target[J]. Applied Acoustics, 2010, 29 (1): 11- 16. doi: 10.3969/j.issn.1000-310X.2010.01.002
15	张祥, 王福钋, 李淑秋,等. 分布式 MIMO 声纳中运动目标参数快速估计[J]. 声学技术, 2011 ,3: 219-222.
	ZHANG X, WANG F B, LI S Q, et al. A fast estimation method of moving target parameters with a single receiver in distributed MIMO sonar[J]. Technical Acoustics, 2011 , 3: 219-222.
16	侯温良, 龚敏, 陈东荣. 南海深海中信号波形的多途结构[J]. 声学技术, 1989, 8 (1): 12- 14.
	HOU W L, GONG M, CHEN D R. The multipath structure of signal waveform in the deep sea of the South China Sea[J]. Technical Acoustics, 1989, 8 (1): 12- 14.
17	谢其宸, 迟骋, 张博, 等. 利用海底反射时延结构的深海海底反射区目标距离深度估计方法[J]. 声学学报, 2024, 49 (4): 627- 635. doi: 10.12395/0371-0025.2023153
	XIE Q C, CHI C, ZHANG B, et al. A range and depth estimation method using the time delay structure of bottom reflection in deep sea bottom bounce area[J]. Chinese Journal of Acoustics, 2024, 49 (4): 627- 635. doi: 10.12395/0371-0025.2023153
18	JENSEN F B, KUPERMAN W A, PORTER M B, et al. Computational ocean acoustics[M]. New York: Springer New York, 2011.
19	李整林, 余炎欣. 深海声学研究进展[J]. 科学通报, 2022, 67 (2): 125- 134.
	LI Z L, YU Y X. Overview of deep water acoustics[J]. Chinese Science Bulletin, 2022, 67 (2): 125- 134.
20	肖鹏. 深海会聚区及影区声传播与声场特性研究[D]. 西安: 西北工业大学, 2017.
	XIAO P. Study on acoustic characteristics of deep-water in convergence and shadow zone[D]. Xi’an: Northwestern Polytechnical University, 2017.
21	张鹏, 李整林, 吴立新, 等. 深海海底反射会聚区声传播特性[J]. 物理学报, 2019, 68 (1): 014301.
	ZHANG P, LI Z L, WU L X, et al. Acoustic propagation characteristics of deep-sea seabed reflection convergence zone[J]. Acta Physica Sinica, 2019, 68 (1): 014301.
22	韩志斌, 彭朝晖, 刘雄厚. 深海海底反射区声场角谱域分布结构分析及在声纳波束俯仰上的应用[J]. 物理学报, 2020, 69 (11): 201- 212.
	HAN Z B, PENG Z H, LIU X H. Analysis of the distribution structure of acoustic field angle spectral domain in deep sea bottom reflection zone and its application in sonar beam elevation[J]. Acta Physica Sinica, 2020, 69 (11): 201- 212.
23	PAWAR D S, BADODEKAR H S. Review of PAPR reduction techniques in wireless communication[C]// Proc. of the IEEE Global Conference on Wireless Computing and Networking, 2018: 204−207.
24	KUMAR A, RAJAGOPAKAL K, ALRUWAIS N, et al. PAPR reduction using SLM-PTS-CT hybrid PAPR method for optical NOMA waveform[J]. Heliyon, 2023, 9(10): e20901.
25	KAY S M. Fundamentals of statistical signal processing: estimation theory[J]. Technometrics, 1993, 37 (4): 465- 466.
