低干噪比下多特征融合的通信干扰识别方法

doi:10.12305/j.issn.1001-506X.2026.03.30

摘要/Abstract

摘要：

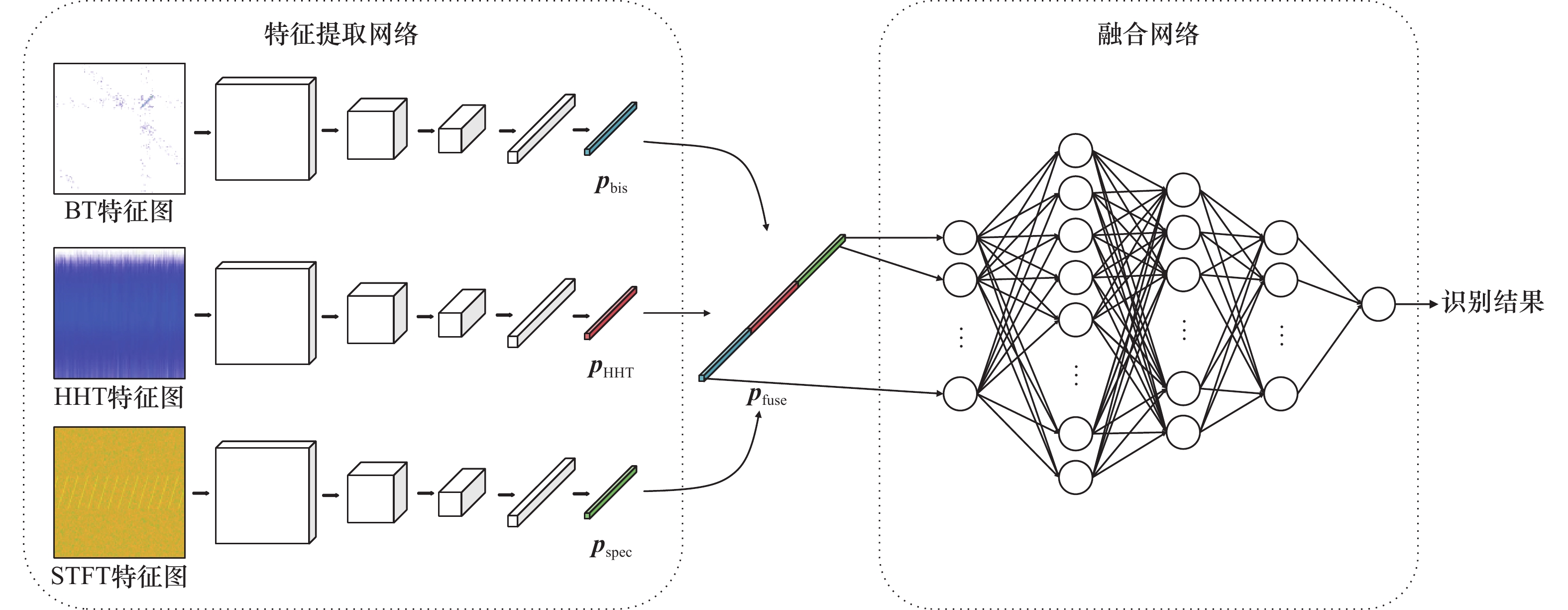

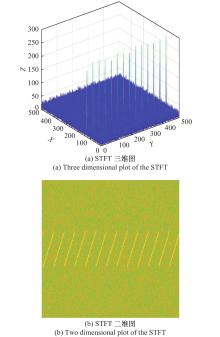

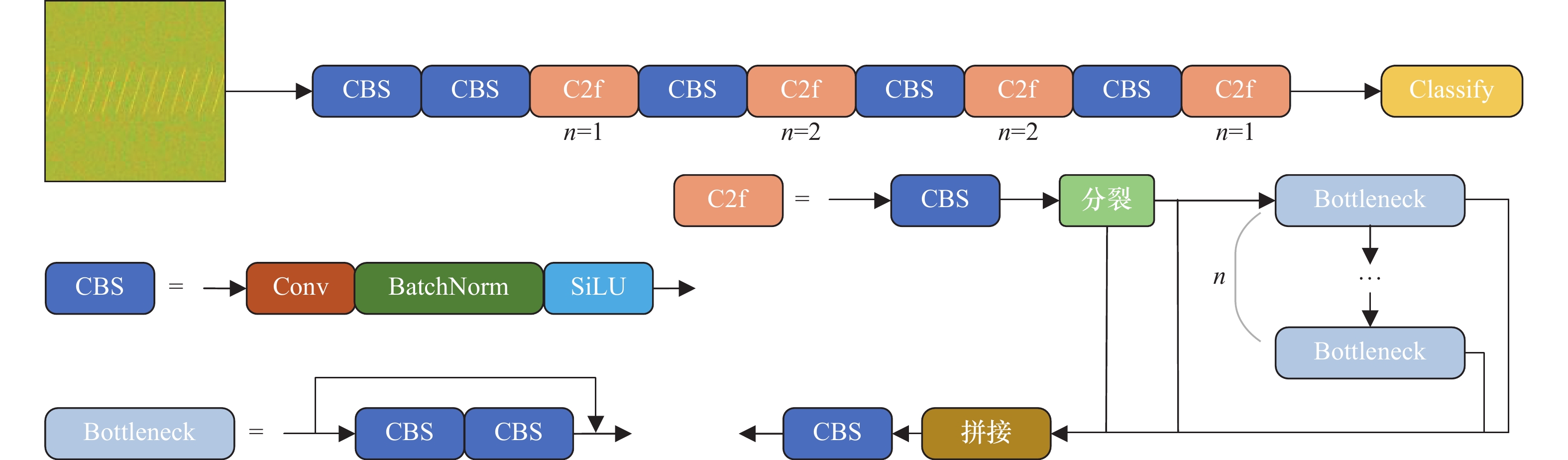

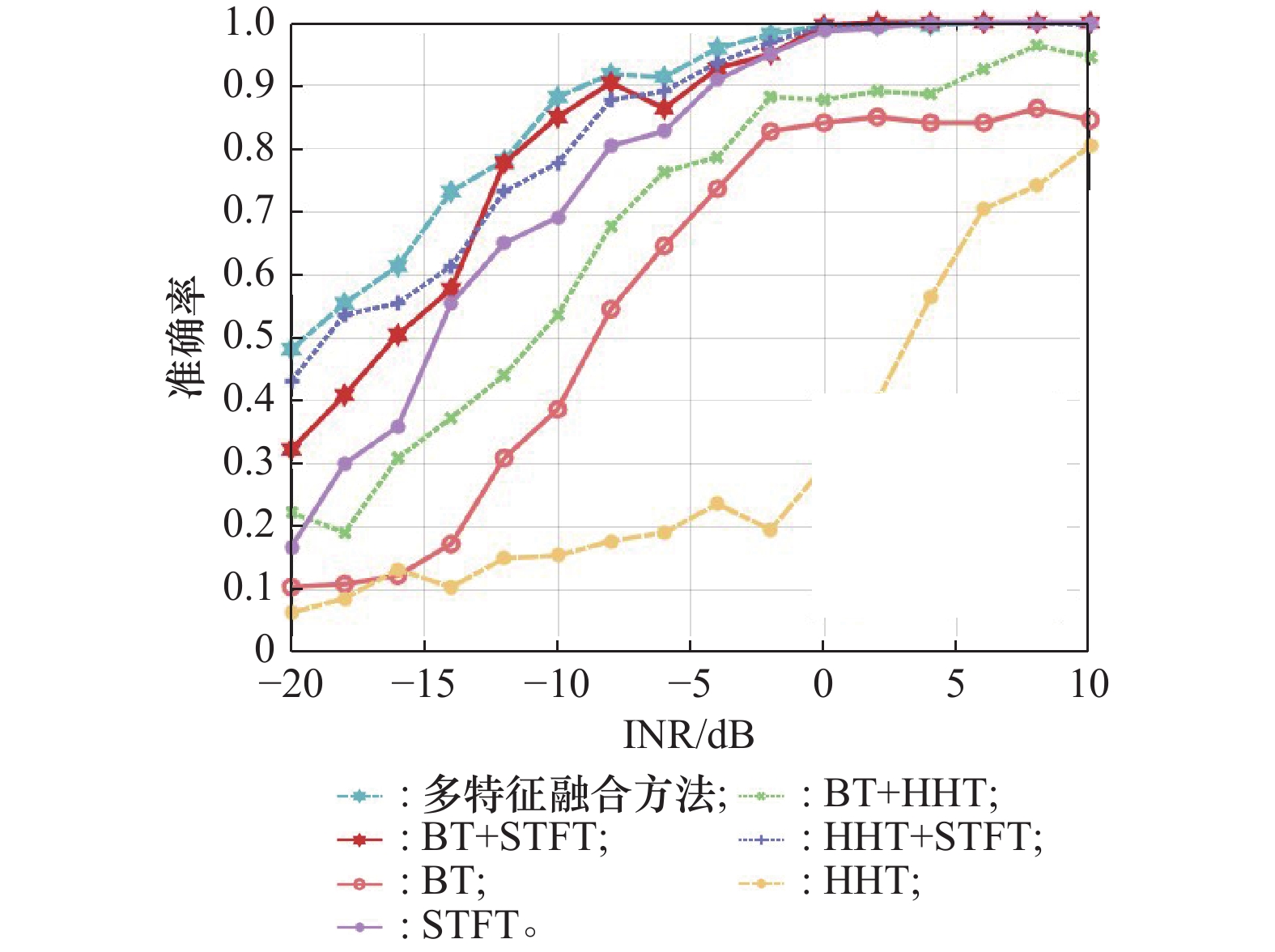

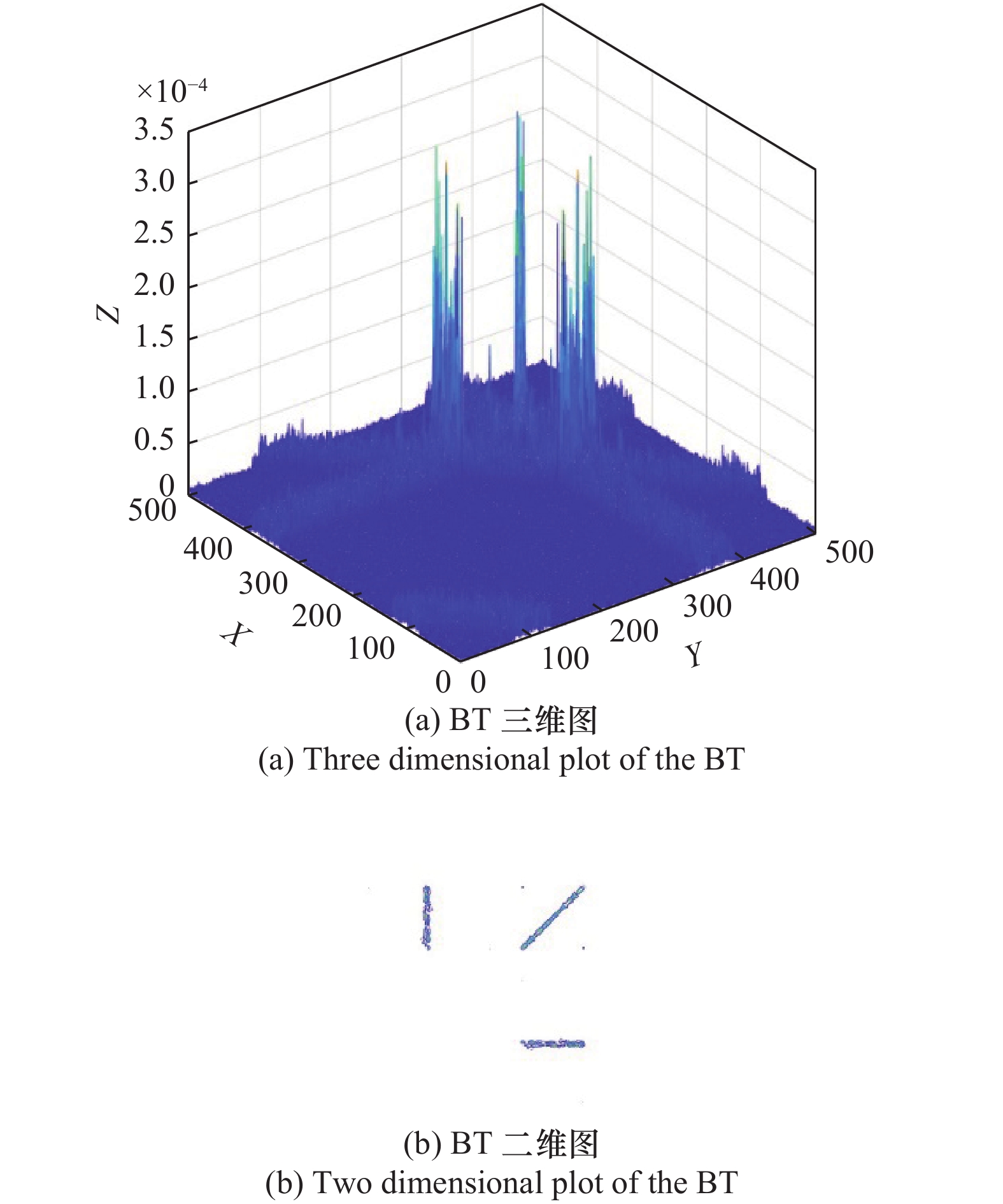

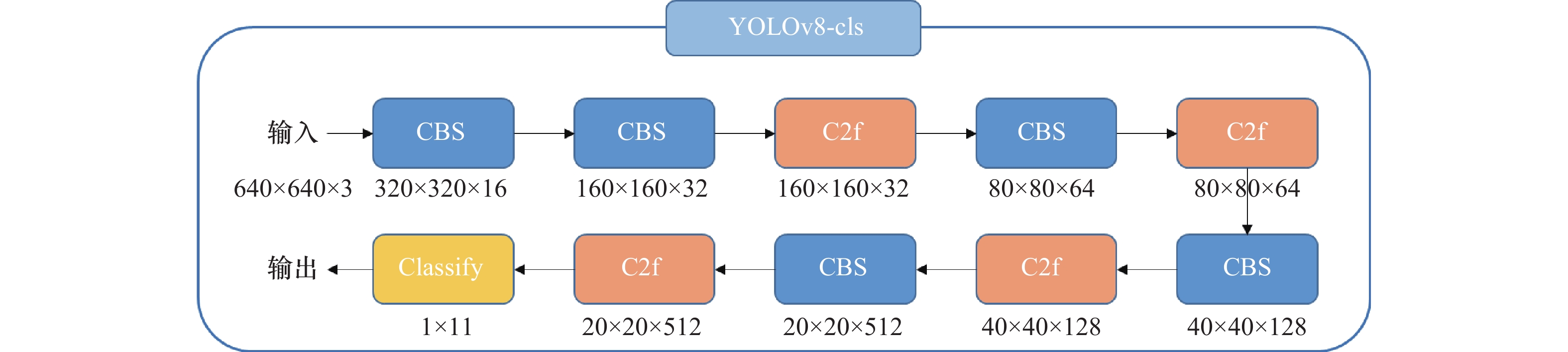

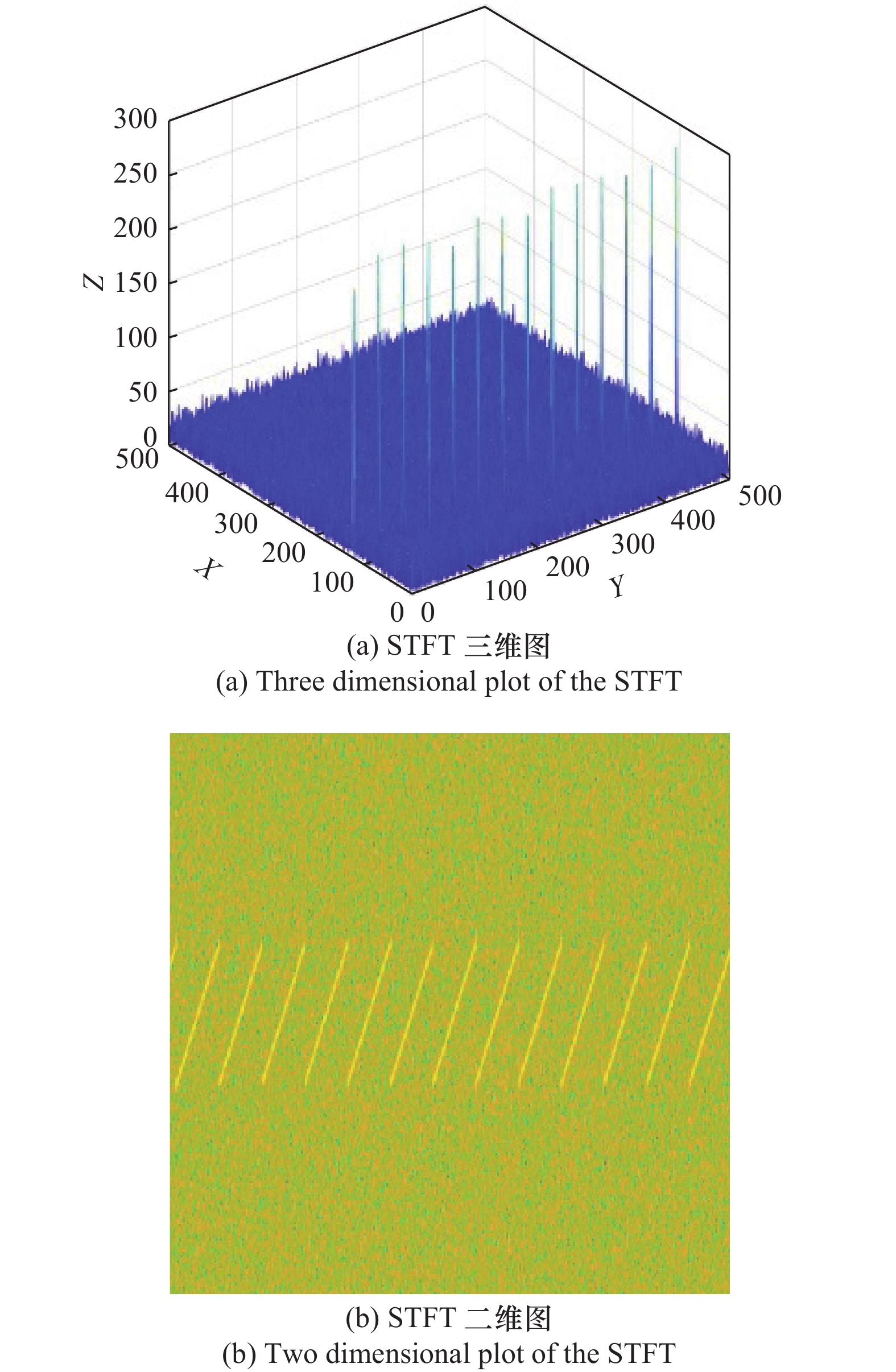

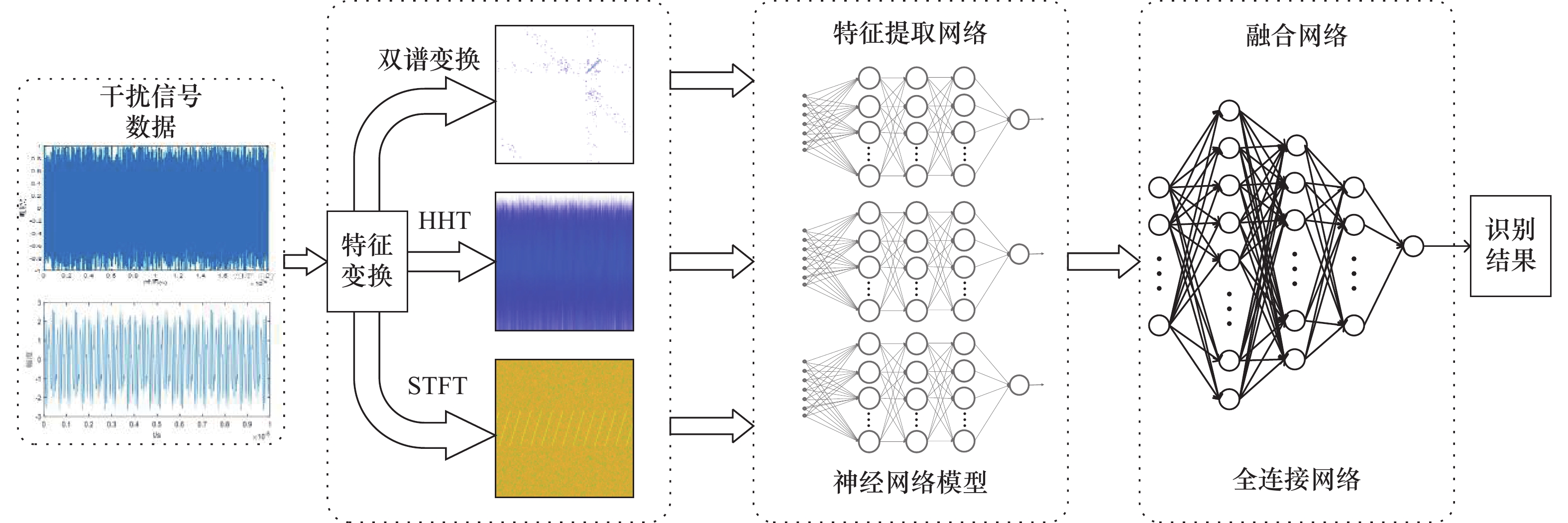

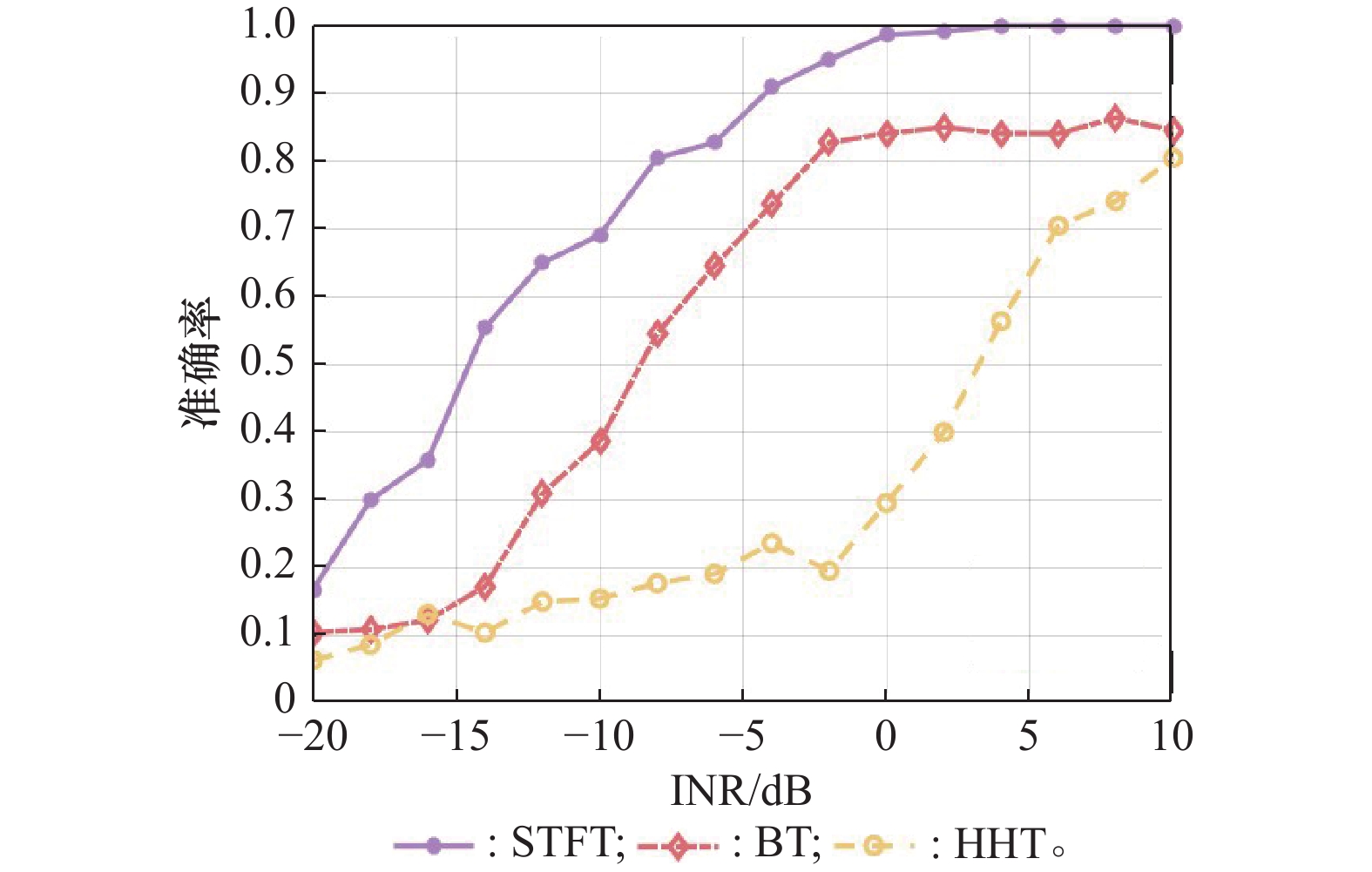

针对低干噪比下通信干扰信号特征微弱、单一特征表征能力不足导致识别准确率低的问题，提出一种基于YOLOv8和多特征融合网络的通信干扰信号识别方法。首先，提出一种基于投影变换的特征图像提取方法，根据不同特征对于不同信号的不同敏感度，选取具有强互补特性的双谱变换、希尔伯特黄变换、短时傅里叶变换作为识别特征，并通过投影变换将其统一为适用于二维卷积网络的特征图；其次，利用YOLOv8网络强大的特征学习能力，同时从上述3种异构特征图中并行提取深层判别信息；然后，设计了一种决策级全连接融合网络，对YOLOv8输出的概率向量进行加权整合，实现最终分类决策。实验结果表明，该方法显著提升了低干噪比下的识别性能，尤其在?20 dB的低干噪比恶劣条件下，识别准确率达到48.18%，相较于传统方法以及单一特征方法分别提高了40.60%和31.86%。

关键词: 干扰识别, 多特征融合, 深度学习, YOLOv8

Abstract:

To address the issue of low recognition accuracy for communication interference signals under low interference-to-noise ratio conditions, which is caused by weak signal features and the insufficient representation capability of single feature, a communication interference signal recognition method based on YOLOv8 and multi-feature fusion networks is proposed. First, a feature image extraction method based on projection transformation is introduced. Based on the varying sensitivities of different features to different signals, bispectrum transform, Hilbert-Huang transform, and short-time Fourier transform, which possess strong complementary characteristics, are selected as recognition features, and they are unified into feature maps suitable for two-dimensional convolutional neural networks via projection transformation. Secondly, leveraging the powerful feature learning capability of the YOLOv8 network, deep discriminative information is extracted in parallel from the aforementioned three heterogeneous feature maps. Then, a decision-level fully connected fusion network is designed to perform weighted integration of the probability vectors output by YOLOv8, thereby achieving the final classification decision. Experimental results demonstrate that this method significantly enhances the recognition performance under low interference-to-noise ratio conditions. Particularly, under the adverse condition of a ?20 dB low interference-to-noise ratio, the recognition accuracy reaches 48.18%, representing improvements of 40.60% and 31.86% over traditional methods and single-feature methods, respectively.

Key words: interference recognition, multi-feature fusion, deep learning, YOLOv8

中图分类号:

TN 92

田弘宇, 葛松虎, 郭宇, 崔中普, 梁潇. 低干噪比下多特征融合的通信干扰识别方法[J]. 系统工程与电子技术, 2026, 48(3): 1061-1071.

Hongyu TIAN, Songhu GE, Yu GUO, Zhongpu CUI, Xiao LIANG. Communication interference recognition method based on multi-feature fusion under low interference-to-noise ratio conditions[J]. Systems Engineering and Electronics, 2026, 48(3): 1061-1071.

图/表 15

表1

干扰信号模型"

干扰类型	数学模型	参数	参数含义
STJ	$x(t) = \sqrt {{A_j}} \exp [{\mathrm{j}}(2\text{π} {f_j}t + {\varphi _j})]$	${A_j}$	发射的干扰信号功率
		${f_j}$	干扰信号中心频率
		${\varphi _j}$	干扰信号初始相位，服从[0,2π）均匀分布
MTJ	$x(t) = \displaystyle\sum\limits_{i = 1}^M {\sqrt {{A_{{j_{\text{i}}}}}} \exp [{\mathrm{j}}(2\text{π} {f_{{j_i}}}t + {\varphi _{{j_i}}})]} $	$M$	单音干扰的数量
		${A_{{j_i}}}$	发射的干扰信号功率
		${f_{{j_i}}}$	干扰信号中心频率
		${\varphi _{{j_i}}}$	干扰信号初始相位，服从[0,2π）均匀分布且互相独立同分布
LFM	$ x(t) = \sqrt {{A_j}} \exp [{\mathrm{j}}(2\text{π} {f_j}t + \text{π} k{t^2} + {\varphi _j}] $	$k$	线性调频的斜率参数
NoiFM	$ x(t) = \sqrt {{A_j}} \exp [{\mathrm{j}}(2\text{π} {f_j}t + 2\text{π} {K_{{\mathrm{FM}}}}\displaystyle\int\nolimits_0^t {u(\tau ){\mathrm{d}}\tau } + {\varphi _j})] $	${K_{{\mathrm{FM}}}}$	调频比例常数
NoiFM		$u(\tau )$	带限高斯白噪声
NoiAM	$x(t) = [{U_0} + {U_n}(t)]\exp [{\mathrm{j}}(2\text{π} {f_j}t + {\varphi _j})]$	${U_0}$	发射的干扰信号功率
PBNJ	$x(t) = {U_n}(t)\exp [{\mathrm{j}}(2\text{π} {f_j}t + {\varphi _j})]$	$ {U_n}(t) $	带限高斯白噪声
BPSK	$x(t) = \sqrt {{A_j}} \exp [{\mathrm{j}}(2\text{π} {f_j}t + {\varphi _b} + {\varphi _j})]$	${\varphi _b}$	BPSK调制相位，取值为${\varphi _b} = 0,\pi $，分别表示比特0、1
QPSK	$x(t) = \sqrt {{A_j}} \exp [{\mathrm{j}}(2\text{π} {f_j}t + {\varphi _q} + {\varphi _j})]$	${\varphi _q}$	QPSK调制相位，取值为${\varphi _q} = 0,\dfrac{\text{π} }{2},\text{π} ,\dfrac{{3\text{π} }}{2}$，分别表示比特00、01、10、11
2ASK	$x(t) = \sqrt {{A_j}} m(t)\exp [{\mathrm{j}}(2\text{π} {f_j}t + {\varphi _j})]$	$m(t)$	$m(t) = 0,1$，分别表示比特0、1
2FSK	$x(t) = \sqrt {{A_j}} {m_j}(t)\exp [{\mathrm{j}}(2\text{π} {f_j}t + {\varphi _j})]$ ${m_j}(t) = \exp [{\mathrm{j}}(m(t) \cdot 2\text{π} {f_0}t + \overline {m(t)} \cdot 2\text{π} {f_1}t)]$	$\overline {m(t)} $	$m(t)$的相反数
2FSK		${m_j}(t)$	调制信号
MSK	$ x(t) = \sqrt {{A_j}} \exp \left[{\mathrm{j}}\left(2\text{π} {f_j}t + \dfrac{{\text{π} {a_k}}}{{2{T_s}}}t + {\varphi _k}\right)\right] $ $ k{T_s} \leqslant t \leqslant (k + 1){T_s},\;k = 0,1 \cdots $	${a_k}$	${a_k} = 1, - 1$，分别表示比特1、0
