国产民机导航系统MBSE建模及终端区RNP运行仿真

doi:10.12305/j.issn.1001-506X.2026.02.20

摘要/Abstract

摘要：

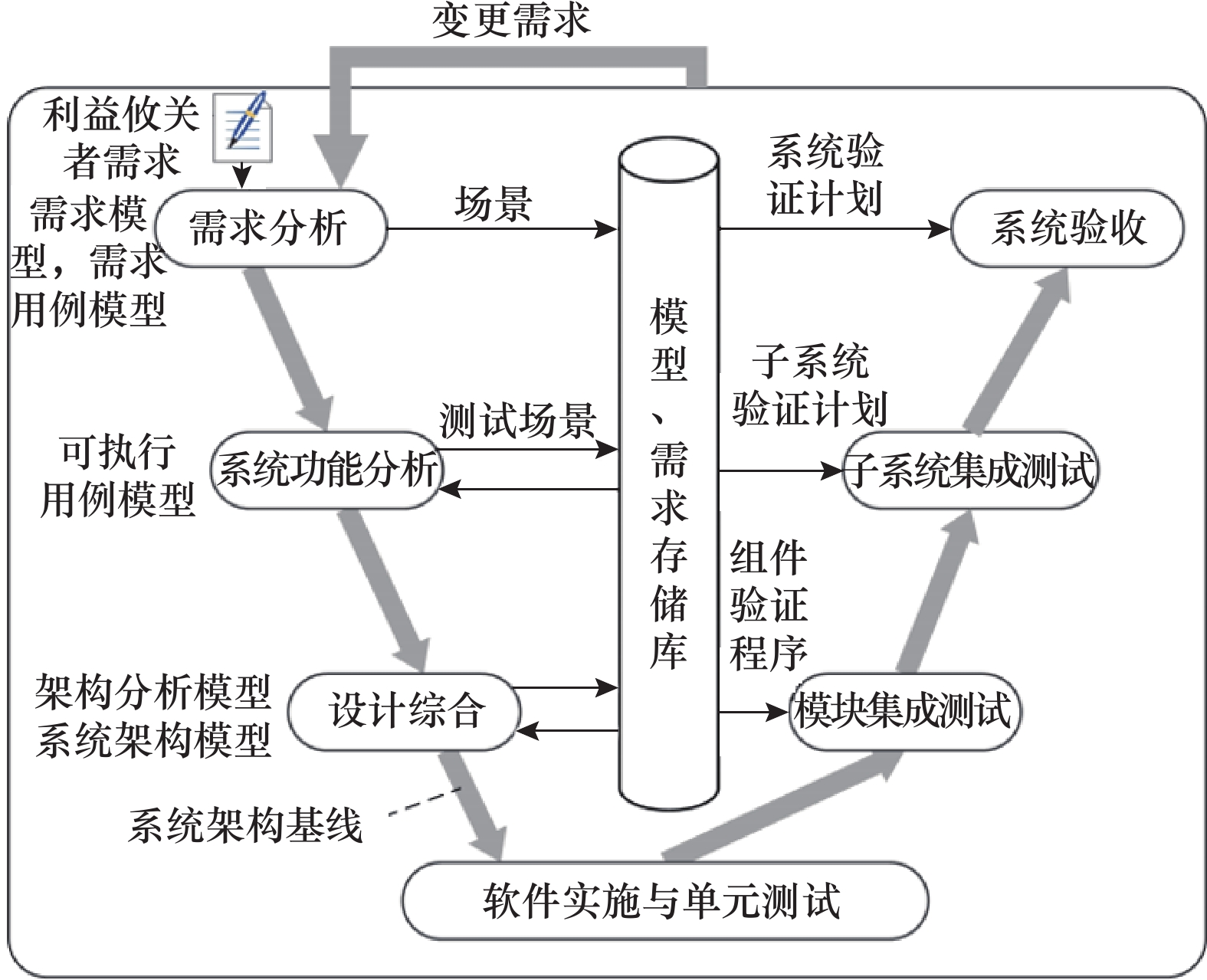

根据国际民用航空组织所需导航性能（required navigation performance，RNP）的相关标准与规章，提出一种基于模型的系统工程方法对飞机导航系统架构进行设计和验证。针对民用飞机在终端区RNP运行要求，结合国外典型民机的架构特点，完成国产民机导航系统架构设计的需求分析、功能分析和设计综合，通过研究终端区导航传感器的适用方案，建立多源导航信息融合模型。最后，运用系统建模语言与仿真软件模型结合的协同仿真机制，对导航系统架构模型进行仿真验证。

关键词: 基于模型的系统工程, 所需导航性能, 架构设计, 信息融合, 联合仿真

Abstract:

According to International Civil Aviation Organization required navigation performance （RNP） standards and regulations, a model-based system engineering method is proposed to design and verify the architecture of aircraft navigation system. According to the RNP operation requirements of civil aircraft in the terminal area, combined with the architectural characteristics of typical foreign civil aircraft, the requirements analysis, function analysis and design synthesis of the architecture design of domestic civil aircraft navigation system are completed. By studying the adaptation scheme of the navigation sensor in the terminal area, a multi-source navigation information fusion model is established. Finally, a system modeling language combined with simulation software model co-simulation mechanism is used to verify the navigation system architecture mod.

Key words: model-based systems engineering (MBSE), required navigation performance (RNP), architecture design, information fusion, joint simulation

中图分类号:

V 37

刘瑞华, 鹿繁鹏, 马赞. 国产民机导航系统MBSE建模及终端区RNP运行仿真[J]. 系统工程与电子技术, 2026, 48(2): 588-602.

Ruihua LIU, Fanpeng LU, Zan MA. MBSE modeling and terminal area RNP operational simulation of domestic civil aviation navigation system[J]. Systems Engineering and Electronics, 2026, 48(2): 588-602.

图/表 23

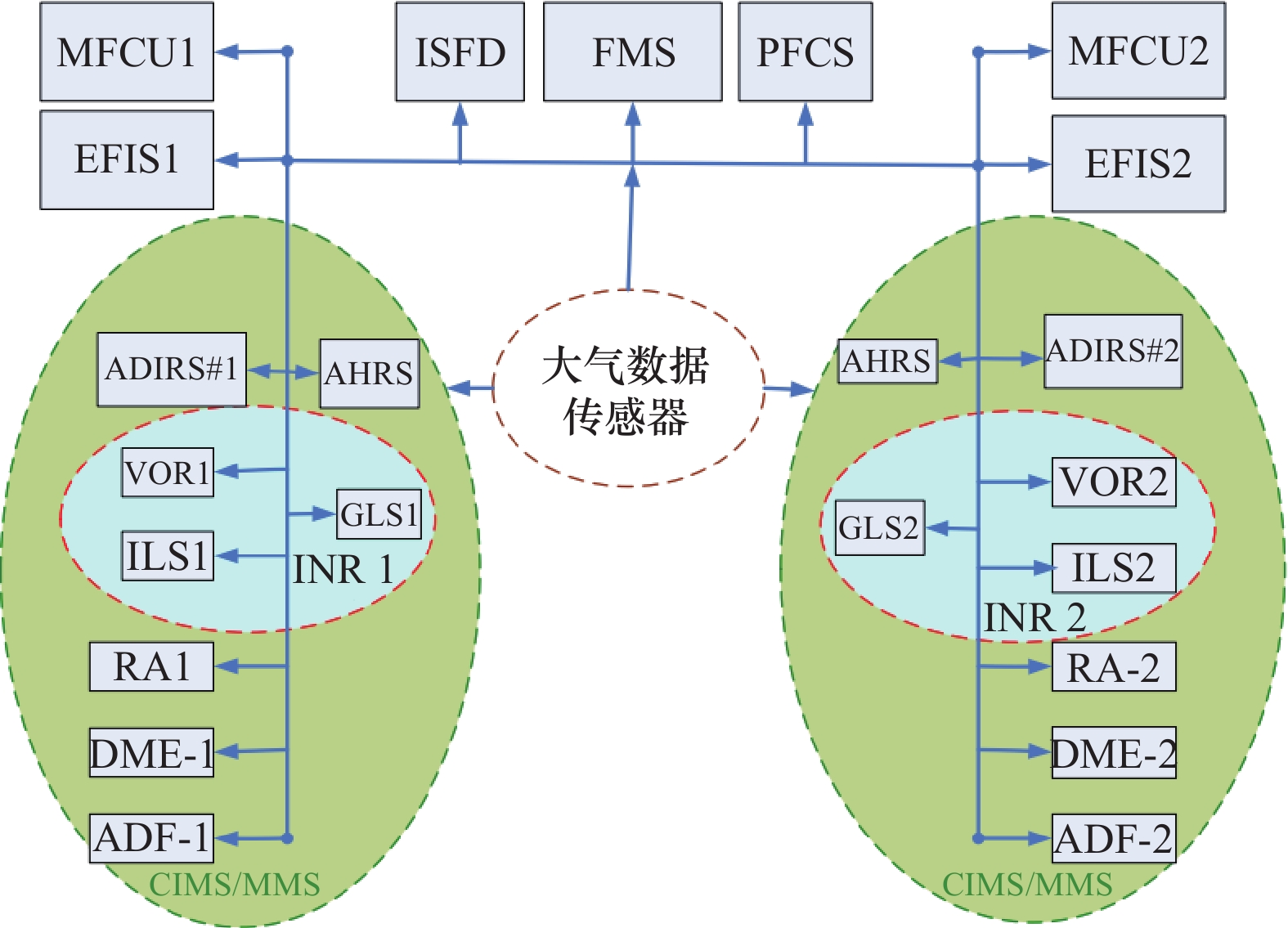

图1

表1

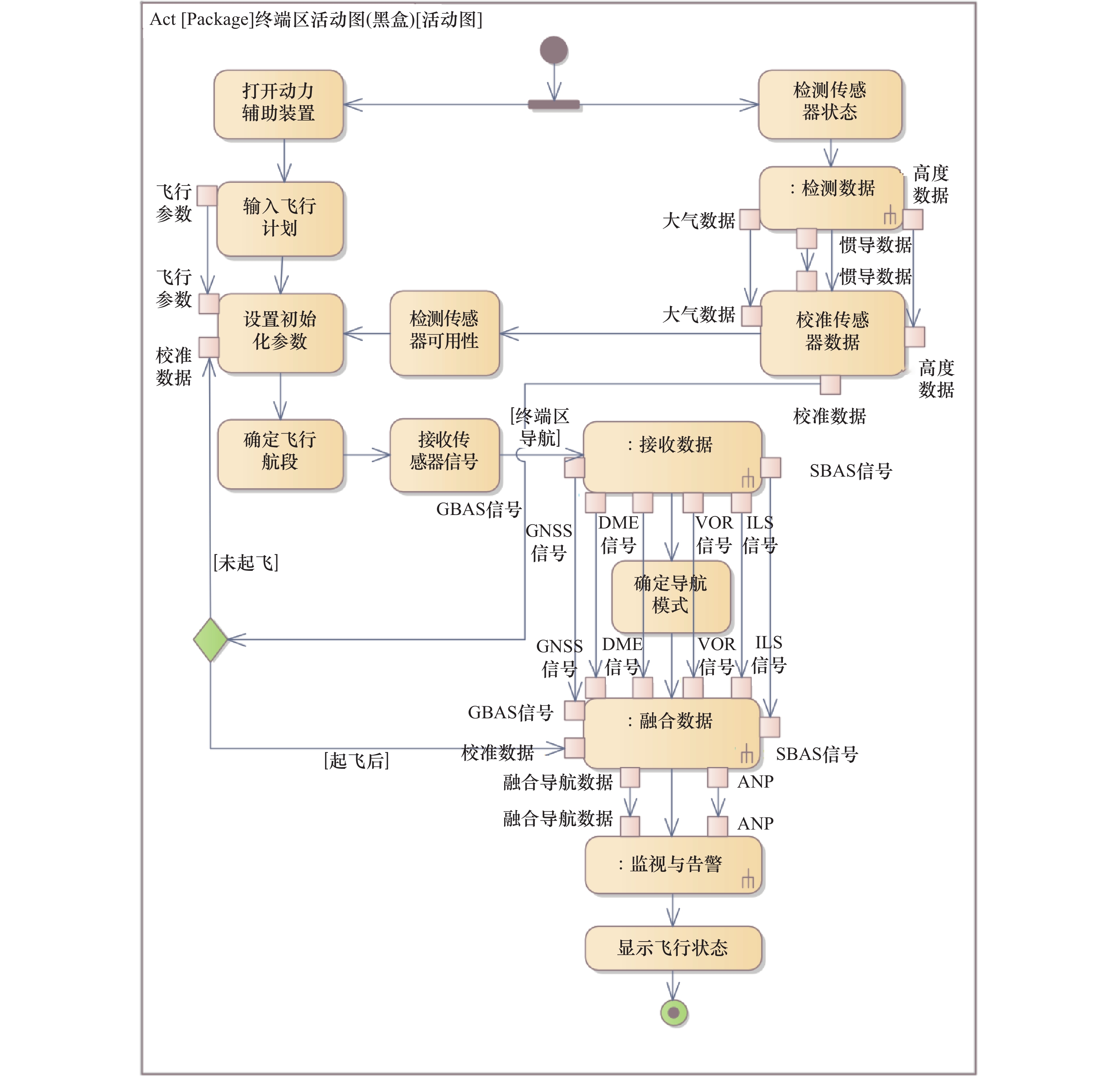

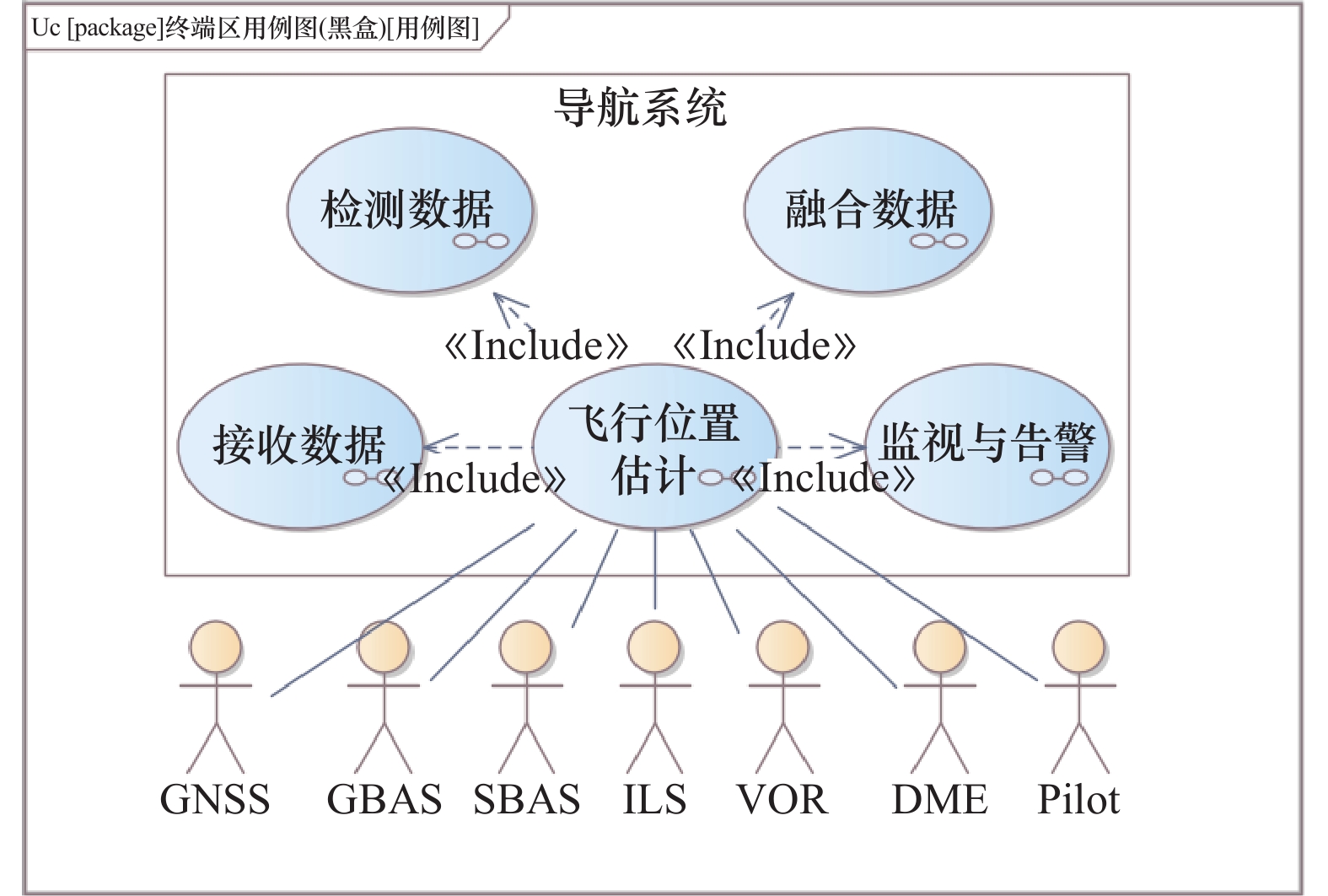

图2

表2

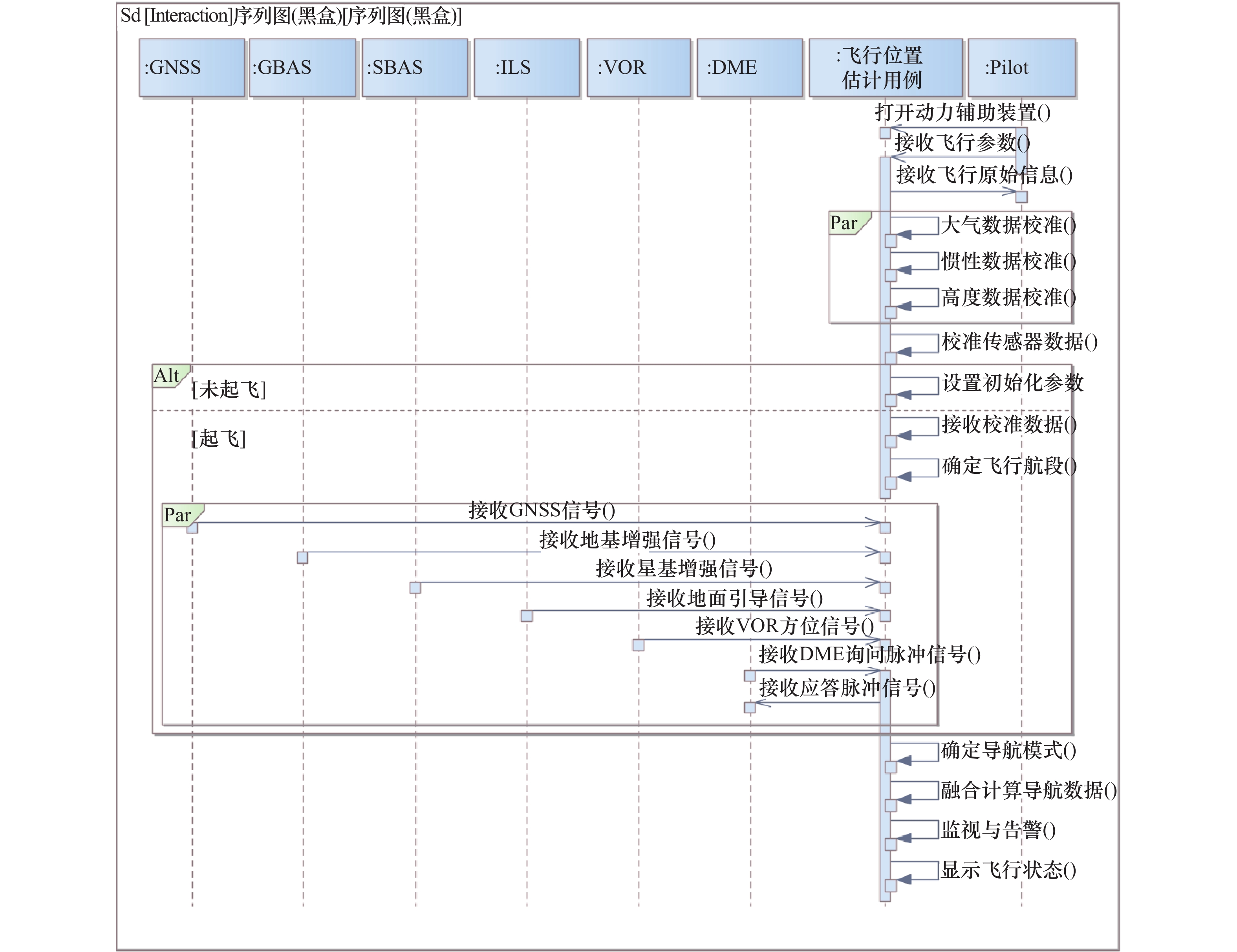

图3

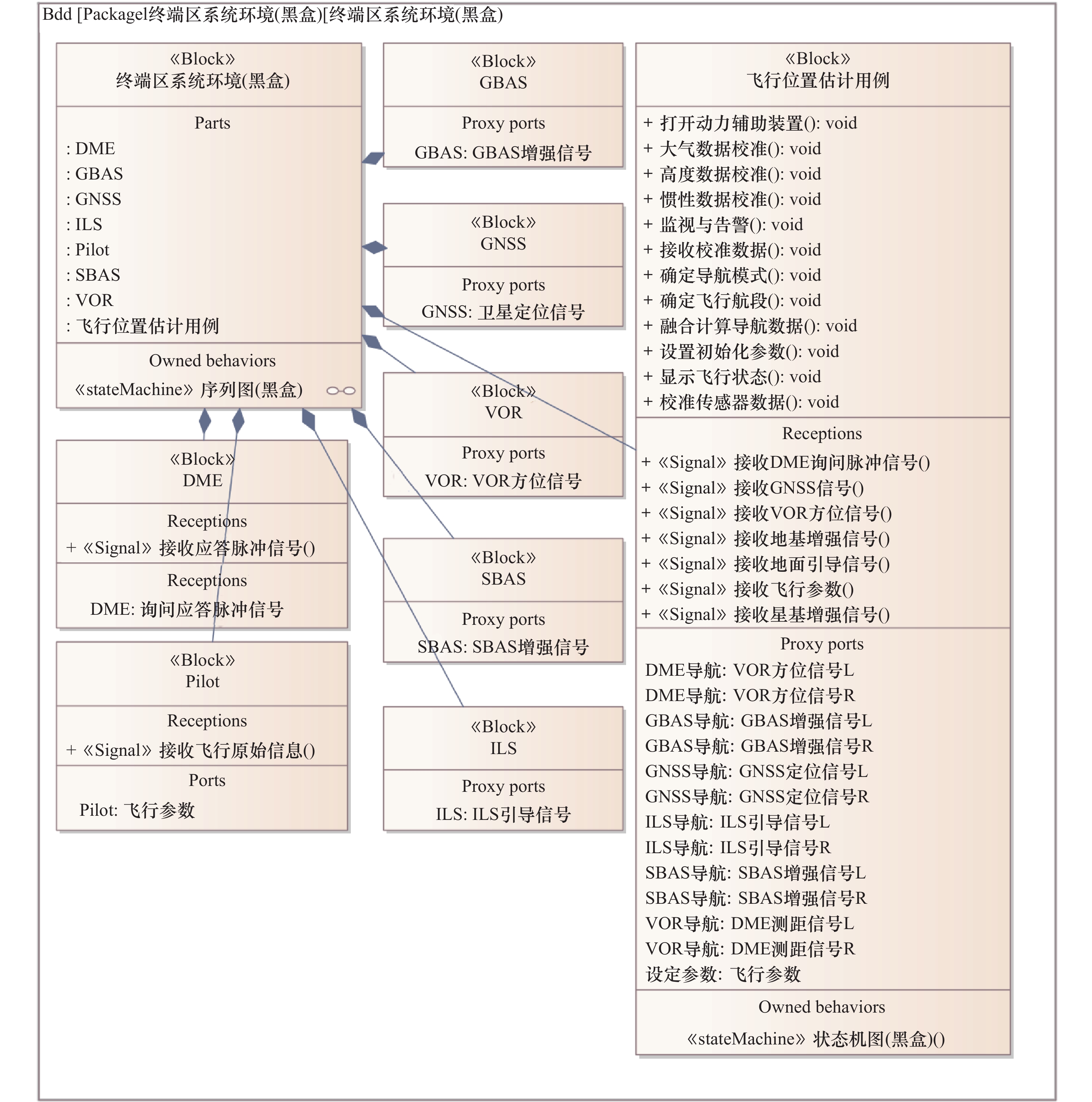

图4

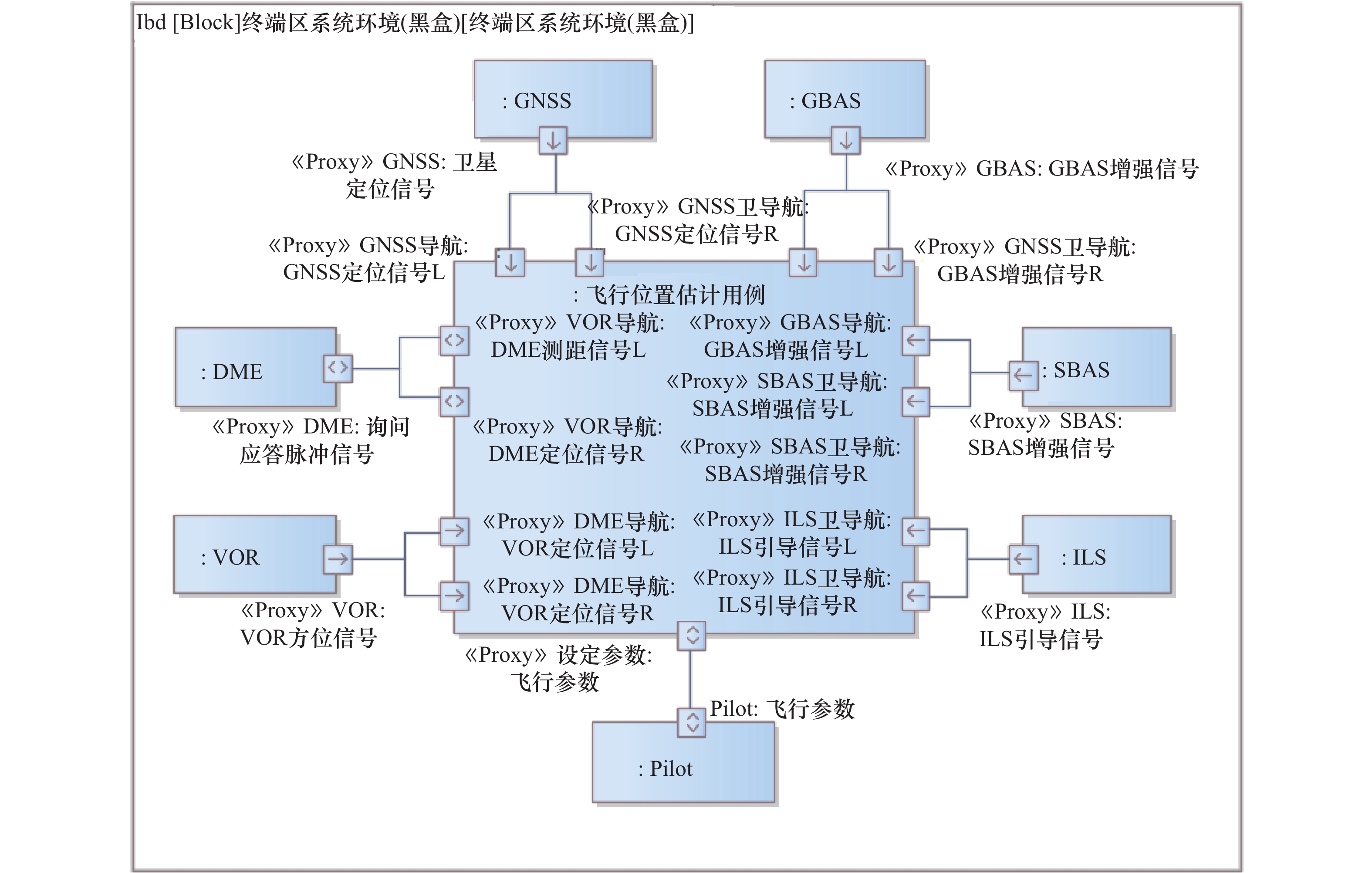

图5

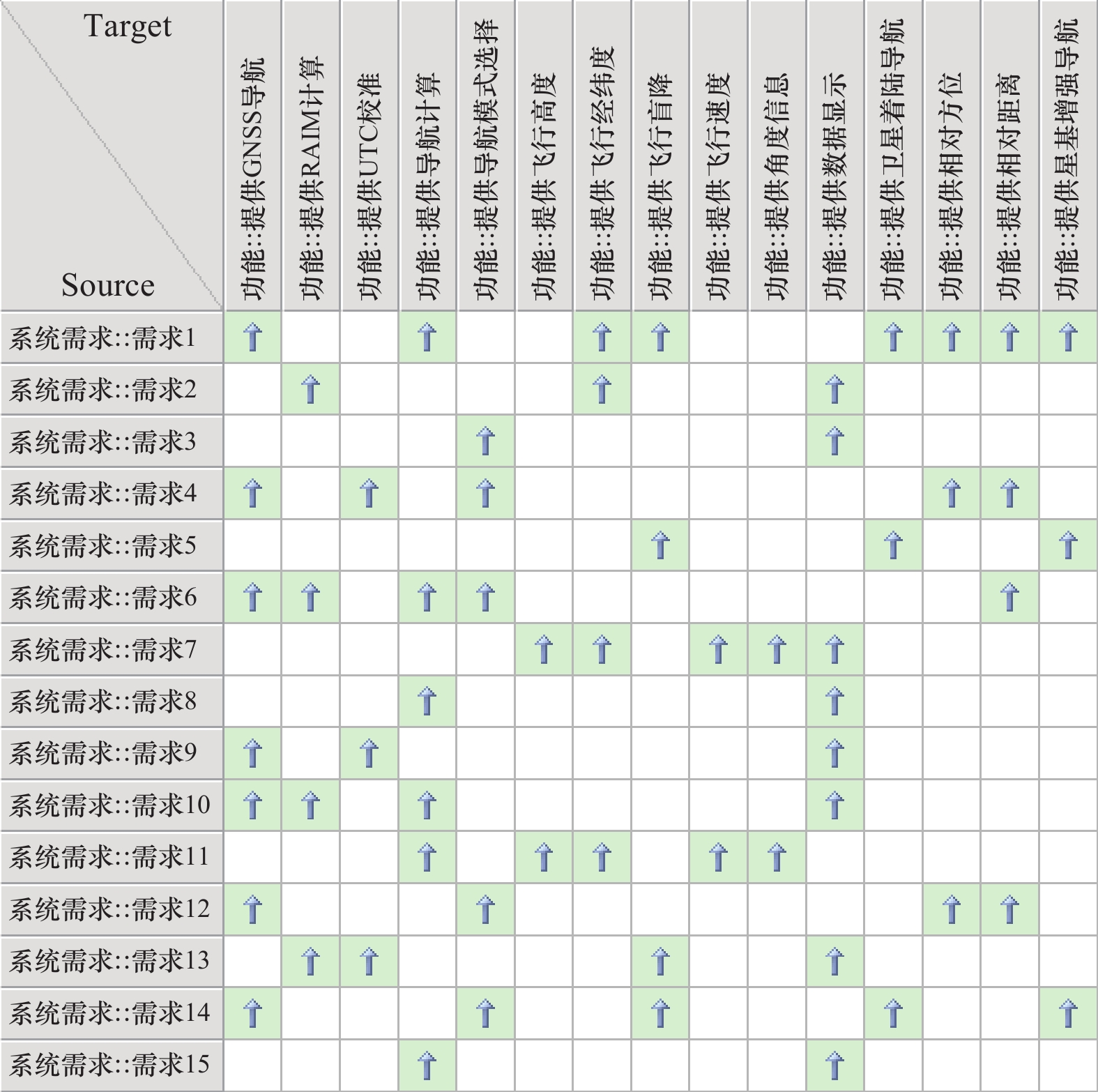

图6

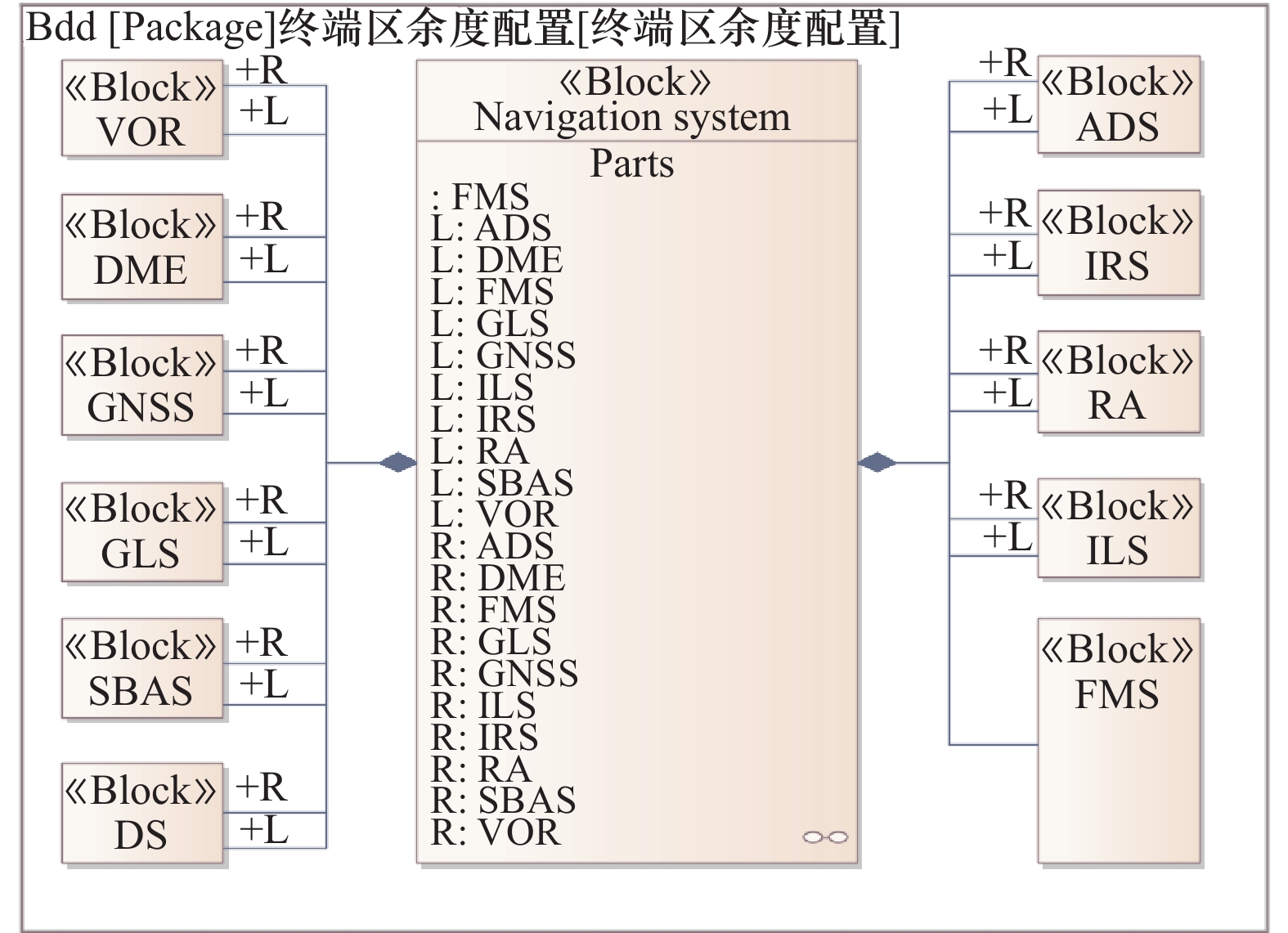

图7

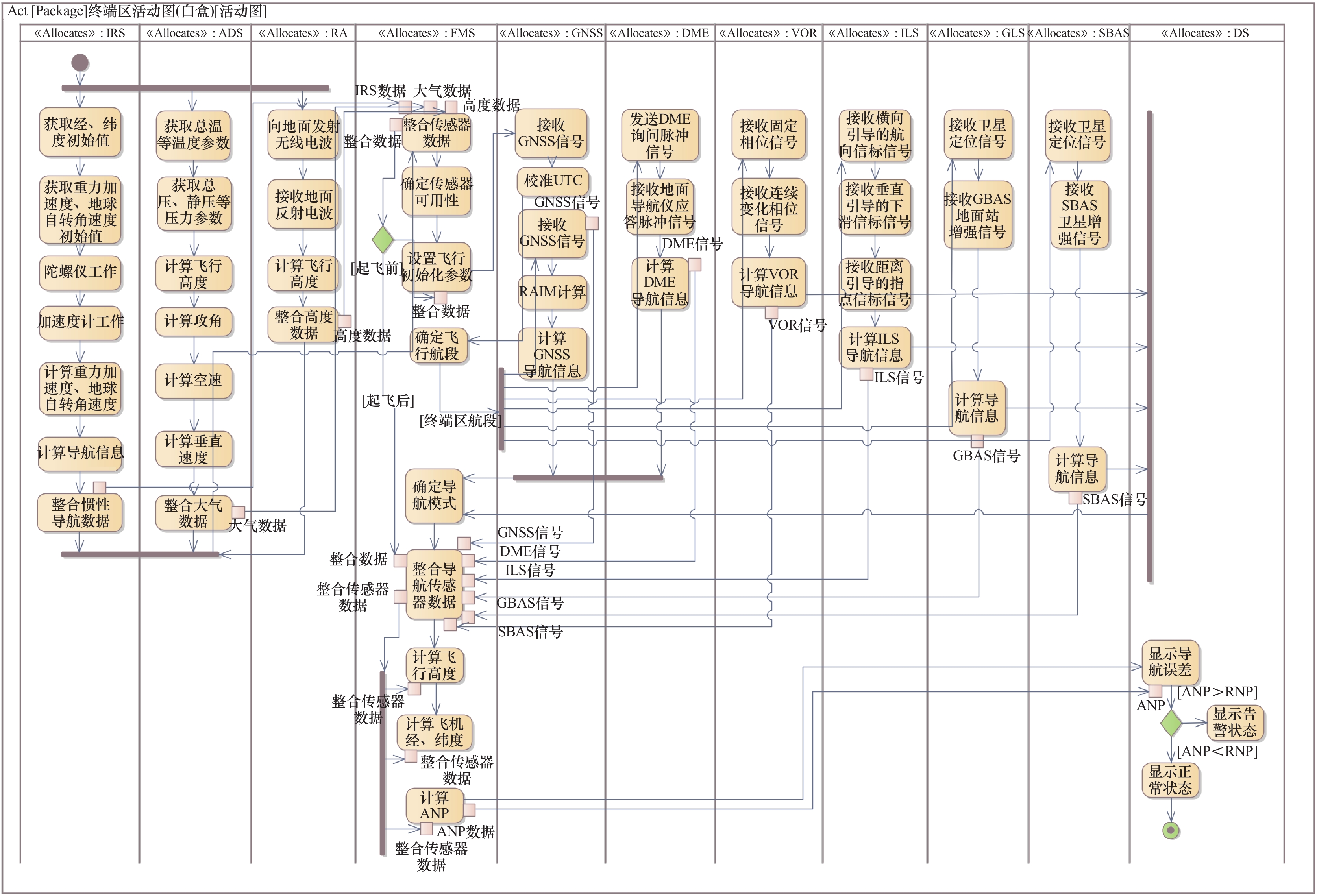

图8

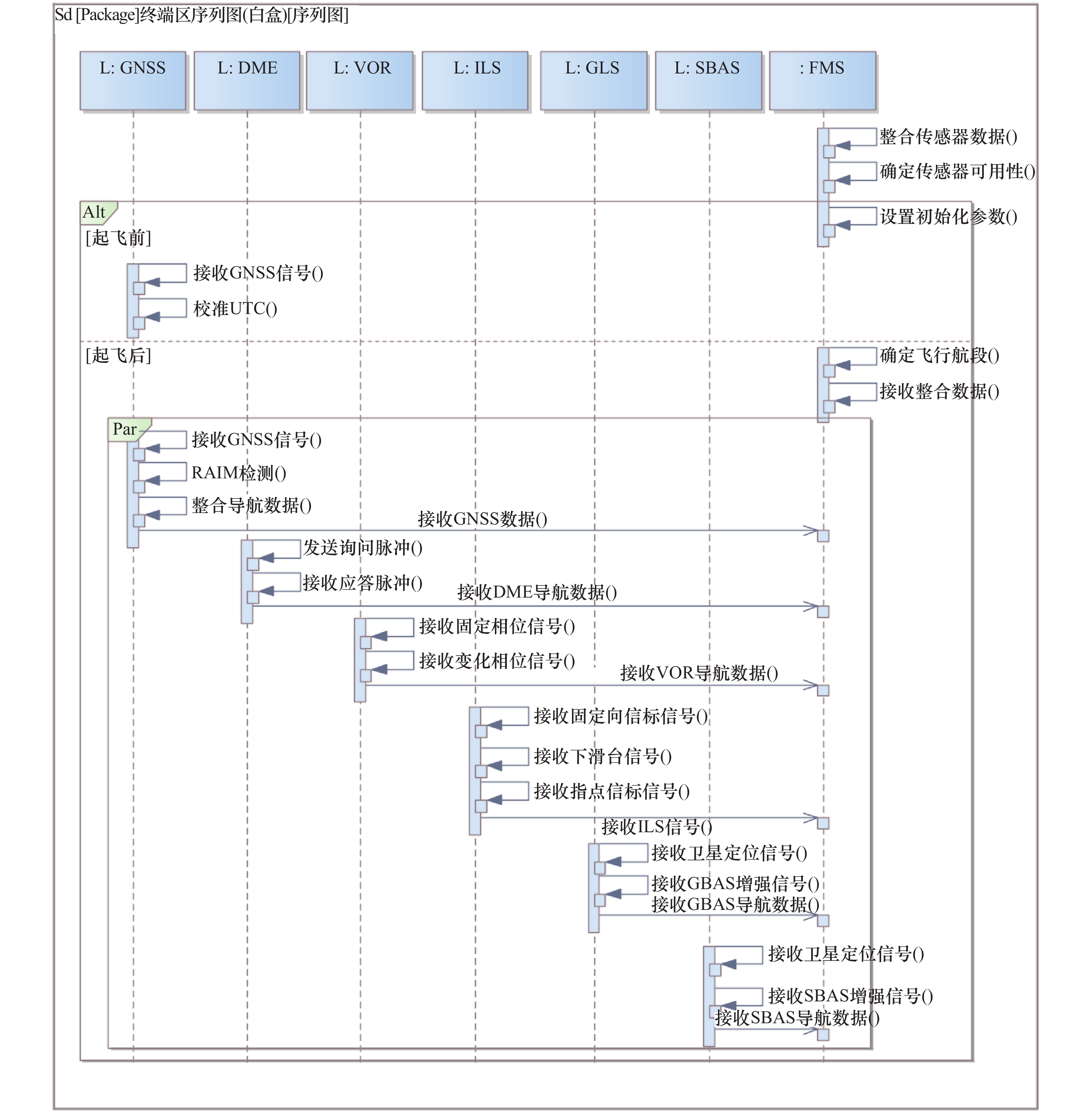

图9

图10

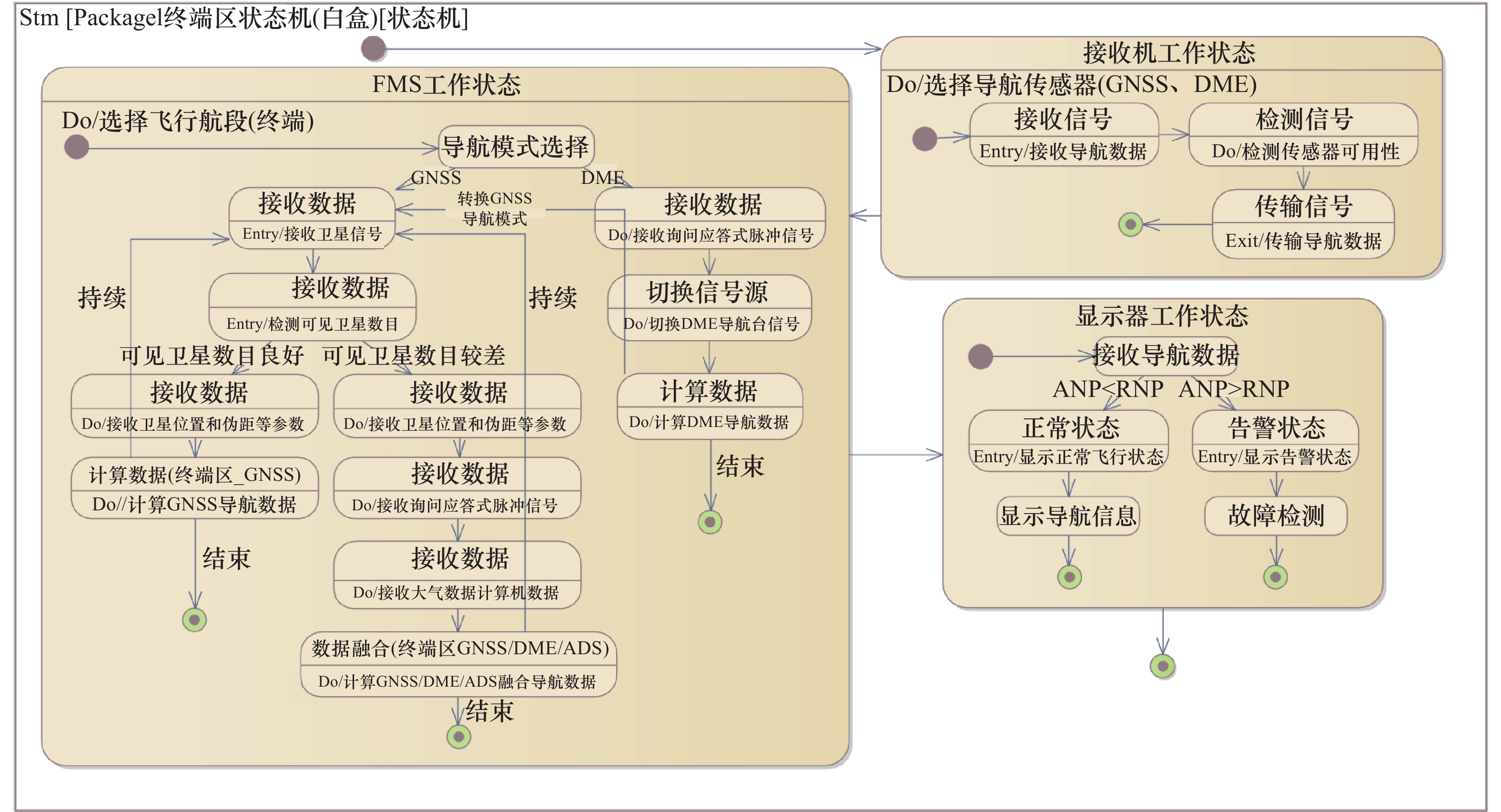

图13

图11

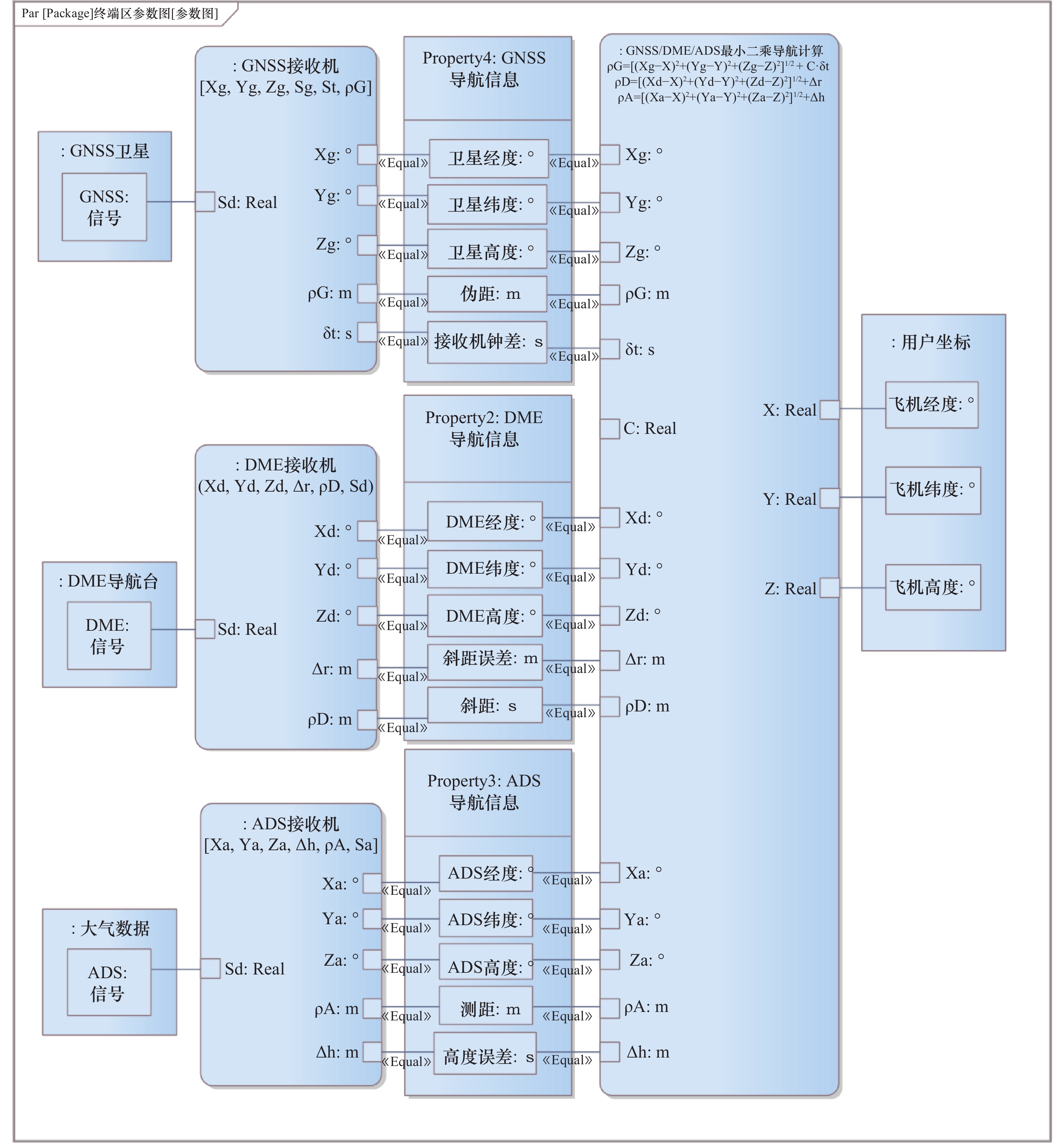

图14

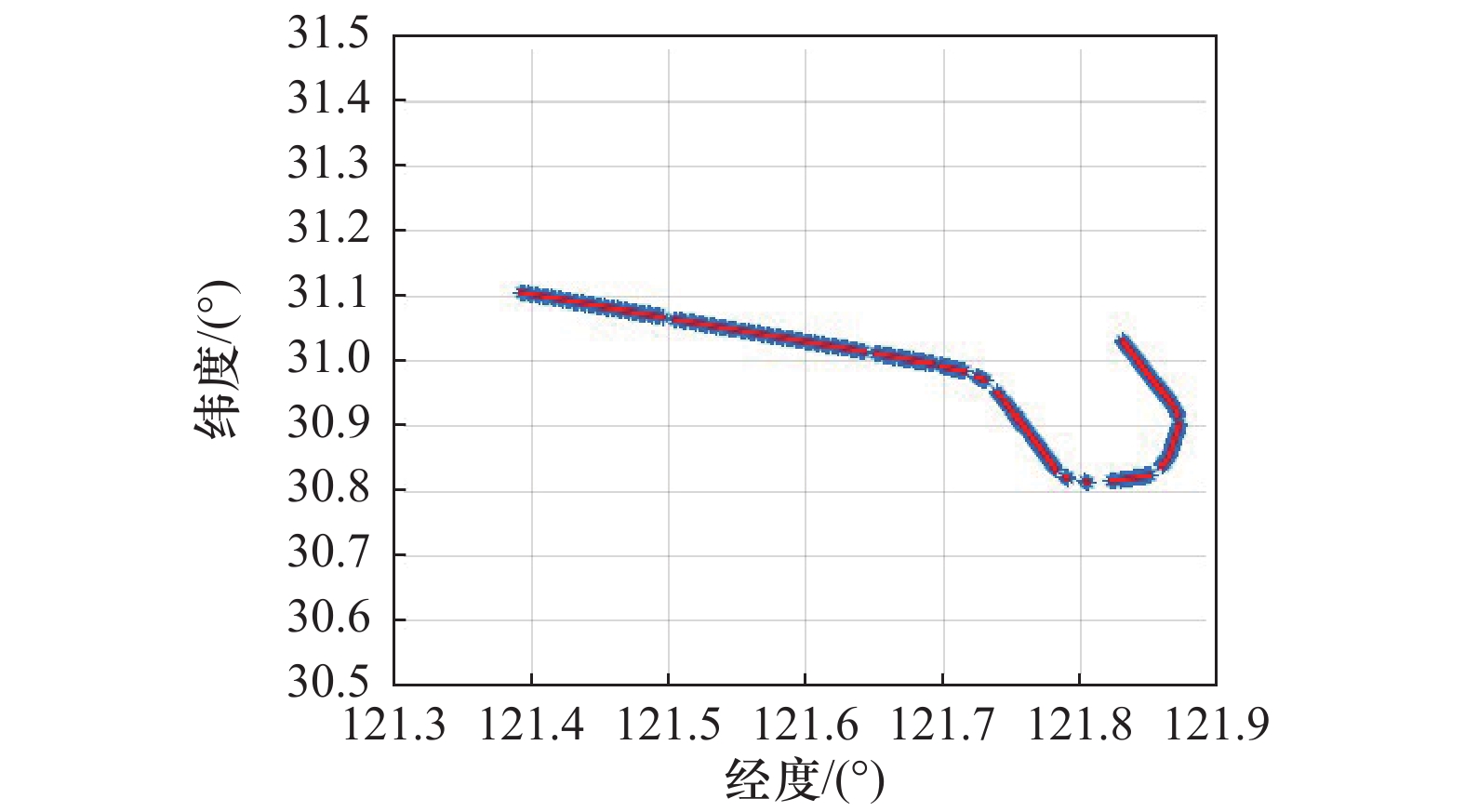

图15

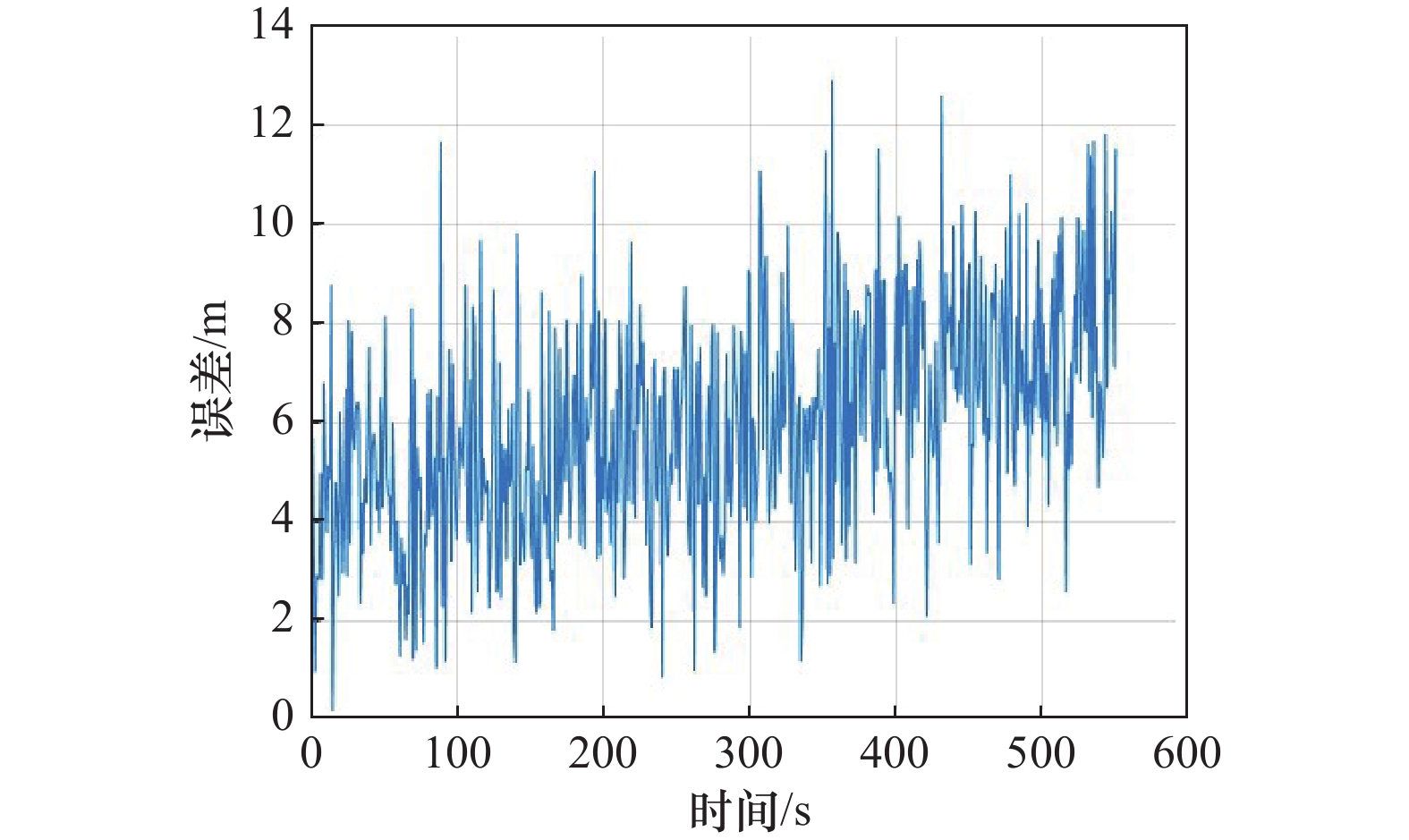

图12

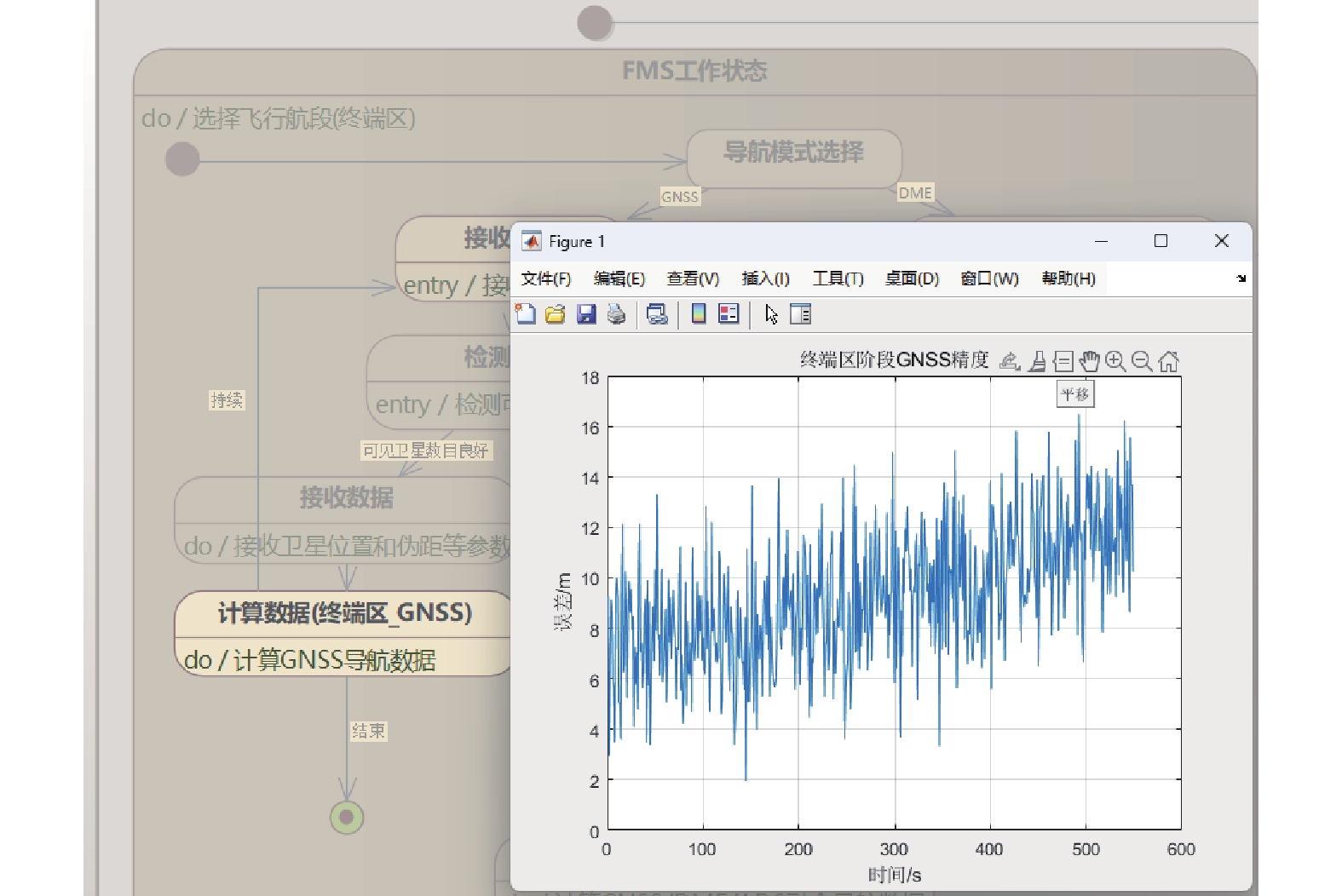

图16

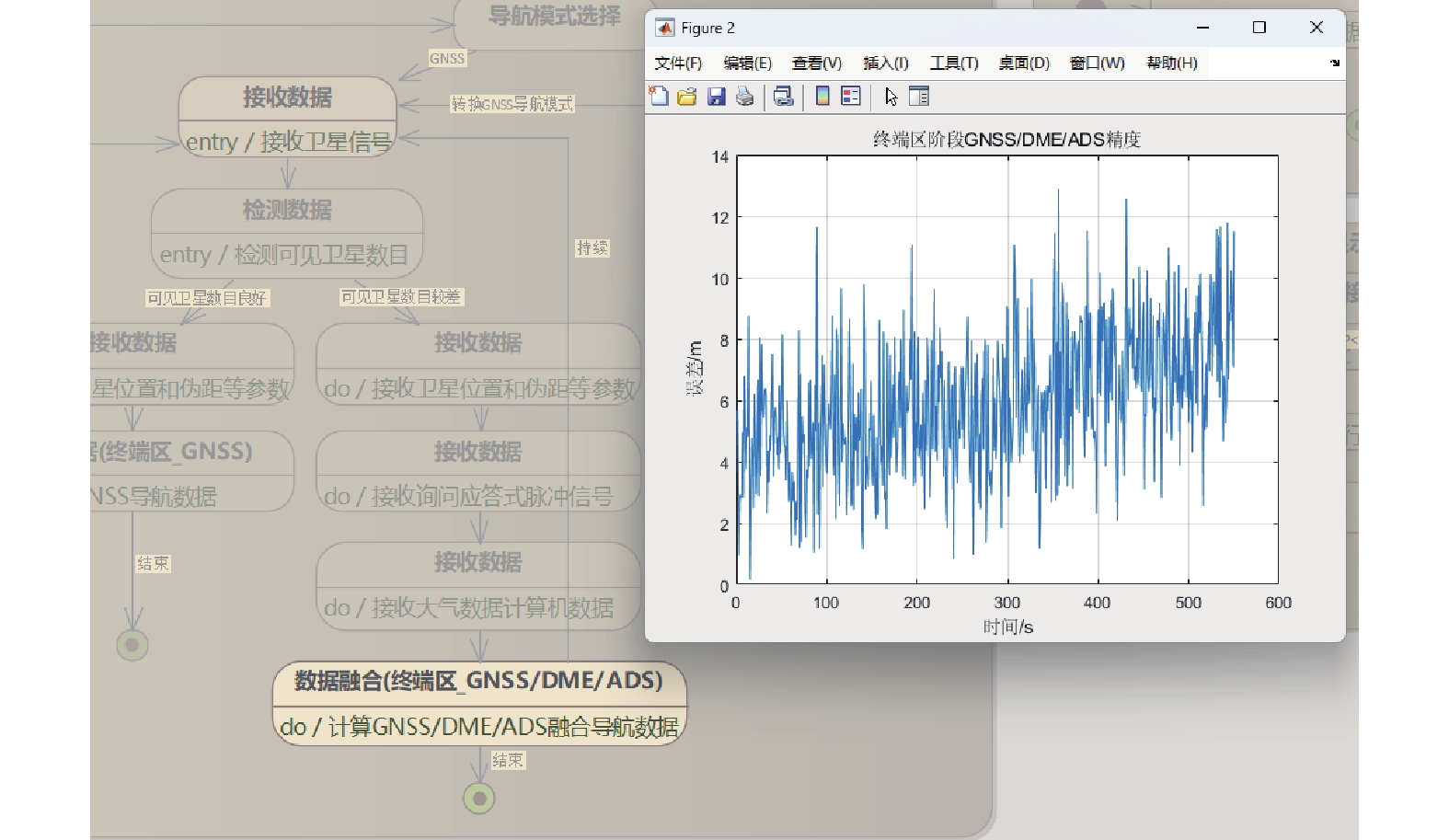

图17

表3

图18

图19

图20

参考文献 35

12	FAN Q C, BI W H, ZHANG A, et al. MBSE modeling method for civil aircraft altitude control system[J]. Systems Engineering and Electronics, 2022, 44 (1): 164- 171. doi: 10.12305/j.issn.1001-506X.2022.01.21
13	海晓航. 基于MBSE的民机起落架系统建模与仿真分析[D]. 南京: 南京航空航天大学, 2018.
	HAI X H. Modeling and simulation analysis of civil aircraft landing gear system based on MBSE [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018.
14	MAZEIKA D, MORKEVICIUS A, ALEKSANDRAVICIENE A. MBSE driven approach for defining problem domain[C]//Proc. of the 11th System of Systems Engineering Conference, 2016.
15	ANYANHUN A. The niftiness of executable MBSE black box models: a satellite subsystem exemplar[C]//Proc. of the IEEE Fort Worth Section Metropolitan Engineering Conference, 2022.
16	CHEN B, ZHANG S C, WANG B M. A case study of MBSE method used in the EMU train design [C]//Proc. of the International Conference on Intelligent Rail Transportation, 2018.
17	SHU L P, LIN Z W, ZHOU X P, et al .Research and application of design method of electrical control system of anti-aircraft artillery based on MBSE[C]//Proc. of the 8th International Forum on Electrical Engineering and Automation, 2021: 184−192.
18	MOSSADAK M A, CHEBAK A, ELMA-HJOUB A A. Intelligent power management control system modelling for battery/supercapacitor electric vehicles using MBSE and SysML[C]//Proc. of the 2nd International Conference on Mechatronics and Electrical Engineering, 2023: 20−24.
19	张绍杰, 李正强, 海晓航, 等. 基于MBSE的民用飞机安全关键系统设计[J]. 中国科学: 技术科学, 2018, 48 (3): 299- 311.
	ZHANG S J, LI Z Q, HAI X H, et al. Safety critical system design for civil aircraft based on MBSE[J]. Science in China: Technical Sciences, 2018, 48 (3): 299- 311.
20	LI X T, HU X G, XIAO J, et al. Research on modeling method of aeronautical weapon flight control system based on harmony-SE[C]//Proc. of the IEEE 16th Conference on Industrial Electronics and Applications, 2021: 2064−2069.
21	YANG Z, DU H, LIU Y, et al. Use the harmony-SE approach to extend the advantages of MBSE [C]//Proc. of the IEEE 16th Conference on Industrial Electronics and Applications, 2021: 223−227.
22	XU C Y, WANG Y, ZHAO Y, et al. Harmony-SE based architecture modeing method for aero-engine gas path system[C]//Proc. of the 14th Asian Control Conference, 2024: 2424−2427.
23	PAN X, XIAO J, HU X G. Research on electrical system modeling of aerostat based on harmony-SE[C]//Proc. of the IEEE 18th Conference on Industrial Electronics and Applications, 2023: 1962−1967.
24	ZHANG T T, WU J M, QI L, et al. Architecture analysis and design language & harmony system engineering process[C]//Proc. of the IEEE/ AIAA 31st Digital Avionics Systems Conference, 2012.
25	ZHANG R, YAN X M, YU Z, et al. Design and verification of radar system based on MBSE [C]//Proc. of the IET International Radar Con-ference, 2023: 3820−3825.
26	ZHANG T T. Architecture analysis and design language & harmony system engineering process[C]//Proc. of the IEEE/AIAA 31st Digital Avionics Systems Conference, 2012.
27	许晓东. 民机环控系统建模与仿真技术研究[D]. 南京: 南京航空航天大学, 2018.
	XU X D. Research on modeling and simulation technology of civil aircraft environmental control system [D]. Nanjing: Nanjing University of Aero-nautics and Astronautics, 2018.
28	毕文豪, 范秋岑, 李德林, 等. 基于多视角的民机正向设计建模方法[J]. 航空学报, 2023, 44 (10): 155- 176.
	BI W H, FAN Q C, LI D L, et al. Forward design modeling method for civil aircraft based on multi-view[J]. Acta Aeronautica Sinica, 2023, 44 (10): 155- 176.
29	张玉金, 黄博, 廖文和. 面向场景的航空发动机基于模型的系统工程设计[J]. 计算机集成制造系统, 2021, 27(11): 3093−3102.
	ZHANG Y J, HUANG B, LIAO W H. Scenario-based model-based system engineering design of aero-engine [J]. Computer Integrated Manu-facturing Systems, 2019, 27(11): 3093−3102.
30	徐德胜, 高倩, 胡士强, 等. 基于SysML与Simul- ink的飞机供电系统联合仿真研究[C]//第五届中国航空科学技术大会论文集, 2021.
	XU D S, GAO Q, HU S Q, et al. Joint simulation research of aircraft power supply system based on SysML and simulink [C]//Proc. of the 5th China Aeronautical Science and Technology Conference, 2021.
31	ZHANG S J, CHEN L, WANG S, et al. Civil aircraft auto brake system development using model-based systems engineering[C]//Proc. of the China Automation Congress, 2021: 400−405.
32	SUN S G, YUAN L G, GONG R X, et al. Tight integrated GNSS/DME navigation for aviation RNP operation[C]// Proc. of the 35th International Technical Meeting of the Satellite Division of The Institute of Navigation, 2022: 3043.
1	康文文, 李浩敏. 基于系统工程的飞机系统架构设计过程[J]. 民用飞机设计与研究, 2021 (2): 44- 57.
	KANG W W, LI H M. Aircraft system archi-tecture design process based on systems engi-neering[J]. Civil Aircraft Design and Research, 2021 (2): 44- 57.
2	INCOSE-MBSE-INIT-2007. INCOSE model based systems engineering roadmap[S]. San Diego: International Council on Systems Engineering, 2007.
3	王雨农, 毕文豪, 张安, 等. 基于DoDAF的民机MBSE研制方法[J]. 系统工程与电子技术, 2021, 43 (12): 3579- 3585. doi: 10.12305/j.issn.1001-506X.2021.12.20
	WANG Y N, BI W H, ZHANG A, et al. Development method of MBSE for civil aircraft based on DoDAF[J]. Systems Engineering and Electronics, 2021, 43 (12): 3579- 3585. doi: 10.12305/j.issn.1001-506X.2021.12.20
4	ZIMMERMAN P. A review of model-based syste- ms engineering practices and recommenddations for future directions in the department of defense[C]//Proc. of the 2nd Systems Engineering in the Washington Metropolitan Area Conference, 2014.
5	MALINS R J, STEIN J, THUKRAL A, et al. SysML activity models for applying ISO 14971 medical device risk and safety management across the system lifecycle[J]. INCOSE International symposium, 2015, 25, 489- 507. doi: 10.1002/j.2334-5837.2015.00077.x
6	FLEMING C H, LEVESON N. Integrating systems safety into systems engineering during concept development[J]. INCOSE International Symposium, 2015, 25, 989- 1003. doi: 10.1002/j.2334-5837.2015.00111.x
7	吴颖, 刘俊堂, 郑党党. 基于模型的系统工程技术探析[J]. 航空科学技术, 2015, 26, 69- 73. doi: 10.3969/j.issn.1007-5453.2015.09.016
	WU Y, LIU J T, ZHENG D D. Analysis of system engineering technology based on model[J]. Aeronautical Science and Technology, 2015, 26, 69- 73. doi: 10.3969/j.issn.1007-5453.2015.09.016
8	韩凤宇, 林益明, 范海涛. 基于模型的系统工程在航天器研制中的研究与实践[J]. 航天器工程, 2014, 23, 119- 125.
	HAN F Y, LIN Y M, FAN H T. Research and practice of model-based systems engineering in spacecraft development[J]. Space craft Engineering, 2014, 23, 119- 125.
9	王崑声, 袁建华, 陈红涛, 等. 国外基于模型的系统工程方法研究与实践[J]. 中国航天, 2012, 11, 52- 57.
	WANG K S, YUAN J H, CHEN H T, et al. Research and practice of model-based systems engineering methods abroad[J]. Chinese Aerospace Science, 2012, 11, 52- 57.
10	宗军耀, 郑智明, 张琛. 基于RNP运行的机载综合导航系统的架构和功能分析研究[J]. 中国高新技术企业, 2014 (25): 7- 8.
	ZONG J Y, ZHENG Z M, ZHANG C. Research on architecture and function analysis of airborne integrated navigation system based on RNP[J]. China Hightech Enterprises, 2014 (25): 7- 8.
11	柳敏. 基于RNP需求的大型客机导航信息综合处理及性能评估[D]. 南京: 南京航空航天大学, 2017.
	LIU M. Comprehensive processing and performance evaluation of large aircraft navigation information based on RNP requirements [D]. Nanjing: Nanjing University of Aeronautics and Astro-nautics, 2017.
12	范秋岑, 毕文豪, 张安, 等. 民用飞机高度控制系统MBSE建模方法[J]. 系统工程与电子技术, 2022, 44 (1): 164- 171. doi: 10.12305/j.issn.1001-506X.2022.01.21
33	BANK D, BLUMRICH F, KRESS P, et al. A systems engineering approach for a dynamic cosimulation of a SysML tool and MATLAB[C]//Proc. of the Annual IEEE Systems Conference, 2016.
34	SCARLATACHE V A, ARADOAEI S, OLARIU M A, et al. Electric vehicle architecture modeling based on MATLAB and SysML for discrete and continuous simulation[C]//Proc. of the International Conference on Electromechanical and Energy Systems, 2023.
35	BALLIN M G, WILLIAMS D H, ALLEN B D, et al. Prototype flight management capabilities to explore temporal RNP concepts[C]//Proc. of the IEEE/AIAA 27th Digital Avionics Systems Conference, 2008.

导航规范	主要导航源	地面导航设施
RNP4	GNSS	无
RNP2	GNSS, DME惯性导航系统	DME
RNP1	GNSS	DME
RNP进近	GNSS	VOR, DME
RNP授权要求进近	GNSS	无

需求编号	需求来源	描述
Req_1	ICAO Doc-9613	需提供定位功能，持续显示定位结果
Req_2	ICAO Doc-9613	需提供监视与告警功能
Req_3	ICAO Doc-9613	应能选择和调整导航模式
Req_4	ICAO Doc-9613	应使用传感器的一种或几种组合进行定位
Req_5	ICAO Doc-9613	若主传感器失效，应自动恢复到另一种导航方式
Req_6	ICAO Doc-9613	需满足终端区的精度和完好性要求（RNP1）
Req_7	ARINC-702A	FMS应提供输入和显示参数的能力
Req_8	ARINC-702A	FMS应提供计算导航数据功能
Req_9	ARINC-660B	导航设备应同步到世界协调时
Req_10	ARINC-660B	具备接收机自主完好性监测功能

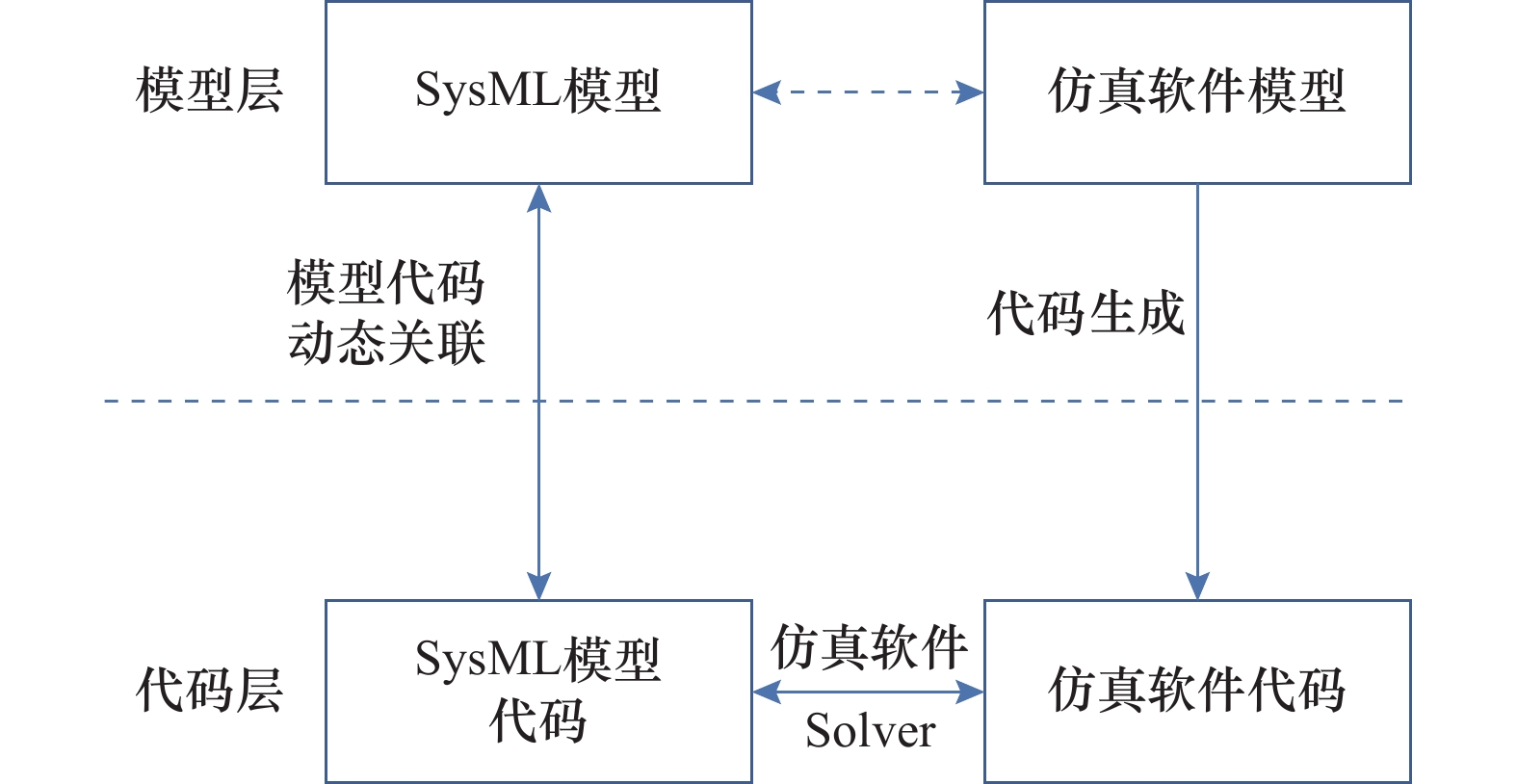

作用	语法
建造	var matlab = new Solver（'matlab'）;
赋值	matlab.set（'', *）;
跟踪	var * = matlab.get（'*'）;
调用	var result = matlab.exec（' ', *）;
