民用飞机航空运输体系分布式联合仿真方法及应用研究

doi:10.12305/j.issn.1001-506X.2025.12.23

摘要/Abstract

摘要：

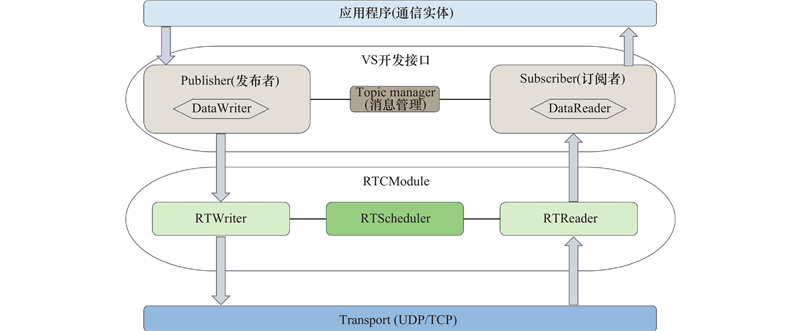

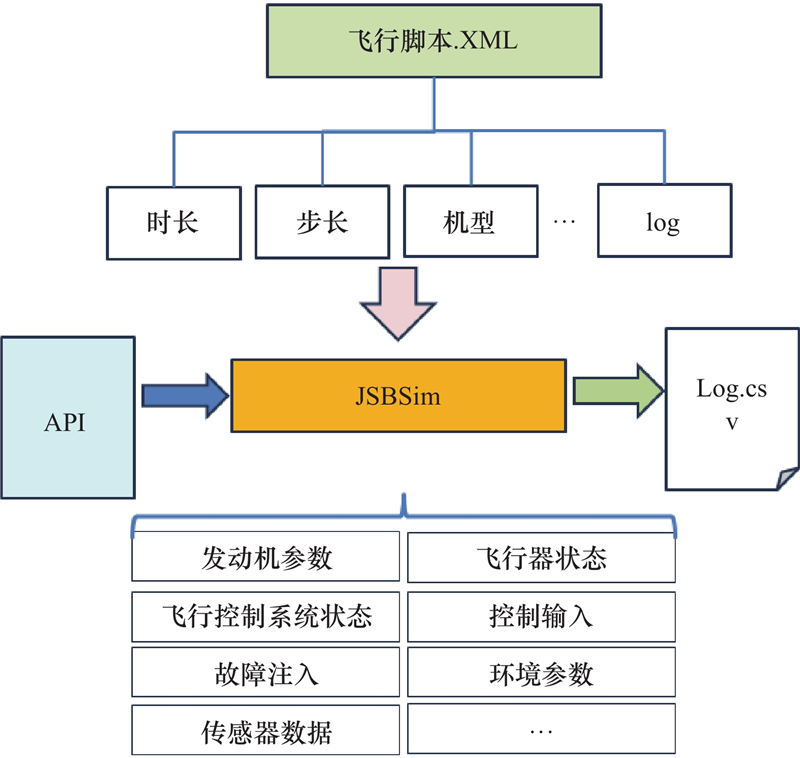

为解决现有仿真模型精度不足和独立运行效果不佳的问题，研究民用航空运输体系的分布式联合仿真方法，旨在构建一个高精度、高置信度的仿真环境。考虑基于模型的航空运输体系定义，建立基于系统建模语言的体系架构及场景建模框架；研究基于真实规则的机场运行仿真模型与空中交通飞行仿真系统构建，开发基于JSBSim软件库高可信度飞行动力学模型；基于可变服务中间件实现分布式数据分发与仿真集成。选取典型航线开展门到门的运输体系联合仿真实践，仿真结果的可信度有所提升。所提方法为需求论证确认与飞机效能评估提供了一种手段，也为相关领域的研究和应用提供了参考。

关键词: 航空运输体系, 分布式联合仿真, 基于模型的系统工程, 仿真集成技术

Abstract:

To solve the problems of insufficient accuracy and poor independent operation performance of existing simulation models, a distributed co-simulation method for civil aviation transportation system is studied, aiming to build a high-precision and high-confidence simulation environment. Consider defining a model-based air transportation system and establish a system architecture and scenario modeling framework based on system modeling language. Research on the construction of airport operation simulation model and air traffic flight simulation system based on real rules, and develop a high credibility flight dynamics model based on JSBSim software library. Implement distributed data distribution and simulation integration based on variable service middleware. Select typical routes to carry out co-simulation practice of door-to-door transportation system, and improve the credibility of the simulation results. The proposed method provides a means for requirement verification and aircraft efficiency evaluation, and also serves as a reference for research and application in related fields.

Key words: aviation transportation system, distributed co-simulation, model-based systems engineering（MBSE）, simulation integration technology

中图分类号:

TP 391

汪澔, 唐剑, 赵云飞, 武仲芝, 郭玮. 民用飞机航空运输体系分布式联合仿真方法及应用研究[J]. 系统工程与电子技术, 2025, 47(12): 3993-4004.

Hao WANG, Jian TANG, Yunfei ZHAO, Zhongzhi WU, Wei GUO. Research on distributed co-simulation methods and practice for civil aircraft aviation transportation system[J]. Systems Engineering and Electronics, 2025, 47(12): 3993-4004.

图/表 15

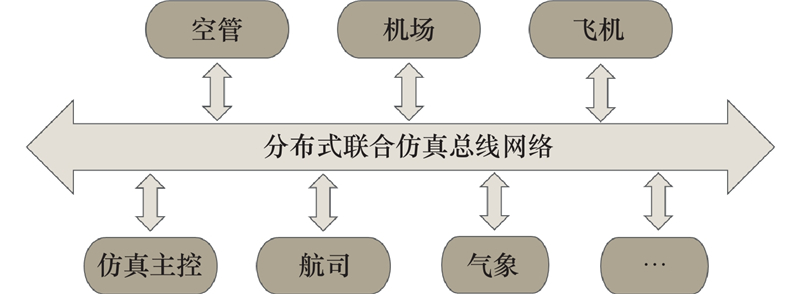

图1

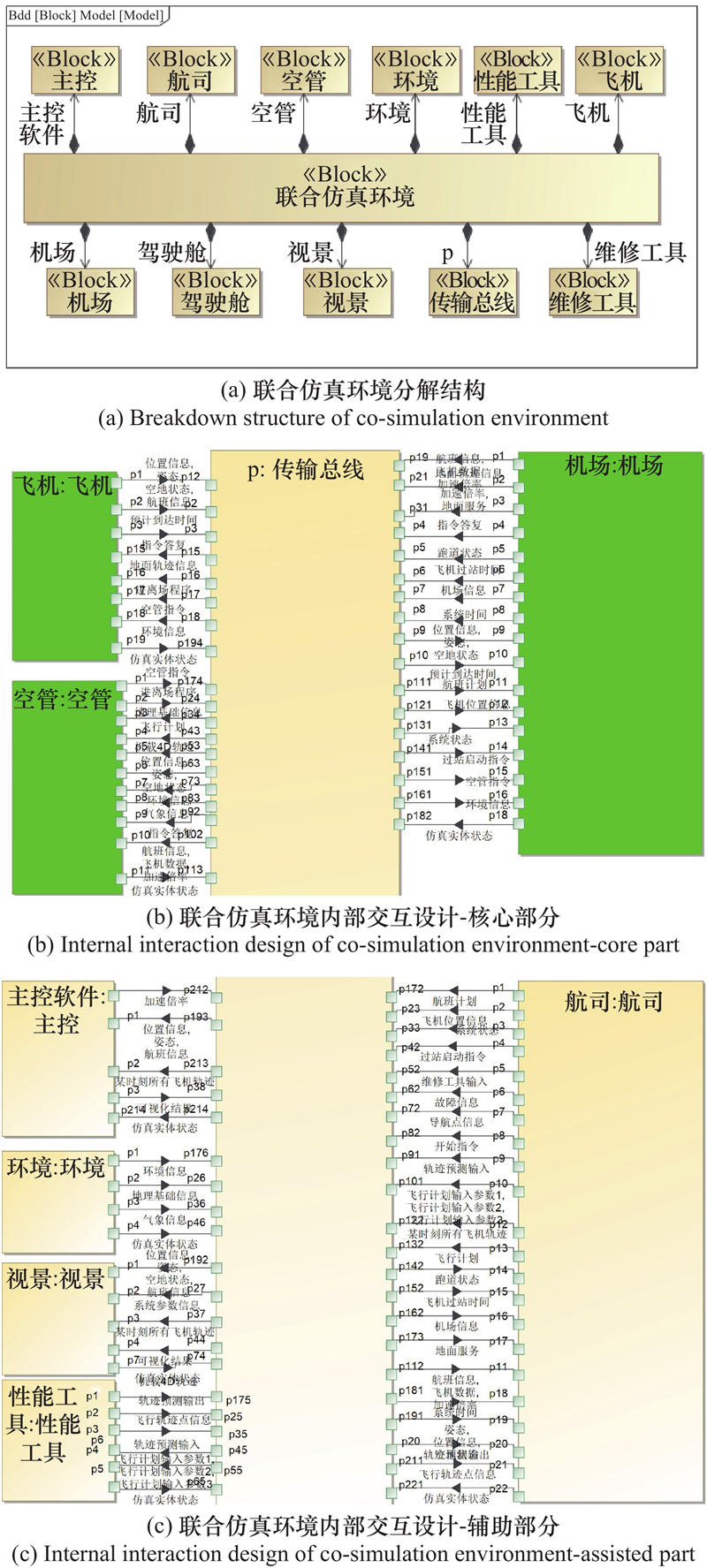

图2

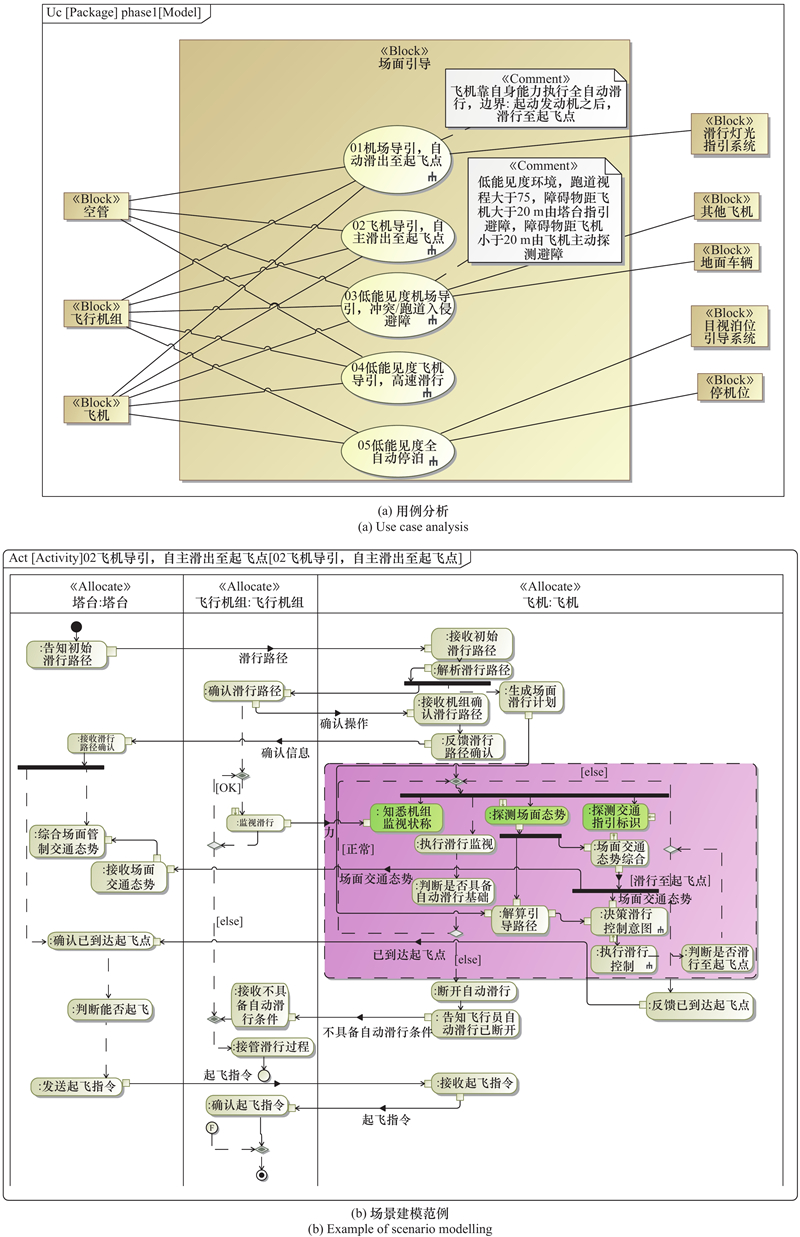

图3

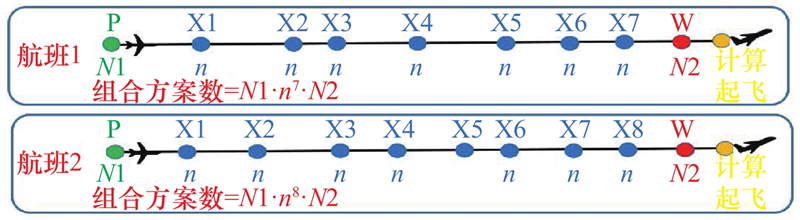

图4

图5

图6

图7

图8

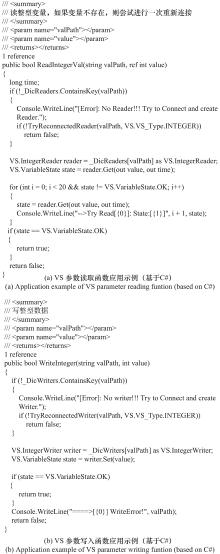

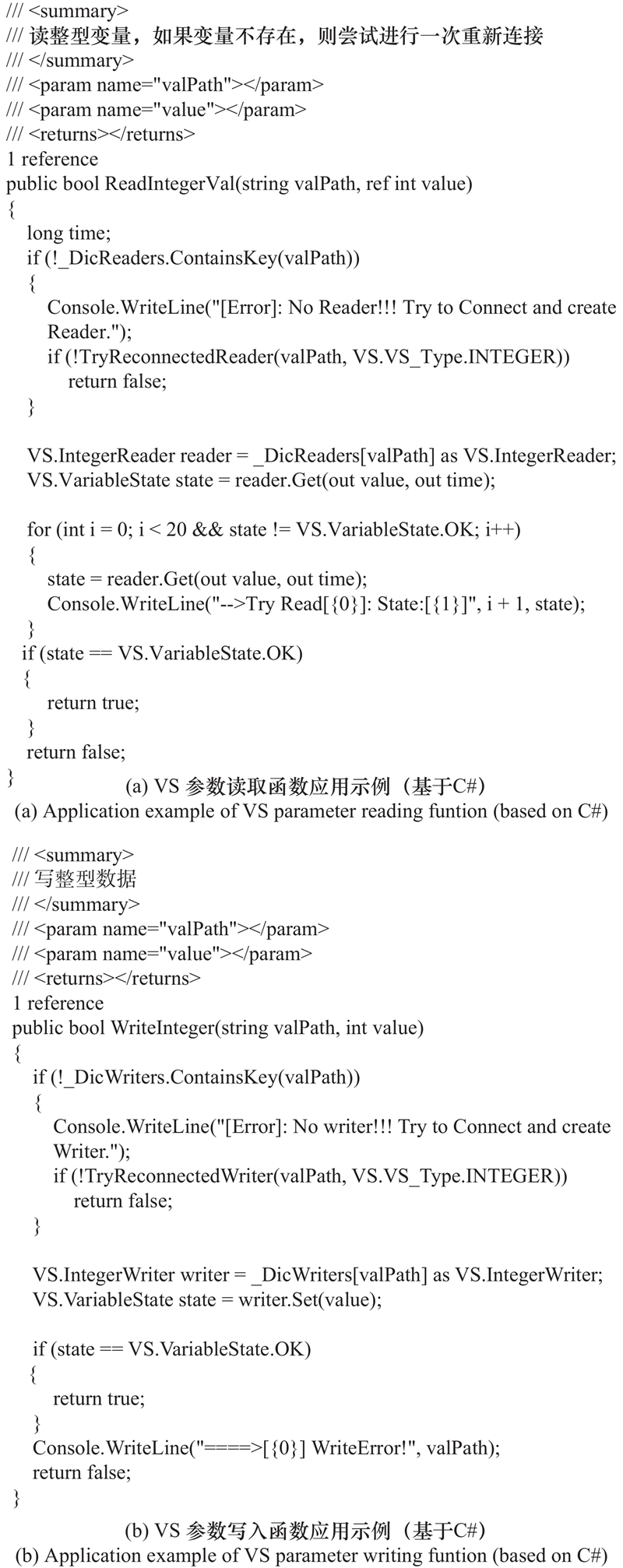

图9

表1

表2

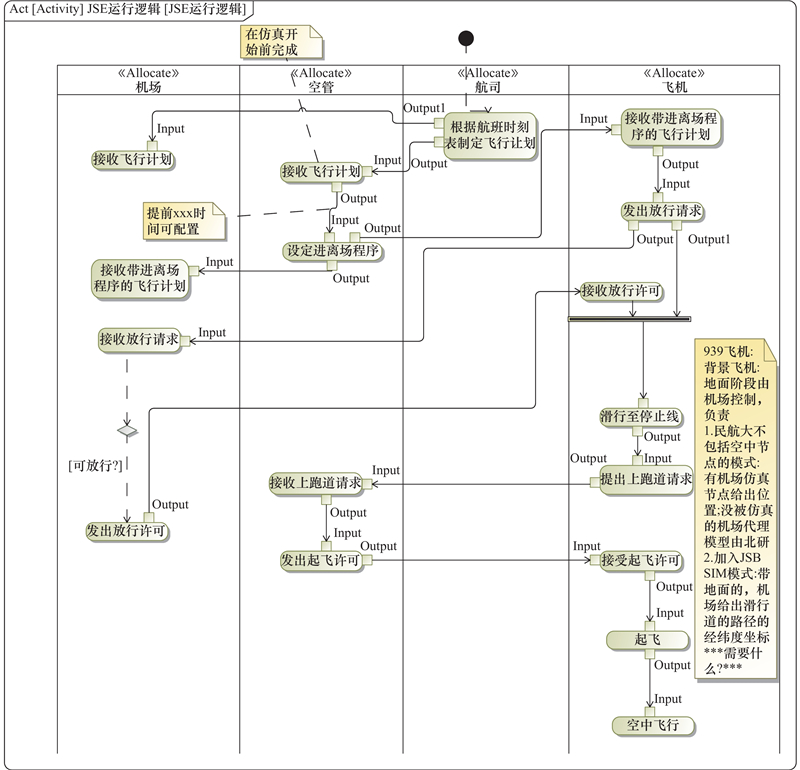

图10

图11

图12

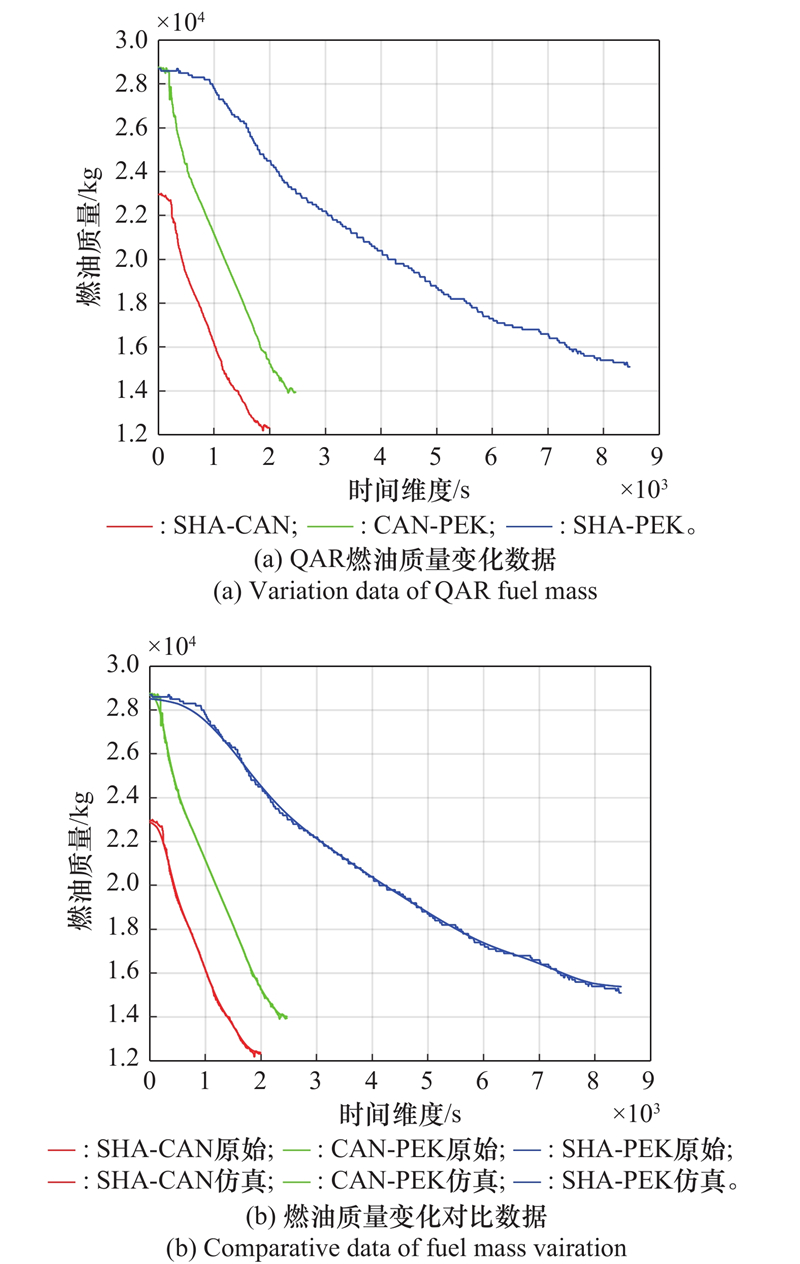

图13

参考文献 17

1	寇伟彬, 于凯任, 王佳玉, 等 . 韧性导向的机场航空器滑行路径及停机位联合优化[EB/OL]. [2025-02-27]. https://bhxb.buaa.edu.cn/bhzk/article/doi/10.13700/j.bh.1001-5965.2023.0801.
	KOU W B, YU K R, WANG J Y, et al. Resilience-oriented joint optimization of aircraft taxiing route and apron assignment in airport[EB/OL]. [2025-02-27]. https://bhxb.buaa.edu.cn/bhzk/article/doi/10.13700/j.bh.1001-5965.2023.0801.
2	CECEN R K. A stochastic programming model for the aircraft sequencing and scheduling problem considering flight duration uncertainties[J]. The Aeronautical Journal, 2022, 126 (1304): 1736- 1751. doi: 10.1017/aer.2022.17
3	JIANG H, LIU J X, ZHOU W S. Bi-level programming model for ioint scheduling of arrival and departure flights based on traffic scenario[J]. Transactions of Nanjing University of Aeronauticsand Astronautics, 2021, 38 (4): 671- 684.
4	杨志鹏, 陈子浩, 曾长, 等. 复杂环境下的飞行器在线航路规划决策方法[J]. 系统工程与电子技术, 2024, 46 (9): 3166- 3175. doi: 10.12305/j.issn.1001-506X.2024.09.28
	YANG Z P, CHEN Z H, ZENG C et al. Online route planning decision-making method of aircraft in complex environment[J]. Systems Engineering and Electronics, 2024, 46 (9): 3166- 3175. doi: 10.12305/j.issn.1001-506X.2024.09.28
5	ZHAO P, ERZBERGER H, LIU Y M. Multiple-aircraft-conflict resolution under uncertainties[J]. Journal of Guidance, Control, and Dynamics, 2021, 44 (11): 2031- 2049.
6	王莉莉, 赵云飞. 基于GA、RBF和改进Cao方法的空中交通流预测方法[J]. 交通信息与安全, 2023, 41 (1): 115- 123. doi: 10.3963/j.jssn.1674-4861.2023.01.012
	WANG L L, ZHAO Y F. A method for predicting air traffic flow based on a combined GA, RBF, and improved Cao method[J]. Journal of Transport Information and Safety, 2023, 41 (1): 115- 123. doi: 10.3963/j.jssn.1674-4861.2023.01.012
7	ZHANG X W, YU W Z. Research on the application of Kalman filter algorithm in aircraft trajectory analysis[C]//Proc. of the 7th International Conference on Intelligent Computing and Signal Processing, 2022: 196−199.
8	FERRERO-GUILLÉN R, DÍEZ-GONZÁLEZ J, ALIJA J M, et al. Optimal wing and horizontal tail plane design for maximizing the aircraft performance in cruise flight[J]. Cybernetics and Systems, 2023, 54 (3): 355- 371. doi: 10.1080/01969722.2022.2030010
9	ABU S K, PALAIA G, CHIARELLI M R, et al. A simulation framework for aircraft take-off considering ground effect aerodynamics in conceptual design[J]. Aerospace, 2023, 10 (5): 459. doi: 10.3390/aerospace10050459
10	FANG X B, CHEN H, HAN Y Y, et al. Crashworthiness performance simulation and analysis of combined-type landing gear buffer[J]. Journal of Aerospace Engineering, 2022, 35 (4): 4022049. doi: 10.1061/(ASCE)AS.1943-5525.0001444
11	郭学英, 李建伏. 基于飞机运行数据的高度飞行控制仿真研究[J]. 现代电子技术, 2024, 47 (17): 143- 148. doi: 10.16652/j.issn.1004-373x.2024.17.023
	GUO X Y, LI J F. Simulation of altitude flight control based on aircraft operation data[J]. Modern Electronics Technique, 2024, 47 (17): 143- 148. doi: 10.16652/j.issn.1004-373x.2024.17.023
12	杨新宇. 基于管制指令的飞机滑行冲突预警关键技术研究[D]. 天津: 中国民航大学, 2022.
	YANG X Y. Research on key technologies of aircraft taxiing conflict early warning based on control command[D]. Tianjin: Civil Aviation University of China, 2022.
13	贾立山, 李昂, 史晓柯, 等. 机场终端区飞机进近仿真系统的构建[J]. 计算机仿真, 2021, 38 (7): 27- 30，152. doi: 10.3969/j.issn.1006-9348.2021.07.009
	JIA L S, LI A, SHI X K, et al. Construction of aircraft approach simulation system in airport terminal area[J]. Computer Simulation, 2021, 38 (7): 27- 30，152. doi: 10.3969/j.issn.1006-9348.2021.07.009
14	ZENG W L, CHU X, XU Z F, et al. Aircraft 4D trajectory prediction in civil aviation: a review[J]. Aerospace, 2022, 9 (2): 91. doi: 10.3390/aerospace9020091
15	SHEN X l, LIU Y, ZHAO D Q. Autonomous control of simulated aircraft based on deep reinforcement learning driven by limited state information[C]//Proc. of the 3rd International Conference on Machine Learning, Cloud Computing and Intelligent Mining, 2024: 560−570.
16	LIU S Q, BAI J Q. Exploration of high-altitude dynamic soaring based on six-degree-of-freedom model[J]. Journal of Northwestern Polytechnical University, 2021, 39 (4): 703- 711. doi: 10.1051/jnwpu/20213940703
17	CHEN J C, ZHANG H R, HE R M, et al. Design and implementation of a real-time simulation platform for embedded applications on general-purpose operating systems[J]. Simulation, 2023, 99 (12): 1225- 1237. doi: 10.1177/00375497231189285

序号	数据类型	变量定义	应用场景
1	整形	Integer类型，不需要定义长度	一般用于状态变更、固定数值、计数等
2	浮点型	Double类型，不需要定义长度	一般用高精度计算，例如经纬高、温度、湿度等
3	字符串	Opaque类型，需要定义长度	结构体类型或者消息描述等

主控	空管	飞机	机场
显示仿真运行时间	记录仿真运行时间并发送至主控	记录仿真运行时间并发送至主控	记录仿真运行时间并发送至主控
显示各节点心跳状态	实时发送心跳包给主控（正常/异常/停止）	实时发送心跳包给主控（正常/异常/停止）	实时发送心跳包给主控（正常/异常/停止）
