基于梯度融合的极化SAR图像引导滤波

doi:10.12305/j.issn.1001-506X.2025.09.11

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (9): 2890-2904.doi: 10.12305/j.issn.1001-506X.2025.09.11

• 传感器与信号处理 • 上一篇

基于梯度融合的极化SAR图像引导滤波

李响¹(), 曾顶²(), 殷君君²^,*(), 国贤玉²(), 杨健³()

1. 北京无线电测量研究所，北京 100854
2. 北京科技大学计算机与通信工程学院，北京 100083
3. 清华大学电子工程系，北京 100084

收稿日期:2024-10-15 出版日期:2025-09-25 发布日期:2025-09-16
通讯作者: 殷君君 E-mail:150194353@qq.com;1215978653@qq.com;michelle198329@163.com;guoxianyu@xs.ustb.edu.cn;yangjian_ee@tsinghua.edu.cn
作者简介:李　响（1986—），男，高级工程师，博士，主要研究方向为极化识别
曾　顶（1998—），男，硕士，主要研究方向为极化SAR图像处理、极化SAR滤波
国贤玉（1991—），男，博士研究生，主要研究方向为雷达图像处理、雷达遥感
杨　健（1965—），男，教授，博士，主要研究方向为极化雷达信号处理
基金资助:
国家自然科学基金（62222102, 62171023）；中央高校基本科研业务费（FRF-TP-22-005C1）资助课题

Guided filtering for polarimetric SAR image based on gradient fusion

Xiang LI¹(), Ding ZENG²(), Junjun YIN²^,*(), Xianyu GUO²(), Jian YANG³()

1. Beijing Institute of Radio Measurement，Beijing 100854，China
2. School of Computer and Communication Engineering，University of Science and Technology Beijing，Beijing 100083，China
3. Department of Electronic Engineering，Tsinghua University，Beijing 100084，China

Received:2024-10-15 Online:2025-09-25 Published:2025-09-16
Contact: Junjun YIN E-mail:150194353@qq.com;1215978653@qq.com;michelle198329@163.com;guoxianyu@xs.ustb.edu.cn;yangjian_ee@tsinghua.edu.cn

摘要/Abstract

摘要：

在极化合成孔径雷达（synthetic aperture radar, SAR）图像的引导滤波降噪算法中，常见的方法都引入了非线性核函数，而忽略了优化引导图像的构造方法。对此，提出一种基于梯度融合的极化SAR引导滤波算法进行舰船数据降噪。对比不同梯度计算方法，利用优化后的似然比梯度获取舰船边缘梯度图像，通过图像二值化以及形态学操作获取到梯度信息和强度信息的融合图像，并将其作为引导图像对原极化SAR数据进行引导滤波。通过多幅SAR图像引导滤波降噪实验证明，所提算法能够解决SAR领域现有引导滤波中非线性核函数降噪效果不佳问题，其目测结果和数值指标优于改进Lee滤波以及非线性核函数引导滤波算法。

关键词: 极化合成孔径雷达, 引导滤波, 似然比梯度, 信息融合

Abstract:

In the guided filtering denoising algorithms for polarimetric synthetic aperture radar （SAR）, common methods typically introduce nonlinear kernel functions while neglecting the construction method of optimizing guidance image. In regard to this, a gradient fusion-based polarimetric SAR guided filtering algorithm is proposed for ship data denoising. It compares the different gradient computation methods and utilizes an optimized likelihood ratio gradient to obtain ship edge gradient images. By employing image binarization and morphological operations, the fused image of gradient information and intensity information is acquired and used as the guidance image to perform guided filtering on the original polarimetric SAR data. Multiple SAR images guided filtering denoising experiment demonstrate that the proposed algorithm can address the poor denoising performance of nonlinear kernel functions in existing guided filtering methods. Both visual results and numerical metrics indicate that the proposed algorithm outperforms the improved Lee filter and nonlinear kernel function guided filtering algorithms.

Key words: polarimetric synthetic aperture radar （SAR）, guided filtering, likelihood ratio gradient, information fusion

中图分类号:

TN 958

李响, 曾顶, 殷君君, 国贤玉, 杨健. 基于梯度融合的极化SAR图像引导滤波[J]. 系统工程与电子技术, 2025, 47(9): 2890-2904.

Xiang LI, Ding ZENG, Junjun YIN, Xianyu GUO, Jian YANG. Guided filtering for polarimetric SAR image based on gradient fusion[J]. Systems Engineering and Electronics, 2025, 47(9): 2890-2904.

图/表 16

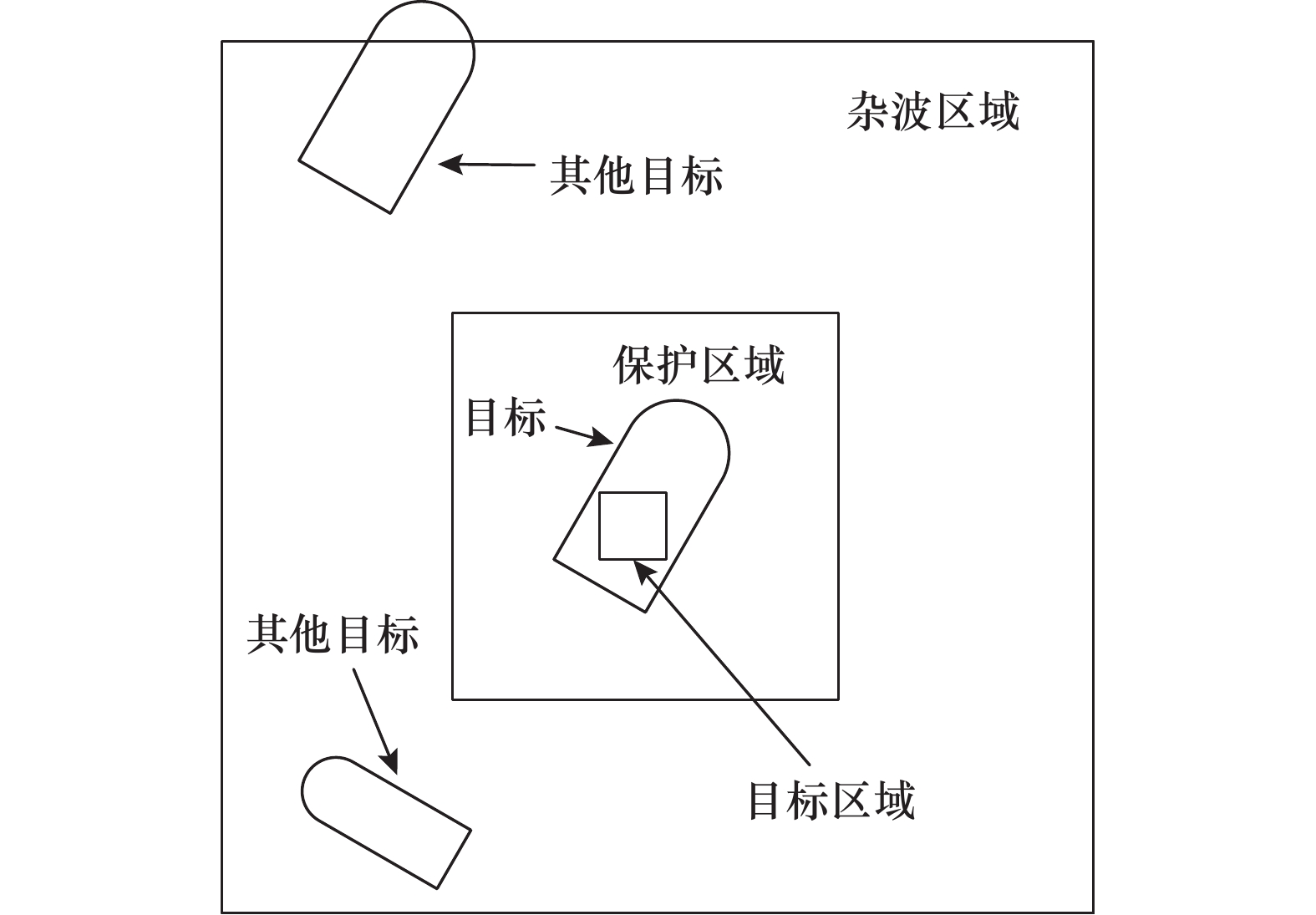

图1

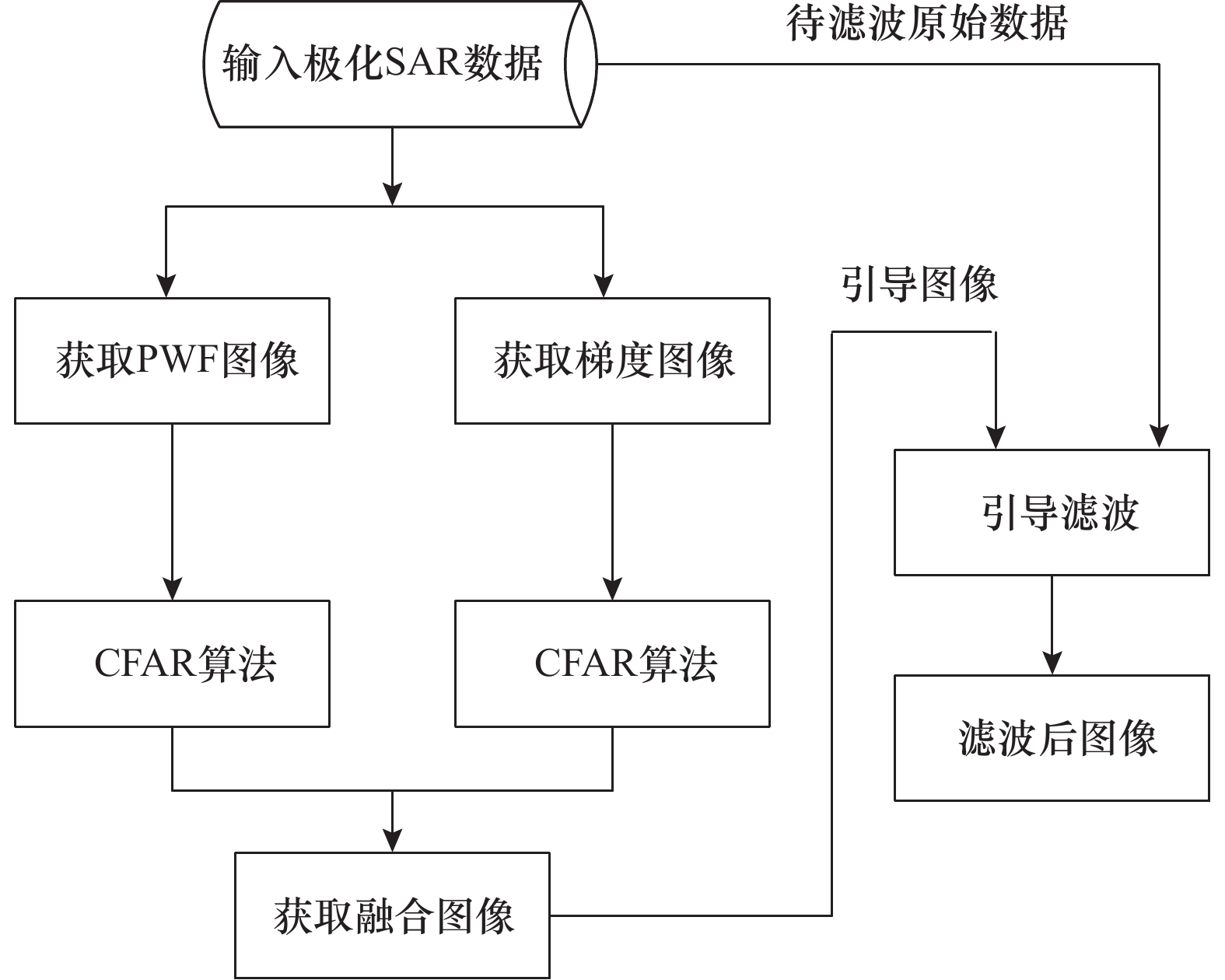

图2

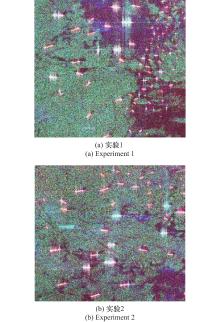

图3

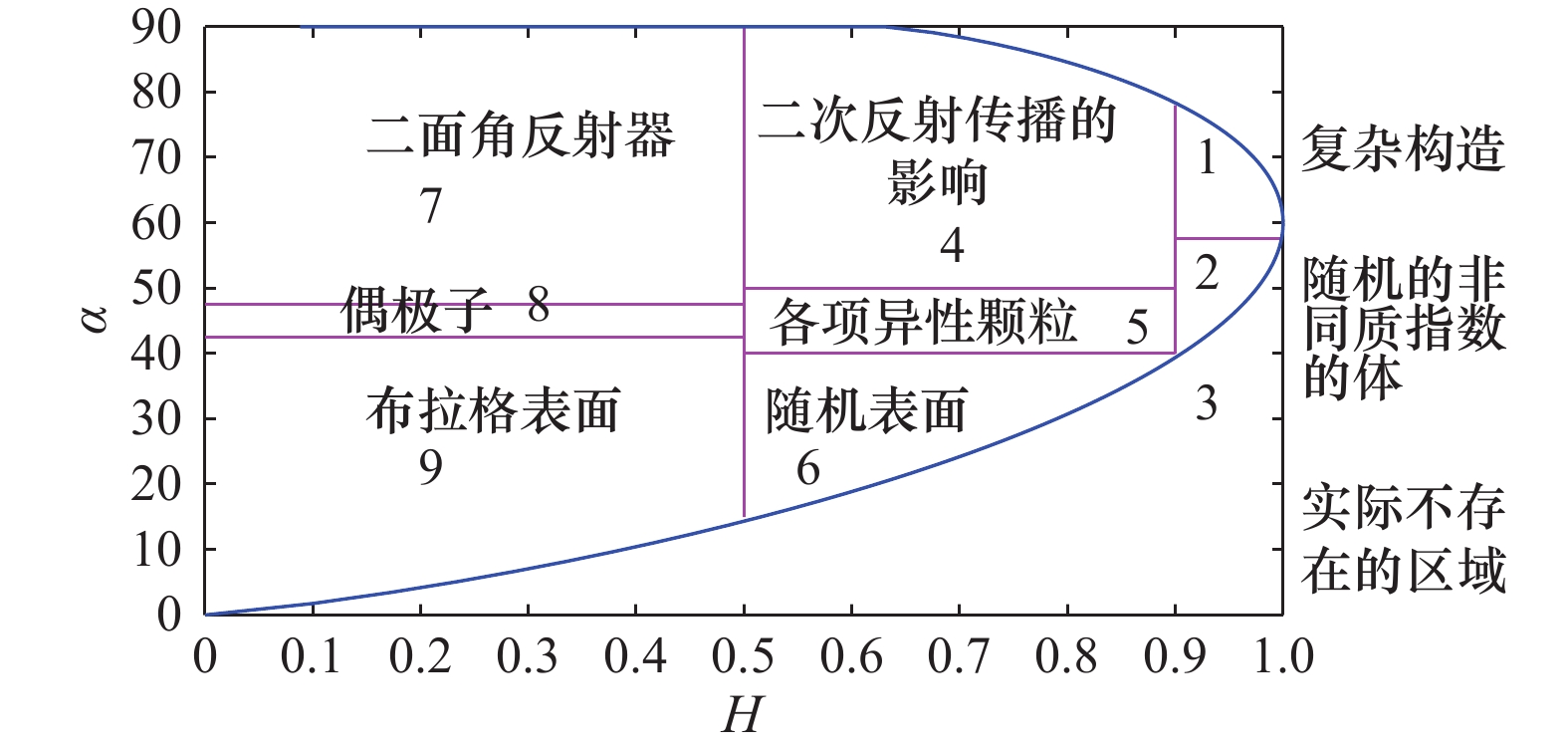

图4

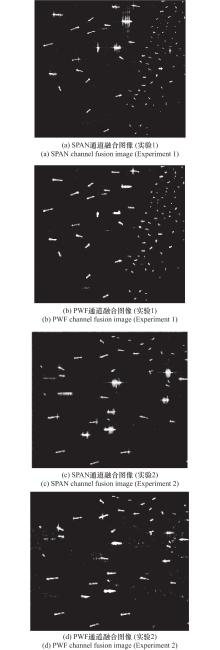

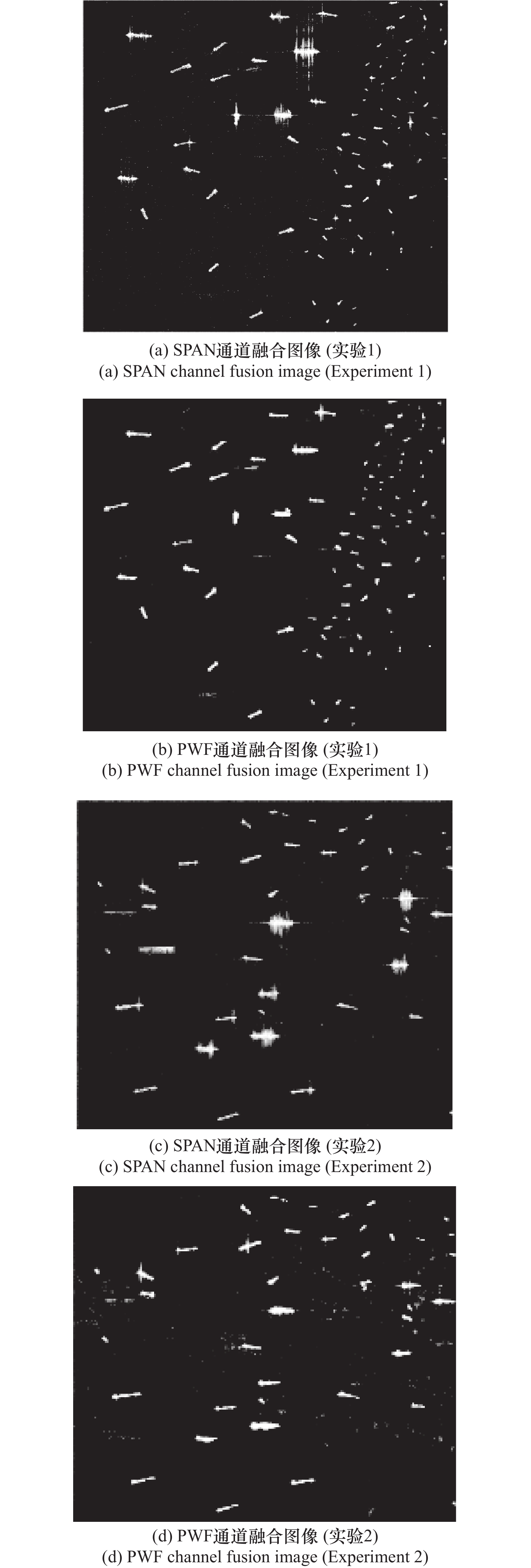

图5

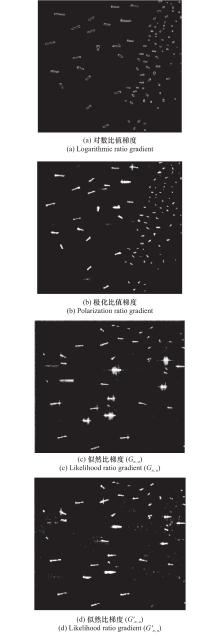

图6

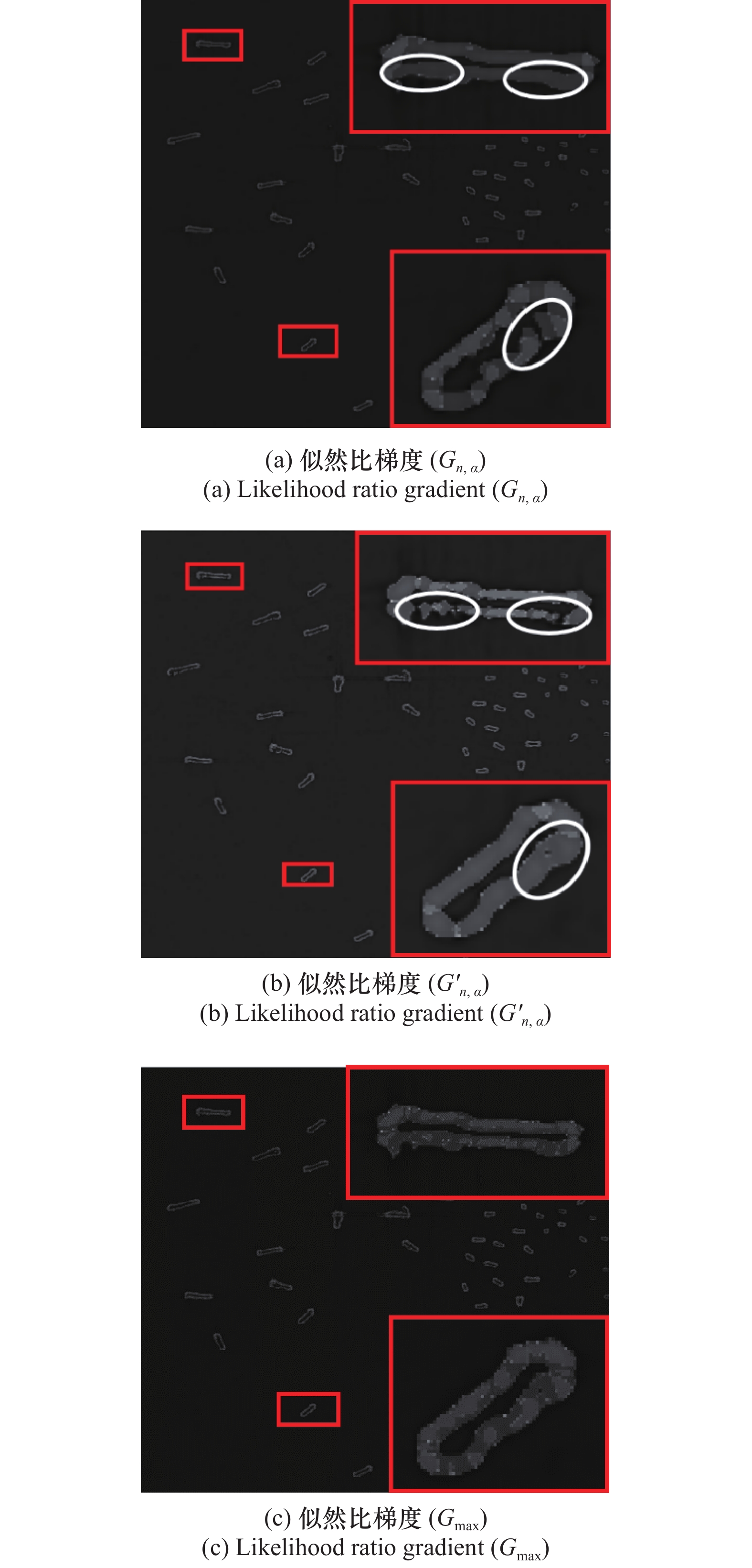

图7

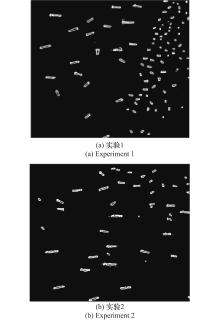

图8

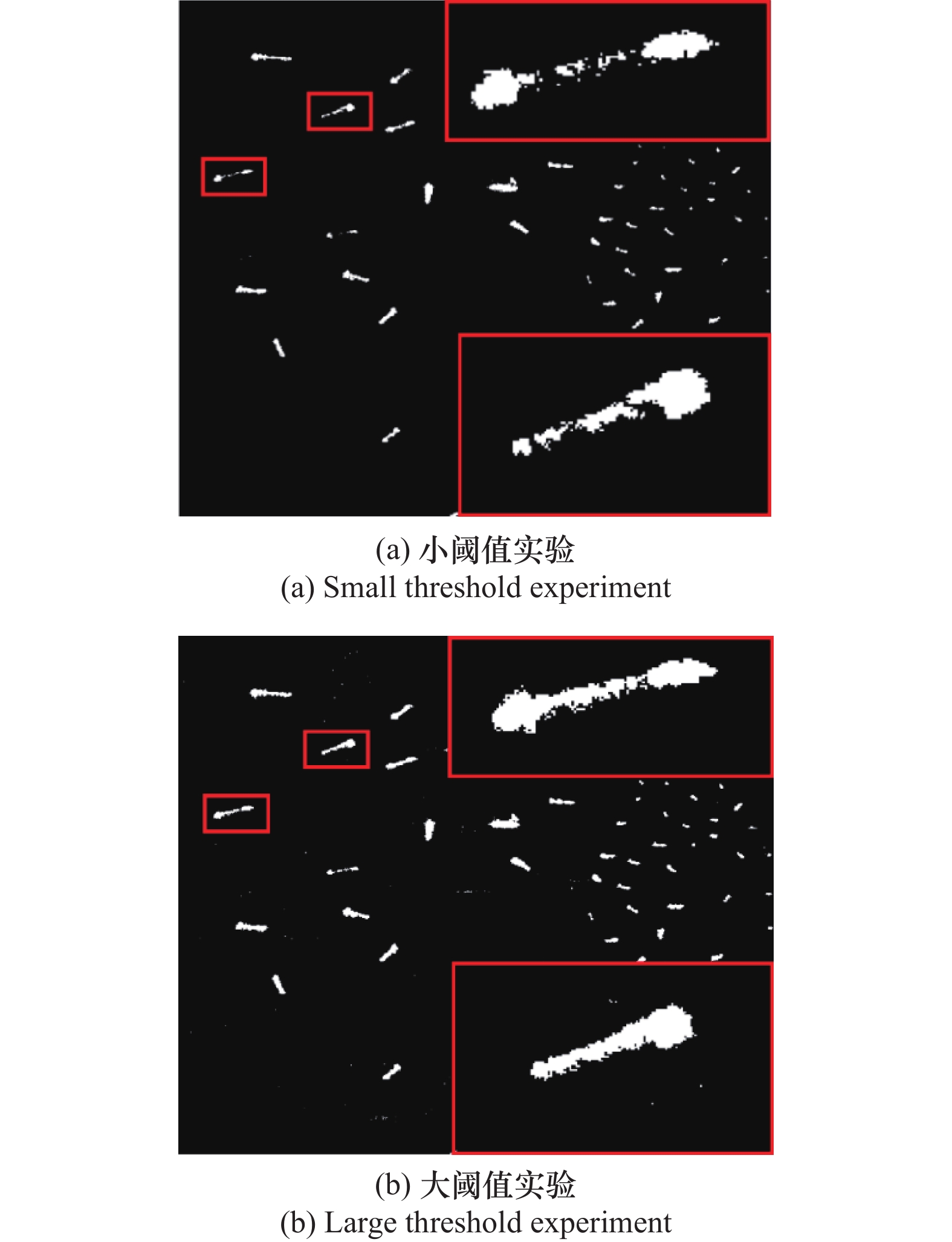

图9

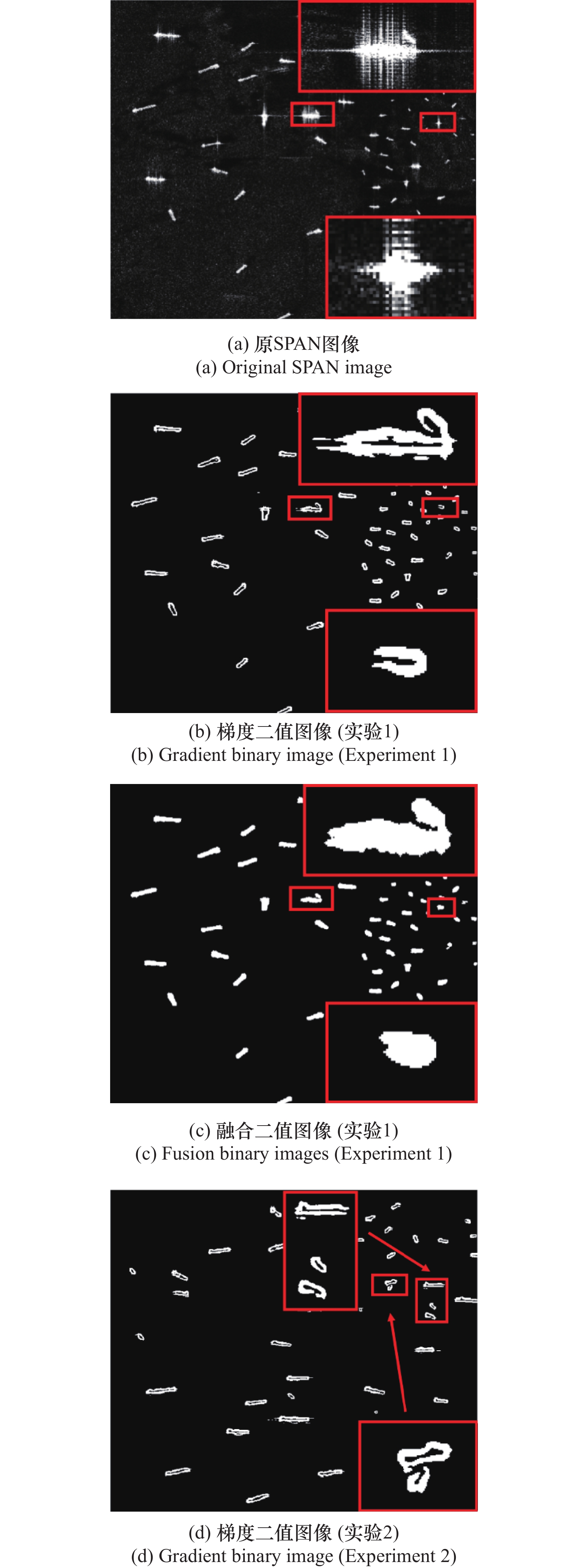

图10

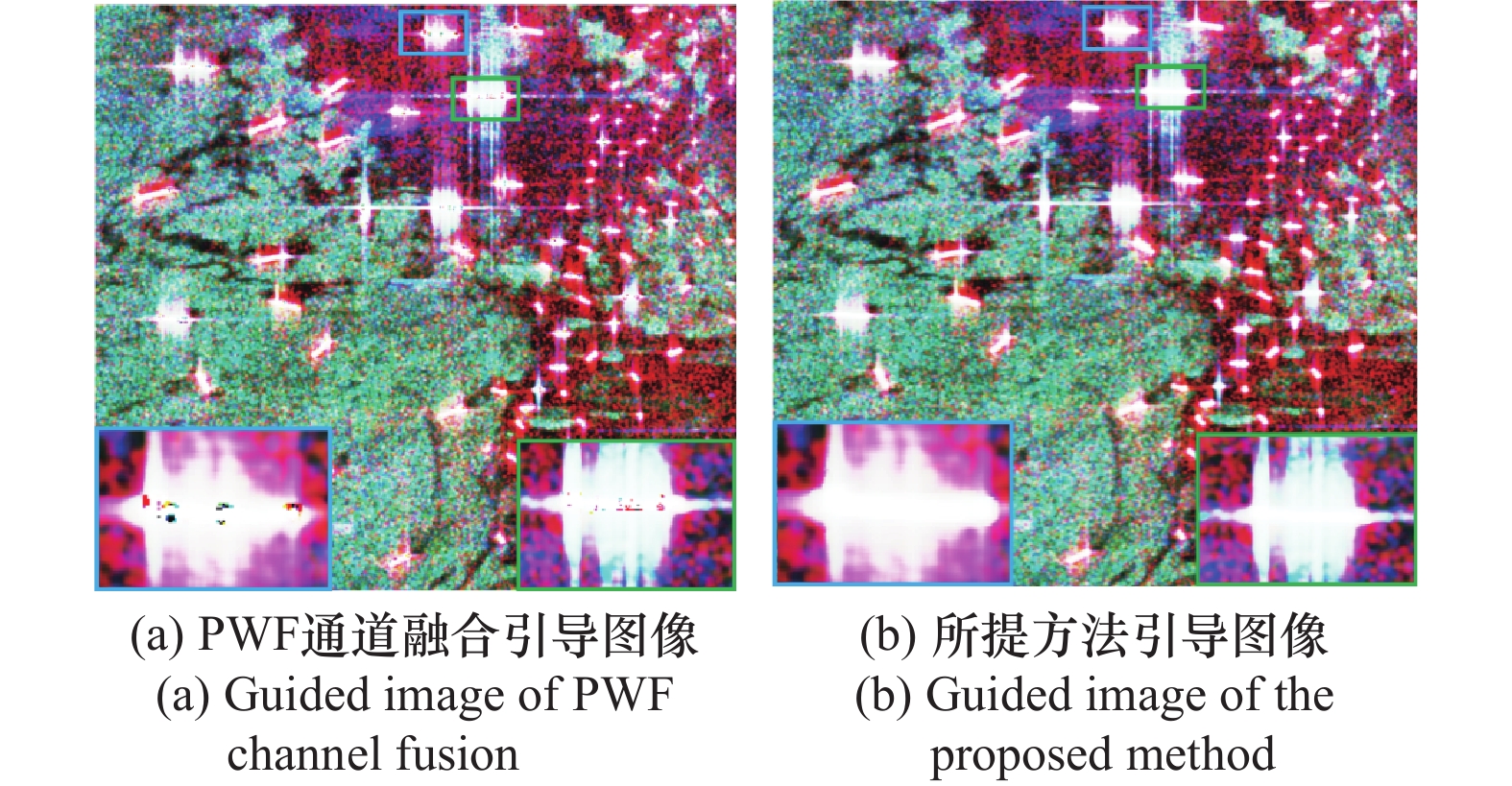

图11

图12

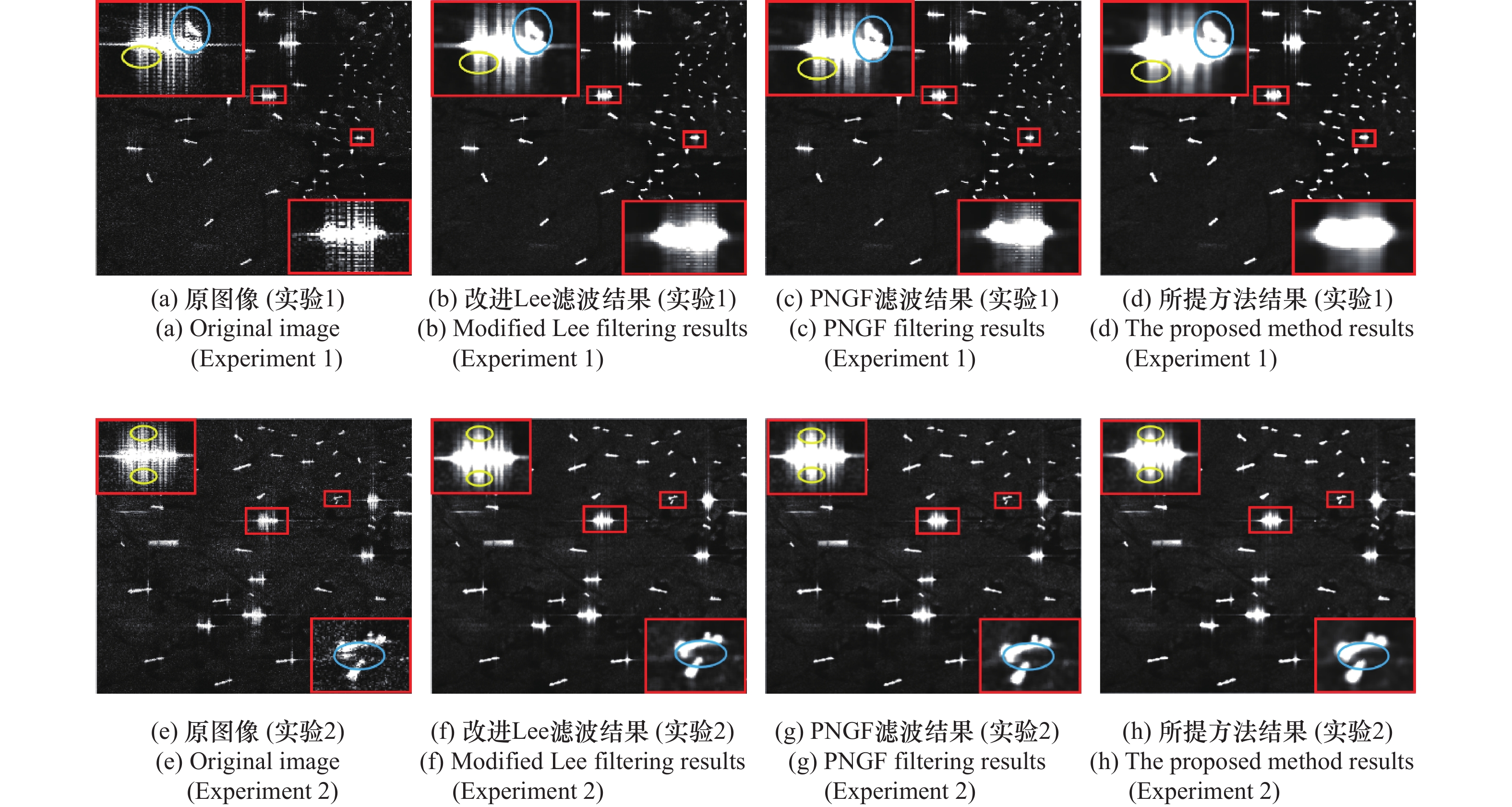

图13

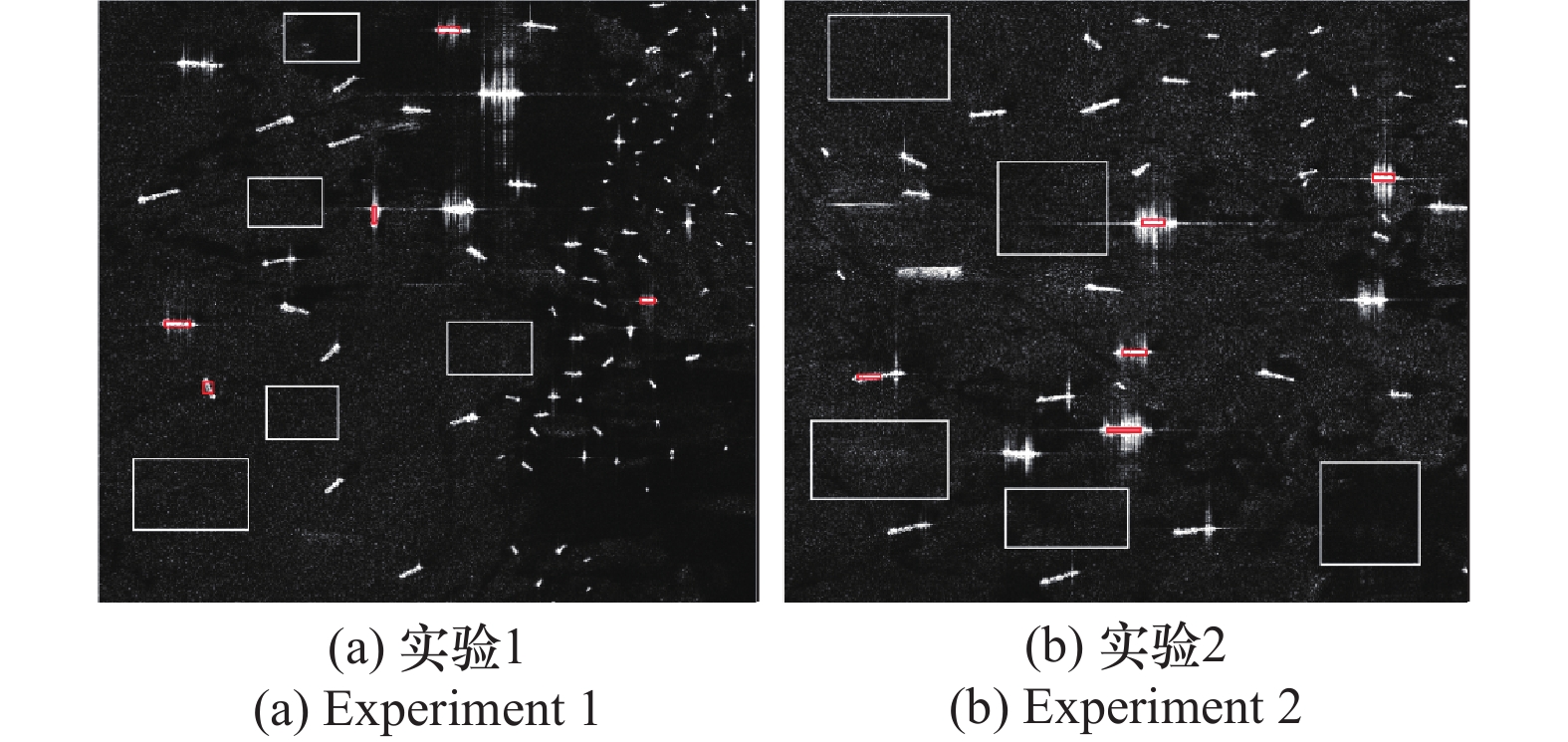

图14

表1

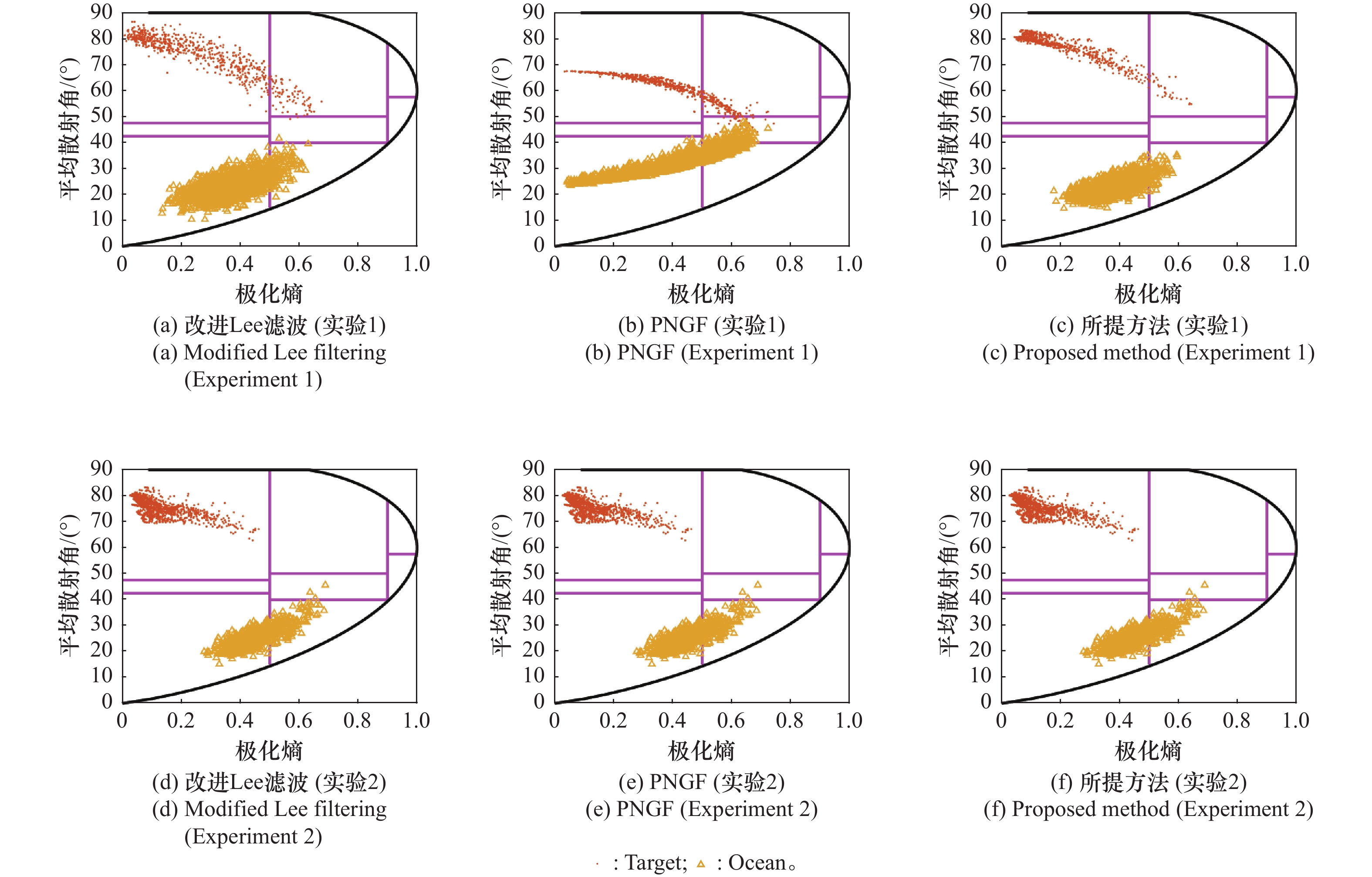

图15

参考文献 31

1	HE K M, SUN J, TANG X O. Guided image filtering[J]. IEEE Trans. on Pattern Analysis and Machine Intelligence, 2013, 35 (6): 1397- 1409. doi: 10.1109/TPAMI.2012.213
2	谢伟, 周玉钦, 游敏. 融合梯度信息的改进引导滤波[J]. 中国图象图形学报, 2016, 21 (9): 1119- 1126.
	XIE W, ZHOU Y Q, YOU M. Improved guided image filtering integrated with gradient information[J]. Journal of Image and Graphics, 2016, 21 (9): 1119- 1126.
3	葛朋, 杨波, 韩庆林, 等. 一种基于引导滤波图像分层的红外图像细节增强算法[J]. 红外技术, 2018, 40(12): 1161−1170.
	GE P, YANG B, HAN Q L, et al. Infrared image detail enhancement algorithm based on hierarchical processing by guided image filter[J]. Infrared Technology, 2018, 40(12): 1161−1169.
4	NI W P, GAO X B. Despeckling of SAR image using generalized guided filter with Bayesian nonlocal means[J]. IEEE Trans. on Geoscience and Remote Sensing, 2016, 54 (1): 567- 579. doi: 10.1109/TGRS.2015.2462120
5	MA X S, WU P H, SHEN H F. A nonlinear guided filter for polarimetric SAR image despeckling[J]. IEEE Trans. on Geoscience and Remote Sensing, 2019, 57 (4): 1918- 1927. doi: 10.1109/TGRS.2018.2870188
6	ZHANG H, XU H, XIAO Y, et al. Rethinking the image fusion: a fast unified image fusion network based on proportional maintenance of gradient and intensity[C]//Proc. of the AAAI Conference on Artificial Intelligence, 2020: 12797−12804.
7	陈奇. 基于图像梯度与生成对抗网络的图像超分辨率重建算法[D]. 广州: 华南理工大学, 2020.
	CHEN Q. Image super-resolution based on image gradient and generative adversarial networks[D]. Guangzhou: South China University of Technology, 2020.
8	LOWE D G. Object recognition from local scale-invariant features[C]//Proc. of the IEEE 7th International Conference on Computer Vision, 1999.
9	RIGNOT E J, VAN Z J J. Change detection techniques for ERS-1 SAR data[J]. IEEE Trans. on Geoscience and Remote sensing, 1993, 31 (4): 896- 906. doi: 10.1109/36.239913
10	WANG H M, ZENG L, ZHANG T, et al. A PolSAR despeckling method based on Wishart gradient and anisotropic diffusion[J]. Electronics Letters, 2021, 57 (3): 126- 128. doi: 10.1049/ell2.12086
11	LIU G Q, HUANG S J, TORRE A, et al. The multilook polarimetric whitening filter （MPWF） for intensity speckle reduction in polarimetric SAR images[J]. IEEE Trans. on Geoscience and Remote Sensing, 1998, 36 (3): 1016- 1020. doi: 10.1109/36.673694
12	NOVAK L M, BURL M C. Optimal speckle reduction in polarimetric SAR imagery[C]//Proc. of the 22nd Asilomar Conference on Signals, Systems and Computers, 1988.
13	MA X S, WU P H, WU Y L, et al. A review on recent developments in fully polarimetric SAR image despeckling[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2017, 11 (3): 743- 758.
14	韩萍, 贾锟, 卢晓光, 等. PolSAR图像的改进非局部均值滤波算法[J]. 系统工程与电子技术, 2019, 41 (5): 992- 999. doi: 10.3969/j.issn.1001-506X.2019.05.09
	HAN P, JIA K, LU X G, et al. Improved non-local mean filtering method for PolSAR images[J]. Systems Engineering and Electronics, 2019, 41 (5): 992- 999. doi: 10.3969/j.issn.1001-506X.2019.05.09
15	MU W X, WANG N, FANG L, et al. Superpixel-level CFAR ship detection based on polarimetric bilateral truncated statistics[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2024, 17, 4247- 4262. doi: 10.1109/JSTARS.2024.3356591
16	SALEHI H, VAHIDI J, ABDELJAWAD T, et al. A SAR image despeckling method based on an extended adaptive Wiener filter and extended guided filter[J]. Remote Sensing, 2020, 12 (15): 2371. doi: 10.3390/rs12152371
17	FERRAIOLI G. Multichannel InSAR building edge detection[J]. IEEE Trans. on Geoscience and Remote Sensing, 2009, 48 (3): 1224- 1231.
18	LIU H, HE Z W, ZHAO Y B, et al. Improved ROEWA edge detector for SAR images[J]. Journal of Remote Sensing, 2017, 21 (2): 273- 279.
19	LUO Y X, AN D X, WANG W, et al. Improved ROEWA SAR image edge detector based on curvilinear structures extraction[J]. IEEE Geoscience and Remote Sensing Letters, 2020, 17 (4): 631- 635. doi: 10.1109/LGRS.2019.2926428
20	DELLINGER F, DELON J, GOUSSEAU Y, et al. SAR-SIFT: a SIFT-like algorithm for SAR images[J]. IEEE Trans. on Geoscience and Remote Sensing, 2014, 53 (1): 453- 466.
21	NIELSEN A A, CONRADSEN K, SKRIVER H. Change detection in full and dual polarization, single-and multifrequency SAR data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2015, 8 (8): 4041- 4048. doi: 10.1109/JSTARS.2015.2416434
22	殷君君, 罗嘉豪, 李响, 等. 基于极化SAR梯度和复Wishart分类器的舰船检测[J]. 雷达学报, 2024, 13 (2): 396- 410. doi: 10.12000/JR23198
	YIN J J, LUO J H, LI X, et al. Ship detection based on polarimetric SAR gradient and complex Wishart classifier[J]. Journal of Radars, 2024, 13 (2): 396- 410. doi: 10.12000/JR23198
23	NEYMAN J, PEARSON E S. On the problem of the most efficient tests of statistical hypotheses[J]. Philosophical Transactions of the Royal Society of Series A, 1933, 231, 289- 337.
24	FARINA A, STUDER F A. A review of CFAR detection techniques in radar systems[J]. Microwave Journal, 1986, 29 (9): 115.
25	WEISS M. Analysis of some modified cell-averaging CFAR processors in multiple-target situations[J]. IEEE Trans. on Aerospace and Electronic Systems, 1982, (1): 102- 114.
26	余佳恒, 艾加秋, 史骏, 等. 基于双边截断的双参数海上风电站SAR图像CFAR检测[J]. 海军航空大学学报, 2024, 39 (2): 215- 223.
	YU J H, AI J Q, SHI J, et al. Two-parameter CFAR detectionin of offshore wind farms SAR images based on dual truncated clutter statistics[J]. Journal of Naval Aviation University, 2024, 39 (2): 215- 223.
27	李浠铭, 甘新胜, 程健庆. 基于快速非局部均值滤波的SAR图像相干斑抑制算法[J]. 指挥控制与仿真, 2020, 42 (6): 63- 68. doi: 10.3969/j.issn.1673-3819.2020.06.011
	LI X M, GAN X S, CHENG J Q. Despeckling algorithm for SAR image based on fast non-local mean filtering[J]. Command Control & Simulation, 2020, 42 (6): 63- 68. doi: 10.3969/j.issn.1673-3819.2020.06.011
28	刘书君, 吴国庆, 张新征, 等. 基于Shearlet域系数处理的SAR图像降噪[J]. 系统工程与电子技术, 2015, 37 (9): 2023- 2028. doi: 10.3969/j.issn.1001-506X.2015.09.11
	LIU S J, WU G Q, ZHANG X Z, et al. SAR image denoising via the process of shearlet coefficients[J]. Systems Engineering and Electronics, 2015, 37 (9): 2023- 2028. doi: 10.3969/j.issn.1001-506X.2015.09.11
29	CAMERON W L, LEUNG L K. Feature motivated polarization scattering matrix decomposition[C]//Proc. of the IEEE International Conference on Radar, 1990.
30	CLOUDE S R, POTTIER E. A review of target decomposition theorems in radar polarimetry[J]. IEEE Trans. on Geoscience and Remote Sensing, 1996, 34 (2): 498- 518. doi: 10.1109/36.485127
31	LEE J S, GRUNES M R, DE-GRANDI G. Polarimetric SAR speckle filtering and its implication for classification[J]. IEEE Trans. on Geoscience and Remote Sensing, 1999, 37 (5): 2363- 73. doi: 10.1109/36.789635

滤波类型	实验1			实验2
滤波类型	ENL	标准差	SSIM	ENL	标准差	SSIM
原始数据	1.1191	0.0772	1	1.2966	0.0777	1
改进Lee滤波	9.6233	0.0286	0.6088	9.2164	0.0292	0.5826
PNGF滤波	11.0304	0.0281	0.5660	10.4958	0.0279	0.5136
所提方法滤波	14.9783	0.0242	0.6436	13.3336	0.0251	0.6240
