联合雷达与光电设备的破裂航迹关联方法

doi:10.12305/j.issn.1001-506X.2025.09.09

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (9): 2862-2869.doi: 10.12305/j.issn.1001-506X.2025.09.09

• 传感器与信号处理 • 上一篇

联合雷达与光电设备的破裂航迹关联方法

张家琦¹(), 刘芳²(), 曾操¹^,*(), 陶海红¹(), 赵诗华¹()

1. 西安电子科技大学雷达信号处理全国重点实验室，陕西西安 710071
2. 中国舰船研究设计中心，湖北武汉 430064

收稿日期:2024-06-17 出版日期:2025-09-25 发布日期:2025-09-16
通讯作者: 曾操 E-mail:jiaqizhang@stu.xidian.edu.cn;liufang_positive@126.com;czeng@mail.xidian.edu.cn;hhtao@xidian.edu.cn;23021110284@stu.xidian.edu.cn
作者简介:张家琦（1997—），男，博士研究生，主要研究方向为多目标检测与跟踪
刘　芳（1987—），女，高级工程师，硕士，主要研究方向为舰船目标探测
陶海红（1976—），女，教授，博士，主要研究方向为阵列信号处理、高速实时信号处理
赵诗华（1999—），女，博士研究生，主要研究方向为多目标跟踪、智能信号处理
基金资助:
国家自然科学基金（62171350, 61771015）资助课题

Broken track association method for joint radar and photoelectric equipment

Jiaqi ZHANG¹(), Fang LIU²(), Cao ZENG¹^,*(), Haihong TAO¹(), Shihua ZHAO¹()

1. National Key Laboratory of Radar Signal Processing，Xidian University，Xi’an 710071，China
2. China Ship Development and Design Center，Wuhan 430064，China

Received:2024-06-17 Online:2025-09-25 Published:2025-09-16
Contact: Cao ZENG E-mail:jiaqizhang@stu.xidian.edu.cn;liufang_positive@126.com;czeng@mail.xidian.edu.cn;hhtao@xidian.edu.cn;23021110284@stu.xidian.edu.cn

摘要/Abstract

摘要：

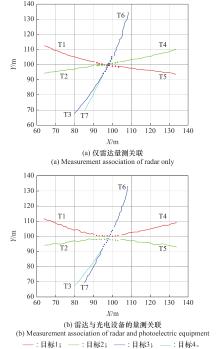

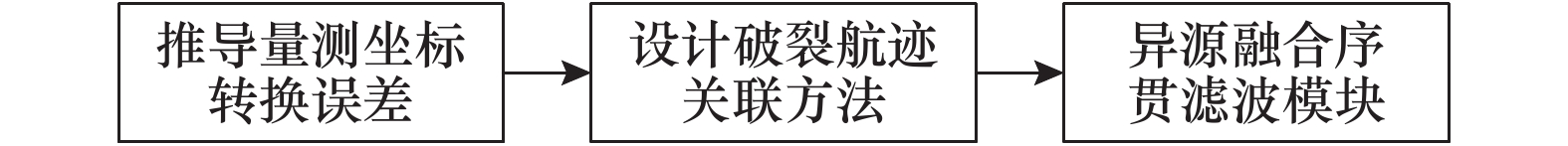

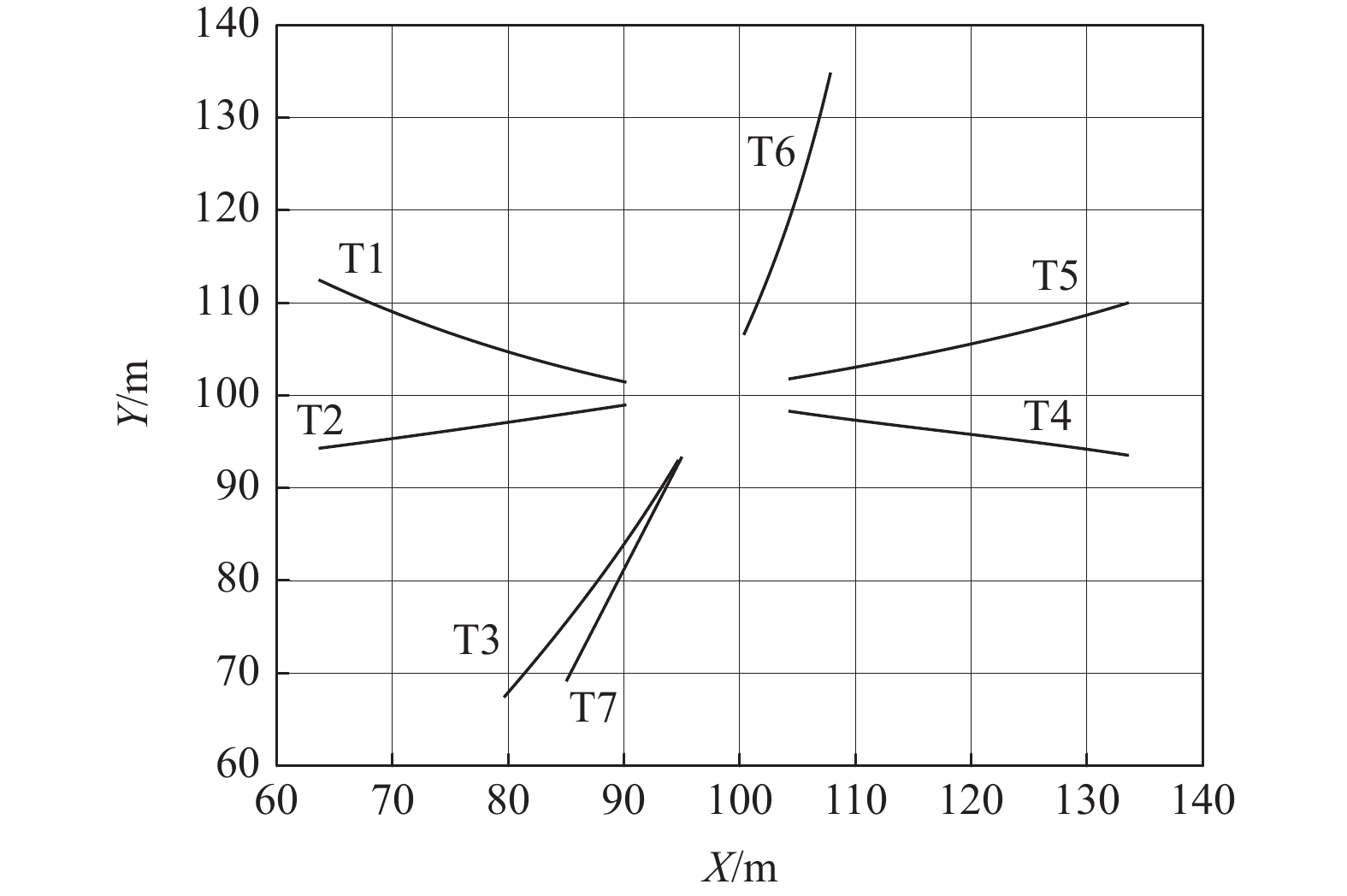

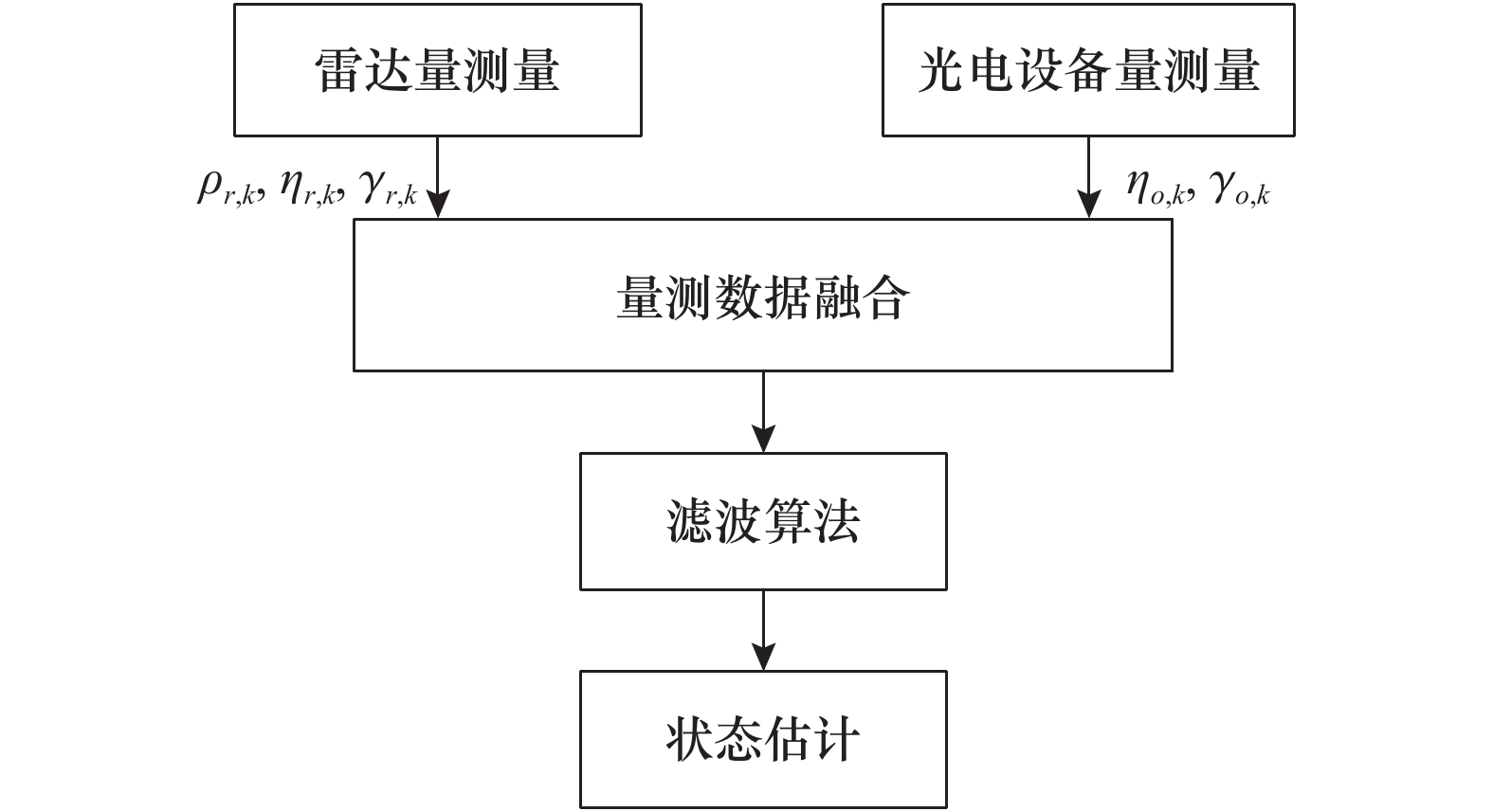

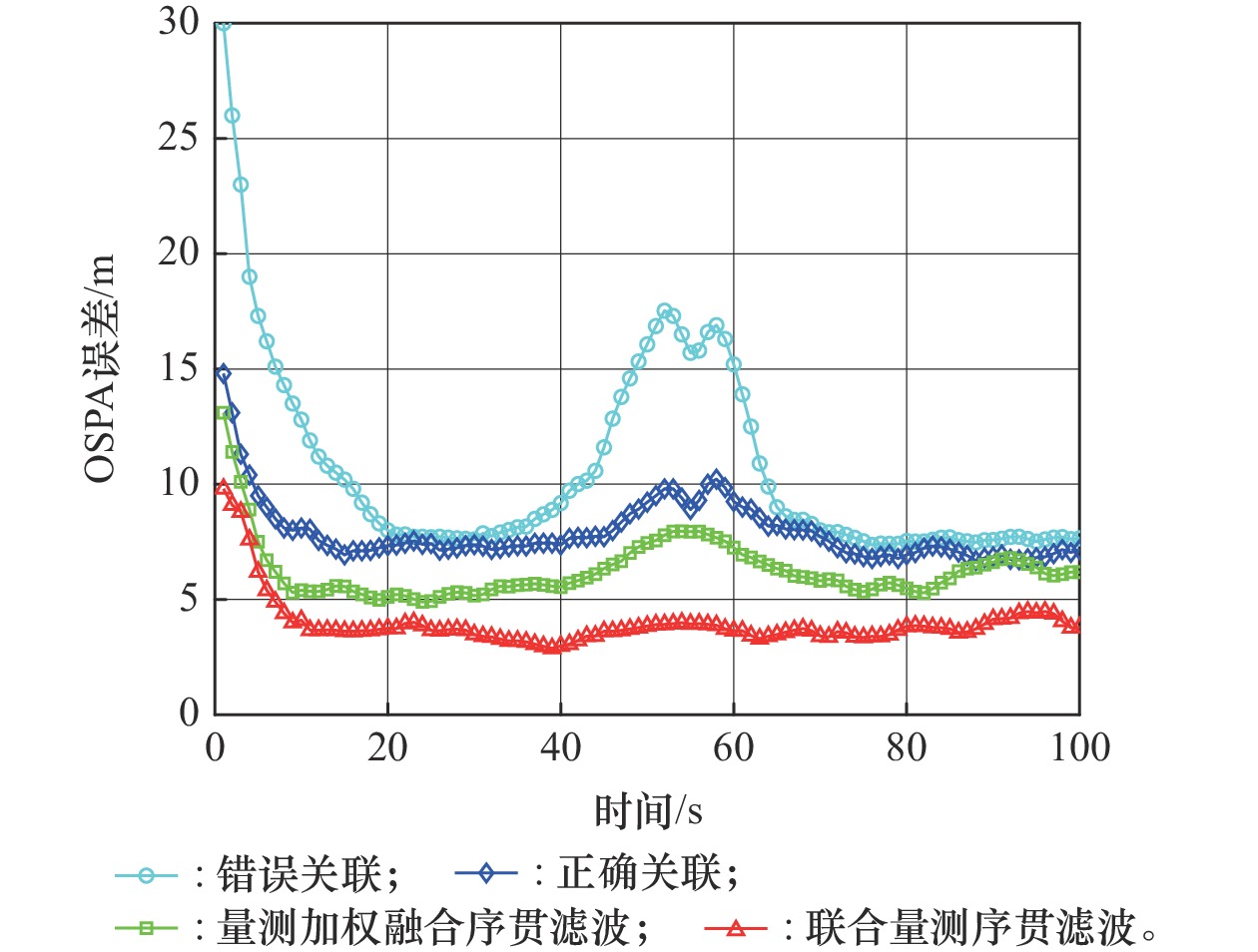

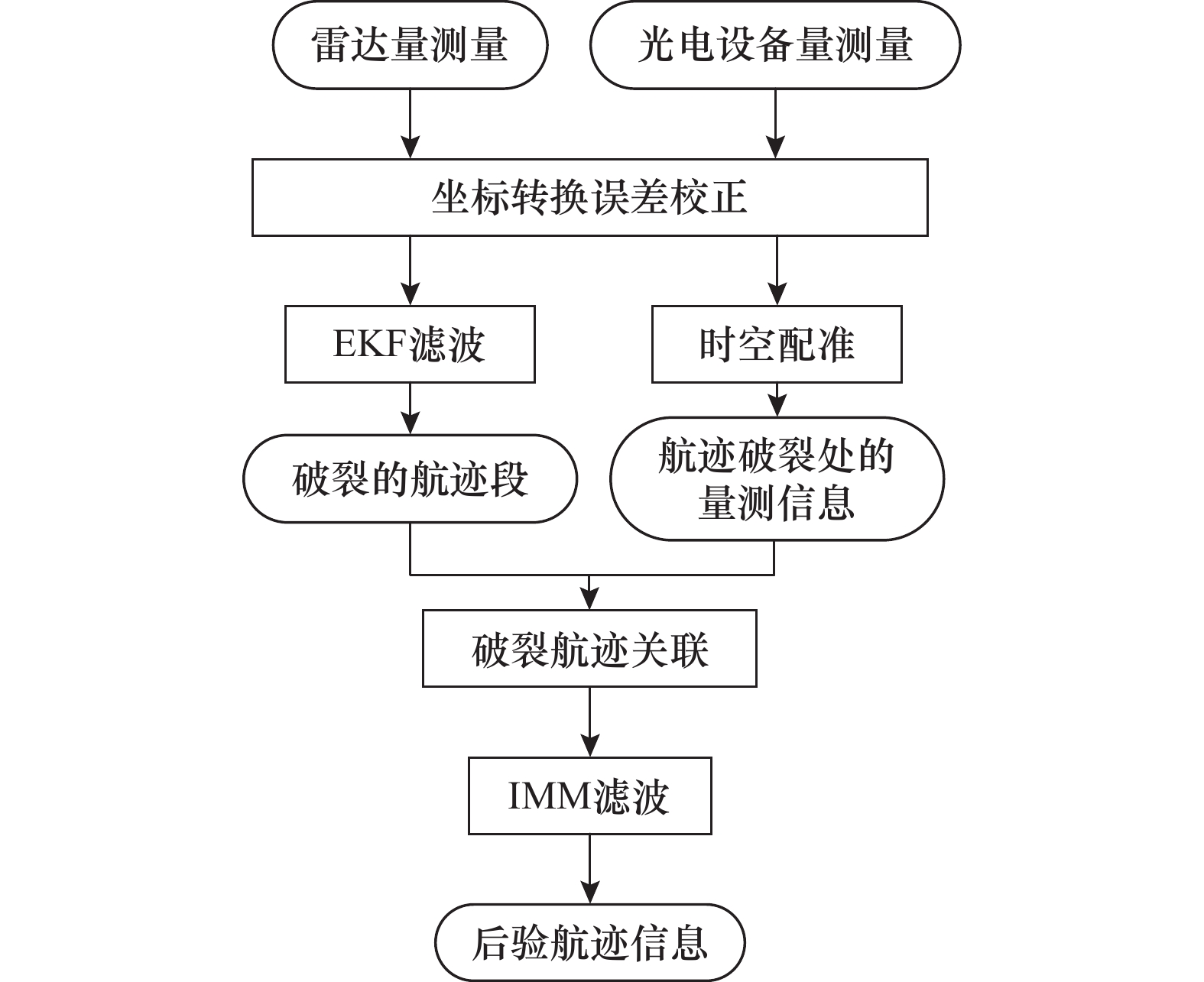

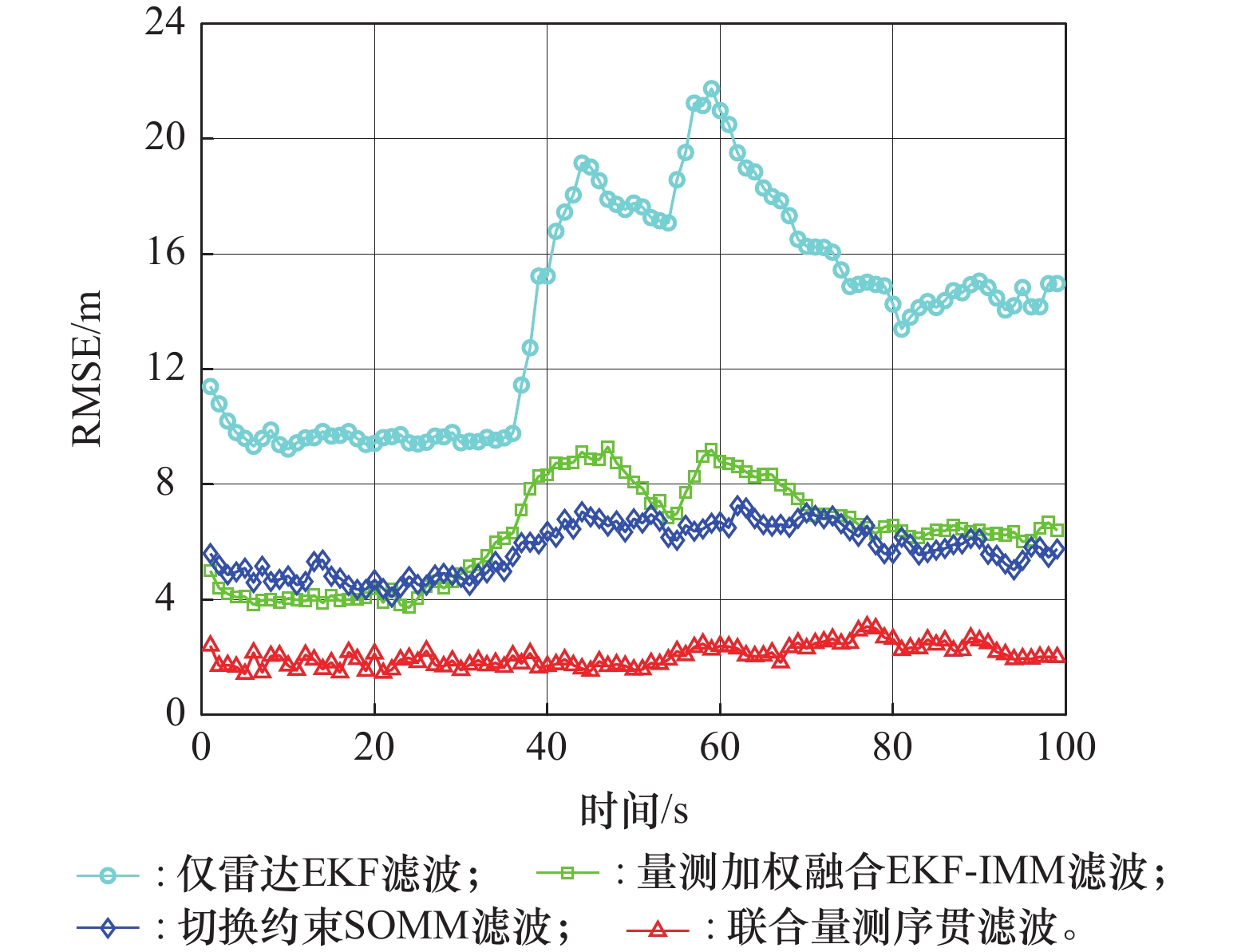

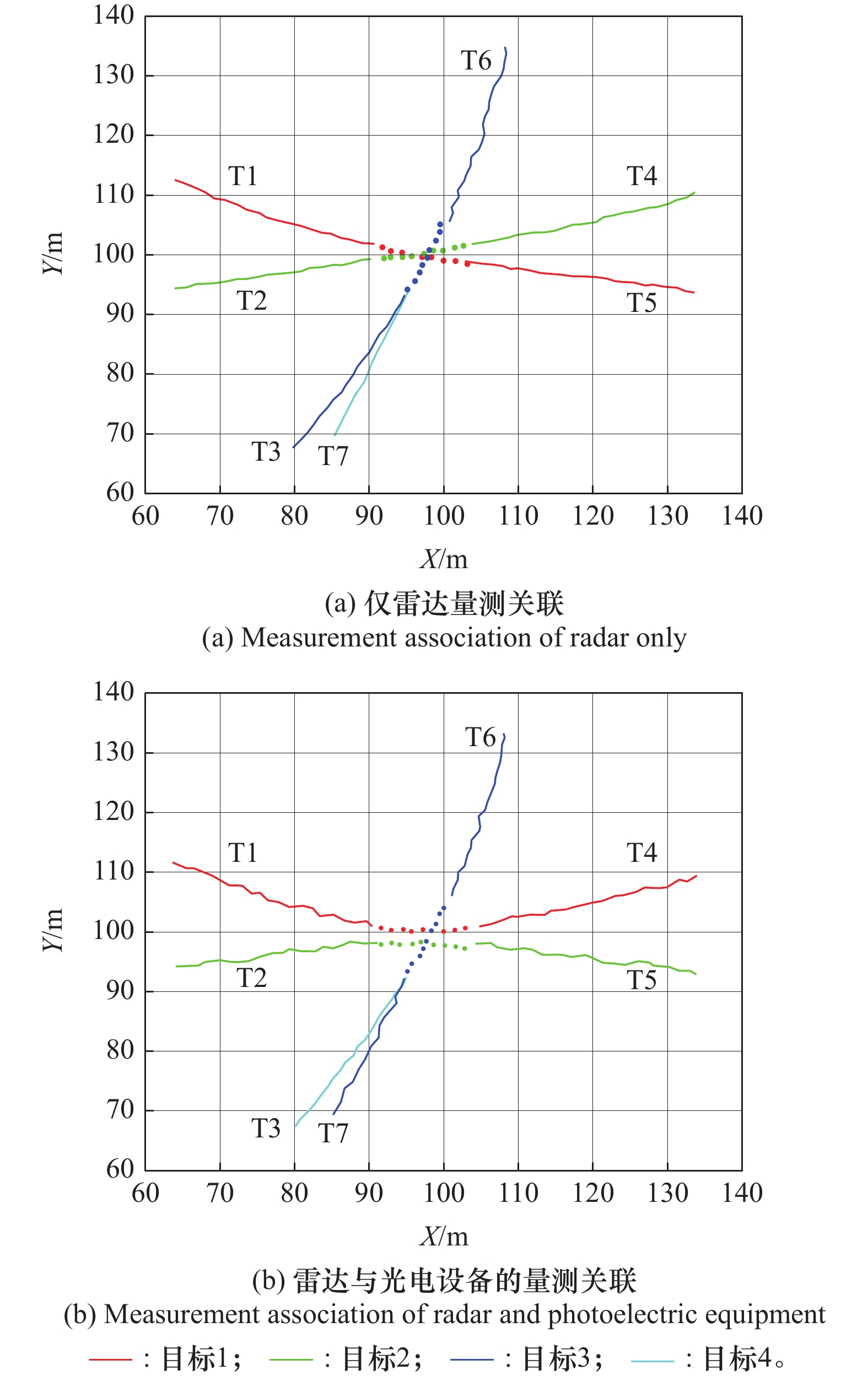

针对雷达多普勒盲区、低检测概率、弱小慢目标等因素导致的航迹破裂问题，提出一种联合雷达与光电设备的破裂航迹关联方法。首先，由于空间坐标变换会导致各传感器的误差分布发生变化，推导雷达与光电设备量测信息的坐标变换误差的均值与协方差矩阵。其次，在所提的多维分配算法中同时考虑航迹运动特性与异源传感器的量测信息，以实现破裂航迹的重新关联。最后，按照破裂航迹关联结果构建状态模型集，并将之带入到异源融合序贯滤波模块，实现重连航迹的跟踪。所提方法能够显著提高航迹的稳定性与跟踪精度。

关键词: 雷达, 光电设备, 破裂航迹关联, 量测误差, 异源融合序贯滤波模块

Abstract:

Aiming at the problems of broken track caused by radar Doppler blind zone, low detection probability, weak and slow target, and other factors, a broken track association method combining radar and photoelectric equipment is proposed. Firstly, the mean and covariance matrix of the coordinate transformation error of radar and photoelectric equipment measurement information after spatial coordinate transformation are derived because of the change of error distribution of each sensor. Secondly, the broken track is re-correlated by means of the motion characteristics of the track and the measurement information of heterologous sensor are both considered in the proposed multidimensional allocation algorithm. Finally, a state model set is constructed based on the association results of the broken track, and is introduced into the heterogeneous fusion sequential filtering module to achieve tracking of reconnection track. The proposed method can significantly improve track stability and tracking accuracy.

Key words: radar, photoelectric equipment, broken track association, measurement error, heterogeneous fusion sequential filtering algorithm

中图分类号:

TN 953.5

张家琦, 刘芳, 曾操, 陶海红, 赵诗华. 联合雷达与光电设备的破裂航迹关联方法[J]. 系统工程与电子技术, 2025, 47(9): 2862-2869.

Jiaqi ZHANG, Fang LIU, Cao ZENG, Haihong TAO, Shihua ZHAO. Broken track association method for joint radar and photoelectric equipment[J]. Systems Engineering and Electronics, 2025, 47(9): 2862-2869.
