一种基于调制序列相关特性的干扰方法分析

doi:10.12305/j.issn.1001-506X.2025.06.01

摘要/Abstract

摘要：

相位编码脉冲压缩雷达通过采用抗干扰波形和数据后处理技术, 可以有效识别和抑制间歇采样转发干扰。为了避免间歇采样转发干扰的不连续性和周期性, 进一步提升对雷达的干扰效果, 在介绍了相位编码雷达脉冲压缩原理及回波处理技术, 分析同一连接方式移存器不同初始状态、不同连接方式移存器不同初始状态生成序列之间相关性的基础上, 提出一种基于调制序列相关特性的干扰方法。通过从序列表中随机选取干扰序列, 采取直接调制发送, 可产生随机假目标欺骗干扰或噪声干扰效果。通过仿真实验验证了所分析的结论, 结果表明所提干扰方法具有较好的干扰效果。

关键词: 脉冲压缩雷达, 相位编码, 相关干扰, m序列, 相关性分析

Abstract:

Phase-coded pulse compression radar can effectively identify and suppress intermitted sampling repeater jamming by using anti-jamming waveform and data post-processing technology. In order to avoid the discontinuity and periodicity of intermitted sampling repeater jamming and improve the jamming effect for radar, the phase-coded radar pulse compression principle and echo processing technology is introduced, and the correlation between the sequences of the same connection mode register in different initial states and the different connection mode register in different initial states is analyzed. On the basis of the above mentioned, a jamming method based on the correlation characteristics of modulation sequence is proposed. By randomly selecting jamming sequences from the sequence list and adopting the direct modulation emission, the random false target deception jamming or noise jamming effect can be generated. Simulation experiments verify the conclusions of the analysis, and the results show that the proposed jamming method has a good jamming effect.

Key words: pulse compression radar, phase-coded, correlated jamming, m sequence, correlation analysis

中图分类号:

TN972

张鹏程, 彭勃, 房明星. 一种基于调制序列相关特性的干扰方法分析[J]. 系统工程与电子技术, 2025, 47(6): 1729-1738.

Pengcheng ZHANG, Bo PENG, Mingxing FANG. An analysis of jamming method based on the correlation characteristics of modulation sequences[J]. Systems Engineering and Electronics, 2025, 47(6): 1729-1738.

图/表 13

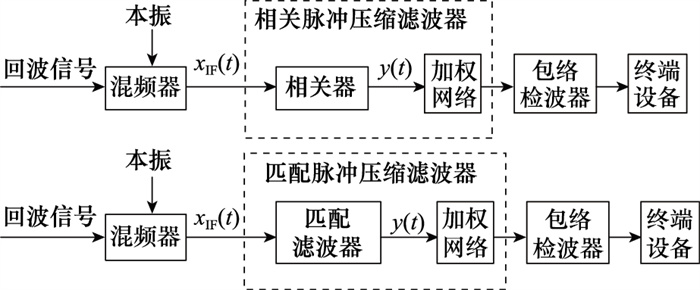

图1

图2

表1

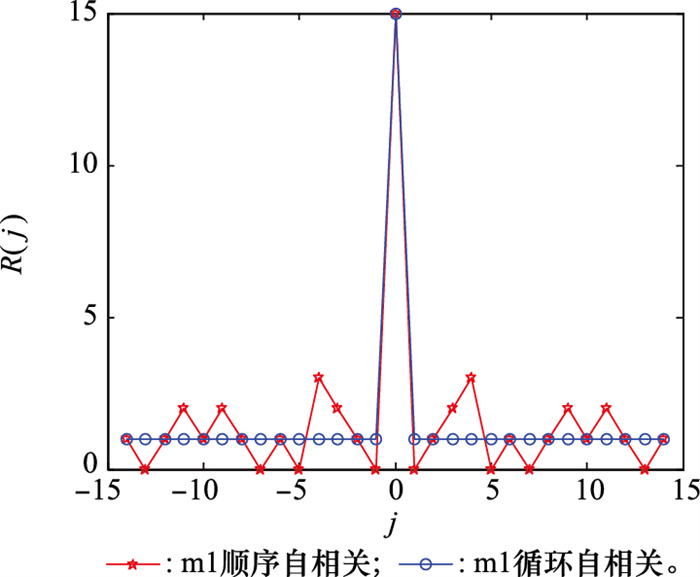

图3

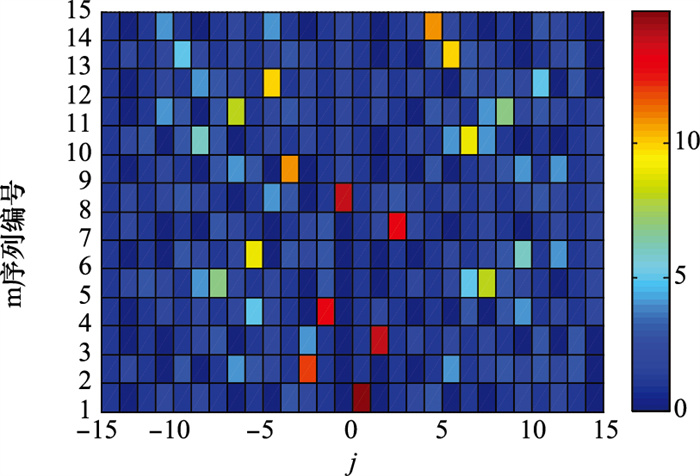

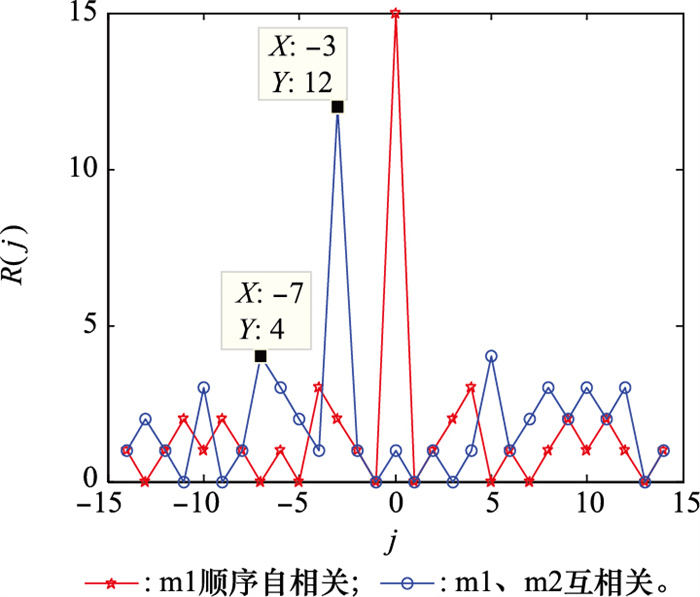

图4

表2

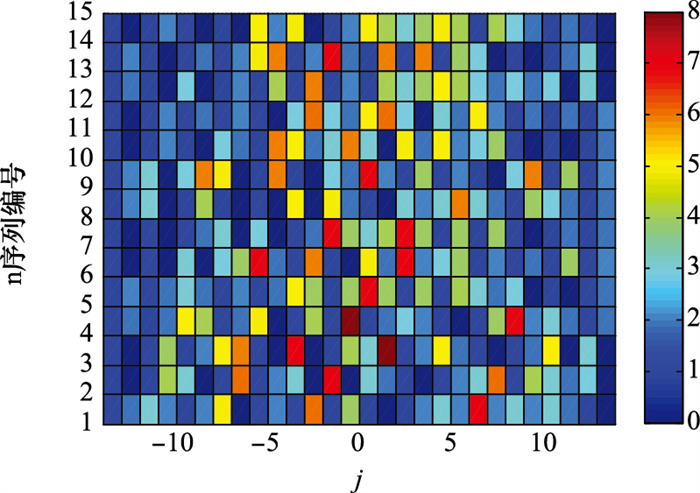

图5

表3

表4

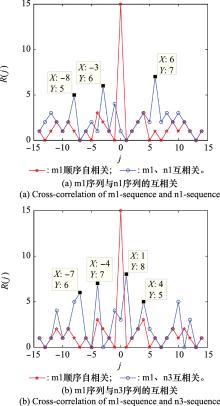

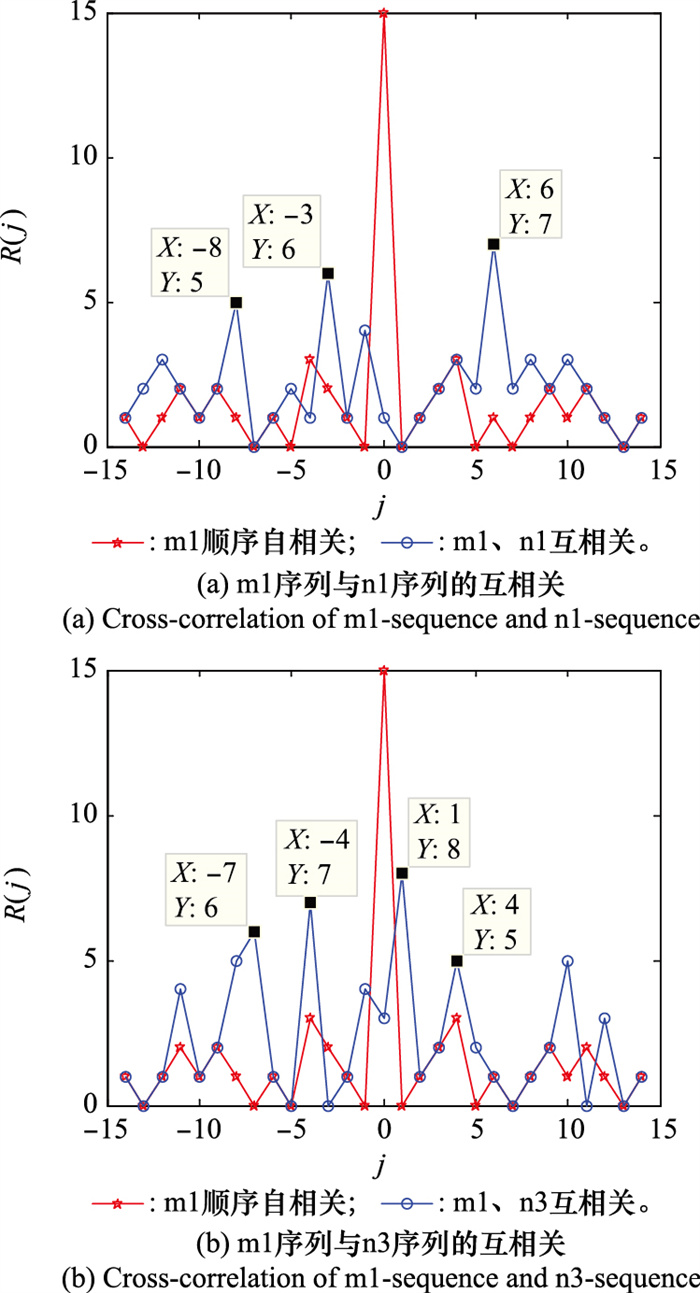

图6

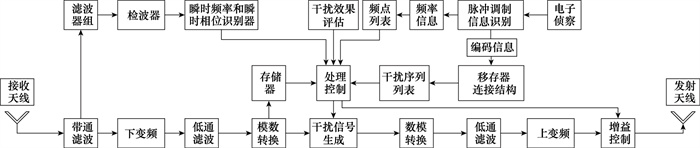

图7

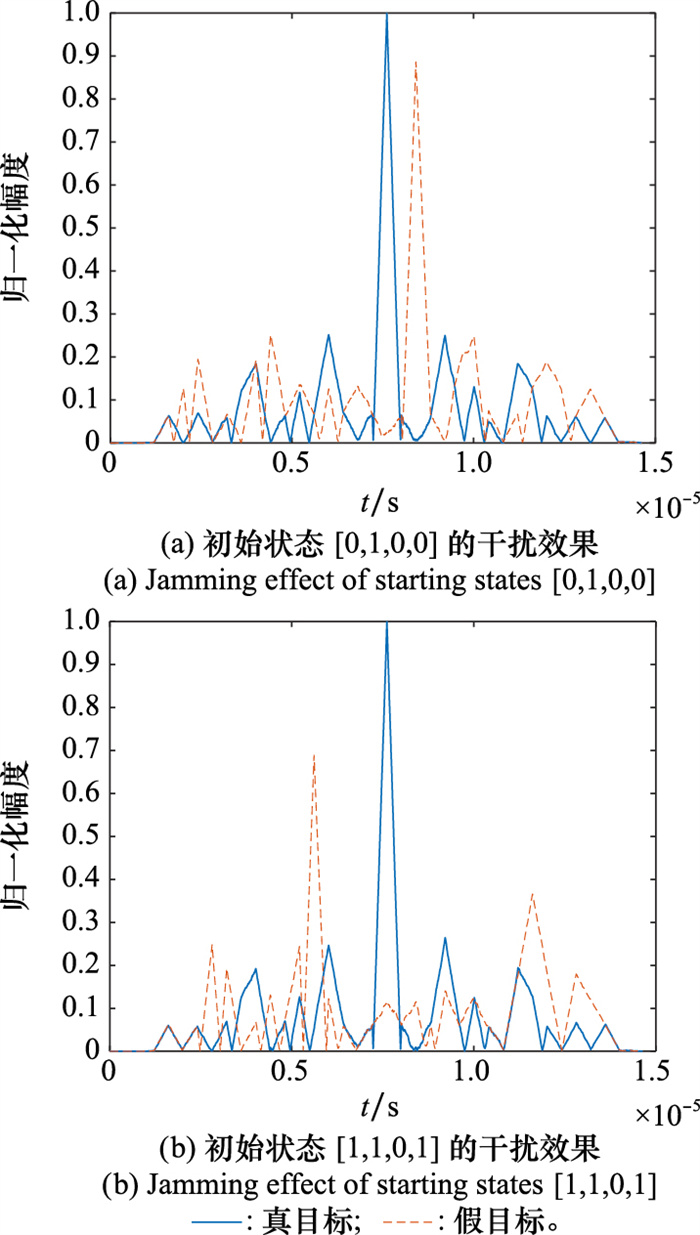

图8

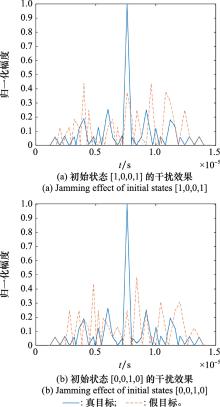

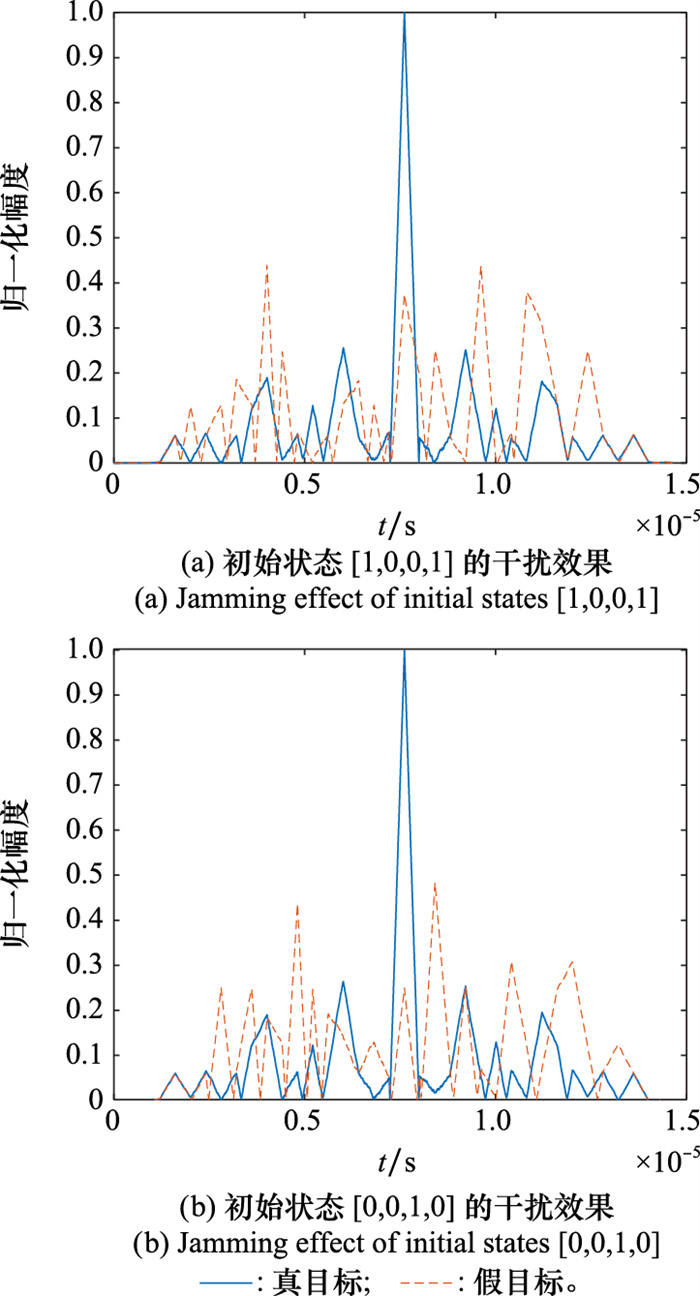

图9

参考文献 34

1	DAVIS R M , FANTE R L , PERRY R P . Phase-coded waveforms for radar[J]. IEEE Trans.on Aerospace and Electronic Systems, 2007, 43 (1): 401- 408. doi: 10.1109/TAES.2007.357142
2	BAI W L , ZOU X H , LI P X , et al. Photonic millimeter-wave joint radar communication system using spectrum-spreading phase-coding[J]. IEEE Trans.on Microwave Theory and Techniques, 2022, 70 (3): 1552- 1561. doi: 10.1109/TMTT.2021.3138069
3	CUI G L , YU X X , MARCO P , et al. Constant modulus sequence set design with good correlation properties[J]. Signal Processing, 2017, 139, 75- 85. doi: 10.1016/j.sigpro.2017.04.009
4	LIU X Y , ZHANG T X , SHI Q , et al. LPI radar waveform design with desired cyclic spectrum and pulse compression properties[J]. IEEE Trans.on Vehicular Technology, 2023, 72 (5): 6789- 6793. doi: 10.1109/TVT.2022.3233446
5	ZHANG L, REN W, TIAN D Z, et al. Phase-coded waveform design in the presence of chopping and interleaving jamming[C]// Proc. of the IEEE 5th International Conference on Electronics Technology, 2022: 670-674.
6	ZHANG Y , WEI Y S , YU L . Interrupted sampling repeater jamming recognition and suppression based on phase-coded signal processing[J]. Signal Processing, 2022, 198, 108596. doi: 10.1016/j.sigpro.2022.108596
7	杨会军, 程啟华, 蒋姝. 相位编码脉冲压缩雷达干扰调制技术研究[J]. 电光与控制, 2022, 29 (12): 37- 40.
	YANG H J , CHENG Q H , JIANG S . Jamming modulation technology of phase coded pulse compression radar[J]. Electro-nics Optics & Control, 2022, 29 (12): 37- 40.
8	FENG D J , XU L T , PAN X Y , et al. Jamming wideband radar using interrupted sampling repeater[J]. IEEE Trans.on Aerospace and Electronic Systems, 2017, 53 (3): 1341- 1354. doi: 10.1109/TAES.2017.2670958
9	LIU Z X , QUAN Y H , DU S Y , et al. A novel ECCM scheme against interrupted sampling repeater jamming using intra-pulse dual-parameter agile waveform[J]. Digital Signal Processing, 2022, 129, 103652. doi: 10.1016/j.dsp.2022.103652
10	潘小义, 刘晓斌, 陈吉源, 等. 间歇采样转发干扰技术研究述评[J]. 系统工程与电子技术, 2024, 46 (9): 2887- 2901. doi: 10.12305/j.issn.1001-506X.2024.09.01
	PAN X Y , LIU X B , CHEN J Y , et al. Overview of intermittent sampling repeater jamming technology[J]. Systems Engineering and Electronics, 2024, 46 (9): 2887- 2901. doi: 10.12305/j.issn.1001-506X.2024.09.01
11	吴若无, 许雄, 钱苏敏, 等. 全脉冲采样分段叠加的干扰特性分析[J]. 现代雷达, 2023, 45 (9): 73- 78.
	WU R W , XU X , QIAN S M , et al. Analysis of interference characteristics of whole pulse sampling sectional stack method[J]. Modern Radar, 2023, 45 (9): 73- 78.
12	XIAO J , WEI X Z , SUN J . Interrupted-sampling multi-strategy forwarding jamming with amplitude constraints based on simultaneous transmission and reception technology[J]. Digital Signal Processing, 2024, 147, 104416. doi: 10.1016/j.dsp.2024.104416
13	LIU Z D , ZHANG Q , LI G M , et al. Improved blanket jamming against ISAR based on nonperiodic interrupted sampling modulation[J]. IEEE Sensors Journal, 2021, 21 (1): 430- 437.
14	BERGE S D . Digital radio frequency memory linear range gate stealer spectrum[J]. IEEE Trans.on Aerospace and Electronic Systems, 2003, 39 (2): 725- 735. doi: 10.1109/TAES.2003.1207279
15	WU W Z , ZOU J W , CHEN J , et al. False-target recognition against interrupted-sampling repeater jamming based on integration decomposition[J]. IEEE Trans.on Aerospace and Electronic Systems, 2021, 57 (5): 2979- 2991. doi: 10.1109/TAES.2021.3068443
16	牛闯, 林强, 段敏, 等. 脉内频率-时延捷变雷达抗间歇采样转发干扰方法[J]. 系统工程与电子技术, 2024, 46 (5): 1583- 1598. doi: 10.12305/j.issn.1001-506X.2024.05.13
	NIU C , LIN Q , DUAN M , et al. Anti-interrupted sampling and repeater jamming method for intra-pulse frequency and time delay agile radar[J]. Systems Engineering and Electronics, 2024, 46 (5): 1583- 1598. doi: 10.12305/j.issn.1001-506X.2024.05.13
17	ZHOU K , LI D X , QUAN S N , et al. SAR waveform and mismatched filter design for countering interrupted-sampling repeater jamming[J]. IEEE Trans.on Geoscience and Remote Sensing, 2021, 60, 5214514.
18	ZHENG H , JIU B , LIU H W . Waveform design based ECCM scheme against interrupted sampling repeater jamming for wideband MIMO radar in multiple targets scenario[J]. IEEE Sensors Journal, 2022, 22 (2): 1652- 1669.
19	余涛, 周正春, 杜小勇, 等. 一种基于完全互补码波形设计的抗间歇式采样转发干扰方法[J]. 电子与信息学报, 2023, 45 (11): 3896- 3905.
	YU T , ZHOU Z C , DU X Y , et al. An anti-interrupted sampling repeater jamming method based on complete complementary code waveform design[J]. Journal of Electronics & Information Technology, 2023, 45 (11): 3896- 3905.
20	LU L , GAO M G . An improved sliding matched filter method for interrupted sampling repeater jamming suppression based on jamming reconstruction[J]. IEEE Sensors Journal, 2022, 22 (10): 9675- 9684.
21	于洪海, 闫小鹏, 贾瑞丽, 等. M序列伪码调相脉冲多普勒引信抗干扰能力研究[J]. 兵工学报, 2020, 41 (3): 417- 425.
	YU H H , YAN X P , JIA R L , et al. Research on anti-jamming performance of M-sequence pseudo-random code phase modulation pulse Doppler fuze[J]. Acta Armamentarii, 2020, 41 (3): 417- 425.
22	张鹏程, 王杰贵, 房明星. 相位编码雷达间歇采样转发干扰分析[J]. 现代防御技术, 2015, 43 (5): 192- 198.
	ZHANG P C , WANG J G , FANG M X . Analysis of intermittent-sampling repeater jamming against phase-coded radar[J]. Modern Defence Technology, 2015, 43 (5): 192- 198.
23	沙祥, 刘永坚, 崔国龙, 等. 用于高速目标检测的相位编码信号处理方法和性能研究[J]. 雷达科学与技术, 2023, 21 (6): 591- 596.
	SHA X , LIU Y J , CUI G L , et al. Phase coded signal processing method and performance study for high-speed target detection[J]. Radar Science and Technology, 2023, 21 (6): 591- 596.
24	LIU X B , ZHAO F , XIE A L . Target measurement in radio frequency simulation using code-interrupted transmitting and receiving of pulse signals[J]. IEEE Trans.on Antennas and Propagation, 2023, 71 (5): 4451- 4460.
25	甄晓鹏, 艾小锋, 李永祯, 等. 一种对相位编码雷达导前假目标干扰的新方法[J]. 现代防御技术, 2016, 44 (2): 43- 47.
	ZHEN X P , AI X F , LI Y Z , et al. New method of preceded false target jamming against phase-coded radars[J]. Modern Defence Technology, 2016, 44 (2): 43- 47.
26	ZHANG Y , WEI Y S , YU L . Interrupted sampling repeater jamming recognition and suppression based on phase-coded signal processing[J]. Signal Processing, 2022, 198, 108596.
27	DUAN J , ZHANG L , WU Y F , et al. Interrupted-sampling repeater jamming suppression with one-dimensional semi-parametric signal decomposition[J]. Digital Signal Processing, 2022, 127, 103546.
28	王海英, 张群英, 成文海, 等. LPI雷达信号调制识别及参数估计研究进展[J]. 系统工程与电子技术, 2024, 46 (6): 1908- 1924. doi: 10.12305/j.issn.1001-506X.2024.06.09
	WANG H Y , ZHANG Q Y , CHENG W H , et al. Research progress on LPI radar signal modulation recognition and para-meter estimation[J]. Systems Engineering and Electronics, 2024, 46 (6): 1908- 1924. doi: 10.12305/j.issn.1001-506X.2024.06.09
29	降佳伟, 吴彦鸿, 王宏艳, 等. 基于多相位分段调制的间歇采样转发干扰[J]. 系统工程与电子技术, 2019, 41 (7): 1450- 1458. doi: 10.3969/j.issn.1001-506X.2019.07.03
	JIANG J W , WU Y H , WANG H Y , et al. Intermittent sampling repeater jamming based on multiple hases sectionalized modulation[J]. Systems Engineering and Electronics, 2019, 41 (7): 1450- 1458. doi: 10.3969/j.issn.1001-506X.2019.07.03
30	徐乐涛, 冯德军, 赵晶, 等. 对相位编码体制雷达的导前假目标干扰[J]. 宇航学报, 2013, 34 (1): 133- 138.
	XU L T , FENG D J , ZHAO J , et al. Preceded false targets jamming against phase-coded radars[J]. Journal of Astronautics, 2013, 34 (1): 133- 138.
31	张鹏程, 王杰贵. 基于DRFM的间歇采样预测转发干扰分析[J]. 系统工程与电子技术, 2015, 37 (4): 795- 801. doi: 10.3969/j.issn.1001-506X.2015.04.12
	ZHANG P C , WANG J G . Jamming technique of intermittent-sampling predictive repeater based on DRFM[J]. Systems Engineering and Electronics, 2015, 37 (4): 795- 801. doi: 10.3969/j.issn.1001-506X.2015.04.12
32	王杰贵, 张鹏程. 对相位编码步进跳频雷达的MCPC调制转发干扰[J]. 电子学报, 2017, 45 (1): 89- 97.
	WANG J G , ZHANG P C . Jamming technique of MCPC mod ulation repeater against phase-coded stepped-frequency radar[J]. Acta Electronica Sinica, 2017, 45 (1): 89- 97.
33	赵树杰. 雷达信号处理技术[M]. 北京: 清华大学出版社, 2010.
	ZHAO S J . Radar signal processing[M]. Beijing: Publishing House of Tsinghua University, 2010.
34	樊昌信, 曹丽娜. 通信原理[M]. 北京: 国防工业出版社, 2012.
	FAN C X , CAO L N . Principles of communications[M]. Beijing: National Defence Industry Press, 2012.

位数	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
m1	0	0	0	1	1	1	1	0	1	0	1	1	0	0	1
m2	0	0	1	0	0	0	1	1	1	1	0	1	0	1	1
m3	0	0	1	1	1	1	0	1	0	1	1	0	0	1	0
m4	0	1	0	0	0	1	1	1	1	0	1	0	1	1	0
m5	0	1	0	1	1	0	0	1	0	0	0	1	1	1	1
m6	0	1	1	0	0	1	0	0	0	1	1	1	1	0	1
m7	0	1	1	1	1	0	1	0	1	1	0	0	1	0	0
m8	1	0	0	0	1	1	1	1	0	1	0	1	1	0	0
m9	1	0	0	1	0	0	0	1	1	1	1	0	1	0	1
m10	1	0	1	0	1	1	0	0	1	0	0	0	1	1	1
m11	1	0	1	1	0	0	1	0	0	0	1	1	1	1	0
m12	1	1	0	0	1	0	0	0	1	1	1	1	0	1	0
m13	1	1	0	1	0	1	1	0	0	1	0	0	0	1	1
m14	1	1	1	0	1	0	1	1	0	0	1	0	0	0	1
m15	1	1	1	1	0	1	0	1	1	0	0	1	0	0	0

位数	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
n1	0	0	0	1	0	0	1	1	0	1	0	1	1	1	1
n2	0	0	1	0	0	1	1	0	1	0	1	1	1	1	0
n3	0	0	1	1	0	1	0	1	1	1	1	0	0	0	1
n4	0	1	0	0	1	1	0	1	0	1	1	1	1	0	0
n5	0	1	0	1	1	1	1	0	0	0	1	0	0	1	1
n6	0	1	1	0	1	0	1	1	1	1	0	0	0	1	0
n7	0	1	1	1	1	0	0	0	1	0	0	1	1	0	1
n8	1	0	0	0	1	0	0	1	1	0	1	0	1	1	1
n9	1	0	0	1	1	0	1	0	1	1	1	1	0	0	0
n10	1	0	1	0	1	1	1	1	0	0	0	1	0	0	1
n11	1	0	1	1	1	1	0	0	0	1	0	0	1	1	0
n12	1	1	0	0	0	1	0	0	1	1	0	1	0	1	1
n13	1	1	0	1	0	1	1	1	1	0	0	0	1	0	0
n14	1	1	1	0	0	0	1	0	0	1	1	0	1	0	1
n15	1	1	1	1	0	0	0	1	0	0	1	1	0	1	0

R_max	n1	n2	n3	n4	n5	n6	n7	n8	n9	n10	n11	n12	n13	n14	n15
m1	7	7	8	8	7	7	7	6	7	6	6	6	7	5	6
m2	7	7	8	6	6	8	6	6	7	7	6	5	7	5	6
m3	8	8	7	9	6	6	8	7	8	5	7	6	6	6	7
m4	6	7	8	6	7	9	7	5	7	8	6	6	8	7	6
m5	7	6	5	7	7	6	7	6	6	6	7	6	5	7	6
m6	7	8	6	7	8	6	8	7	6	7	9	8	6	7	7
m7	7	7	7	8	7	7	7	6	7	5	8	5	7	5	6
m8	6	7	9	7	6	8	6	5	8	7	6	5	8	6	5
m9	6	7	7	5	7	8	7	7	6	8	7	6	7	7	6
m10	6	5	6	6	8	7	8	7	5	7	7	7	6	8	7
m11	6	7	6	8	7	7	8	6	7	7	8	7	6	8	7
m12	6	7	6	6	7	7	7	6	7	7	8	7	6	8	7
m13	6	5	5	6	7	6	7	6	6	6	8	7	5	7	5
m14	7	6	5	7	6	5	6	6	6	7	7	6	6	7	6
m15	8	7	6	8	6	6	6	7	7	6	7	6	7	6	7
