基于卷积神经网络的串行空时分组码盲识别算法

doi:10.12305/j.issn.1001-506X.2021.11.37

摘要/Abstract

摘要：

针对多输入单输出(multiple input single output, MISO)系统中的空时分组码(space-time block code, STBC)盲识别问题, 提出了一种基于卷积神经网络(convolutional neural network, CNN)的串行STBC识别方法。首先, 结合STBC识别问题提出了基本CNN (CNN basic, CNN-B)框架; 然后在分析STBC相关性的基础上, 针对空间复用和Alamouti信号混叠问题, 设计了基于相关性的CNN (CNN based on correlation, CNN-BC)模型; 最后将STBC数据集输入到网络模型中, 完成网络的训练和识别测试。仿真结果表明, 相比于基于特征提取的传统算法, 该方法将可识别的STBC扩展到了6种, 并且在低信噪比下的识别准确率更高, 识别过程可控制在微秒级别, 具有较高的工程应用价值。

关键词: 多输入单输出, 空时分组码, 相关性分析, 卷积神经网络, 盲识别

Abstract:

Aiming at the problem of the blind recognition of space-time block code (STBC) in multiple input single output (MISO) system, a recognition method of serial STBC recognition method based on convolutional neural network (CNN) is proposed. Firstly, the basic CNN-B network framework is proposed for STBC recognition. Then, on the basis of STBC correlation analysis, a correlation-based CNN-BC network model is designed for the problem of special multiplexing and Alamouti signal aliasing. Finally, the STBC dataset is input into the network model to complete the training and recognition test of the network. The simulation results show that compared with the traditional algorithm based on feature extraction, this method extends the recognized STBC to 6 kinds, and has higher recognition accuracy under low signal to noise ratio, besides, the recognition process can be controlled at the level of microsecond, which has higher engineering application value.

Key words: multiple input single output (MISO), space-time block code (STBC), correlation analysis, convolutional neural network (CNN), blind recognition

中图分类号:

TN911.7

张聿远, 闫文君, 张立民, 张媛. 基于卷积神经网络的串行空时分组码盲识别算法[J]. 系统工程与电子技术, 2021, 43(11): 3360-3370.

Yuyuan ZHNAG, Wenjun YAN, Limin ZHANG, Yuan ZHANG. Blind recognition algorithm of serial space-time block code based on convolutional neural network[J]. Systems Engineering and Electronics, 2021, 43(11): 3360-3370.

图/表 16

表1

图1

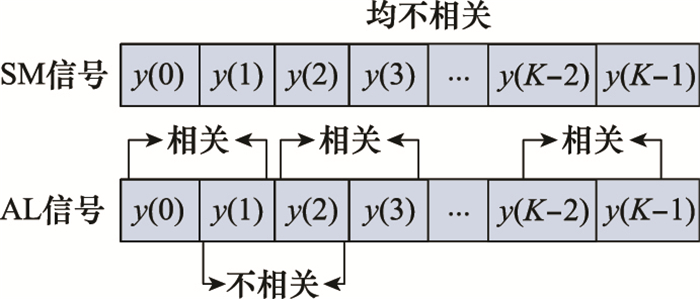

图2

图3

表2

图4

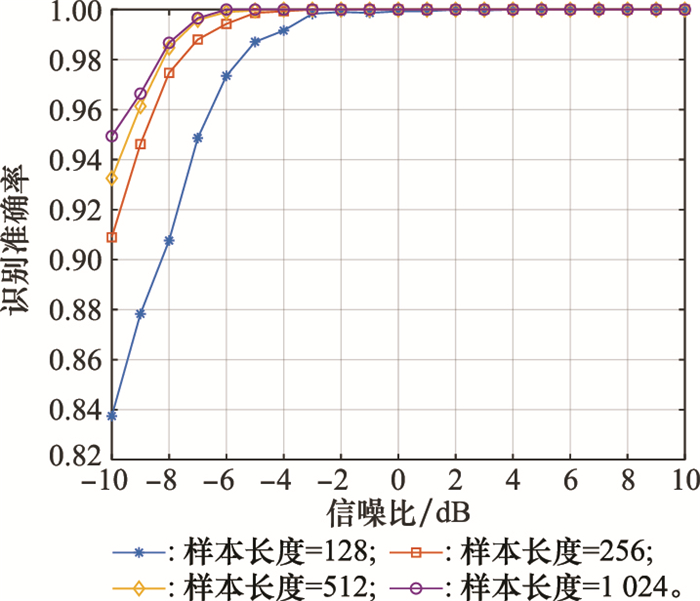

图5

图6

图7

图8

图9

图10

图11

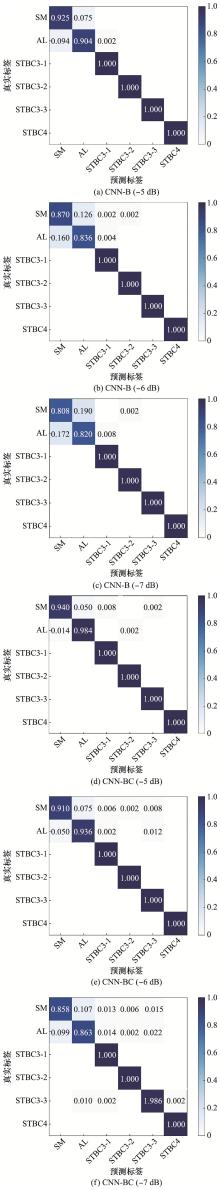

图12

表3

图13

参考文献 30

1	ELDEMERDASH Y A , DOBRE O A , LIAO B J . Blind identification of SM and Alamouti STBC-OFDM signals[J]. IEEE Trans.on Wireless Communications, 2015, 14 (2): 972- 982. doi: 10.1109/TWC.2014.2363093
2	MAREY M , DOBRE O A . Blind modulation classification algorithm for single and multiple-antenna systems over frequency-selective channels[J]. IEEE Signal Processing Letters, 2014, 21 (9): 1098- 1102. doi: 10.1109/LSP.2014.2323241
3	MAREY M , DOBRE O A , INKOL R . Classification of space-time block codes based on second-order cyclostationarity with transmission impairments[J]. IEEE Trans.on Wireless Communications, 2012, 11 (7): 2574- 2584. doi: 10.1109/TWC.2012.041612.111488
4	KARAMI E , DOBRE O A . Identification of SM-OFDM and AL-OFDM signals based on their second-order cyclostationrity[J]. IEEE Trans.on Vehicular Technology, 2015, 64 (3): 942- 953. doi: 10.1109/TVT.2014.2326107
5	赵知劲, 谢少萍, 王海泉. OSTBC信号累积量的特征分析[J]. 电路与系统学报, 2013, 18 (1): 150- 155. doi: 10.3969/j.issn.1007-0249.2013.01.028
	ZHAO Z J , XIE S P , WANG H Q . The characteristic analysis of cumulants of the OSTBC signals[J]. Journal of Ciruits and Systems, 2013, 18 (1): 150- 155. doi: 10.3969/j.issn.1007-0249.2013.01.028
6	闫文君, 张立民, 凌青, 等. 基于高阶统计特征的空时分组码盲识别方法[J]. 电子与信息学报, 2016, 38 (3): 668- 673.
	YAN W J , ZHANG L M , LING Q , et al. An algorithm for blind classification of space-time block code based on higher-order statistics[J]. Journal of Electronics & Information Techno-logy, 2016, 38 (3): 668- 673.
7	LING Q , ZHANG L M , YAN W J , et al. Hierarchical space-time block codes signals classification using higher order cumulants[J]. Chinese Journal of Aeronautics, 2016, 29 (3): 754- 762. doi: 10.1016/j.cja.2016.04.006
8	张立民, 闫文君, 凌青, 等. 一种单接收天线下的空时分组码识别方法[J]. 电子与信息学报, 2015, 37 (11): 2621- 2627.
	ZHANG L M , YAN W J , LING Q , et al. A method for blind recognition of space-time block coding using single receive antenna[J]. Journal of Electronics & Information Technology, 2015, 37 (11): 2621- 2627.
9	张立民, 凌青, 闫文君. 基于高阶累积量的空时分组码盲识别算法研究[J]. 通信学报, 2016, 37 (5): 1- 8. doi: 10.3969/j.issn.1001-2400.2016.05.001
	ZHANG L M , LING Q , YAN W J . Blind recognition of STBC based on higher-order cumulants[J]. Journal on Communications, 2016, 37 (5): 1- 8. doi: 10.3969/j.issn.1001-2400.2016.05.001
10	MOHAMMADARIMI M , DOBRE O A . Blind identification of spatial multiplexing and Alamouti space-time block code via kolmogorov-smirnov (K-S) test[J]. IEEE Communications Letters, 2014, 18 (10): 1711- 1714. doi: 10.1109/LCOMM.2014.2352305
11	张孟伯, 王伦文, 冯彦卿. 基于卷积神经网络的OFDM频谱感知方法[J]. 系统工程与电子技术, 2019, 41 (1): 178- 186.
	ZHANG M B , WANG L W , FENG Y Q . OFDM spectrum sensing method based on convolutional neural networks[J]. Systems Engineering and Electronics, 2019, 41 (1): 178- 186.
12	OSHEA T, CORGAN J, CLANCY T. Convolutional radio modulation recognition networks[C]//Proc. of the International Conference on Engineering Applications of Neural Networks, 2016: 213-226.
13	WEST N, OSHEA T. Deep architectures for modulation recognition[C]//Proc. of the IEEE International Symposium on Dynamic Spectrum Access Networks, 2017.
14	MERIMA K , TARIK K , INGRID M , et al. End-to-end learning from spectrum data: a deep learning approach for wireless signal identification in spectrum monitoring applications[J]. IEEE Access, 2018, 6, 18484- 18501. doi: 10.1109/ACCESS.2018.2818794
15	OSHEA T , ROY T , CLANCY T . Over-the-air deep learning based radio signal classification[J]. IEEE Journal of Selected Topics in Signal Processing, 2018, 12 (1): 168- 179. doi: 10.1109/JSTSP.2018.2797022
16	WANG C, WANG J, ZHANG X D. Automatic radar waveform recognition based on time-frequency analysis and convolutional neural network[C]//Proc. of the IEEE International Conference on Acoustics, Speech and Signal Processing, 2017: 2437-2441.
17	ZHANG M , DIAO M , GUO L M . Convolutional neural networks for automatic cognitive radio waveform recognition[J]. IEEE Access, 2017, 5, 11074- 11082. doi: 10.1109/ACCESS.2017.2716191
18	秦鑫, 黄洁, 查雄, 等. 基于扩张残差网络的雷达辐射源信号识别[J]. 电子学报, 2020, 48 (3): 456- 462. doi: 10.3969/j.issn.0372-2112.2020.03.006
	QIN X , HUANG J , ZHA X , et al. Radar emitter signal recognition based on dilated residual network[J]. Acta Electronica Sinica, 2020, 48 (3): 456- 462. doi: 10.3969/j.issn.0372-2112.2020.03.006
19	KONG S , KIM M , HOANG L , et al. Automatic LPI radar waveform recognition using CNN[J]. IEEE Access, 2018, 6, 4207- 4219. doi: 10.1109/ACCESS.2017.2788942
20	张天琪, 范聪聪, 喻盛琪, 等. 基于JADE与特征提取的正交/非正交空时分组码盲识别[J]. 系统工程与电子技术, 2020, 42 (4): 933- 939.
	ZHANG T Q , FAN C C , YU S Q , et al. Blind recognition of orthogonal and non-orthogonal space-time block codes based on JADE and feature extraction[J]. Systems Engineering and Electronics, 2020, 42 (4): 933- 939.
21	梁彩虹. 块衰落信道下的空间耦合LDPC码设计[D]. 西安: 西安电子科技大学, 2018.
	LIANG C H. Design of spatially coupled LDPC codes for block-fading channels[D]. Xi'an: Xidian University, 2018.
22	赵晶. 块衰落信道中的空时编码技术的研究[D]. 成都: 西南交通大学, 2008.
	ZHAO J. Study on space-time coding technology in block fading channel[D]. Chengdu: Southwest Jiaotong University, 2008.
23	孙岳, 李蓓蕾, 梁彩虹, 等. 块衰落信道下串联多链空间耦合LDPC码设计[J]. 西安电子科技大学学报, 2019, 46 (2): 1- 5, 28. doi: 10.3969/j.issn.1008-472X.2019.02.001
	SUN Y , LI B L , LIANG C H , et al. Design of serial connecting multiple spatially coupled LDPC codes for block-fading channels[J]. Journal of Xidian University, 2019, 46 (2): 1- 5, 28. doi: 10.3969/j.issn.1008-472X.2019.02.001
24	3 GPP TR 25.996. Spatial channel model for multiple configured multiple output (MIMO)[S]. Valbonne: 3rd Generation Partnership Project, 2012.
25	BAUM D S, HANSEN J, SALO J. An interim channel model beyond-3G systems: extending the 3GPP spatial channel model (SCM)[C]//Proc. of the Vehicular Technology Conference, 2005: 3132-3136.
26	全仕锦. MIMO-OTA系统的校准验证和性能测试研究[D]. 北京: 北京邮电大学, 2018.
	QUAN S J. Research on calibration and verification and performance test of MIMO-OTA system[D]. Beijing: Beijing University of Posts and Telecommunications, 2018.
27	徐栋梁. 基于3GPP SCM的MIMO信道建模和信道参数估计[D]. 天津: 天津大学, 2010.
	XU D L. Modeling and parameters estimation of MIMO channel based on 3GPP SCM[D]. Tianjin: Tianjin University, 2010.
28	BEAULIEU N C , CHENG C . Efficient Nakagami-m fading channel simulation[J]. IEEE Trans.on Vehicular Technology, 2005, 54 (2): 413- 424. doi: 10.1109/TVT.2004.841555
29	于柯远, 张立民, 闫文君, 等. 基于深度学习的多STBC盲识别算法[J]. 系统工程与电子技术, 2021, 43 (4): 1110- 1118.
	YU K Y , ZHANG L M , YAN W J , et al. Blind recognition algorithm for multi-STBC based on deep learning[J]. Systems Engineering and Electronics, 2021, 43 (4): 1110- 1118.
30	张聿远, 闫文君, 林冲, 等. 利用卷积-循环神经网络的串行序列空时分组码识别方法[J]. 信号处理, 2021, 37 (1): 19- 27.
	ZHANG Y Y , YAN W J , LIN C , et al. Serial sequence space-time block code recognition method by using convolutional-recurrent neural networks[J]. Journal of Signal Processing, 2021, 37 (1): 19- 27.

网络层	输入大小	网络参数
C1	2×128	256×(1×3)
C2	256×(2×126)	80×(2×3)
D1	80×(1×124)	256
D2	256	6

STBC类型	标签	信号数	样本数(2×128)
SM	0	21 000×128	21 000
AL	1	21 000×128	21 000
STBC3-1	2	21 000×128	21 000
STBC3-2	3	21 000×128	21 000
STBC3-3	4	21 000×128	21 000
STBC4	5	21 000×128	21 000

网络	空间复杂度	时间复杂度
网络	参数量	训练总时间/s	识别耗时/μs
CNN-B	2 665 302	78	11.4
CNN-BC	2 636 966	68	9.4
FDSCF+CNN	2 645 078	137	11.9
CNN-LSTM	1 059 522	1 915	591.4
