基于参数外推的超宽带雷达有源极化校准技术

doi:10.12305/j.issn.1001-506X.2025.08.08

摘要/Abstract

摘要：

有源极化雷达校准器（polarimetric active radar calibrator，PARC）以其高雷达散射截面以及高信杂噪比的优点，在雷达极化校准领域中受到了广泛的应用。针对PARC系统只能工作在固定频段和有限带宽内而在超宽带雷达极化校准中使用受限的问题，提出一种基于参数外推的超宽带雷达有源极化校准技术。利用谱估计方法将校准器对应频段的极化校准参数外推至其他频段，然后对相应频段进行处理，从而拓宽有源极化校准器的工作频带范围。利用工作频率为8~12 GHz的PARC对4~16 GHz全极化雷达进行校准，原始校准参数和外推校准参数在各自频段均取得良好的极化校准效果，证明了所提方法的有效性和工程实用价值。

关键词: 极化校准, 超宽带雷达, 有源极化校准器, 参数外推

Abstract:

Polarimetric active radar calibrator (PARC) are widely used in the field of radar polarization calibration due to its high radar cross section and high signal-to-noise ratio. A parameter extrapolation based active polarization calibration technique for ultrawide-band radar is proposed to address the problem that PARC system can only operate in fixed frequency bands and limited bandwidth, which limits their use in polarization calibration. Using spectral estimation methods to extrapolate the polarization calibration parameters of the calibrator corresponding frequency band to other frequency bands, and then processing the corresponding frequency bands to broaden the operating frequency range of the active polarization calibrator. The PARC with a working frequency of 8~12 GHz is used to calibrate the 4~16 GHz fully polarized radar. The original calibration parameters and extrapolated calibration parameters achieved good polarization calibration results in their respective frequency bands, proving the effectiveness and engineering practical value of the proposed method.

Key words: polarimetric calibration, ultrawide-band radar, polarimetric active radar calibrator (PARC), parameter extrapolation

中图分类号:

TN957

杨宽, 许小剑. 基于参数外推的超宽带雷达有源极化校准技术[J]. 系统工程与电子技术, 2025, 47(8): 2498-2510.

Kuan YANG, Xiaojian XU. Active polarimetric calibration technique based on parameter extrapolation for ultrawide-band radar[J]. Systems Engineering and Electronics, 2025, 47(8): 2498-2510.

图/表 18

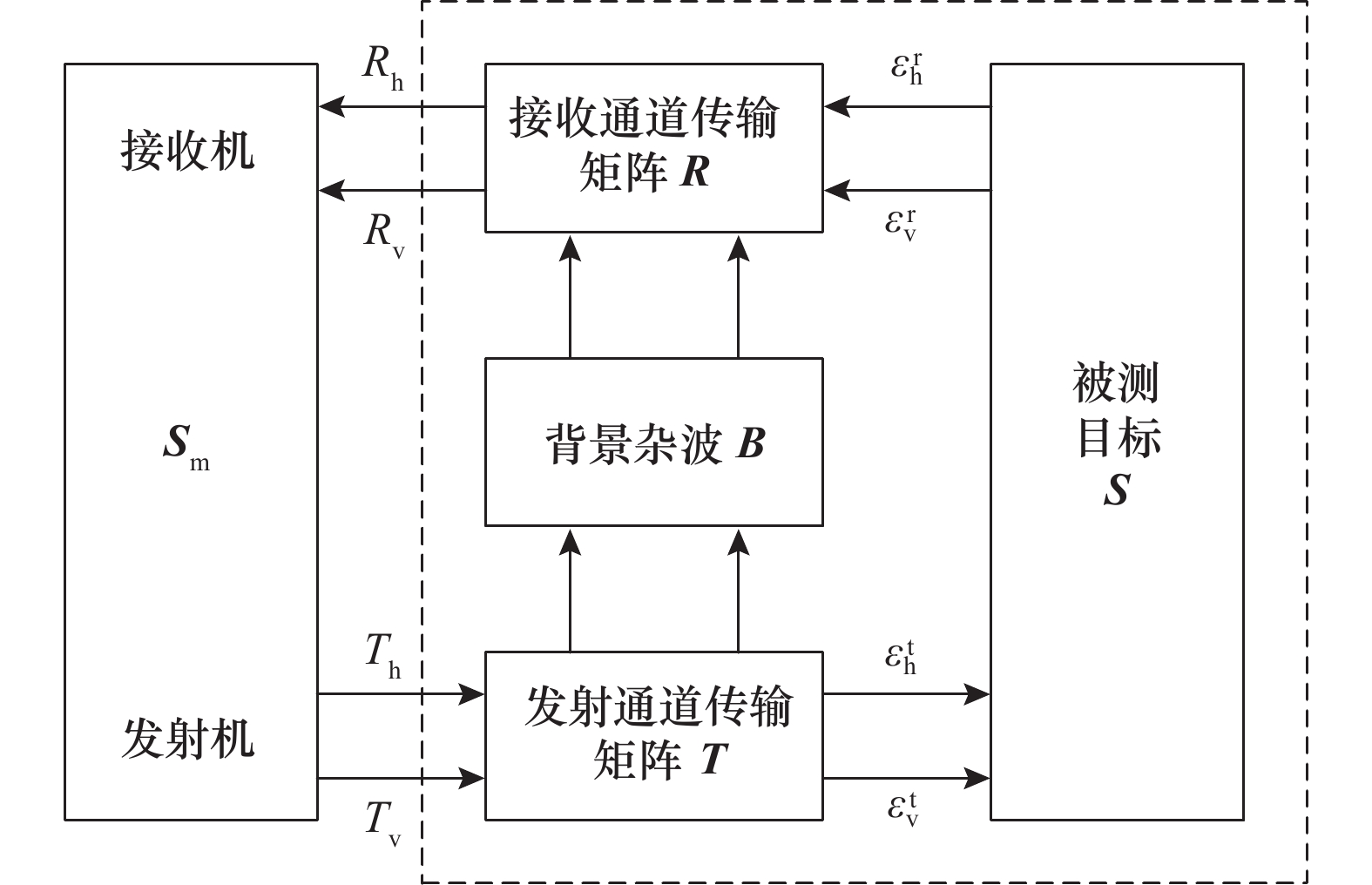

图1

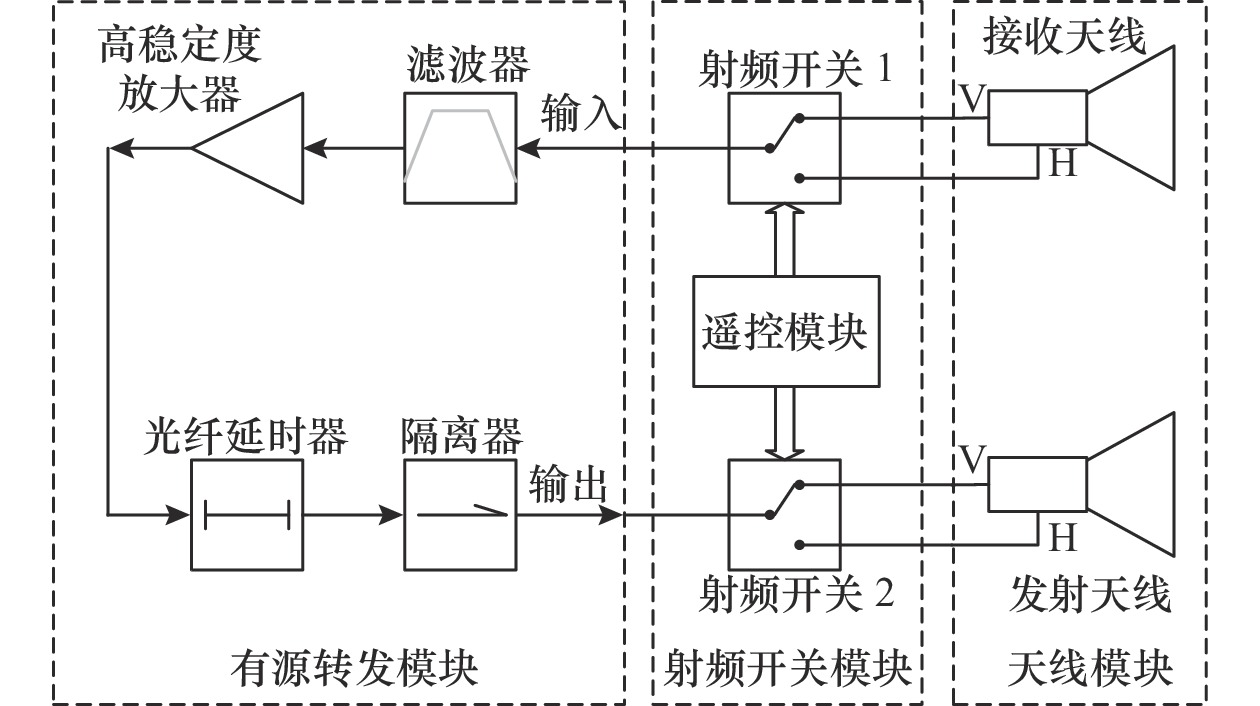

图2

表1

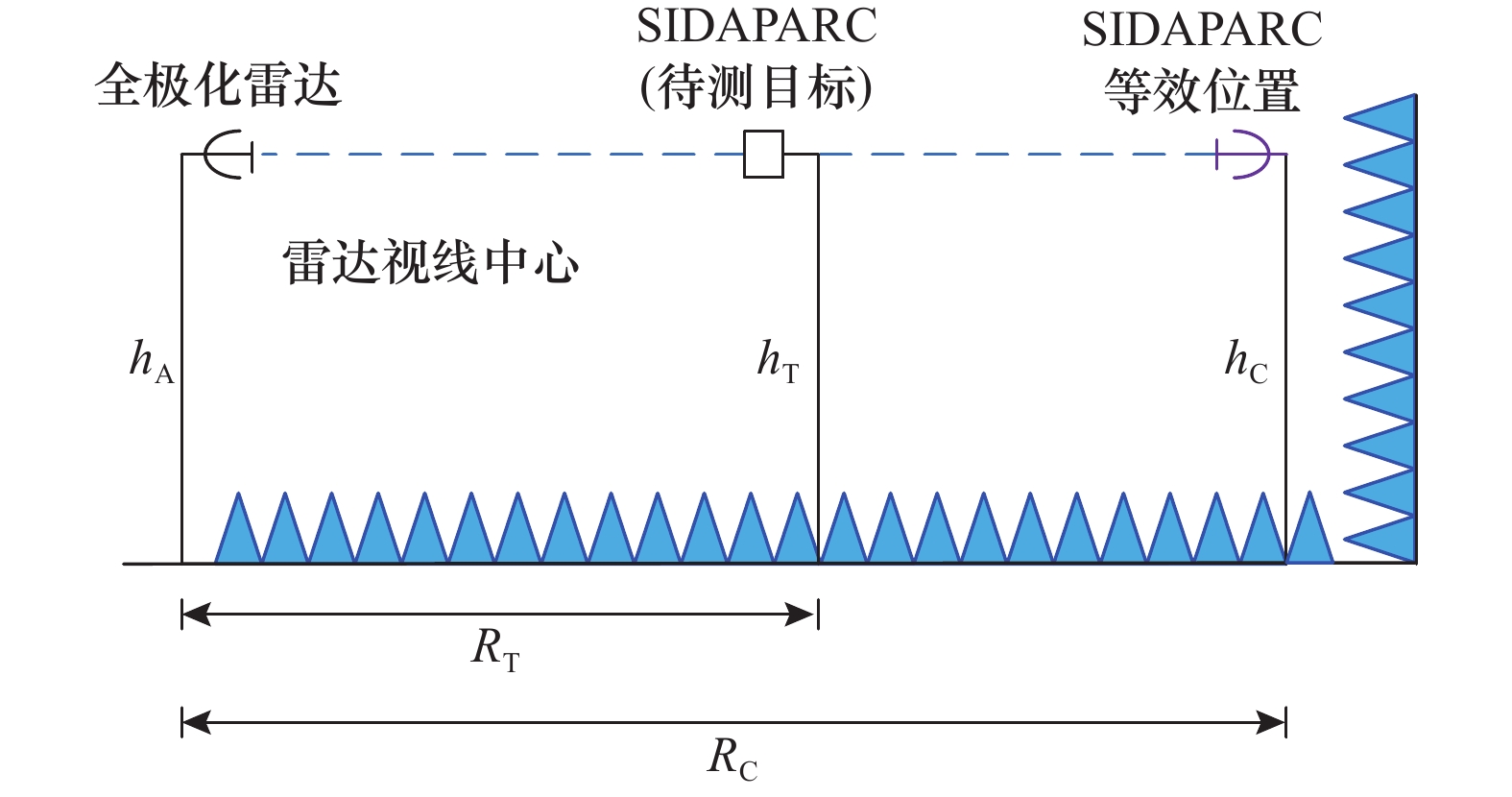

图3

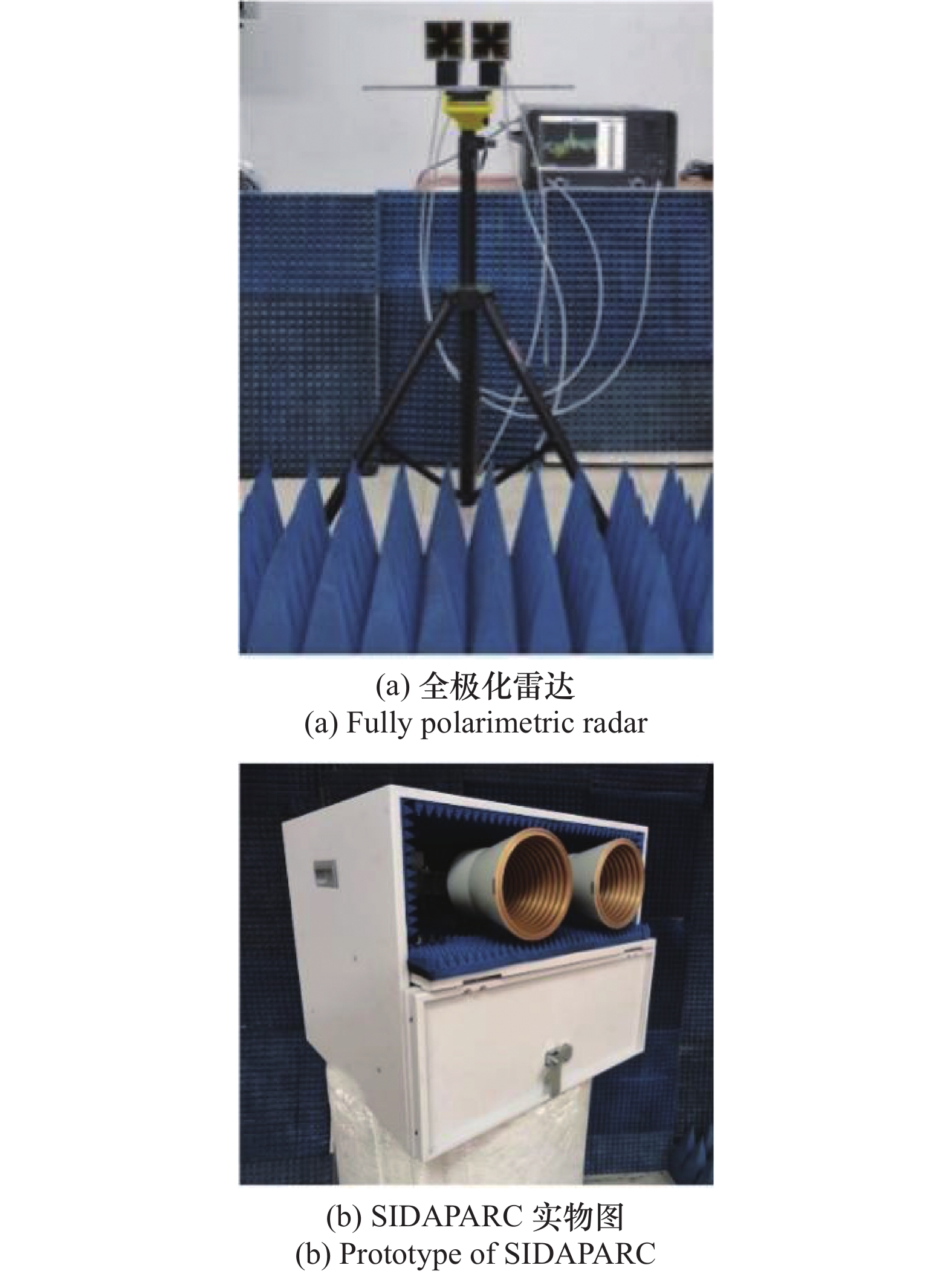

图4

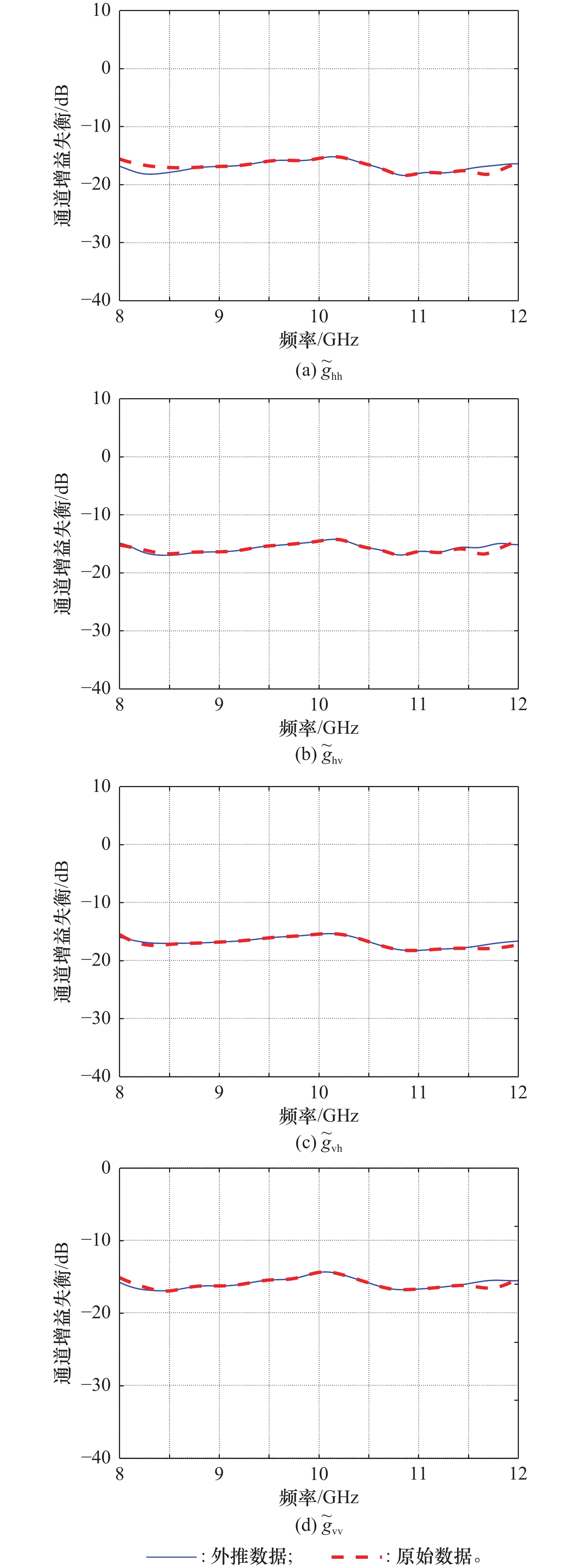

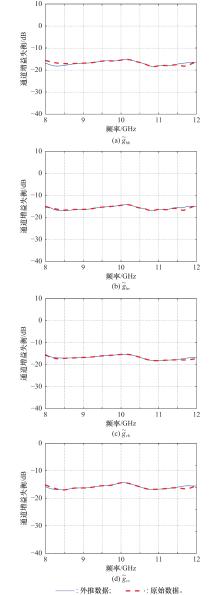

图5

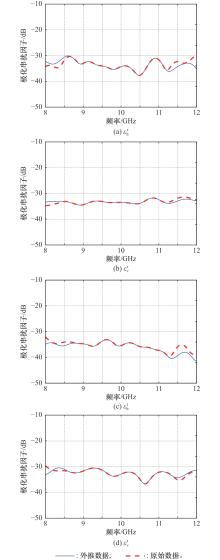

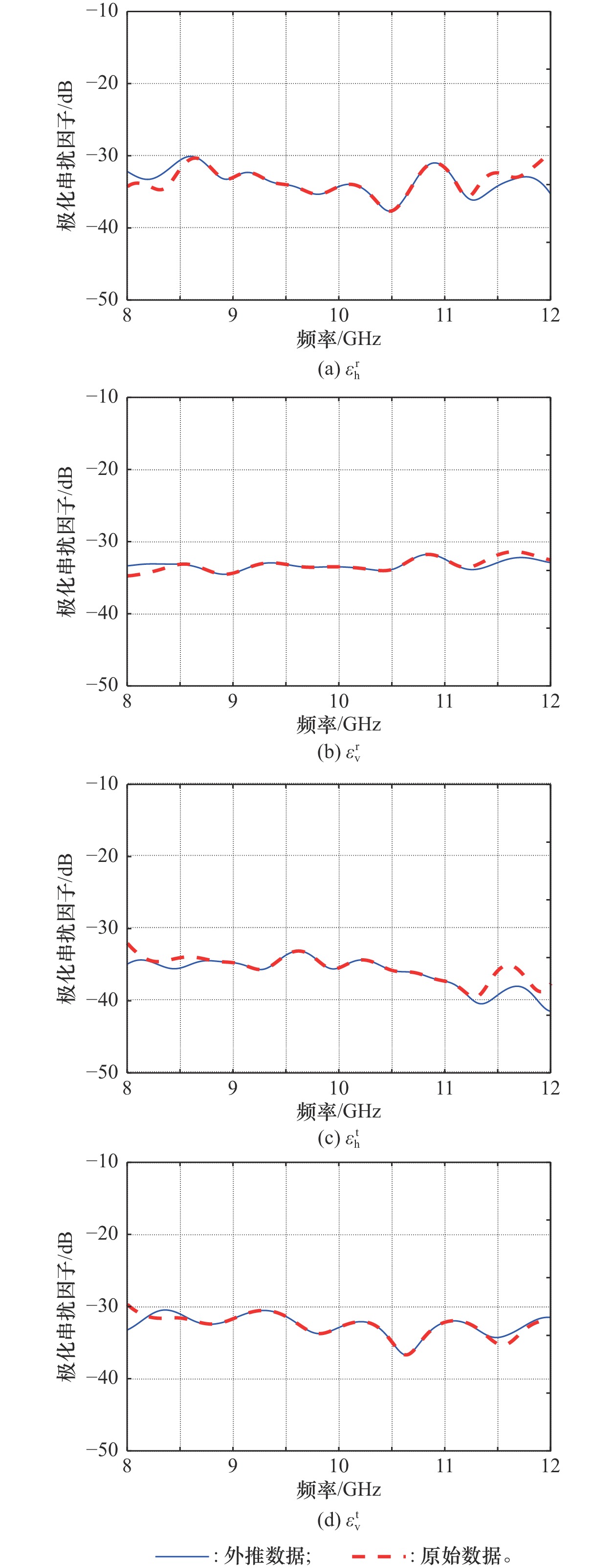

图6

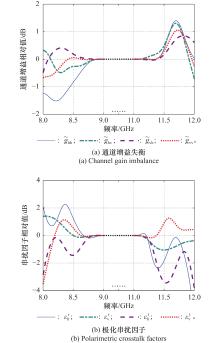

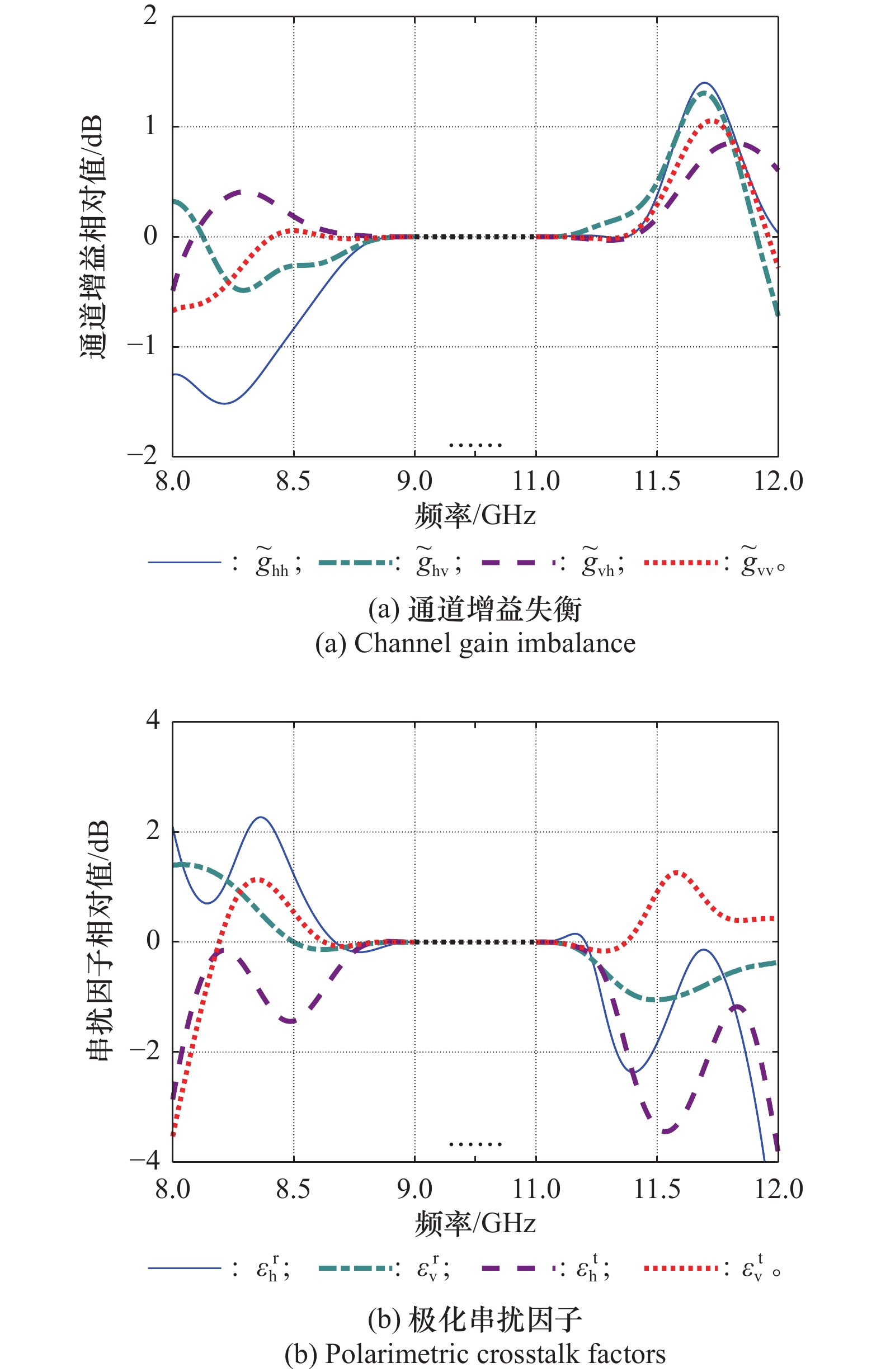

图7

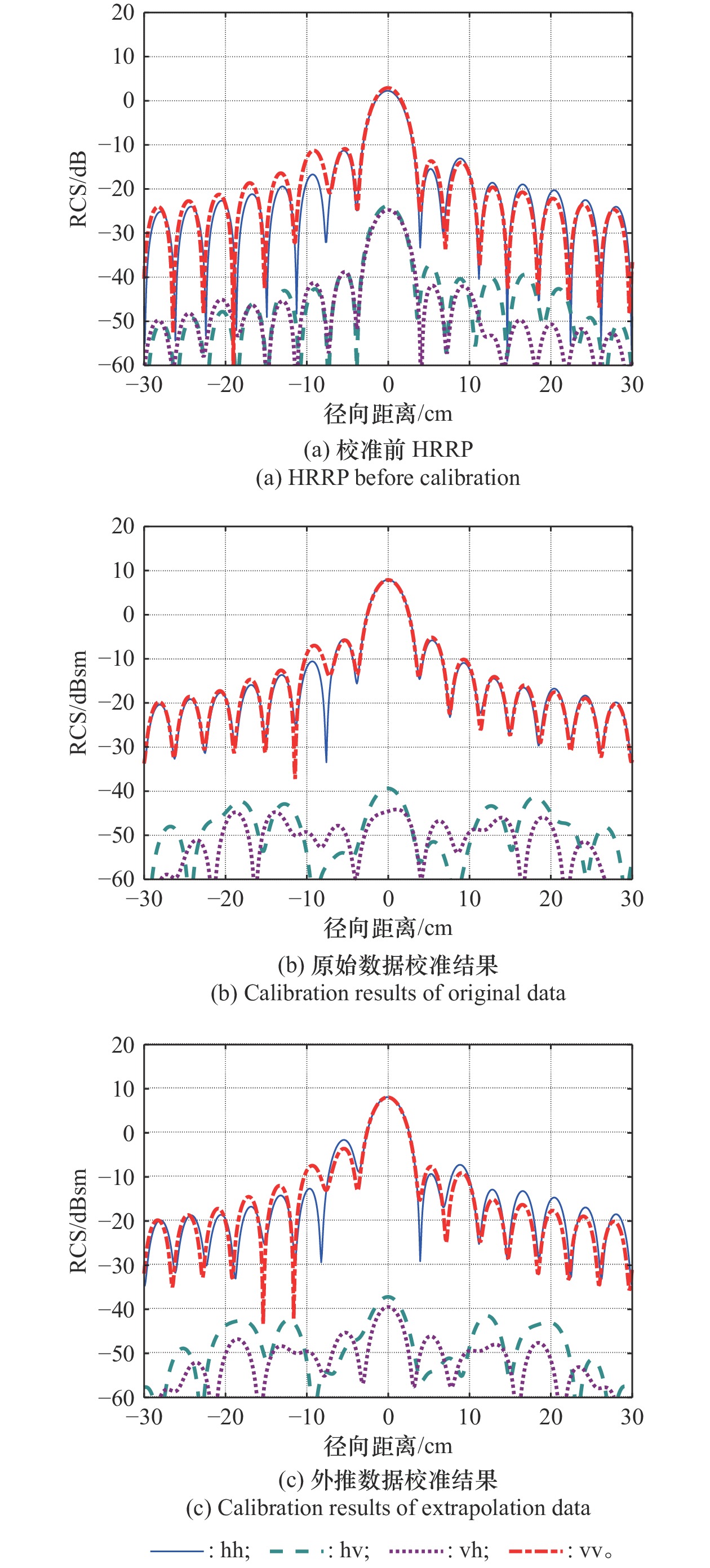

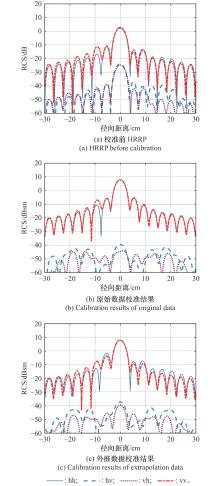

图8

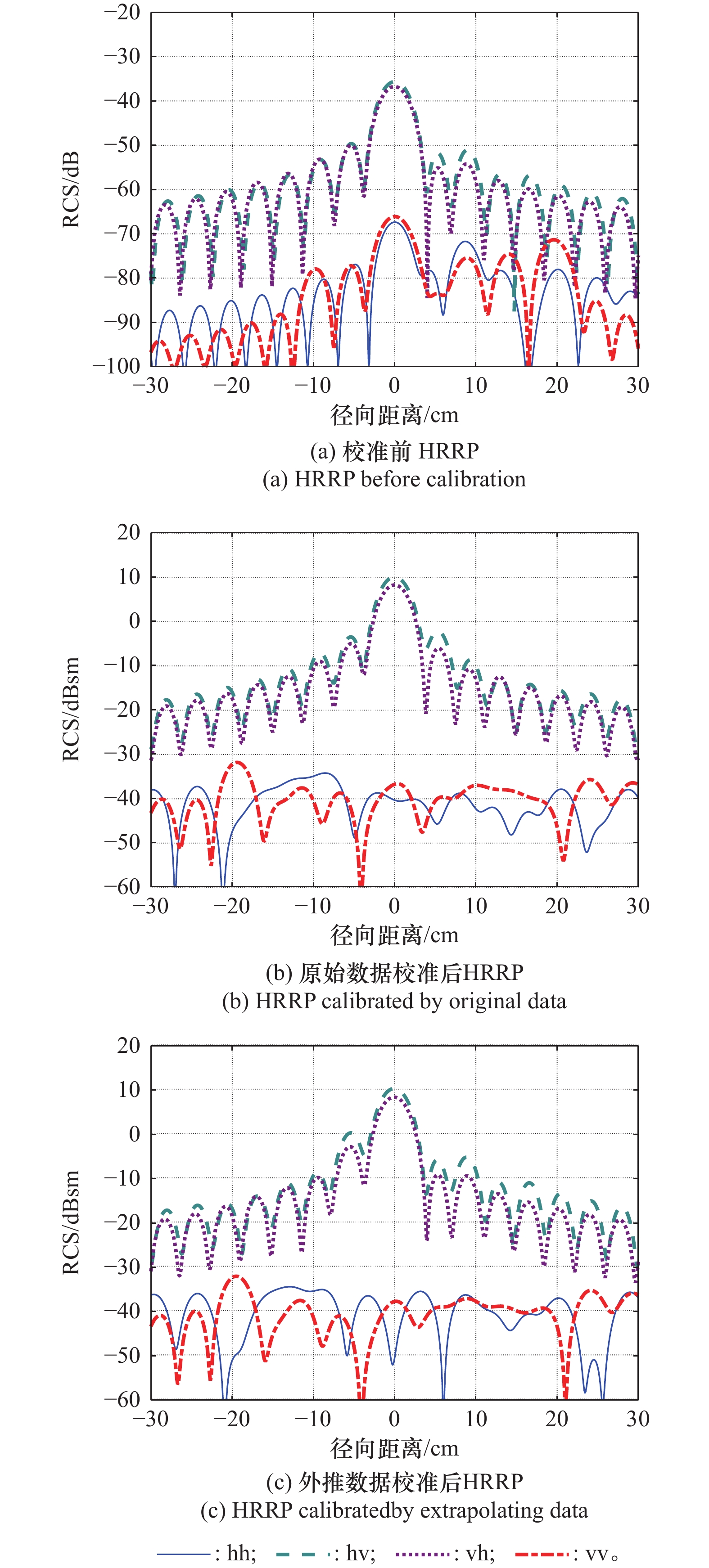

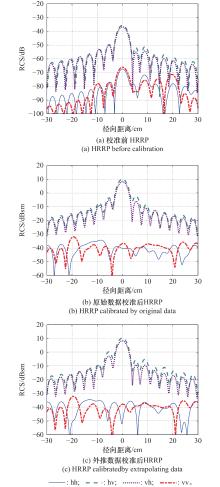

图9

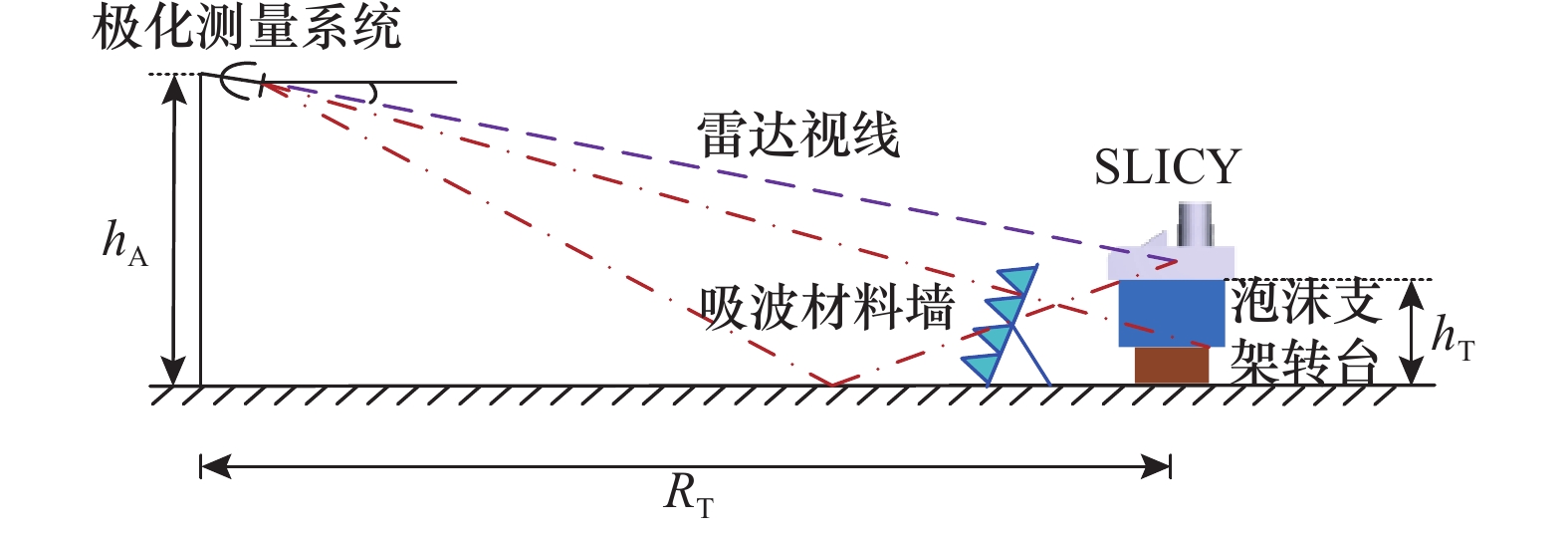

图10

图11

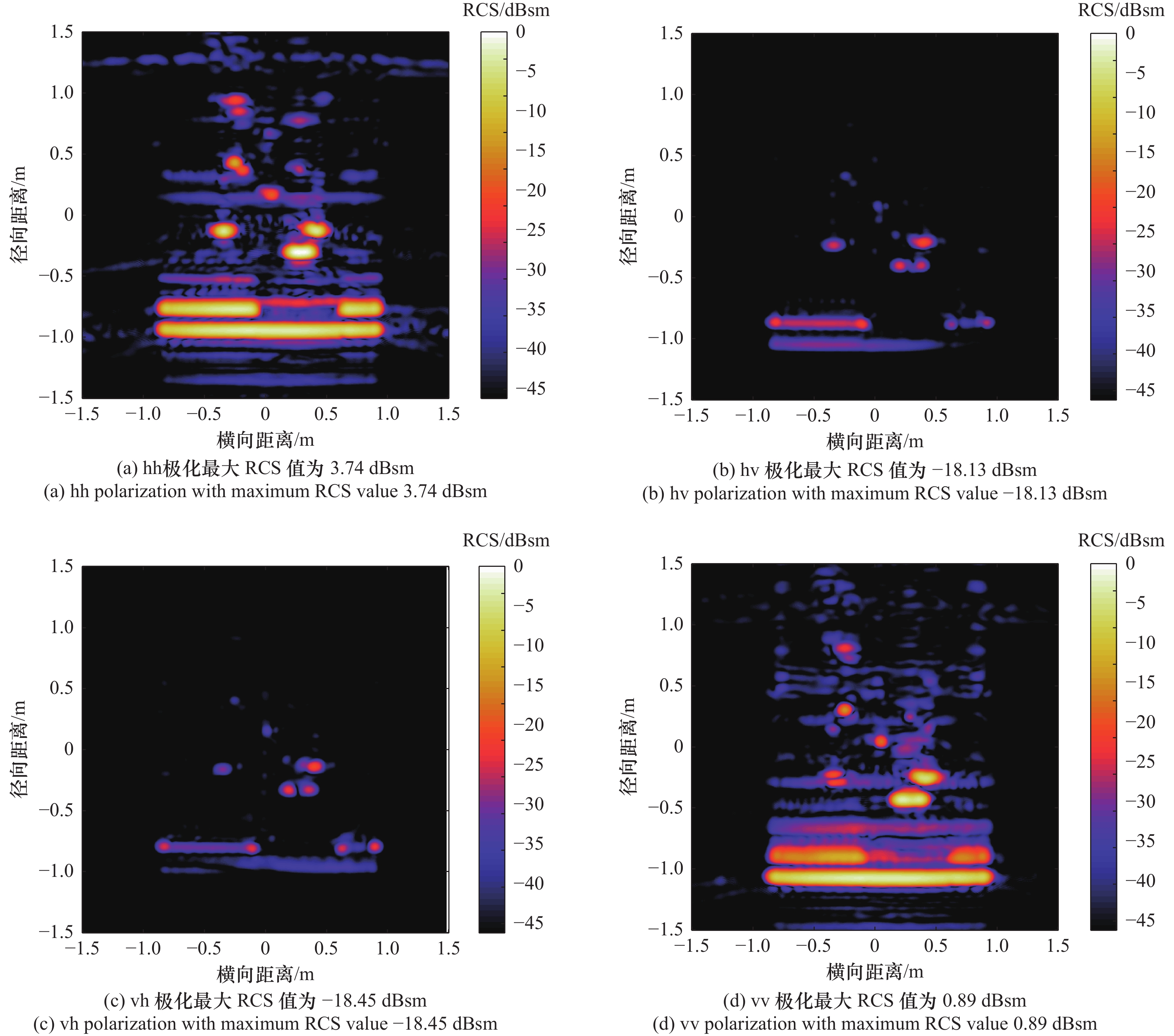

图12

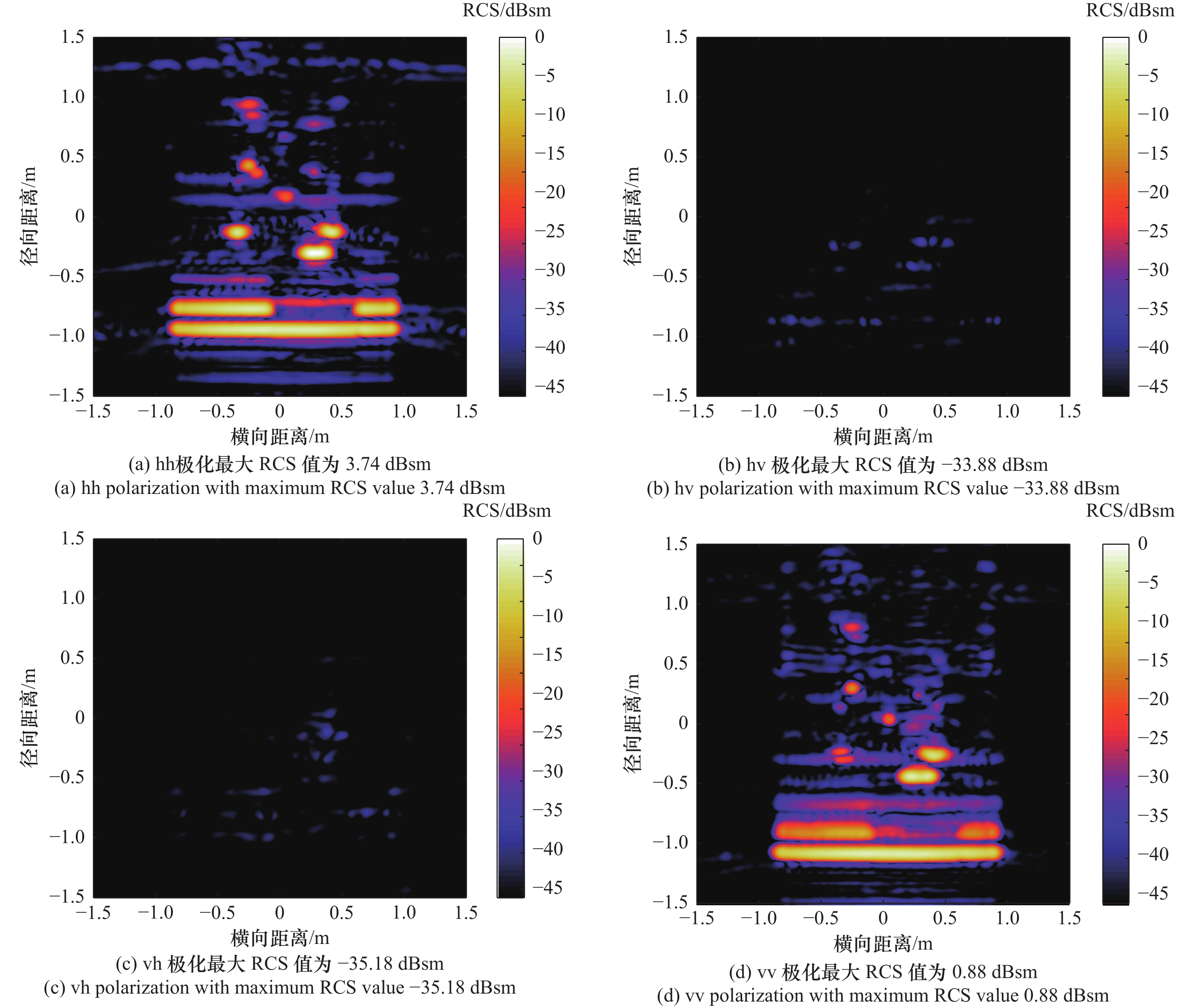

图13

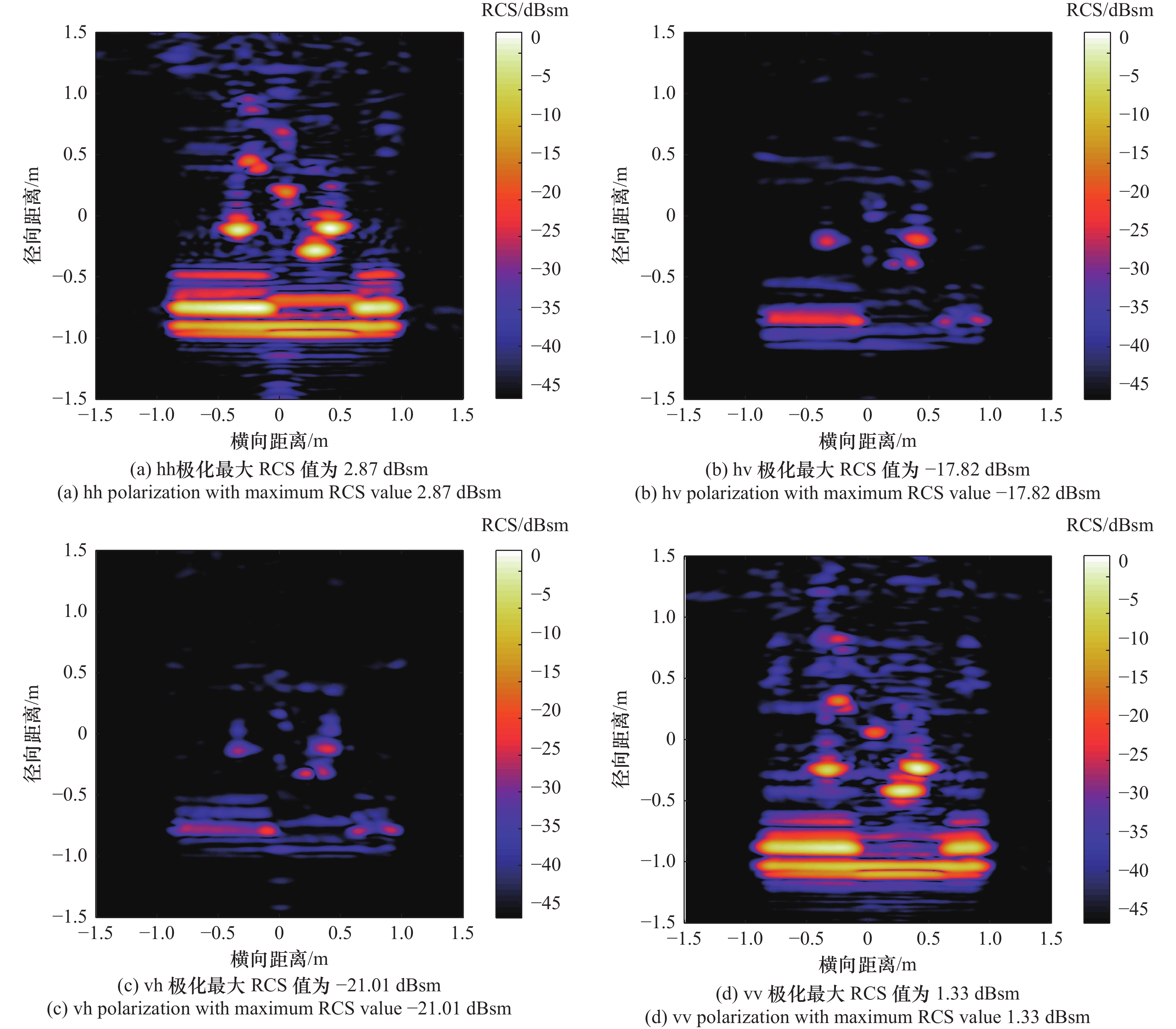

图14

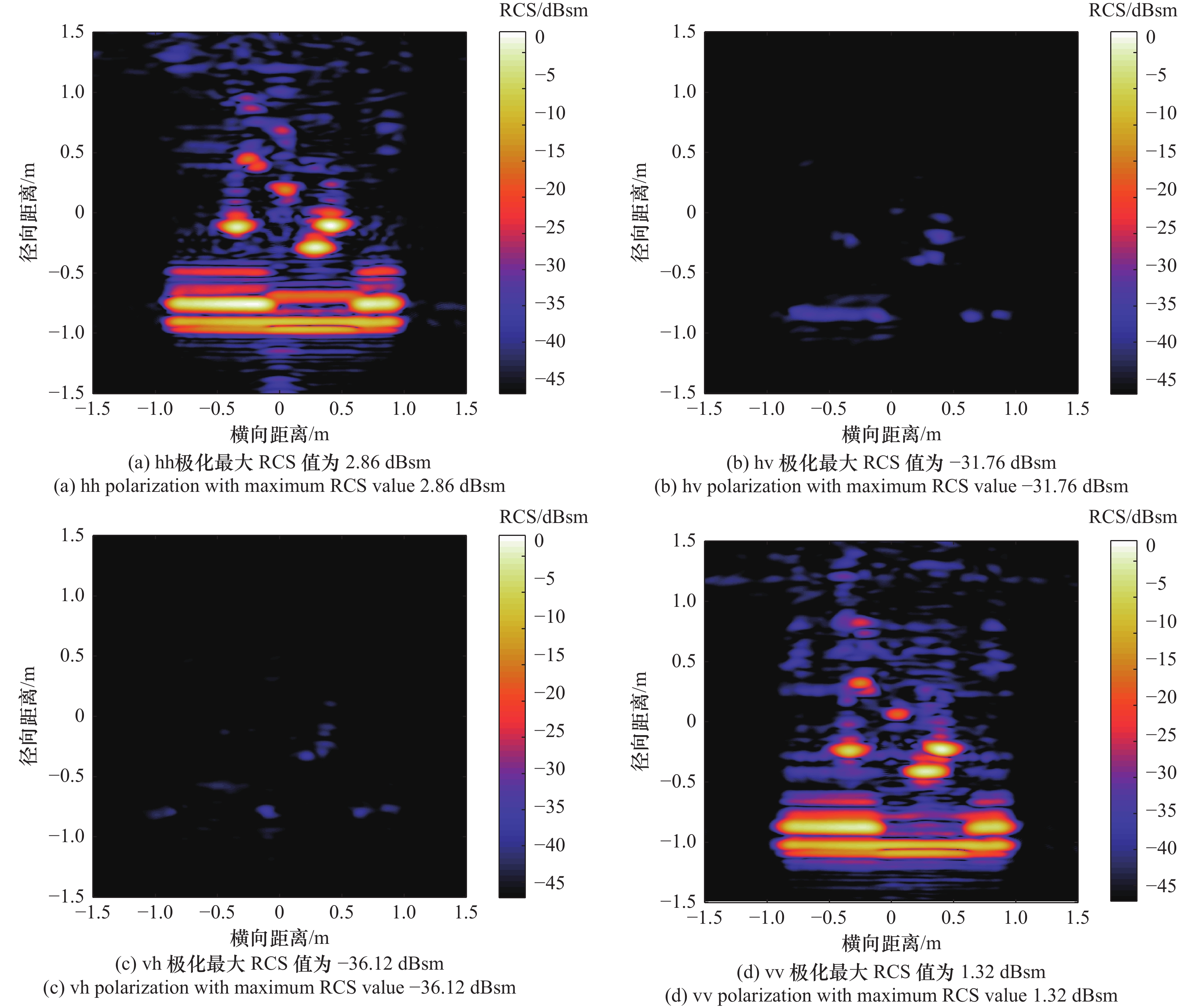

图15

图16

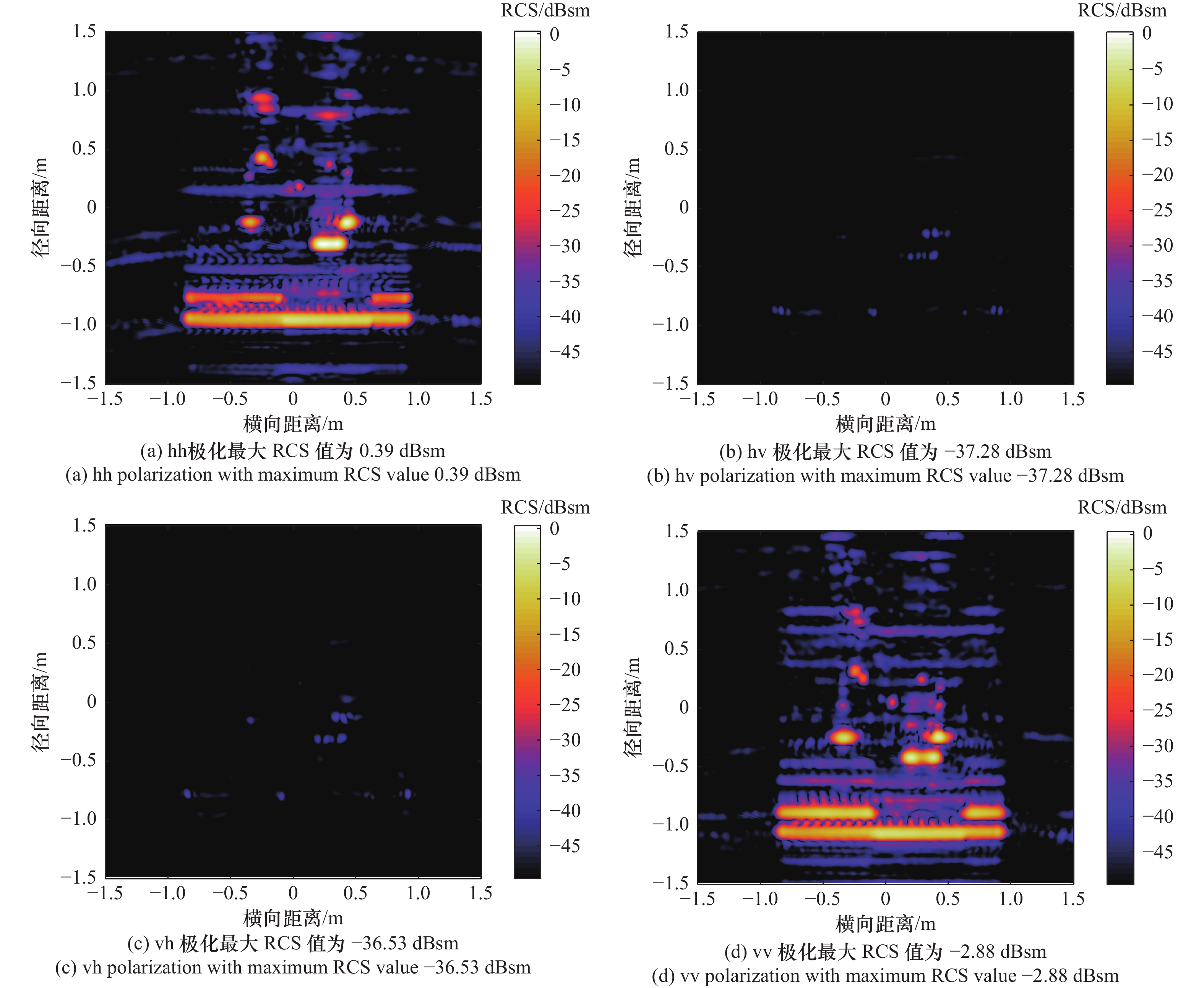

图17

参考文献 31

1	许小剑. 雷达目标散射特性测量与新技术[M]. 北京: 国防工业出版社, 2017.
	XU X J. New techniques for radar target scattering signature measurement and processing[M]. Beijing : National Defense Industry Press, 2017.
2	KOSTINSKI A, BOERNER W. On foundations of radar polarimetry[J]. IEEE Trans. on Antennas Propagation, 1986, 34 (12): 1935- 1404.
3	GHANBARI M, CLAUSI D, LI X, et al. Contextual classification of sea-ice types using compact polarimetric SAR data[J]. IEEE Trans. on Geoscience and Remote Sensing, 2019, 57 (10): 7476- 7491. doi: 10.1109/TGRS.2019.2913796
4	庄钊文, 肖顺平, 王雪松. 雷达极化信息处理及其应用[M]. 北京: 国防工业出版社, 1999.
	ZHUANG Z W, XIAO S P, WANG X S. Radar polarimetric signature processing and applications[M]. Beijing: National Defense Industry Press, 1999.
5	SINCLAIR G. The transmission and reception of elliptically polarized waves[J]. Proceedings of the IRE, 1950, 38 (2): 148- 151. doi: 10.1109/JRPROC.1950.230106
6	WIESBECK W, RIEGGER S. A complete error model for free space polarimetric measurements[J]. IEEE Trans. on Antennas Propagation, 1991, 39 (8): 1105- 1111. doi: 10.1109/8.97343
7	MUTH L. Nonlinear calibration of polarimetric radar cross section measurement systems[J]. IEEE Antennas and Propagation Magazine, 2010, 52 (3): 187- 192. doi: 10.1109/MAP.2010.5586625
8	WHITT M W, ULABY F T. A polarimetric radar calibration technique with insensitivity to target orientation[J]. Radio Science, 1990, 25 (6): 1137- 1143. doi: 10.1029/RS025i006p01137
9	UNAL C, NIEMEIJER R, VAN J, et al. Calibration of a polarimetric radar using a rotatable dihedral corner reflector[J]. IEEE Trans. on Geoscience and Remote Sensing, 1994, 32 (4): 837- 845. doi: 10.1109/36.298011
10	BEAUDOIN C, HORGAN T, DEMARTINIS G, et al. Fully polarimetric bistatic radar calibration with modified dihedral objects[J]. IEEE Trans. on Antennas Propagation, 2018, 66 (2): 937- 950. doi: 10.1109/TAP.2017.2783191
11	XU X J, LIU T J, WU P F. A new quarter concave cylinder linked dihedral reflector for fully polarimetric calibration of wideband nonreciprocal radar systems[J]. IEEE Trans. on Antennas Propagation, 2023, 71 (4): 3561- 3570. doi: 10.1109/TAP.2023.3240091
12	BRUNFELDT D R, ULABY F T. Active reflector for radar calibration[J]. IEEE Trans. on Geoscience and Remote Sensing, 1984, 22 (2): 165- 169.
13	孙芳, 康士峰, 罗贤云. 机载杂波测量雷达有源校准器的设计与分析[J]. 电波科学学报, 2001, 16 (4): 534- 537. doi: 10.3969/j.issn.1005-0388.2001.04.024
	SUN F, KANG S F, LUO X Y. Design and analysis of active radar calibrators for airborne clutter measurement radar[J]. Chinese Journal of Radar Science, 2001, 16 (4): 534- 537. doi: 10.3969/j.issn.1005-0388.2001.04.024
14	TANG J G, XU X J. A new polarimetric active radar calibrator and calibration technique[C]//Proc. of 21st Conference on Image and Signal Processing for Remote Sensing, 2015.
15	JIROUSEK M, DöRING B J, RUDOLF D, et al. Development of the highly accurate DLR Kalibri transponder[C]//Proc. of the 10th European Conference on Synthetic Aperture Radar, 2014.
16	SARABANDI K, KASHANIANFARD M, NASHASHIBI A Y, et al. A polarimetric active transponder with extremely large RCS for absolute radiometric calibration of SMAP radar[J]. IEEE Trans. on Geoscience and Remote Sensing, 2018, 56 (3): 1269- 1277. doi: 10.1109/TGRS.2017.2745206
17	LI L, ZHU Y T, HONG J, et al. Design and implementation of a novel polarimetric active radar calibrator for Gaofen-3 SAR[J]. Sensors, 2018, 18 (8): 2620. doi: 10.3390/s18082620
18	YANG K, XU X J. Estimation and correction for the roll angle errors of a switchable DAPARC[C]//Proc. of the IEEE Conference on Antenna Measurements and Applications, 2023: 321−325.
19	YANG K, HE X Y, LIU T J, et al. A programmable RF-switched double-antenna transponder for fully polarimetric radar calibration[J]. IEEE Trans. on Geoscience and Remote Sensing, 2024, 62, 5109713.
20	LIU Y Z, XU X J, XU G Y. MIMO radar calibration and imagery for near-field target scattering diagnosis[J]. IEEE Trans. on Aerospace and Electronic Systems, 2018, 54 (1): 442- 452. doi: 10.1109/TAES.2017.2760758
21	HE X Y, LIU T J, SHAN J Z, et al. Calibration of polarimetric millimeter MIMO radar for near-field ultrawideband imaging measurement[J]. IEEE Trans. on Instrumentation and Measurement, 2024, 73, 8500914.
22	YAMARYO A, TAKATORI T, KIDERA S, et al. Range-point migration-based image expansion method exploiting fully polarimetric data for UWB short-range radar[J]. IEEE Trans. on Geoscience and Remote Sensing, 2018, 56 (5): 2170- 2182.
23	CUOMO K M, PION J E, MAYHAN J T. Ultrawide-band coherent processing[J]. IEEE Trans. on Antennas and Propagation, 1999, 47 (6): 1094- 1107. doi: 10.1109/8.777137
24	BOS R, WAELE S, BROERSEN P M T. Autoregressive spectral estimation by application of the Burg algorithm to irregularly sampled data[J]. IEEE Trans. on Instrumentation and Measurement, 2002, 51 (6): 1289- 1294. doi: 10.1109/TIM.2002.808031
25	GAMBACORTA L, RAGUSO C, MASTRO M, et al. UWB processing applied to multifrequency radar sounders: the case of MARSIS and comparison with SHARAD[J]. IEEE Trans. on Geoscience and Remote Sensing, 2022, 60, 5120014.
26	PRIESTLEY M B. Spectral analysis and time series[M]. London: Academic, 1981.
27	MARIANI A, GIORGETTI A, CHIANI M. Model order selection based on information theoretic criteria: design of the penalty[J]. IEEE Trans. on Signal Processing, 2015, 63 (11): 2779- 2789. doi: 10.1109/TSP.2015.2414900
28	GLENTIS G O, ZHAO K, JAKOBSSON A, et al. Non-parametric high resolution SAR imaging[J]. IEEE Trans. on Signal Processing, 2013, 61 (7): 1614- 1624. doi: 10.1109/TSP.2012.2232662
29	WU P R. A criterion for radar resolution enhancement with Burg algorithm[J]. IEEE Trans. on Aerospace and Electronic Systems, 1995, 31 (3): 897- 915. doi: 10.1109/7.395248
30	SWINGLER D N, WALKER R S. Linear-predictive data extrapolation narrow-band spectral estimation[J]. Proceedings of the IEEE, 1988, 76 (9): 1249- 1251. doi: 10.1109/5.9672
31	NGUYEN V K, TURLEY M D E, FABRIZIO G A. A new data extrapolation approach based on spectral partitioning[J]. IEEE Signal Processing Letters, 2016, 23 (4): 454- 458. doi: 10.1109/LSP.2016.2533602

序号	发射天线极化	接收天线极化	PSM
1	h	h	${{\boldsymbol{S}}_1} = \sqrt {\dfrac{\sigma }{{4{\text{π }}}}} \left[ {\begin{array}{*{20}{c}} 1&0 \\ 0&0 \end{array}} \right]$
2	h	v	${{\boldsymbol{S}}_2} = \sqrt {\dfrac{\sigma }{{4{\text{π }}}}} \left[ {\begin{array}{*{20}{c}} 0&{ - 1} \\ 0&0 \end{array}} \right]$
3	v	h	$ {{\boldsymbol{S}}_3} = \sqrt {\dfrac{\sigma }{{4{\text{π }}}}} \left[ {\begin{array}{*{20}{c}} 0&0 \\ { - 1}&0 \end{array}} \right] $
4	v	v	${{\boldsymbol{S}}_4} = \sqrt {\dfrac{\sigma }{{4{\text{π }}}}} \left[ {\begin{array}{*{20}{c}} 0&0 \\ 0&1 \end{array}} \right]$
