基于小波能量比和改进阈值函数的通信信号降噪算法

doi:10.12305/j.issn.1001-506X.2025.07.03

摘要/Abstract

摘要：

为了提高低信噪比下采样率受限且中心频率未知的通信信号质量, 提高识别性能, 本文实现中心频率的自适应估计并提出一种改进的小波降噪算法。中心频率估计部分利用11类通信信号在功率谱上的差异实现粗分类, 基于不同分类结果对频率居中法进行改进以实现中心频率的估计。改进的小波降噪算法一方面针对软硬阈值函数存在的问题提出一种参数可调且连续的改进小波阈值函数; 另一方面采用小波能量比刻画不同中心频率的通信信号小波系数能量分布, 根据大小对小波系数采取不同的处理方法。最后, 针对11类通信信号, 在[-10, 10] dB的信噪比范围内进行调制识别实验。仿真结果表明, 所提降噪算法对11类通信信号都有显著的降噪效果, 在[-10, 0] dB的信噪比范围内相较于未降噪时的信号平均识别率提升了10%~40%。

关键词: 低信噪比, 未知中心频率, 改进小波阈值, 小波能量比, 调制识别

Abstract:

To improve the quality of communication signals with low signal-to-noise ratio (SNR), limited sampling rates, and unknown center frequencies, and to enhance recognition performance, this paper implements adaptive estimation of the center frequency and proposes an improved wavelet denoising algorithm. The central frequency estimation section realizes rough classification based on the differences in the power spectrum of 11 types of communication signals, and improves the frequency centering method based on different classification results to achieve the estimation of the central frequency. The improved wavelet denoising algorithm addresses issues with soft and hard threshold functions by proposing a parameter-adjustable and continuous wavelet threshold function. Additionally, it uses wavelet energy ratios to characterize the energy distribution of wavelet coefficients for communication signals with different center frequencies, applying different processing methods based on their magnitudes. Finally, modulation recognition experiments are conducted on 11 types of communication signals within an SNR range of [-10, 10] dB. Simulation results show that the proposed denoising algorithm achieves notable noise reduction for all 11 types of communication signals, exhibiting an improvement of 10%-40% in the average signal recognition rate within the SNR range of [-10, 0] dB compared to the unprocessed signals.

Key words: low signal-to-noise ratio(SNR), unknown center frequency, improved wavelet threshold, wavelet energy ratio, modulation recognition

中图分类号:

TN911.3

连家威, 张晓林, 颜品, 孙溶辰. 基于小波能量比和改进阈值函数的通信信号降噪算法[J]. 系统工程与电子技术, 2025, 47(7): 2098-2109.

Jiawei LIAN, Xiaolin ZHANG, Pin YAN, Rongchen SUN. Communication signal denoising algorithm based on wavelet energy ratio and improved threshold function[J]. Systems Engineering and Electronics, 2025, 47(7): 2098-2109.

图/表 23

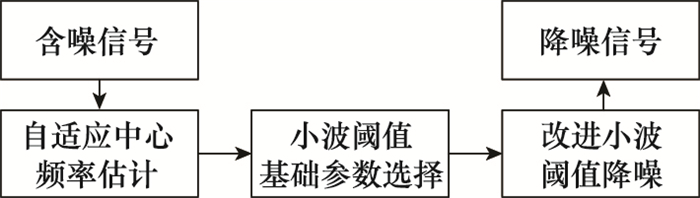

图1

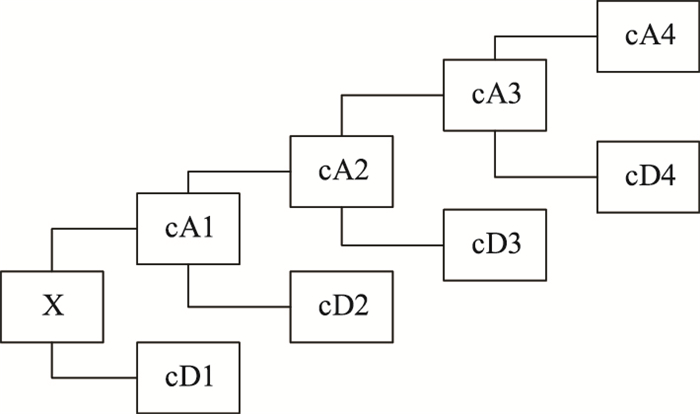

图2

图3

表1

表2

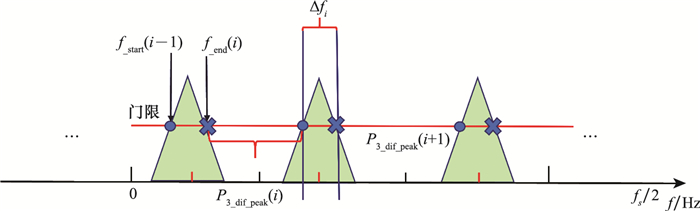

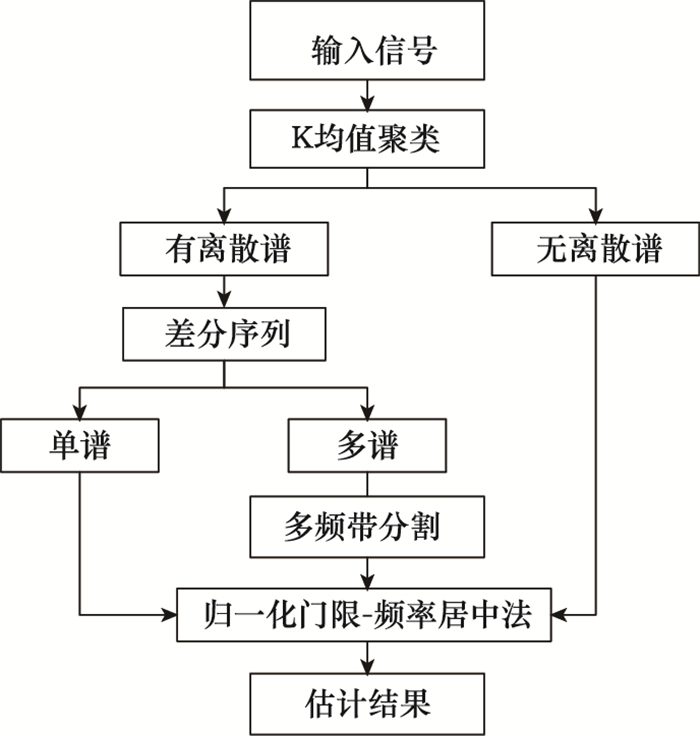

图4

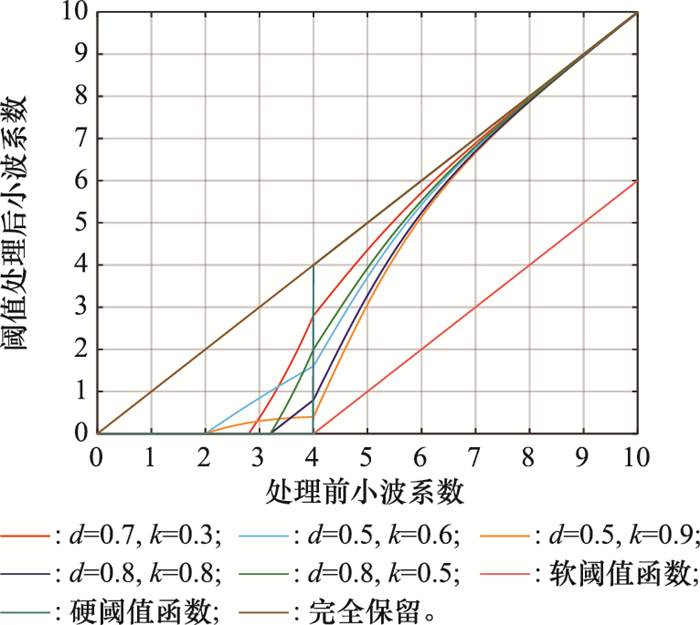

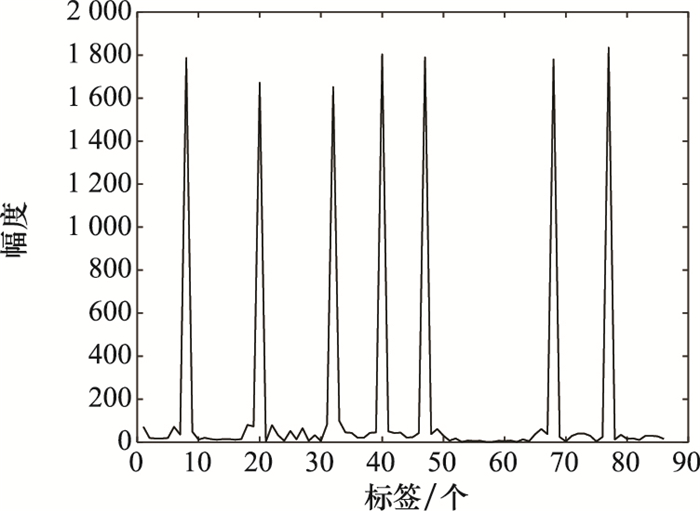

图5

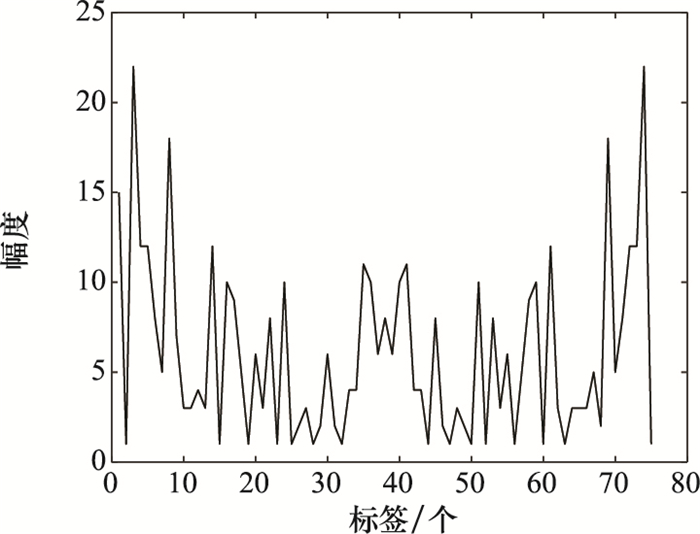

图6

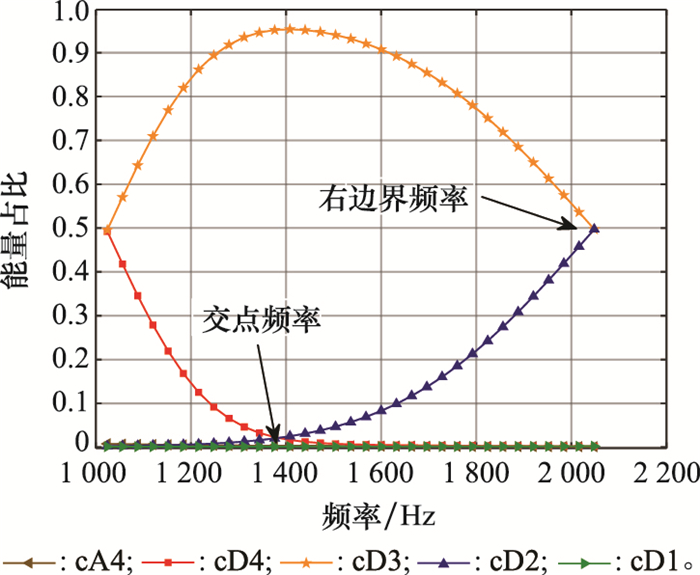

图7

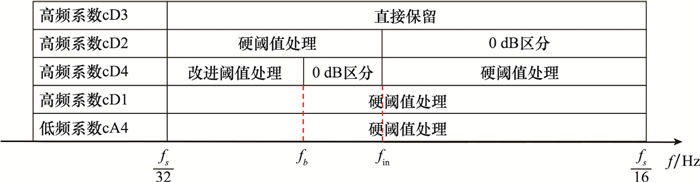

图8

图9

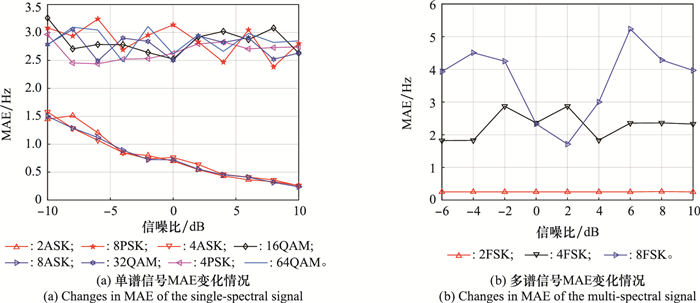

图10

图11

表3

图12

表4

表5

图13

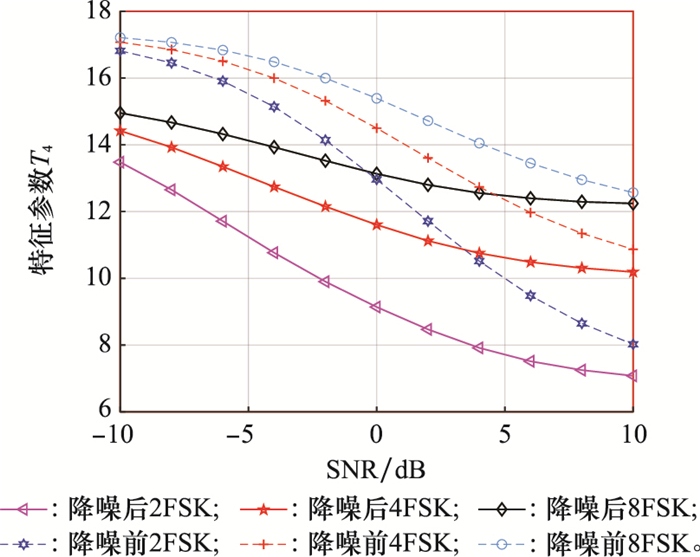

图14

图15

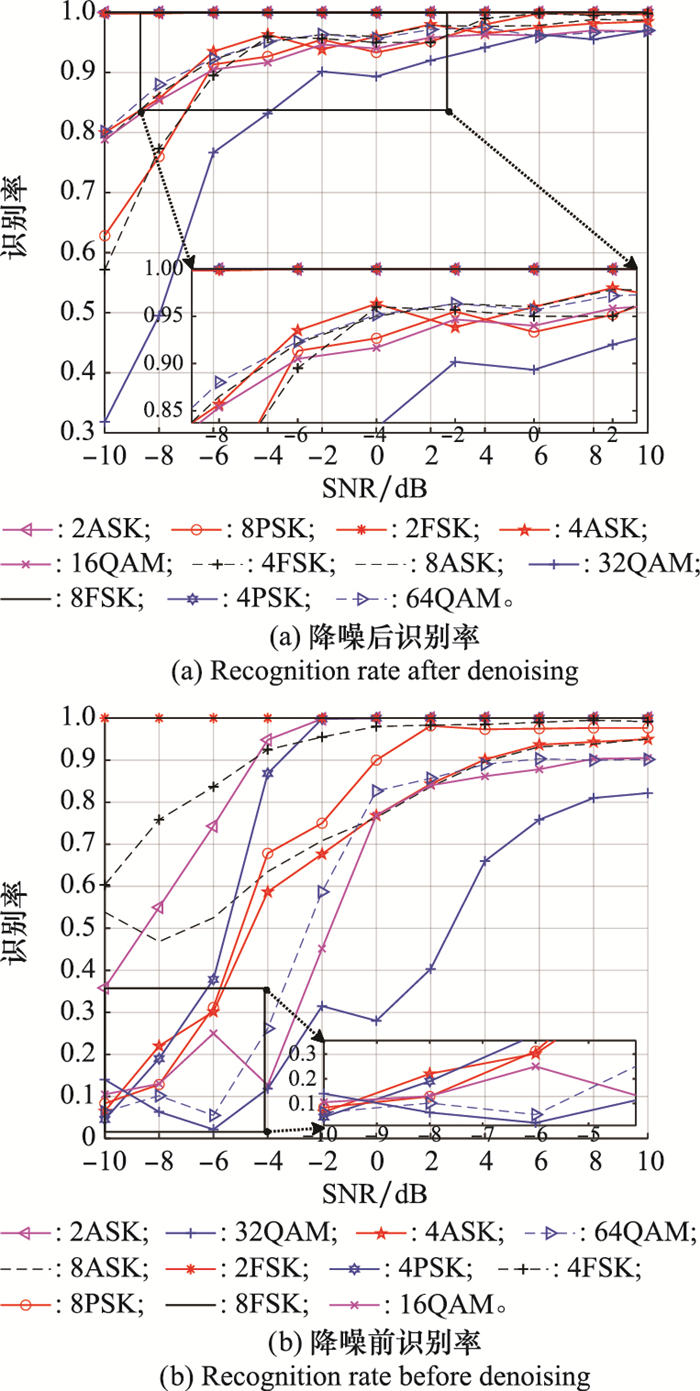

图16

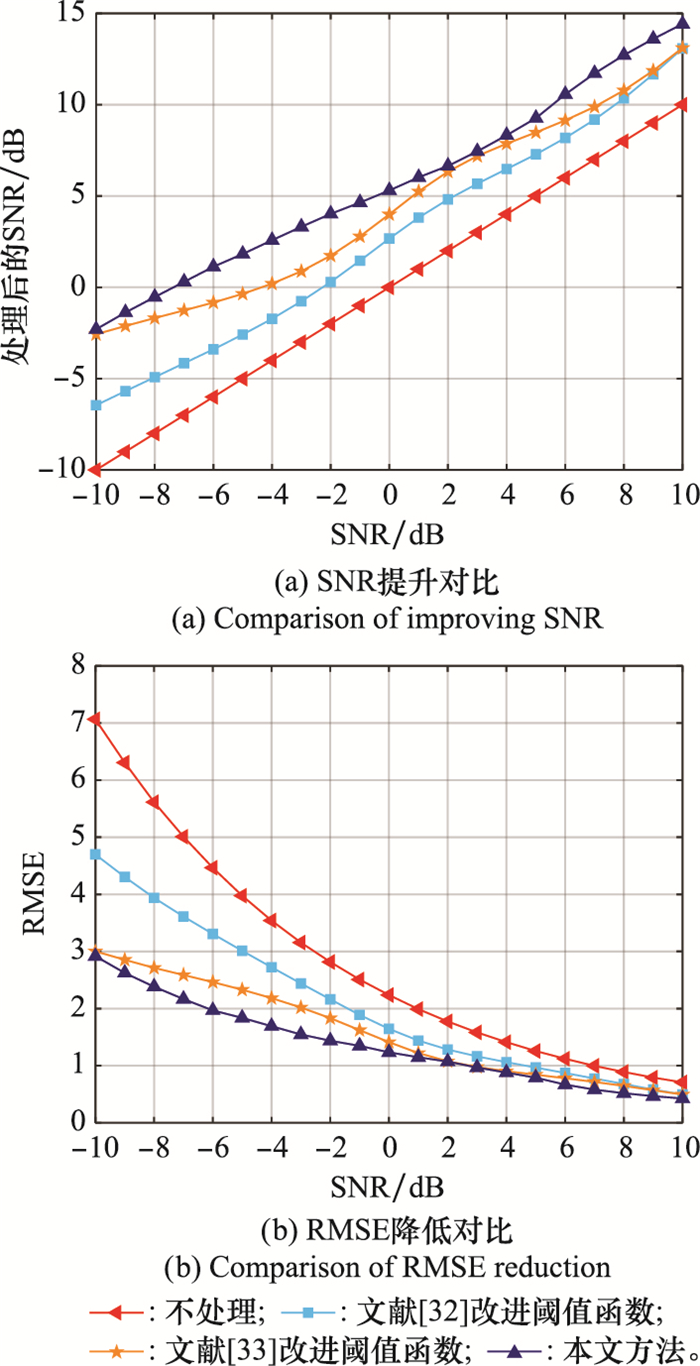

图17

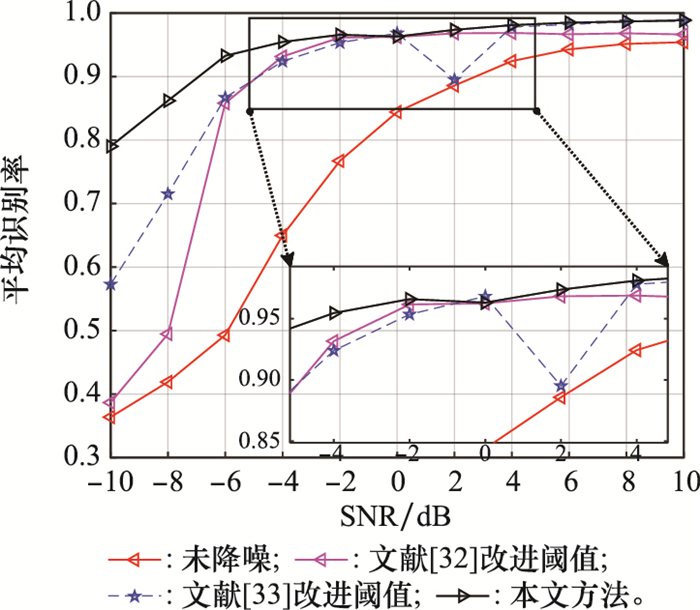

图18

参考文献 31

32	刘子昌, 白永生, 贾希胜. 基于改进小波阈值的自行火炮信号降噪方法研究[J]. 火炮发射与控制学报, 2024, 45 (1): 1-9, 22.
	LIU Z C , BAI Y S , JIA X S . Research on denoising method of self-propelled artillery signal based on improved wavelet threshold[J]. Journal of Gun Launch and Control, 2024, 45 (1): 1-9, 22.
33	SUN K Z, LU Y C, HUANG L S, et al. Wavelet denoising method based on improved threshold function[C]//Proc. of the IEEE 10th Joint International Information Technology and Artificial Intelligence Conference, 2022, 10: 1402-1406.
1	SOBOLEWSKI S, ADAMS W L, SANKAR R. Recognition of modern modulated waveforms with applications to ABMS and VDATS test program set development[C]//Proc. of the IEEE AUTOTESTCON, 2022.
2	XIAO W S , LUO Z Q , HU Q . A review of research on signal modulation recognition based on deep learning[J]. Electronics, 2022, 11 (17): 2764.
3	WANG T G , YANG G S , CHEN P H , et al. A survey of applications of deep learning in radio signal modulation recognition[J]. Applied Sciences, 2022, 12 (23): 12052.
4	ZHANG R , HE C B , JING L Y , et al. A modulation recognition system for underwater acoustic communication signals based on higher-order cumulants and deep learning[J]. Journal of Marine Science and Engineering, 2023, 11 (8): 1632.
5	WANG S, YUE J Y, LU J P, et al. Application of high-order cumulant based on the transient sequence in modulation recognition[C]//Proc. of the 5th International Conference on Frontiers Technology of Information and Computer, 2023: 268-273.
6	HE Y L, WU H, ZHENG Q H, et al. A blind modulation classification method based on decision tree and high order cumulants[C]//Proc. of the International Conference on Applications in Electronics Pervading Industry, Environment and Society, 2022: 312- 319.
7	阮光鑫, 柳征. 基于模糊熵的连续相位调制识别算法[J]. 太赫兹科学与电子信息学报, 2024, 22 (7): 710- 715.
	RUAN G X , LIU Z . Continuous phase modulation recognition algorithm based on fuzzy entropy[J]. Journal of Terahertz Science and Electronic Information Technology, 2024, 22 (7): 710- 715.
8	谢爱平, 张雨生, 刘莹, 等. 基于瞬时特征参数和功率谱熵的联合调制识别[J]. 电子科技, 2022, 35 (11): 104- 110.
	XIE A P , ZHANG Y S , LIU Y , et al. Joint modulation recognition based on instantaneous characteristic parameters and power spectral entropy[J]. Electronic Science and Technology, 2022, 35 (11): 104- 110.
9	GUO Z Y, MIAO L, LIN Y F. An approach based on multientropy and artificial intelligence for communication modulation signal identification[C]//Proc. of the IEEE International Confe-rence on Image Processing and Computer Applications, 2023: 1650-1654.
10	AN P F, SUN Y W, LI X Y. Communication modulation recognition technology based on wavelet entropy and decision tree[C]//Proc. of the 2nd International Seminar on Artificial Intelligence, Networking and Information Technology, 2021: 379-384.
11	DONG S L, LI Z P, ZHAO L F. A modulation recognition algorithm based on cyclic spectrum and SVM classification[C]//Proc. of the IEEE 4th Information Technology, Networking, Electronic and Automation Control Conference, 2020: 2123-2127.
12	HUANG T Y, XIN F M, WANG J C. Communication signal modulation recognition based on cyclic spectrum features and bagged decision tree[C]//Proc. of the 8th International Confe-rence on Electronic Technology and Information Science, 2023, 12715: 179-188.
13	GAO R, WNG J, WANG J, et al. Modulation recognition method of cyclic stationary signal based on graph theory[C]//Proc. of the International Conference on Ubiquitous Communication, 2023: 171-175.
14	LI H F, LIAO Y. Research on signal modulation type recognition based on cyclic spectrum in internet of things[C]//Proc. of the IEEE 6th International Conference on Signal and Image Processing, 2021: 680-686.
15	LI Z , YAO X T , ZHANG C , et al. Vibration signal noisereduction method of slewing bearings based on the hybrid reinforcement chameleon swarm algorithm, variate mode decomposition, and wavelet threshold (HRCSA-VMD-WT) integrated model[J]. Sensors, 2024, 24 (11): 3344.
16	WU J Z, LIN J J, GAO Z J, et al. Removing white noise in partial discharge signal based on wavelet entropy and improved threshold function[C]//Proc. of the International Conference on Power System Technology, 2018: 3924-3928.
17	LI X X , LIAO K X , HE G X , et al. Research on improved wavelet threshold denoising method for non-contact force and magnetic signals[J]. Electronics, 2023, 12 (5): 1244.
18	ZHU G W , LIU B Y , YANG P , et al. Image denoising method based on improved wavelet threshold algorithm[J]. Multimedia Tools and Applications, 2024, 83 (26): 67997- 68001.
19	JIN X C, YAN C L. Research on denoising method for improving wavelet threshold function based on sparrow optimization algorithm[C]//Proc. of the 7th International Conference on Advanced Algorithms and Control Engineering, 2024: 638-641.
20	ZHANG Y Y , YANG Z X , DU X L , et al. A new method for denoising underwater acoustic signals based on EEMD, correlation coefficient, permutation entropy, and wavelet threshold denoising[J]. Journal of Marine Science and Application, 2024, 23 (1): 222- 237.
21	谭晓衡, 鄢海燕, 苏萌. 基于自适应小波消噪的数字调制识别优化算法[J]. 电子与信息学报, 2011, 33 (2): 466- 469.
	TAN X H , YAN H Y , SU M . Optimization algorithm for digital modulation recognition based on adaptive wavelet denoising[J]. Journal of Electronics and Information Technology, 2011, 33 (2): 466- 469.
22	ZHANG X Y, ZHANG R J. The technology research in decomposition and reconstruction of image based on two-dimensional wavelet transform[C]//Proc. of the 9th International Conference on Fuzzy Systems and Knowledge Discovery, 2012: 1998-2000.
23	XIE W W , HU S , YU C , et al. Deep learning in digital modulation recognition using high-order cumulants[J]. IEEE Access, 2019, 7, 63760- 63766.
24	LIU M Z, ZHAO Y, SHI L, et al. Research on recognition algorithm of digital modulation by higher order cumulants[C]//Proc. of the 4th International Conference on Instrumentation and Measurement, Computer, Communication and Control, 2014: 686-690.
25	TASWELL C . The what, how, and why of wavelet shrinkage denoising[J]. Computing in Science and Engineering, 2000, 2 (3): 12- 19.
26	赵瑞珍, 宋国乡, 王红. 小波系数阈值估计的改进模型[J]. 西北工业大学学报, 2001, 19 (4): 625- 628.
	ZHAO R Z , SONG G X , WANG H . Improved model for threshold estimation of wavelet coefficients[J]. Journal of Northwestern Polytechnical University, 2001, 19 (4): 625- 628.
27	安佰强, 周强, 董旭明, 等. 数字通信信号载频实时估计算法与实现[J]. 电子世界, 2018, 18 (5): 66- 67.
	AN B Q , ZHOU Q , DONG X M , et al. Real time estimation algorithm and implementation of carrier frequency for digital communication signals[J]. Electronics World, 2018, 18 (5): 66- 67.
28	ZHANG N N. The application of an improved wavelet threshold function in denoising of heart sound signal[C]//Proc. of the Chinese Control and Decision Conference, 2020: 1768-1772.
29	ARTHUR D, VASSILVITSKII S. k-means++: the advantages of careful seeding. SODA '07[C]//Proc. of the 18th Annual ACM-SIAM Symposium on Discrete Algorithms, 2007: 1027-1035.
30	WANG S Q. Classification and recognition of 6G spaceground integrated network modulation modes[C]//Proc. of the 5th International Conference on Applied Machine Learning, 2023: 26- 35.
31	WANG H , GUO L L , DOU Z , et al. A new method of cognitive signal recognition based on hybrid information entropy and D-S evidence theory[J]. Mobile Networks and Applications, 2018, 23 (4): 677- 685.

参数	参数取值/类型	参数	参数取值/类型
采样频率/Hz	16 384	信噪比范围/dB	[-10, 10]
中心频率/Hz	2 000	阶数	4
码元速率/B	128	阈值类型	Sqtwolog阈值
码元个数	256	阈值函数	硬阈值

小波基	平均SNR/dB	平均RMSE
db4	5.84	0.43
sym4	5.85	0.43
coif4	6.66	0.41

参数	参数取值/类型	参数	参数取值/类型
采样频率/Hz	16 384	信噪比范围/dB	[-10, 10]
码元个数	256	阈值类型	式(12)阈值
码元速率/B	128	分解层数	4
中心频率/Hz	4 000	蒙特卡罗仿真次数	500

处理方法	f_c=1 100 Hz				f_c=1 700 Hz
处理方法	[-10, -5]	[-4, 0]	^{[1, 5]}	^{[6, 10]}	[-10, -5]	[-4, 0]	^{[1, 5]}	^{[6, 10]}
处理1	2.96/0.70	2.93/0.37	2.87/0.20	2.79/0.11	3.58/0.82	3.54/0.43	3.45/0.23	3.21/0.12
处理2	7.34/1.39	5.23/0.58	3.54/0.24	2.68/0.11	8.09/1.47	6.42/0.67	3.51/0.24	-0.51/-0.01
处理3	6.12/1.22	5.59/0.61	4.97/0.31	4.39/0.16	6.03/1.25	6.00/0.64	5.15/0.32	3.43/0.13
本文方法	7.71/1.42	6.87/0.70	5.92/0.36	4.87/0.17	8.09/1.47	6.42/0.67	5.32/0.33	3.40/0.13

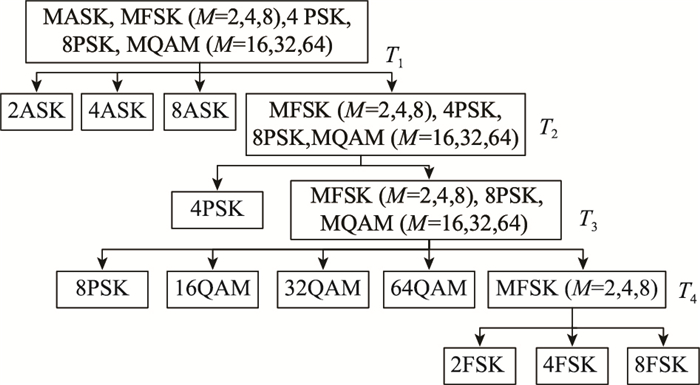

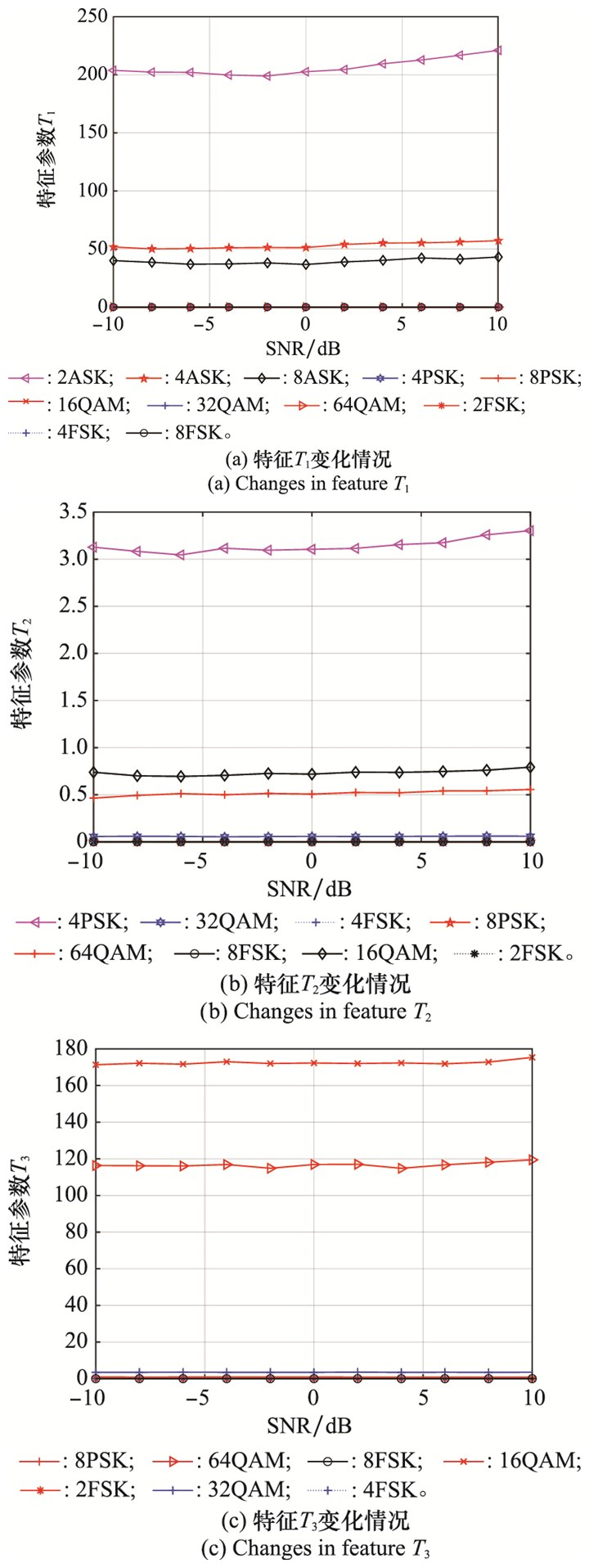

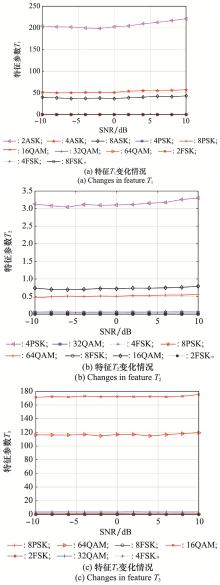

信号种类	T₁	T₂	T₃
2ASK	256	-	-
4ASK	69.222 4	-	-
8ASK	76.733 6	-	-
4PSK	0	4	-
8PSK	0	0	1
2FSK	0	0	0
4FSK	0	0	0
8FSK	0	0	0
16QAM	0	9.618	196
32QAM	0	0.076	4
64QAM	0	0.692	132.25
