大频率动态微弱MPSK信号高精度测频算法

doi:10.12305/j.issn.1001-506X.2024.12.05

摘要/Abstract

摘要：

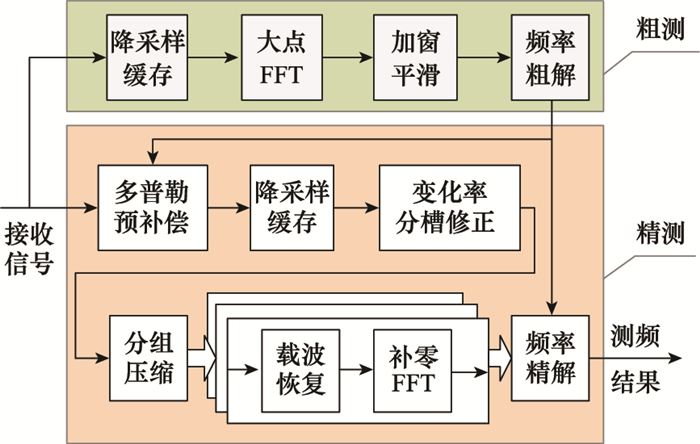

传统测频方法对多进制相移键控(multiple phase shift keying, MPSK) 在信号采样数据非线性变换后直接进行快速傅里叶变换, 方法简单易实现, 但频率测量范围小且精度差, 无法适应由目标高速机动、通信距离远导致的MPSK信号频率动态大、信噪比(signal to noise ratio, SNR) 低的应用场景。针对该难题, 提出了一种“粗+精”处理架构的高精度测频算法, 粗测状态采用功率谱加窗法粗略测量多普勒频移, 精捕状态采用变化率分槽修正和滑动分组平均压缩实现多普勒频移及其变化率的双重精确测量。试验与分析结果表明, 所提算法在大频率动态、低SNR条件下，多普勒频移测量精度达到Hz级、多普勒变化率测量精度达到Hz/s级, 显著提高了MPSK信号在大频率动态和低SNR环境下的测频精度和检测灵敏度。

关键词: 微弱MPSK信号, 大频率动态, 低信噪比, 高精度测频, 快速傅里叶变换

Abstract:

The fast Fourier transform (FFT) is directly used after the nonlinear transforming of the sampled data of multiple phase shift keying (MPSK) signals in the traditional frequency measurement algorithm, which is simple to structure and easy to implement, but is hardly adapted to the application environment of large frequency dynamic and low signal-to-noise ratio (SNR) of MPSK signals resulting from target high-speed maneuvering and long-range communication due to poor accuracy and small scale of frequency measurement. A high-accuracy frequency measurement algorithm based on the process structure of the coarse and fine state is proposed in order to resolve the problem above. The power spectrum windowing method is used to roughly achieve the Doppler frequency shift in the coarse state. The method combining the rate-slotting correction with the sliding grouping and average compression is used to accurately measure the Doppler frequency shift and its range rate in the fine state. The experiment and analysis result verify that the proposed algorithm can achieve the Doppler frequency shift measurement precision up to Hz level with the Doppler change rate measurement precision up to Hz/s level in large frequency dynamic and low SNR environment, which effectively increase the frequency measurement accuracy and detection sensitivity of MPSK signals in large frequency dynamic and low SNR environment.

Key words: weak multiple phase shift keying (MPSK) signal, large frequency dynamic, low signal to noise ratio (SNR), high-accuracy frequency measurement, fast Fourier transform (FFT)

中图分类号:

TN927

金磊, 曾富华, 蒋友邦, 王媛. 大频率动态微弱MPSK信号高精度测频算法[J]. 系统工程与电子技术, 2024, 46(12): 3973-3980.

Lei JIN, Fuhua ZENG, Youbang JIANG, Yuan WANG. High-accuracy frequency measurement algorithm for weak MPSK signals under large frequency dynamic environment[J]. Systems Engineering and Electronics, 2024, 46(12): 3973-3980.

图/表 11

图1

图2

图3

图4

图5

图6

表1

图7

图8

图9

表2

参考文献 30

1	武楠, 匡镜明, 王华, 等. 卫星通信接收机同步技术[M]. 北京: 北京理工大学出版社, 2018.
	WU N , KUANG J M , WANG H , et al. Synchronization techniques in satellite communication receivers[M]. Beijing: Beijing Institute of Technology Press, 2018.
2	SU Y T , LIU Y Q , ZHOU Y Q , et al. Broadband LEO satellite communications: architectures and key technologies[J]. IEEE Wireless Communications, 2019, 26 (2): 55- 61. doi: 10.1109/MWC.2019.1800299
3	朱从莹. 高超声速飞行环境下载波信号快速捕获与跟踪方法[D]. 西安: 西安电子科技大学, 2019.
	ZHU C Y. Fast acquisition and tracking method of carrier signal in hypersonic flying environment[D]. Xi'an: Xidian University, 2019.
4	陈昊, 赵斐, 童业平. 高动态飞行器平台终端通信中的频率精确估计技术研究[J]. 电子学报, 2021, 49 (1): 23- 28.
	CHEN H , ZHAO F , TONG Y P . Research on frequency accurate estimation technology in terminal communication of high dynamic aircraft platform[J]. Acta Electronica Sinica, 2021, 49 (1): 23- 28.
5	吴伟仁, 李海涛, 李赞, 等. 中国深空测控网现状与展望[J]. 中国科学: 信息科学, 2020, 50 (1): 87- 108.
	WU W R , LI H T , LI Z , et al. Status and prospect of China's deep space TT&C network[J]. Scientia Sinica(Informationis), 2020, 50 (1): 87- 108.
6	王嘉宁. 弱信号环境下GNSS信号捕获技术研究[D]. 西安: 西北工业大学, 2019.
	WANG J N. Research on GNSS signal acquisition techniques in weak environment[D]. Xi'an: Northwestern Polytechnical University, 2019.
7	孙婷. 面向高速移动通信系统的载波同步技术[J]. 通信技术, 2021, 54 (1): 1688- 1697.
	SUN T . Carrier synchronization technology for high-speed mobile communication[J]. Information Technology, 2021, 54 (1): 1688- 1697.
8	史晶晶, 陶孝锋, 孙召, 等. 基于GEO卫星的天基数据链频率同步技术研究[J]. 空间电子技术, 2021, 18 (3): 70- 74.
	SHI J J , TAO X F , SUN Z , et al. Research on frequency synchronization technology of missile space based data link based on GEO satellite[J]. Space Electronic Technology, 2021, 18 (3): 70- 74.
9	胡廷舟, 谢锐, 刘俊, 等. LFM-MPSK雷达通信一体化系统时频联合同步技术研究[J]. 信号处理, 2020, 36 (10): 1687- 1697.
	HU T Z , XIE R , LIU J , et al. Joint timing and frequency synchronization in LFM-MPSK based radar and communication integrated system[J]. Journal of Signal Processing, 2020, 36 (10): 1687- 1697.
10	ABEDI M , REZAEI M J , MOSAVI M R . Accurate interference mitigation in global positioning system receivers based on double-step short-time Fourier transform[J]. Circuits, Systems, and Signal Processing, 2018, 37 (6): 2450- 2470.
11	NATEE T , WONGSAKORN W , WEERACHON T , et al. Doppler frequency estimation using maximum likelihood function for ultrasonic velocity profile[J]. Acoustical Science and Technology, 2017, 38 (5): 268- 271.
12	刘忆, 周晓雄, 程广俊. 高动态跳频载波跟踪技术[J]. 系统工程与电子技术, 2022, 44 (2): 677- 683.
	LIU Y , ZHOU X X , CHENG G J . High dynamic carrier tracking technology in frequency hopping systems[J]. Systems Engineering and Electronics, 2022, 44 (2): 677- 683.
13	ALDIMASHKI O , SERBES A . Performance of chirp parameter estimation in the fractional Fourier domains and algorithm for fast chirp-rate estimation[J]. IEEE Trans. on Aerospace and Electronic Systems, 2020, 56 (5): 3685- 3700.
14	宋耀辉, 黄仰超, 张衡阳, 等. 基于FRFT的多分量LFM信号检测与参数估计方法[J]. 北京航空航天大学学报, 2020, 46 (6): 1222- 1228.
	SONG Y H , HUANG Y C , ZHANG H Y , et al. Multicomponent LFM signal detection and parameter estimation method based on FRFT[J]. Journal of Beijing University of Aeronautics and Astronautics, 2020, 46 (6): 1222- 1228.
15	BUCCINO D R , OUDRHIRI K , PARK R S , et al. Precision of spacecraft Doppler tracking at low signal-to-noise ratios[J]. Radio Science, 2020, 46 (6): 1222- 1228.
16	AYE S S , HLA M T , ATAR M , et al. Implementation and analysis of signal tracking loops for software defined GPS receiver[J]. Communications, 2020, 8 (1): 9- 16.
17	LI N , ZHANG S F , JIANG Y . High dynamic weak signal tracking algorithm of a Beidou vector receiver based on an adaptive square root cubature Kalman filter[J]. Sensors, 2021, 21 (20): 6707- 6723.
18	赵睿, 王彦文. 低信噪比条件下快变多普勒频偏捕获算法[J]. 电讯技术, 2014, 54 (5): 552- 558.
	ZHAO R , WANG Y W . A fast changing Doppler frequency offset acquisition algorithm under low SNR[J]. Telecommunication Engineering, 2014, 54 (5): 552- 558.
19	秦勇, 崔艳. 极低信噪比高动态信号的多普勒频偏估计算法[J]. 无线通信技术, 2019, 28 (2): 45- 50.
	QIN Y , CUI Y . Algorithm of estimation for Doppler frequency offset of high dynamic signal with extremely low signal-to-noise ratio[J]. Wireless Communication Technology, 2019, 28 (2): 45- 50.
20	张嘉怡, 余忠洋, 朱敏, 等. 低轨卫星通信中SCMA系统载波同步算法设计[J]. 系统工程与电子技术, 2021, 43 (5): 1354- 1360.
	ZHANG J Y , YU Z Y , ZHU M , et al. Design of carrier synchronization algorithm for SCMA system in LEO satellite communication[J]. Systems Engineering and Electronics, 2021, 43 (5): 1354- 1360.
21	徐恒舟, 朱海, 朱思峰, 等. 一种宽范围低复杂度的载波频偏估计算法[J]. 电子学报, 2019, 47 (12): 2550- 2555.
	XU H Z , ZHU H , ZHU S F , et al. A wide-range low-complexity carrier frequency offset estimation algorithm[J]. Acta Electronica Sinica, 2019, 47 (12): 2550- 2555.
22	程文帝, 程郁凡, 陆炫宇, 等. 单载波MPSK/ MQAM调制信号的参数盲估计改进算法研究[J]. 信号处理, 2019, 35 (1): 39- 48.
	CHENG W D , CHENG Y F , LU X Y , et al. Blind parameter estimation algorithm for single-carrier MPSK/MQAM modulation signal[J]. Journal of Signal Processing, 2019, 35 (1): 39- 48.
23	曾富华. 一种应用于深空通信的微弱信号捕获算法[J]. 电讯技术, 2014, 54 (8): 1097- 1101.
	ZENG F H . A weak signal acquisition method for deep space communication[J]. Telecommunication Engineering, 2014, 54 (8): 1097- 1101.
24	杨久东, 吴风华, 王文军. 基于平均分组和叠加相关的GPS信号捕获方法[J]. 大地测量与地球动力学, 2018, 38 (8): 828-831, 845.
	YANG J D , WU F H , WANG W J . GPS signal acquisition method based on average grouping and superposition correlation[J]. Journal of Geodesy and Geodynamics, 2018, 38 (8): 828-831, 845.
25	李荣冰, 周颖, 韩志凤, 等. 北斗导航接收机高增益相干积分算法[J]. 导航与控制, 2020, 19 (3): 7- 13.
	LI R B , ZHOU Y , HAN Z F , et al. High gain coherent integration algorithm for Beidou navigation receiver[J]. Navigation and Control, 2020, 19 (3): 7- 13.
26	关磊, 司江勃, 李赞, 等. 高动态环境下联合导频与Viterbi的同步技术[J]. 西安电子科技大学学报, 2022, 49 (2): 21- 28.
	GUAN L , SI J B , LI Z , et al. Joint pilot and Viterbi decoding synchronization technology in high-dynamic environments[J]. Journal of Xidian University, 2022, 49 (2): 21- 28.
27	DIETER V , MASOUD M K . Frequency domain maximum likelihood identification with Gaussian input-output uncertainty[J]. IEEE Control Systems Letters, 2020, 4 (1): 109- 114.
28	刘秋红, 许漫坤, 李天昀. 基于ML的多径信道下直扩信号PN码和信道的联合盲估计[J]. 电子学报, 2021, 49 (8): 1480- 1488.
	LIU Q H , XU M K , LI T Y . Joint blind estimation of PN codes and channels with maximum likelihood for DSSS signals in multipath channels[J]. Acta Electronica Sinica, 2021, 49 (8): 1480- 1488.
29	YANG T T, SHAO J, CHEN Y L, et al. Parameter estimation of multi component LFM signals based on nonlinear mode decomposition and FRFT[C]//Proc. of the 10th International Conference on Advanced Computational Intelligence, 2018: 204-209.
30	刘利民, 李豪欣, 李琦, 等. 基于分数阶傅里叶变换的低信噪比线性调频信号参数快速估计算法[J]. 电子与信息学报, 2021, 43 (10): 2798- 2804.
	LIU L M , LI H X , LI Q , et al. A fast signal parameter estimation algorithm for linear frequency modulation signal under low signal-to-noise ratio based on fractional Fourier transform[J]. Journal of Electronics & Information Technology, 2021, 43 (10): 2798- 2804.

算法	调制类型	多普勒误差/Hz	变化率误差/(Hz/s)
STFT	BPSK	±12.5k	-
STFT	QPSK	±15.2k	-
FrFT	BPSK	±16.68	±12.50
FrFT	QPSK	±14.59	±6.25
ML	BPSK	±12.26	±5.00
ML	QPSK	±13.63	±2.50
本文算法	BPSK	±4.04	±5.00
本文算法	QPSK	±2.27	±2.50

算法名称	逻辑单元(108 300)	乘法器(3 600)	存储器(1 470)
STFT	22 536	752	626
FrFT	40 604	1376	1024
ML	96 154	2650	1430
本文算法	37 814	1134	962
