战术机动先验辅助的交互多模型目标跟踪方法

doi:10.12305/j.issn.1001-506X.2025.07.02

摘要/Abstract

摘要：

针对交互式多模型滤波算法应对强机动目标跟踪过程存在响应滞后、精度偏低的问题, 提出由空中目标战术机动先验辅助的层次性交互多模型跟踪方法。所提方法利用隐马尔可夫模型, 对目标机动轨迹分段进行战术类别的识别、战术状态的区分, 建模不同战术下的机动模型转移矩阵。由此实现战术机动似然概率与交互多模型机动似然概率的有效交互, 构建双层交互式多模型跟踪算法。实验考虑复杂战术意图下空中目标机动轨迹, 结果表明所提算法结合战术机动先验可有效解决状态估计精度与机动转移响应时效之间的矛盾, 明显改善机动目标跟踪精度。

关键词: 交互式多模型, 马尔可夫转移概率, 机动目标跟踪, 先验信息

Abstract:

To address the issue of response lag and low accuracy in tracking highly maneuvering targets with the interactive multiple model (IMM) filter algorithm, a hierarchical IMM tracking method assisted by tactical maneuver priors of aerial targets is proposed. The proposed method employs a hidden Markov model (HMM) to segment and classify the tactical categories of target maneuver trajectories and to distinguish between tactical states, and models the transfer matrix of maneuver models with different tactics. This enables the effective interaction of tactical likelihood and the IMM maneuvering models' likelihood, resulting in the development of a double-layered IMM (DIMM) tracking algorithm. The experiments consider the air target maneuvering trajectories with complex tactical intentions, and result shows that the proposed algorithm combined with the tactical maneuver priori effectively solves the contradiction between state estimation accuracy and maneuver transition response time, and significantly improves the maneuvering target tracking accuracy.

Key words: interactive multiple model (IMM), Markov transition probability, maneuvering target tracking, prior information

中图分类号:

TN959.6

孙一心, 方愚渊, 张磊. 战术机动先验辅助的交互多模型目标跟踪方法[J]. 系统工程与电子技术, 2025, 47(7): 2086-2097.

Yixin SUN, Yuyuan FANG, Lei ZHANG. Tactical maneuver priori assisted interactive multiple model target tracking method[J]. Systems Engineering and Electronics, 2025, 47(7): 2086-2097.

图/表 21

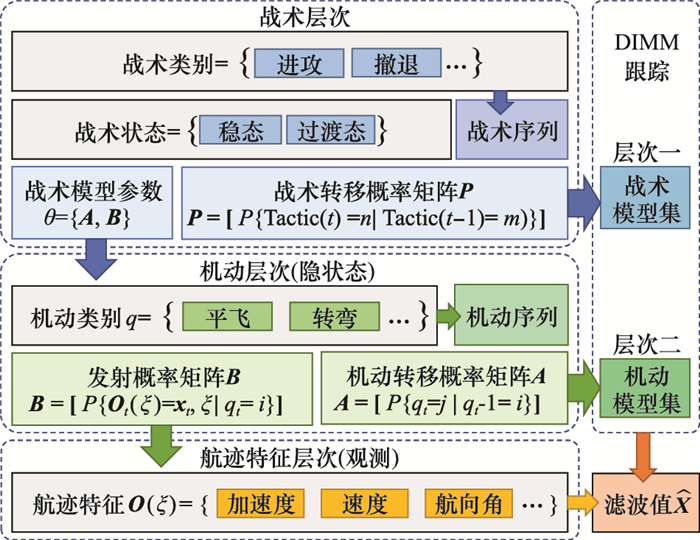

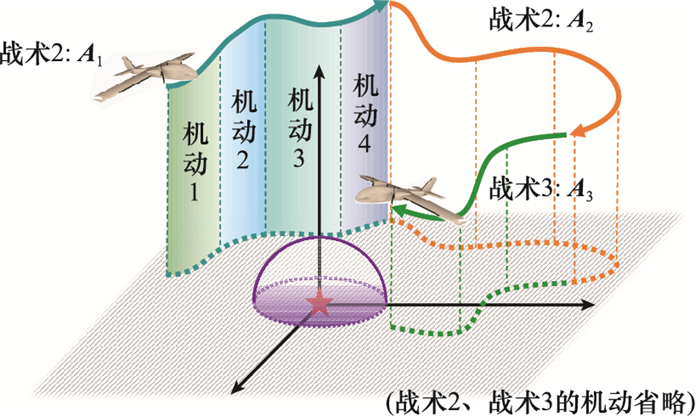

图1

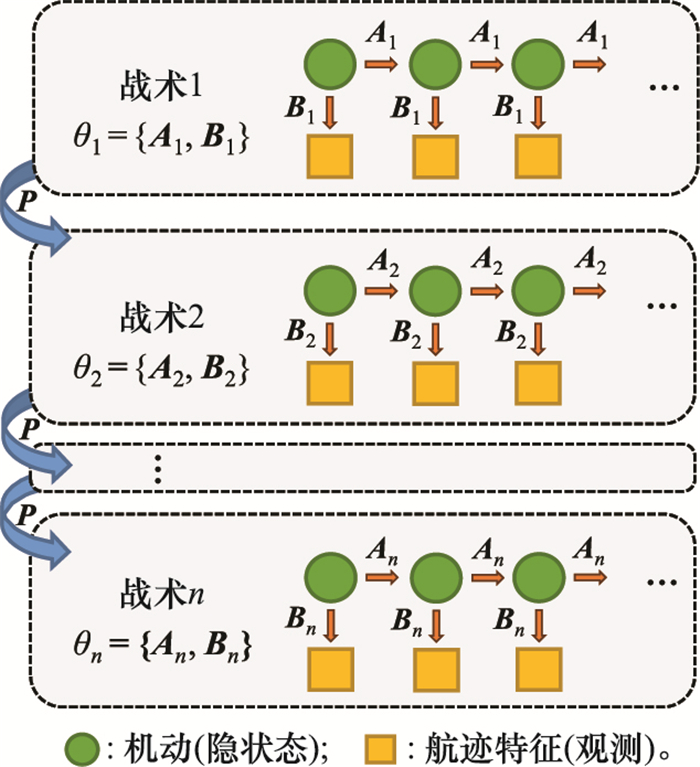

图2

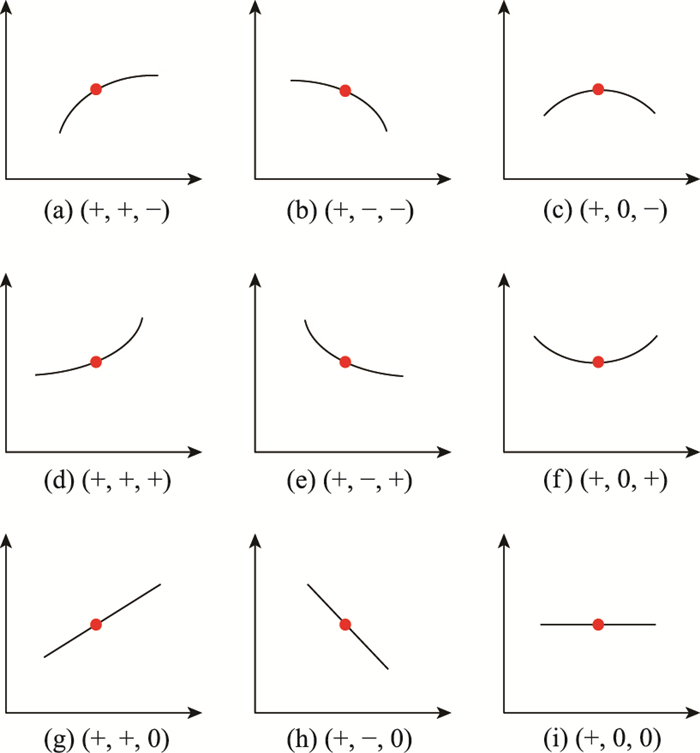

图3

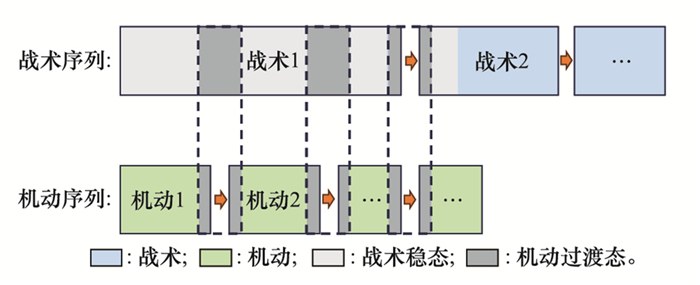

图4

图5

图6

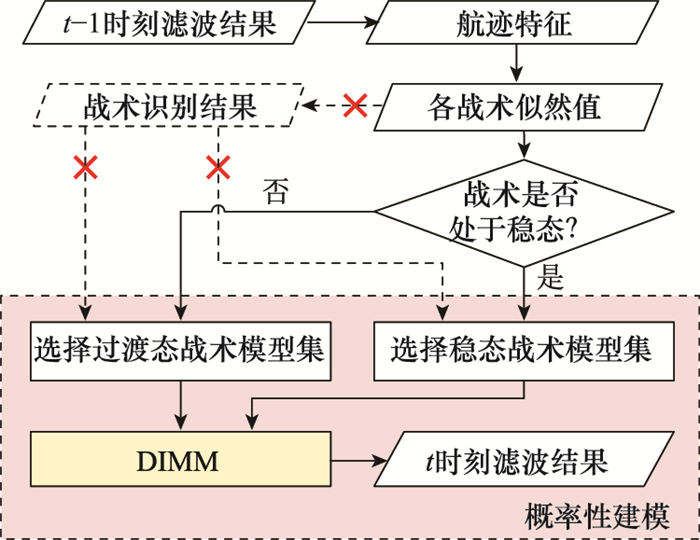

图7

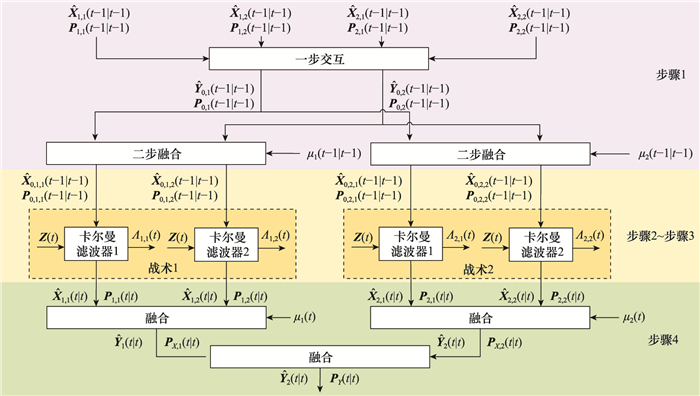

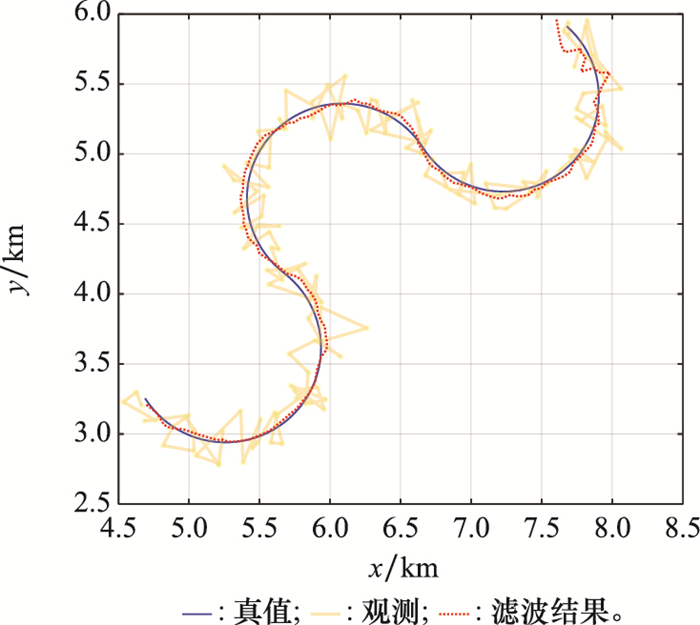

图8

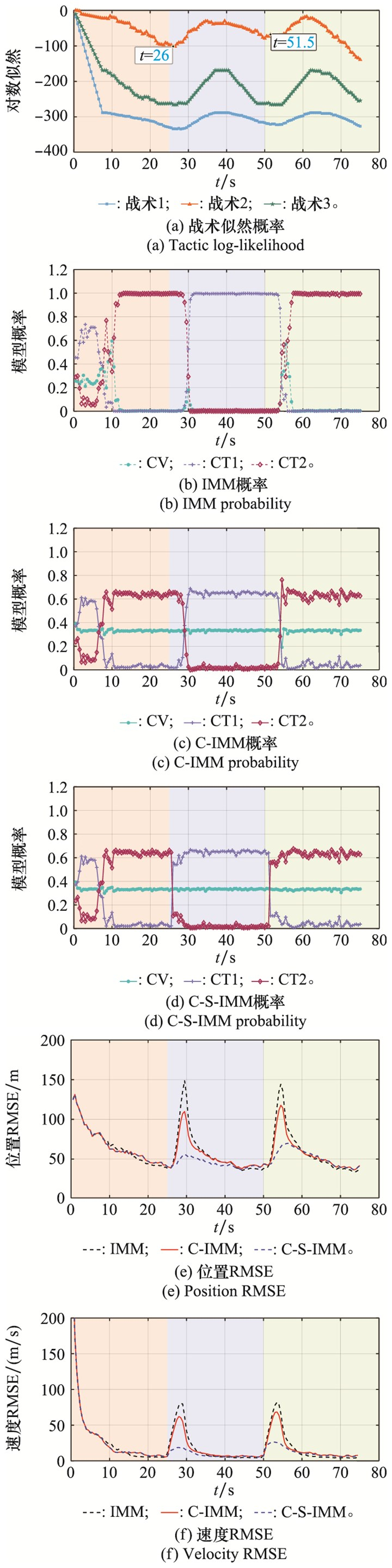

图9

图10

表1

表2

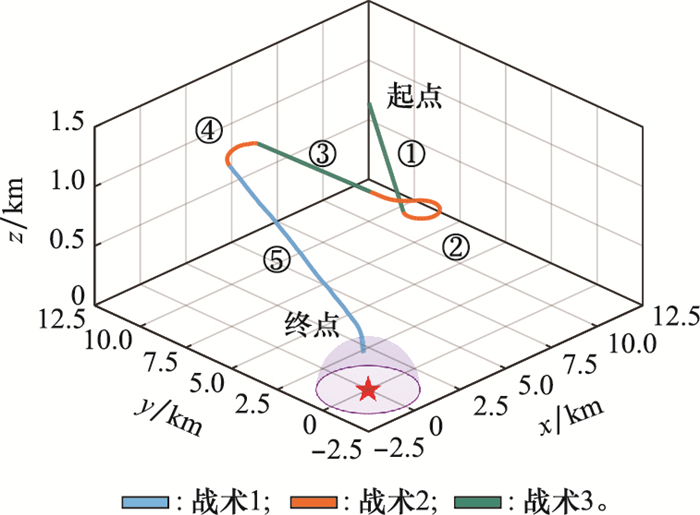

图11

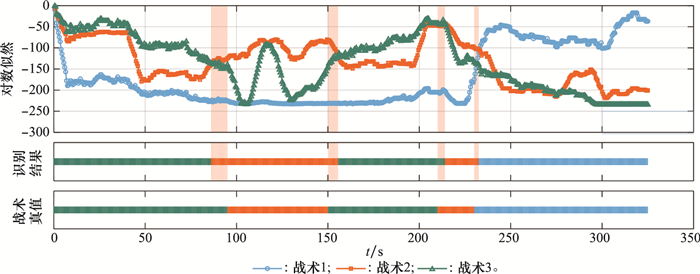

图12

表3

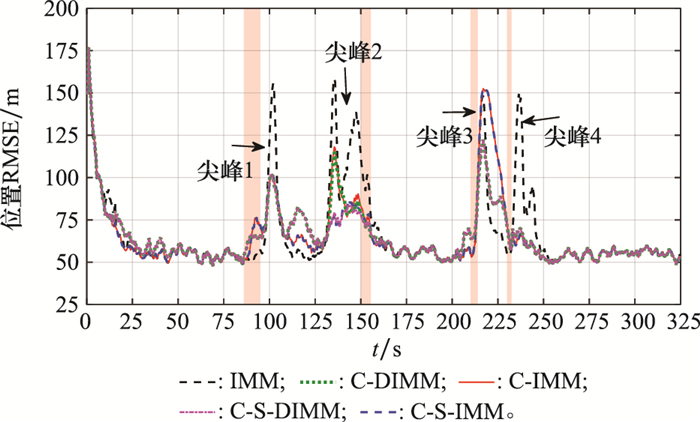

图13

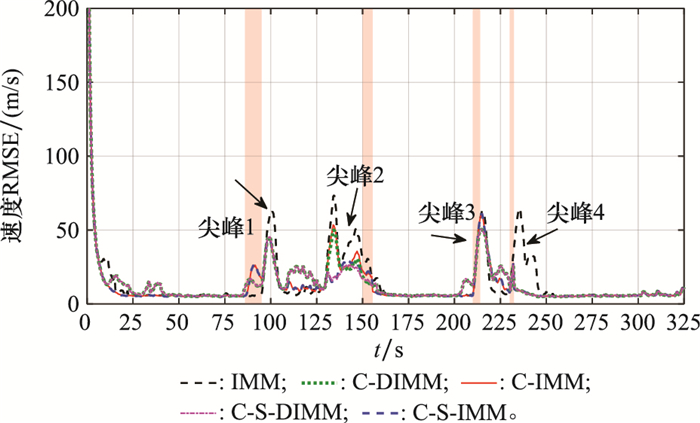

图14

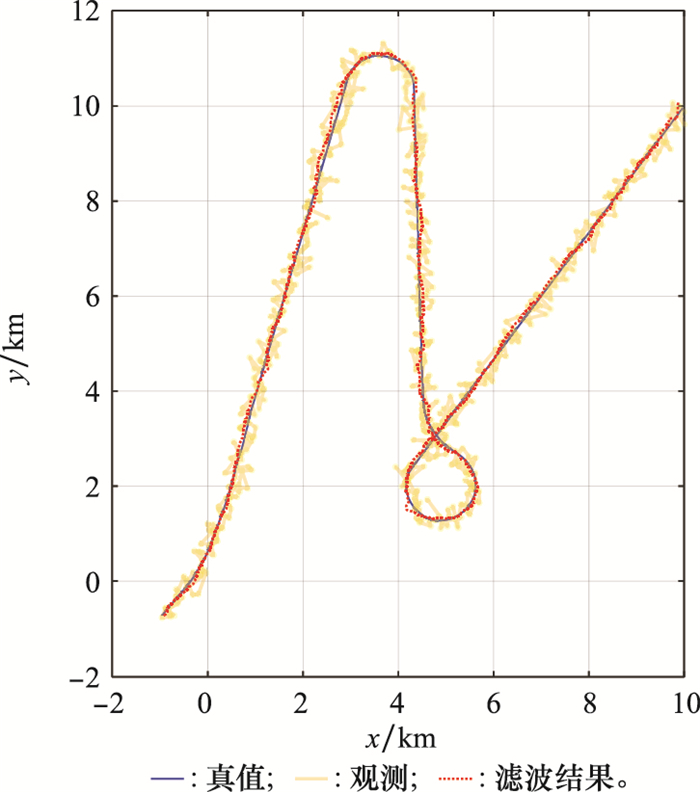

图15

表4

表5

表6

参考文献 30

1	范晋祥, 刘益吉, 李宁, 等. 精确打击体系智能化的发展[J]. 空天防御, 2023, 6 (4): 1- 11. doi: 10.3969/j.issn.2096-4641.2023.04.001
	FAN J X , LIU Y J , LI N , et al. Development of the intelligentization of precision strike system of systems[J]. Air Space Defense, 2023, 6 (4): 1- 11. doi: 10.3969/j.issn.2096-4641.2023.04.001
2	MAURER J D . The future of precision-strike warfare[J]. Naval War College Review, 2023, 76 (2): 13- 38.
3	纪毅, 王伟, 张宏岩, 等. 面向高机动目标拦截任务的空空导弹制导方法综述[J]. 航空兵器, 2022, 29 (6): 15- 25.
	JI Y , WANG W , ZHANG H Y , et al. A survey on guidance method of air-to-air missiles facing high maneuvering targets[J]. Aero Weaponry, 2022, 29 (6): 15- 25.
4	MCGREW J S. Real-time maneuvering decisions for autonomous air combat[D]. Cambridge: Massachusetts Institute of Technology, 2008.
5	BLOM H A P , BAR-SHALOM Y . The interacting multiple model algorithm for systems with Markovian switching coefficients[J]. IEEE Trans. on Automatic Control, 1988, 33 (8): 780- 783.
6	封普文, 黄长强, 曹林平, 等. 马尔可夫矩阵修正IMM跟踪算法[J]. 系统工程与电子技术, 2013, 35 (11): 2269- 2274.
	FENG P W , HUANG C Q , CAO L P , et al. Research on adaptive Markov matrix IMM tracking algorithm[J]. Systems Engineering and Electronics, 2013, 35 (11): 2269- 2274.
7	HANG G, WANG J W. Adaptive modified transition probability IMM algorithm for maneuvering target tracking[C]//Proc. of the 9th International Conference on Electronic Technology and Information Science, 2024: 427-431.
8	臧荣春, 崔平远. 马尔可夫参数自适应IFIMM算法研究[J]. 电子学报, 2006, 34 (3): 521- 524. doi: 10.3321/j.issn:0372-2112.2006.03.031
	ZANG R C , CUI P Y . Research on adaptive Markov parameter IFIMM algorithm[J]. Acta Electronica Sinica, 2006, 34 (3): 521- 524. doi: 10.3321/j.issn:0372-2112.2006.03.031
9	戴定成, 姚敏立, 蔡宗平, 等. 改进的马尔可夫参数自适应IMM算法[J]. 电子学报, 2017, 45 (5): 1198- 1205. doi: 10.3969/j.issn.0372-2112.2017.05.024
	DAI D C , YAO M L , CAI Z P , et al. Improved adaptive Markov IMM algorithm[J]. Acta Electronica Sinica, 2017, 45 (5): 1198- 1205. doi: 10.3969/j.issn.0372-2112.2017.05.024
10	XIE G , SUN L L , WEN T , et al. Adaptive transition probability matrix-based parallel IMM algorithm[J]. IEEE Trans. on Systems, Man, and Cybernetics: Systems, 2019, 51 (5): 2980- 2989.
11	尹聚祺, 杨震, 罗亚中, 等. 空间机动目标跟踪的改进自适应IMM算法[J]. 系统工程与电子技术, 2021, 43 (12): 3658- 3666. doi: 10.12305/j.issn.1001-506X.2021.12.29
	YIN J Q , YANG Z , LUO Y Z , et al. Improved adaptive lMM algorithm for space maneuvering target tracking[J]. Systems Engineering and Electronics, 2021, 43 (12): 3658- 3666. doi: 10.12305/j.issn.1001-506X.2021.12.29
12	LAN J , LI X R , JILKOV V P , et al. Second-order Markov chain based multiple-model algorithm for maneuvering target tracking[J]. IEEE Trans. on Aerospace and Electronic Systems, 2013, 49 (1): 3- 19.
13	LI X R , ZHANG Y , ZHI X . Multiple-model estimation with variable structure. Part IV. Design and evaluation of model-group switching algorithm[J]. IEEE Trans. on Aerospace and Electronic Systems, 1999, 35 (1): 242- 254.
14	LI W M , JIA Y M . Location of mobile station with maneuvers using an IMM-based cubature kalman filter[J]. IEEE Trans. on Industrial Electronics, 2012, 59 (11): 4338- 4348.
15	ANDERSON M. Classification of aerial missions using hidden Markov models[C]//Proc. of the 7th European Conference Symbolic and Quantitative Approaches to Reasoning with Uncertainty, 2003: 125-136.
16	CHALLA S , PULFORD G W . Joint target tracking and classification using radar and ESM sensors[J]. IEEE Trans. on Aerospace and Electronic Systems, 2001, 37 (3): 1039- 1055.
17	单甘霖, 梅卫, 王春平. 联合目标跟踪与分类技术的进展及存在问题[J]. 兵工学报, 2007, 28 (6): 733- 738.
	SHAN G L , MEI W , WANG C P . Advance and challenge in joint target tracking and classification[J]. Acta Armamentarii, 2007, 28 (6): 733- 738.
18	RABINER L R . A tutorial on hidden Markov models and selected applications in speech recognition[J]. Proceeding of the IEEE, 1989, 77 (2): 257- 286.
19	KOBAYASHI H , YU S Z . An efficient forward-backward algorithm for an explicit-duration hidden Markov model[J]. IEEE Signal Processing Letters, 2003, 10 (1): 11- 14.
20	ZHU T J , LI B , ZONG C . A new driving condition identification method for heavy duty vehicles based on HHMM[J]. International Journal of Heavy Vehicle Systems, 2019, 26 (3/4): 334- 350.
21	TENG F , SONG Y F , GUO X P . Attention-TCN-BiGRU: an air target combat intention recognition model[J]. Mathematics, 2021, 9 (19): 2412.
22	方振平. 航空飞行器飞行动力学[M]. 北京: 北京航空航天大学出版社, 2005.
	FANG Z P . Flight dynamics of aircraft[M]. Beijing: Beihang University Press, 2005.
23	JANUSZ M E , VENKATASUBRAMANIAN V . Automatic generation of qualitative descriptions of process trends for fault detection and diagnosis[J]. Engineering Applications of Artificial Intelligence, 1991, 4 (5): 329- 339.
24	VISNEVSKI N, HAYKIN S, KRISHNAMURTHY V, et al. Hidden Markov models for radar pulse train analysis in electronic warfare[C]//Proc. of the International Conference on Acoustics, Speech, and Signal Processing, 2005: 597-600.
25	MAZOR E , AVERBUCH A , BAR-SHALOM Y , et al. Interacting multiple model methods in target tracking: a survey[J]. IEEE Trans. on Aerospace and Electronic Systems, 1998, 34 (1): 103- 123.
26	KIM Y , BANG H . Introduction to Kalman filter and its applications[J]. Introduction and Implementations of the Kalman Filter, 2018, doi: 10.5772/intechopen.80600
27	VOLLMER J , MENCL R , MUELLER H . Improved Laplacian smoothing of noisy surface meshes[J]. Computer Graphics Forum, 1999, 18 (3): 131- 138.
28	JILKOV V P , ANGELOVA D S , SEMERDJIEV T A . Design and comparison of model-set adaptive IMM algorithms for maneuvering target tracking[J]. IEEE Trans. on Aerospace and Electronic Systems, 1999, 35 (1): 343- 350.
29	GE Q B , SHAO T , CHEN S D , et al. Carrier tracking estimation analysis by using the extended strong tracking filtering[J]. IEEE Trans. on Industrial Electronics, 2017, 64 (2): 1415- 1424.
30	GUO Q , TENG L . Maneuvering target tracking with multi-model based on the adaptive structure[J]. IEEE Trans. on Electrical and Electronic Engineering, 2022, 17 (6): 865- 871.

跟踪方法	简称
标准IMM	IMM
仅考虑战术类别的IMM	C-IMM
考虑战术类别与战术状态的IMM	C-S-IMM

模型	位置RMSE均值/m	位置RMSE峰值/m	速度RMSE均值/(m/s)	速度RMSE峰值/(m/s)
IMM	61.786	146.702	22.750	80.451
C-IMM	59.902	110.633	21.887	62.171
C-S-IMM	53.824	55.403	17.620	18.687

跟踪方法	简称
考虑战术类别的DIMM	C-DIMM
考虑战术类别与战术状态的DIMM	C-S-DIMM

模型	第2次位置RMSE峰值/m	第2次速度RMSE峰值/(m/s)
IMM	158.420	73.554
C-IMM	118.111	53.485
C-S-IMM	114.683	28.585
C-DIMM	122.386	30.571
C-S-DIMM	83.676	26.441

模型	第3次位置RMSE峰值/m	第3次速度RMSE峰值/(m/s)
IMM	148.183	62.833
C-IMM	152.540	61.109
C-S-IMM	152.540	61.109
C-DIMM	122.386	50.404
C-S-DIMM	122.386	50.403
