基于FDN的装备体系任务能力依赖性分析

doi:10.12305/j.issn.1001-506X.2021.06.33

系统工程与电子技术 ›› 2021, Vol. 43 ›› Issue (6): 1721-1728.doi: 10.12305/j.issn.1001-506X.2021.06.33

• 可靠性 • 上一篇

基于FDN的装备体系任务能力依赖性分析

陈宇奇^1,*, 徐廷学¹, 郝建平², 逯程³, 李志强⁴

1. 海军航空大学岸防兵学院, 山东烟台 264001
2. 陆军工程大学石家庄校区, 河北石家庄 050003
3. 海军装备部装备保障大队, 北京 100089
4. 中国人民解放军91388部队, 广东湛江 524024

收稿日期:2020-04-05 出版日期:2021-05-21 发布日期:2021-05-28
通讯作者: 陈宇奇
作者简介:陈宇奇(1992—), 男, 博士研究生, 主要研究方向为复杂系统可靠性分析与评估|徐廷学(1962—), 男, 教授, 博士, 主要研究方向为装备综合保障理论与运用|郝建平(1969—), 男, 教授, 博士, 主要研究方向为维修工程|逯程(1990—), 男, 工程师, 博士, 主要研究方向为可靠性建模与维修决策优化|李志强(1988—), 男, 工程师, 博士, 主要研究方向为可靠性建模与维修决策优化、复杂系统试验鉴定与定型
基金资助:
国家自然科学基金(51605487)

Task capability dependency analysis of weapon system of systems based on FDN

Yuqi CHEN^1,*, Tingxue XU¹, Jianping HAO², Cheng LU³, Zhiqiang LI⁴

1. Coast Guard Academy, Navy Aeronautical University, Yantai 264001, China
2. Shijiazhuang Campus, Army Engineering University, Shijiazhuang 050003, China
3. Equipment Support Brigade of Navy Equipment Department, Beijing 100089, China
4. Unit 91388 of the PLA, Zhanjiang 524024, China

Received:2020-04-05 Online:2021-05-21 Published:2021-05-28
Contact: Yuqi CHEN

摘要/Abstract

摘要：

为了深入分析装备体系内各装备系统在任务执行过程中自身性能退化对其相互依赖性的影响, 并准确把握体系内各装备系统在自身性能退化和相互依赖性的双重影响下其当前效能的演变规律, 对传统功能依赖网络分析(functional dependency network analysis, FDNA)方法进行了一定改进。引入自身效能退化系数, 给出考虑时间因素的动态FDNA算法; 以Markov过程为基础, 构建体系内装备系统的性能退化模型, 为自身效能退化系数的计算提供相应依据, 从而提出一种基于功能依赖网络的装备体系任务能力依赖性分析方法, 并用案例验证了方法的可行性。

关键词: 装备体系, 性能退化, 功能依赖网络分析, Markov过程, 依赖性分析

Abstract:

In order to deeply analyze the influence of the performance degradation of each equipment system in system of systems on interdependency among them and accurately grasp the evolution law of the current efficiency of each equipment system under the dual influence of its own performance degradation and interdependence. The traditional functional dependency network analysis (FDNA) method is improved and the self-effectiveness degradation coefficient is introduced to give a dynamic FDNA algorithm considering time factor. And the performance degradation model of the equipment system in system of systems is constructed based on the Markov process to provide the corresponding basis for the calculation of self-effectiveness degradation coefficient. Then, a task capability dependency analysis method of weapon system of systems based on the functional dependency network is proposed, and the feasibility of the method is verified by a case.

Key words: weapon system of system, performance degradation, functional dependency network analysis (FDNA), Markov process, dependency analysis

中图分类号:

TB114

陈宇奇, 徐廷学, 郝建平, 逯程, 李志强. 基于FDN的装备体系任务能力依赖性分析[J]. 系统工程与电子技术, 2021, 43(6): 1721-1728.

Yuqi CHEN, Tingxue XU, Jianping HAO, Cheng LU, Zhiqiang LI. Task capability dependency analysis of weapon system of systems based on FDN[J]. Systems Engineering and Electronics, 2021, 43(6): 1721-1728.

图/表 10

图1

图2

图3

表1

图4

图5

图6

表2

图7

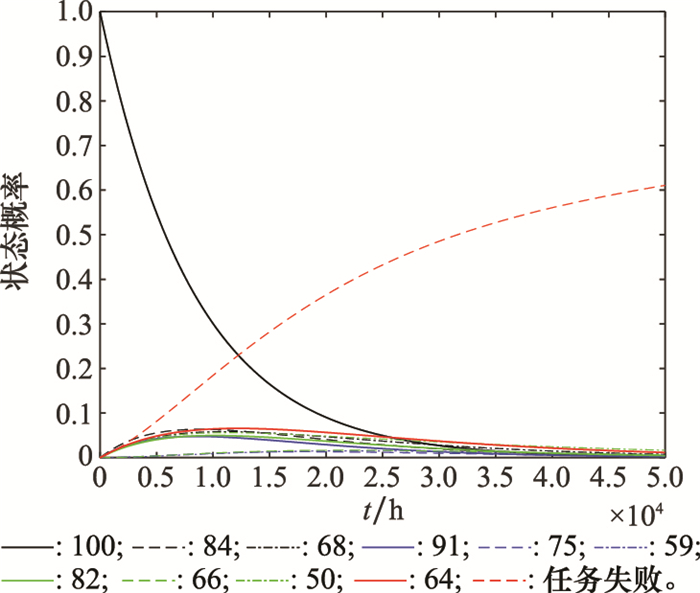

图8

参考文献 35

1	罗鹏程, 周经纶, 金光. 武器装备体系作战效能与作战能力评估分析方法[M]. 北京: 国防工业出版社, 2014.
	LUO P C , ZHOU J L , JIN G . Evaluation and analysis method of combat effectiveness and combat capability of weapons system of systems[M]. Beijing: National Defense Industry Press, 2014.
2	Joint Chief of Staff . Manual for the operation of the joint capabilities integration and development system[M]. Washington: Joint Chief of Staff, 2009.
3	KILICAY N H, DAGLI C H, ENKE D, et al. Methodologies for understanding behavior of system of systems[C]//Proc. of the 2nd Annual System of Systems Engineering Conference, 2006.
4	张维明, 刘忠, 阳东升, 等. 体系工程理论与方法[M]. 北京: 科学出版社, 2010.
	ZHANG W M , LIU Z , YANG D S , et al. Theory and method of system of systems engineering[M]. Beijing: Science Press, 2010.
5	BUTTERFIELD M, PEARLMAN J. Creation of a system of systems on global scale: the evolution of GEOSS[C]//Proc. of the 2nd Annual System of Systems Engineering Conference, 2006.
6	KEATING C , ROGERS R , UNAL R , et al. System of systems engineering[J]. Engineering Management Journal, 2003, 15 (3): 36- 45.
7	PATRICK R. A system of systems interface hazard analysis technique[R]. New South Wales: Naval Postgraduate School, 2007.
8	BERRY B J L . Cities as systems within systems of cities[J]. Papers of the Regional Science Association, 1964, 13 (1): 146- 163. doi: 10.1007/BF01942566
9	THACKER S , PANT R , HALL J W . System-of-systems formulation and disruption analysis for multi-scale critical national infrastructures[J]. Reliability Engineering & System Safety, 2017, 167, 30- 41.
10	EISNER H, MARCINIAK J, MCMILLAN R. Computer aided systems of systems(S2) engineering[C]//Proc. of the IEEE International Conference on Systems, Man, and Cybernetics, 1991.
11	张旺勋. 基于复杂交互网络的武器装备体系安全性分析方法[D]. 长沙: 国防科学技术大学, 2015.
	ZHANG W X. A weapon system of systems safety analysis method based on complex interaction networks[D]. Changsha: National University of Defense Technology, 2015.
12	罗湘勇, 冯浩源, 潘星, 等. 面向流程的保障体系集成建模方法研究[J]. 系统工程与电子技术, 2013, 35 (11): 2314- 2319.
	LUO X Y , FENG H Y , PAN X , et al. Integration modeling approach of process oriented support system of systems[J]. Systems Engineering and Electronics, 2013, 35 (11): 2314- 2319.
13	WISSAM K , ROCHDI M , BELKACEM O B , et al. Hyper-graph models for system of systems supervision design[J]. IEEE Trans.on Systems Man and Cybernetics: Systems, 2012, 42 (4): 1005- 1012. doi: 10.1109/TSMCA.2012.2183350
14	ENDER T , LEURCK R F , WEAVER B , et al. Systems-of-systems analysis of ballistic missile defense architecture effectiveness through surrogate modeling and simulation[J]. IEEE Systems Journal, 2010, 4 (2): 156- 165. doi: 10.1109/JSYST.2010.2045541
15	熊健, 赵青松, 葛冰峰, 等. 基于多目标优化模型的武器装备体系能力规划[J]. 国防科技大学学报, 2011, 33 (3): 140- 144. doi: 10.3969/j.issn.1001-2486.2011.03.027
	XIONG J , ZHAO Q S , GE B F , et al. Weapon equipment system of systems capability planning based on multi-objective optimization model[J]. Journal of National University of Defense Technology, 2011, 33 (3): 140- 144. doi: 10.3969/j.issn.1001-2486.2011.03.027
16	ALEXANDRA B, TAO G, ANDREAS L, et al. Distributed control of emergence: local and global anti-component strategies in particle swarms and ant colonies[C]//Proc. of the IEEE 3rd International Conference on Self-Adaptive and Self-organizing Systems, 2009: 216-222.
17	杨克巍, 李明浩, 鲁延京, 等. 基于平行执行的装备体系涌现行为导向性方法[J]. 系统工程与电子技术, 2013, 35 (6): 1218- 1225.
	YANG K W , LI M H , LU Y J , et al. Parallel executing based method towards guiding emerged behaviors of weapon system of systems[J]. Systems Engineering and Electronics, 2013, 35 (6): 1218- 1225.
18	PINTO C A , GARVAY P R . Advanced risk analysis in engineering enterprise systems[M]. New York: CRC Press, 2012.
19	DELAURENTIS D A. Assessing the impact of development disruptions and dependencies in analysis of alternatives of system-of-systems SERC-2012-TR-035[R]. U.S. : Purdue University, 2012.
20	DELAURENTIS D A. Assessing the impact of development disruptions and dependencies in analysis of alternatives of system-of-systems SERC-2013-TR-035-2[R]. U.S. : Purdue University, 2013.
21	RAHNAMAY N M , HAYAT M . Cascading failures in interdependent infrastructures: an interdependent Markov-Chain approach[J]. IEEE Trans.on Smart Grid, 2016, 7 (4): 1997- 2006. doi: 10.1109/TSG.2016.2539823
22	WANG F , TIAN L X , DU R J , et al. The robustness of interdependent weighted networks[J]. Physica A: Statistical Mechanics and its Applications, 2018, 508, 675- 680. doi: 10.1016/j.physa.2018.05.110
23	GAO Y L , CHEN S M , NIE S , et al. Robustness analysis of interdependent networks under multiple-attacking strategies[J]. Physica A: Statistical Mechanics and its Applications, 2017, 496, 495- 504.
24	周伟, 朱晓, 冉琰, 等. 考虑性能依赖的元动作单元多态可靠性分析[J]. 哈尔滨工业大学学报, 2020, 52 (1): 62- 68.
	ZHOU W , ZHU X , RAN Y , et al. Reliability analysis method of meta-action unit in multi-state system considering perfor-mance dependence[J]. Journal of Harbin Institute of Technology, 2020, 52 (1): 62- 68.
25	王超, 郭基联, 沈安慰. 基于不对称依赖的相依网络级联故障分析[J]. 系统工程与电子技术, 2020, 42 (5): 1093- 1101.
	WANG C , GUO J L , SHEN A W . Analysis of cascading fai-lures of interdependent networks based on asymmetric depen-dency[J]. Systems Engineering and Electronics, 2020, 42 (5): 1093- 1101.
26	胡启国, 高展. 多元参数退化的系统相关竞争失效可靠性评估方法[J]. 西北工业大学学报, 2019, 37 (6): 1191- 1199.
	HU Q G , GAO Z . A reliability evaluation method for system's dependent competition failure and multi-parameter degradation failure[J]. Journal of Northwestern Polytechnical University, 2019, 37 (6): 1191- 1199.
27	GARVEY P R, PINTO C A. Introduction to functional dependency network analysis[C]//Proc. of the 2nd International Symposium on Engineering Systems, 2009.
28	GUARINIELLO C , DELAURENTIS D . Dependency analysis of system-of-systems operational and development networks[J]. Precedia Computer Science, 2013, 16, 264- 274.
29	陈跃, 李元元, 秦肖臻, 等. 基于FDNA的体系效能波及分析[J]. 火力与指挥控制, 2017, 42 (10): 14- 18. doi: 10.3969/j.issn.1002-0640.2017.10.004
	CHEN Y , LI Y Y , QIN X Z , et al. Ripple effect analysis for system of systems using FDNA[J]. Fire Control & Command Control, 2017, 42 (10): 14- 18. doi: 10.3969/j.issn.1002-0640.2017.10.004
30	陈宽, 李元元, 罗云峰, 等. 基于功能依赖网络的体系韧性分析[J]. 指挥与控制学报, 2016, 2 (3): 256- 260.
	CHEN K , LI Y Y , LUO Y F , et al. Evaluating system of systems resilience based on functional dependency network analysis[J]. Journal of Command and Control, 2016, 2 (3): 256- 260.
31	张旺勋, 李群, 侯洪涛, 等. 卫星导航系统的体系安全性分析方法[J]. 国防科技大学学报, 2015, 37 (2): 92- 98.
	ZHANG W X , LI Q , HOU H T , et al. System of systems safety analysis method for GNSS[J]. Journal of National University of Defense Technology, 2015, 37 (2): 92- 98.
32	GUARINIELLO C , DELAURENTIS D . Communications, information, and cyber security in systems-of-systems: assessing the impact of attacks through interdependency analysis[J]. Procedia Computer Science, 2014, 28, 720- 727. doi: 10.1016/j.procs.2014.03.086
33	GARVAY P R , PINTO C A , SANTOS J R . Modelling and measuring the operability of interdependent systems and systems of systems: advances in methods and applications[J]. International Journal of System of Systems Engineering, 2014, 5 (1): 1- 24. doi: 10.1504/IJSSE.2014.060880
34	陈宇奇, 徐廷学, 李志强, 等. 基于证据GO法的复杂多态系统动态可靠性分析[J]. 系统工程与电子技术, 2020, 42 (1): 230- 237.
	CHEN Y Q , XU T X , LI Z Q , et al. Dynamic reliability analysis of complex multi-state system based on evidence GO method[J]. Systems Engineering and Electronics, 2020, 42 (1): 230- 237.
35	李志强, 徐廷学, 董琪, 等. 基于Markov模型的多状态不可修元件可靠性评估[J]. 电光与控制, 2017, 24 (9): 58- 63.
	LI Z Q , XU T X , DONG Q , et al. Markov model based reliability assessment of non-repairable element with multiple states[J]. Electronics Optics & Control, 2017, 24 (9): 58- 63.

参数设置	Garvey法	本文方法
参数设置	$ \begin{array}{*{20}{c}}{{{{\mathop{\rm SOD}\nolimits} }_{{O_{ij}}}} = {\alpha _{ij}}{O_i} + }{100\left( {1 - {\alpha _{ij}}} \right)}\end{array}$	$\left\{ {\begin{array}{*{20}{l}}{{{{\mathop{\rm SOD}\nolimits} }_{{O_{ij}}}} = \left[ {{\alpha _{ij}}{O_i} + 100 \times } \right.}\\{\left. {\left( {1 - {\alpha _{ij}}} \right)} \right]{\delta _j}}\\{{\delta _j} = \frac{{{\rm{S}}{{\rm{E}}_j}}}{{{\rm{BO}}{{\rm{L}}_{{O_j}}}}} \times 100\% }\end{array}} \right. $
O_i=100, SE_j=10	O_j=100	O_j=100
O_i=100, SE_j=5	O_j=100	O_j=50
O_i=100, SE_j=0	O_j=100	O_j=0
O_i=50, SE_j=10	O_j=55	O_j=55
O_i=0, SE_j=10	O_j=10	O_j=10
O_i=50, SE_j=5	O_j=55	O_j=27.5

节点编号	状态编号	对应效能值	瞬时状态转移强度(×10^-6/h)
节点编号	状态编号	对应效能值	λ₁₀	λ₁₂	λ₁₃	λ₀₂	λ₀₃	λ₂₃
N₁	1	100	15.2	13.2	14.5	16.5	20.5	16.8
	0	75	15.2	13.2	14.5	16.5	20.5	16.8
	2	50	15.2	13.2	14.5	16.5	20.5	16.8
	3	0	15.2	13.2	14.5	16.5	20.5	16.8
N₂	1	100	—	19.6	14.3	—	—	20.2
	2	50	—	19.6	14.3	—	—	20.2
	3	0	—	19.6	14.3	—	—	20.2
N₃	1	15	—	18	—	—	—	—
N₃	2	0	—	18	—	—	—	—
N₄	1	20	—	14.6	10.8	—	—	15.4
	2	10	—	14.6	10.8	—	—	15.4
	3	0	—	14.6	10.8	—	—	15.4
