具有拦截区与落角约束的高超声速飞行器俯冲段鲁棒制导方法

doi:10.12305/j.issn.1001-506X.2026.08.29

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (8): 2841-2849.doi: 10.12305/j.issn.1001-506X.2026.08.29

• 制导、导航与控制 • 上一篇

具有拦截区与落角约束的高超声速飞行器俯冲段鲁棒制导方法

王和¹, 雷刚¹, 李少朋¹^,², 茅琦杰³, 刘振宇¹

1. 火箭军工程大学导弹工程学院，陕西西安 710025
2. 清华大学自动化系，北京 100083
3. 中国航空无线电电子研究所，上海 200241

收稿日期:2025-05-12 修回日期:2025-12-16 出版日期:2026-05-14 发布日期:2026-05-14
通讯作者: 王和
作者简介:雷刚（1978—），男，副教授，博士，主要研究方向为高超声速飞行器航迹规划
李少朋（1992—），男，副教授，博士，主要研究方向为飞行器导航与制导
茅琦杰（1991—），男，工程师，硕士，主要研究方向为无人机控制与任务指挥
刘振宇（1999—），男，博士研究生，主要研究方向为高超声速飞行器导航、制导与航迹规划
基金资助:
国家自然科学基金（62103432）资助课题

Robust dive-phase guidance of hypersonic vehicles with interception zone and fall angle constraints

He WANG¹, Gang LEI¹, Shaopeng LI¹^,², Qijie MAO³, Zhenyu LIU¹

1. Department of Missile Engineering，Rocket Force University，Xi’an 710025，China
2. Department of Automation，Tsinghua University，Beijing 100083，China
3. China National Aeronautical Radio Electronics Research Institute，Shanghai 200241，China

Received:2025-05-12 Revised:2025-12-16 Online:2026-05-14 Published:2026-05-14
Contact: He WANG

摘要/Abstract

摘要：

针对高超声速飞行器俯冲段拦截区规避与终端落角约束问题，提出一种基于滑模控制的跟踪制导方法。通过参数化设计纵向俯冲弹道与横向机动弹道，将复杂的过程约束转化为路径点约束，并利用序列二次规划求解落速最优弹道参数，生成满足终端落角约束与拦截区规避的参考轨迹；基于飞行器非线性运动模型，设计滑模跟踪制导律，对参考轨迹进行跟踪。仿真结果表明：扰动条件下，该制导方法产生的控制量连续平滑，具有较高的终端落角与落点控制精度，其中落角偏差不超过0.5 °，脱靶量控制在1.3 m以内。所提方法不依赖导引头对目标的探测信息，能够一定程度降低制导系统的复杂程度。

关键词: 高超声速飞行器, 拦截区约束, 落角约束, 俯冲制导, 滑模控制

Abstract:

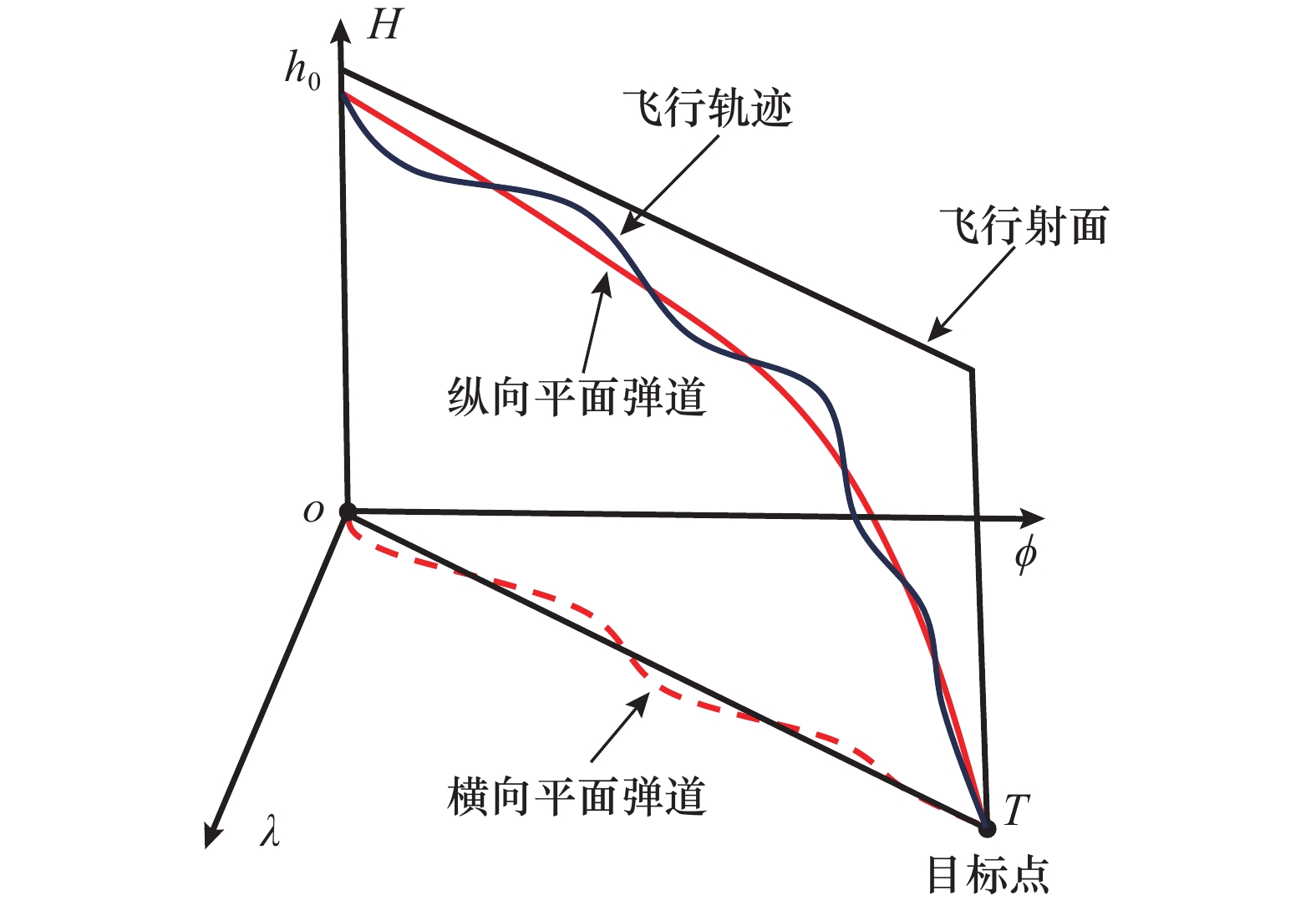

A sliding mode control-based tracking guidance method is developed to address the challenges of interception zone evasion and terminal fall angle constraints during the hypersonic vehicle’s dive phase. Through parametric design of longitudinal dive trajectory and lateral maneuver trajectory, complex process constraints are transformed into way-point constraints. The sequential quadratic programming method is employed to solve optimal trajectory parameters with maximum terminal velocity, generating reference trajectories that satisfy both terminal impact angle requirements and interception zone avoidance. Based on the nonlinear motion model of the aircraft, a sliding mode tracking guidance law is designed to track the reference trajectory. Simulation results show that the control quantity generated by the guidance method is continuous and smooth under the disturbance condition, achieving high precision in both terminal impact angle and position control, where the impact angle deviation is less than 0.5°, and the miss distance is controlled within 1.3 m. The proposed method eliminates reliance on target detection information from seekers, thereby reducing the complexity of the guidance system to some extent.

Key words: hypersonic vehicle, interception zone constraint, impact angle constraint, dive-phase, sliding mode control

中图分类号:

V 488.2

王和, 雷刚, 李少朋, 茅琦杰, 刘振宇. 具有拦截区与落角约束的高超声速飞行器俯冲段鲁棒制导方法[J]. 系统工程与电子技术, 2026, 48(8): 2841-2849.

He WANG, Gang LEI, Shaopeng LI, Qijie MAO, Zhenyu LIU. Robust dive-phase guidance of hypersonic vehicles with interception zone and fall angle constraints[J]. Systems Engineering and Electronics, 2026, 48(8): 2841-2849.

图/表 13

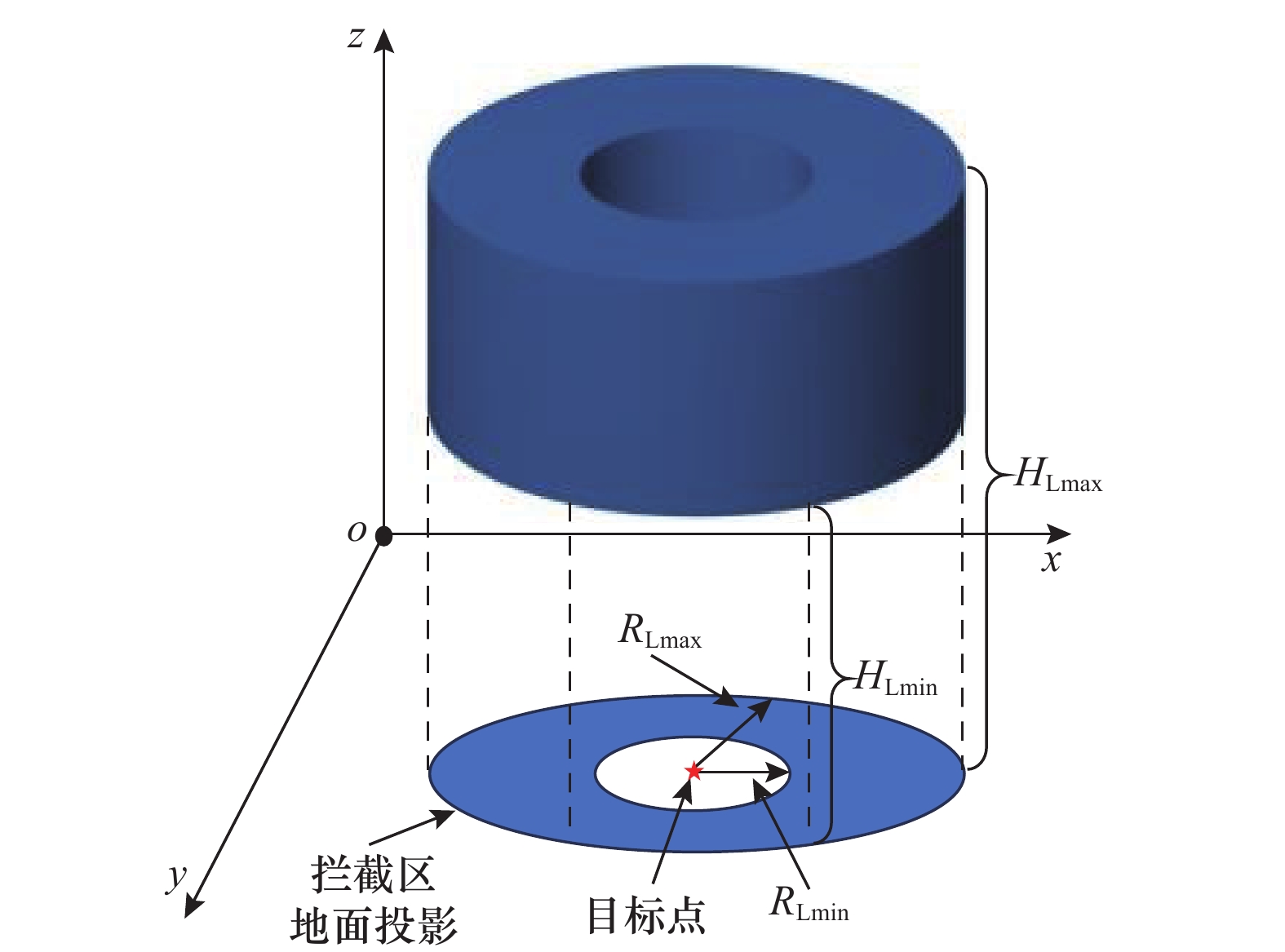

图1

图2

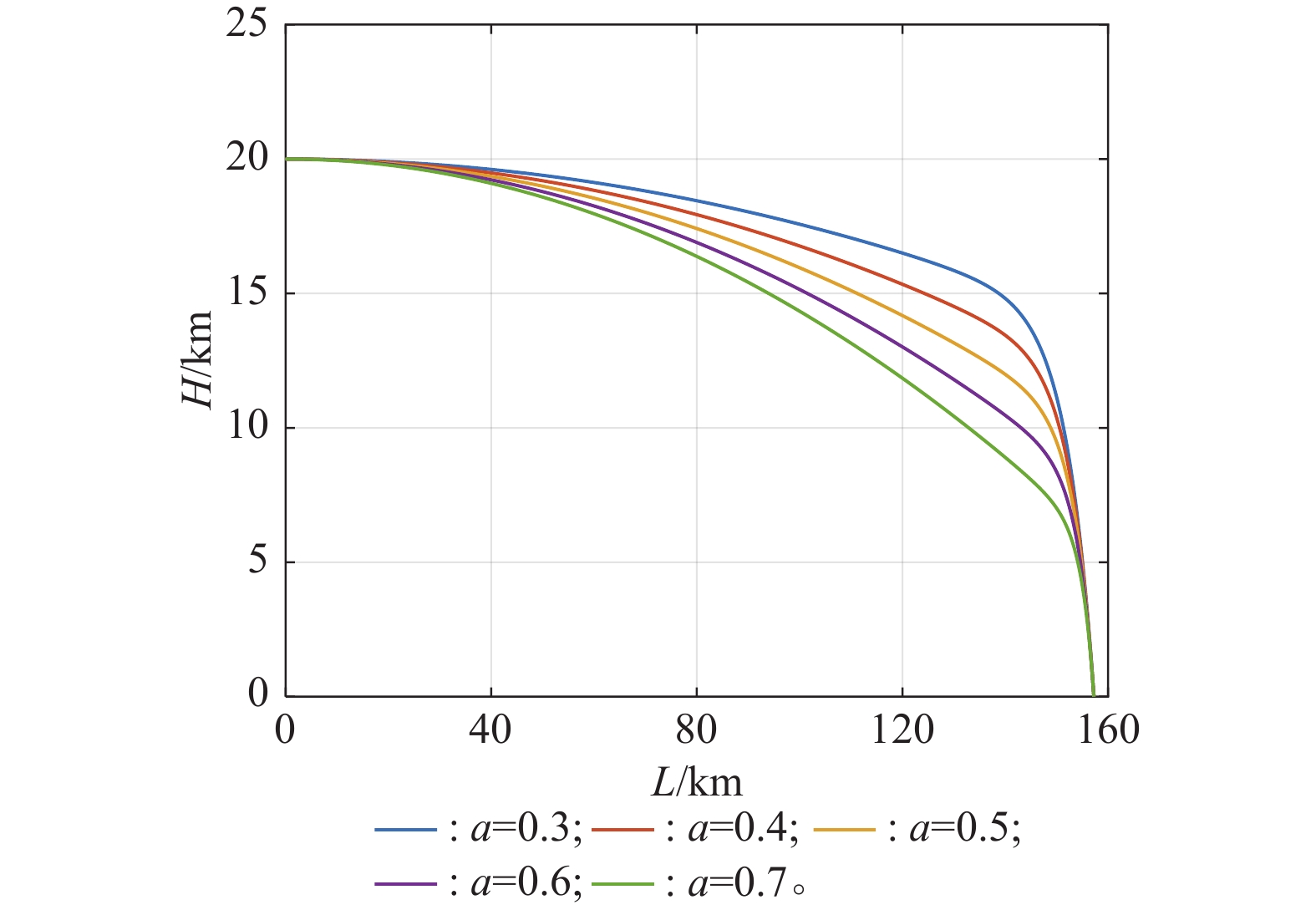

图3

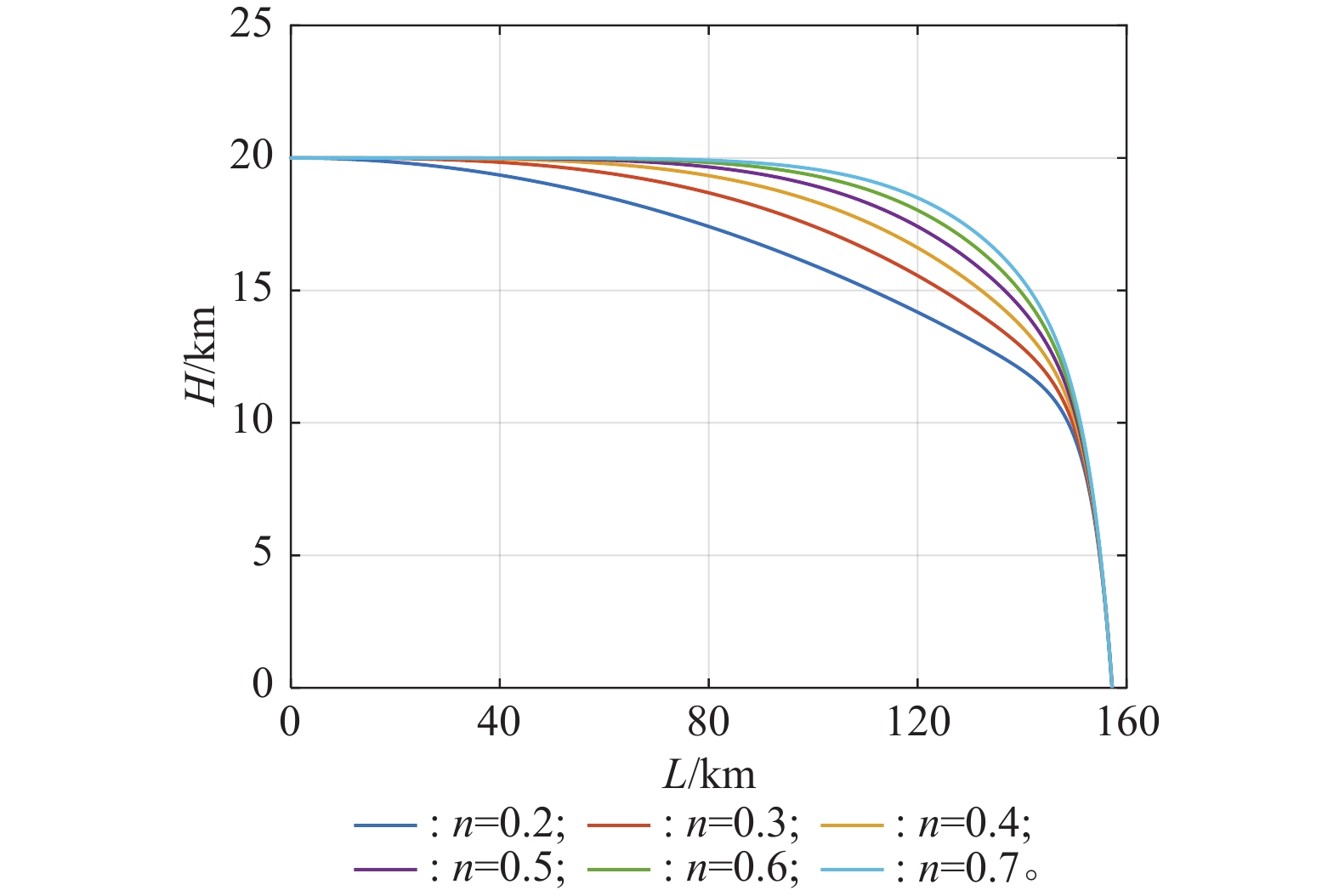

图4

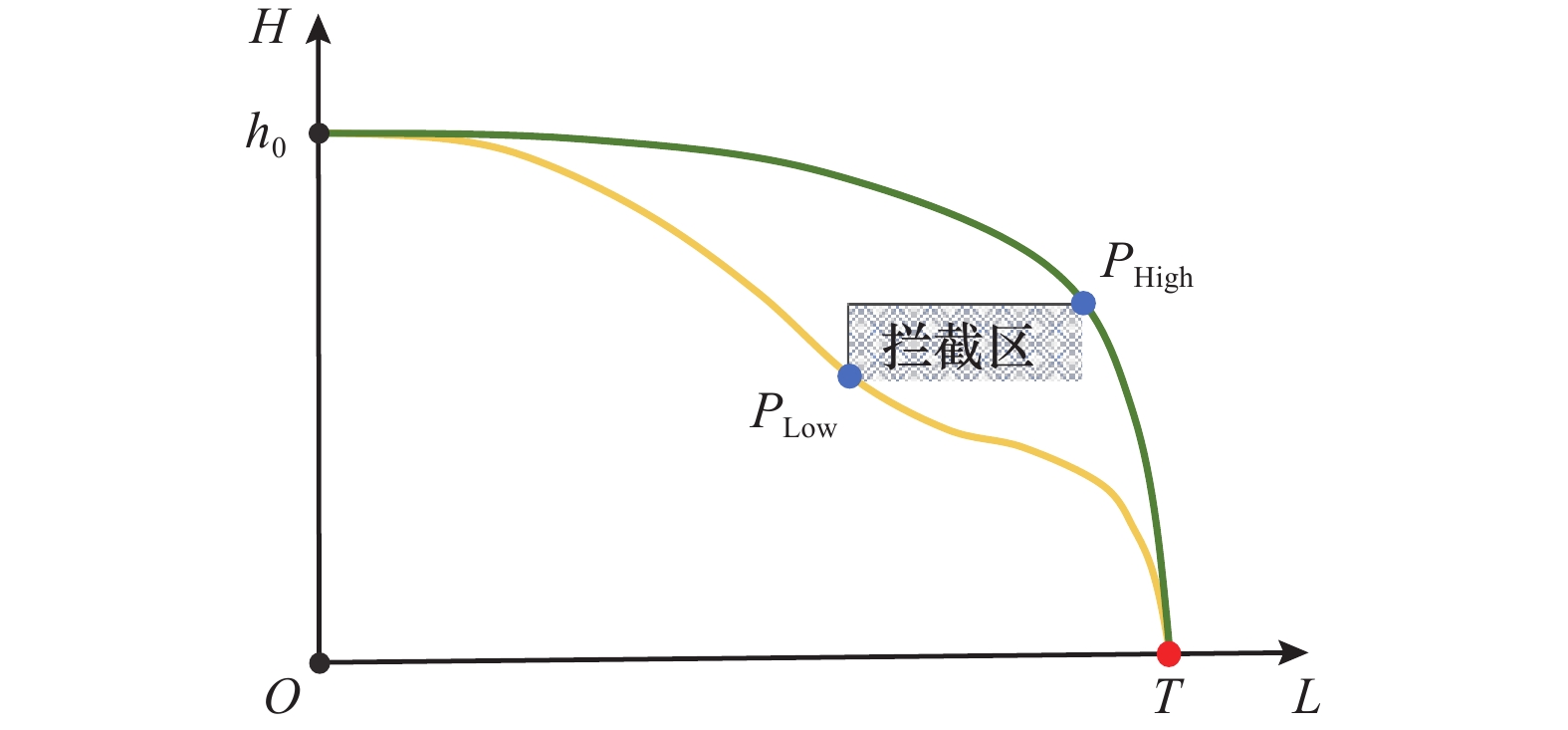

图5

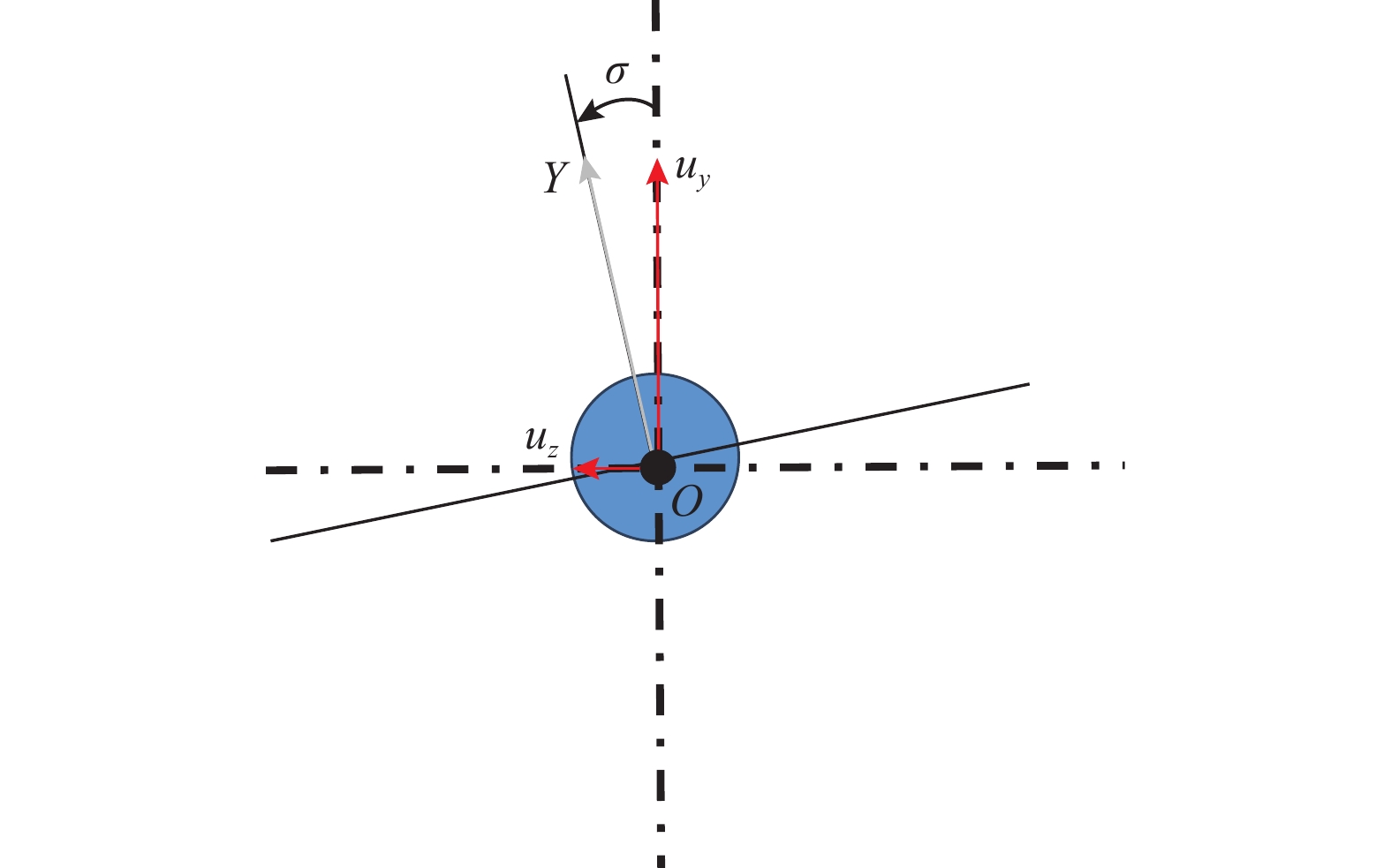

图6

表1

图7

表2

图8

表3

表4

图9

参考文献 30

1	王文博, 范国超, 许承东. 临近空间高超声速飞行器制导与控制技术研究综述[J]. 战术导弹技术, 2015, 47 (6): 32- 36. doi: 10.16358/j.issn.1009-1300.2018.8.k43
	WANG W B, FAN G C, XU C D. Survey of the guidance and control for near-space hypersonic vehicle[J]. Tactical Missile Technology, 2015, 47 (6): 32- 36. doi: 10.16358/j.issn.1009-1300.2018.8.k43
2	方洋旺, 柴栋, 毛东辉, 等. 吸气式高超声速飞行器制导与控制研究现状及发展趋势[J]. 航空学报, 2014, 35 (7): 1776- 1786. doi: 10.7527/S1000-6893.2014.0021
	FANG Y W, CHAI D, MAO D H, et al. Status and development trend of the guidance and control for air-breathing hypersonic vehicle[J]. Acta Aeronautica et Astronautica Sinica, 2014, 35 (7): 1776- 1786. doi: 10.7527/S1000-6893.2014.0021
3	DING Y B, YUE X K, CHEN G S, et al. Review of control and guidance technology on hypersonic vehicle[J]. Chinese Journal of Aeronautics, 2022, 35 (7): 1- 18. doi: 10.1016/j.cja.2021.10.037
4	王建华. 高超声速飞行器制导控制一体化设计方法研究[D]. 长沙: 国防科技大学, 2017.
	WANG J H. Study on integrated guidance and control design approach for hypersonic vehicles[D]. Changsha: National University of Defense Technology, 2017.
5	LU P, DOMAN D B, SCHIERMAN J D. Adaptive terminal guidance for hypervelocity impact in specified direction[J]. Journal of Guidance, Control, and Dynamics, 2006, 29 (2): 269- 278. doi: 10.21236/ada445166
6	HE L, YAN X D. Adaptive terminal guidance law for spiral-diving maneuver based on virtual sliding targets[J]. Journal of Guidance, Control, and Dynamics, 2018, 41 (7): 1591- 1601. doi: 10.2514/1.g003424
7	ZHU J W, LIU L H, TANG G J, et al. Three-dimensional robust diving guidance for hypersonic vehicle[J]. Advances in Space Research, 2016, 57 (2): 562- 575. doi: 10.1016/j.asr.2015.10.037
8	LIU L H, ZHU J W, TANG G J, et al. Diving guidance via feedback linearization and sliding mode control[J]. Aerospace Science and Technology, 2015, 41, 16- 23. doi: 10.1016/j.ast.2014.11.014
9	SHENG Y Z, GAN J H, XIA L. Predefined-time fractional-order time-varying sliding mode control and its application in hypersonic vehicle guidance law[J]. Nonlinear Dynamics, 2023, 111 (15): 14177- 14198. doi: 10.1007/s11071-023-08602-8
10	冯福沁, 张胜修, 曹立佳, 等. 带末端角约束的跃升俯冲攻击控制律设计[J]. 科学技术与工程, 2012, 12 (29): 7649- 7654.
	FENG F Q, ZHANG S X, CAO L J, et al. Climb-dive attack control law design with terminal angular constraint[J]. Science Technology and Engineering, 2012, 12 (29): 7649- 7654.
11	LI X X, CHEN W C, CHEN Z Y, et al. A Climb-and-dive guidance law with the altitude constraint[J]. International Journal of Aeronautical and Space Sciences, 2025, 26 (1): 245- 256. doi: 10.1007/s42405-024-00831-4
12	WANG J H, LIU L H, ZHAO T, et al. Integrated guidance and control for hypersonic vehicles in dive phase with multiple constraints[J]. Aerospace Science and Technology, 2016, 53, 103- 115. doi: 10.1016/j.ast.2016.03.019
13	WANG J H, LIU L H, WANG P, et al. Guidance and control system design for hypersonic vehicles in dive phase[J]. Aerospace Science and Technology, 2016, 53, 47- 60. doi: 10.1016/j.ast.2016.03.010
14	ZHANG H, ZHU J W, LI X P, et al. Intelligent diving guidance with terminal angle and velocity constraints via deep reinforcement learning[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2024, 238 (13): 1326- 1337. doi: 10.1177/09544100241263123
15	梁子璇, 黄美伊, 冉宇寰, 等. 带落速落角约束的高超声速飞行器俯冲轨迹规划方法[J]. 宇航学报, 2022, 43 (8): 1052- 1060.
	LIANG Z X, HUANG M Y, RAN Y H, et al. Diving trajectory planning method for hypersonic vehicles with terminal velocity and impact angle constraints[J]. Journal of Astronautics, 2022, 43 (8): 1052- 1060.
16	LIAO Y X, LI H F, BAO W M. Three-dimensional diving guidance for hypersonic gliding vehicle via integrated design of FTNDO and AMSTSMC[J]. IEEE Trans. on Industrial Electronics, 2017, 65 (3): 2704- 2715. doi: 10.1109/tie.2017.2736499
17	LI Z T, ZHANG H B. Terminal guidance with attack time and impact angle constraints for hypersonic vehicle in dive phase[J]. International Journal of Aerospace Engineering, 2018 (1): 1- 9. doi: 10.1155/2018/9237109
18	YU J L, DONG X W, LI Q D, et al. Cooperative guidance strategy for multiple hypersonic gliding vehicles system[J]. Chinese Journal of Aeronautics, 2020, 33 (3): 990- 1005. doi: 10.1016/j.cja.2019.12.003
19	CUI L, ZHEN Z, ZHANG Z C. Prescribed-time cooperative integrated guidance and control for reentry vehicle based on hybrid control strategy[J]. International Journal of Robust and Nonlinear Control, 2025, 35 (14): 5751- 5768. doi: 10.1002/rnc.8012
20	CUI L, ZHEN Z, ZHANG K, et al. Prescribed-time integrated guidance and control for bank to turn reentry vehicle[J]. Aerospace Science and Technology, 2024 (150): 109218. doi: 10.1016/j.ast.2024.109218
21	CHEN J Q, SUN R S, LU Y. Cooperative game penetration guidance for multiple hypersonic vehicles under safety critical framework[J]. Chinese Journal of Aeronautics, 2024, 37 (1): 247- 255. doi: 10.1016/j.cja.2023.08.023
22	WANG C Y, WANG W L, DONG W, et al. Multiple-stage spatial–temporal cooperative guidance without time-to-go estimation[J]. Chinese Journal of Aeronautics, 2024, 37 (9): 399- 416. doi: 10.1016/j.cja.2024.05.026
23	LUO W, LEI G, LAI C H, et al. Research of integrated spiral maneuvering and guidance based on virtual target[J]. Journal of Engineering Research, 2024, 13 (3): 2680- 2688. doi: 10.1016/j.jer.2024.07.014
24	王和, 雷刚, 李少朋. 落角约束的高超声速飞行器俯冲机动制导方法[J/OL]. 系统仿真学报. doi:10.16182/j.issn1004731x.joss.25-0668.
	WANG H, LEI G, LI S P. Impact angle constrained guidance method for hypersonic vehicles during dive maneuvers[J/OL]. Journal of System Simulation. doi:10.16182/j.issn1004731x.joss.25-0668.
25	万泱泱, 郭杰, 王浩凝, 等. 考虑落速落角约束的高速飞行器末制导方法[J]. 宇航学报, 2025, 46 (5): 1004- 1014. doi: 10.3873/j.issn.1000-1328.2025.05.015
	WAN Y Y, GUO J, WANG H N, et al. A terminal guidance law for high-speed flight vehicles considering terminal velocity and impact angle constraints[J]. Journal of Astronautics, 2025, 46 (5): 1004- 1014. doi: 10.3873/j.issn.1000-1328.2025.05.015
26	李昊键, 黎克波, 梁彦刚. 基于可达区预测的高速机动目标多弹拦截决策[J]. 现代防御技术, 2024, 52 (2): 53- 62. doi: 10.3969/j.issn.1009-086x.2024.02.006
	LI H J, LI K B, LIANG Y G. Multi-missile interception decision for high-speed maneuvering target based on footprint prediction[J]. Modern Defence Technology, 2024, 52 (2): 53- 62. doi: 10.3969/j.issn.1009-086x.2024.02.006
27	端军红, 高晓光. 动能拦截器逆轨拦截时攻击区的一种估算方法[J]. 西北工业大学学报, 2009, 27 (6): 838- 845.
	DUAN J H, GAO X G. A new and effective method for evaluating pregnable area of kinetic kill vehicle for successful head-on interception of high-speed target[J]. Journal of Northwestern Polytechnical University, 2009, 27 (6): 838- 845.
28	张荣升, 陈万春. THAAD增程型拦截弹预测制导方法[J]. 北京航空航天大学学报, 2021, 47 (4): 863- 874.
	ZHANG R S, CHENG W C. Predictive guidance method of THAAD-ER interceptor[J]. Journal of Beijing University of Aeronautics and Astronautics, 2021, 47 (4): 863- 874.
29	谭一廷, 荆武兴, 高长生, 等. 高超声速机动目标拦截多约束解析捕获区[J]. 航空学报, 2023, 44 (22): 202- 218. doi: 10.7527/S1000-6893.2023.28436
	TAN Y T, JING W X, GAO C S, et al. Multiple constrained analytical capture region for hypersonic maneuvering target interception[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44 (22): 202- 218. doi: 10.7527/S1000-6893.2023.28436
30	PHILLIPS T H. A common aero vehicle (CAV) model, description, and employment guide[R]. Arlington, USA: Schafer Corporation for AFRL and AFSPC, 2003.

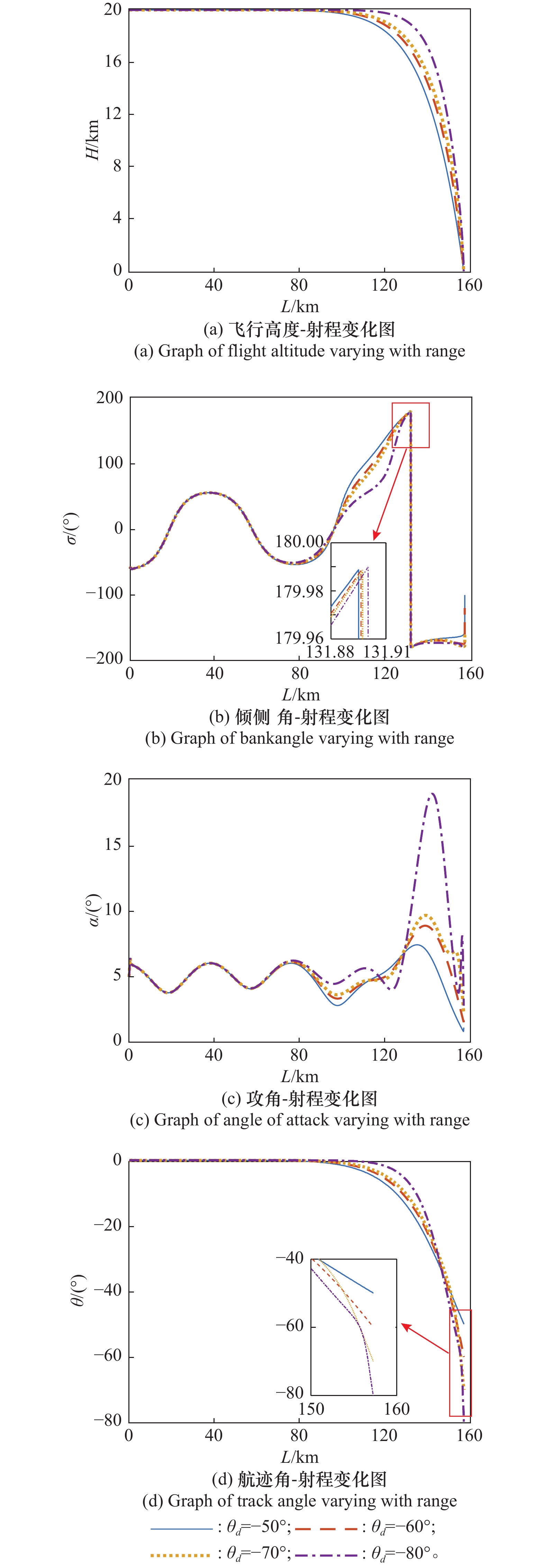

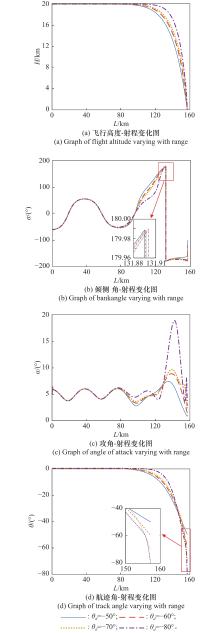

$ {\theta }_{d} $/（°）	落角/（°）	脱靶量/m	a	n
−50	−49.92	2.42	0.11	9.37
−60	−59.93	1.62	0.90	10.26
−70	−69.95	1.30	0.87	10.97
−80	−79.97	0.67	0.92	16.37

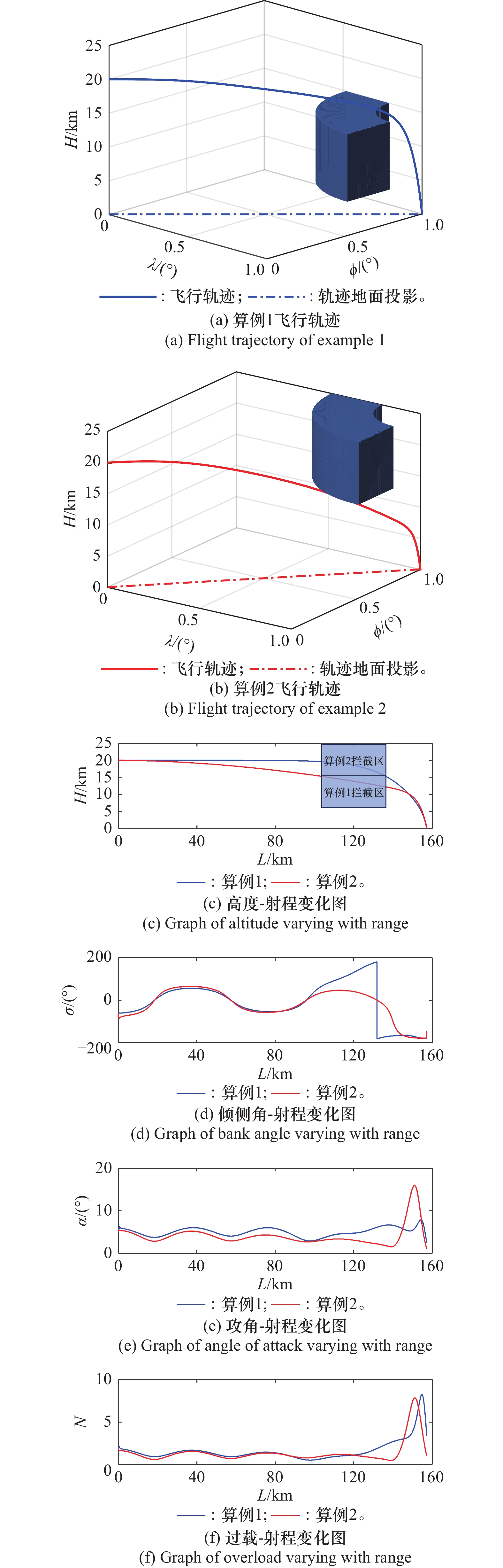

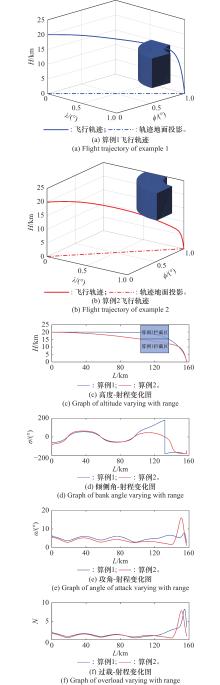

算例	（H_Lmin, H_Lmax）	（R_Lmin, R_Lmax）
算例1	（5, 15）	（20, 50）
算例2	（15, 25）	（20, 50）

算例	落角/（°）	脱靶量/m	a	n
算例1	−69.95	1.28	0.85	8.99
算例2	−69.95	0.78	0.50	1.83

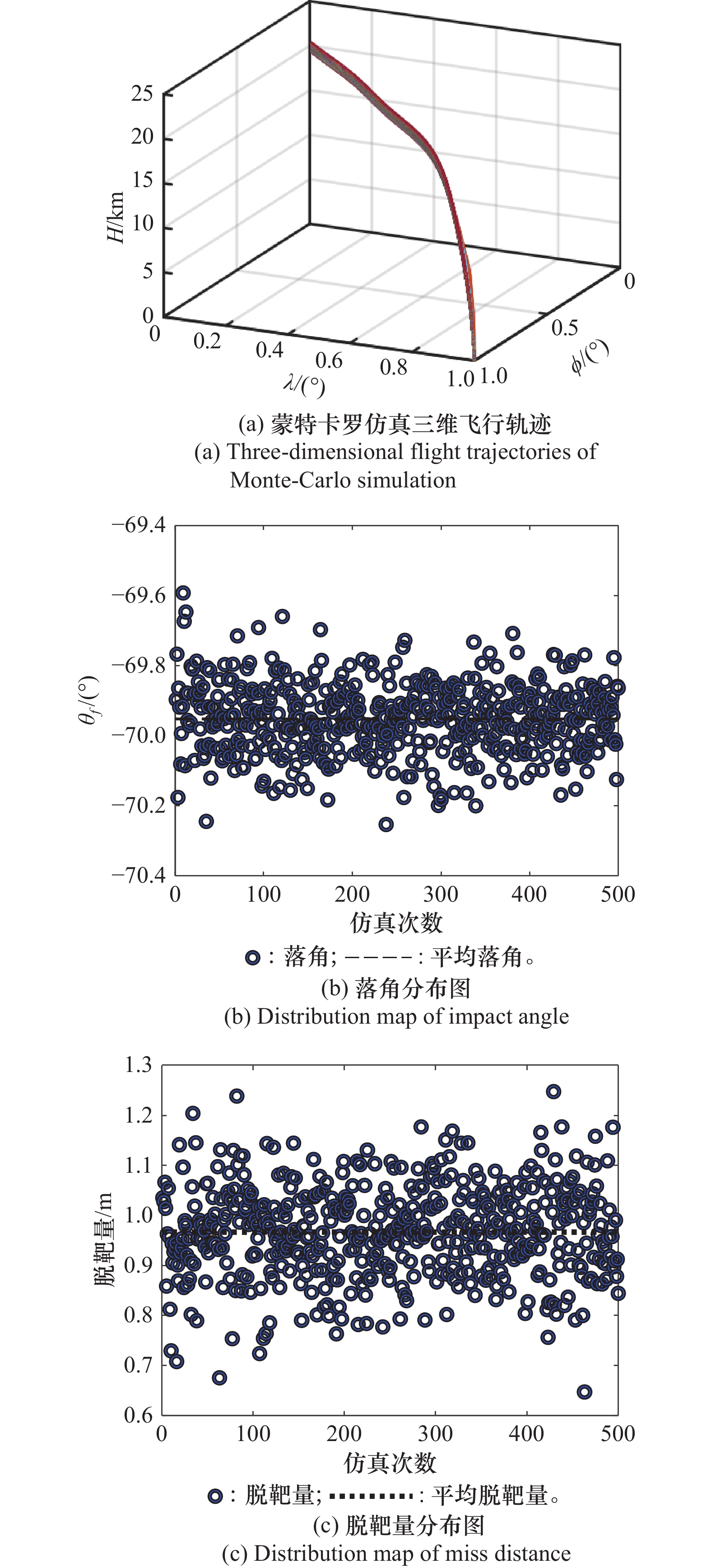

参数	3σ	参数	3σ
高度/m	500	飞行器质量/kg	30
速度/（m/s）	100	升力系数/%	20
大气密度/%	20	阻力系数/%	20
