高超声速飞行器机动突防制导控制一体化设计

doi:10.12305/j.issn.1001-506X.2025.12.27

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (12): 4153-4165.doi: 10.12305/j.issn.1001-506X.2025.12.27

• 制导、导航与控制 • 上一篇

高超声速飞行器机动突防制导控制一体化设计

廖宇新, 许炜平, 陈琪锋, 殷泽阳

中南大学自动化学院，湖南长沙 410083

收稿日期:2024-10-28 修回日期:2025-04-14 出版日期:2025-05-29 发布日期:2025-05-29
通讯作者: 许炜平
作者简介:廖宇新（1989—），男，副教授，博士，主要研究方向为飞行器智能自主控制，空天运载器轨迹规划、制导和控制
陈琪锋（1976—），男，教授，博士，主要研究方向为智能集群协同规划与控制
殷泽阳（1993—），男，副教授，博士，主要研究方向为飞行器智能决策、先进制导和控制方法
基金资助:
国家自然科学基金青年基金（62003372）；国家自然科学基金重大研究计划重点支持项目（92371203）；教育部联合基金（8091B032134）；湖南省自然科学基金青年基金（2022JJ40633）；思源联盟开放基金（HTKJ2023KL012006）；中南大学中央高校基本科研业务费专项资金（2024ZZTS0727）；智控实验室开放基金（ICL-2023-0405）资助课题

Integrated maneuvering penetration guidance and control design for hypersonic vehicle

Yuxin LIAO, Weiping XU, Qifeng CHEN, Zeyang YIN

School of Automation，Central South University，Changsha 410083，China

Received:2024-10-28 Revised:2025-04-14 Online:2025-05-29 Published:2025-05-29
Contact: Weiping XU

摘要/Abstract

摘要：

针对高超声速飞行器俯冲段存在拦截威胁的多约束精确打击任务需求，提出一种机动突防制导控制一体化设计方法。首先，基于线偏差概念建立多约束机动突防制导控制一体化设计模型。其次，分别设计虚拟导引制导律和相对机动制导律实现机动与制导的协调设计。再次，在预设性能干扰观测器和抗饱和辅助系统的基础上，引入非对称时变障碍Lyapunov函数实现状态与输入约束下的高精度姿态控制。进一步，基于Lyapunov理论证明了闭环系统的稳定性。最后，通过对比数值仿真验证了所提方法的有效性和鲁棒性。

关键词: 高超声速飞行器, 机动突防, 制导控制一体化, 多约束

Abstract:

Aiming at the precision strike task requirement with multi-constraints for hypersonic vehicle in dive phase under the interception threat, an integrated maneuvering penetration guidance and control method is proposed. Firstly, the integrated maneuvering penetration guidance and control design model with multi-constraints is built based on the conception of line deviation. Secondly, the virtual guidance law and relative maneuvering guidance law are designed separately to achieve coordinated design of maneuver and guidance. Thirdly, on the basis of prescribed performance disturbance observer and anti-saturation auxiliary system, the asymmetric time-varying barrier Lyapunov function is introduced to realize high-precision attitude control under state and input constraints. The stability of the closed loop system is further proved based on the Lyapunov theory. Finally, the effectiveness and robustness of the proposed method are verified through comparative numerical simulations.

Key words: hypersonic vehicle, maneuvering penetration, integrated guidance and control, multi-constraint

中图分类号:

V 448

廖宇新, 许炜平, 陈琪锋, 殷泽阳. 高超声速飞行器机动突防制导控制一体化设计[J]. 系统工程与电子技术, 2025, 47(12): 4153-4165.

Yuxin LIAO, Weiping XU, Qifeng CHEN, Zeyang YIN. Integrated maneuvering penetration guidance and control design for hypersonic vehicle[J]. Systems Engineering and Electronics, 2025, 47(12): 4153-4165.

图/表 14

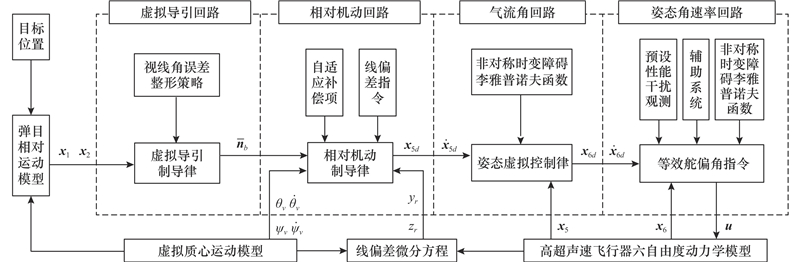

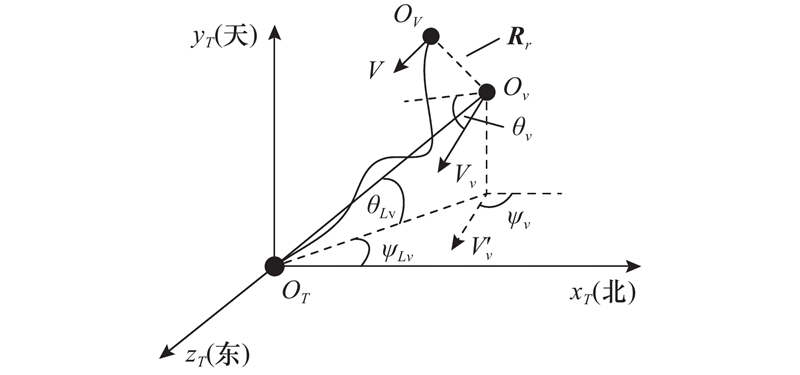

图1

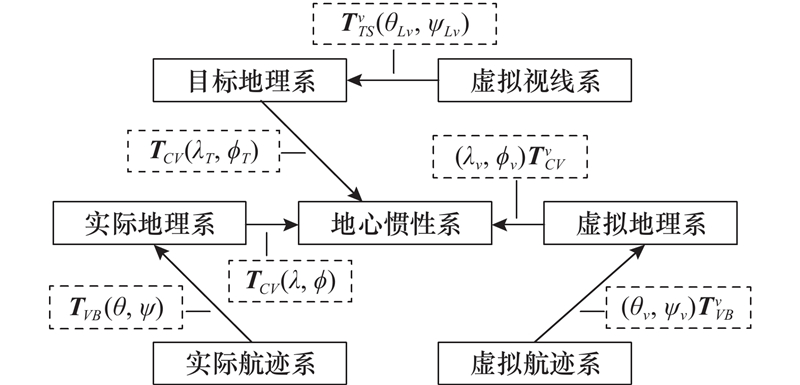

图2

图3

表1

表2

表3

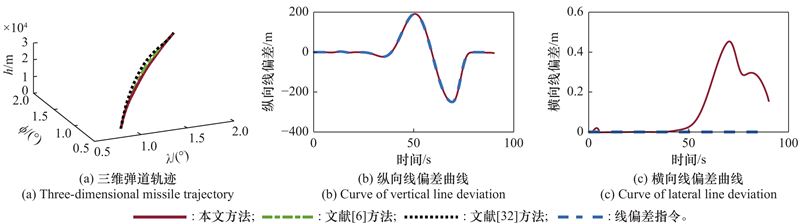

图4

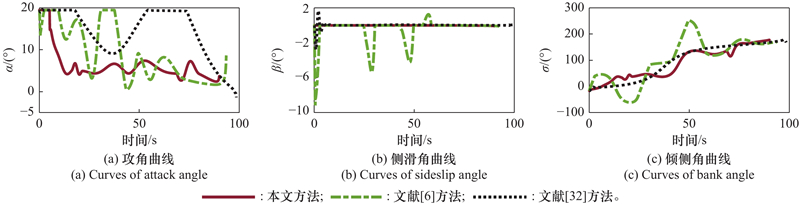

图5

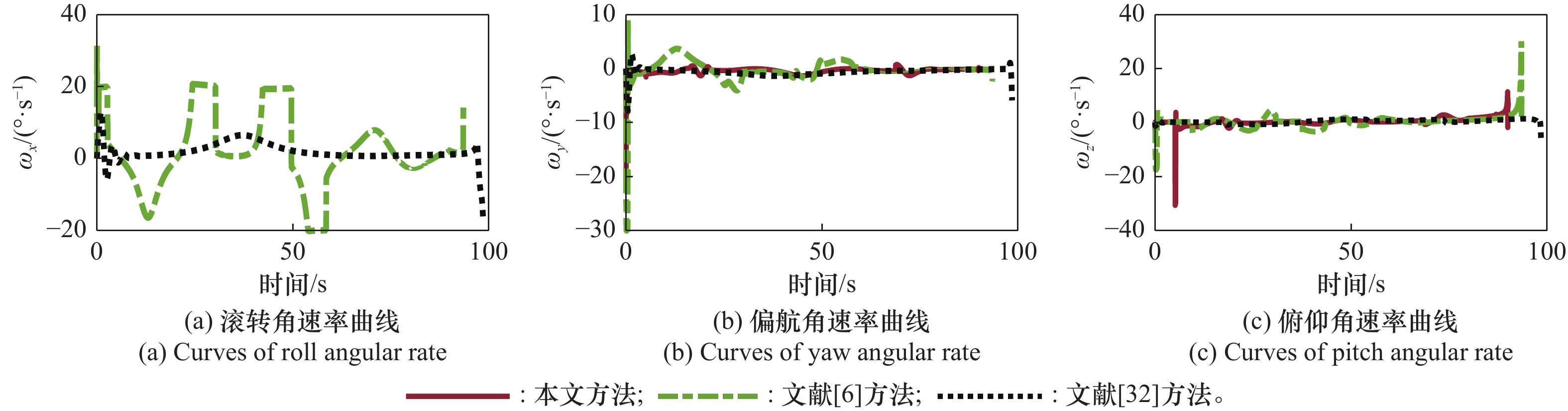

图6

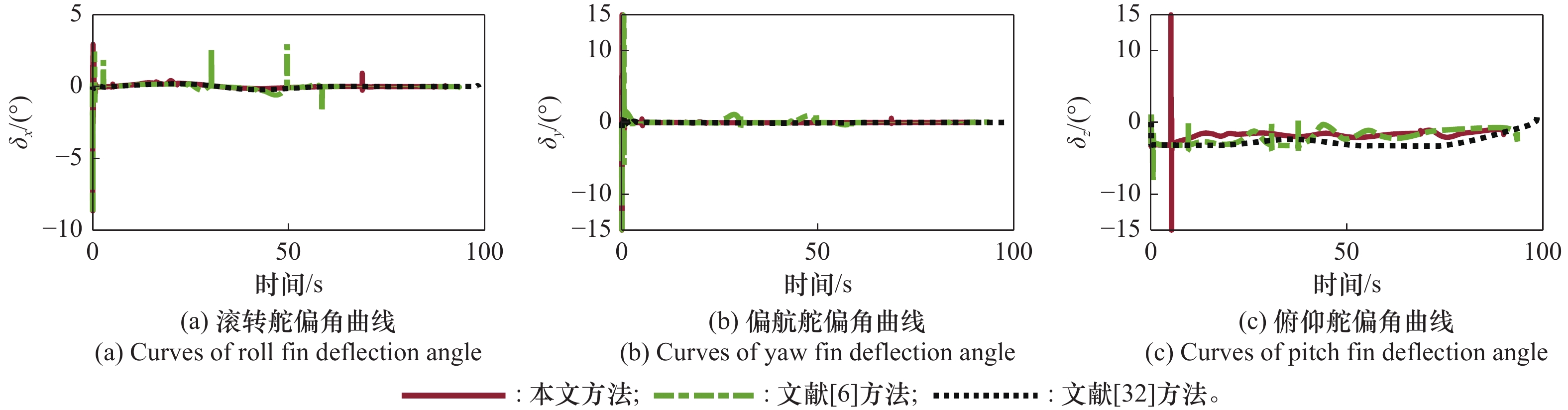

图7

表4

图8

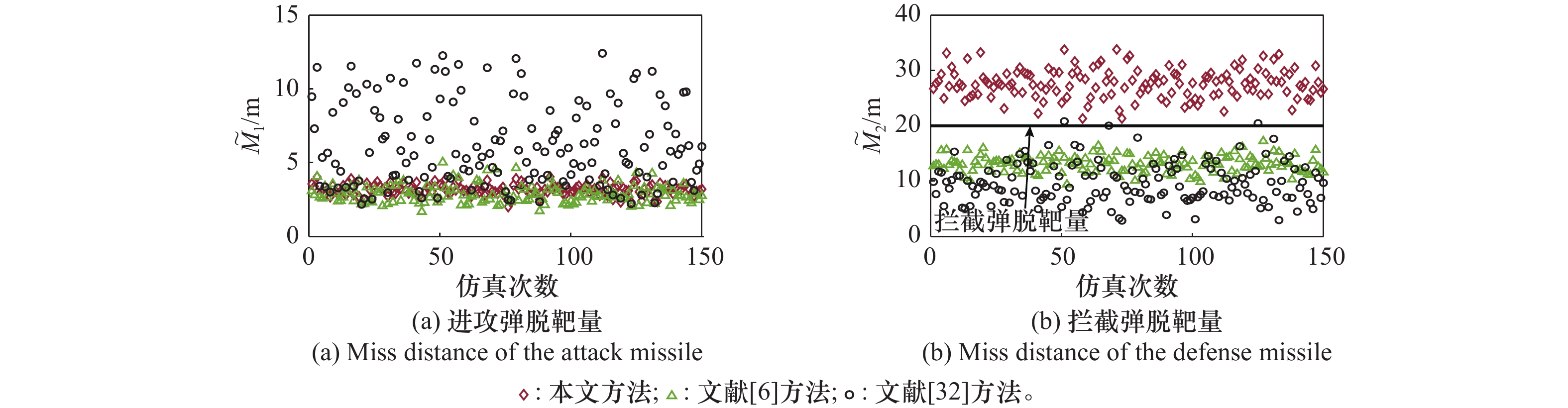

图9

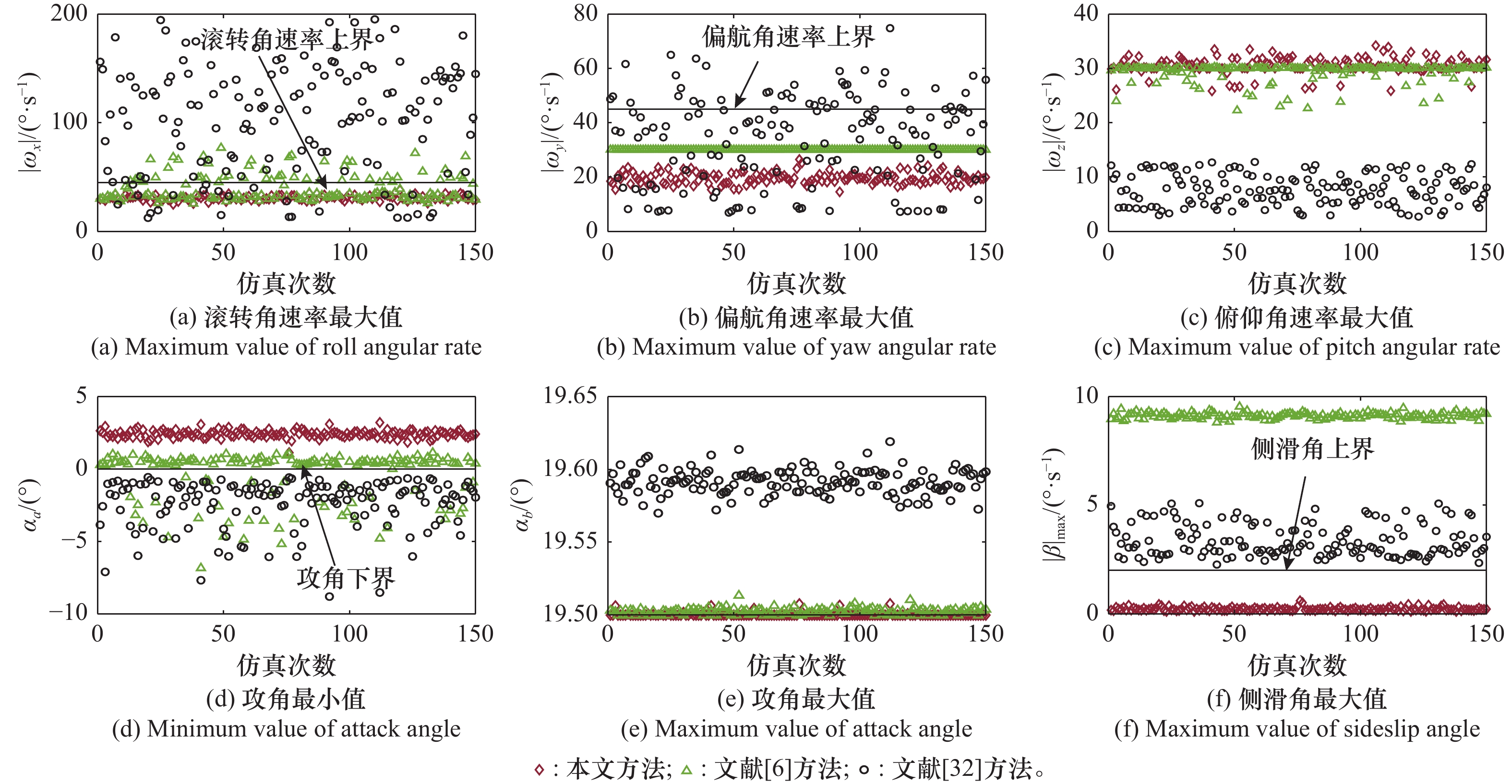

图10

参考文献 32

1	安通, 王鹏, 王建华, 等. 弹性高超声速飞行器动态面制导控制一体化设计方法[J]. 系统工程与电子技术, 2022, 44 (3): 956- 966. doi: 10.12305/j.issn.1001-506X.2022.03.28
	AN T, WANG P, WANG J H, et al. Integrated guidance and control schemes for dynamic surface of flexible hypersonic vehicles[J]. Systems Engineering and Electronics, 2022, 44 (3): 956- 966. doi: 10.12305/j.issn.1001-506X.2022.03.28
2	HE L, YAN X D. Adaptive terminal guidance law for spiral diving maneuver based on virtual sliding targets[J]. Journal of Guidance, Control, and Dynamics, 2018, 41 (7): 1589- 1599.
3	黄鲁豫, 曲鑫, 凡永华, 等. 多约束下的导弹螺旋机动制导控制一体化设计[J]. 宇航学报, 2021, 42 (9): 1108- 1118. doi: 10.3873/j.issn.1000-1328.2021.09.006
	HUANG L Y, QU X, FAN Y H, et al. Integrated guidance and control design for spiral maneuvering missile with multiple constraints[J]. Journal of Astronautics, 2021, 42 (9): 1108- 1118. doi: 10.3873/j.issn.1000-1328.2021.09.006
4	CHEN J Q, SUN R S, LU Y, et al. Adaptive cooperative game penetration guidance for multiple hypersonic vehicles with performance constraints[J]. IEEE Trans. on Aerospace and Electronic Systems, 2024, 60 (4): 5538- 5555. doi: 10.1109/TAES.2024.3392874
5	乔毅涛, 耿飞龙, 张新, 等. 基于最优控制的高超螺旋俯冲轨迹设计[J]. 飞控与探测, 2021, 4 (4): 49- 58.
	QIAO Y T, GENG F L, ZHANG X, et al. Supersonic vehicle spiral dive trajectory design based on optimal control[J]. Flight Control & Detection, 2021, 4 (4): 49- 58.
6	YU X J, LUO S B, LIU H Q. Integrated design of multi-constrained snake maneuver surge guidance control for hypersonic vehicles in the dive segment[J]. Aerospace, 2023, 10 (9): 765. doi: 10.3390/aerospace10090765
7	ZHAO S B, ZHU J W, BAO W M, et al. High-dynamic intelligent maneuvering guidance strategy via deep reinforcement learning[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2023, 237 (11): 2617- 2631. doi: 10.1177/09544100231155695
8	ZHAO B, LIU T Z, XIANG T Y, et al. Cooperative guidance for maneuvering penetration with attack time consensus and bounded input[J]. International Journal of Aeronautical and Space Sciences, 2024, 25 (4): 1395- 1411. doi: 10.1007/s42405-024-00727-3
9	赵斌, 刘天泽. 线偏差控制的螺旋机动突防与导引一体化设计[J]. 宇航学报, 2022, 43 (10): 1333- 1344. doi: 10.3873/j.issn.1000-1328.2022.10.006
	ZHAO B, LIU T Z. Integrated design of maneuvering penetration and guidance based on line deviation control[J]. Journal of Astronautics, 2022, 43 (10): 1333- 1344. doi: 10.3873/j.issn.1000-1328.2022.10.006
10	卫长竖, 赵斌, 赵瑞, 等. 线偏差控制的协同机动突防、导引与控制一体化[J]. 宇航学报, 2024, 45 (6): 924- 934.
	WEI C S, ZHAO B, ZHAO R, et al. Line deviation control of cooperative maneuvering penetration, guidance and control integration[J]. Journal of Astronautics, 2024, 45 (6): 924- 934.
11	LI G J, LIU L, LIU J G, et al. Three-dimensional low-order fixed-time integrated guidance and control for STT missile with strap-down seeker[J]. Journal of The Franklin Institute-Engineering and Applied Mathematics, 2023, 360 (13): 9788- 9811. doi: 10.1016/j.jfranklin.2023.07.028
12	CHAO T, QUAN S M, MA P, et al. Three-dimensional low-order finite-time integrated guidance and control design with side-window constraint[J]. Aerospace Science and Technology, 2022, 121, 107355. doi: 10.1016/j.ast.2022.107355
13	LIANG L C, ZHAO B, ZHOU J, et al. Impact angle controlled integrated guidance and control with input and state constraints[J]. International Journal of Control, 2024, 97 (4): 796- 810. doi: 10.1080/00207179.2023.2175408
14	LI J F, SONG S M, SHI X P. Full state-constrained integrated guidance and control for aerial interceptors with tunnel prescribed performance using integral barrier Lyapunov function[J]. International Journal of Robust and Nonlinear Control, 2024, 34 (12): 8090- 8126. doi: 10.1002/rnc.7384
15	LI G J, WU Y M, LIU J G, et al. Nonlinear transformed function-based adaptive finite-time integrated guidance and control design with full state constraints[J]. Aerospace Science and Technology, 2023, 143, 108723. doi: 10.1016/j.ast.2023.108723
16	LI Z B, DONG Q L, ZHANG X Y, et al. Impact angle-constrained integrated guidance and control for supersonic skid-to-turn missiles using backstepping with global fast terminal sliding mode control[J]. Aerospace Science and Technology, 2022, 122, 107386. doi: 10.1016/j.ast.2022.107386
17	CUI L, ZHEN Z, ZHANG K, et al. Prescribed-time integrated guidance and control for bank to turn reentry vehicle[J]. Aerospace Science and Technology, 2024, 150, 109218. doi: 10.1016/j.ast.2024.109218
18	WANG Z, HAO Y T. Reinforcement learning adaptive risk-sensitive fault-tolerant IGC method for a class of STT missile[J]. Nonlinear Dynamics, 2024, 112 (20): 18195- 18218. doi: 10.1007/s11071-024-09776-5
19	XU W P, LIAO Y X, WANG X, et al. Range-varying sliding mode-based integrated guidance and control for hypersonic vehicle with multi-constraints[J]. International Journal of Robust and Nonlinear Control, 2025, 35 (6): 2383- 2398. doi: 10.1002/rnc.7804
20	XU W P, LIAO Y X, SU J X, et al. Error shaping strategy-based multi-constrained integrated guidance and control for hypersonic vehicle in dive phase[J]. Nonlinear Dynamics, 2025, 113, 14997- 15017. doi: 10.1007/s11071-025-10900-2
21	LUO Y X, SONG J, ZHAO M F, et al. Integrated guidance and control for a hypersonic vehicle with disturbance and measurement noise suppression[J]. IEEE Trans. on Aerospace and Electronic Systems, 2024, 60 (5): 7172- 7184. doi: 10.1109/TAES.2024.3412070
22	HU C F, TANG Y F, MI H P, et al. Tube-based composite fault-tolerant control method for flexible hypersonic vehicle[J]. International Journal of Aeronautical and Space Sciences, 2025, 26 (1): 196- 219. doi: 10.1007/s42405-024-00776-8
23	LIANG X H, WANG Q, HU C H, et al. Fixed-time observer based fault tolerant attitude control for reusable launch vehicle with actuator faults[J]. Aerospace Science and Technology, 2020, 107, 106314. doi: 10.1016/j.ast.2020.106314
24	王忠森, 廖宇新, 魏才盛, 等. 高超声速飞行器快速终端滑模保性能容错控制[J]. 航空学报, 2023, 44 (24): 328476.
	WANG Z S, LIAO Y X, WEI C S, et al. Fast terminal sliding mode fault-tolerant control of hypersonic vehicle with guaranteed performance[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44 (24): 328476.
25	WANG J, ZHANG C, ZHENG C M, et al. Adaptive neural network fault-tolerant control of hypersonic vehicle with immeasurable state and multiple actuator faults[J]. Aerospace Science and Technology, 2024, 152, 109378. doi: 10.1016/j.ast.2024.109378
26	XU S H, WEI C Z, ZHANG L T, et al. Neural network based adaptive nonsingular practical predefined-time fault-tolerant control for hypersonic morphing aircraft[J]. Chinese Journal of Aeronautics, 2024, 37 (4): 421- 435. doi: 10.1016/j.cja.2023.12.020
27	王建华. 高超声速飞行器制导控制一体化设计方法研究[D]. 长沙: 国防科学技术大学, 2017.
	WANG J H. Study on integrated guidance and control design approach for hypersonic vehicles[D]. Changsha: National University of Defense Technology, 2017.
28	WANG X Y, FANG H, DOU L H, et al. Integrated 3-D flight trajectory tracking control with aerodynamic constraints on attitude and control surfaces[J]. Asian Journal of Control, 2018, 20 (5): 1891- 1906. doi: 10.1002/asjc.1696
29	LIAO Y X, LI H F, BAO W M. Three-dimensional diving guidance for hypersonic gliding vehicle via integrated design of FTNDO and AMSTSMC[J]. IEEE Trans. on Industrial Electronics, 2017, 65 (3): 2704- 2715.
30	BU X W, WU X Y, HUANG J Q, et al. A guaranteed transient performance-based adaptive neural control scheme with low-complexity computation for flexible air-breathing hypersonic vehicles[J]. Nonlinear Dynamics, 2016, 84, 2175- 2194. doi: 10.1007/s11071-016-2637-0
31	ZHANG D H, MA P, WANG S Y, et al. Multi-constraints adaptive finite-time integrated guidance and control design[J]. Aerospace Science and Technology, 2020, 107, 106334. doi: 10.1016/j.ast.2020.106334
32	刘达, 赵暾, 张占月. 高超声速飞行器三通道耦合制导律与鲁棒控制律设计[J]. 战术导弹技术, 2023 (5): 97- 103，123.
	LIU D, ZHAO T, ZHANG Z Y. A design of three-channel coupling guidance and robust control system for hypersonic vehicle[J]. Tactical Missile Technology, 2023 (5): 97- 103，123.

仿真参数	数值	仿真参数	数值	仿真参数	数值	仿真参数	数值
${h_0}/{\mathrm{m}}$	30000	${V_0}/({{\mathrm{m}}} /{{\mathrm{s}}} )$	2000	${\alpha _0}/{(^ \circ })$	19.5	$ {\omega _{x0}}{(^ \circ }/{{\mathrm{s}}} ) $	0
${\lambda _0}/{(^ \circ })$	2	${\theta _0}/{(^ \circ })$	−1	${\beta _0}/{(^ \circ })$	0	$ {\omega _{y0}}{(^ \circ }/{{\mathrm{s}}} ) $	0
${\phi _0}/{(^ \circ })$	2	${\psi _0}/{(^ \circ })$	140	${\sigma _0}/{(^ \circ })$	−17	$ {\omega _{z0}}{(^ \circ }/{{\mathrm{s}}} ) $	0
${h_{p0}}/{{\mathrm{m}}} $	0	${\lambda _{p0}}/{(^ \circ })$	1.01	${\phi _{p0}}/{(^ \circ })$	1.01	${V_{p0}}$	30
${\theta _{p0}}/{(^ \circ })$	25	${\psi _{p0}}/{(^ \circ })$	−50	—	—	—	—

飞行器参数	数值	飞行器参数	数值	飞行器参数	数值	飞行器参数	数值
$m/{{\mathrm{kg}}} $	4811.10	${L_r}/{{\mathrm{m}}} $	5.4	${S_r}/{{{\mathrm{m}}} ^2}$	6.202	$ {I_{xx}}/({{\mathrm{kg}}} \cdot {{{\mathrm{m}}} ^2}) $	784.14
$ {I_{yy}}/({{\mathrm{kg}}} \cdot {{{\mathrm{{\mathrm{m}}} }} ^2}) $	7004.88	$ {I_{zz}}/({{\mathrm{kg}}} \cdot {{{\mathrm{m}}} ^2}) $	6607.93	$ {I_{xy}}/({{\mathrm{kg}}} \cdot {{{\mathrm{m}}} ^2}) $	448.99	$ {\alpha _{\min }}/{(^ \circ }) $	0
$ {\alpha _{\max }}/{(^ \circ }) $	0	${\beta _{\max }}/{(^ \circ })$	2	$ {\omega _{x,\max }}/{(^ \circ }/{{\mathrm{s}}} ) $	45	$ {\omega _{y,\max }}/{(^ \circ }/{{\mathrm{s}}} ) $	45
$ {\omega _{z.\max }}/{(^ \circ }/{{{{\mathrm{s}}} }} ) $	45	${\delta _{x,\max }}/{(^ \circ })$	15	${\delta _{y,\max }}/{(^ \circ })$	15	${\delta _{z,\max }}/{(^ \circ })$	15

回路	参数设置
虚拟导引回路	${r_F} = 30$, ${\beta _{g21}} = 1.2$, ${\beta _{g22}} = 1.15$, ${{\boldsymbol{\varepsilon }}_{v1}} = {{\mathrm{diag}}} ({10^{ - 4}},{10^{ - 4}})$, ${v_{v1}} = 1$,
虚拟导引回路	${{\boldsymbol{K}}_{v1}} = {{\mathrm{diag}}} (5,5)$, ${\varepsilon _{v2}} = 2 \times {10^{ - 4}}$, ${\varepsilon _{v3}} = 0.2$
相对机动回路	${r_{ma}} = 3$, ${r_{a1}} = 130\;000$, ${r_{a2}} = 120\;000$, ${r_{a3}} = 40\;000$, ${r_{a4}} = 35\;000$, ${r_{a5}} = 16\;000$, ${r_{mb}} = 250$,
相对机动回路	${k_{c1}} = {k_{c2}} = 2$, ${k_\xi } = 0.5$, ${{\boldsymbol{K}}_{r1}} = {{\boldsymbol{K}}_{r2}} = {{\mathrm{diag}}} (6,8)$, ${{\boldsymbol{K}}_{r3}} = {{\mathrm{diag}}} (10,1)$, ${{\boldsymbol{K}}_{r5}} = {{\mathrm{diag}}} ({10^{ - 4}},{10^{ - 4}})$, ${v_r} = 0.8$
姿控回路	${\sigma _b} = {90^ \circ }$, ${\eta _{11}} = {\eta _{12}} = {\eta _{13}} = 1$, ${K_{11}} = {K_{12}} = {K_{13}} = 50$, ${\eta _{21}} = {\eta _{22}} = {\eta _{23}} = 1$, ${K_{21}} = {K_{22}} = {K_{23}} = 45$,
	${k_1} = {k_2} = 0.5$, ${\rho _1} = {\rho _2} = {10^{ - 5}}$, ${\alpha _1} = 0.8$, ${\beta _1} = 1.2$, ${\bar \eta _{01}} = {\bar \eta _{02}} = 2$, ${\bar \eta _{03}} = 4$, ${\bar \eta _{11}} = {\bar \eta _{12}} = {\bar \eta _{13}} = 10$,
	${\bar \eta _{21}} = {\bar \eta _{22}} = {\bar \eta _{23}} = 1$, ${{\boldsymbol{K}}_h} = {{\mathrm{diag}}} (0.05,0.05,0.05)$, ${{\boldsymbol{L}}_h} = {{\mathrm{diag}}} (1,1,1)$, ${\varepsilon _s} = {10^{ - 4}}$

方法	${V_F}({\mathrm{{m} /s}})$	${\tilde \theta _F}/{(^ \circ })$	${\tilde \psi _F}/{(^ \circ })$	${\tilde M_1}/{{\mathrm{m}}} $	${\tilde M_2}/{{\mathrm{m}}} $
本文方法	1379.7750	0.2038	−0.0048	3.2137	27.6050
文献[6]方法	1304.0830	2.8169	1.4166	2.8476	14.3783
文献[32]方法	1273.3142	−0.2558	−0.2769	5.6659	11.1427
