部分约束下空中目标拦截制导控制一体化方法

doi:10.12305/j.issn.1001-506X.2023.04.22

摘要/Abstract

摘要：

针对拦截空中目标的场景, 提出一种考虑攻击角度的制导控制一体化(integrated guidance and control, IGC)方法, 同时考虑输入饱和以及攻角的约束问题。首先, 在俯仰平面下对包含不确定性的系统进行了建模。基于反演法和指令滤波器, 处理了攻击角度约束问题和执行器机械限制的输入饱和问题, 设计了含误差积分反馈的补偿项以处理跟踪误差, 引入了障碍Lyapunov函数将攻角约束在预设区间。基于Lyapunov理论证明了闭环系统的稳定性和变量的有界性, 以及各约束条件的成立性。仿真实验表明, 方法能够以预设角度有效拦截目标, 过程满足对输入以及攻角的约束条件, 同时具备较强的鲁棒性。

关键词: 制导控制一体化, 攻击角度, 输入饱和, 状态约束, 指令滤波器

Abstract:

An integrated guidance and control (IGC) method with impact angle is proposed to intercept aerial target, constraints including input saturation and angle of attack are considered as well. Firstly, system with lumped uncertainties is modeled in pitch plane. Based on backstepping and command filter, constraints of impact angle and input saturation due to mechanical limitation of actuator are solved, signals with integration of error are constructed to handle with tracking errors. To guarantee the angle of attack within a predefined interval, barrier Lyapunov function is introduced. Based on Lyapunov theorem, stability of closed system, boundness of signals, and required constraints are proved. Numerical simulations exhibit effectiveness of interception with predefined impact angle for aerial target, constraints satisfied including input saturation and angle of attack, strong robustness also possessed of the method.

Key words: integrated guidance and control (IGC), impact angle, input saturation, state constraint, command filter

中图分类号:

V448.13

梁乐成, 赵斌, 周军, 赵万利. 部分约束下空中目标拦截制导控制一体化方法[J]. 系统工程与电子技术, 2023, 45(4): 1134-1143.

Lecheng LIANG, Bin ZHAO, Jun ZHOU, Wanli ZHAO. Integrated guidance and control method against aerial target with partial constraints[J]. Systems Engineering and Electronics, 2023, 45(4): 1134-1143.

图/表 18

图1

表1

表2

图2

图3

图4

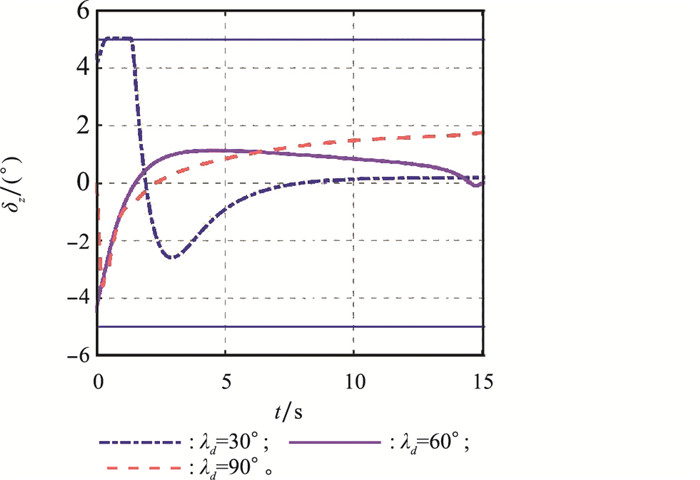

图5

图6

表3

图7

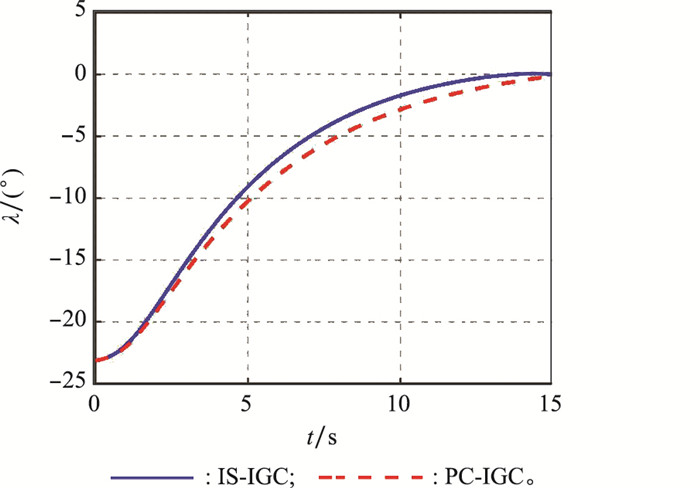

图8

图9

图10

表4

图11

图12

图13

图14

参考文献 31

1	PARK J , KIM Y , KIM J H . Integrated guidance and control using model predictive control with flight path angle prediction against pull-up maneuvering target[J]. Sensors, 2020, 20 (11): 1- 17. doi: 10.1109/JSEN.2020.2986632
2	ZHAO Z H , LI C T , YANG J , et al. Output feedback continuous terminal sliding mode guidance law for missile-target interception with autopilot dynamics[J]. Aerospace Science and Technology, 2019, 86, 256- 267. doi: 10.1016/j.ast.2019.01.012
3	GUO J G , ZHENG X Y , ZHOU J . Adaptive sliding mode control for high-order system with mismatched disturbances[J]. Science China, 2020, 63 (7): 250- 252.
4	SONG S H . H_∞ approach to performance analysis of missile control systems with proportional navigation guidance laws[J]. Journal of Electrical Engineering and Technology, 2021, 16 (2): 1083- 1088. doi: 10.1007/s42835-020-00617-0
5	王晓海, 孟秀云, 周峰, 等. 基于偏置比例导引的落角约束滑模制导律[J]. 系统工程与电子技术, 2021, 43 (5): 1295- 1302.
	WANG X H , MENG X Y , ZHOU F , et al. Sliding mode guidance law with impact angle constraint based on bias proportional navigation[J]. Systems Engineering and Electronics, 2021, 43 (5): 1295- 1302.
6	薛文超, 黄朝东, 黄一. 飞行导引控制一体化设计方法综述[J]. 控制理论与应用, 2013, 30 (12): 1511- 1520.
	XUE W C , HUANG C D , HUANG Y . Design methods for the integrated guidance and control system[J]. Control Theory and Applications, 2013, 30 (12): 1511- 1520.
7	CUI L , JIN N . Prescribed-time ESO-based prescribed-time control and its application to partial IGC design[J]. Nonlinear Dynamics, 2021, 106, 491- 508. doi: 10.1007/s11071-021-06859-5
8	王建华, 刘鲁华, 王鹏, 等. 高超声速飞行器俯冲段制导控制一体化设计方法[J]. 航空学报, 2017, 38 (3): 202- 214.
	WANG J H , LIU L H , WANG P , et al. Integrated guidance and control for hypersonic vehicles in dive phase[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38 (3): 202- 214.
9	张跃坤, 贾晓洪, 张晓阳, 等. 基于有限时间收敛干扰观测器的探导控一体化设计[J]. 系统工程与电子技术, 2021, 43 (5): 1326- 1334.
	ZHANG Y K , JIA X H , ZHANG X Y , et al. Integrated design of detection guidance and control based on finite time disturbance observer[J]. Systems Engineering and Electronics, 2021, 43 (5): 1326- 1334.
10	WANG X , TAN C P , ZHOU D . Observer-based PIGC for missiles with impact angle constraint[J]. IEEE Trans.on Aerospace and Electronic Systems, 2018, 55 (5): 2226- 2240.
11	赖超, 王卫红, 周本春, 等. 三维攻击角度约束部分制导控制一体化设计[J]. 宇航学报, 2019, 40 (8): 937- 947.
	LAI C , WANG W H , ZHOU B C , et al. Three-dimensional partial integrated guidance and control with impact angle constraints[J]. Journal of Astronautics, 2019, 40 (8): 937- 947.
12	CHANG J , GUO Z , CIESLAK J , et al. Integrated guidance and control design for the hypersonic interceptor based on adaptive incremental backstepping technique[J]. Aerospace Science and Technology, 2019, 89 (6): 318- 332.
13	WANG X H , WANG J Z . Partial integrated missile guidance and control with finite time convergence[J]. Journal of Guidance Control and Dynamics, 2013, 36 (5): 1399- 1409. doi: 10.2514/1.58983
14	WANG X H, XIAO L. Partial integrated guidance and control for missiles considering actuator fault and saturation[C]//Proc. of the IEEE 29th Chinese Control and Decision Conference, 2017: 5097-5102.
15	WANG P M , ZHANG X , ZHU J T . Integrated missile guidance and control: a novel explicit reference governor using a disturbance observer[J]. IEEE Trans.on Industrial Electronics, 2019, 66 (7): 5487- 5496.
16	李晓光, 刘金琨. 面向偏微分方程的连续反演控制算法综述[J]. 控制理论与应用, 2012, 29 (7): 825- 832.
	LI X G , LIU J K . Continuum backstepping control algorithms in partial differential equation orientation: a review[J]. Control Theory and Applications, 2012, 29 (7): 825- 832.
17	SWAROOP D, GERDES J C, YIP P P, et al. Dynamic surface control of nonlinear systems[C]//Proc. of the IEEE 16th American Control Conference, 1997: 3028-3034.
18	HE S M , SONG T , LIN D . Impact angle constrained integrated guidance and control for maneuvering target interception[J]. Journal of Guidance Control and Dynamics, 2017, 40 (10): 2653- 2661.
19	HOU M Z , LIANG X L , DUAN G R , et al. Adaptive block dynamic surface control for integrated missile guidance and autopilot[J]. Chinese Journal of Aeronautics, 2013, 26 (3): 741- 750.
20	ZHANG C , WU Y J . Non-singular terminal dynamic surface control based integrated guidance and control design and simulation[J]. ISA Trans.ctions, 2016, 63, 112- 120.
21	MING C , WANG X M , SUN R S . A novel non-singular terminal sliding mode control-based integrated missile guidance and control with impact angle constraint[J]. Aerospace Science and Technology, 2019, 94, 105368- 105380.
22	WANG W H , XIONG S F , WANG S , et al. Three-dimensional impact angle constrained integrated guidance and control for missiles with input saturation and actuator failure[J]. Aerospace Science and Technology, 2016, 53 (6): 169- 187.
23	KHANKALANTARY S , SHEIKHOLESLAM F . Robust extended state observer based three-dimensional integrated guidance and control design for interceptors with impact angle and input saturation constraints[J]. ISA Trans.ctions, 2020, 104, 299- 309.
24	CHEN K . Full state constrained stochastic adaptive integrated guidance and control for STT missiles with non-affine aerodynamic characteristics[J]. Information Sciences, 2020, 529, 42- 58.
25	ZHANG D H , MA P , WANG S Y , et al. Multi-constraints adaptive finite-time integrated guidance and control design[J]. Aerospace Science and Technology, 2020, 107, 106334.
26	CHEN M , GE S S , REN B . Adaptive tracking control of uncertain MIMO nonlinear systems with input constraints[J]. Automatica, 2011, 47 (3): 452- 465.
27	MORENO J A , OSORIO M . Strict Lyapunov functions for the super-twisting algorithm[J]. IEEE Trans.on Automatic Control, 2012, 57 (4): 1035- 1040.
28	REN B , GE S S , TEE K P , et al. Adaptive neural control for output feedback nonlinear systems using a barrier Lyapunov function[J]. IEEE Trans.on Neural Networks, 2010, 21 (8): 1339- 1345.
29	LI Y X . Barrier Lyapunov function-based adaptive asymptotic tracking of nonlinear systems with unknown virtual control coefficients[J]. Automatica, 2020, 121, 109181.
30	TEE K P , GE S S , TAY E H . Barrier Lyapunov functions for the control of output constrained nonlinear systems[J]. Automatica, 2009, 45 (4): 918- 927.
31	AI X L , SHEN Y C , WANG L L . Adaptive integrated guidance and control for impact angle constrained interception with actuator saturation[J]. The Aeronautical Journal, 2019, 123 (1267): 1437- 1453.

导弹参数	数值	导弹参数	数值
θ_M(0)/(°)	10	V_M/(m·s^-1)	500
θ_T(0)/(°)	180	V_T/(m·s^-1)	200
x(0)/m	8 000	y(0)/m	6 000

参数	数值	参数	数值	观测器参数	数值
k₁	0.2	k₃	25	b₁, b₃, b₅	300
k₂	10	β₁	1.2	b₂, b₄, b₆	600
τ₂	0.06	β₃	20

仿真条件	脱靶量/m	飞行时间/s
λ_d=30°	0.066 7	15.003
λ_d=60°	0.071 3	15.166
λ_d=90°	0.091 6	16.042

来源	参数	拉偏量/%
结构参数	m, S, L, J_z	±20
气动参数	c_y^α, c_y^z^δ, m_z^α, m_z^z^δ, m_z^ω_z	±20
