低轨质量矩航天器姿态动力学与气动补偿控制

doi:10.12305/j.issn.1001-506X.2025.06.25

摘要/Abstract

摘要：

针对气动偏心力矩严重干扰超低轨卫星姿态控制性能的问题, 提出一种基于质量矩技术的微纳卫星气动干扰力矩自适应动态补偿控制方法, 实现对气动偏心力矩的精确观测与快速补偿。针对基于滚珠丝杠副的质量矩驱动方式, 考虑机构传动摩擦, 建立质量矩卫星转动、平动和执行机构平动的完整动力学模型, 明确各项参数对扰动力矩的影响。针对气动环境不确定和卫星质心未知问题, 设计基于径向基函数(radial basis function, RBF)干扰观测器、滑模控制器与积分分离式比例-积分-微分(proportional-integral-derivation, PID)控制器的自适应动态补偿方案。仿真结果表明, 所提补偿控制方法能够精确估计并补偿气动力矩干扰, 有效消除质量矩机构摩擦力影响, 验证了气动补偿控制方法的有效性。

关键词: 超低轨卫星, 姿态控制, 气动力矩, 摩擦特性, 滑模控制

Abstract:

Aiming at the serious interference of aerodynamic eccentric moment on the attitude control performance of ultra-low Earth orbit satellites, an adaptive dynamic compensation control method for micro-nano satellites based on mass moment technology is proposed. For the mass moment drive method based on ball screw pairs, considering the mechanism transmission friction, a complete dynamic model of mass moment satellite rotation, translation, and actuator translation is established to clarify the influence of various parameters on disturbance moment. To address the uncertainties in the aerodynamic environment and the unknown center of mass of the satellite, an adaptive dynamic compensation scheme is designed, which includes a radial basis function (RBF)-based disturbance observer, a sliding mode controller, and an integral separated proportional-integral-derivation (PID) controller. Simulation results show that the proposed compensation control method can accurately estimate and compensate for aerodynamic moment disturbances and effectively eliminate the influence of friction in the mass moment mechanism, and validate the effectiveness of the proposed aerodynamic compensation control method.

Key words: ultra-low Earth orbit satellite, attitude control, aerodynamic moment, friction characteristics, sliding mode control

中图分类号:

TN974

陆正亮, 李镓彤, 胡远东, 廖文和. 低轨质量矩航天器姿态动力学与气动补偿控制[J]. 系统工程与电子技术, 2025, 47(6): 1975-1984.

Zhengliang LU, Jiatong LI, Yuandong HU, Wenhe LIAO. Attitude dynamics and aerodynamic compensation control of low-orbit mass moment spacecraft[J]. Systems Engineering and Electronics, 2025, 47(6): 1975-1984.

图/表 13

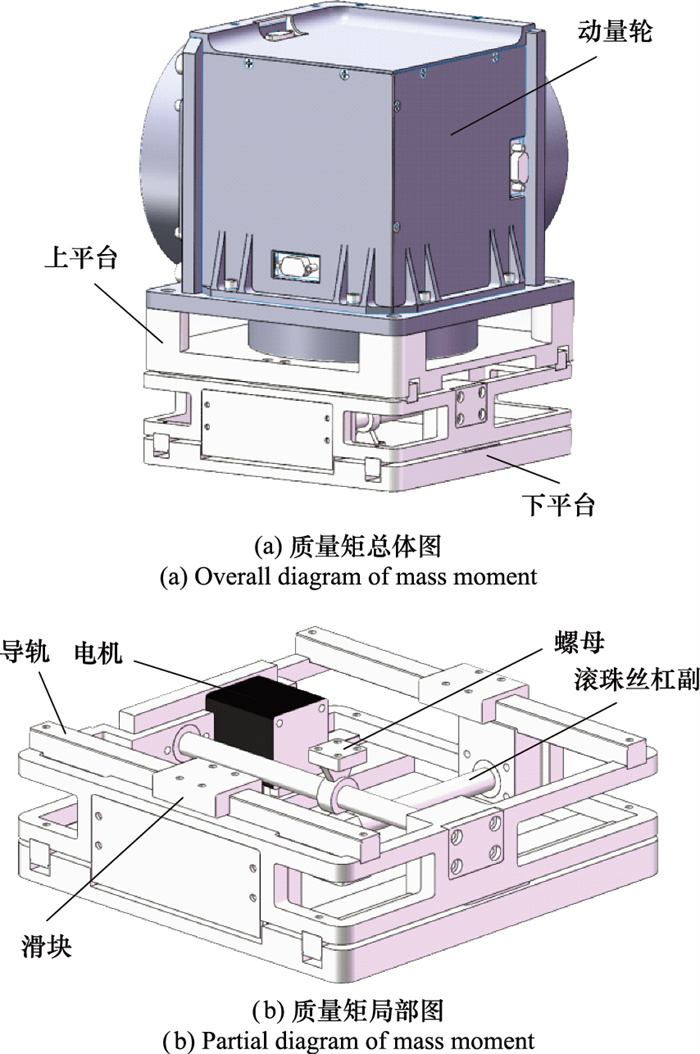

图1

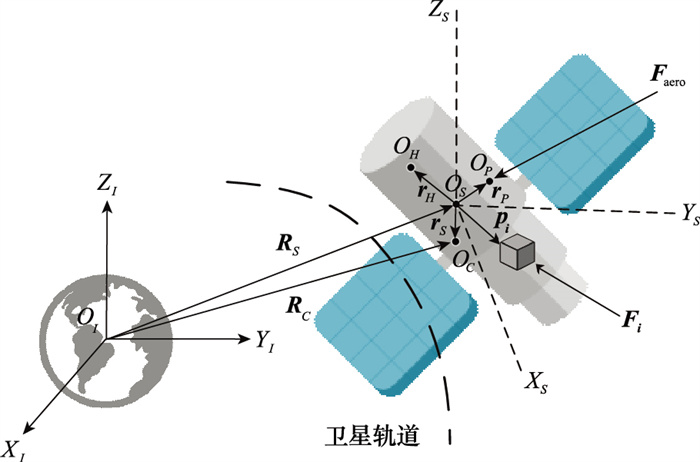

图2

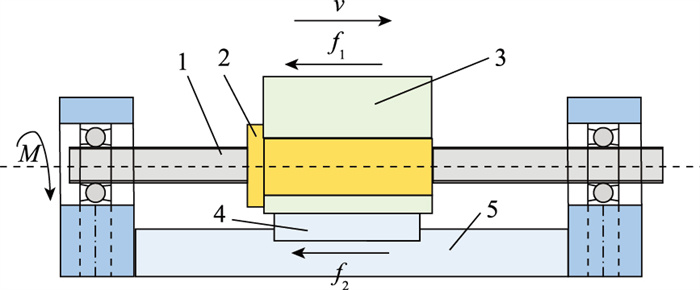

图3

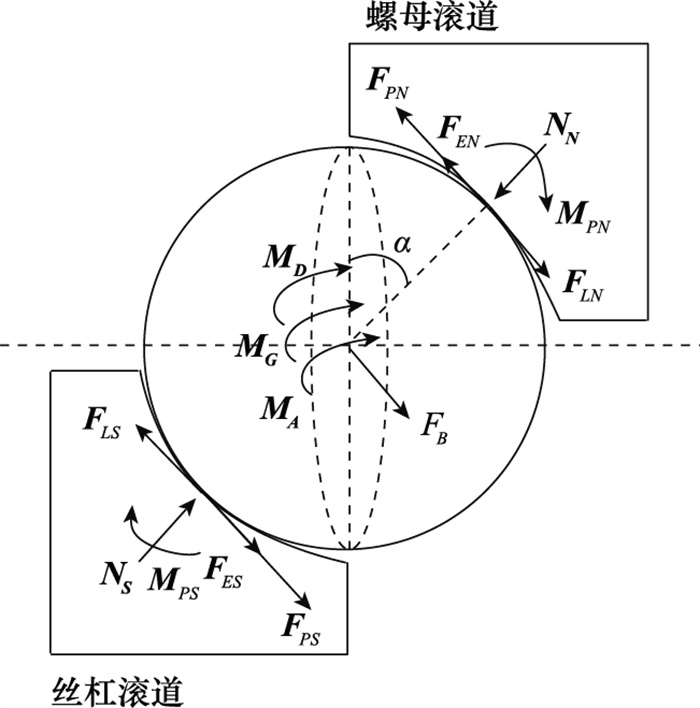

图4

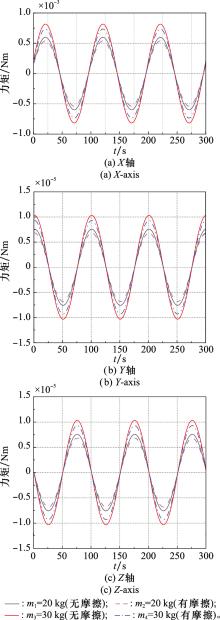

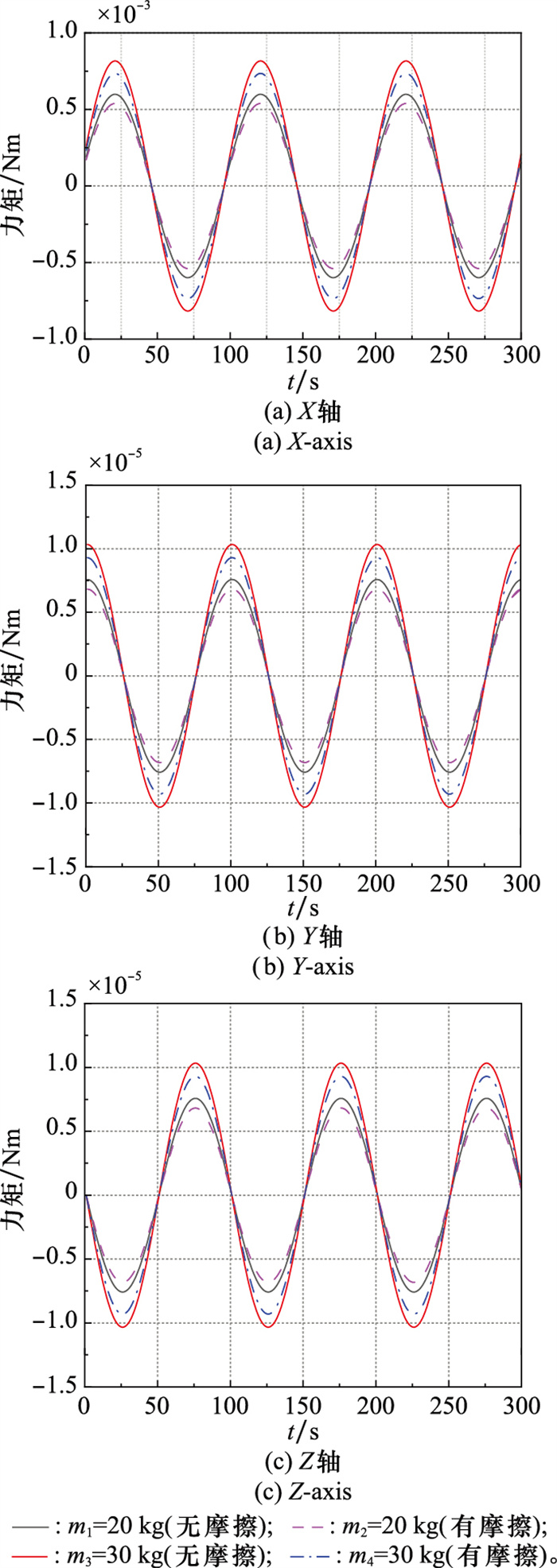

图5

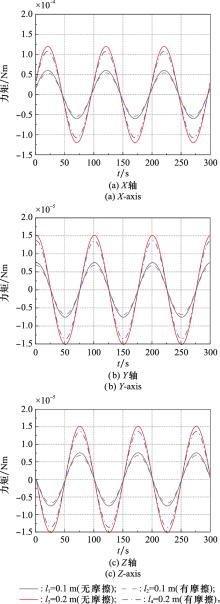

图6

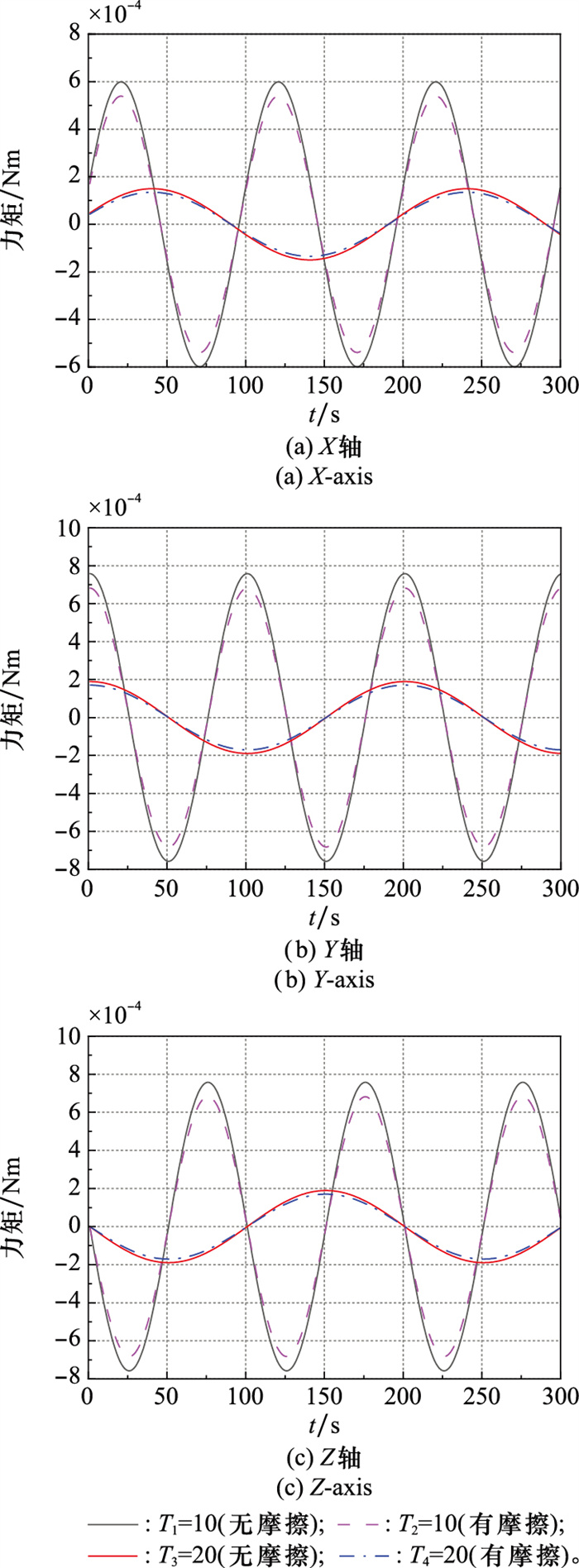

图7

表1

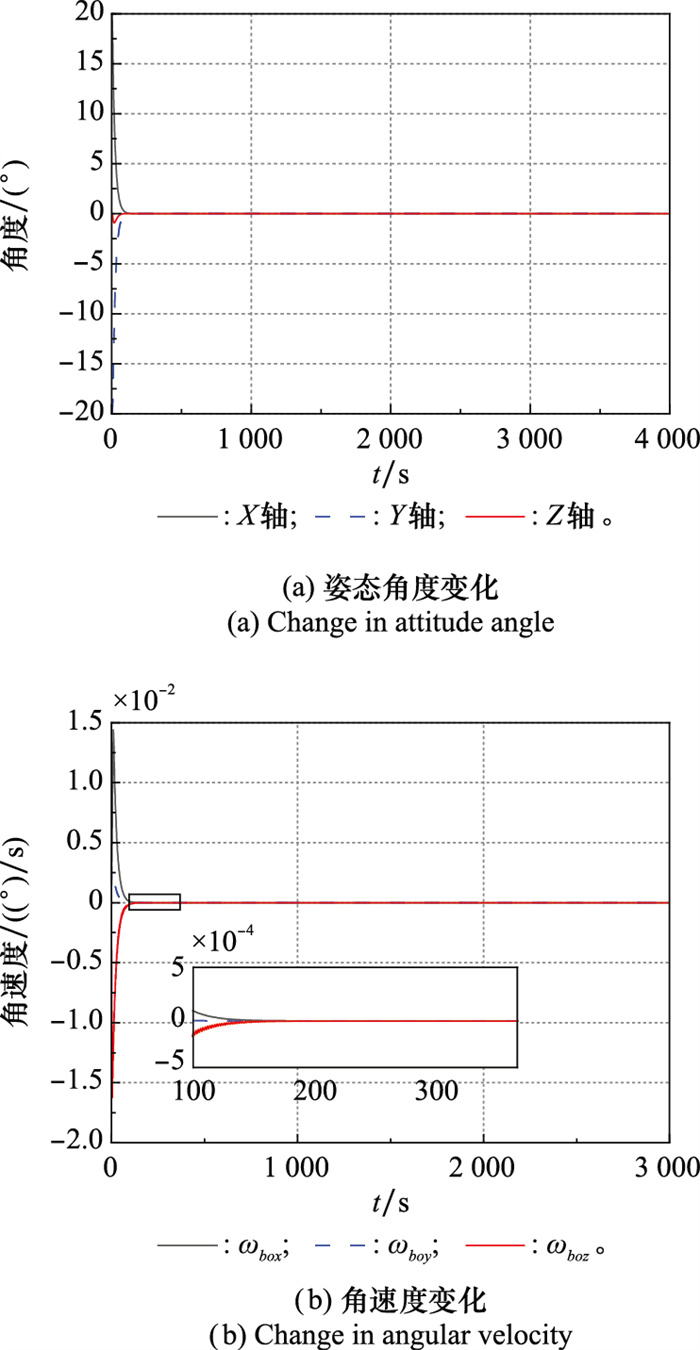

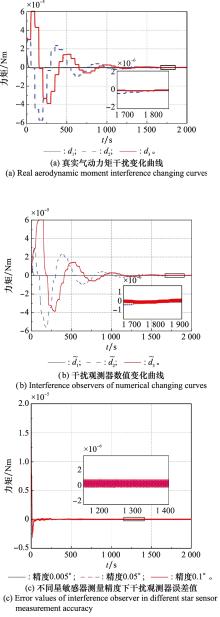

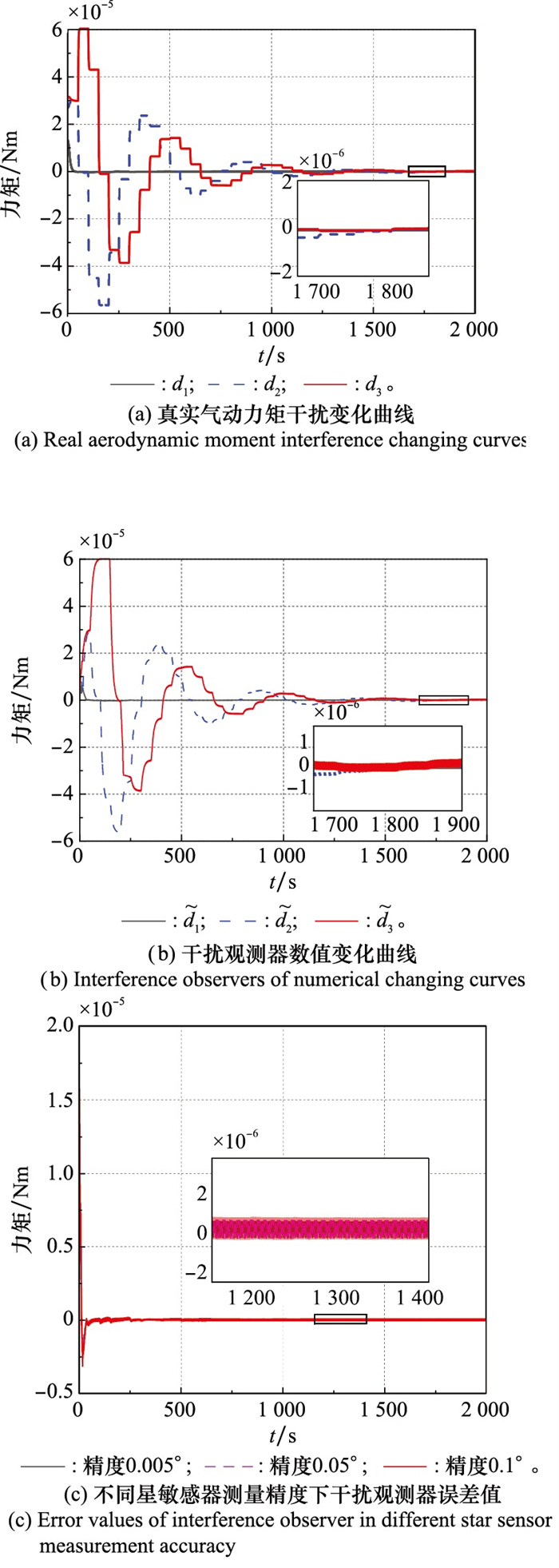

图8

图9

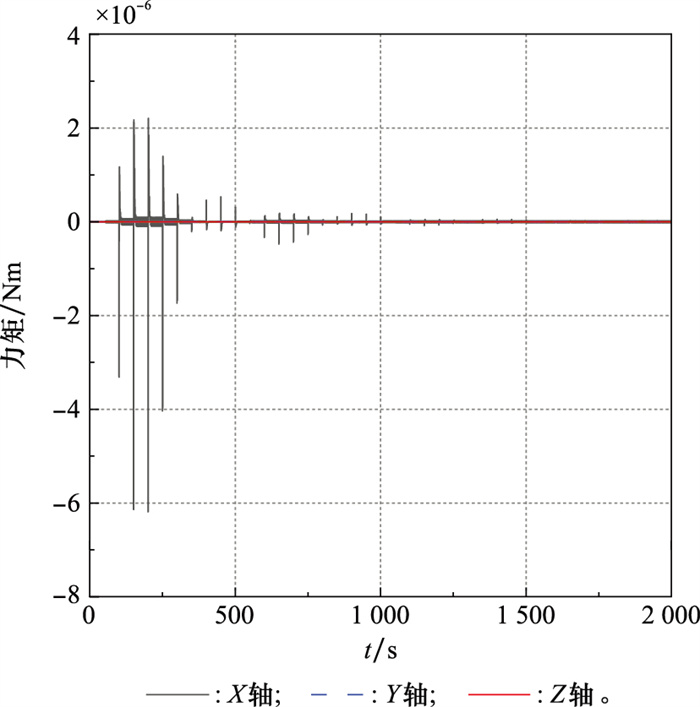

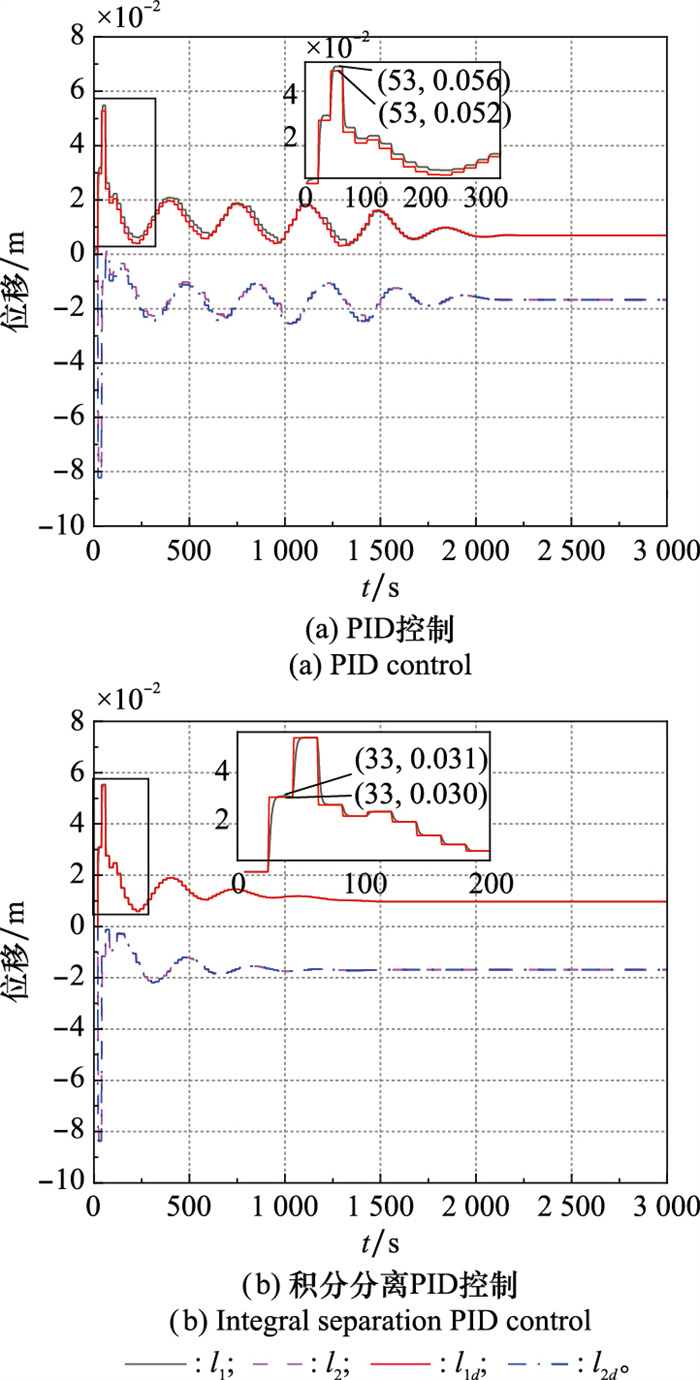

图10

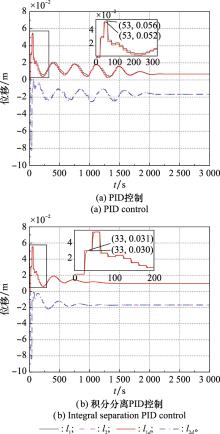

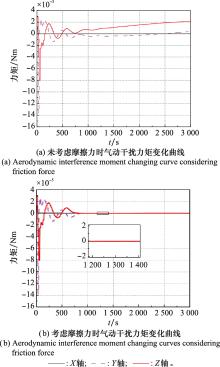

图11

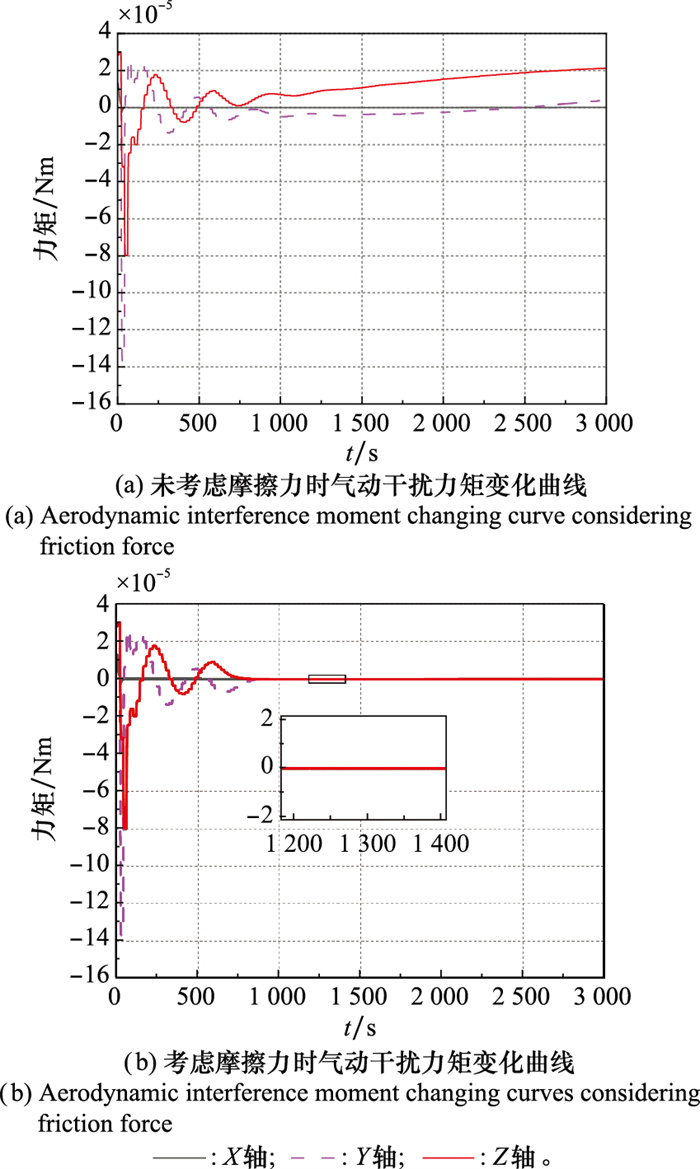

图12

参考文献 30

1	WANGG P,WANG,SUZ J,et al.High-performance on-orbit intelligent computing and real-time services for remote sensing satellites based on space large-scale computing power[J].IEEE Access, doi: 10.1109/ACCESS.2025.3573932
2	CHEN L Y, GUI H C, XIAO S T. Aerodynamic attitude control of ultra-low Earth orbit satellite[C]//Proc. of the International Conference on Guidance, Navigation and Control, 2022: 5898-5908.
3	王晓亮,姚小松,高爽,等.超低轨卫星气动阻力特性[J].上海交通大学学报,2022,56(8):1089-1100.
	WANGX L,YAOX S,GAOS,et al.Aerodynamic drag cha-racteristics of ultra-low orbit satellites[J].Journal of Shanghai Jiaotong University,2022,56(8):1089-1100.
4	陆正亮,谢昊东,倪涛,等.微纳卫星变轨机动段姿态复合控制技术研究[J].北京航空航天大学学报, doi: 10.13700/j.bh.1001-5965.2023.0688
	LUZ L,XIEH D,NIT,et al.Research on attitude composite control technology of micro-nano satellite orbit change maneuvering section[J].Journal of Beijing University of Aeronautics and Astronautics, doi: 10.13700/j.bh.1001-5965.2023.0688
5	ALTMANN J, SUTER D. Survey of the status of small and very small missiles[EB/OL]. [2024-08-26]. https://eldorado.tu-dortmund.de/server/api/core/bitstreams/6ce2aed6-8156-43a4-a338-d1d85eeef704/content
6	LIG L,YANGM,WANGS Y,et al.Modified rolling gui-dance law for single moving mass controlled reentry vehicle against maneuvering target with impact angle constraints[J].Chinese Journal of Aeronautics,2022,35(6):226-239. doi: 10.1016/j.cja.2021.08.026
7	XIEY C,LEIY J,GUOJ X,et al.Spacecraft dynamics and control[M].Singapore:Springer,2022.
8	RENZ J,LIC Y,WUK,et al.Design modeling and experimental investigation of a novel solar sail with high area-to-mass ratios for efficient solar sailing[J].Chinese Journal of Aeronautics,2024,37(10):234-248. doi: 10.1016/j.cja.2024.01.033
9	DASA K,ACHARYYAK,MANKODIT K,et al.Fluidic thrust vector control of aerospace vehicles: state-of-the-art review and future prospects[J].Journal of Fluids Engineering,2023,145(8):080801. doi: 10.1115/1.4062109
10	BONGW.Solar sail attitude control and dynamics, part 2[J].Journal of Guidance, Control, and Dynamics,2004,27(4):536-544. doi: 10.2514/1.11133
11	CHILDSD W.A movable-mass attitude-stabilization system for artificial space stations[J].Journal of Spacecraft and Rockets,1971,8(8):829-834. doi: 10.2514/3.30328
12	陆正亮,张翔,于永军,等.使用固体火箭发动机的快速机动卫星质量矩控制研究[J].推进技术,2017,38(5):1165-1172.
	LUZ L,ZHANGX,YUY J,et al.Study on rapid maneuver satellite mass moment control using solid rocket motors[J].Propulsion Technology,2017,38(5):1165-1172.
13	钱鹏俊,廖文和,陆正亮,等.质量矩固体推进微纳卫星自适应反演控制律设计[J].推进技术,2022,43(1):281-289.
	QIANP J,LIAOW H,LUZ L,et al.Design of adaptive in version control law for mass-moment solid propulsion micro-nano satellites[J].Propulsion Technology,2022,43(1):281-289.
14	QIANY J,LIJ Q,ZHANGH L.Formation control of sate-llites in low Earth orbit by using moving masses[J].Aerospace Science and Technology,2023,132,108073. doi: 10.1016/j.ast.2022.108073
15	CRISPN H,ROBERTSP C E,LIVADIOTTIS,et al.In-orbit aerodynamic coefficient measurements using SOAR (satellite for orbital aerodynamics research)[J].Acta Astronautica,2021,180,85-99. doi: 10.1016/j.actaastro.2020.12.024
16	CHEN L Y, GUI H C, XIAO S T. Aerodynamic attitude control of ultra-low Earth orbit satellite[C]//Proc. of the International Conference on Guidance, Navigation and Control, 2022: 5898-5908.
17	陆正亮,张翔,于永军,等.纳卫星变轨段质量矩姿态控制系统设计[J].航空学报,2017,38(6):242-252.
	LUZ L,ZHANGX,YUY J,et al.Design of a mass moment attitude control system for nanosatellite orbit transfer phase[J].Acta Aeronautica et Astronautica Sinica,2017,38(6):242-252.
18	LUZ L,HUY D,LIAOW H,et al.Attitude control of the low Earth orbit CubeSat using a moving mass actuator[J].Journal of Aerospace Engineering: Part G,2022,236(10):1999-2009.
19	WANG M, CHAI B, SUN T W. Theoretical and experimental study of friction torque of ball screw mechanism considering lubrication[C]//Proc. of the IEEE 12th International Conference on Mechanical and Intelligent Manufacturing Technologies, 2021: 122-127.
20	陈勇将,汤文成.微型滚珠丝杠副摩擦力矩模型的建立与实验验证[J].东南大学学报(自然科学版),2011,41(5):982-986. doi: 10.3969/j.issn.1001-0505.2011.05.017
	CHENY J,TANGW C.Friction torque model of miniature ball screw: establishment and verification[J].Journal of Southeast University (Natural Science Edition),2011,41(5):982-986. doi: 10.3969/j.issn.1001-0505.2011.05.017
21	LIC Y,XUM T,SONGW J,et al.A review of static and dynamic analysis of ball screw feed drives, recirculating linear guideway, and ball screw[J].International Journal of Machine Tools and Manufacture,2023,188,104021. doi: 10.1016/j.ijmachtools.2023.104021
22	LIUJ L,MAC,WANGS L.Precision loss modeling method of ball screw pair[J].Mechanical Systems and Signal Processing,2020,135,106397. doi: 10.1016/j.ymssp.2019.106397
23	GAMBHIRES J,KISHORED R,LONDHEP S,et al.Review of sliding mode based control techniques for control system applications[J].International Journal of Dynamics and Control,2021,9(1):363-378. doi: 10.1007/s40435-020-00638-7
24	陆正亮. 快速机动卫星质量矩姿态控制技术研究[D]. 南京: 南京理工大学, 2018.
	LU Z L. Research on rapid maneuver satellite mass moment attitude control technology[D]. Nanjing: Nanjing University of Science and Technology, 2018.
25	FENGH,SONGQ Y,MAS L,et al.A new adaptive sliding mode controller based on the RBF neural network for an electro-hydraulic servo system[J].ISA Transactions,2022,129(1):472-484.
26	BROGLIATOB,POLYAKOVA.Digital implementation of sliding-mode control via the implicit method: a tutorial[J].International Journal of Robust and Nonlinear Control,2021,31(9):3528-3586. doi: 10.1002/rnc.5121
27	DINGS H,HOUQ K,WANGH.Disturbance-observer-based second-order sliding mode controller for speed control of PMSM drives[J].IEEE Trans.on Energy Conversion,2022,38(1):100-110.
28	STANFIELDK S,YOUNESA B.Dual attitude representations and kinematics for six-degree-of-freedom spacecraft dynamics[J].IEEE Access,2023,11,34349-34358. doi: 10.1109/ACCESS.2023.3263146
29	SRIVASTAVAV K,MISHRAP,RAMAKRISHNAB N.Satellite ephemeris prediction for the Earth orbiting satellites[J].Aerospace Systems,2021,4(4):323-334. doi: 10.1007/s42401-021-00092-z
30	ENDESHAWL.Investigation of atmospheric anomalies due to the great Tohoku earthquake disturbance using NRLMSISE-00 atmospheric model measurement[J].Pure and Applied Geophysics,2024,181,1455-1478. doi: 10.1007/s00024-024-03476-2

参数名称	参数值
质量	卫星壳体质量: 80 kg
质量	质量矩滑块质量: 20 kg
卫星参数	初始质心位置: [0.012 －0.003 0.009]mm
	转动惯量:
	壳体: $\left[\begin{array}{ccc}1664 & -8.1 & 16.63 \\-8.1 & 1329 & -26 \\16.63 & -26 & 600\end{array}\right] \times 10^{-2} \mathrm{~kg} / \mathrm{m}^2$
	滑块: $\left[\begin{array}{ccc}13 & 0 & 0 \\0 & 13 & 0 \\0 & 0 & 13\end{array}\right] \times 10^{-2} \mathrm{~kg} / \mathrm{m}^2$
初始姿态	初始姿态欧拉角: [20, －20, 0]^T/(°)
初始姿态	初始角速度: [0.5 0.5 0.5]^T/(°/s)
控制参数	姿态控制环参数: k=0.7, c=2
	干扰观测器参数: K=0.1
	积分分离PID参数: p=7, i=1, d=18
滚珠丝杠参数	公称直径: 5 mm
	弹性模量: 200 GPa
	黏度系数: 0.04
	丝杠导程: 2 mm
	滚珠直径: 1 mm
	摩擦系数: 0.002
	泊松比: 0.3
	滚珠数: 20
	黏压系数: 22 nm/N
