基于改进CCGA的岸基无源传感器协同运用优化方法

doi:10.12305/j.issn.1001-506X.2026.10.12

摘要/Abstract

摘要：

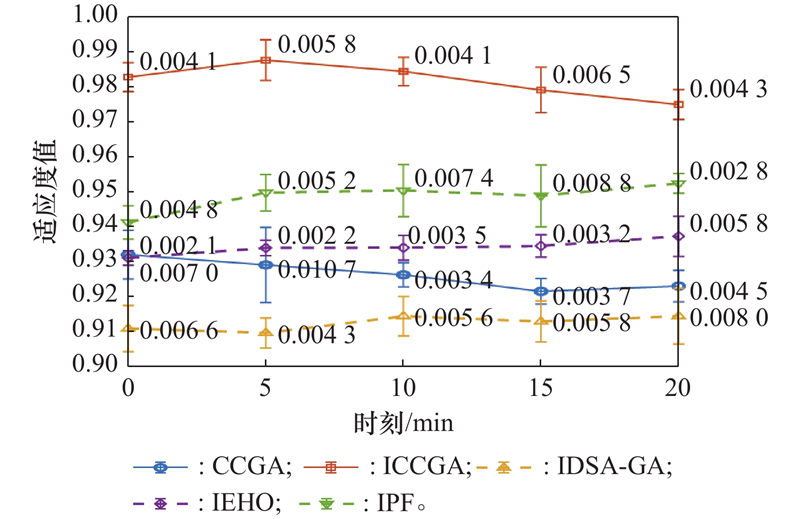

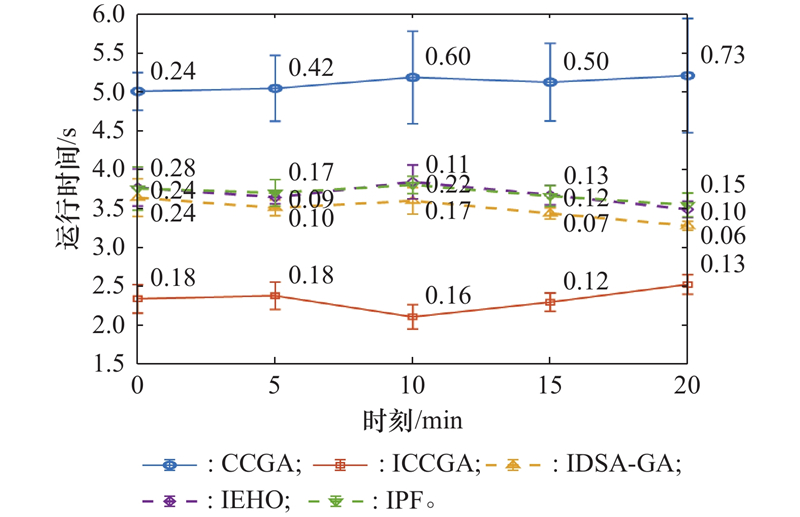

针对岸基无源传感器在复杂电磁环境下协同探测效能优化问题，提出一种基于改进合作型进化遗传算法（improved cooperative co-evolutionary genetic algorithm, ICCGA）的协同运用优化方法。该方法通过构建多传感器协同探测模型，引入自适应交叉和自适应变异操作，实现动态传感器资源分配，可有效解决传统优化算法在应对高维、多目标优化时存在的早熟收敛和计算效率低下的问题。仿真结果表明，所提算法与其他主流优化算法相比在适应度值上平均提升5.54%，系统运行时间上平均提升40.31%，为岸基无源传感器体系协同运用提供了有效的技术支撑。

关键词: 改进合作型协同进化遗传算法, 传感器调度, 协同运用, 目标跟踪, 区域搜索

Abstract:

Addressing the issue of optimizing the collaborative detection efficiency of the shore-based passive sensor in complex electromagnetic environments, an improved cooperative co-evolutionary genetic algorithm （ICCGA） is proposed for collaborative application optimization. This method constructs a multi-sensor collaborative detection model and introduces adaptive crossover and adaptive mutation operations to achieve dynamic sensor resource allocation. It effectively solves the problems of premature convergence and low computational efficiency that traditional optimization algorithms face when dealing with high-dimensional and multi-objective optimization. Simulation results show that, compared with other mainstream optimization algorithms, the proposed algorithm has an average increase of 5.54% in the fitness value and an average increase of 40.31% in the system running time, which provides an effective technical support for the cooperative application of shore-based passive sensor system.

Key words: improved cooperative co-evolutionary genetic algorithm (ICCGA), sensor scheduling, collaborative application, target tracking, area search

中图分类号:

TN 971

王德友, 安永旺, 段永胜. 基于改进CCGA的岸基无源传感器协同运用优化方法[J]. 系统工程与电子技术, 2026, 48(10): 3393-3403.

Deyou Wang, Yongwang An, Yongsheng Duan. Optimization method of cooperative application of shore-based passive sensor based on improved CCGA[J]. Systems Engineering and Electronics, 2026, 48(10): 3393-3403.

图/表 21

图1

表1

表2

图2

图3

表3

表4

表5

图4

图5

图6

图7

图8

表6

图9

图10

表7

表8

表9

图11

图12

参考文献 36

1	Long X, Cai W W, Yang L P, et al. Mission scheduling of multi-sensor collaborative observation for space surveillance network[J]. Journal of Systems Engineering and Electronics, 2023, 34 (4): 906. doi: 10.23919/JSEE.2023.000104
2	Abhishek G, Angela P S. Sensor query schedule and sensor noise covariances for accuracy-constrained trajectory estimation[J]. IEEE Robotics and Automation Letters, 2025, 10 (7): 6983. doi: 10.1109/LRA.2025.3570948
3	Xu G G, Shan G L, Duan X S. Sensor scheduling for ground maneuvering target tracking in presence of detection blind zone[J]. Journal of Systems Engineering and Electronics, 2020, 31 (4): 692. doi: 10.23919/JSEE.2020.000044
4	Varposhti M. Distributed homology-based sensor selection and scheduling in wireless sensor networks[J]. Journal of Supercomputing, 2024, 80 (5): 6601. doi: 10.1007/s11227-023-05716-z
5	Zhang Y P, Fu Q, Shan G L, et al. Scheduling method for multi-sensor cooperative area search and target tracking[J]. Journal of Beijing University of Aeronautics and Astronautics, 2024, 50 (3): 853. doi: 10.1109/icwcsg53609.2021.00018
6	Mustapha R S, Daoud B, Farouk S, et al. Static wireless sensor networks deployment using an improved binary PSO[J]. International Journal of Communication Systems, 2016, 29 (5): 1026. doi: 10.1002/dac.3040
7	Wei W F, Liu C Y, Wang C, et al. Multi-sensor scheduling method based on cuckoo and particle swarm optimization algorithm[J]. Journal of Physics: Conference Series, 2020, 1651 (1): 012064. doi: 10.1088/1742-6596/1651/1/012064
8	Hmedi H, Carroll J, ARAPOSTATHIS A. Optimal sensor scheduling under intermittent observations subject to network dynamics[J]. IEEE Trans. on Automatic Control, 2023, 68 (3): 1399. doi: 10.1109/TAC.2022.3151578
9	Sun B W, Cao X H. Optimal sensor scheduling for remote state estimation with partial channel observation[J]. IEEE/CAA Journal of Automatica Sinica, 2025, 12 (7): 1510. doi: 10.1109/JAS.2025.125180
10	Zheng L Y, Liu M Q, Zhang S L. An end-to-end sensor scheduling method based on D3QN for underwater passive tracking in UWSNs[J]. Journal of Network and Computer Applications, 2023, 219, 103730. doi: 10.1016/j.jnca.2023.103730
11	Zhou G Y, Tian W H, Rajkumar B, et al. Deep reinforcement learning-based methods for resource scheduling in cloud computing: a review and future directions[J]. Artificial Intelligence Review, 2024, 57 (5): 1. doi: 10.1007/s10462-024-10756-9
12	Rao N, Xu H, Qi Z S, et al. Allocation method of communication interference resource based on deep reinforcement learning of maximum policy entropy[J]. Journal of Northwestern Polytechnical University, 2021, 39 (5): 1077. doi: 10.1051/jnwpu/20213951077
13	李琦, 韦道知, 谢家豪. 基于改进象群算法的多传感器资源调度方法[J]. 探测与控制学报, 2023, 45 (5): 108.
14	尧泽昆, 王超, 施庆展, 等. 基于改进离散模拟退火遗传算法的雷达网协同干扰资源分配模型[J]. 系统工程与电子技术, 2024, 46 (3): 824.
15	李琦, 韦道知, 李俊伟. 多传感器自适应调度方法[J]. 火力与指挥控制, 2024, 49 (7): 51.
16	纪慧颖, 潘明海, 张元时, 等. 基于遗传-蚁群融合算法的干扰资源分配方法[J]. 系统工程与电子技术, 2023, 45 (7): 2098.
17	Xing H X, Wu H, Chen Y, et al. A cooperative interference resource allocation method based on improved firefly algorithm[J]. Defence Technology, 2021, 17 (4): 1353. doi: 10.1016/j.dt.2020.07.006
18	Xiao J, Liu Y, Zhang Y, et, al. A novel sensor task allocation method based on quantum elite shuffed frog leaping algorithm in IWSNs[J]. Journal of Physics: Conference Series, 2021, 1924 (1): 012031. doi: 10.1088/1742-6596/1924/1/012031
19	Sahng M H, Yuan R G, Song B, et al. Joint observation and transmission scheduling of multiple agile satellites with energy constraint using improved ACO algorithm[J]. Acta Astronautica, 2025, 230, 92- .. doi: 10.1016/j.actaastro.2025.02.008
20	王秉路, 靳杨, 张磊, 等. 基于多传感器融合的协同感知方法[J]. 雷达学报, 2024, 13 (1): 87.
21	Yin T, Wang S, Zhang S S. An improved NSGA-II algorithm for multi-sensor scheduling optimization[J]. Journal of Physics: Conference Series, 2025: 012003.
22	Zhang Y P, Fu Q, Shan G L. A multi-sensor-system cooperative scheduling method for ground area detection and target tracking[J]. Frontiers of Information Technology & Electronic Engineering, 2023, 24 (2): 245. doi: 10.1631/FITEE.2200121
23	Hameed S, Tanoli I K, Khan T A, et al. A novel self-healing genetic algorithm for optimizing single objective flow shop scheduling problem[J]. Arabian Journal for Science and Engineering, 2024, 50 (10): 7069. doi: 10.1007/s13369-024-09240-x
24	Larhlimi I, Lmkaiti M, Lachgar M, et al. Genetic algorithm-driven cover set scheduling for longevity in wireless sensor networks[J]. International Journal of Advanced Computer Science and Applications, 2025, 16 (3): 1104. doi: 10.14569/ijacsa.2025.01603106
25	Zhang X, Liao Z X, Ma L C, et al. Hierarchical multistrategy genetic algorithm for integrated process planning and scheduling[J]. Journal of Intelligent Manufacturing, 2020, 33 (1): 223. doi: 10.1007/s10845-020-01659-x
26	Çavdar M C, Korpeoglu I, Ulusoy Ö. A utilization based genetic algorithm for virtual machine placement in cloud systems[J]. Computer Communications, 2024, 214, 136. doi: 10.1016/j.comcom.2023.11.028
27	李佳雯, 叶东, 肖岩, 等. 低轨预警星座分布式任务调度方法[J]. 中国科学: 物理学力学天文学, 2025, 55 (9): 5. doi: 10.1016/j.ejor.2025.02.025
28	Yin J, Li J J, Yang A H, et al. Optimization of service scheduling problem for overlapping tower cranes with cooperative coevolutionary genetic algorithm[J]. Engineering, Construction and Architectural Management, 2024, 31 (3): 1348. doi: 10.1108/ECAM-08-2022-0767
29	Asaad S H, Haiffa M B A, Abeer A A, et al. Appling the roulette wheel selection approach to address the issues of premature convergence and stagnation in the discrete differential evolution algorithm[J]. Applied Computational Intelligence and Soft Computing, 2023, 2023, 8892689. doi: 10.1155/2023/8892689
30	Gu Q H, Gao S, Li X X, et al. An adaptive adjacent maximum distance crossover operator for multi-objective algorithms[J]. Soft Computing, 2023, 27 (11): 7419. doi: 10.21203/rs.3.rs-1886662/v1
31	Wei X X, Sun J F, Jiao H J. New improved hybrid genetic algorithm for optimizing facility layout design of reconfigurable manufacturing system[J]. Scientific Reports, 2025, 15 (1): 21416. doi: 10.1038/s41598-025-97526-x
32	Shahin P, Leyli M K, Sohrab A. Improving neighborhood construction with Apollonius region algorithm based on density for clustering[J]. Information Sciences, 2020, 522, 227. doi: 10.1016/j.ins.2020.02.049
33	段永胜, 薛磊, 徐英, 等. 基于多尺度模型空间度量的雷达辐射源行为意图高效识别方法[J]. 系统工程与电子技术, 2026, 48 (8): 2593.
34	You S S. Adaptive learning gain-based robust attitude control for satellites with time-varying external disturbances[J]. Electronics, 2025, 14 (16): 3298. doi: 10.3390/electronics14163298
35	Şahin B D, Atilla Ö, Hamit E. Balancing exploration and exploitation in genetic algorithm optimization: a novel selection operator[J]. Evolutionary Intelligence, 2025, 18 (2): 40. doi: 10.1007/s12065-025-01028-8
36	Samira R, Shahram B. A new load-balancing approach for cloud computing based on an improved genetic algorithm[J]. The Journal of Supercomputing, 2025, 81 (9): 1083. doi: 10.1007/s11227-025-07368-7

符号	含义
S	传感器的数量
T	时刻
$ {\theta }_{{i}} $	传感器i的朝向角度
$ {\alpha }_{i} $	传感器i的探测角度
$ {c}_{j} $	第j个目标被传感器监视跟踪的个数
$ {\varpi }_{1} $，$ {\varpi }_{2} $	权重系数
$ B $	传感器的负载均衡度
$ {\varDelta }_{\text{th}} $	差异阈值
$ \beta $	0~1均匀随机数
$ \eta (0,\sigma ) $	均值为0、标准差为$ \sigma $的高斯随机数
$ \sigma $	种群的标准差
$ {\sigma }_{\max } $	最大标准差阈值
$ {P}_\text{min} $	最小变异概率
$ {P}_\text{max} $	最大变异概率
$ {P}_\text{mut} $	自适应变异概率

对比类型	ICCGA	CCGA	GA
使用场景	动态、高维度、多组件的复杂问题	高维度、多组件的复杂问题	低维度、中小规模的优化问题
问题处理	问题分解+动态协同机制	将问题分解，分别优化	对整体直接优化
种群结构	分层子种群	多个子种群并行优化	单一混合种群
交叉操作	自适应交叉操作	相同个体交叉	单点交叉
变异操作	结合负载状态的自适应变异操作	同GA	固定步长高斯变异
选择策略	同GA	同GA	轮盘赌选择
适应度评估	多目标加权评估	子种群之间的最优解组合评估	计算整体的适应度
局部优化	周期性精英扰动	无	无
协同机制	动态协作	通过适应度进行固定周期协作	无
求解效率	高	中	低

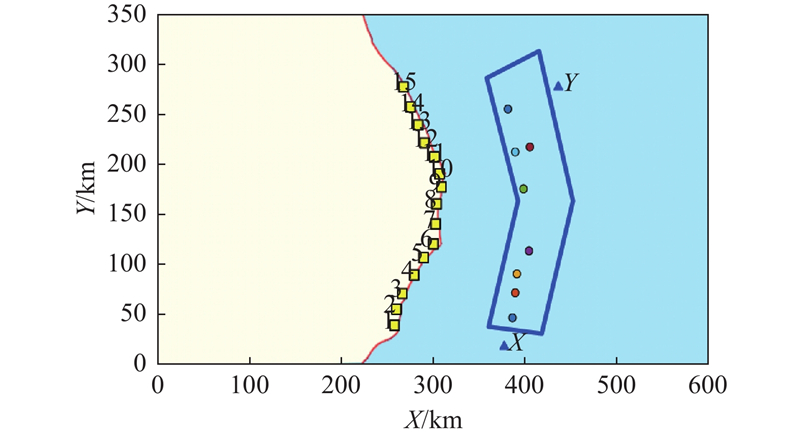

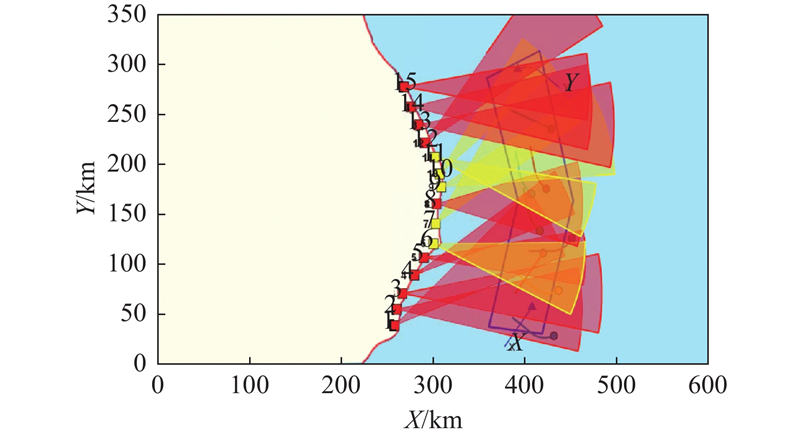

装备型号	坐标/km	探测距离/km	多目标处理个数	波束覆盖范围/（°）
传感器1	（257.9, 38.9）	198	3	22
传感器2	（260.1, 55）	202	5	24
传感器3	（266.5, 70.8）	217	6	21
传感器4	（279.4, 89.3）	185	8	15
传感器5	（289.7, 106.7）	176	5	18
传感器6	（300.3, 120.6）	165	9	26
传感器7	（302.6, 140.5）	189	3	25
传感器8	（303.7, 160.5）	159	9	31
传感器9	（308.9, 177.5）	189	7	28
传感器10	（306.9, 190.6）	163	3	17
传感器11	（301.4, 207.5）	178	2	18
传感器12	（290.8, 221.5）	226	9	22
传感器13	（283.7, 239.5）	213	4	23
传感器14	（275.5, 257.5）	197	3	25
传感器15	（267.8, 277.6）	202	2	19

平台型号	工作频率/MHz	位置/km
目标1	8 400~9 000	（386.5, 46.5）
目标2	9 000~10 000	（389.5, 71.5）
目标3	8 000~12 000	（391.3, 90.5）
目标4	9 300~10 100	（404.5, 113.5）
目标5	8 000~12 500	（398.5, 175.5）
目标6	8 000~12 500	（389.5, 212.5）
目标7	8 000~12 500	（405.5, 217.5）
目标8	8 000~12 000	（381.5, 255.5）
目标X	8 500~9 600	（377.5, 17.5）
目标Y	9 300~10 100	（436.5, 277.5）

平台型号	初始速度向量/ （km/h）	合速度/ （km/h）	初始方向/ （°）	转弯角速度/ （°/h）
目标1	[120,−90]	150	−36.87	180
目标2	[90,120]	150	53.13	0
目标3	[120,−90]	150	−36.87	200
目标4	[150,0]	150	0	180
目标5	[30,−135]	138.3	−77.47	120
目标6	[30,−135]	138.3	−77.47	120
目标7	[30,−135]	138.3	−77.47	120
目标8	[141,−60]	153.4	−23.07	0
目标X	[90,120]	150	53.13	0
目标Y	[−120,90]	150	143.13	180
