重尾噪声环境下的自适应TPMBM滤波器

doi:10.12305/j.issn.1001-506X.2025.09.04

摘要/Abstract

摘要：

针对未知重尾噪声统计特性的目标跟踪问题，提出基于伽马学生t分布逆威舍特的轨迹泊松多伯努利混合（trajectory Poisson multi-Bernoulli mixture，TPMBM）滤波算法。该算法利用学生t分布和逆威舍特分布对噪声和扩展目标扩展状态进行建模，并将多元多重滤波器（multivariate multiple filter，MMF）嵌入到TPMBM滤波器中以估计新息特征、自适应调整噪声自由度和尺度矩阵；并采用多窗口融合技术进一步提高MMF的自适应估计能力。仿真结果表明，与现有算法相比所提算法的跟踪精度、质心误差和交并比（intersection over union，IOU）形状拟合度均表现最佳，质心误差降低了15%，IOU形状拟合度提升了10%。在重尾噪声环境下具有更高的估计精度和鲁棒性。

关键词: 重尾噪声, 学生t分布, 扩展目标跟踪, 轨迹泊松多伯努利混合滤波

Abstract:

To address the target tracking problem of unknown heavy-tailed noise statistical characteristics, the trajectory Poisson multi-Bernoulli mixture filtering （TPMBM） algorithm based on Gamma student’s t-distribution inverse Wishar is proposed. The algorithm uses student’s t-distribution and inverse Wishart distribution to model the extended state of noise and extended target, and embeds multivariate multiple filter （MMF） into the TPMBM filter to estimate innovative characteristics, adaptively adjusts the noise degree of freedom and scale matrix. Multi window fusion technology is used to further improve the adaptive estimation ability of MMF. The simulation results demonstrate that, compared with existing algorithms, the proposed algorithm exhibits the best performance in tracking accuracy, centroid error, and intersection over union （IOU） shape fitting. The proposed algorithm reduces the centroid error by 15% and improves the IOU shape fitting by 10%. It also demonstrates higher estimation accuracy and robustness in the influence of noise in heavy-tailed noise environments.

Key words: heavy-tail noise, student’s t-distribution, extended target tracking, trajectory Poisson multi-Bernoulli mixture （TPMBM） filtering

中图分类号:

TN 953

李翠芸, 赵泽宇, 张双武. 重尾噪声环境下的自适应TPMBM滤波器[J]. 系统工程与电子技术, 2025, 47(9): 2808-2817.

Cuiyun LI, Zeyu ZHAO, Shuangwu ZHANG. Adaptive TPMBM filter in heavy-tailed noise environment[J]. Systems Engineering and Electronics, 2025, 47(9): 2808-2817.

图/表 18

表1

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

表2

图11

图12

表3

图13

图14

图15

参考文献 30

1	GENNARELLI G, VIVONE G, BRACA P, et al. Multiple extended target tracking for through-wall radars[J]. IEEE Trans. on Geoscience and Remote Sensing, 2015, 53 (12): 6482- 6494.
2	HEM A G, BAERVELDT M, BREKKE E F. PMBM filtering with fusion of target-provided and exteroceptive measurements: applications to maritime point and extended object tracking[J]. IEEE Access, 2024, 12, 55404- 55423.
3	BONIN-FONT F, ORTIZ A, OLIVER G. Visual navigation for mobile robots: a survey[J]. Journal of Intelligent and Robotic Systems, 2008, 53 (3): 263- 296. doi: 10.1007/s10846-008-9235-4
4	BAYESIAN J W K. Approach to extended object and cluster tracking using random matrices[J]. IEEE Trans. on Aerospace and Electronic Systems, 2008, 44 (3): 1042- 1059.
5	MAHLER R. Statistical multisource-multitarget information fusion[M]. London: Artech House, 2007 .
6	VU T. A new type of random finite set for multi-target tracking[C]//Proc. of the IEEE International Conference on Multisensor Fusion and Integration for Intelligent Systems, 2016: 534−539.
7	杨文彬, 李旦, 张建秋. 随机有限集推理动目标轨迹的相干累积检测法[J]. 系统工程与电子技术, 2023, 45 (12): 3781- 3791.
	YANG W B, LI D, ZHANG J Q. Coherent accumulation detection method for random finite set inference of moving target trajectory[J]. Systems Engineering and Electronics, 2023, 45 (12): 3781- 3791.
8	KARL G, MARYAM F, LENNART S. Poisson multi-Bernoulli mixture conjugate prior for multiple extended target filtering[J]. IEEE Trans. on Aerospace and Electronic Systems, 2019, 56 (1): 208- 225.
9	陈壮壮, 宋骊平. 机动目标跟踪的交互多模型泊松多伯努利混合滤波[J]. 系统工程与电子技术, 2024, 46 (3): 786- 794.
	CHEN Z Z, SONG L P. Interactive multi model Poisson multi Bernoulli hybrid filter for mobile target tracking[J]. Systems Engineering and Electronics, 2024, 46 (3): 786- 794.
10	XUE X R, WEI D Z, HUANG S C. A novel TPMBM filter for partly resolvable multitarget tracking[J]. IEEE Sensors Journal, 2024, 24(10): 16629−16646.
11	GARCIA F A F, SVENSSON L, MORELANDE M R. Multiple target tracking based on sets of trajectories[J]. IEEE Trans. on Aerospace and Electronic Systems, 2019, 56 (3): 1685- 1707.
12	钟茜怡, 姬红兵, 欧阳成. 基于修正贝努利滤波的被动多目标跟踪算法[J]. 系统工程与电子技术, 2012, 34 (8): 1549- 1554.
	ZHONG Q Y, JI H B, OUYANG C. Passive multi-target tracking algorithm based on modified Bernoulli filtering[J]. Systems Engineering and Electronics, 2012, 34 (8): 1549- 1554.
13	D’ORTENZIO A, MANES C, ORGUNER U. An optimal transport perspective on Gamma Gaussian inverse-Wishart mixture reduction[C]//Proc. of the 25th International Conference on Information Fusion, 2022.
14	GILHOLM K, SALMOND D. Spatial distribution model for tracking extended objects[J]. Engineering Computer Science Physics, 2005, 152(5): 364−371.
15	LUNDQUIST C, GRANSTROM K, ORGUNER U. An extended target CPHD filter and a gamma gaussian inverse Wishart implementation[J]. IEEE Journal of Selected Topics in Signal Processing, 2013, 7 (3): 472- 483. doi: 10.1109/JSTSP.2013.2245632
16	YU L, ZUO Y C, LIU S H, et al. False scattering center extraction based on template matching method[J]. IEEE Antennas and Wireless Propagation Letters, 2022, 21 (4): 720- 724. doi: 10.1109/LAWP.2022.3143868
17	AGAMENNONI G, NIETO J I, NEBOT E M. Approximate inference in state-space models with heavy-tailed noise[J]. IEEE Trans. on Signal Processing, 2012, 60 (10): 5024- 5037. doi: 10.1109/TSP.2012.2208106
18	HUANG Y L, ZHANG Y G, ZHAO Y X, et al. A novel outlier-robust kalman filtering framework based on statistical similarity measure[J]. IEEE Trans. on Automatic Control, 2021, 66 (6): 2677- 2692.
19	BAI M, HUANG Y L, ZHANG Y G, et al. Statistical similarity measure-based adaptive outlier-robust state estimator with applications[J]. IEEE Trans. on Automatic Control, 2022, 67 (8): 4354- 4361.
20	BAI M M, HUANG Y L, CHEN B D, et al. A novel robust kalman filtering framework based on normal-skew mixture distribution[J]. IEEE Trans. on Systems, 2022, 52 (11): 6789- 6850.
21	LIU T, FENG X L, Extended information filter based on maximum correntropy criterion with student’s t kernel function[C]//Proc of the 39th Youth Academic Annual Conference of Chinese Association of Automation, 2024: 2084−2087.
22	JIA G L, ZHANG Y G, BAI M M, et al. A novel robust student’s t-based Gaussian approximate filter with one-step randomly delayed measurements[J]. Signal Process., 2020, 171, 107496. doi: 10.1016/j.sigpro.2020.107496
23	王轲, 李星秀, 吴盘龙. 一种变分贝叶斯改进无偏转换卡尔曼滤波[J]. 中国惯性技术学报, 2023, 31 (3): 261- 267.
	WANG K, LI X X, WU P L. A variational Bayesian improved unbiased transformation Kalman filter[J]. Chinese Journal of Inertial Technology, 2023, 31 (3): 261- 267.
24	王明杰, 姬红兵, 刘龙. 噪声野值下的学生t分布混合CPHD滤波[J]. 西安电子科技大学学报, 2019, 46(5): 134−141.
	WANG M J, JI H B, LIU L. Student t-distribution mixed CPHD filtering under noise outliers[J]. Journal of Xidian University, 2019, 46 (5): 134−141.
25	黄臻, 吴峻. 基于学生t分布的变分贝叶斯UKF算法在无人船对准中的应用[J]. 传感技术学报, 2022, 35 (10): 1340- 1347.
	HUANG Z, WU J. Application of variational bayesian UKF algorithm based on student t-distribution in unmanned ship alignment[J]. Chinese Journal of Sensors and Actuators, 2022, 35 (10): 1340- 1347.
26	王宗原, 周卫东. 学生t量测分布下鲁棒粒子滤波算法的设计与实现[J]. 电子与信息学报, 2019, 41 (12): 2957- 2964.
	WANG Z Y, ZHOU W D. Design and implementation of robust particle filter algorithm under student t-measurement distribution[J]. Journal of Electronics and Information Science, 2019, 41 (12): 2957- 2964.
27	MARZIEH H, JOHANNES H, FRIEDERIKE L, et al. Correction to: alternatives to the em algorithm for ml estimation of location, scatter matrix, and degree of freedom of the student t distribution[J]. Numerical Algorithms, 2021, 88 (1): 521- 522.
28	XUE X R, HUANG S C, WEI D Z. MMF-GSTIW-PMBM adaptive filter for multiple group target tracking with heavy-tailed noise[J]. IEEE Sensors Journal, 2023, 23 (17): 19959- 19973. doi: 10.1109/JSEN.2023.3299076
29	MOON T K. The expectation-maximization algorithm[J]. Signal Processing Magazine, 1996, 13 (6): 47- 60. doi: 10.1109/79.543975
30	RAHMATHULLAH A S, GARCIA F A F, SVENSSON L. Generalized optimal sub-pattern assignment metric[C]//Proc. of the 20th International Conference on Information Fusion, 2017.

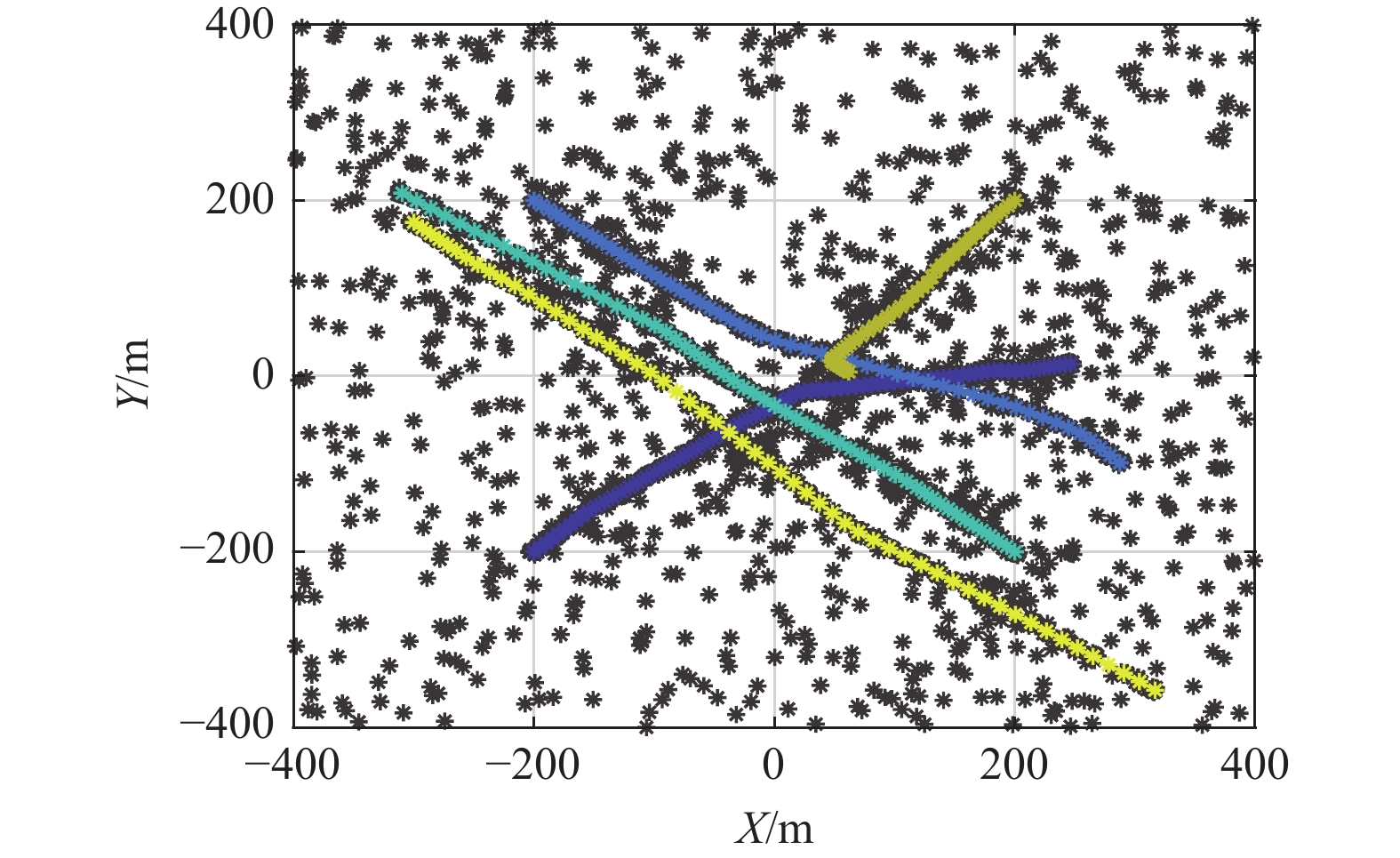

目标	目标初始运动状态	存活时间/s
1	$ {{\boldsymbol{x}}_1} = {[ - 200\;{\mathrm{m}}, - 200\;{\mathrm{m}},5.2\;{\mathrm{m/s}},4.87\;{\mathrm{m/s}}]^{\mathrm{T}}} $	$ {t_1} \in [5,80] $
2	$ {{\boldsymbol{x}}_2} = {[ - 200\;{\mathrm{m}},200\;{\mathrm{m}},6.2\;{\mathrm{m/s}}, - 5.38\;{\mathrm{m/s}}]^{\mathrm{T}}} $	$ {t_2} \in [15,65] $
3	$ {{\boldsymbol{x}}_3} = {[200\;{\mathrm{m}}, - 200\;{\mathrm{m}}, - 6.82\;{\mathrm{m/s}},6.2\;{\mathrm{m/s}}]^{\mathrm{T}}} $	$ {t_3} \in [15,70] $
4	$ {{\boldsymbol{x}}_4} = {[200\;{\mathrm{m}},200\;{\mathrm{m}}, - 5.63\;{\mathrm{m/s}}, - 6.32\;{\mathrm{m/s}}]^{\mathrm{T}}} $	$ {t_4} \in [20,60] $
5	$ {{\boldsymbol{x}}_5} = {[ - 300\;{\mathrm{m}},175\;{\mathrm{m}},7\;{\mathrm{m/s}}, - 6.32\;{\mathrm{m/s}}]^{\mathrm{T}}} $	$ {t_5} \in [25,80] $

噪声类型	噪声特性
$ {w}_i$	$\begin{gathered}{\mathrm{N}}\left(0,\left\|\sin (k) \boldsymbol{R}_k\right\|\right) \\p_{{\mathrm{m o}}}=0.05\end{gathered}$
$ v_i$	$\begin{gathered}N\left(0,4 k \boldsymbol{R}_k\right) \\p_{{\mathrm{m o}}}=0.05\end{gathered}$

滤波器	平均误差/m
GGIW-TPMBM	10.906 9
GSTIW-TPMBM	6.966 9
MMF-GSTIW-TPMBM	5.028 4
