面向保精度跟踪的主被动雷达网络联合功率分配与节点优选算法

doi:10.12305/j.issn.1001-506X.2025.12.13

摘要/Abstract

摘要：

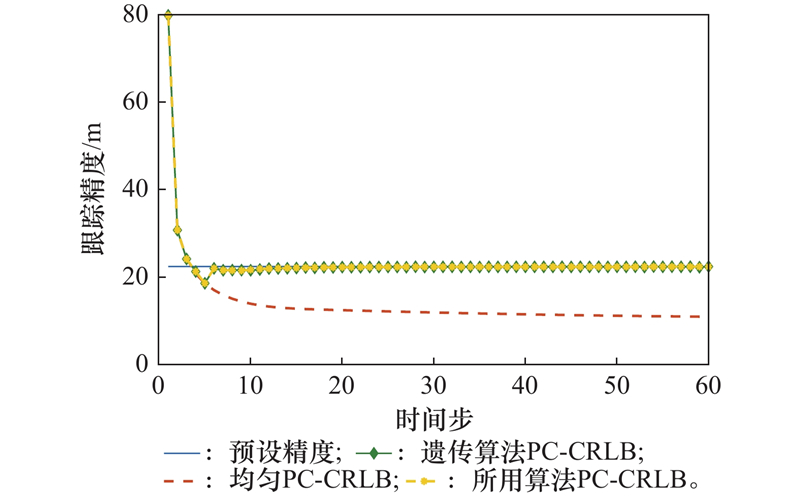

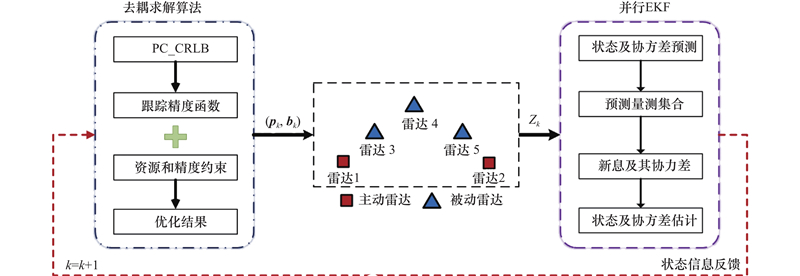

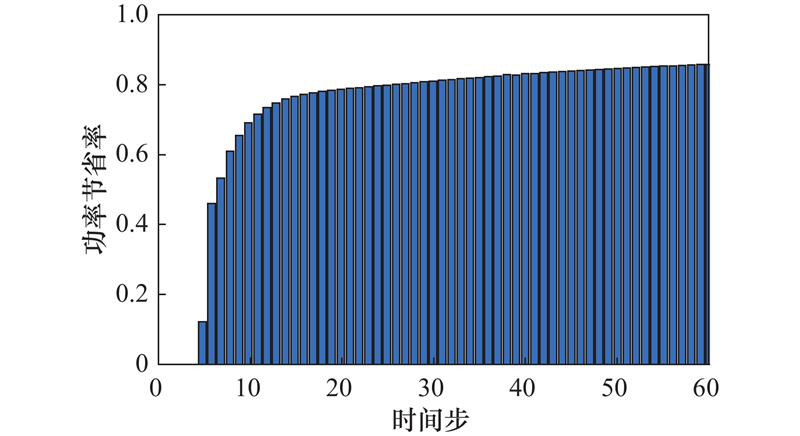

针对持续探测背景下保精度目标跟踪需求，基于主被动雷达网络提出一种联合功率分配与节点优选算法。首先采用并行扩展卡尔曼滤波器估计和预测目标状态，然后基于预测信息推导预测贝叶斯克拉美-罗下界（跟踪性能测度）关于发射功率与接收节点的函数，最后以最小化主被动雷达的功率使用率和节点使用率的和为优化目标，在发射总功率有限和预设跟踪精度约束条件下，将主被动雷达网络资源分配模型建立为混合整数规划问题。基于模型的部分单调性和变量可分性，设计一种快速去耦求解算法。仿真结果表明，相比遗传算法，所提方法以较小的计算复杂度获得了近似最优解，相比均匀分配方案，所提方法在保精度稳定跟踪条件下，最终可实现节省系统资源80%，证明了所提方法的有效性。

关键词: 主被动雷达, 目标跟踪, 功率分配, 传感器选择

Abstract:

In response to the need for precision-preserving target tracking in the context of continuous detection, a joint power allocation and node selection algorithm is proposed based on an active-passive radar network. Firstly, employs a parallel extended Kalman filter to estimate and predict the target state. And then, derives a predictive Bayesian Cramér-Rao lower bound （a tracking performance metric） as a function of transmission power and receiving nodes based on the prediction information. Finally, the optimization objective is to minimize the combined power usage and node usage of the active-passive radar, under the constraints of limited total transmission power and preset tracking accuracy. The resource allocation model is formulated for active-passive radar as a mixed-integer programming problem. Exploiting the partial monotonicity and variable separability of the model, a fast decoupling solution algorithm is designed. Simulation results show that, compared to the genetic algorithm, the proposed method achieves an approximately optimal solution with lower computational complexity. Additionally, compared to the uniform distribution scheme, the proposed method can ultimately save 80% of system resources while maintaining accuracy and stable tracking conditions, which demonstrates the effectiveness of the proposed method.

Key words: active-passive radar, target tracking, power allocation, sensor selection

中图分类号:

TN 953

刘文岚, 王德伍, 戴金辉, 安强, 窦凇耀. 面向保精度跟踪的主被动雷达网络联合功率分配与节点优选算法[J]. 系统工程与电子技术, 2025, 47(12): 4110-4116.

Wenlan LIU, Dewu WANG, Jinhui DAI, Qiang AN, Songyao DOU. Joint power allocation and node selection algorithm for precision-preserving tracking in active-passive radar network[J]. Systems Engineering and Electronics, 2025, 47(12): 4110-4116.

图/表 6

图1

图2

图3

图4

图5

图6

参考文献 26

1	SIMON H, AMIN Z, XUE Y B, et al. Control theoretic approach to tracking radar: first step towards cognition[J]. Digital Signal Processing, 2011, 21 (5): 576- 585. doi: 10.1016/j.dsp.2011.01.004
2	ZHANG H W, LIU W J, FEI T Y, et al. An efficient radar-target assignment and power allocation strategy for low-angle tracking in the MIMO-multisite radar system[J]. Signal Processing, 2022, 200, 108645. doi: 10.1016/j.sigpro.2022.108645
3	MOHAMMAD A D, MOHAMMAD R K M, MARYAM N. An effective PSO-based power allocation for target tracking in MIMO radar with widely separated antennas[J]. Physical Communication, 2022, 51, 101544. doi: 10.1016/j.phycom.2021.101544
4	张欣睿, 时晨光, 周建江. 面向协同探测的多机雷达功率时间联合优化分配算法[J]. 指挥控制与仿真, 2024, 46 (1): 118- 130.
	ZHANG X R, SHI C G, ZHOU J J. Joint power and time allocation algorithm in multi-radar system for cooperative target detection[J]. Command Control and Simulation, 2024, 46 (1): 118- 130.
5	宋晓程, 李陟, 任海伟, 等. 目标动态威胁度驱动的分布式组网相控阵雷达资源优化分配算法[J]. 雷达学报, 2023, 12 (3): 629- 641.
	SONG X C, LI Z, REN H W, et al. Threat-driven resource allocation algorithm for distributed netted phased array radars[J]. Journal of Radars, 2023, 12 (3): 629- 641.
6	汤建龙, 解佳龙, 陈弘凯. 无需先验测量误差的定位节点选择方法[J]. 系统工程与电子技术, 2024, 46 (1): 35- 41.
	TANG J L, XIE J L, CHEN H K. Selection method for localization node without priori measurement error[J]. Systems Engineering and Electronics, 2024, 46 (1): 35- 41.
7	ZHANG W W, SHI C G, SALOUS S, et al. Convex optimization-based power allocation strategies for target localization in distributed hybrid non-coherent active-passive radar networks[J]. IEEE Trans. on Signal Processing, 2022, 70, 2476- 2488. doi: 10.1109/TSP.2022.3173756
8	SHI C G, TANG Z C, DING L T, et al. Joint optimization of transmit power and dwell time for asynchronous multi-target tracking in heterogeneous multiple radar networks with imperfect detection[J]. Journal of Radars, 2023, 12 (3): 563- 575.
9	DAI J H, YAN J K, LV J D, et al. Composed resource optimization for multitarget tracking in active and passive radar network[J]. IEEE Trans. on Geoscience and Remote Sensing, 2022, 60, 5119215.
10	易伟, 袁野, 刘光宏, 等. 多雷达协同探测技术研究进展: 认知跟踪与资源调度算法[J]. 雷达学报, 2023, 12 (3): 471- 499.
	YI W, YUAN Y, LIU G H, et al. Recent advances in multi-radar collaborative surveillance: cognitive tracking and resource scheduling algorithms[J]. Journal of Radars, 2023, 12 (3): 471- 499.
11	STONE L D, STREIT R L, CORWIN T L, et al. Bayesian multiple target tracking[M]. 2nd ed. Norwood, MA: Artech House, 2013.
12	RICHARDS A M. Fundamentals of radar signal processing[J]. London: McGraw-Hill, 2013.
13	YUAN Y, YI W, VARSHNEY P K. Exponential mixture density based approximation to posterior Cramér-Rao lower bound for distributed target tracking[J]. IEEE Trans. on Signal Processing, 2022, 70, 862- 877. doi: 10.1109/TSP.2022.3148540
14	李正杰, 谢军伟, 张浩为, 等. 一种低截获背景下的集中式MIMO雷达快速功率分配算法[J]. 雷达学报, 2023, 12 (3): 602- 615.
	LI Z J, XIE J W, ZHANG H W, et al. A fast power allocation algorithm in a collocated MIMO radar under low interception backgrounds[J]. Journal of Radars, 2023, 12 (3): 602- 615.
15	WILLNER D, CHANG C B, DUNN K P. Kalman filter algorithms for a multi-sensor system[C]//Proc. of the IEEE Conference on Decision and Control including the 15th Symposium on Adaptive Processes, 1976: 570−574.
16	HU J, ZUO L, VARSHNEY P K, et al. Resource allocation for distributed multitarget tracking in radar networks with missing data[J]. IEEE Trans. on Signal Processing, 2024, 72, 718- 734. doi: 10.1109/TSP.2024.3352915
17	SADEGHI M, BEHNIA F, AMIRI R, et al. Target localization geometry gain in distributed MIMO radar[J]. IEEE Trans. on Signal Processing, 2021, 69, 1642- 1652. doi: 10.1109/TSP.2021.3062197
18	ACHTERBERG T, BIXBY R E, GU Z H, et al. Presolve reductions in mixed integer programming[J]. INFORMS Journal on Computing, 2020, 32 (2): 473- 506. doi: 10.1287/ijoc.2018.0857
19	GLOROT X, BORDES A, BENGIO Y. Deep sparse rectifier neural networks[C]//Proc. of the 14th International Conference on Artificial Intelligence and Statistics, 2011, 15: 315−323.
20	马国栋, 唐子萱, 简金宝, 等. 非线性极大极小问题基于指数罚函数的带重启步谱共轭梯度法[EB/OL]. [2024-11-20]. https://doi. org/10.12341/jssms240269.
	MA G D, TANG Z X, JIAN J B, et al. An EPF-based spectral conjugate gradient method with restart procedures for nonlinear minimax problems[EB/OL]. [2024-11-20]. https: //doi.org/10.12341/jssms240269.
21	戴金辉, 严俊坤, 王鹏辉, 等. 基于目标容量的网络化雷达功率分配方案[J]. 电子与信息学报, 2021, 43 (9): 2688- 2694.
	DAI J H, YAN J K, WANG P H, et al. Target capacity based power allocation scheme in radar network[J]. Journal of Electronics & Information Technology, 2021, 43 (9): 2688- 2694.
22	YANG Q W, TIANG L B, ZHENG S Y, et al. Joint power and bandwidth allocation with RCS fluctuation characteristic for space target tracking[J]. Remote Sensing, 2023, 15 (16): 3971. doi: 10.3390/rs15163971
23	BARTON D K. Radar system analysis and modeling[J]. IEEE Aerospace and Electronic Systems Magazine, 2005, 20 (4): 23- 25. doi: 10.1109/MAES.2005.1423386
24	刘明明, 崔春风, 童小娇, 等. 混合整数非线性规划的算法软件及最新进展[J]. 中国科学: 数学, 2016, 46 (1): 1- 20. doi: 10.1360/N012014-00278
	LIU M M, CUI C F, TONG X J, et al. Algorithm software and recent advances of mixed integer nonlinear programming[J]. SCIENTIA SINICA Mathematica, 2016, 46 (1): 1- 20. doi: 10.1360/N012014-00278
25	DAKIN R J. A tree-search algorithm for mixed integer programming problems[J]. The Computer Journal, 1965, 8 (3): 250- 255. doi: 10.1093/comjnl/8.3.250
26	汤洪, 徐旺. 基于改进遗传算法的资源优化调度方法[J]. 现代电子技术, 2024, 47 (9): 169- 172.
	TONG H, XU W. A resource optimisation scheduling method based on improved genetic algorithm[J]. Modern Electronic Technology, 2024, 47 (9): 169- 172.
