基于TPHD与TCPHD滤波器的分布式多目标跟踪方法

doi:10.12305/j.issn.1001-506X.2025.09.06

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (9): 2828-2838.doi: 10.12305/j.issn.1001-506X.2025.09.06

• 电子技术 • 上一篇

基于TPHD与TCPHD滤波器的分布式多目标跟踪方法

傅嘉政¹^,²(), 郭玉霞¹^,², 张博祥³, 柴雷³, 易伟³^,*, 孔令讲³

1. 中国空空导弹研究院，河南洛阳 471009
2. 空基信息感知与融合全国重点实验室，河南洛阳 471009
3. 电子科技大学信息与通信工程学院，四川成都 611731

收稿日期:2024-02-02 出版日期:2025-09-25 发布日期:2025-09-16
通讯作者: 易伟 E-mail:cn_FJZ_fea@outlook.com
作者简介:傅嘉政（1998—），男，助理工程师，硕士，主要研究方向为分布式多传感器多目标跟踪
郭玉霞（1979—），女，研究员，硕士，主要研究方向为雷达系统总体设计
张博祥（1995—），男，博士研究生，主要研究方向为多目标跟踪
柴　雷（1995—），男，博士研究生，主要研究方向为多目标跟踪、多传感器信息融合
孔令讲（1974—），男，教授，博士研究生导师，博士，主要研究方向为雷达信号处理、新体制雷达、统计信号处理

Distributed multi-target tracking method based on TPHD and TCPHD filters

Jiazheng FU¹^,²(), Yuxia GUO¹^,², Boxiang ZHANG³, Lei CHAI³, Wei YI³^,*, Lingjiang KONG³

1. China Airborne Missile Academy，Luoyang 471009，China
2. National Key Laboratory of Air-based Information Perception and Fusion，Luoyang 471009，China
3. School of Information and Communication Engineering，University of Electronic Science and Technology of China，Chengdu 611731，China

Received:2024-02-02 Online:2025-09-25 Published:2025-09-16
Contact: Wei YI E-mail:cn_FJZ_fea@outlook.com

摘要/Abstract

摘要：

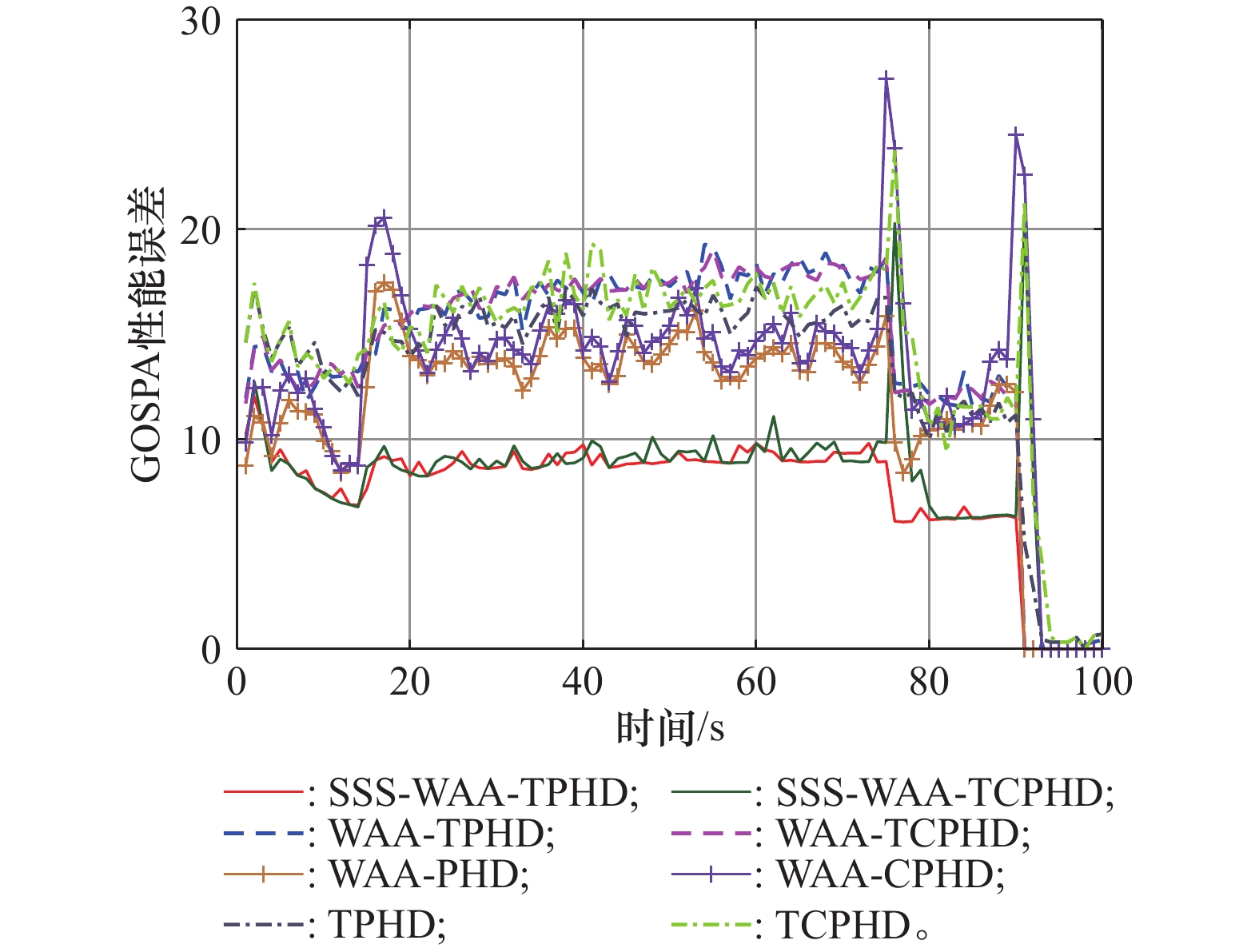

在航迹随机有限集的分布式多目标跟踪方法中，同一目标在不同传感器下估计航迹可能出现起始时间或航迹长度不一致的问题，提出一种基于航迹状态空间结构（state space structure，SSS）的分布式跟踪方法以及该方法的高斯混合模型实现。在基于加权算术平均融合准则的分布式多目标跟踪框架下，结合航迹概率假设密度滤波器与航迹基数概率假设密度滤波器，利用航迹SSS信息，将航迹随机有限集的信息融合问题分治为多个独立的单一线性空间内子随机有限集信息融合问题。仿真实验基于广义最优子模式匹配度量方法比较了该方法与多种跟踪方法的跟踪性能，该方法估计结果与真实航迹误差最小，表明了该方法的有效性。

关键词: 分布式多目标跟踪, 航迹随机有限集, 加权算术平均融合, 航迹概率假设密度滤波器, 航迹基数概率假设密度滤波器

Abstract:

In distributed multi-target tracking methods based on trajectory random finite set （RFS）, the initiation time or the trajectory length of the trajectory estimate for the same target may be inconsistent across different sensors, and a distributed tracking method based on trajectory state space structure （SSS） is proposed with Gaussian mixture model implementation.In the distributed multi-target tracking framework based on the weighted arithmetic average （WAA） fusion criterion, combining the trajectory probability hypothesis density （TPHD） filter and the trajectory cardinality probability hypothesis density （TCPHD） filter, the information fusion problem of the trajectory RFS is divided into multiple independent sub RFS information fusion problems in a single linear space using the trajectory SSS information. Experiments are conducted to compare the tracking performance of this method with various tracking methods by generalized optimal subpattern assignment metric. This method produced estimates with minimal error compared to the actual trajectories, demonstrating the effectiveness of the algorithm.

Key words: distributed multi-target tracking, trajectory random finite set, weighted arithmetic average fusion, trajectory probability hypothesis density （TPHD） filter, trajectory cardinality probability hypothesis density （TCPHD） filter

中图分类号:

TJ 670
TN 95

傅嘉政, 郭玉霞, 张博祥, 柴雷, 易伟, 孔令讲. 基于TPHD与TCPHD滤波器的分布式多目标跟踪方法[J]. 系统工程与电子技术, 2025, 47(9): 2828-2838.

Jiazheng FU, Yuxia GUO, Boxiang ZHANG, Lei CHAI, Wei YI, Lingjiang KONG. Distributed multi-target tracking method based on TPHD and TCPHD filters[J]. Systems Engineering and Electronics, 2025, 47(9): 2828-2838.

图/表 8

图1

图2

图3

图4

图5

图6

表1

图7

参考文献 42

1	李龙飘. 多传感器系统中信息融合技术的研究[D]. 太原: 中北大学, 2009.
	LI L P. Research on information fusion technology in multi-sensor systems[D]. Taiyuan: North University of China, 2009.
2	苏军平. 多传感器信息融合关键技术研究[D]. 西安: 西安电子科技大学, 2018.
	SU J P. Research on key technologies of multi-sensor information fusion [D]. Xi’an: Xidian University, 2018.
3	曾雅俊, 王俊, 魏少明, 等. 分布式多传感器多目标跟踪方法综述[J]. 雷达学报, 2023, 12 (1): 197- 213. doi: 10.12000/JR22111
	ZENG Y J, WANG J, WEI S M, et al. Review of the method for distributed multi-sensor multi-target tracking[J]. Journal of Radars, 2023, 12 (1): 197- 213. doi: 10.12000/JR22111
4	宋泽昊, 刘冀川. 基于竞争合作机制的无人机目标分配合围方法[J]. 航空兵器, 2022, 29 (5): 76- 82. doi: 10.12132/ISSN.1673-5048.2022.0055
	SONG Z H, LIU J C. Target assignment and multi-UAV enclosing method based on competition and cooperation mechanism[J]. Aero Weaponry, 2022, 29 (5): 76- 82. doi: 10.12132/ISSN.1673-5048.2022.0055
5	ZHU S S. Multi-source information fusion technology and its engineering application[J]. Research in Health Science, 2020, 4 (4): 408- 422. doi: 10.22158/rhs.v4n4p408
6	AEBERHARD M, SCHLICHTHARLE S, KAEMPCHEN N, et al. Track-to-track fusion with asynchronous sensors using information matrix fusion for surround environment perception[J]. IEEE Trans. on Intelligent Transportation Systems, 2012, 13 (4): 1717- 1726. doi: 10.1109/TITS.2012.2202229
7	NANNURU S, BLOUIN S, COATES M, et al. Multisensor CPHD filter[J]. IEEE Trans. on Aerospace and Electronic Systems, 2016, 52(4): 1834−1854.
8	SAUCAN A A, COATES M J, RABBAT M. A multisensor multiBernoulli filter[J]. IEEE Trans. on Signal Processing, 2017, 65(20): 5495−5509.
9	VO B N, VO B T, BEARD M. Multisensor multiobject tracking with the generalized labeled multibernoulli filter[J]. IEEE Trans. on Signal Processing, 2019, 67(23): 5952−5967.
10	甄绪, 刘方, 夏玉萍. 基于信息质量选择的动态航迹融合算法[J]. 航空兵器, 2021, 28 (4): 30- 36. doi: 10.12132/ISSN.1673-5048.2020.0170
	ZHEN X, LIU F, XIA Y P. Dynamic track fusion algorithm based on information quality selection[J]. Aero Weaponry, 2021, 28 (4): 30- 36. doi: 10.12132/ISSN.1673-5048.2020.0170
11	李建勋, 于兴凯. 概率密度函数信息融合概述[J]. 航空兵器, 2023, 30 (3): 5- 14. doi: 10.12132/ISSN.1673-5048.2022.0205
	LI J X, YU X K. Survey on information fusion of probability density functions[J]. Aero Weaponry, 2023, 30 (3): 5- 14. doi: 10.12132/ISSN.1673-5048.2022.0205
12	BATTISTELLI G, CHISCI L, FANTACCI C, et al. Consensus CPHD filter for distributed multitarget tracking[J]. IEEE Journal of Selected Topics in Signal Processing, 2013, 7 (3): 508−520.
13	UENEY M, CLARK D E, JULIER S J. Distributed fusion of PHD filters via exponential mixture densities[J]. IEEE Journal of Selected Topics in Signal Processing, 2013, 7 (3): 521- 531. doi: 10.1109/JSTSP.2013.2257162
14	朱永锋, 达凯, 杨烨. 基于GCI融合的分布式雷达抗欺骗干扰算法[J]. 航空兵器, 2022, 29 (4): 58- 63. doi: 10.12132/ISSN.1673-5048.2022.0034
	ZHU Y F, DA K, YANG Y. GCI fusion-based anti-deception jamming algorithm for distributed radar[J]. Aero Weaponry, 2022, 29 (4): 58- 63. doi: 10.12132/ISSN.1673-5048.2022.0034
15	MAHLER R P. Optimal/robust distributed data fusion: a unified approach[C]// Proc. of the Conference on Signal Processing, Sensor Fusion, and Target Recognition, 2000.
16	CLARK D, JULIER S, MAHLER R, et al. Robust multiobject sensor fusion with unknown correlations[M]. London: Sensor Signal Processing for Defence, 2010.
17	DA K, LI T C, ZHU Y F, et al. Kullbackleibler averaging for multitarget density fusion[C]// Proc. of the 16th International Conference on Distributed Computing and Artificial Intelligence, 2019.
18	GAO L, BATTISTELLI G, CHISCI L. Multiobject fusion with minimum information loss[J]. IEEE Signal Processing Letters, 2020, 27: 201−205.
19	FORTMANN T, BARSHALOM Y, SCHEFFE M. Sonar tracking of multiple targets using joint probabilistic data association[J]. IEEE Journal of Oceanic Engineering, 1983, 8(3): 173−184.
20	REID D. An algorithm for tracking multiple targets[J]. IEEE Trans. on Automatic Control, 1979, 24(6): 843−854.
21	MAHLER R P. Statistical multisourcemultitarget information fusion[M]. London: Artech House, 2007.
22	MAHLER R P. Multitarget bayes filtering via firstorder multitarget moments[J]. IEEE Trans. on Aerospace and Electronic Systems, 2003, 39(4): 1152−1178.
23	VO B N, SINGH S, DOUCET A. Sequential monte carlo methods for multitarget filtering with random finite sets[J]. IEEE Trans. on Aerospace and Electronic Systems, 2005, 41(4): 1224−1245.
24	VO B N, MA W K. The gaussian mixture probability hypothesis density filter[J]. IEEE Trans. on Signal Processing, 2006, 54(11): 4091−4104.
25	VO B T, VO B N, CANTONI A. Analytic implementations of the cardinalized probability hypothesis density filter[J]. IEEE Trans. on Signal Processing, 2007, 55(7): 3553−3567.
26	龚阳, 崔琛. 基于GM-PHD滤波的空间邻近多目标跟踪算法[J]. 系统工程与电子技术, 2022, 44 (1): 76- 85. doi: 10.12305/j.issn.1001-506X.2022.01.11
	GONG Y, CUI C. Multi-target tracking algorithm based on GM-PHD filter for spatially close targets[J]. Systems Engineering and Electronics, 2022, 44 (1): 76- 85. doi: 10.12305/j.issn.1001-506X.2022.01.11
27	刘政玮, 陈映, 鲁耀兵. 适用于多目标轨迹小角度交叉的PHD滤波器[J]. 系统工程与电子技术, 2023, 45 (4): 982- 990. doi: 10.12305/j.issn.1001-506X.2023.04.06
	LIU Z W, CHEN Y, LU Y B. PHD filter for small-angle crossing of multi-target trajectories[J]. Systems Engineering and Electronics, 2023, 45 (4): 982- 990. doi: 10.12305/j.issn.1001-506X.2023.04.06
28	YI W, LI G, BATTISTELLI G. Distributed multisensor fusion of PHD filters with different sensor fields of view[J]. IEEE Trans. on Signal Processing, 2020, 68: 5204−5218.
29	LI G, BATTISTELLI G, YI W, et al. Distributed multisensor multiview fusion based on generalized covariance intersection[J]. Signal Processing, 2020, 166, 107246. doi: 10.1016/j.sigpro.2019.107246
30	LI G, BATTISTELLI G, CHISCI L, et al. Distributed multiview multitarget tracking based on CPHD filtering[J]. Signal Processing, 2021, 188, 108210. doi: 10.1016/j.sigpro.2021.108210
31	VO B T, VO B N. Labeled random finite sets and multiobject conjugate priors[J]. IEEE Trans. on Signal Processing, 2013, 61(13): 3460−3475.
32	REUTER S, VO B T, VO B N, et al. The labeled multi-Bernoulli filter[J]. IEEE Trans. on Signal Processing, 2014, 62(12): 3246−3260.
33	辛怀声, 曹晨. 基于交互多模型的分组 δ-广义标签多伯努利算法[J]. 系统工程与电子技术, 2022, 44 (4): 1128- 1138. doi: 10.12305/j.issn.1001-506X.2022.04.08
	XIN H S, CAO C. Interacting multiple model based grouping δ-generalized labeled multi-Bernoulli algorithm[J]. Systems Engineering and Electronics, 2022, 44 (4): 1128- 1138. doi: 10.12305/j.issn.1001-506X.2022.04.08
34	彭华甫, 黄高明, 田威, 等. 基于幅度信息的标签多伯努利滤波算法[J]. 系统工程与电子技术, 2018, 40 (12): 2636- 2641. doi: 10.3969/j.issn.1001-506X.2018.12.03
	PENG H F, HUANG G M, TIAN W, et al. Labeled multi-Bernoulli filter based on amplitude information[J]. Systems Engineering and Electronics, 2018, 40 (12): 2636- 2641. doi: 10.3969/j.issn.1001-506X.2018.12.03
35	FANTACCI C, VO B N, VO B T, et al. Robust fusion for multisensor multiobject tracking[J]. IEEE Signal Processing Letters, 2018, 25(5): 640−644.
36	LI S, YI W, HOSEINNEZHAD R, et al. Robust distributed fusion with labeled random finite sets[J]. IEEE Trans. on Signal Processing, 2017, 66(2): 278−293.
37	GARCIAFERNANDEZ A F, SVENSSON L, WILLIAMS J L, et al. Trajectory poisson multi-Bernoulli filters[J]. IEEE Trans. on Signal Processing, 2020, 68: 4933−4945.
38	GARCIAFERNANDEZ A F, SVENSSON L. Trajectory PHD and CPHD filters[J]. IEEE Trans. on Signal Processing, 2019, 67(22): 5702−5714.
39	GARCIAFERNANDEZ A F, SVENSSON L, WILLIAMS J L, et al. Trajectory multi Bernoulli filters for multi target tracking based on sets of trajectories[C]// Proc. of the IEEE 23rd International Conference on Information Fusion, 2020.
40	MAHLER R P. Advances in statistical multisource-multitarget information fusion[M]. Boston: Artech House, 2014.
41	RAHMATHULLAH A S, GARCIAFERNANDEZ A F, SVENSSON L. Generalized optimal sub-pattern assignment metric[C]// Proc. of the 20th International Conference on Information Fusion , 2017.
42	GARCIAFERNANDEZ A F, RAHMATHULLAH A S, SVENSSON L. Metric on the space of finite sets of trajectories for evaluation of multi-target tracking algorithms[J]. IEEE Trans. on Signal Processing, 2020, 68, 3917- 3928. doi: 10.1109/TSP.2020.3005309

算法	多目标跟踪	剪枝合并	状态估计提取	WAA融合
SSS-WAA-TPHD	3.42e-2	2.71e-3	3.00e-3	8.61e-3
SSS-WAA-TCPHD	4.15e-2	2.78e-3	3.02e-3	8.71e-3
