国产民机飞行管理系统MBSE建模及实际导航性能评估

doi:10.12305/j.issn.1001-506X.2026.08.19

摘要/Abstract

摘要：

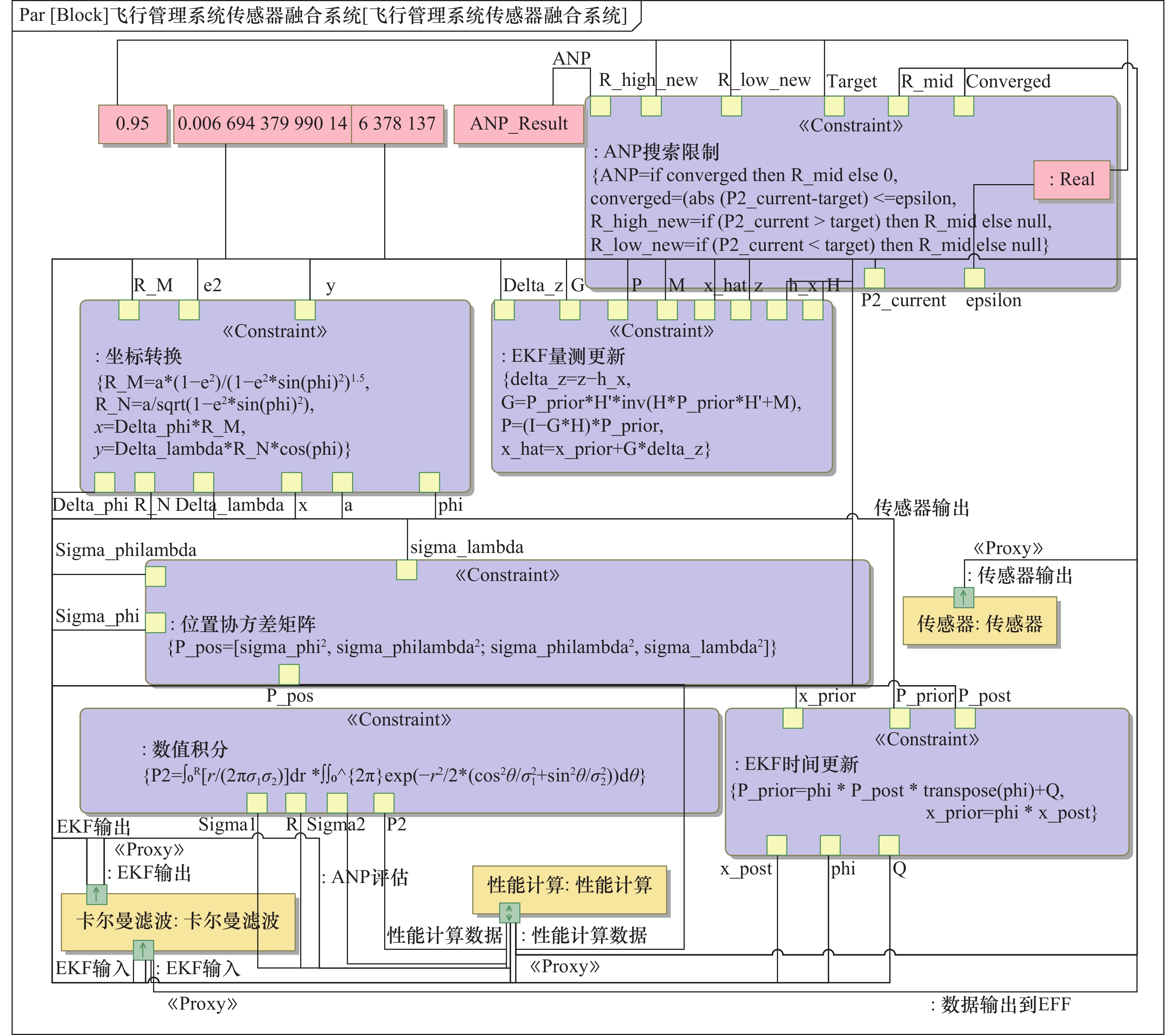

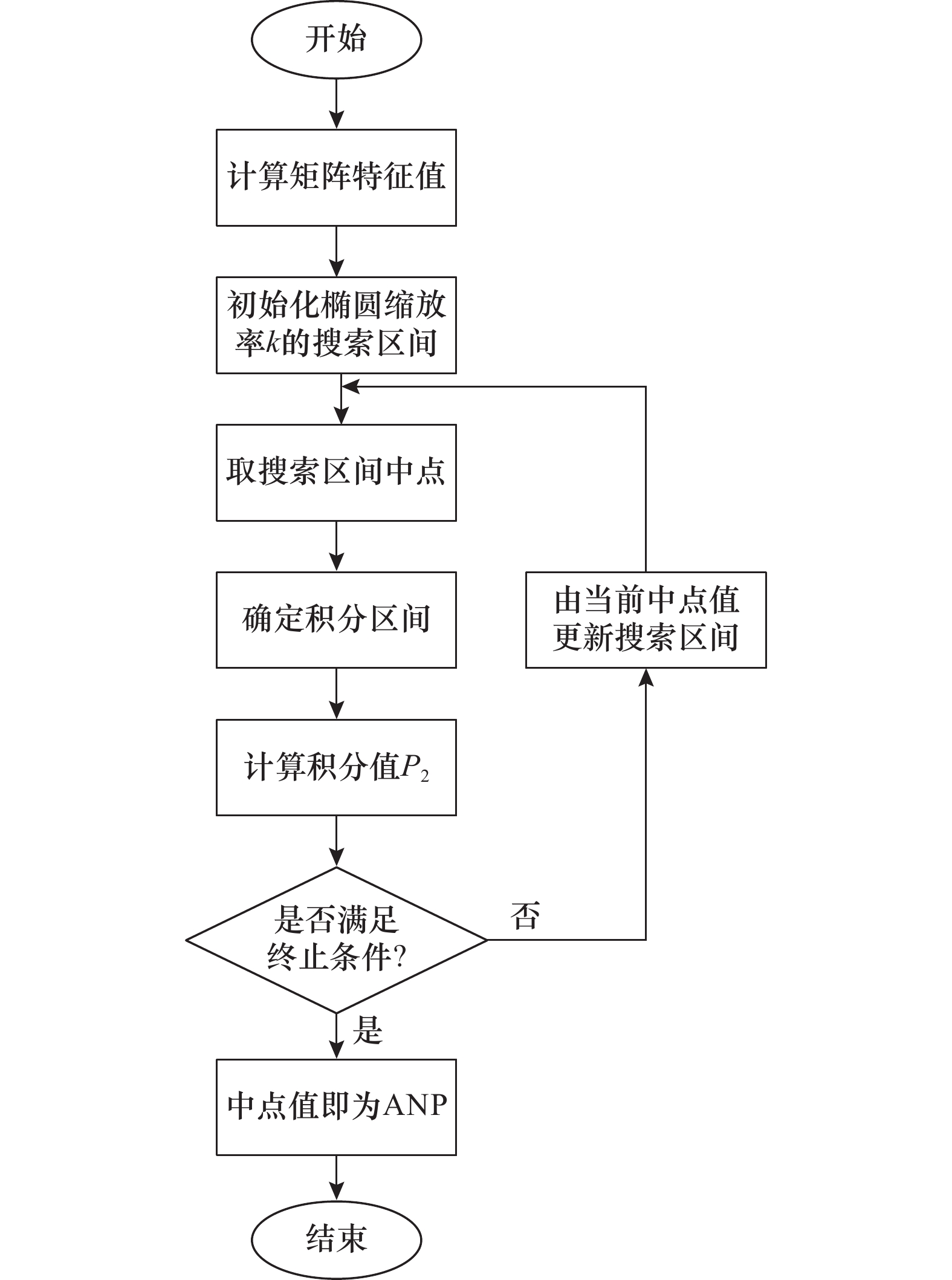

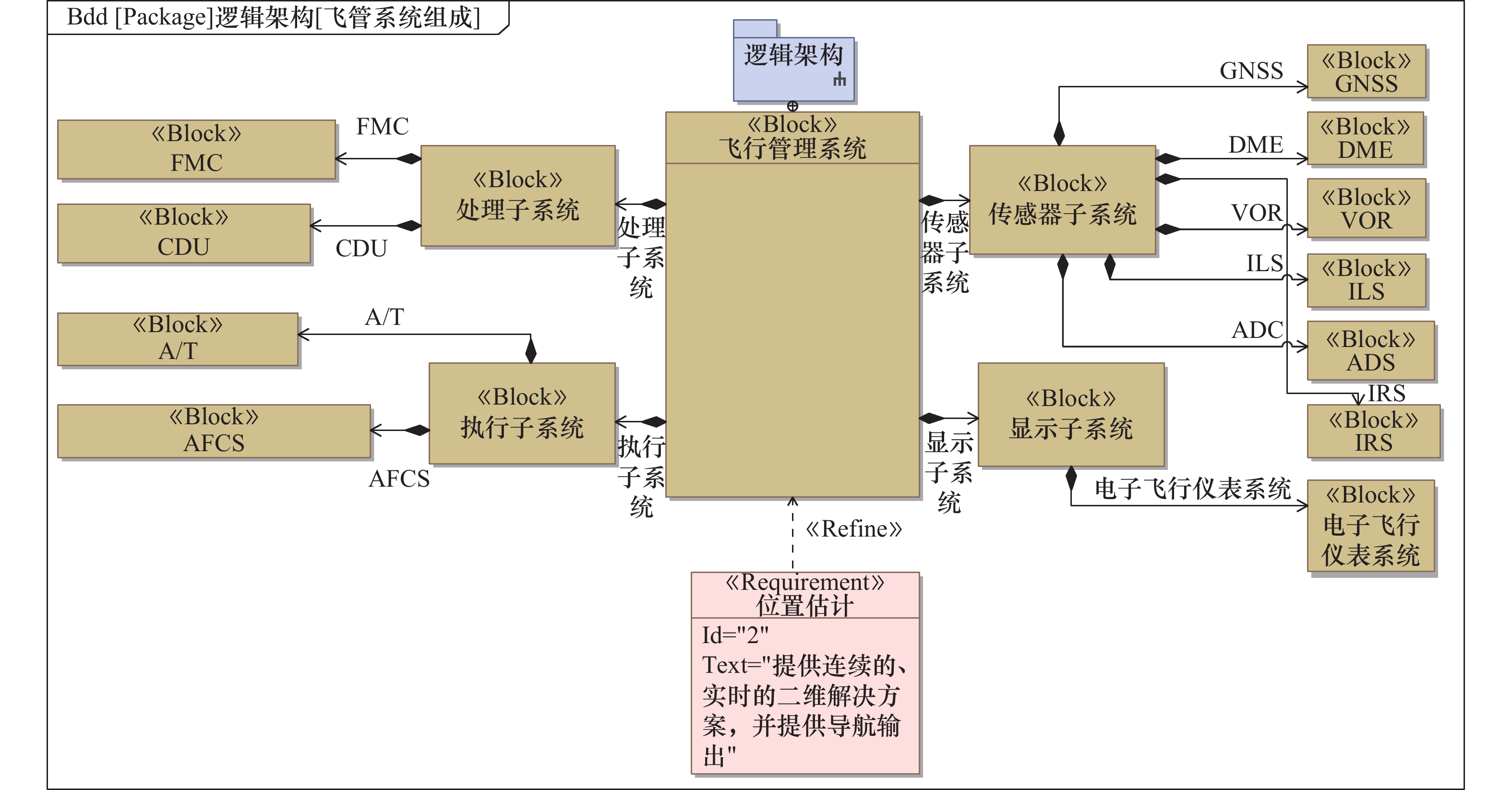

为提高飞行管理系统的架构建模质量和效率，解决传统的国产民机飞行管理系统设计开发过程中存在的设计灵活性不足、复杂度增长、无法进行模块化仿真验证等问题，提出一种基于模型的系统工程方法与仿真软件结合的方法对飞行管理系统实际导航性能进行评估。首先，对飞行管理系统的架构与功能进行分析建模。其次，结合系统建模语言（systems modeling language，SysML）参数图提出一种数值积分和二分迭代的方法对所需导航性能下航路终端区的不同导航方式进行实际导航性能评估。最后，通过配置图形用户界面调动SysML与仿真软件联合仿真。结果表明，构建的飞行管理系统架构满足所需导航性能运行条件，符合系统设计需求，可为实现模型的动态验证以及仿真一体化提供技术支撑。

关键词: 基于模型的系统工程, 所需导航性能, 飞行管理系统, 实际导航性能, 联合仿真

Abstract:

To enhance the quality and efficiency of the architecture modeling of the flight management system and address issues such as insufficient design flexibility, increased complexity, and the inability to conduct modular simulation verification in the design and development process of traditional domestic civil aircraft flight management system, a method is proposed, which combines a model-based systems engineering approach with simulation software to evaluate the actual navigation performance of the flight management system. Firstly, the architecture and functions of the flight management system are analyzed and modeled. Secondly, in combination with the systems modeling language （SysML） parametric diagram, a method of numerical integration and binary iteration is proposed to evaluate the actual navigation performance of different navigation modes in the terminal area of the air route under the required navigation performance. Finally, by configuring the graphical user interface to mobilize the co-simulation of SysML and simulation software. The results indicate that the constructed flight management system architecture meets the required navigation performance operating conditions and conforms to the system design requirements, providing technical support for the dynamic verification of the model and the integration of simulation.

Key words: model-based systems engineering (MBSE), required navigation performance (RNP), flight management system, actual navigation performance (ANP), joint simulation

中图分类号:

V 37

刘瑞华, 崔雯娇. 国产民机飞行管理系统MBSE建模及实际导航性能评估[J]. 系统工程与电子技术, 2026, 48(8): 2725-2738.

Ruihua LIU, Wenjiao CUI. MBSE modeling of domestic civil aviation flight management system and evaluation of actual navigation performance[J]. Systems Engineering and Electronics, 2026, 48(8): 2725-2738.

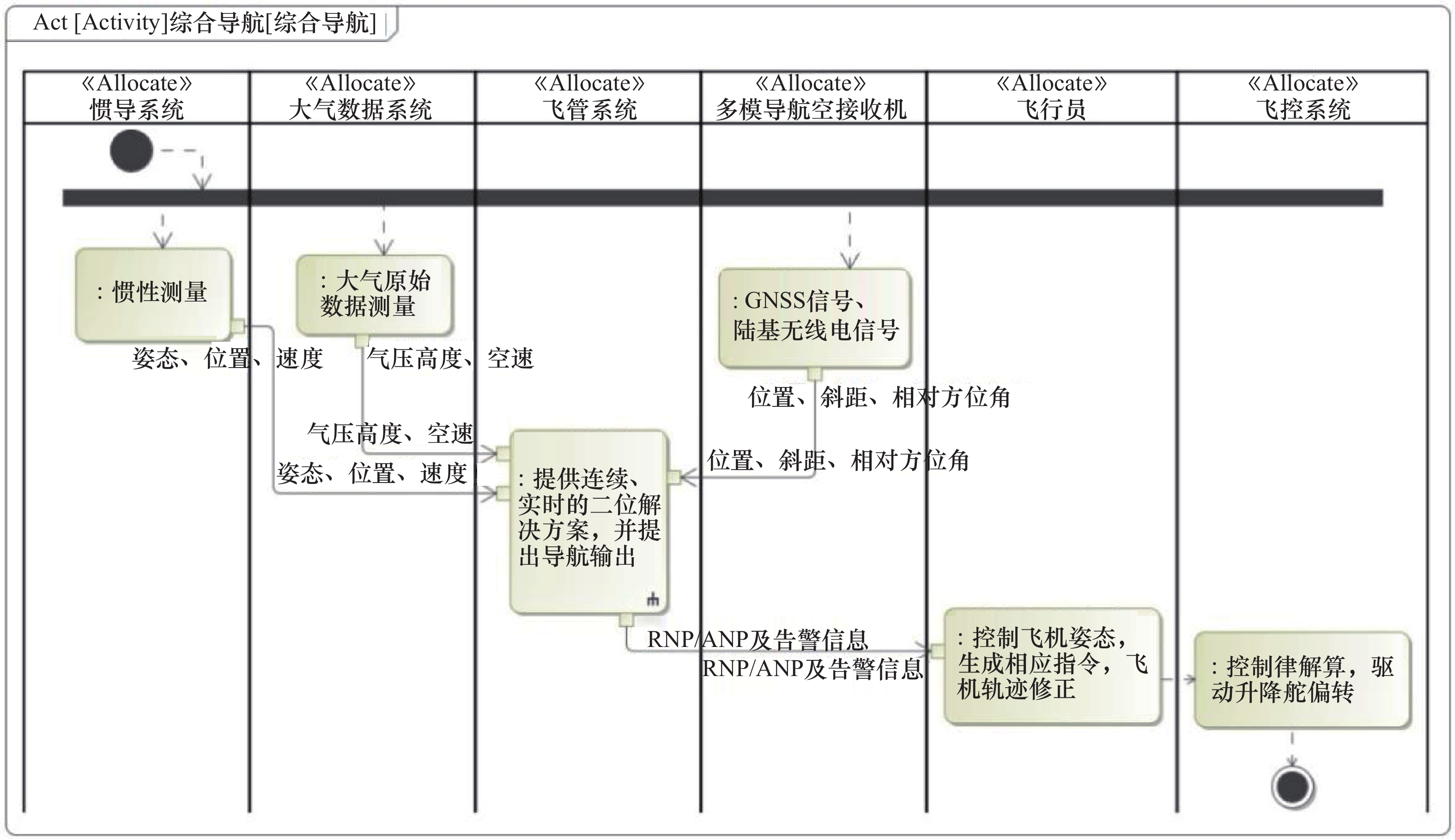

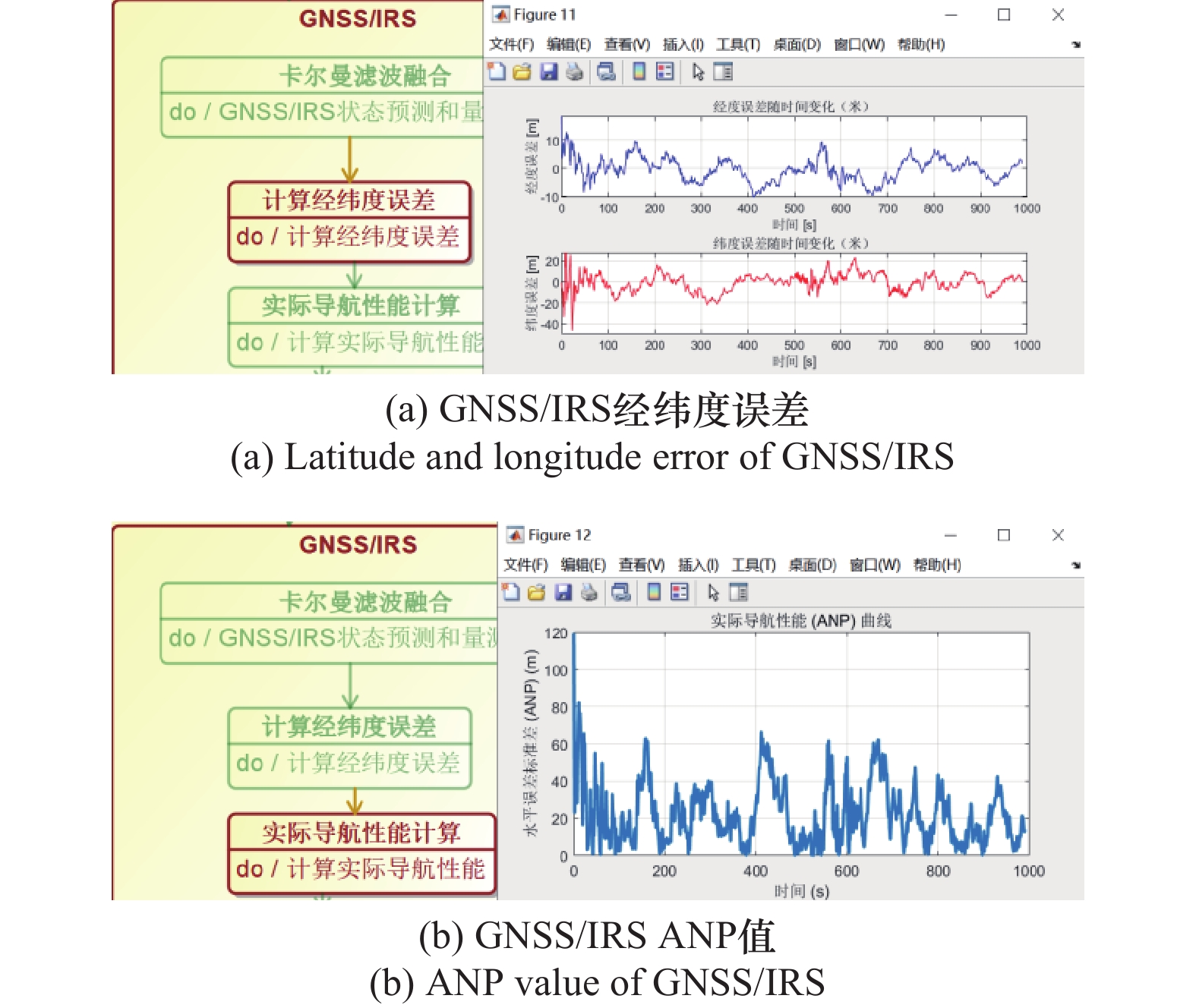

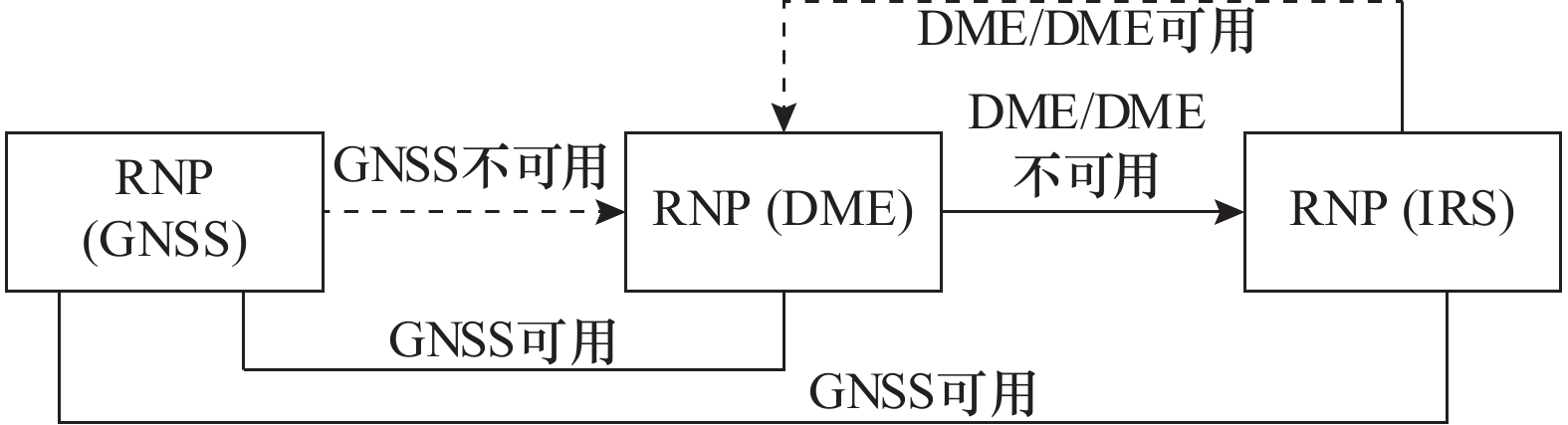

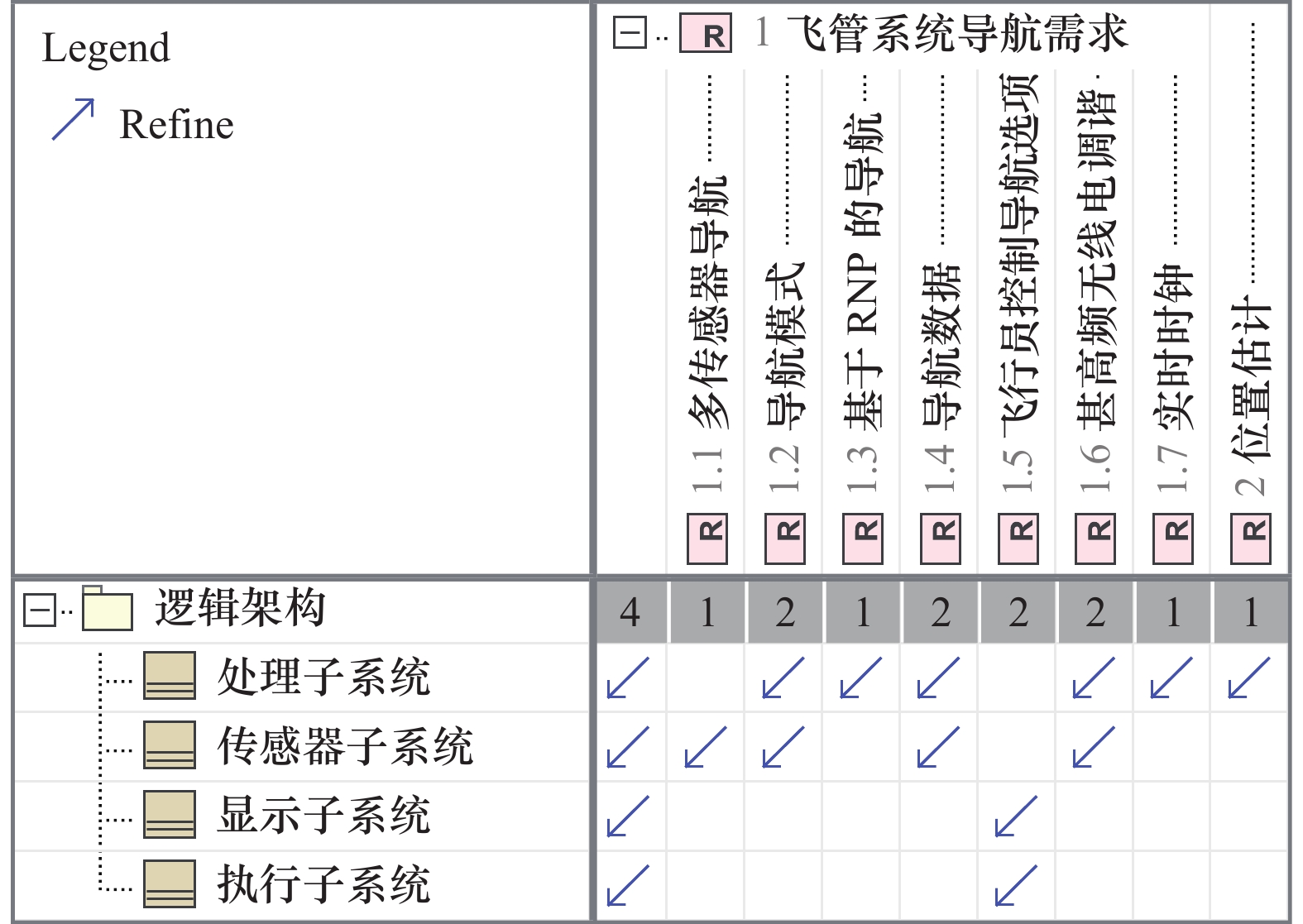

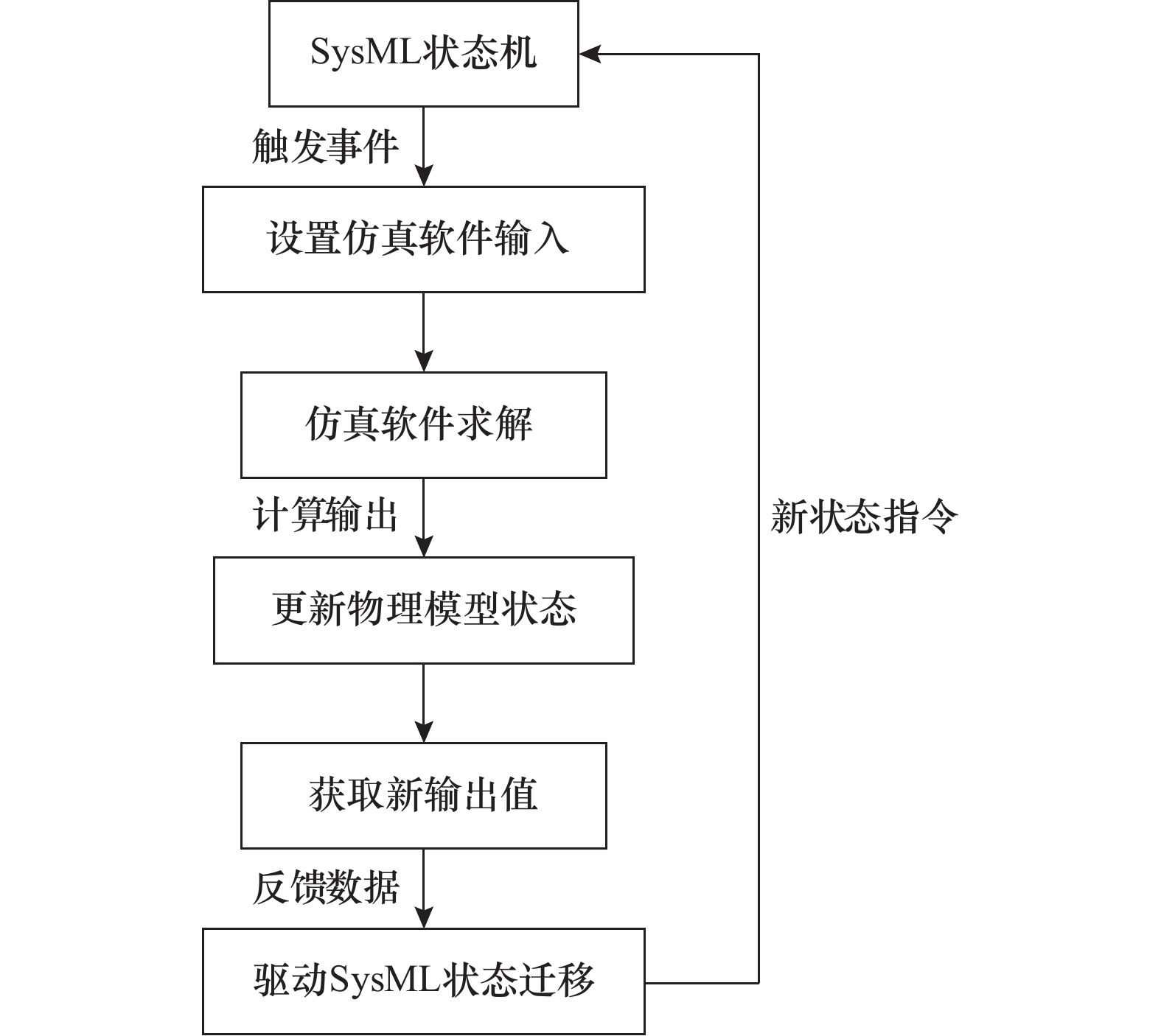

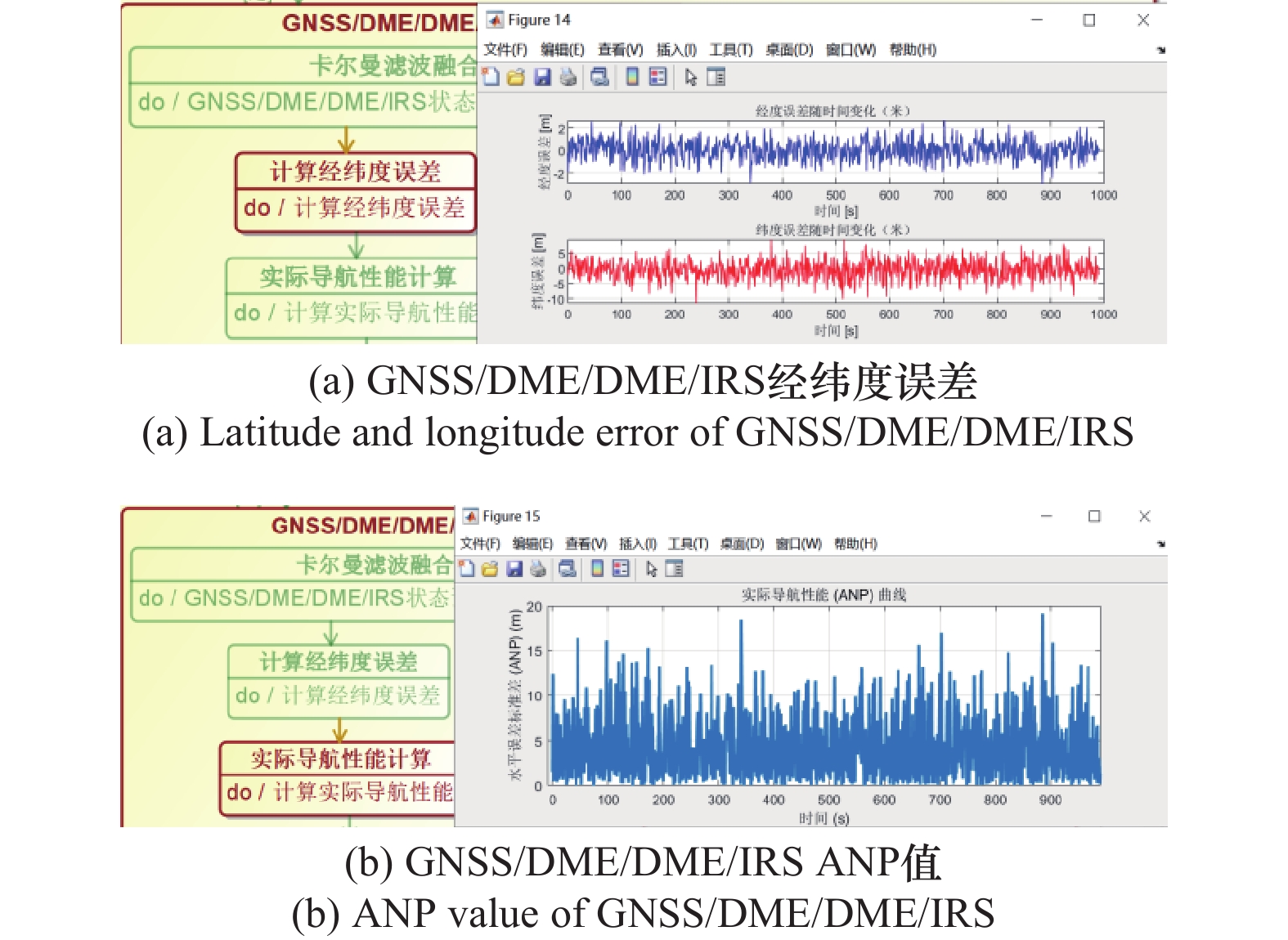

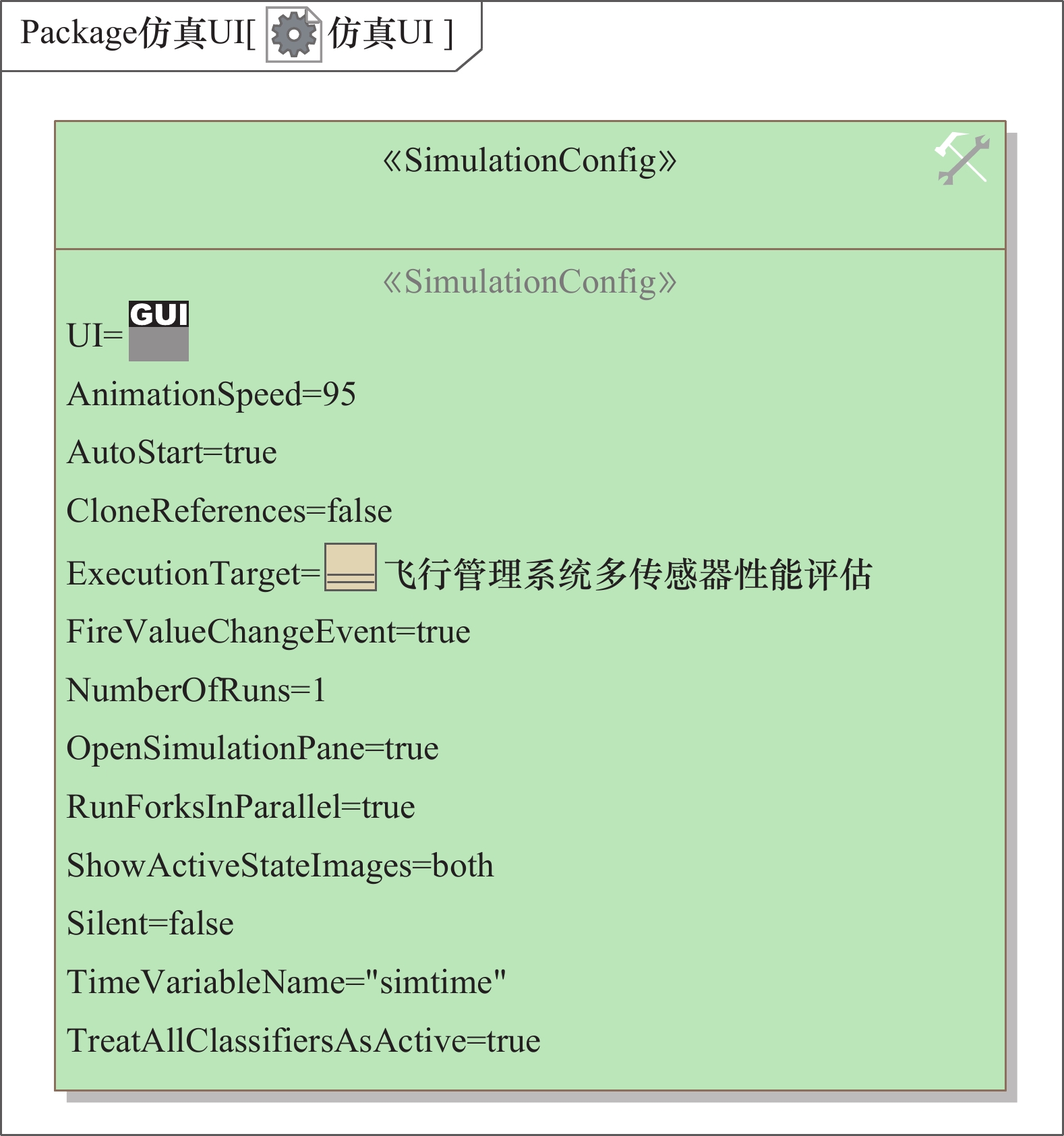

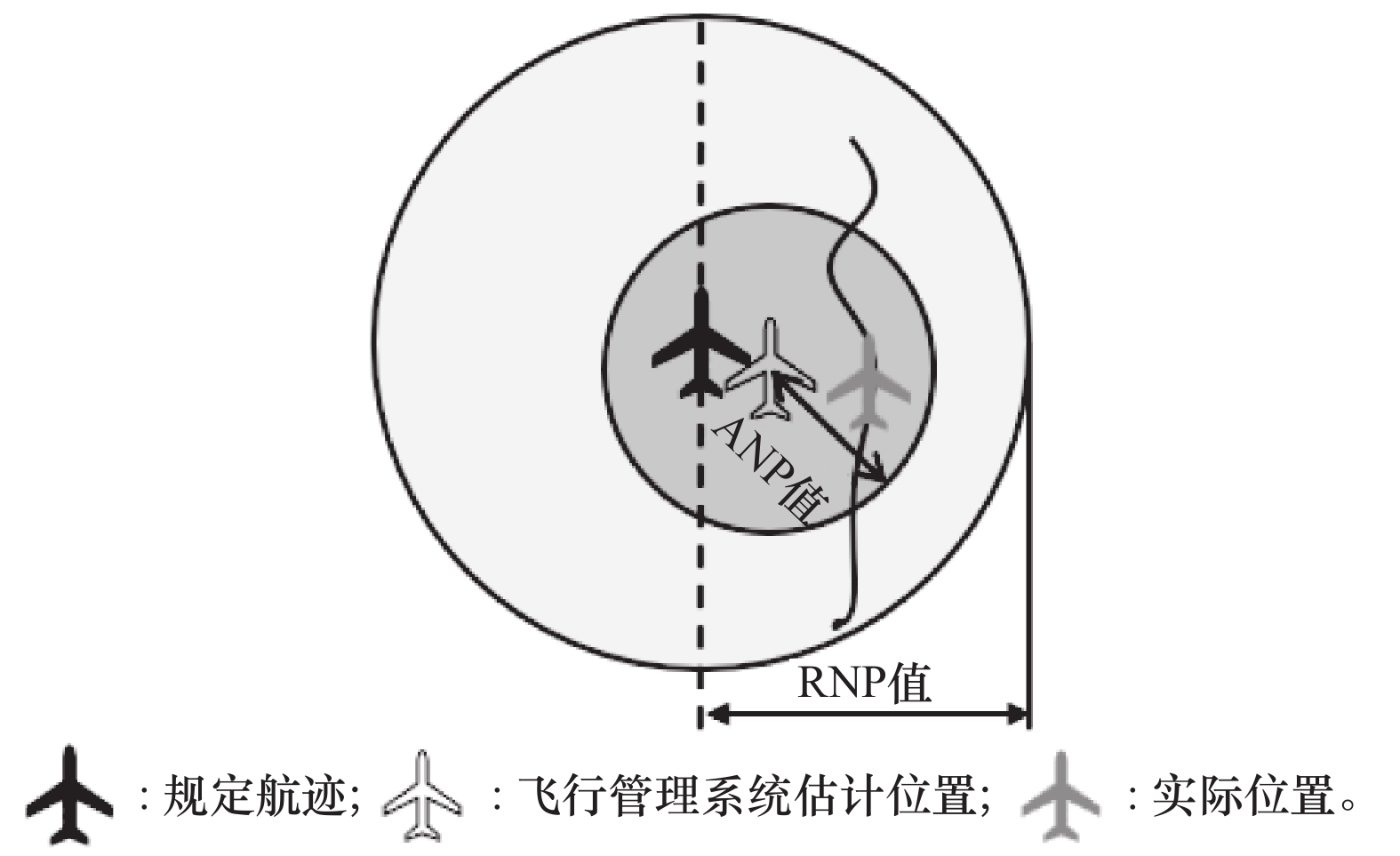

图/表 26

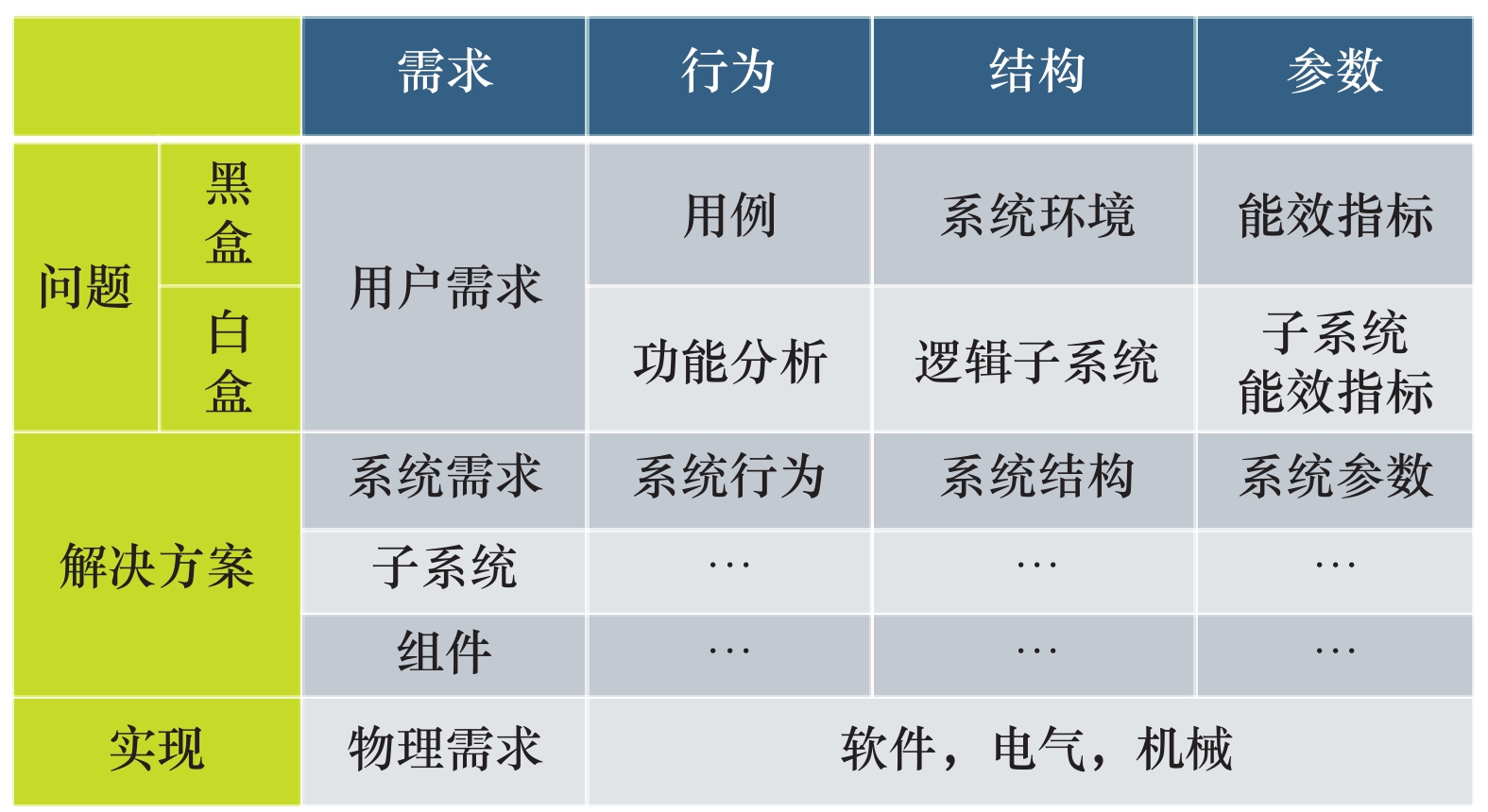

图1

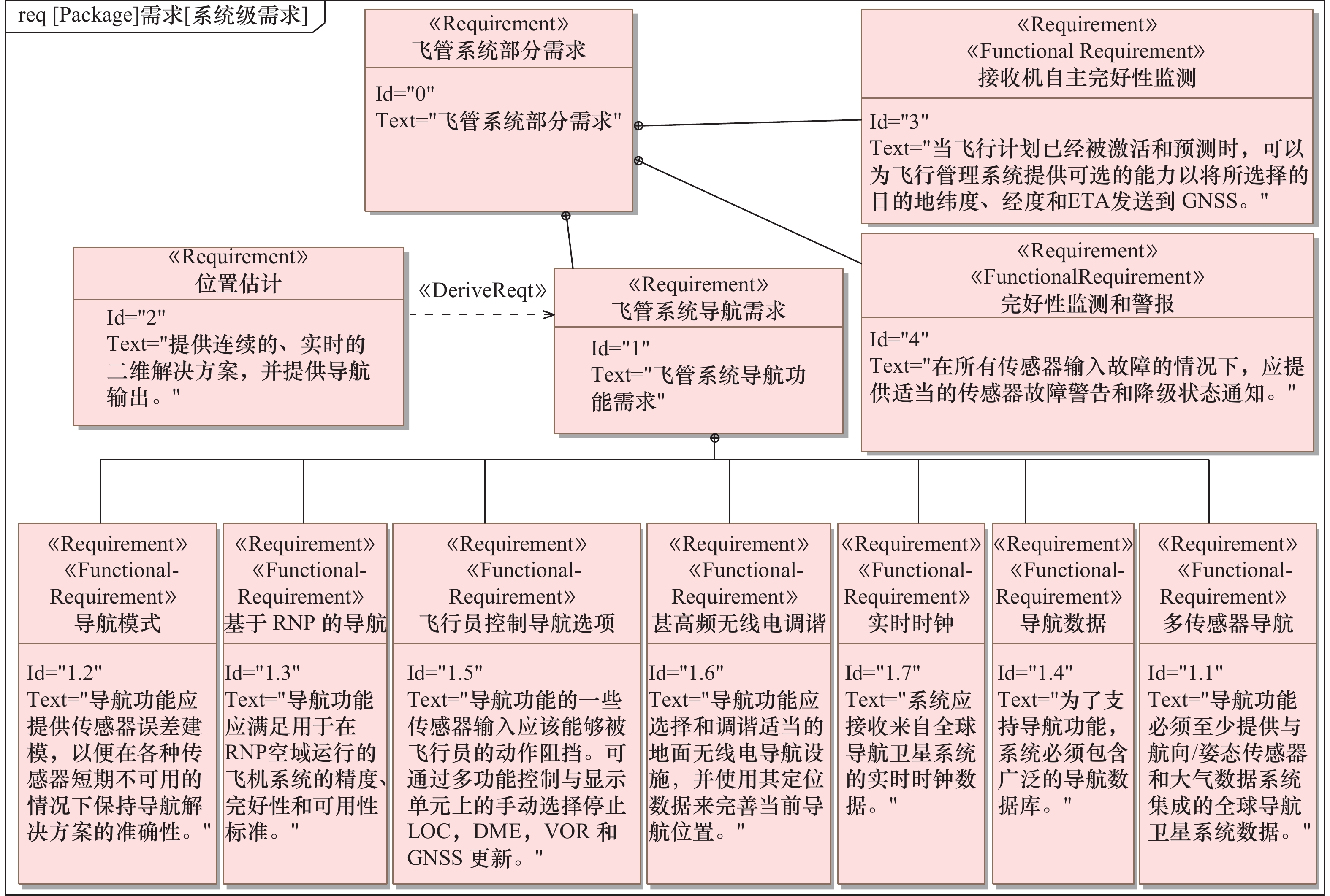

图2

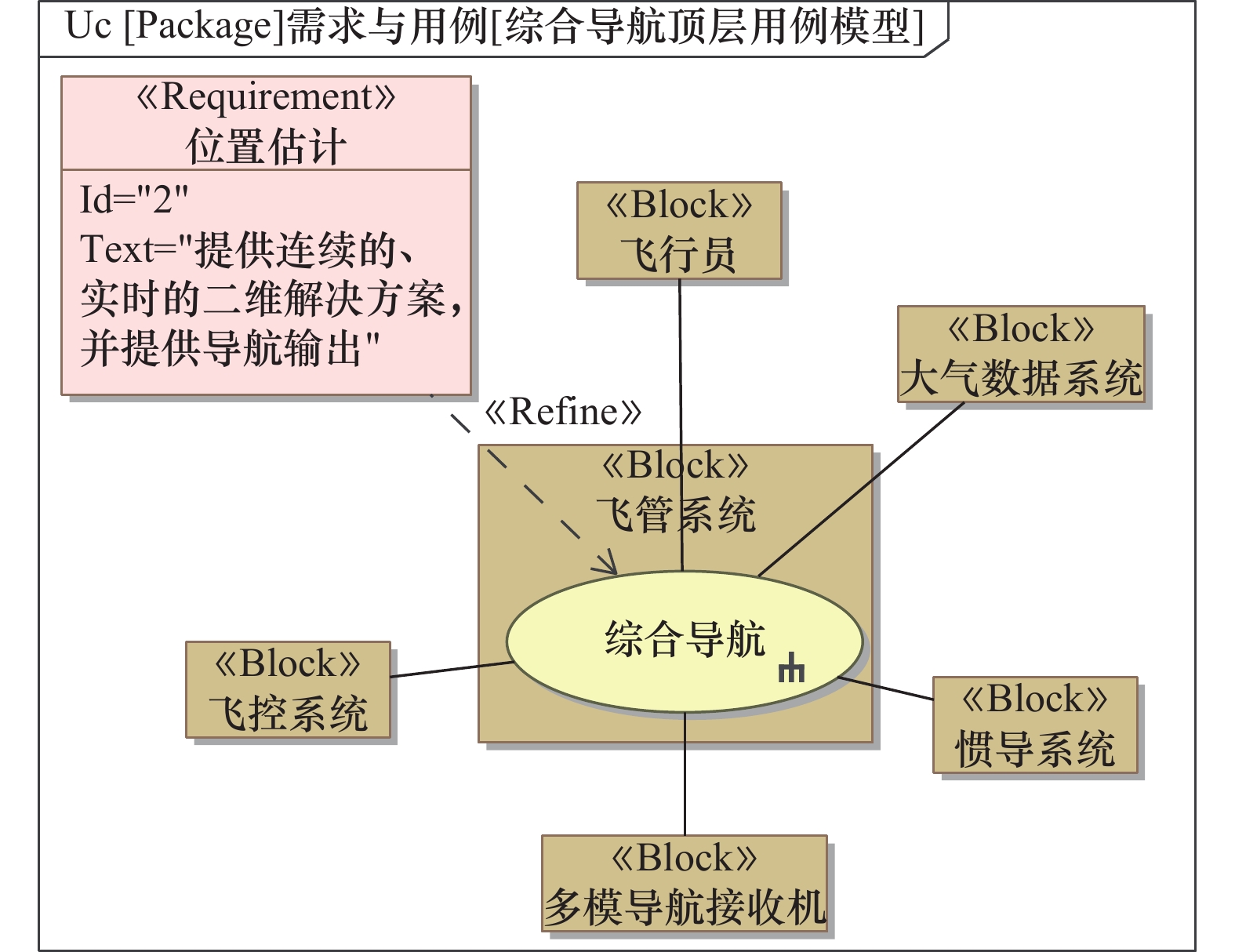

图3

图4

图5

图6

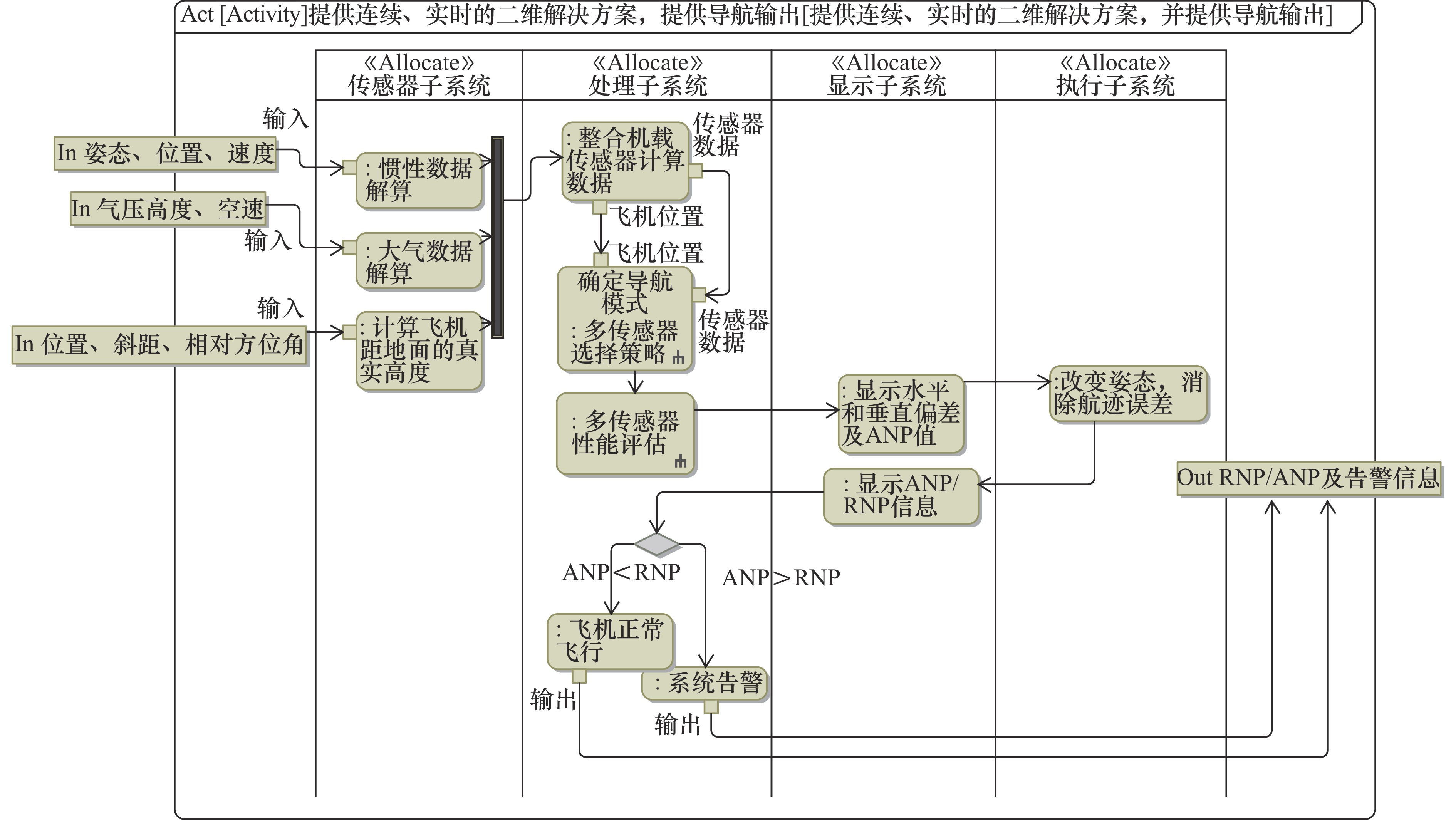

图7

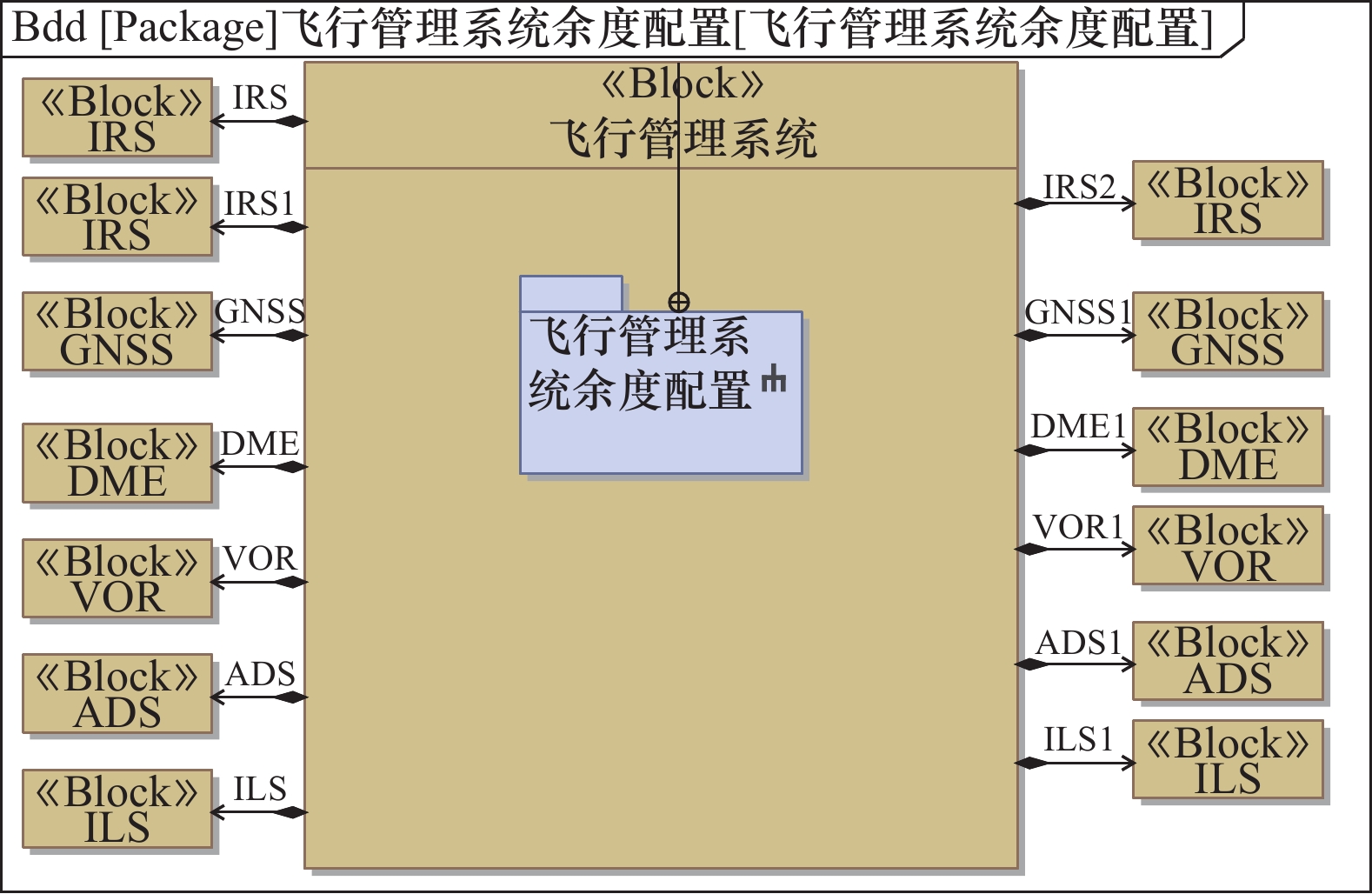

图8

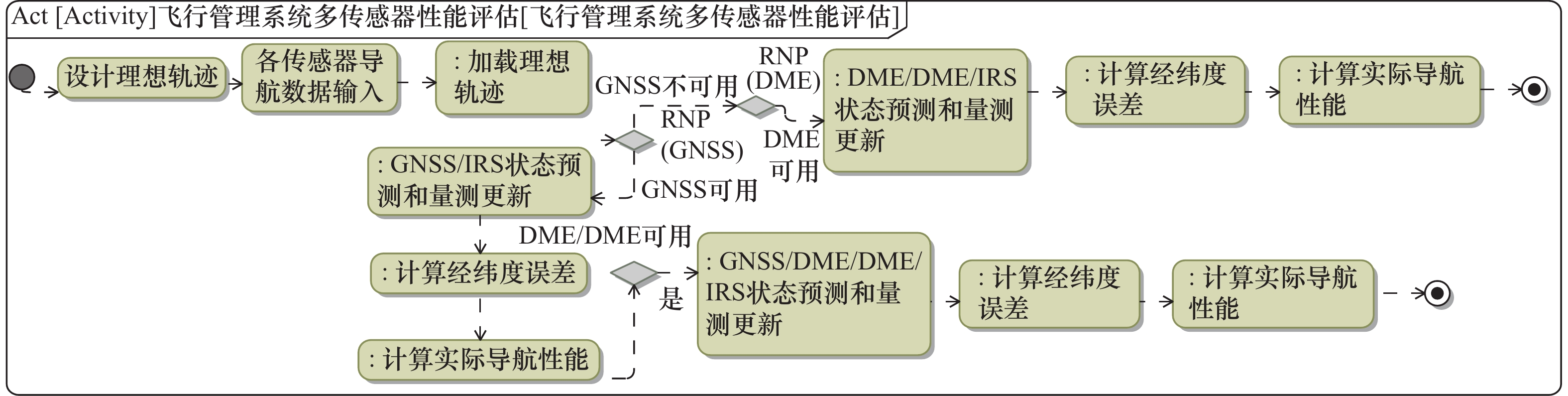

图9

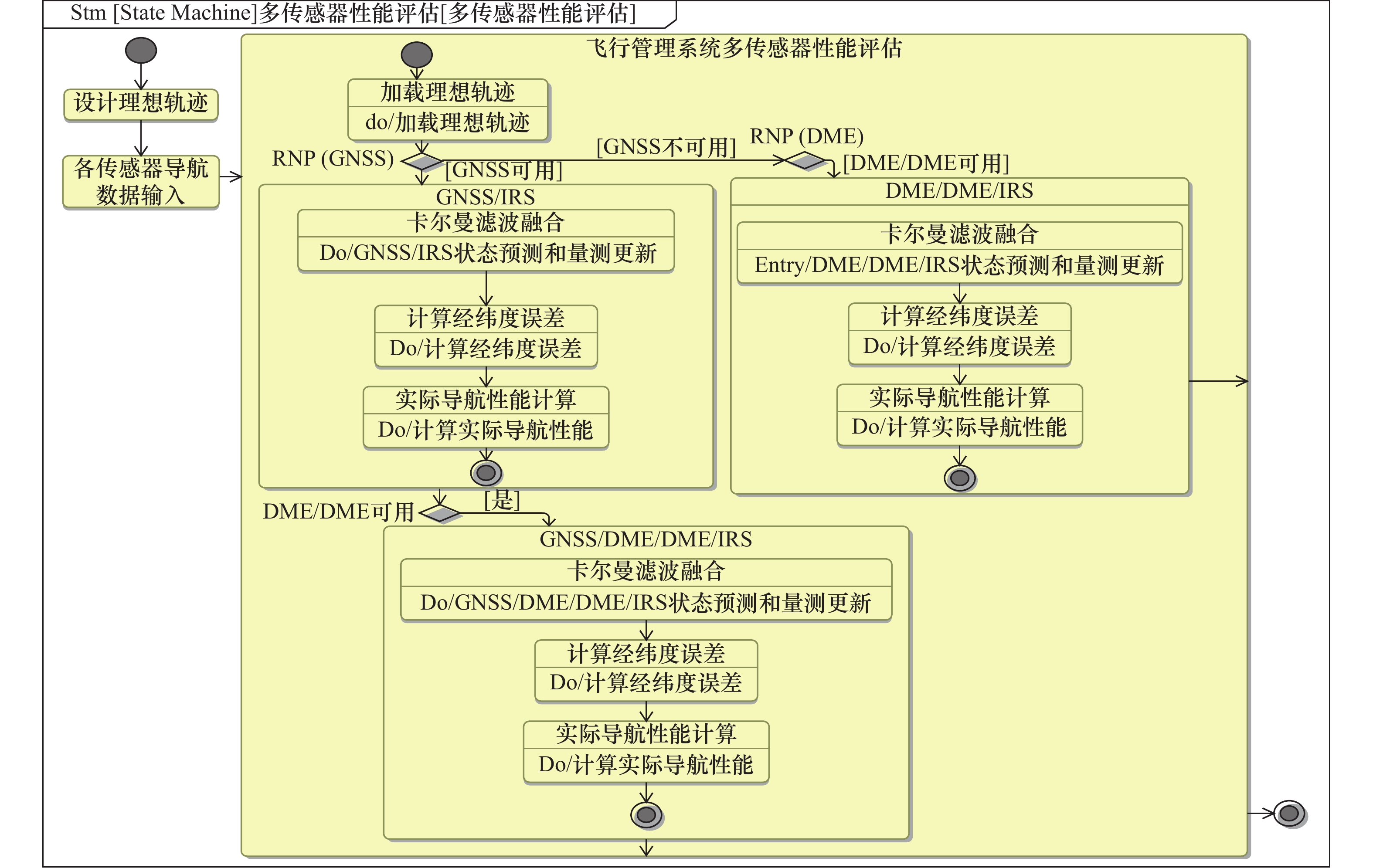

图10

图11

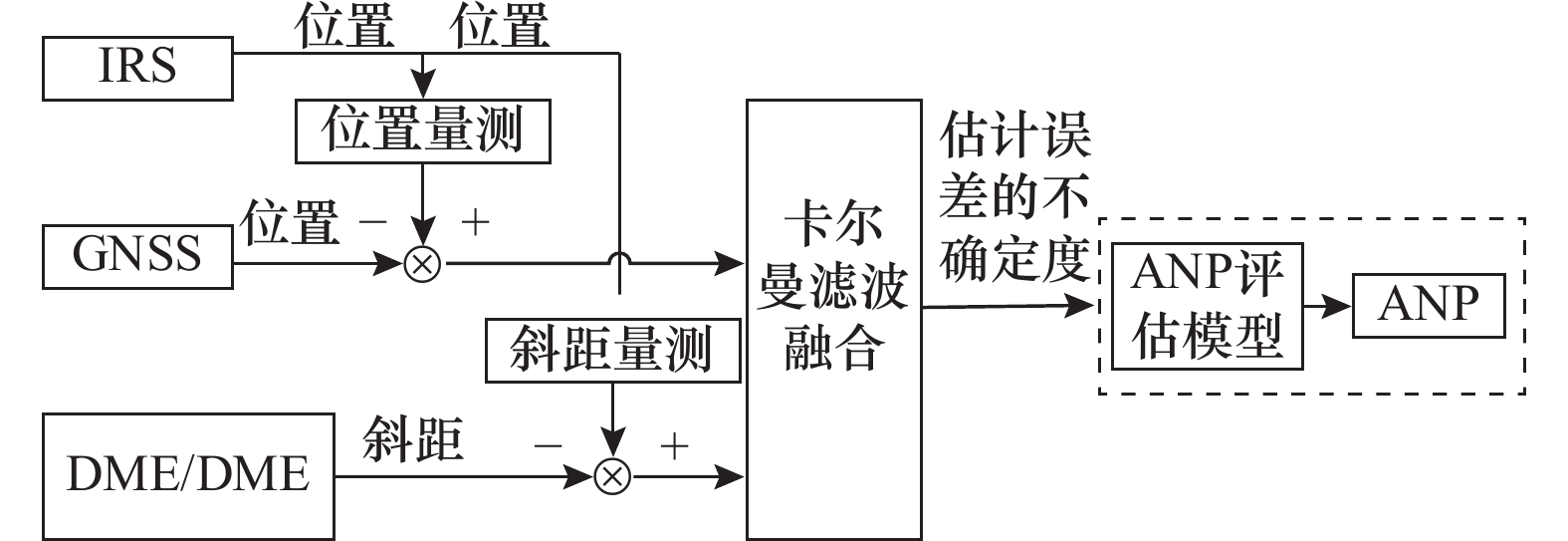

图12

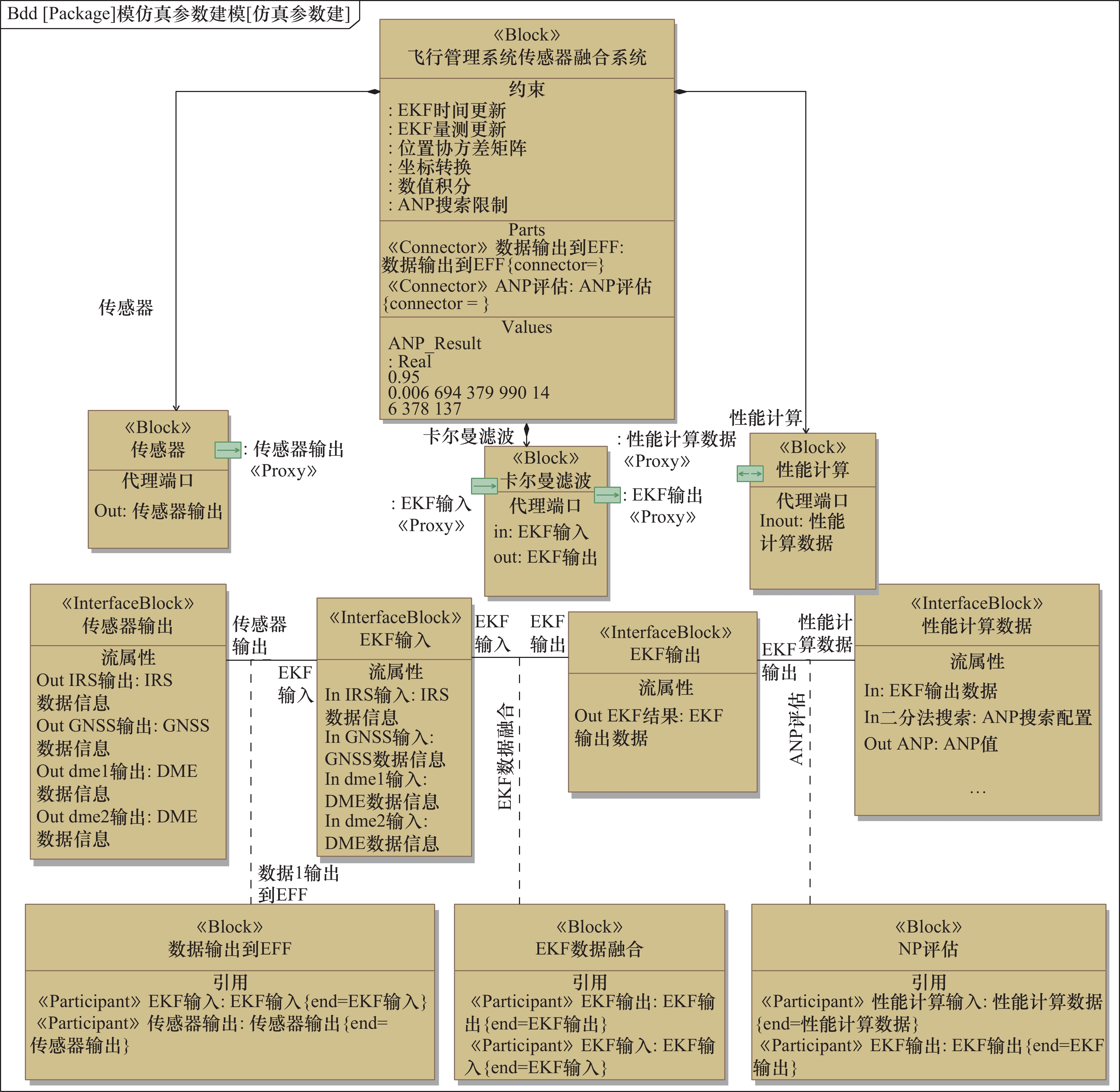

图13

图14

图15

图16

图17

表1

图18

图19

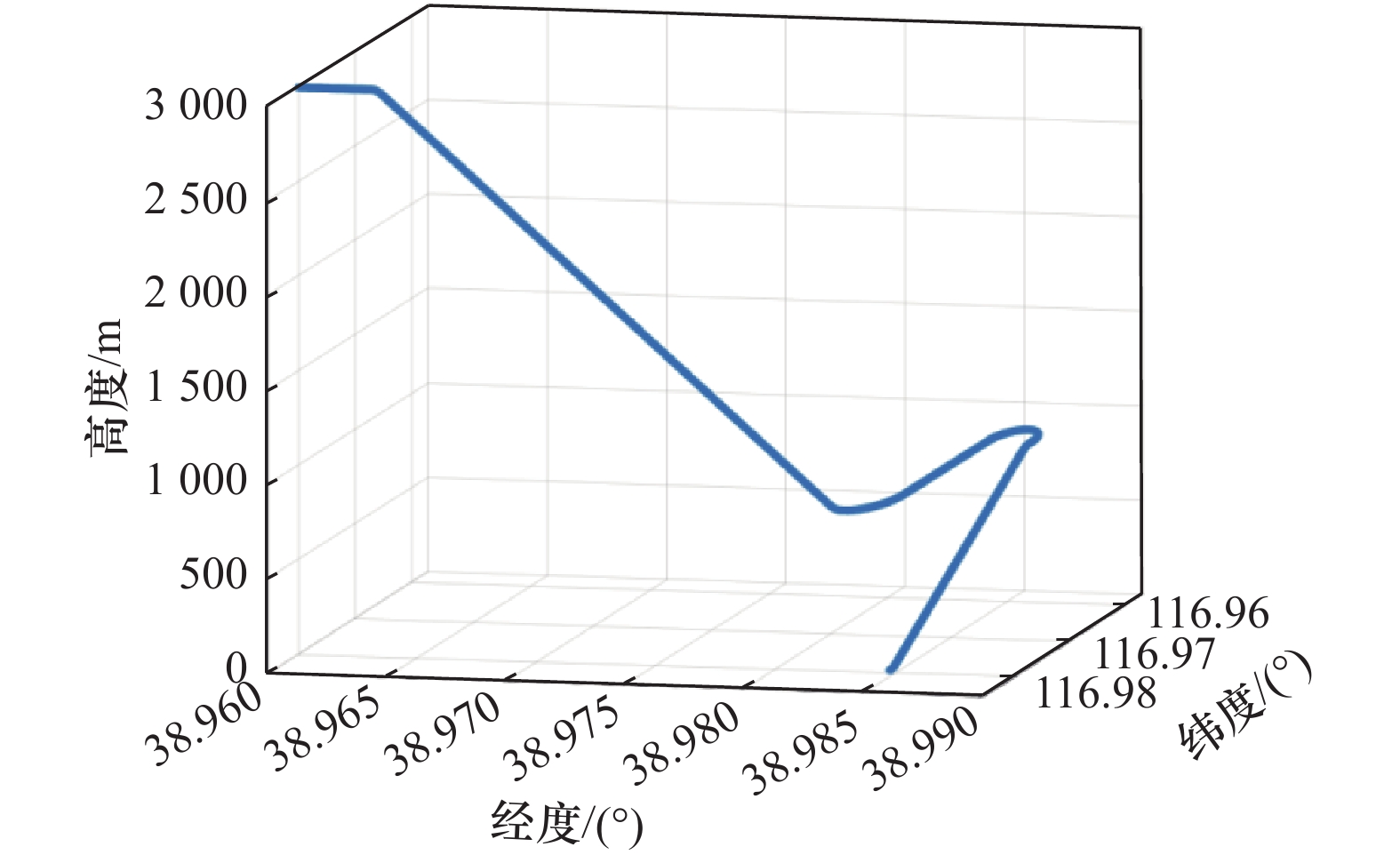

图20

表2

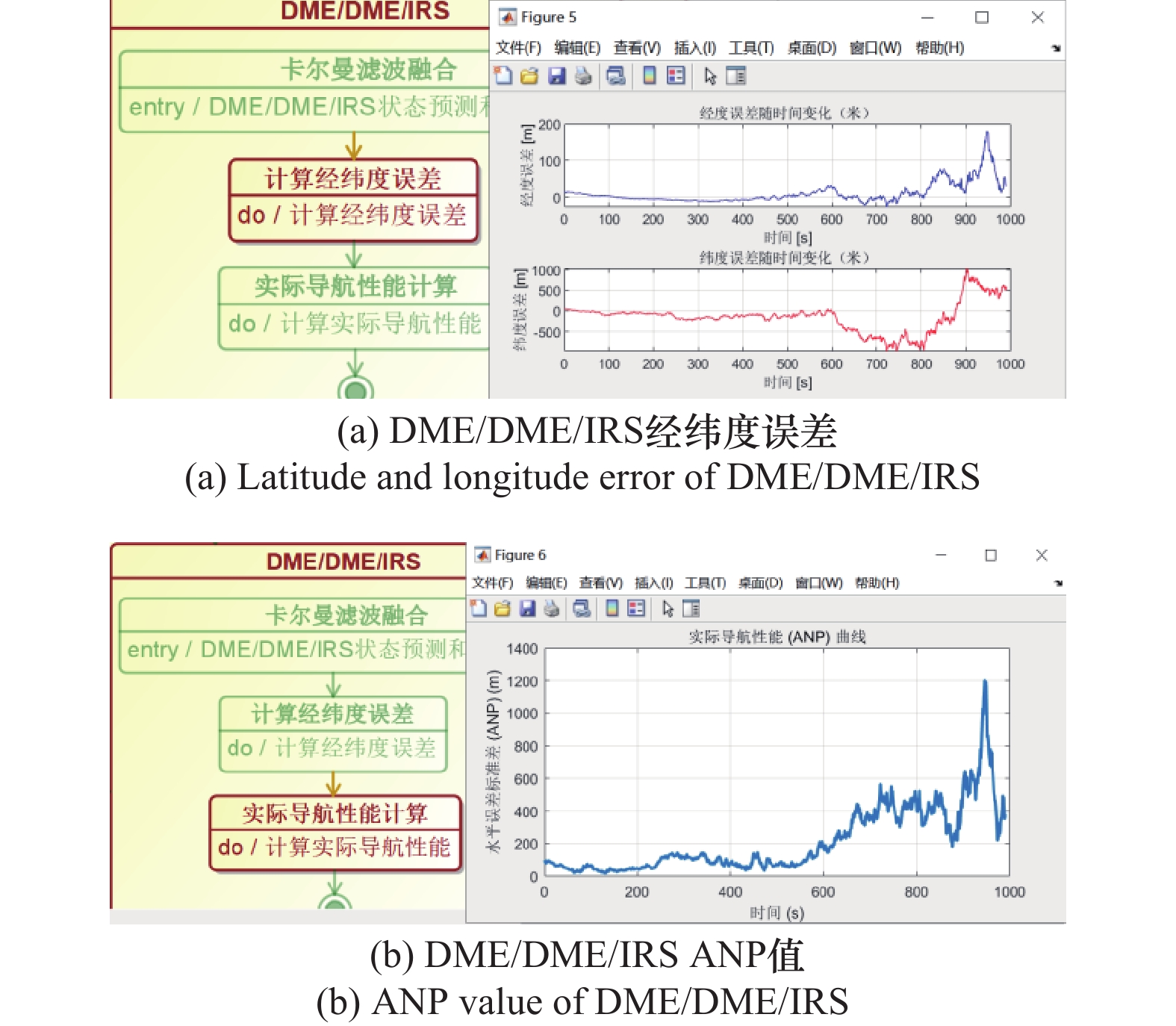

图21

图22

图23

表3

参考文献 37

1	程农, 拓朴筠, 李清, 等. 新航行体系下大型客机飞行管理系统关键技术研究与仿真验证[J]. 中国科学: 技术科学, 2018, 48 (3): 264- 276.
	CHENG N, TUO P Y, LI Q, et al. Research on key technology and simulation verification of flight management system for large passenger aircraft under new navigation system[J]. SCIENCE CHINA TECHNOLOGICA, 2018, 48 (3): 264- 276.
2	赵雪梦, 任天助, 方哲梅. 基于多模型的体系架构迭代设计方法[J]. 系统仿真学报, 2025, 37 (6): 1512- 1521.
	ZHAO X M, REN T Z, FANG Z M. Multi-model based iterative method for system-of-systems architecture design[J]. Journal of System Simulation, 2025, 37 (6): 1512- 1521.
3	宋则隆, 陈瑾, 周诠, 等. AI赋能基于模型的系统工程研究现状与展望[EB/OL]. [2025-07-08]. https: //link.cnki.net/urlid/11.2422.TN.20250708.1806.010.
	SONG Z L, CHEN J, ZHOU Q, et al. Research status and prospects of AI-enabled model-based systems engineering [EB/OL]. [2025-07-08]. https: //link.cnki.net/urlid/11.2422.TN.20250708.1806.010.
4	刘瑞华, 鹿繁鹏, 马赞. 国产民机导航系统MBSE建模及终端区RNP运行仿真[EB/OL]. [2025-05-26]. http: //kns.cnki.net/kcms/detail/11.2422.TN.20250520. 1822.024.html.
	LIU R H, LU F P, MA Z. MBSE modeling and terminal area RNP operation sim-ulation of navigation system for domestic private aircraft[EB/OL]. [2025-05-26]. http: //kns.cnki.net/kcms/detail/11.2422.TN.20250520.1822.024.html.
5	INCOSE-TP-2004-004-02. Model based systems engineering roadmap[S]. San Diego: INCOSE, 2007.
6	王乾, 郑党党, 佟瑞庭, 等. 基于MBSE的民机飞行控制系统架构设计[J]. 系统工程与电子技术, 2024, 46 (9): 3050- 3059.
	WANG Q, ZHENG D D, TONG R T, et al. Design of flight control system architecture for civil aircraft based on MBSE[J]. Systems Engineering and Electronics, 2024, 46 (9): 3050- 3059.
7	朱景璐, 朱野, 李立, 等. 基于MBSE的卫星能源系统设计与验证[J]. 系统工程与电子技术, 2024, 46 (11): 3807- 3819.
	ZHU J L, ZHU Y, LI L, et al. Design and verification of satellite energy system based on MBSE[J]. Systems Engineering and Electronics, 2024, 46 (11): 3807- 3819.
8	赵俊钦. 基于MBSE的民机推力管理系统建模与仿真研究[D]. 南京: 南京航空航天大学, 2022.
	ZHAO J Q. Research on modeling and simulation of thrust management system of civil aircraft based on MBSE[D]. NanJing: Nanjing University of Aeronautics and Astronautics, 2022.
9	曹晞, 刘波, 苏炳志, 等. 基于MBSE和VAPS的民用直升机显控系统设计与验证[J]. 系统仿真学报, 2025, 37 (3): 704- 717.
	CAO X, LIU B, SU B Z, et al. Design and verification of civil helicopter display and control system based on MBSE and VAPS[J]. Journal of System Simulation, 2025, 37 (3): 704- 717.
10	SCARLATACHE V A, ARADOAEI S, OLARIU M A, et al. Electric vehicle architecture modeling based on MATLAB and SysML for discrete and continuous simulation[C]//Proc. of the International Conference on Electromechanical and Energy Systems, 2023.
11	International Council on Systems Engineering. INCOSE systems engineering vision 2020[EB/OL]. [2025-06-10]. https: //sdincose.org/wp-content/uploads/2011/12/SEVision2020_20071003_v2_03.pdf.
12	MA J D, WANG G X, LU J Z, et al. Systematic literature review of MBSE tool-chains[J]. Applied Sciences, 2022, 12 (7): 3431. doi: 10.3390/app12073431
13	彭祺擘, 张海联. 基于模型的载人航天工程需求分析方法[J]. 系统工程与电子技术, 2023, 45 (11): 3532- 3543.
	PENG Q B, ZHANG H L. Model-based requirements analysis method for manned space engineering[J]. Systems Engineering and Electronics, 2023, 45 (11): 3532- 3543.
14	MAZEIKA D, MORKEVICIUS A, ALEKSANDRAVI-CIENE A. MBSE driven approach for defining problem domain[C]//Proc. of the 11th System of Systems Engineering Conference, 2016.
15	ANYANHUN A. The niftiness of executable MBSE black box models: a satellite subsystem exemplar[C]//Proc. of the IEEE MetroCon, 2022.
16	MOSSADAK M A, CHEBAK A, ELMAHJOUB A. Intelligent power management control system modelling for battery/supercapacitor electric vehicles using MBSE and SysML[C]//Proc. of the 2nd International Conference on Mechatronics and Electrical Engineering, 2023: 20−24.
17	HUANG Y Q, HU B K, DIAO W W, et al. Research on satellite modeling and real time simulation monitoring based on MBSE[C]//Proc. of the Asia-Pacific Conference on Communications Technology and Computer Science, 2022.
18	MORKEVICIUS A, ALEKSANDRAVICIENE A, MA-ZEIKA D, et al. MBSE grid: a simplified SysML-based approach for modeling complex systems[C]//Proc. of the INCOSE International Symposium, 2017.
19	LI Q, FANG Z X, QU M J. Security oriented analysis and design framework for cyber-physical-social enterprise[J]. IFAC-Papers On Line, 2023, 56 (2): 7342- 7347. doi: 10.1016/j.ifacol.2023.10.348
20	ZHANG Y Z, HOEPFNER G, BERROTH J, et al. Towards holistic system models including domain-specific simulation models based on SysML[J]. Systems, 2021, 9 (4): 76. doi: 10.3390/systems9040076
21	XIA Z Q, FU R M. Study on spaceborne remote sensing imaging system by Magic-Grid methodology[C]//Proc. of the 7th International Conference on Signal and Information Processing, Networking and Computers, 2021: 280−287.
22	FANMUY G, HASSAN B. ASPICE compliance development of cyber-physical systems by using model-based systems engineering[C]//Proc. of the INCOSE International Symposium, 2023: 416−430.
23	ARINC 702A-5. Advanced flight management computer system[S]. Bowie, Maryland: Society of Automotive Engineers, 2018.
24	International Civil Aviation Organization. Performance based navigation manual[R]. Montreal: International Civil Aviation Organization, 2008.
25	张玉金, 黄博, 廖文和. 面向场景的航空发动机基于模型的系统工程设计[J]. 计算机集成制造系统, 2019, 27 (11): 3093- 3102.
	ZHANG Y J, HUANG B, LIAO W H. Scenario based model-based system engineering design of aero-engine[J]. Computer Integrated Manufacturing Systems, 2019, 27 (11): 3093- 3102.
26	孙淑光, 朱晓文. 多源性能约束的无人机可靠动态航路规划算法[J]. 中国惯性技术学报, 2024, 32 (2): 187- 195.
	SUN S G, ZHU X W. Unmanned aerial vehicles reliable dynamic trajectory planning algorithm based on multi-source of performance constraints[J]. Journal of Chinese Inertial Technology, 2024, 32 (2): 187- 195.
27	柳敏. 基于RNP需求的大型客机导航信息综合处理及性能评估[D]. 南京: 南京航空航天大学, 2017.
	LIU M. Comprehensive processing and performance evaluation of large aircraft navigation information based on RNP requirements [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2017.
28	SEPASI S, GHORBANI R, LIAW B Y. Improved extended Kalman filter for state of charge estimation of battery pack[J]. Journal of Power Sources, 2014, 255, 368- 376. doi: 10.1016/j.jpowsour.2013.12.093
29	孙淑光, 戴博, 张鹏. 机载组合导航系统实际导航性能计算方法[J]. 控制工程, 2011, 18 (2): 262- 266.
	SUN S G, DAI B, ZHANG P. Calculation method of actual navigation performance of airborne combined navigation system[J]. Control Engineering, 2011, 18 (2): 262- 266.
30	赖际舟, 王玮, 刘建业, 等. 基于数值积分的机载导航系统ANP评估算法[J]. 交通运输工程学报, 2013, 13 (5): 115- 120.
	LAI J Z, WANG W, LIU J Y, et al. ANP evaluation algorithm for airborne navigation system based on numerical integration[J]. Journal of Transportation Engineering, 2013, 13 (5): 115- 120.
31	钟伦珑, 袁旭, 董巧丽, 等. 基于高斯勒让德−二分迭代的实际导航性能评估方法[J]. 中国惯性技术学报, 2025, 33 (2): 196- 204，212.
	ZHONG L L, YUAN X, DONG Q L, et al. Actual navigation performance evaluation method based on Gaussian Legende-Dichotomous iteration[J]. Chinese Journal of Inertial Technology, 2025, 33 (2): 196- 204，212.
32	徐德胜, 高倩, 胡士强, 等. 基于SysML与Simulink的飞机供电系统联合仿真研究[C]//第5届中国航空科学技术大会, 2021.
	XU D S, GAO Q, HU S Q, et al. Joint simulation research of aircraft power supply system based on SysML and simulink [C]//Proc. of the 5th China Aeronautical Science and Technology Conference, 2021.
33	ZHANG X, ZHANG S J, YAN J. Civil aircraft auto brake system development using model-based systems engineering[C]//Proc. of the China Automation Congress, 2021: 400−405.
34	BANK D, BLUMRICH F, KRESS P, et al. A systems engineering approach for a dynamic co-simulation of a SysML tool and MATLAB[C]//Proc. of the IEEE Annual Systems Conference, 2016.
35	GUO B J, CAO Y F, DING M, et al. Top-level modeling and simulation of civil aircraft fly-by-wire flight control system for airworthiness compliance verification in virtual flight testing[C]//Proc. of the 3rd International Symposium on Aerospace Engineering and Systems, 2024: 226−231.
36	BALLIN M G, WILLIAMS D H, ALLEN B D, et al. Prototype flight management capabilities to explore temporal RNP concepts[C]// Proc. of the IEEE/AIAA 27th Digital Avionics Systems Conference, 2008.
37	Radio Technical Commission for Aeronautics. Minimum aviation system performance standards: required navigation performance for area navigation[R]. Washington D.C.: Radio Technical Commission for Aeronautics, 2003.

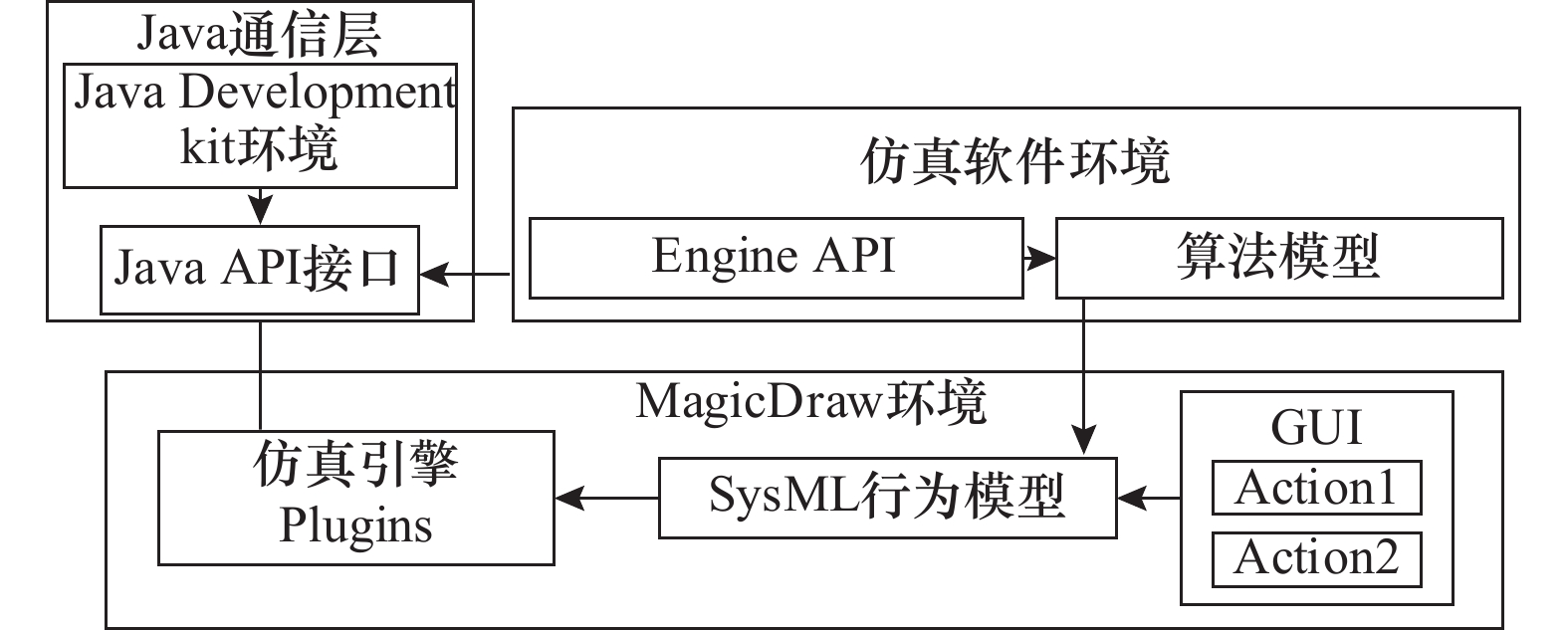

阶段	算法	作用
引擎初始化	Engine.start （）	集成仿真路径
跨进程通信	feval （"", *）	函数动态调用
结果提取	getVariable （"***"）	结果回传
关闭引擎	close （）	释放进程资源

导航模式	参数	数值
IRS	陀螺仪零偏/${(^ \circ }/h)$	0.01
	陀螺仪随机游走误差${(^ \circ }/\sqrt h )$	0.001
	加速度计零偏/$g$	10⁻⁴
	加速度计随机游走误差/（${\mathrm{mGal}}/\sqrt h $）	10
GNSS	水平位置量测误差/m	4
	垂直位置量测误差/m	5
	水平速度量测误差/（m/s）	0.1
	垂直速度量测误差/（m/s）	0.15
DME/DME	距离测量误差/m	200

规范等级	TSE （95%）	FTE （95%）	NSE （95%）
RNP1	1.00	0.50	0.87
RNP2	2.00	1.00	1.73
RNP4	4.00	2.00	3.46
RNP 所需导航性能进近	0.30	0.25	3.46
区域导航1	1.00	0.5	0.87
区域导航2	2.00	1.00	1.73
区域导航5	5.00	2.50	4.33
区域导航10	10.00	5.00	8.66
