基于TS-OMP的IRS辅助毫米波大规模MIMO信道估计方案

doi:10.12305/j.issn.1001-506X.2026.03.32

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (3): 1083-1090.doi: 10.12305/j.issn.1001-506X.2026.03.32

• 通信与网络 • 上一篇

基于TS-OMP的IRS辅助毫米波大规模MIMO信道估计方案

梁彦, 涂威洋(), 王俊清, 李飞

南京邮电大学通信与信息工程学院，江苏南京 210003

收稿日期:2024-11-27 出版日期:2026-03-25 发布日期:2026-04-13
通讯作者: 梁彦 E-mail:williamt899@163.com
作者简介:涂威洋（1997—），男，工程师，硕士，主要研究方向为大规模多输入多输出信道估计
王俊清（2001—），男，硕士研究生，主要研究方向为超大规模多输入多输出近场信道估计与码本设计
李　飞（1966—），女，教授，博士，主要研究方向为智能信息处理
基金资助:
国家自然科学基金（62271265）资助课题

IRS assisted millimeter wave massive MIMO channel estimation based on TS-OMP

Yan LIANG, Weiyang TU(), Junqing WANG, Fei LI

School of Communications and Information Engineering，Nanjing University of Posts and Telecommunications，Nanjing 210003，China

Received:2024-11-27 Online:2026-03-25 Published:2026-04-13
Contact: Yan LIANG E-mail:williamt899@163.com

摘要/Abstract

摘要：

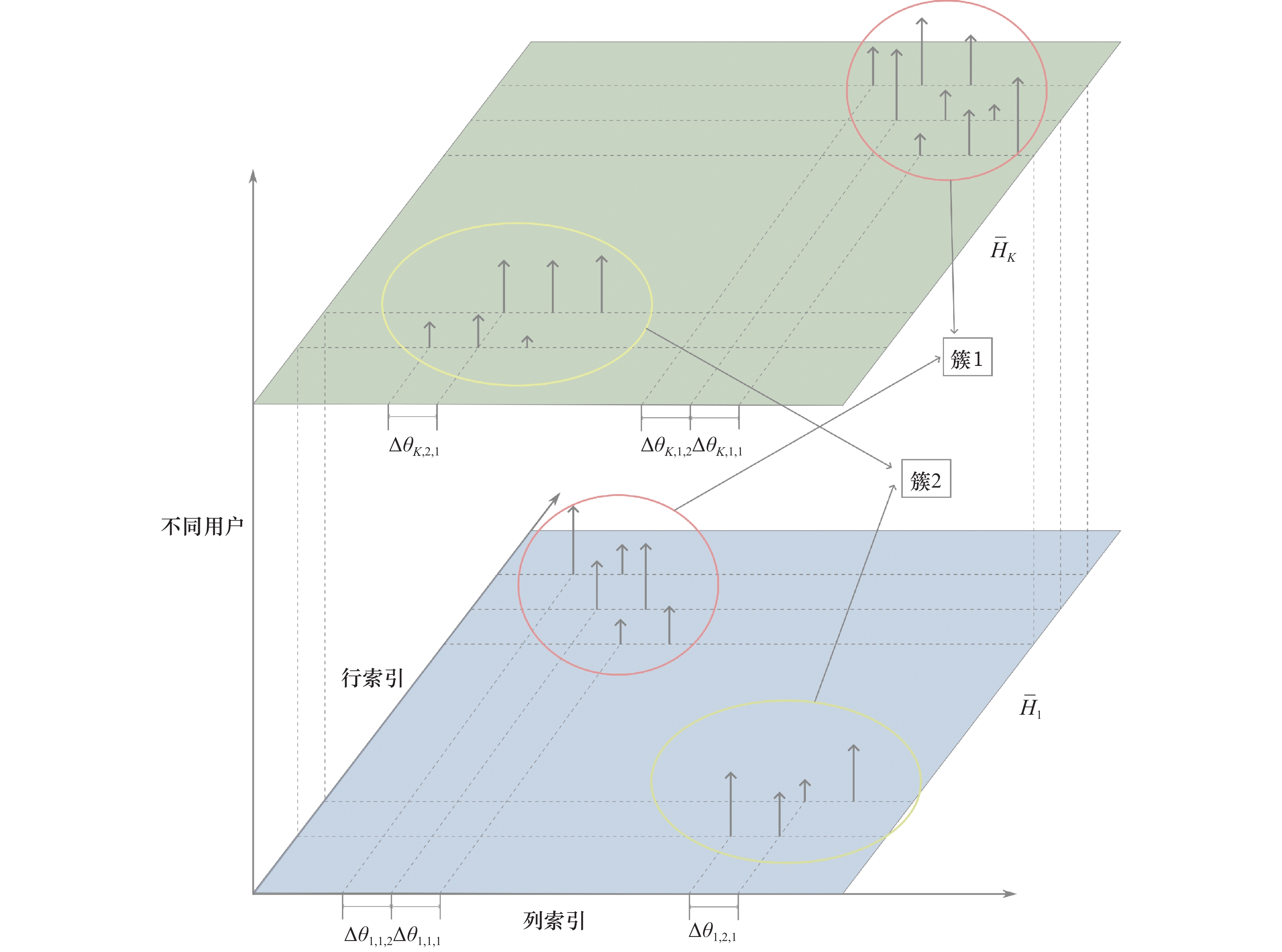

针对智能反射面辅助的大规模多输入多输出毫米波系统中信道估计导频开销高的问题，提出了一种基于三重结构化正交匹配追踪（triple-structured orthogonal matching pursuit，TS-OMP）的信道估计方案。首先利用信道角度扩展特性，揭示了波束空间级联信道矩阵的三重结构化稀疏特性。基于上述结构稀疏特性，将信道估计问题表述为三重结构化稀疏信号恢复问题，并提出了一种TS-OMP信道估计算法。该算法首先估计部分用户的稀疏行索引和簇内列偏移量，再将稀疏行索引和簇内列偏移量作为先验信息估计所有用户的信道状态信息。仿真结果表明，该方案的性能和导频开销明显优于现有方案。

关键词: 信道估计, 智能反射面, 压缩感知, 毫米波, 角度扩展

Abstract:

To address the high pilot overhead in channel estimation for intelligent reflecting surface（IRS） assisted large-scale multiple-input multiple-output （MIMO） millimeter-wave systems, a channel estimation scheme based on the triple-structured orthogonal matching pursuit （TS-OMP） is proposed. By exploiting the angular spread characteristics of the channel, the triple-structured sparsity of the beamspace cascaded channel matrix is revealed. Leveraging this structured sparsity, the problem of channel estimation is reformulated as a problem of triple-structured sparse signal recovery. The proposed TS-OMP algorithm addresses this by first estimating the sparse row indices and intra-cluster column offsets for a subset of users. These estimated indices and offsets are then utilized as prior information to estimate the channel state information for all users. Simulation results demonstrate that the performance and pilot overhead of this scheme are significantly better than existing approaches.

Key words: channel estimation, intelligent reflecting surface, compressed sensing, millimeter wave, angular spread

中图分类号:

TN 929.5

梁彦, 涂威洋, 王俊清, 李飞. 基于TS-OMP的IRS辅助毫米波大规模MIMO信道估计方案[J]. 系统工程与电子技术, 2026, 48(3): 1083-1090.

Yan LIANG, Weiyang TU, Junqing WANG, Fei LI. IRS assisted millimeter wave massive MIMO channel estimation based on TS-OMP[J]. Systems Engineering and Electronics, 2026, 48(3): 1083-1090.

图/表 11

图1

图2

图3

图4

表1

图5

图6

图7

图8

图9

图10

参考文献 19

1	PAN C H, ZHOU G, ZHI K D, et al. An overview of signal processing techniques for RIS/IRS-aided wireless systems[J]. IEEE Journal of Selected Topics in Signal Processing, 2022, 16 (5): 883- 917. doi: 10.1109/JSTSP.2022.3195671
2	WANG P L, FANG J, DUAN H P, et al. Compressed channel estimation for intelligent reflecting surface-assisted millimeter wave systems[J]. IEEE Signal Processing Letters, 2020, 27, 905- 909. doi: 10.1109/LSP.2020.2998357
3	ZHENG B X, YOU C S, ZHANG R. Efficient channel estimation for double-IRS aided multi-user MIMO system[J]. IEEE Trans. on Communications, 2021, 69 (6): 3818- 3832. doi: 10.1109/TCOMM.2021.3064947
4	ZHENG B X, YOU C S, MEI W D, et al. A survey on channel estimation and practical passive beamforming design for intelligent reflecting surface aided wireless communications[J]. IEEE Communications Surveys & Tutorials, 2022, 24 (2): 1035- 1071.
5	ZHU Y S, MAO B M, KATO N. Intelligent reflecting surface in 6G vehicular communications: a survey[J]. IEEE Open Journal of Vehicular Technology, 2022, 3, 266- 277. doi: 10.1109/OJVT.2022.3177253
6	GASHTASBI A, SILVA M M, DINIS R. An overview of intelligent reflecting surfaces for future wireless systems[C]//Proc. of the 13th International Symposium on Communication Systems, Networks and Digital Signal Processing, 2022: 314−319.
7	WEI X H, SHEN D C, DAI L L. Channel estimation for RIS assisted wireless communications—Part II: an improved solution based on double-structured sparsity[J]. IEEE Communications Letters, 2021, 25 (5): 1403- 1407. doi: 10.1109/LCOMM.2021.3052787
8	SHI X, WANG J T, SONG J. Triple-structured compressive sensing-based channel estimation for RIS-aided MU-MIMO systems[J]. IEEE Trans. on Wireless Communications, 2022, 21 (12): 11095- 11109. doi: 10.1109/TWC.2022.3189686
9	WANG P, MILUTIN P, PHILIP V O, et al. Sparse channel estimation in millimeter wave communications: exploiting joint AoD-AoA angular spread[C]//Proc. of the IEEE International Conference on Communications, 2017.
10	THEODORE S R, SUN S, RIMMA M, et al. Millimeter wave mobile communications for 5G cellular: it will work![J]. IEEE Access, 2013, 1, 335- 349.
11	MUSTAFA R A, LIU Y P, MATHEW K S, et al. Millimeter wave channel modeling and cellular capacity evaluation[J]. IEEE Journal on Selected Areas in Communications, 2014, 32 (6): 1164- 1179. doi: 10.1109/JSAC.2014.2328154
12	SAMIMI M, WANG K, AZAR Y, et al. 28 GHz angle of arrival and angle of departure analysis for outdoor cellular communications using steerable beam antennas in New York city[C]//Proc. of the IEEE 77th Vehicular Technology Conference, 2013.
13	AZAR Y, WONG G N, WANG K, et al. 28 GHz propagation measurements for outdoor cellular communications using steerable beam antennas in New York city[C]//Proc. of the IEEE International Conference on Communications, 2013: 5143−5147.
14	LI X J, FANG J, LI H B, et al. Millimeter wave channel estimation via exploiting joint sparse and low-rank structures[J]. IEEE Trans. on Wireless Communications, 2018, 17 (2): 1123- 1133. doi: 10.1109/TWC.2017.2776108
15	YOU Y, ZHANG L, YANG M H, et al. Structured OMP for IRS-assisted mmWave channel estimation by exploiting angular spread[J]. IEEE Trans. on Vehicular Technology, 2022, 71 (4): 4444- 4448. doi: 10.1109/TVT.2022.3142285
16	SOTA I, NOBUYOSHI K, KUNIO S. Angular spread estimation of MIMO radar using transmission beam diversity[C]// Proc. of the IEEE International Workshop on Electromagnetics: Applications and Student Innovation Competition, 2018.
17	HU C, DAI L L, MIR T, et al. Super-resolution channel estimation for mmWave massive MIMO with hybrid precoding[J]. IEEE Trans. on Vehicular Technology, 2018, 67 (9): 8954- 8958. doi: 10.1109/TVT.2018.2842724
18	KUTTY S, SEN D. Impact of intra-cluster angular spread on the performance of NLoS millimeter wave links with imperfect beam alignment[J]. IEEE Trans. on Vehicular Technology, 2020, 69 (2): 1813- 1827. doi: 10.1109/TVT.2019.2961387
19	CHEN J, LIANG Y C, CHENG H V, et al. Channel estimation for reconfigurable intelligent surface aided multi-user mmWave MIMO systems[J]. IEEE Trans. on Wireless Communications, 2023, 22 (10): 6853- 6869.

算法	计算复杂度
Row-OMP	$ O(KQMN{\bar L_k}{\bar P_{{l_k}}}) $
S-OMP	$ O(KQMNL{\bar L_k}) $
DS-OMP	$ O(KQM) + O(KQNL{\bar P_l}{\bar L_k}^3{\bar P_{{l_k}}}^3) $
TS-OMP	$ O(k'QMNL) + O(k'{N^2}L{\bar P_l}) + O(KQNL{\bar P_l}{\bar L_k}{\bar P_{{l_k}}}) $
