太赫兹超大规模MIMO混合场信道估计

doi:10.12305/j.issn.1001-506X.2025.08.32

摘要/Abstract

摘要：

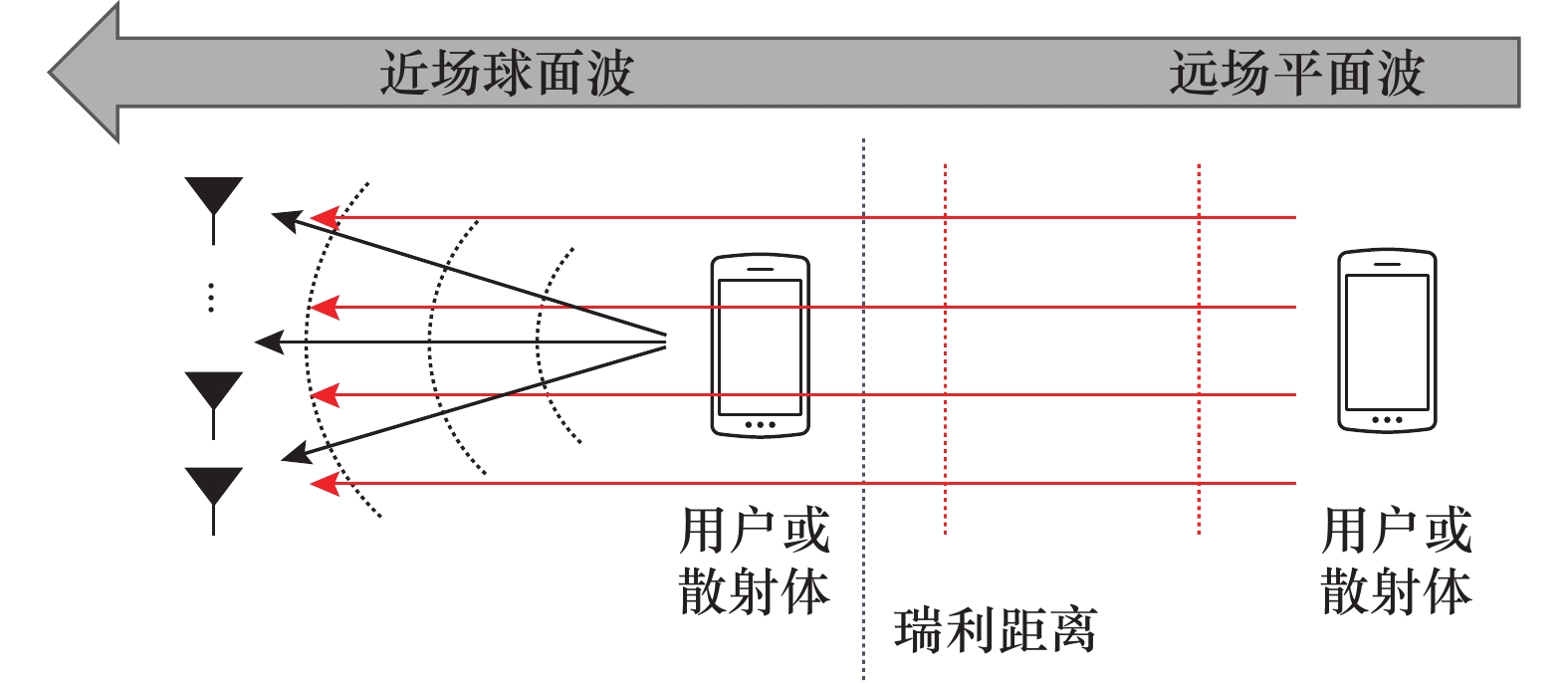

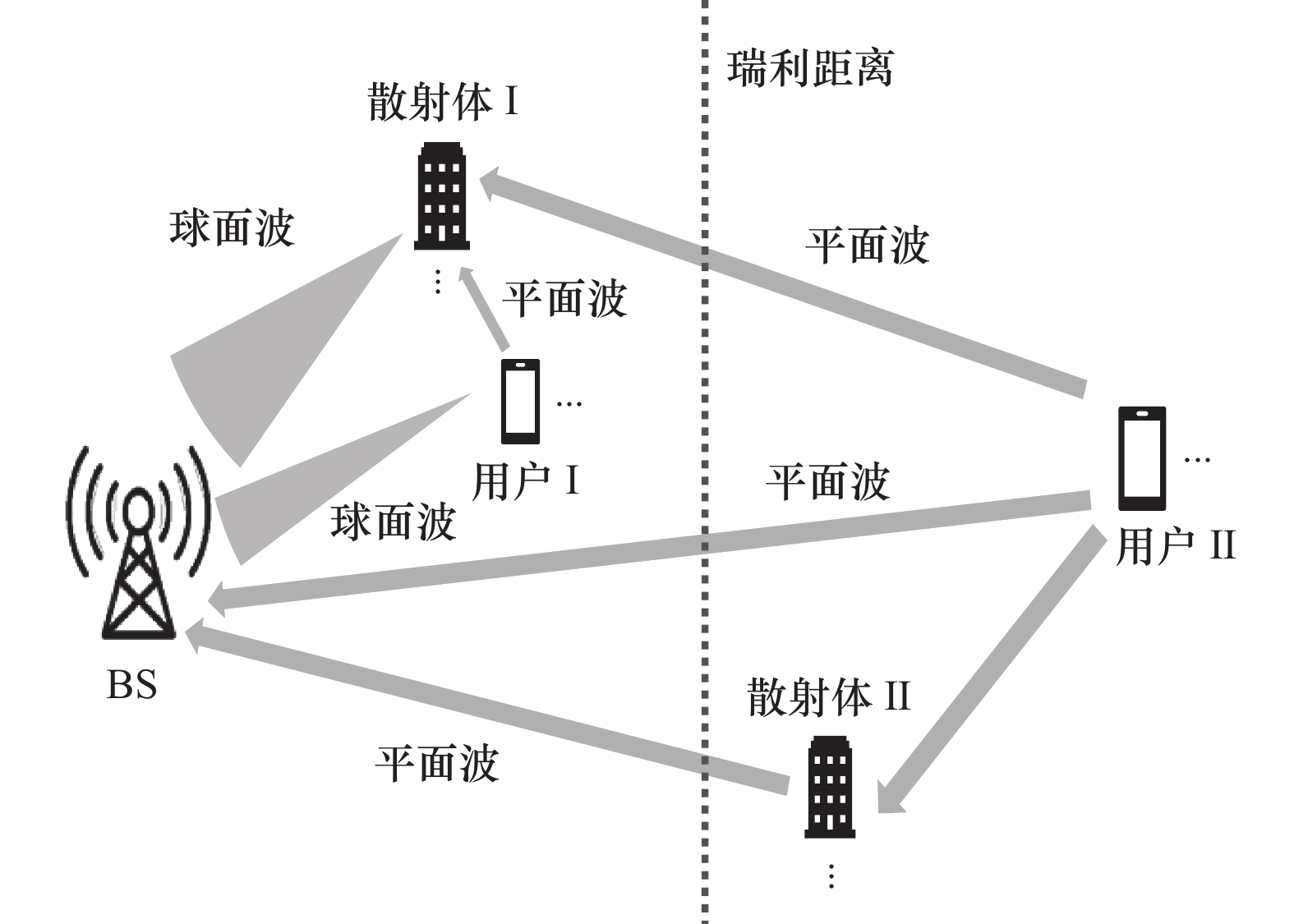

超大规模多输入多输出（extremely large-scale multiple-input-multiple-output，XL-MIMO）已经成为未来6G通信的创新技术。在XL-MIMO无线系统中，由于基站天线数量的增加，信道建模需要同时考虑近场球面波和远场平面波。为了减少信道估计的导频开销，提出了一种基于凸优化方法的混合场信道估计方案，上行混合场XL-MIMO系统信道经过远场角域变换和近场极域变换后呈现稀疏性，信道估计问题为具有$ {\ell _0} $范数约束的优化问题。由于所得到的问题的非凸性，通过将$ {\ell _0} $范数放松为$ {\ell _1} $范数，将问题转化为凸问题，分别结合近端梯度（proximal gradient，PG）和交替方向乘子法（alternating direction method of multipliers，ADMM）提出两种混合场信道估计算法。太赫兹无线通信系统不同频率子载波不能近似相等，因此对不同频率的子载波使用相应频率下的字典。相比于传统的基于正交跟踪匹配的近场和远场的信道估计算法，所提的混合场算法不需要近场和远场的路径数目作为先验条件，且有更高的精度。

关键词: 混合场, 稀疏性, 信道估计, 太赫兹

Abstract:

The extremely large-scale multiple-input-multiple-output （XL-MIMO） has become an innovative technique for the future 6G communications. In XL-MIMO wireless systems, due to the increase in the number of antennas at the base station, channel modeling needs to consider both the near-field spherical waves and the far-field plane waves. In order to reduce the guide frequency overhead of channel estimation, a hybrid-field channel estimation method based on a convex optimization approach is proposed. The uplink hybrid-field XL-MIMO system channel shows sparsity after the far-field angular-domain transformations and the near-field polar-domain transformations, and the channel estimation problem is an optimization problem with $ {\ell _0} $ norm constraints. Due to the nonconvexity of the obtained problem, the problem is transformed into a convex problem by relaxing the number of $ {\ell _0} $ norms to $ {\ell _1} $ norms, and two hybrid field channel estimation algorithms are proposed by applying the proximal gradient （PG） approach and the alternating direction method of multipliers （ADMM）, respectively. The different frequency subcarriers of a wireless communication terahertz system cannot be approximated equal, so the dictionaries at the corresponding frequencies are used for the different frequency subcarriers. Compared with the traditional channel estimation algorithms based on the orthogonal tracking matching for the near and far fields, the proposed hybrid-field algorithm does not require the number of paths in the near and far field as priori condition and has higher accuracy.

Key words: hybrid field, sparsity, channel estimation, terahertz

中图分类号:

TN 929.5

高波, 傅友华, 刘陈. 太赫兹超大规模MIMO混合场信道估计[J]. 系统工程与电子技术, 2025, 47(8): 2744-2752.

Bo GAO, Youhua FU, Chen LIU. Terahertz extremely large-scale MIMO hybrid field channel estimation[J]. Systems Engineering and Electronics, 2025, 47(8): 2744-2752.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 31

1	KAMBLE P, SHAIKH A. 6G wireless networks: vision, requirements, applications and challenges[C]// Proc. of the 5th International Conference on Advances in Science and Technology, 2022: 577−581.
2	SUYAMA S, OKUYAMA T, NONAKA N, et al. Recent studies on massive MIMO technologies for 5G evolution and 6G[C]// Proc. of the IEEE Radio and Wireless Symposium, 2022: 90−93.
3	VU D N, DAO N N, WON D, et al. Potential enabling technologies for 6G mobile communication networks: a recent review[C]// Proc. of the 14th International Conference on Ubiquitous and Future Networks, 2023: 631−635.
4	LIU Z, ZHANG J Y, WANG Z, et al. Cell-free XL-MIMO meets multi-agent reinforcement learning: architectures, challenges, and future directions[J]. IEEE Wireless Communications, 2024, 31 (4): 155- 162. doi: 10.1109/MWC.007.2300176
5	GAO X Y, DAI L L, HAN S F, et al. Energy-efficient hybrid analog and digital precoding for mmWave MIMO systems with large antenna arrays[J]. IEEE Journal on Selected Areas in Communications, 2016, 34 (4): 998- 1009. doi: 10.1109/JSAC.2016.2549418
6	GAO Y, HU H Q, CHEN B, et al. Hybrid precoding for mitigating the beam squint in wideband mmWave MIMO system[J]. IEEE Wireless Communications Letters, 2024, 13 (3): 602- 606. doi: 10.1109/LWC.2023.3336736
7	ZHAO J H, WU Y, ZHANG Q M, et al. Two-stage channel estimation for mmWave massive MIMO systems based on ResNet-UNet[J]. IEEE Systems Journal, 2023, 17 (3): 4291- 4300. doi: 10.1109/JSYST.2023.3234048
8	SERGHIOU D, KHALILY M, TAFAZOLLI R, et al. Terahertz channel propagation phenomena, measurement techniques and modeling for 6G wireless communication applications: a survey, open challenges and future research directions[J]. IEEE Communications Surveys & Tutorials, 2022, 24 (4): 1957- 1996.
9	HAN C, WANG Y Q, LI Y B, et al. Terahertz wireless channels: a holistic survey on measurement, modeling, and analysis[J]. IEEE Communications Surveys & Tutorials, 2022, 24 (3): 1670- 1707.
10	TARBOUSH S, HADI S, CHEN H, et al. TeraMIMO: a channel simulator for wideband ultra-massive MIMO terahertz communications[J]. IEEE Trans. on Vehicular Technology, 2021, 70 (12): 12325- 12341. doi: 10.1109/TVT.2021.3123131
11	NING B Y, LI L X, CHEN W R, et al. Wideband terahertz communications with AoSA: beam split aggregation and multiplexing[C]// Proc. of the GLOBECOM IEEE Global Communications Conference, 2022: 1709−1714.
12	CUI M Y, WU Z D, LU Y, et al. Near-field MIMO communications for 6G: fundamentals, challenges, potentials, and future directions[J]. IEEE Communications Magazine, 2023, 61 (1): 40- 46.
13	TANG S C, DONG Z C, ZHOU W, et al. Beam splitting sensing for terahertz near-field channel estimation[C]// Proc. of the 3rd International Conference on Intelligent Communications and Computing, 2023: 141−146.
14	CUI M Y, DAI L L. Channel estimation for extremely large-scale MIMO: far-field or near-field?[J]. IEEE Trans. on Communications, 2022, 70 (4): 2663- 2677. doi: 10.1109/TCOMM.2022.3146400
15	ZHANG X Y, WANG Z, ZHANG H Y, et al. Near-field channel estimation for extremely large-scale array communications: a model-based deep learning approach[J]. IEEE Communications Letters, 2023, 27 (4): 1155- 1159. doi: 10.1109/LCOMM.2023.3245084
16	CAO J L, DU J H, HAN M, et al. Efficient sparse Bayesian channel estimation for near-field ultra-scale massive MIMO systems[J]. IEEE Wireless Communications Letters, 2023, 12 (12): 2133- 2137.
17	WEI X H, DAI L L. Channel estimation for extremely large-scale massive MIMO: far-field, near-field, or hybrid-field[J]. IEEE Communications Letters, 2022, 26 (1): 177- 181. doi: 10.1109/LCOMM.2021.3124927
18	GOU J T, SHAN S, LI Y. Enhancement of spatial-wideband channel estimation based on beam split pattern detection[C]// Proc. of the IEEE 98th Vehicular Technology Conference, 2023.
19	CUI M Y, DAI L L. Near-field wideband channel estimation for extremely large-scale MIMO[J]. Science China Information Sciences, 2023, 66 (7): 172- 303.
20	LEE J, GIL G T, LEE Y H. Channel estimation via orthogonal matching pursuit for hybrid MIMO systems in millimeter wave communications[J]. IEEE Trans. on Communications, 2016, 64 (6): 2370- 2386.
21	RODRIGUEZ-FERNANDEZ J, GONZALEZ-PRELCIC N, VENUGOPAL K, et al. Frequency-domain compressive channel estimation for frequency-selective hybrid millimeter wave MIMO systems[J]. IEEE Trans. on Wireless Communications, 2018, 17 (5): 2946- 2960. doi: 10.1109/TWC.2018.2804943
22	DONOHO D L. Compressed sensing[J]. IEEE Trans. on Information Theory, 2006, 52 (4): 1289- 1306. doi: 10.1109/TIT.2006.871582
23	SHARIFI E, FEGHHI M M, AZARNIA G, et al. Channel estimation based on compressed sensing for massive MIMO systems with lens antenna array[J]. IEEE Access, 2023, 11, 79016- 79032. doi: 10.1109/ACCESS.2023.3297884
24	MUTHUKRISHNAN R, ROHINI R. LASSO: a feature selection technique in predictive modeling for machine learning[C]// Proc. of the IEEE International Conference on Advances in Computer Applications, 2016: 18−20.
25	JAVANMARDI M, YAZDI M, SHIRAZI M M, et al. Fast and robust L0-tracker using compressive sensing[C]// Proc. of the 2nd International Conference on Pattern Recognition and Image Analysis, 2015.
26	刘浩洋, 户将, 李勇锋, 等. 最优化: 建模、算法与理论[M]. 北京: 高教出版社, 2020: 379−413.
	LIU H Y, HU J, LI Y F, et al. Optimization: modeling, algorithm and theory [M]. Beijing: Higher Education Press, 2020: 379−413.
27	BECK A, TEBOULLE M. A fast iterative shrinkage-thresholding algorithm for linear inverse problems[J]. SIAM Journal of Imaging Sciences, 2009, 2 (1): 183- 202. doi: 10.1137/080716542
28	ABHISHEK S, ESWAR K L, HARSHITH G Y, et al. Study of Lasso and ridge regression using ADMM[C]// Proc. of the 2nd International Conference on Intelligent Technologies, 2022.
29	CHIBA N, IMAKURA A, HASHIMOTO K. Fast ADMM ℓ₁ minimization by applying SMW formula and multi-row simultaneous estimation for light transport matrix acquisition[C]// Proc. of the IEEE International Conference on Robotics and Biomimetics, 2019: 14−21.
30	ANJINAPPA C K, GUVENC I. Off-grid aware channel and covariance estimation in mmWave networks[J]. IEEE Trans. on Communications, 2020, 68 (6): 3908- 3921. doi: 10.1109/TCOMM.2020.2980829
31	TAN J B, DAI L L. Wideband channel estimation for THz massive MIMO[J]. China Communications, 2021, 18 (5): 66- 80. doi: 10.23919/JCC.2021.05.005
