面向动态目标搜索与打击的空地协同自主任务分配方法

doi:10.12305/j.issn.1001-506X.2024.07.17

摘要/Abstract

摘要：

面向复杂城市环境中的运动目标搜索与打击任务, 单域无人平台受视野范围和运动能力等限制, 易出现目标遗漏和任务完成率低的问题。针对这些问题, 提出一种面向动态目标搜索与打击的空地协同自主任务分配方法, 通过结合无人机视野范围广以及无人车机动性强的特点, 提升空地无人系统的任务执行效率和区域覆盖率。一方面, 针对未知运动目标, 提出一种基于数字信息素的目标搜索模型, 以平台协同收益和区域覆盖率为优化指标, 保证在尽可能短的时间周期内发现区域中的所有目标。另一方面, 面向动态到达的打击任务, 构建基于可行路径规划的任务分配模型, 以平台能耗和任务完成时间为目标函数, 在保证任务完成率的同时, 提高空地协同系统的资源利用率。与现有方法相比, 所提方法能够在最短的时间内发现所有目标, 区域覆盖率达到55%以上, 且资源利用率为84.4%。实验结果表明, 所提方法具备较好的目标搜索和任务执行能力。

关键词: 空地协同, 数字信息素, 目标搜索, 任务分配, 路径规划

Abstract:

For the task of moving target search and strike in a complicated urban environment, the single-domain unmanned platform is limited by its field of vision and movement capability, which is easy to cause problems of the target omission and the low task completion rate. To solve these problems, an air-ground cooperative autonomous task allocation method for dynamic target search and strike is proposed. It aims to improve the efficiency of task execution and regional coverage of air-ground unmanned systems by combining the characteristics of the wide field of vision of unmanned aerial vehicles and the strong mobility of unmanned ground vehicles. For unknown moving targets, a target search model based on digital pheromones is proposed, which takes platform cooperation income and regional coverage as optimization metrics to ensure that all targets in the region can be found in the shortest possible time period. In addition, for the dynamic arrival strike task, a task allocation model based on feasible path planning is proposed, which takes the platform energy consumption and task completion time as the objective function to ensure the task completion rate and improve the resource utilization of the air-ground cooperative system. Compared with the existing methods, the proposed method can find all targets in the shortest time. The regional coverage rate can reach more than 55%. And the resource utilization rate is 84.4%. Experimental results show that the proposed method has excellent capabilities for target search and task execution.

Key words: air-ground cooperation, digital pheromone, target search, task allocation, path planning

中图分类号:

TP391.9

费博雯, 包卫东, 刘大千, 朱晓敏. 面向动态目标搜索与打击的空地协同自主任务分配方法[J]. 系统工程与电子技术, 2024, 46(7): 2346-2358.

Bowen FEI, Weidong BAO, Daqian LIU, Xiaomin ZHU. Air-ground cooperative autonomous task allocation method for dynamic target search and strike[J]. Systems Engineering and Electronics, 2024, 46(7): 2346-2358.

图/表 14

图1

图2

图3

图4

表1

表2

表3

图5

图6

图7

图8

表4

图9

图10

参考文献 30

1	SANTOSO F , GARRATT M , ANAVATTI S . State-of-the-art integrated guidance and control systems in unmanned vehicles: a review[J]. IEEE Systems Journal, 2021, 15 (3): 3312- 3323. doi: 10.1109/JSYST.2020.3007428
2	张婷婷, 蓝羽石, 宋爱国. 无人集群系统自主协同技术综述[J]. 指挥与控制学报, 2021, 7 (2): 127- 136.
	ZHANG T T , LAN Y S , SONG A G . An overview of autonomous collaboration technologies for unmanned swarm systems[J]. Journal of Command and Control, 2021, 7 (2): 127- 136.
3	LIU D Q , BAO W D , ZHU X M , et al. Cooperative path optimization for multiple UAVs surveillance in uncertain environment[J]. IEEE Internet of Things Journal, 2022, 9 (13): 10676- 10692. doi: 10.1109/JIOT.2021.3125784
4	ZHU L H , WANG Y , WU Z Q . An adaptive priority allocation for formation UAVs in complex context[J]. IEEE Trans.on Aerospace and Electronic Systems, 2021, 57 (2): 1002- 1015. doi: 10.1109/TAES.2020.3034016
5	余婧, 雍恩米, 陈汉洋, 等. 面向多无人机协同对地攻击的双层任务规划方法[J]. 系统工程与电子技术, 2022, 44 (9): 2849- 2857.
	YU J , YONG E M , CHEN H Y , et al. Bi-level mission planning framework for multi-cooperative UAV air-to-ground attack[J]. Systems Engineering and Electronics, 2022, 44 (9): 2849- 2857.
6	YAO W R , QI N M , WAN N , et al. An iterative strategy for task assignment and path planning of distributed multiple unmanned aerial vehicles[J]. Aerospace Science and Technology, 2019, 86, 455- 464. doi: 10.1016/j.ast.2019.01.061
7	YE F , CHEN J , TIAN Y , et al. Cooperative multiple task assignment of heterogeneous UAVs using a modified genetic algorithm with multi-type-gene chromosome encoding strategy[J]. Journal of Intelligent & Robotic Systems, 2020, 100 (2): 615- 627.
8	CHEN X , LIU Y T , YIN L Y , et al. Cooperative task assignment and track planning for multi-UAV attack mobile targets[J]. Journal of Intelligent & Robotic Systems, 2020, 100 (3): 1383- 1400.
9	WEI C Y , JI Z , CAI B L . Particle swarm optimization for cooperative multi-robot task allocation: a multi-objective approach[J]. IEEE Robotics and Automation Letters, 2020, 5 (2): 2530- 2537. doi: 10.1109/LRA.2020.2972894
10	CHEN C , BAO W D , MEN T , et al. NECTAR-an agent-based dynamic task allocation algorithm in the UAV swarm[J]. Complexity, 2020, 6747985.
11	DUAN H B , ZHAO J X , DENG Y M , et al. Dynamic discrete pigeon-inspired optimization for multi-UAV cooperative search-attack mission planning[J]. IEEE Trans.on Aerospace and Electronic Systems, 2021, 57 (1): 706- 720. doi: 10.1109/TAES.2020.3029624
12	李翰, 张洪海, 张连东, 等. 城市区域多物流无人机协同任务分配[J]. 系统工程与电子技术, 2021, 43 (12): 3594- 3602. doi: 10.12305/j.issn.1001-506X.2021.12.22
	LI H , ZHANG H H , ZHANG L D , et al. Multiple logistics unmanned aerial vehicle collaborative task allocation in urban areas[J]. Systems Engineering and Electronics, 2021, 43 (12): 3594- 3602. doi: 10.12305/j.issn.1001-506X.2021.12.22
13	LUO Q N , DUAN H B . An improved artificial physics approach to multiple UAVs/UGVs heterogeneous coordination[J]. Science China Technological Sciences, 2013, 56 (10): 2473- 2479. doi: 10.1007/s11431-013-5314-2
14	NI J J , TANG M , CHEN Y N , et al. An improved cooperative control method for hybrid unmanned aerial-ground system in multitasks[J]. International Journal of Aerospace Engineering, 2020, 2020, 1- 14.
15	NI J J , WANG X T , TANG M , et al. An improved real-time path planning method based on dragonfly algorithm for heterogeneous multi-robot system[J]. IEEE Access, 2020, 8, 140558- 140568. doi: 10.1109/ACCESS.2020.3012886
16	WU Y , WU S B , HU X T . Cooperative path planning of UAVs & UGVs for a persistent surveillance task in urban environments[J]. IEEE Internet of Things Journal, 2021, 8 (6): 4906- 4919. doi: 10.1109/JIOT.2020.3030240
17	梁星星, 修保新, 范长俊, 等. 面向海上移动目标的空天协同连续观测模型[J]. 系统工程理论与实践, 2018, 38 (1): 229- 240.
	LIANG X X , XIU B X , FAN C J , et al. The aerospace coope-rative planning model for maritime moving target continuation observation[J]. Systems Engineering-Theory & Practice, 2018, 38 (1): 229- 240.
18	LI J Q , SUN T , HUANG X P , et al. A memetic path planning algorithm for unmanned air/ground vehicle cooperative detection systems[J]. IEEE Trans.on Automation Science and Engineering, 2022, 19 (4): 2724- 2737. doi: 10.1109/TASE.2021.3061870
19	李夏苗, 廖文昆, 伍国华, 等. 基于两阶段迭代优化的空天观测资源协同任务规划方法[J]. 控制与决策, 2021, 36 (5): 1147- 1156.
	LI X M , LIAO W K , WU G H , et al. A two-stage iterative optimazation method for the coordinated task planning of space and air observation resources[J]. Control and Decision, 2021, 36 (5): 1147- 1156.
20	MEN T, LIU D Q, ZHU X M, et al. Cooperative target search for UAVs in urban environment[C]//Proc. of the IEEE International Conference on Smart City and Informatization, 2021: 8-14.
21	YAO P , WANG H L , JI H X . Multi-UAVs tracking target in urban environment by model predictive control and improved grey wolf optimizer[J]. Aerospace Science and Technology, 2016, 55, 131- 143. doi: 10.1016/j.ast.2016.05.016
22	JUANG C F , YEH Y T . Multi-objective evolution of biped robot gaits using advanced continuous ant-colony optimized recurrent neural networks[J]. IEEE Trans.on Cybernetics, 2018, 48 (6): 1910- 1922. doi: 10.1109/TCYB.2017.2718037
23	LIU Z , GAO X G , FU X W . A cooperative search and cove-rage algorithm with controllable revisit and connectivity maintenance for multiple unmanned aerial vehicles[J]. Sensors, 2018, 18 (5): 1472. doi: 10.3390/s18051472
24	肖东, 江驹, 周俊, 等. 通信受限下多无人机协同运动目标搜索[J]. 哈尔滨工程大学学报, 2018, 39 (11): 1823- 1829.
	XIAO D , JIANG J , ZHOU J , et al. Multi-UAV cooperation search for moving targets under limited communication[J]. Journal of Harbin Engineering University, 2018, 39 (11): 1823- 1829.
25	基于A星算法求解路径规划问题[EB/OL]. [2021-11-25]. https://blog.csdn.net/qq_59747472/article/details/121547551.
	Solving Path Planning Problems Based on A-Star Algorithm[EB/OL]. [2021-11-25]. https://blog.csdn.net/qq_59747472/article/details/121547551.
26	A星算法(基于matlab)[EB/OL]. [2019-04-10]. http://blog.csdn.net/lmq_zzz/article/details/88999480.
	A-Star Algorithm (Based on matlab)[EB/OL]. [2019-04-10]. http://blog.csdn.net/lmq_zzz/article/details/88999480.
27	RAMIREZ-ATENCIA C , BELLO-ORGAZ G , R-MORENO M , et al. Solving complex multi-UAV mission planning problems using multi-objective genetic algorithms[J]. Soft Computing, 2017, 21, 4883- 4900.
28	ROBIN C , LACROIX S . Multi-robot target detection and tracking: taxonomy and survey[J]. Autonomous Robots, 2016, 40 (4): 729- 760.
29	FEI B W , BAO W D , ZHU X M , et al. Autonomous cooperative search model for multi-UAV with limited communication network[J]. IEEE Internet of Things Journal, 2022, 9 (19): 19346- 19361.
30	SAADAOUI H, BOUANANI F E. Information sharing based on local PSO for UAVs cooperative search of unmoved targets[C]//Proc. of the International Conference on Advanced Communication Technologies and Networking, 2018.

无人机编号	网格索引	载弹量	速度区间	任务编号
1	(19, 1)	2	[0, 30]	[1, 2, 3]
2	(82, 1)	2	[0, 30]	[1, 2, 3]
3	(19, 82)	2	[0, 30]	[1, 2, 3]
4	(1, 19)	2	[0, 30]	[1, 2, 3]
5	(40, 1)	2	[0, 30]	[1, 2, 3]
6	(82, 19)	2	[0, 30]	[1, 2, 3]
7	(40, 82)	2	[0, 30]	[1, 2, 3]
8	(1, 40)	2	[0, 30]	[1, 2, 3]

无人车编号	网格索引	载弹量	速度区间	任务编号
1	(61, 1)	2	[0, 40]	[1, 2, 3]
2	(82, 40)	2	[0, 40]	[1, 2, 3]
3	(61, 82)	2	[0, 40]	[1, 2, 3]
4	(1, 61)	2	[0, 40]	[1, 2, 3]
5	(79, 1)	2	[0, 40]	[1, 2, 3]
6	(82, 61)	2	[0, 40]	[1, 2, 3]
7	(79, 82)	2	[0, 40]	[1, 2, 3]
8	(1, 79)	2	[0, 40]	[1, 2, 3]

编号	网格索引	运动类型	需打击量	运动状态
T₁	(61, 1)	1	2	[0, 1]
T₂	(82, 40)	2	3	[0, 1]
T₃	(61, 82)	3	4	[0, 1]
T₄	(1, 61)	1	2	[0, 1]
T₅	(79, 1)	2	3	[0, 1]
T₆	(82, 61)	3	4	[0, 1]
T₇	(79, 82)	1	2	[0, 1]
T₈	(1, 79)	2	3	[0, 1]
T₉	(61, 61)	3	4	[0, 1]

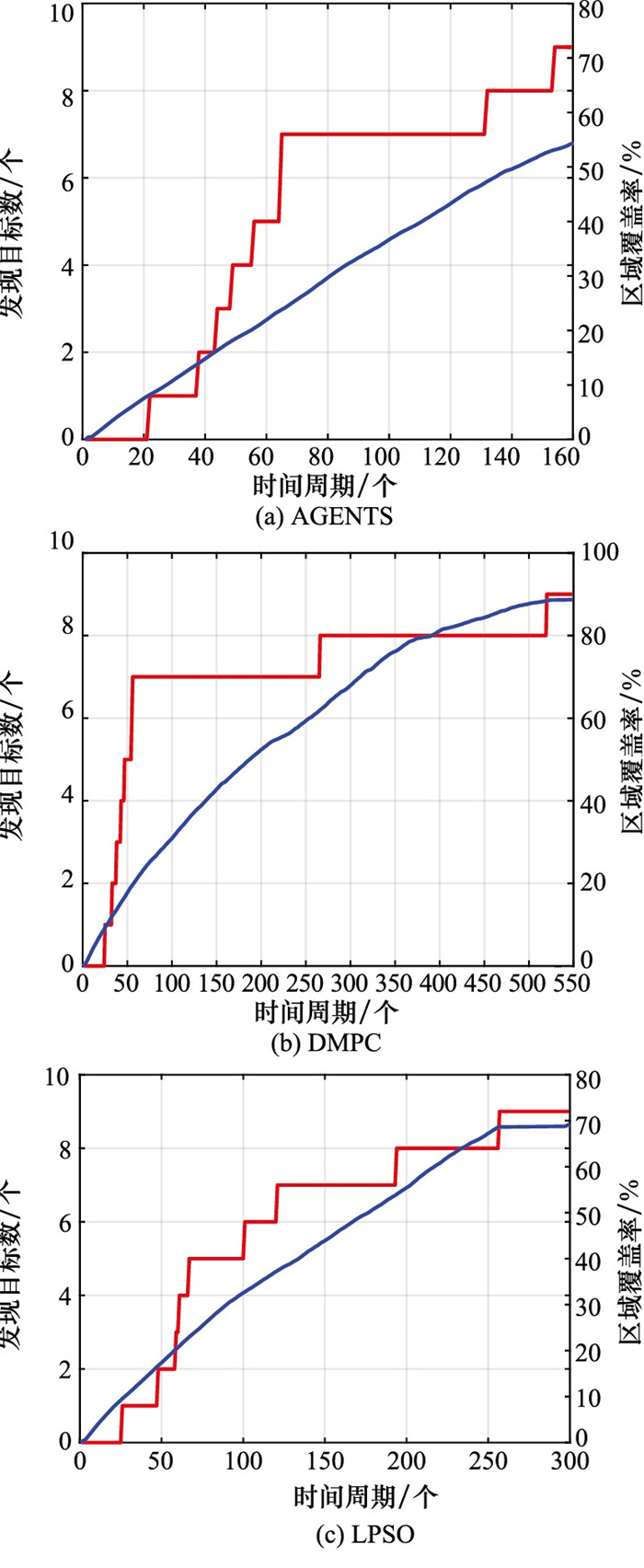

方法	时间周期	目标发现数	目标打击数	区域覆盖率/%	运行时间/s
AGENTS	100	7	6	37.2	77.9
	200	9	9	61.2	149.2
	300	9	9	72.3	191.6
DMPC	100	6	4	31.7	76.4
	200	7	6	52.4	165.1
	300	8	6	70.1	206.6
LPSO	100	4	4	32.6	85.6
	200	7	6	55.4	175.4
	300	9	9	70.9	236.9
