基于DDPG算法的双轮腿机器人运动控制研究

doi:10.12305/j.issn.1001-506X.2023.04.23

系统工程与电子技术 ›› 2023, Vol. 45 ›› Issue (4): 1144-1151.doi: 10.12305/j.issn.1001-506X.2023.04.23

• 制导、导航与控制 • 上一篇

基于DDPG算法的双轮腿机器人运动控制研究

陈恺丰¹, 田博睿¹, 李和清², 赵晨阳¹, 陆祖兴¹, 李新德¹^,³^,*, 邓勇⁴

1. 东南大学自动化学院, 江苏南京 211189
2. 东南大学网络空间安全学院, 江苏南京 211189
3. 南京应用数学中心, 江苏南京 211135
4. 电子科技大学基础与前沿研究院, 四川成都 610054

收稿日期:2022-03-18 出版日期:2023-03-29 发布日期:2023-03-28
通讯作者: 李新德
作者简介:陈恺丰(2000—), 男, 本科生, 主要研究方向为机器人智能控制
田博睿(2001—), 男, 本科生, 主要研究方向为机器人智能控制
李和清(1995—), 男, 博士研究生, 主要研究方向为无人系统安全、智能控制
赵晨阳(1999—), 男, 硕士研究生, 主要研究方向为可见光通信定位、机器人控制
陆祖兴(2001—), 男, 本科生, 主要研究方向为机器人智能控制
李新德(1975—), 男, 教授, 博士研究生导师, 博士, 主要研究方向为智能机器人、机器视觉感知、机器学习、人机交互、智能信息融合和人工智能
邓勇(1975—), 男, 教授, 博士研究生导师, 博士, 主要研究方向为信息融合与智能系统

Research on DDPG-based motion control of two-wheel-legged robot

Kaifeng CHEN¹, Borui TIAN¹, Heqing LI², Chenyang ZHAO¹, Zuxing LU¹, Xinde LI¹^,³^,*, Yong DENG⁴

1. School of Automation, Southeast University, Nanjing 211189, China
2. School of Cyberspace Security, Southeast University, Nanjing 211189, China
3. Nanjing Centerfor Applied Mathematics, Nanjing 211135, China
4. Institute of Fundamental and Frontier Science, University of Electronic Science and Technology of China, Chengdu 610054, China

Received:2022-03-18 Online:2023-03-29 Published:2023-03-28
Contact: Xinde LI

摘要/Abstract

摘要：

轮腿式机器人兼具轮式和足式机器人的机动性和灵活性, 在多种场景中具有广泛的应用前景。针对双轮腿机器人在崎岖地形运动控制缺陷、高度依赖于精确动力学模型、无法自适应求解等问题, 提出一种基于深度确定性策略梯度(deep deterministic policy gradient, DDPG)算法的双轮腿机器人控制方法。首先, 分析了双轮腿机器人模型及其模糊动力学模型; 然后, 使用DDPG算法生成双轮腿机器人在崎岖地面的运动控制策略; 最后, 为了验证控制器性能, 分别进行了3组运动控制对比实验。仿真实验表明, 在缺少地面状况先验知识的条件下, 采用DDPG算法生成的运动控制策略实现了双轮腿式机器人在崎岖地面快速稳定运动的功能, 其平均速度相比双轮机器人提高了约29.2%, 姿态角偏移峰值相比双足机器人分别减小了约43.9%、66%、50%。

关键词: 运动控制, 强化学习, 轮腿机器人, 深度确定性策略梯度算法

Abstract:

Wheel-legged robots combine the mobility and flexibility of wheeled and legged robots and have a wide range of application prospects in various scenarios. Aiming at the defects of existed motion control method of two-wheel-legged robots in rough ground, their high dependence on accurate dynamic models and their lucking of adaptive solving capability, a control method of the two-wheeled-legged robot based on deep deterministic policy gradient (DDPG) algorithm is proposed. First, the two-wheel-legged robot model and its fuzzy dynamics model are analyzed. Then, the motion control policy of the two-wheel-legged robot on the rugged ground is generated using the DDPG algorithm; Finally, In order to verify the performance of the controller, three groups of motion control comparison experiments were carried out respectively. Simulation experiments show that, in the absence of prior knowledge of ground conditions, the function of the fast and stable movement of the two-wheel-legged robot in the face of rugged ground is achieved; the average speed of the motion control strategy generated by the DDPG algorithm is about 29.2% higher than that of the two-wheeled robot; the peak value of Euler angle offset is reduced by about 43.9%, 66%, and 50% compared with the bipedal robot.

Key words: motion control, reinforcement learning, wheel-legged robots, deep deterministic policy gradient (DDPG) algorithm

中图分类号:

TP242.6

陈恺丰, 田博睿, 李和清, 赵晨阳, 陆祖兴, 李新德, 邓勇. 基于DDPG算法的双轮腿机器人运动控制研究[J]. 系统工程与电子技术, 2023, 45(4): 1144-1151.

Kaifeng CHEN, Borui TIAN, Heqing LI, Chenyang ZHAO, Zuxing LU, Xinde LI, Yong DENG. Research on DDPG-based motion control of two-wheel-legged robot[J]. Systems Engineering and Electronics, 2023, 45(4): 1144-1151.

图/表 15

图1

表1

图2

图3

表2

表3

图4

表4

图5

图6

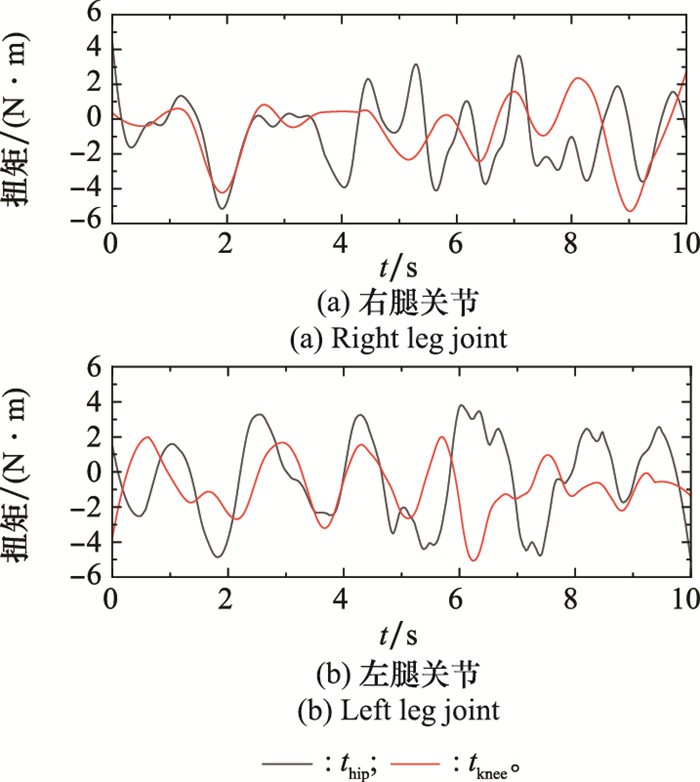

图7

图8

图9

表5

图10

参考文献 31

1	KLEMM V , MORRA A , GULICH L , et al. LQR-assisted whole-body control of a wheeled Bipedal, robot with kinematic loops[J]. IEEE Robotics and Automation Letters, 2020, 5 (2): 3745- 3752. doi: 10.1109/LRA.2020.2979625
2	WANG S, CUI L L, ZHANG J, et al. Balance control of a novel wheel-legged robot: design and experiments[C]//Proc. of the IEEE International Conference on Robotics and Automation, 2021: 6782-6788.
3	B. Dynamics. Handle[EB/OL]. [2022-02-18]. https://www.youtube.com/watch?v=-7xvqQeoA8c.
4	DE VIRAGH Y , BJELONIC M , BELLICOSO C D , et al. Trajectory optimization for wheeled-legged quadrupedal robots using linearized ZMP constraints[J]. IEEE Robotics and Automation Letters, 2019, 4 (2): 1633- 1640. doi: 10.1109/LRA.2019.2896721
5	BJELONIC M , BELLICOSO C D , VIRAGH Y D , et al. "Keep rollin"—whole-body motion control and planning for wheeled quadrupedal robots[J]. IEEE Robotics and Automation Letters, 2019, 4, 22116- 2123.
6	BJELONIC M , SANKAR P K , BELLICOSO C D , et al. Rolling in the deep-hybrid locomotion for wheeled-legged robots using online trajectory optimization[J]. IEEE Robotics and Automation Letters, 2022, 5 (2): 3626- 3633.
7	WANG S K , CHEN Z H , LI J H , et al. Flexible motion framework of the six wheel-legged robot: experimental results[J]. IEEE/ASME Trans.on Mechatronics, 2021, 27 (4): 2246- 2257.
8	ZHANG C, LI X L, ZHU X Q, et al. A step-climbing strategy of hexapod robot with eccentric wheel legs[C]//Proc. of the IEEE 7th Data Driven Control and Learning Systems Conference, 2018: 426-430.
9	KLEMM V, MORRA A, SALZMANN C, et al. Ascento: a two-wheeled jumping robot[C]//Proc. of the IEEE/RSJ International Conference on Robotics and Automation, 2019: 7515-7521.
10	CHEN S X, ROGERS J, ZHANG B K, et al. Feedback control for autonomous riding of hovershoes by a cassie bipedal robot[C]//Proc. of the IEEE-RAS 19th International Conference on Humanoid Robots, 2019.
11	CUI L L , WANG S , ZHANG J F , et al. Learning-based balance control of wheel-legged robots[J]. IEEE Robotics and Automation Letters, 2021, 6 (4): 7667- 7674. doi: 10.1109/LRA.2021.3100269
12	SUGAYA J, OHBA Y, KANMACHI T, et al. Simulation of standing upright control of an inverted pendulum using inertia rotor and the swing type inverted pendulum for engineering education[C]//Proc. of the International Conference on Information Technology and Electrical Engineering, 2017.
13	EINI R, ABDELWAHED S. Rotational inverted pendulum controller design using indirect adaptive fuzzy model predictive control[C]//Proc. of the IEEE International Conference on Fuzzy Systems, 2019.
14	XIN Y, XU J, XU B, et al. The inverted-pendulum model with consideration of pendulum resistance and its LQR controller[C]//Proc. of the International Conference on Electronic & Mechanical Engineering and Information Technology, 2011: 3438-3441.
15	张弨. 双足轮腿机器人系统设计与运动控制研究[D]. 哈尔滨: 哈尔滨工业大学, 2020.
	ZHANG Z. Bipedal wheel-legged robot system design and motion control research[D]. Harbin: Harbin Institute of Technology, 2020.
16	纪胜昊. 两足轮腿机器人系统研制及模型预测控制方法研究[D]. 哈尔滨: 哈尔滨工业大学, 2021.
	JI S H. Development of bipedal wheel-legged robot system and model predictive control method[D]. Harbin: Harbin Institute of Technology, 2021.
17	FUJIMOTO S, VAN H H, MEGER D. Addressing function approximation error in actor-critic methods[EB/OL]. [2022-02-18]. https://arxiv.org/abs/1802.09477.
18	LOPES D S J. NASCIMENTO C L. Gait synthesis of a hybrid legged robot using reinforcement learning[C]//Proc. of the Annual IEEE Systems Conference, 2015: 439-444.
19	WONG C C , CHIEN S Y , FENG H M , et al. Motion planning for dual-arm robot based on soft actor-critic[J]. IEEE Access, 2021, 9, 26871- 26885. doi: 10.1109/ACCESS.2021.3056903
20	TOTANI M, SATO N, MORITA Y. Step climbing method for crawler type rescue robot using reinforcement learning with proximal policy optimization[C]//Proc. of the 12th International Workshop on Robot Motion and Control, 2019: 154-159.
21	VASQUEZ-JALPA C, NAKANO-MIYATAKE M, ESCAMILLA-HERNANDEZ E. A deep reinforcement learning algorithm based on modified twin delay DDPG method for robotic applications[C]//Proc. of the 21st International Conference on Control, Automation and Systems, 2021: 743-748.
22	WANG M C, RUAN X G, ZHU X Q. Heuristic gait learning of quadruped robot based on deep deterministic policy gradient algorithm[C]//Proc. of the Chinese Automation Congress, 2020: 1046-1049.
23	闫安, 陈章, 董朝阳, 等. 基于模糊强化学习的双轮机器人姿态平衡控制[J]. 系统工程与电子技术, 2021, 43 (4): 1036- 1043.
	YAN A , CHEN Z , DONG C Y , et al. Attitude balance control of two-wheeled robot based on fuzzy reinforcement learning[J]. Systems Engineering and Electronics, 2021, 43 (4): 1036- 1043.
24	XIN S Y, VIJAYAKUMAR S. Online dynamic motion planning and control for wheeled biped robots[C]//Proc. of the IEEE/RSJ International Conference on Intelligent Robots and Systems, 2020: 3892-3899
25	赵玉婷, 韩宝玲, 罗庆生. 基于deep Q-network双足机器人非平整地面行走稳定性控制方法[J]. 计算机应用, 2018, 38 (9): 2459- 2463.
	ZHAO Y T , HAN B L , LUO Q S , et al. Stability control method for walking on non-level ground based on deep Q-network bipedal robot[J]. Computer Applications, 2018, 38 (9): 2459- 2463.
26	ZHANG Y C, WANG T, TAN N, et al. Open-loop motion control of a hydraulic soft robotic arm using deep reinforcement learning[C]//Proc. of the Intelligent Robotics and Applications, 2021: 13013.
27	冯春, 张祎伟, 黄成, 等. 双足机器人步态控制的深度强化学习方法[J]. 计算机集成制造系统, 2021, 27 (8): 2341- 2349.
	FENG C , ZHANG Y W , HUANG C , et al. Deep reinforcement learning method for gait control of bipedal robots[J]. Computer Integrated Manufacturing Systems, 2021, 27 (8): 2341- 2349.
28	LILLICRAP T P. Continuous control with deep reinforcement learning[EB/OL]. [2022-02-18]. https://arxiv.org/abs/1509.0297/v6.
29	SILVER D, LEVER G, HEESS N, et al. Deterministic policy gradient algorithms[C]//Proc. of the 31st International Conference on Machine Learning, 2014: 605-619.
30	周友行, 赵晗妘, 刘汉江, 等. 采用DDPG的双足机器人自学习步态规划方法[J]. 计算机工程与应用, 2021, 57 (6): 254- 259.
	ZHOU Y X , ZHAO H Y , LIU H J , et al. A self-learning gait planning method for bipedal robots using DDPG[J]. Computer Engineering and Applications, 2021, 57 (6): 254- 259.
31	HEESS N. Emergence of locomotion behaviours in rich environments[EB/OL]. [2022-02-18]. https://arxiv.org/abs/1707.02286.

单位	参数	数值
大腿长度l_u/mm		10
小腿长度l_l/mm		10
足部轮胎半径r_f/mm		3
足部轮胎厚度h_f/mm		2
关节最大转动扭矩t_max/N·m		6
圆弧拱坡最大高度h_RB_max/mm		5
圆弧拱坡最大倾角a_RB_max/rad		0.65

参数	符号
机器人位置	[x, y, z]
机器人姿态角	[roll, pitch, yaw]
机器人速度	[v_x, v_y, v_z]
轮胎与地面接触力	[F_{N_l}, F_{N_r}]
关节力矩输出	[t_{hip_l}, t_{hip_r}, t_{knee_l}, t_{knee_r}, t_{tire_l}, t_{tire_r}]
上一次关节力矩输出	[t′_{hip_l}, t′_{hip_r}, t′_{knee_l}, t′_{knee_r}, t′_{tire_l}, t′_{tire_r}]

参数	数值
学习率	0.005
折扣因子	0.99
目标更新频率	2
迷你批大小	64
经验缓冲区长度	10 000
平均分数的窗口长度	250
最大步数	3 000

机器人模型	最终奖励值	最终Q0值	训练时间/h
双轮	58.30	28.14	30.33
双足	65.22	37.86	20.28
双轮腿	76.81	129.53	15.72
平均	67.44	65.17	22.11

机器人模型	v_x平均值/(m/s)	姿态角偏移峰值/rad
机器人模型	v_x平均值/(m/s)	翻滚角	俯仰角	偏航角
双轮	0.48	0.02	0.14	0.20
双足	0.51	0.21	0.53	0.28
双轮腿	0.62	0.12	0.18	0.14
