基于多视角ISAR图像的雷达目标三维重建方法

doi:10.12305/j.issn.1001-506X.2026.09.10

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (9): 2969-2978.doi: 10.12305/j.issn.1001-506X.2026.09.10

• 传感器与信号处理 • 上一篇

基于多视角ISAR图像的雷达目标三维重建方法

吴少杰¹(), 李开明², 秦钢¹, 张昊¹, 邓冬虎¹(), 宋喜团³

1. 西北工业大学光电与智能研究院，陕西西安 710072
2. 空军工程大学信息与导航学院，陕西西安 710077
3. 中国人民解放军 93453部队，山西朔州 038300

收稿日期:2025-09-15 修回日期:2025-12-13 接受日期:2026-02-03 出版日期:2026-03-26 发布日期:2026-03-26
通讯作者: 邓冬虎 E-mail:1820131249@qq.com;dengdonghu@nwpu.edu.cn
作者简介:吴少杰（2001—），男，硕士研究生，主要研究方向为雷达三维成像技术
李开明（1982—），男，副教授，博士，主要研究方向为雷达信号处理、雷达成像与目标识别
秦　钢（2003—），男，硕士研究生，主要研究方向为雷达信号处理
张　昊（2001—），男，硕士研究生，主要研究方向为雷达信号处理
宋喜团（1986—），男，工程师，博士，主要研究方向为电子对抗
基金资助:
国家自然科学基金（62371468）资助课题

3D reconstruction method for radar targets based on multi-view ISAR images

Shaojie Wu¹(), Kaiming Li², Gang Qin¹, Hao Zhang¹, Donghu Deng¹(), Xituan Song³

1. School of Artificial Intelligence，Optics and Electronics，Northwestern Polytechnical University，Xi’an 710072，China
2. Institute of Information and Navigation，Air Force Engineering University，Xi’an 710077，China
3. Unit 93453 of PLA，Shuozhou 038300，China

Received:2025-09-15 Revised:2025-12-13 Accepted:2026-02-03 Online:2026-03-26 Published:2026-03-26
Contact: Donghu Deng E-mail:1820131249@qq.com;dengdonghu@nwpu.edu.cn

摘要/Abstract

摘要：

为实现对目标空间结构的高精度重构，提出一种基于多视角逆合成孔径雷达图像的雷达目标三维重建方法。首先，对目标进行回波建模。然后，采用方向性的高速特征检测与旋转不变特征描述算法对预处理后的目标逆合成孔径雷达图像进行特征点匹配，并利用奇异值分解进行目标散射点三维重建；结合几何一致性验证，剔除误匹配点，减小重建误差。最后，通过多视角图像的多轮重建修正，提升三维重建的准确度，得到较为完整、清晰的目标三维像。仿真验证了该方法的有效性。

关键词: 雷达目标, 多视角逆合成孔径雷达像, 特征点匹配, 三维重建

Abstract:

To achieve high-precision reconstruction of the target spatial structure, this paper proposes a radar target 3D reconstruction method based on multi-view inverse synthetic aperture radar （ISAR） images. Firstly, echo modeling is performed on the target. Then, oriented features from accelerated segment test and rotated binary robust independent elementary features （ORB） algorithm is used to match the feature points of the preprocessed ISAR image of the target. Singular value decomposition （SVD） is used to reconstruct the three-dimensional scattering points of the target. Combined with geometric consistency verification, false matching points are eliminated to reduce reconstruction errors. Finally, through multiple rounds of reconstruction correction of multi view images, the accuracy of three-dimensional reconstruction is improved, and a relatively complete and clear three-dimensional image of the target is obtained. The simulation verifies the effectiveness of the method.

Key words: radar target, multi-view inverse synthetic aperture radar image, feature point matching, three-dimensional reconstruction

中图分类号:

TN 957.52

吴少杰, 李开明, 秦钢, 张昊, 邓冬虎, 宋喜团. 基于多视角ISAR图像的雷达目标三维重建方法[J]. 系统工程与电子技术, 2026, 48(9): 2969-2978.

Shaojie Wu, Kaiming Li, Gang Qin, Hao Zhang, Donghu Deng, Xituan Song. 3D reconstruction method for radar targets based on multi-view ISAR images[J]. Systems Engineering and Electronics, 2026, 48(9): 2969-2978.

图/表 16

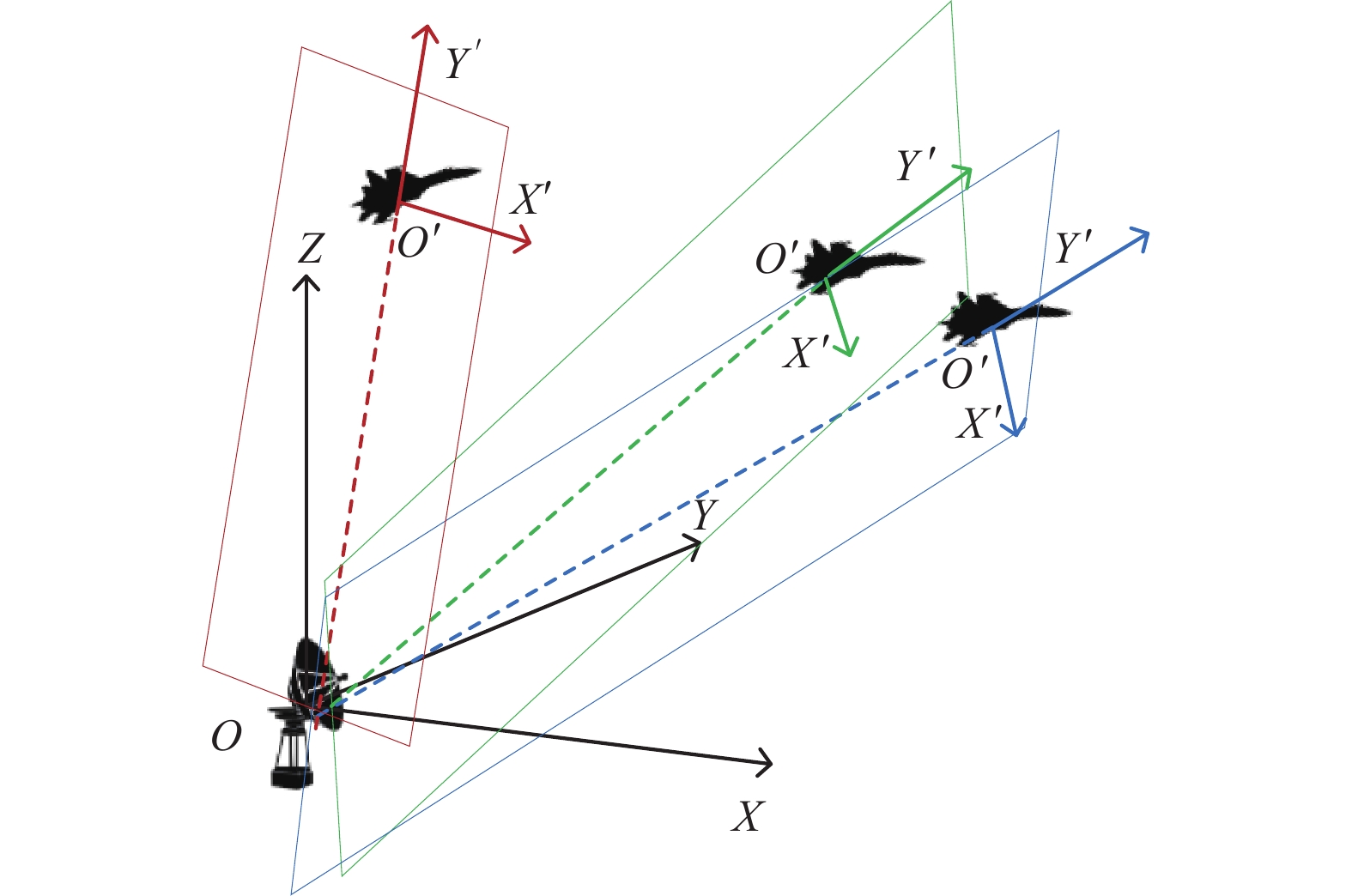

图1

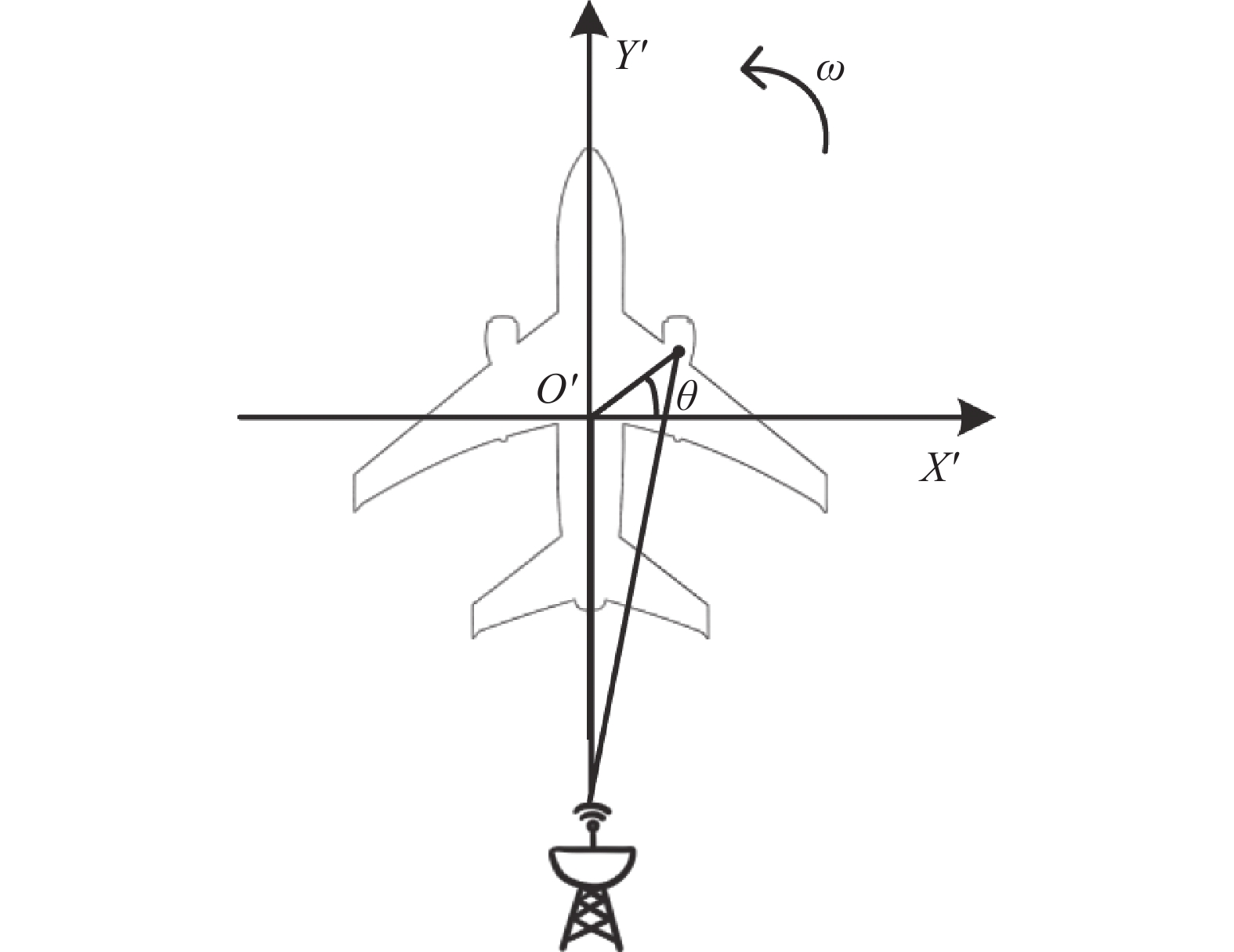

图2

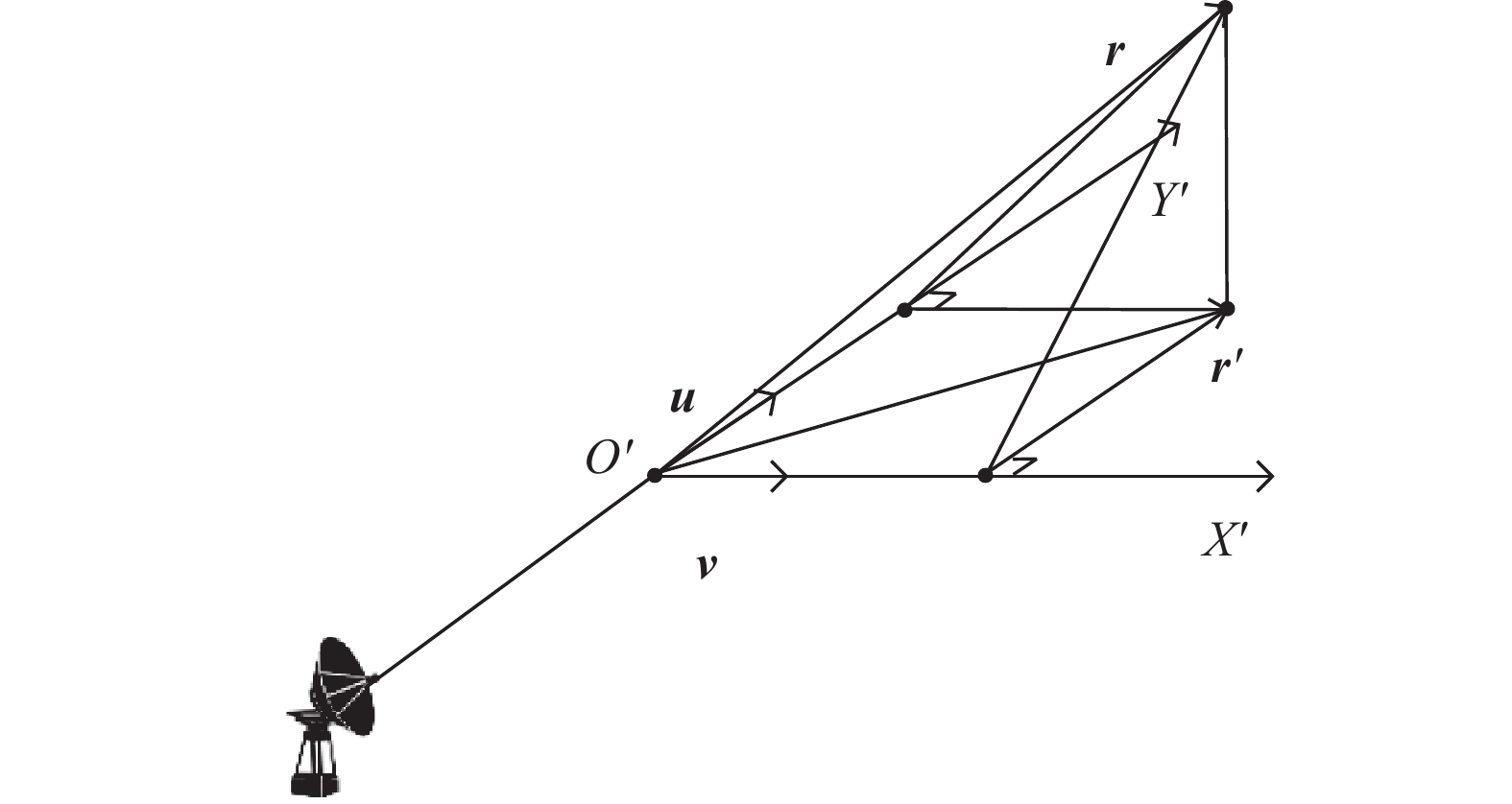

图3

图4

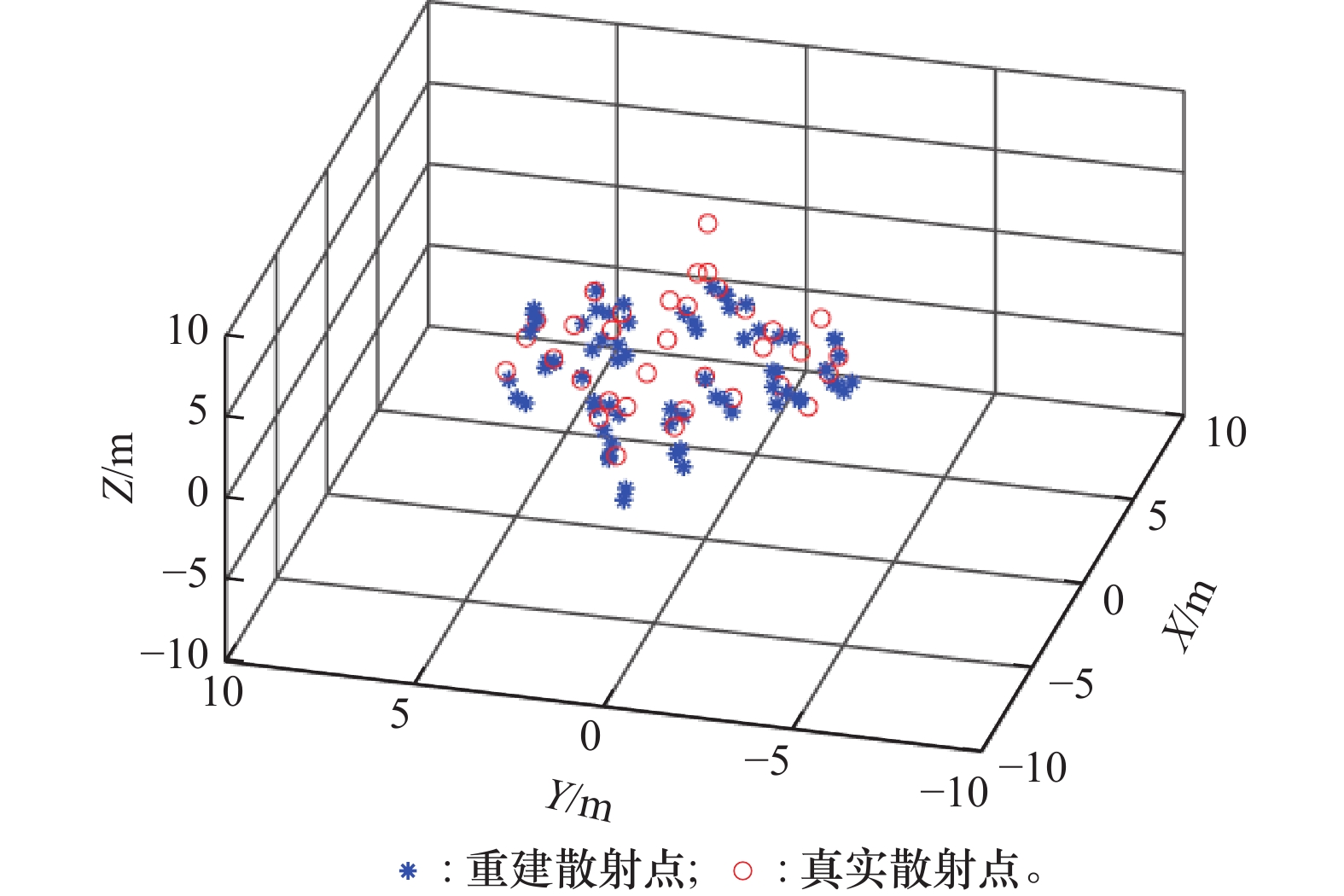

图5

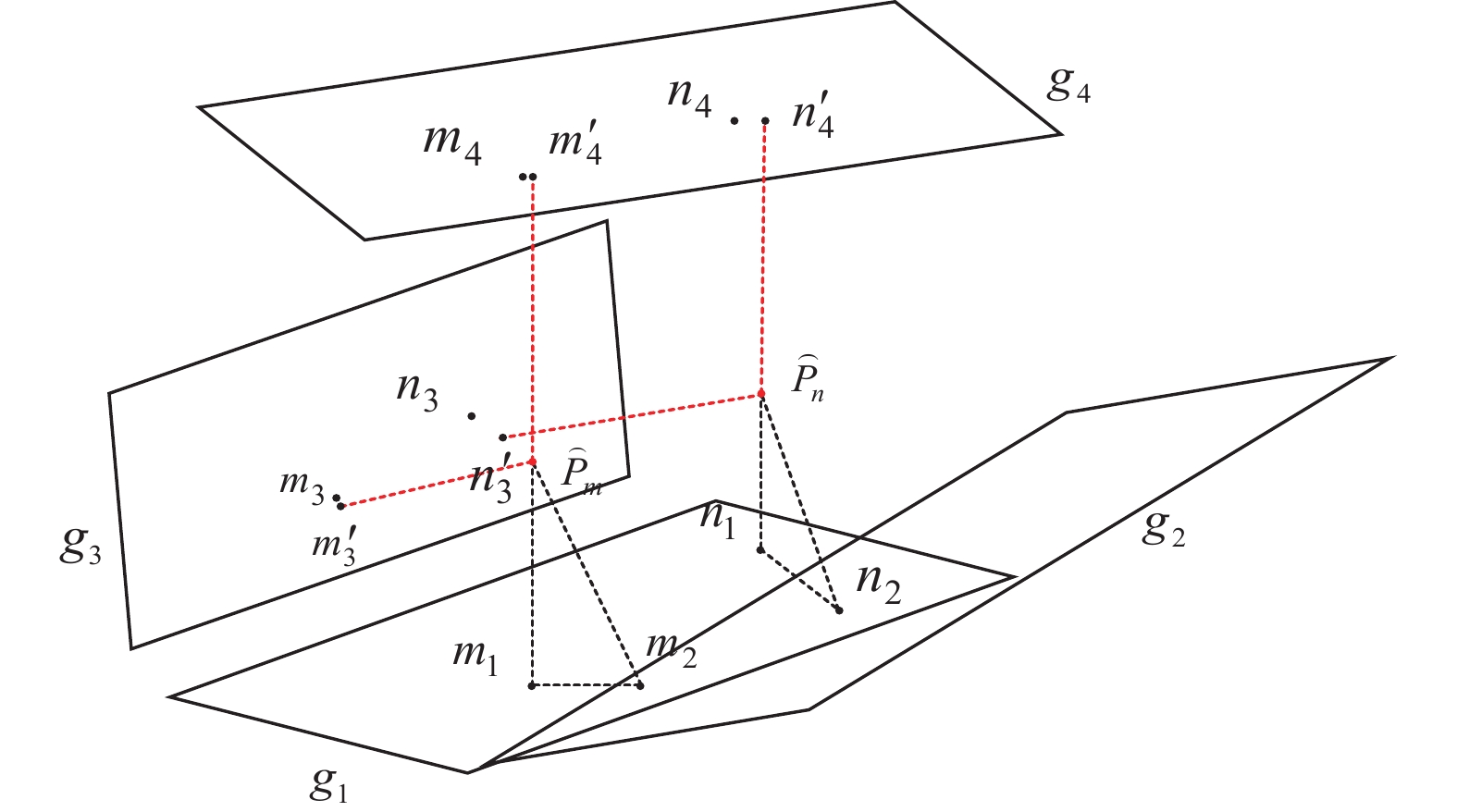

图6

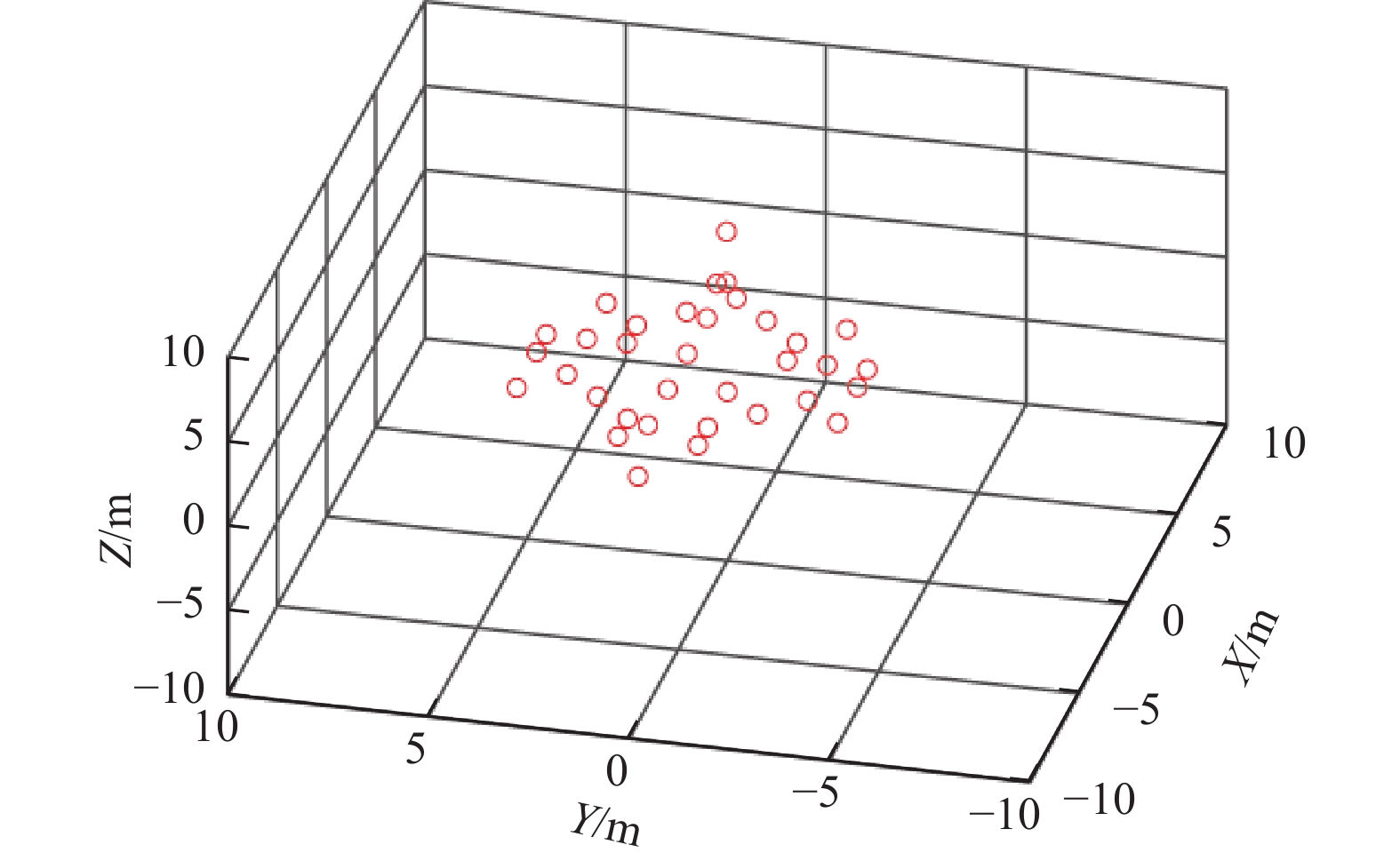

图7

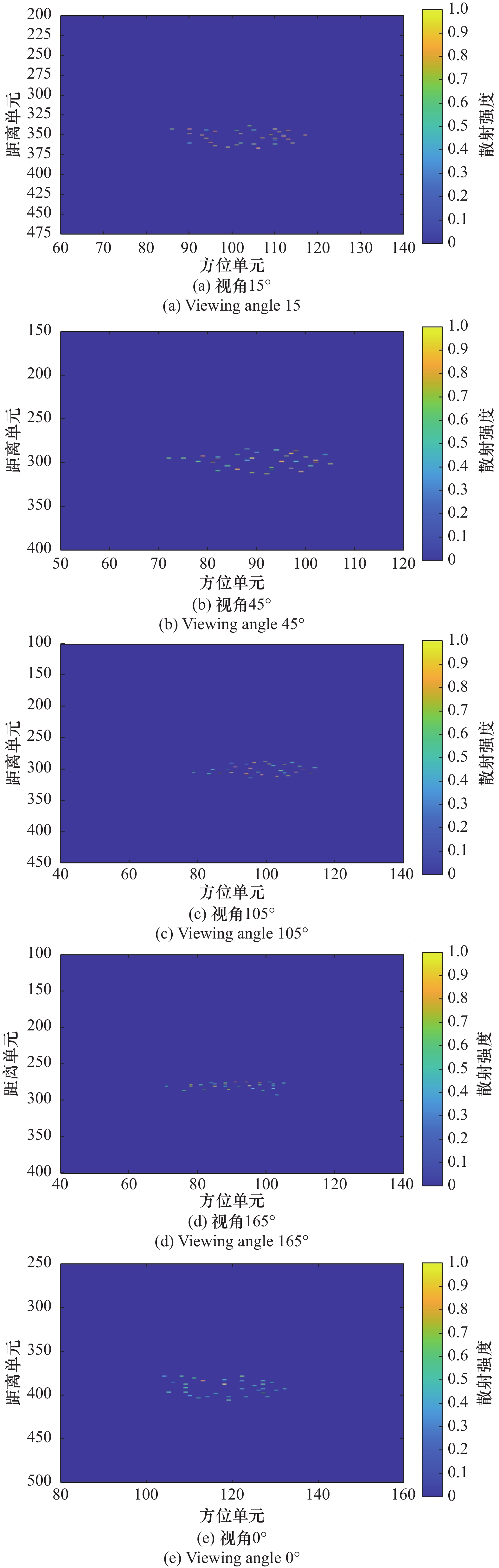

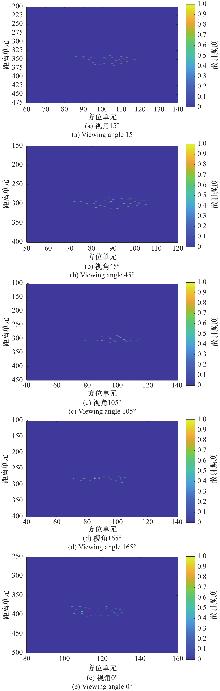

图8

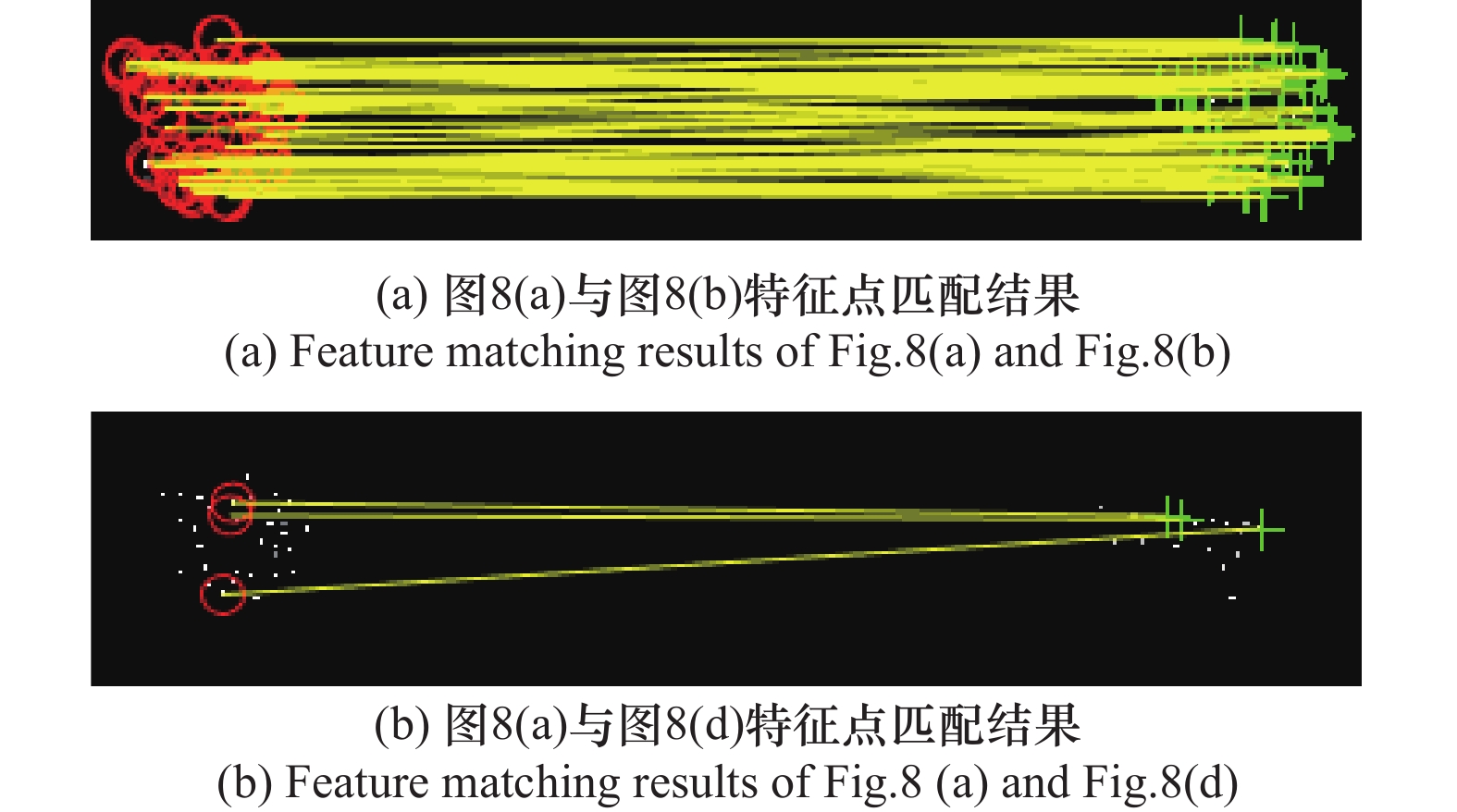

图9

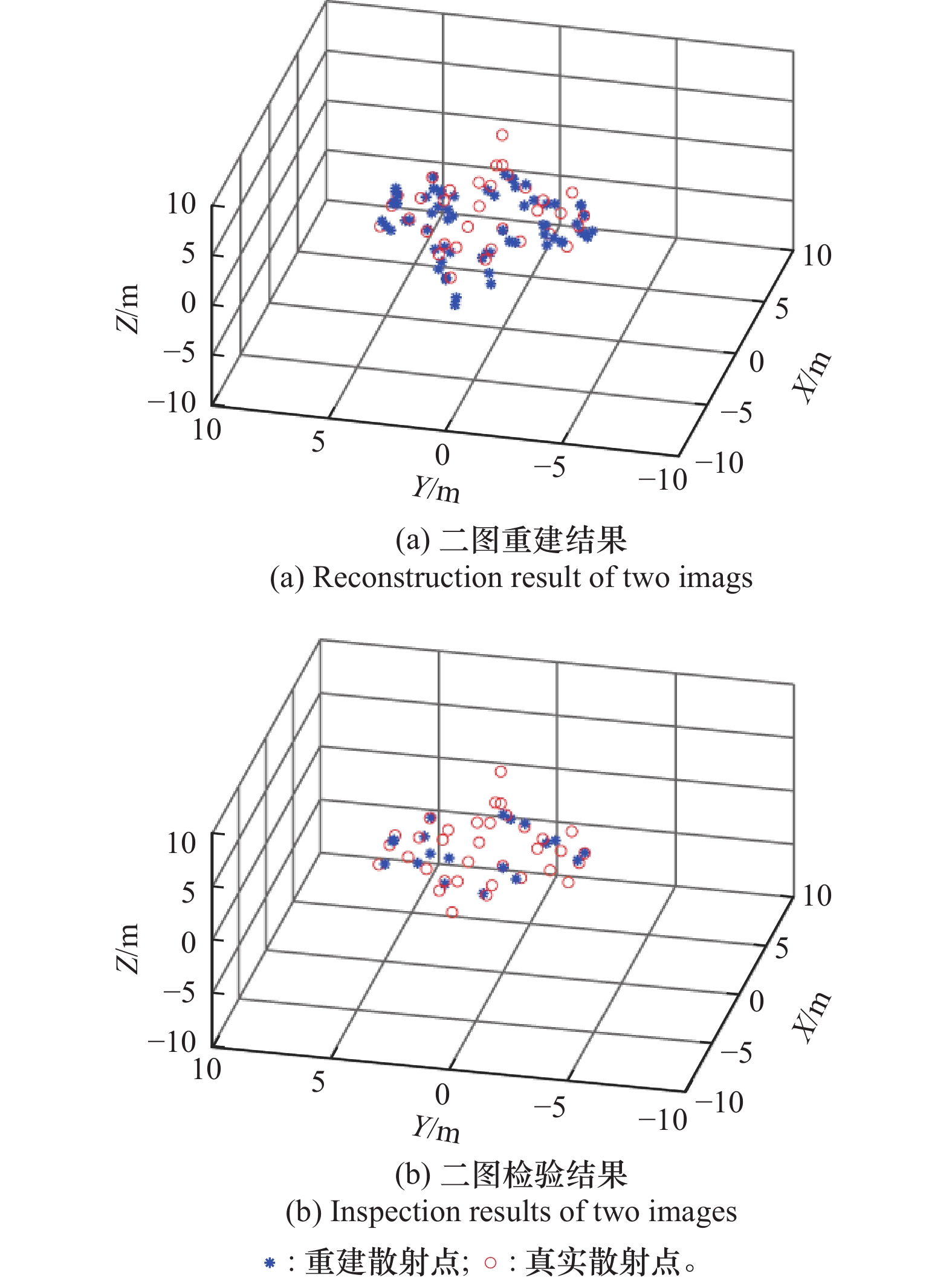

图10

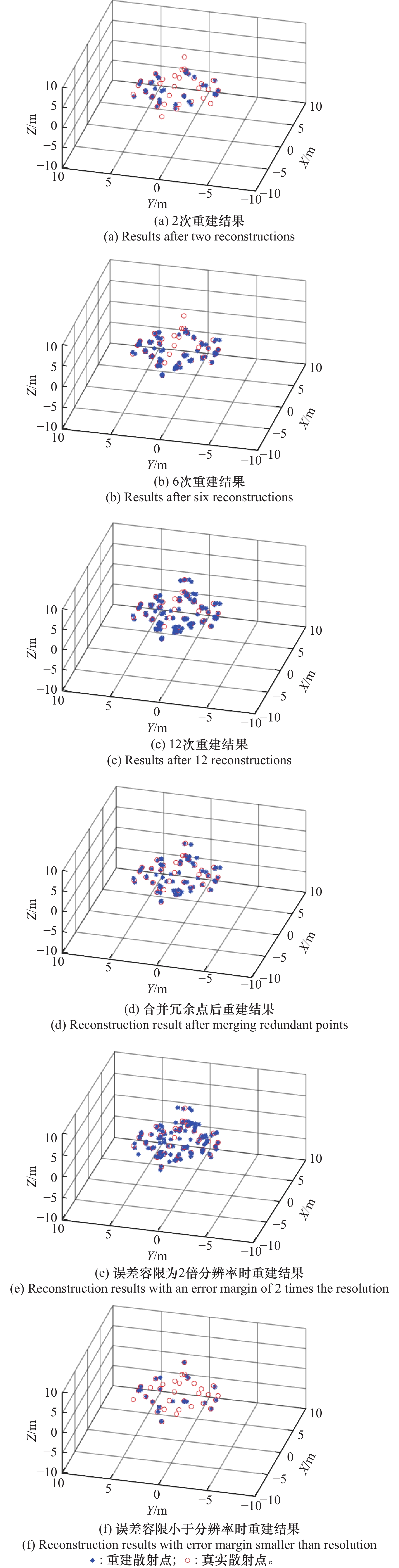

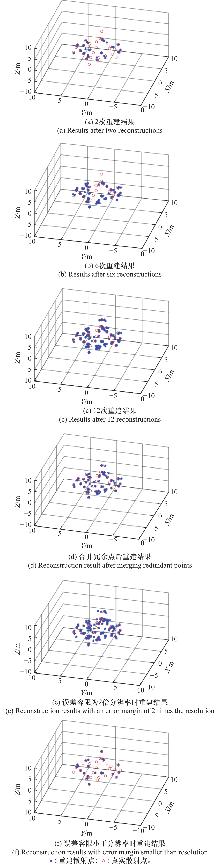

图11

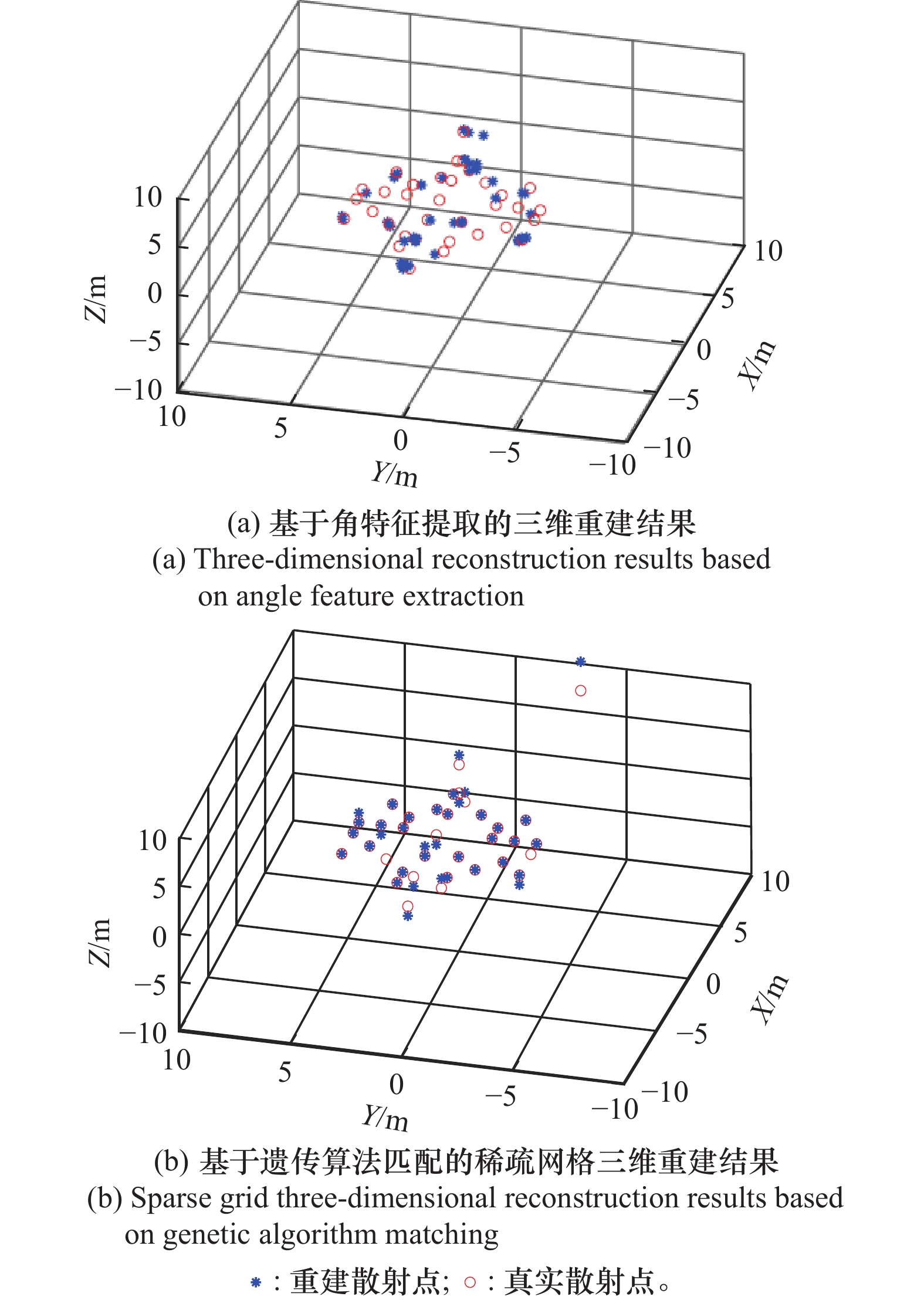

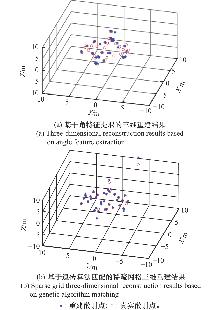

图12

图13

图14

表1

表2

参考文献 30

1	黎吉顺, 张雅声, 尹灿斌, 等. 逆合成孔径雷达三维成像方法综述[J]. 现代雷达, 2025, 47 (8): 10. doi: 10.16592/j.cnki.1004-7859.20231214002
2	Li Y H, Qi W, Deng Z M, et al. Monopulse instantaneous 3D imaging for wideband radar system[J]. Journal of Systems Engineering and Electronics, 2021, 32 (1): 53. doi: 10.23919/JSEE.2021.000007
3	Raj R G, Rodenbeck C T, Beun J B, et al. 3D ISAR imaging algorithm based on amplitude monopulse processing at W band [C]//IEEE International Symposium on Phased Array System & Technology, 2019.
4	Li Z S, Li Y L. Decimation keystone algorithm for forward-looking monopulse imaging on platforms with uniformly accelerated motion[J]. Frontiers in Signal Processing, 2023, 2, 1074053. doi: 10.3389/frsip.2022.1074053
5	Zhou Z B, Liu L, Du R Z, et al. Three-dimensional geometry reconstruction method for slowly rotating space targets utilizing ISAR image sequence[J]. Remote Sensing, 2022, 14 (5): 1144. doi: 10.3390/rs14051144
6	Li D, Xu J D. Method study on three-dimensional image rebuilding based on ISAR sequences [C]//International Conference on Electronics, Communications and Control, 2011: 4375.
7	Wang F, Xu F, Jin Y Q. Three-dimensional reconstruction from a multiview sequence of sparse ISAR imaging of a space target[J]. IEEE Trans. on Geoscience and Remote Sensing, 2017, 56 (2): 611. doi: 10.1109/tgrs.2017.2737988
8	Xu D, Bie B, Sun G C, et al. ISAR image matching and three-dimensional scattering imaging based on extracted dominant scatterers[J]. Remote Sensing, 2020, 12 (17): 2699. doi: 10.3390/rs12172699
9	Wang Y, Li S, He T T, et al. Three-dimensional point cloud reconstruction of inverse synthetic aperture radar image sequences based on back projection and iterative closest point fusion[J]. IET Radar, Sonar & Navigation, 2023, 17 (3): 503.
10	Zhou Y J, Zhang L, Xing C, et al. Target three-dimensional reconstruction from the multi-view radar image sequence[J]. IEEE Access, 2019, 7, 36722. doi: 10.1109/ACCESS.2019.2905130
11	Liu L, Zhou Z B, Zhou F, et al. A new 3-D geometry reconstruction method of space target utilizing the scatterer energy accumulation of ISAR image sequence[J]. IEEE Trans. on Geoscience and Remote Sensing, 2020, 58 (12): 8345. doi: 10.1109/TGRS.2020.2986465
12	Tian B, Chen C Z, Liu Y, et al. Interferometric ISAR imaging under squint model using phase cancellation compensation method of combined processing data[J]. IET Radar, Sonar & Navigation, 2022, 16 (6): 1065.
13	Wang Y, Chen X F. 3-D InISAR imaging of the ship target based on joint cross S-method algorithm[J]. IEEE Geoscience and Remote Sensing Letters, 2019, 16 (7): 1080. doi: 10.1109/LGRS.2019.2893260
14	Jiao Z K, Ding C B, Chen L Y, et al. Three-dimensional imaging method for array ISAR based on sparse Bayesian inference[J]. Sensors, 2018, 18 (10): 3563. doi: 10.3390/s18103563
15	Ma C Z, Yeo T S, Zhang Q, et al. Three-dimensional ISAR imaging based on antenna array[J]. IEEE Trans. on Geoscience and Remote Sensing, 2008, 46 (2): 504. doi: 10.1109/TGRS.2007.909946
16	Zhao L Z, Wang J L, Su J Y, et al. Spatial feature-based ISAR image registration for space targets[J]. Remote Sensing, 2024, 16 (19): 3625. doi: 10.3390/rs16193625
17	Ma M Y, Hou Y N. ISAR image 3D reconstruction based on improved KLT algorithm [C]//6th International Conference on Electronic Engineering and Informatics, 2024: 1077.
18	许志伟, 张磊, 邢孟道. 基于特征配准的ISAR图像方位定标方法[J]. 电子与信息学报, 2014, 36 (9): 2173. doi: 10.3724/SP.J.1146.2013.01590
19	Rublee E, Rabaud V, Konolige K, et al. ORB: an efficient alternative to SIFT or SURF [C]//International Conference on Computer, 2011: 2564.
20	Chu G M, Peng Y, Luo X H. ALGD-ORB: an improved image feature extraction algorithm with adaptive threshold and local gray difference[J]. PLoS One, 2023, 18 (10): e0293111. doi: 10.1371/journal.pone.0293111
21	Wei B X, Yu A X, Tong W H, et al. Performance analysis of moving target shadow detection in video SAR systems[J]. Remote Sensing, 2024, 16 (11): 1825. doi: 10.3390/rs16111825
22	Gerber T A, Lilien D A, Nymand N F, et al. Anisotropic scattering in radio-echo sounding: insights from northeast Greenland[J]. The Cryosphere, 2025, 19 (5): 1955. doi: 10.5194/tc-19-1955-2025
23	肖懿彬, 凌鹤, 梁浩, 等. 基于ORB特征匹配的吊运现场三维地图重建[J]. 数字制造科学, 2025, 23 (2): 89.
24	冉宁, 范晨锋, 张少康, 等. 一种改进ORB特征点提取与匹配的图像处理算法[J]. 电子测量与仪器学报, 2025, 39 (4): 213. doi: 10.13382/j.jemi.B2407834
25	Jung J H, Sael L. Fast and accurate pseudoinverse with sparse matrix reordering and incremental approach[J]. Machine Learning, 2020, 109 (12): 2333. doi: 10.1007/s10994-020-05920-5
26	Holz D, Behnke S. Fast range image segmentation and smoothing using approximate surface reconstruction and region growing[C]//12th International Conference, 2013: 61.
27	Wu C X, Hou Y N, Cheng Q, et al. 3-D reconstruction of space target based on ISAR image sequences [C]//IET Radar Conference, 2023: 2689.
28	刘潇文. 基于组网雷达的运动目标成像及任务优化分配方法[D]. 西安: 空军工程大学, 2019.
29	Bojanic D, Bartol K, Pribanic T, et al. On the comparison of classic and deep keypoint detector and descriptor methods [C]//11th International Symposium on Image and Signal Processing and Analysis, 2019: 64.
30	Yao H, Lou H, Wang D, et al. A resource scheduling algorithm for multi-target 3D imaging in radar network based on deep reinforcement learning[J]. Remote Sensing, 2024, 16 (23): 4472. doi: 10.3390/rs16234472

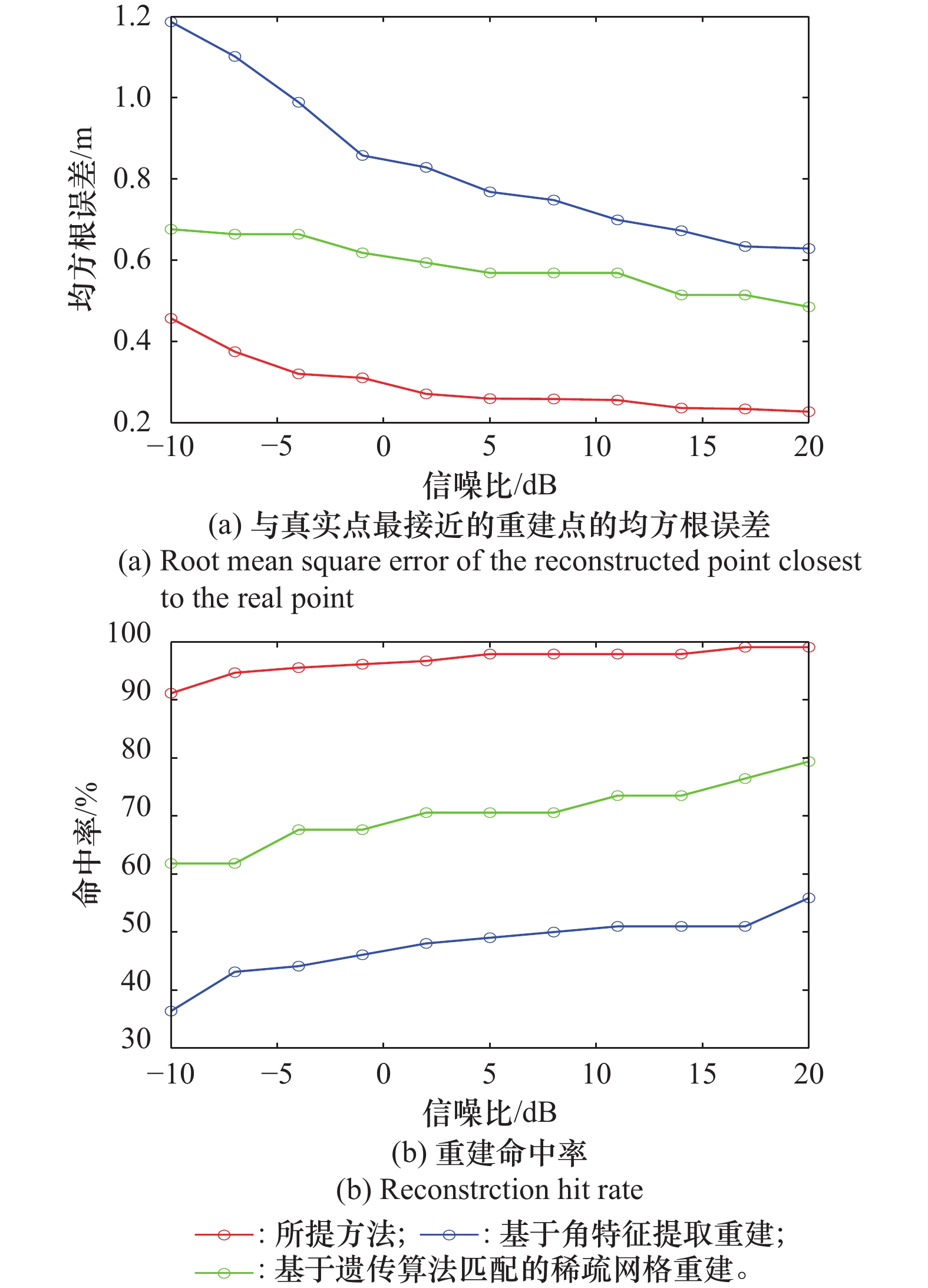

视角差/（°）	均方根误差
视角差/（°）	两幅验证图	一幅验证图	无验证图
45	0.601	0.894	1.004
60	0.579	0.705
90	0.445	0.6842
150	0.6459	0.7223

视角差/（°）	精准度
视角差/（°）	两幅验证图	一幅验证图	无验证图
45°	68.82	34.30	31.48
60°	69.01	49.82
90°	83.88	62.53
150°	70.56	58.55
