考虑多参数z标记的体系作战效能评估DoDAF-GERT方法

doi:10.12305/j.issn.1001-506X.2026.05.21

摘要/Abstract

摘要：

针对目前作战体系组成要素复杂、作战任务规划与作战效能评估脱钩、作战过程各节点动态变化难以预测、传统评估方法无法适应的问题，提出基于美国国防部架构框架-图示评审技术（Department of Defense Architecture Framework-graphical evaluation review technique, DoDAF-GERT）的体系作战效能评估方法。首先，将基于DoDAF中的OV5视图建模的作战活动模型转化为GERT网络模型，实现杀伤网的动态演化特性分析和定量表述。然后，利用ADC（availability, dependability, capability）模型计算网络中各装备节点作战效能，并结合考虑多参数z标记的GERT网络定量计算和综合评估体系综合作战效能。最后，评估不同组网方式对体系效能的影响，分析不同武器装备对体系作战效能的贡献率，识别体系薄弱节点，为体系优化提供方向。

关键词: 国防部架构框架-图示评审技术, 作战体系, 效能评估, 薄弱节点识别

Abstract:

To address the complex components of the current operational system, the decoupling of operational mission planning and operational effectiveness evaluation, the difficulty in predicting dynamic changes in various nodes of the operational process, and the inability of traditional evaluation methods to adapt, a system operational effectiveness evaluation method based on the Department of Defense Architecture Framework graphic evaluation review technique (DoDAF-GERT) is proposed. Firstly, the operational activity model based on the OV5 view modeling in DoDAF is transformed into a GERT network model to analyze and quantitatively describe the dynamic evolution characteristics of the kill network. Then, the ADC (availability, dependency, capability) model is used to calculate the operational effectiveness of each equipment node in the network, and the GERT network considering multi-parameter z-labeling is combined to quantitatively calculate and comprehensively evaluate the comprehensive operational effectiveness of the system. Finally, the impact of different networking methods on system effectiveness is evaluated, the contribution rate of different weapons and equipment to system operational effectiveness is analyzed, the weak nodes in the system are identified, providing the direction for system optimization.

Key words: Department of Defense Architecture Framework-graphical evaluation review technique （DoDAF-GERT）, operational system-of-systems, effectiveness evaluation, vulnerable nodes identification

中图分类号:

N 945.25

陆营波, 骆天溯, 张靖如, 钱晓超, 方志耕. 考虑多参数z标记的体系作战效能评估DoDAF-GERT方法[J]. 系统工程与电子技术, 2026, 48(5): 1647-1656.

Yingbo LU, Tiansu LUO, Jingru ZHANG, Xiaochao QIAN, Zhigeng FANG. DoDAF-GERT approach to evaluate system-of-systems operational effectiveness considering multi-parameters-based z tag[J]. Systems Engineering and Electronics, 2026, 48(5): 1647-1656.

图/表 14

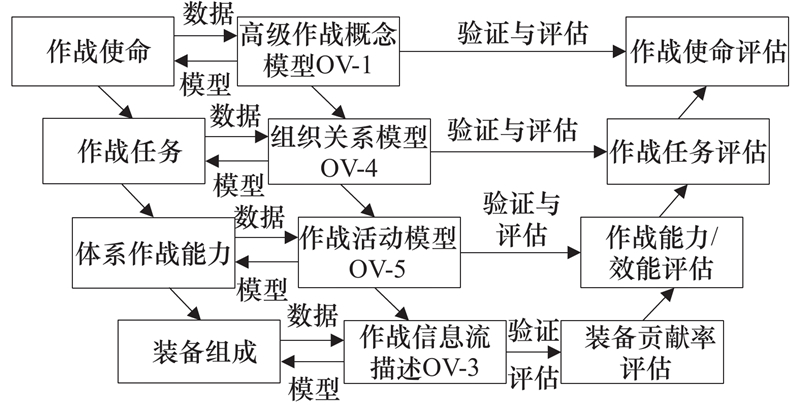

图1

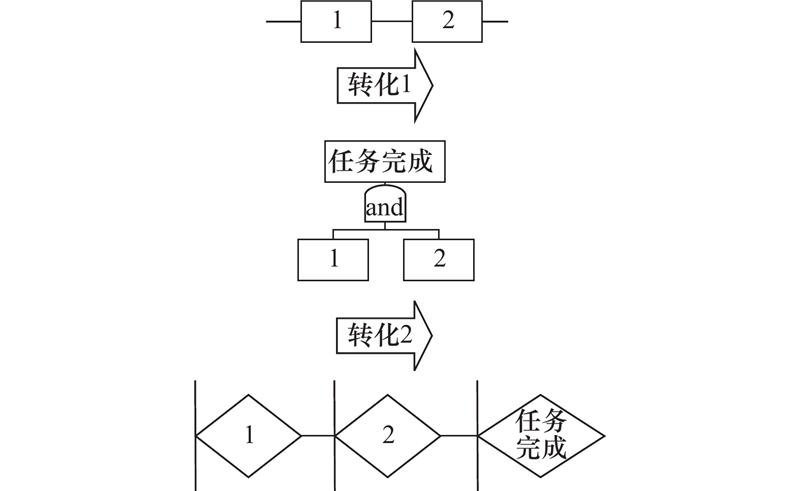

图2

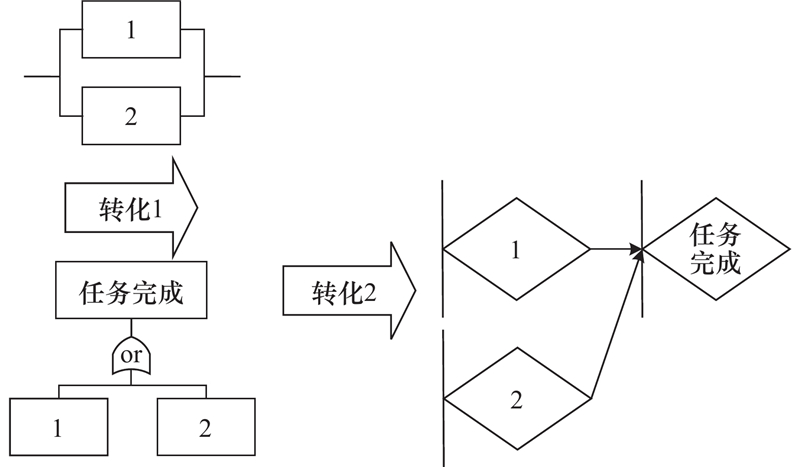

图3

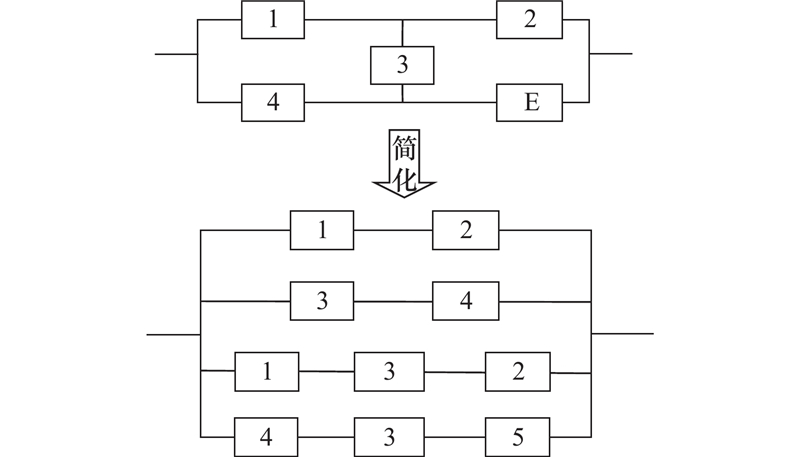

图4

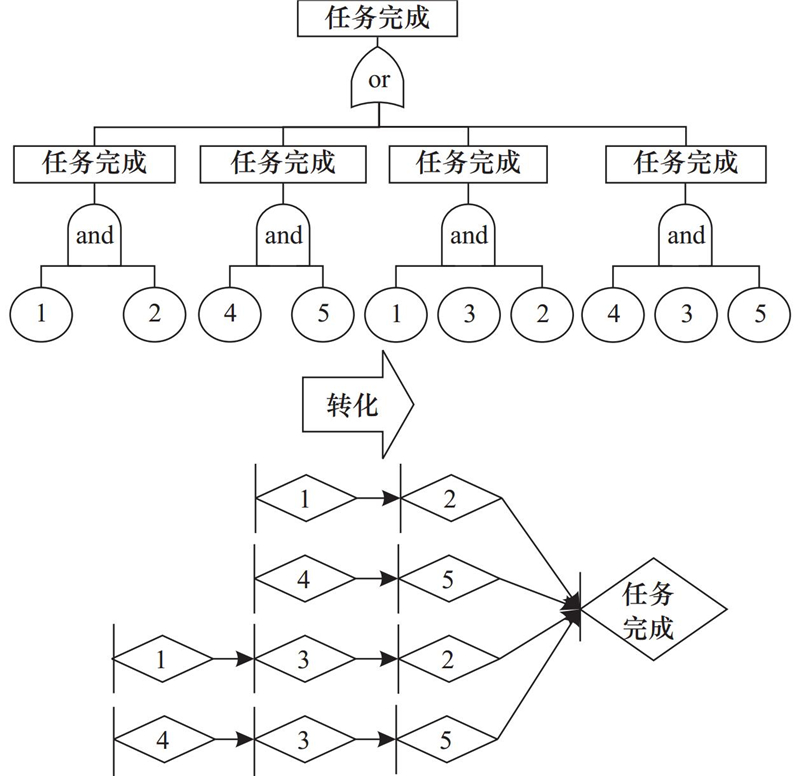

图5

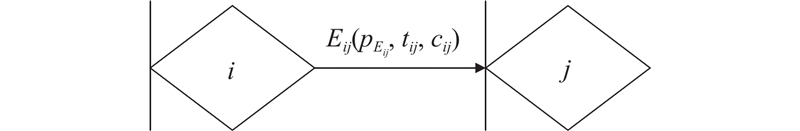

图6

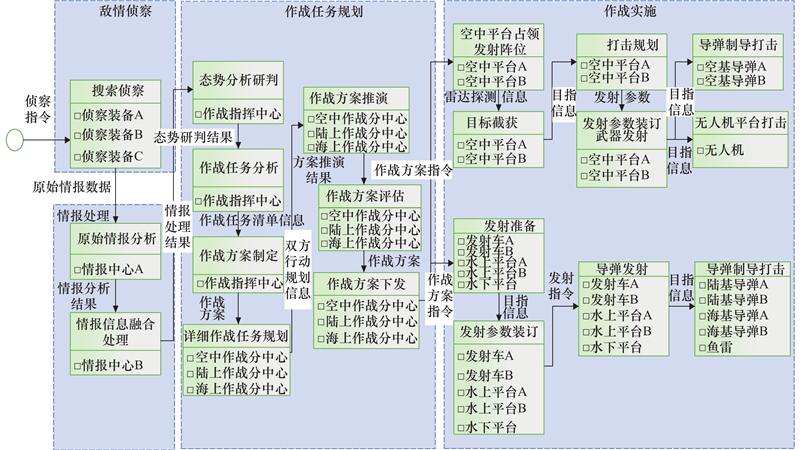

图7

图8

表1

表2

图9

表3

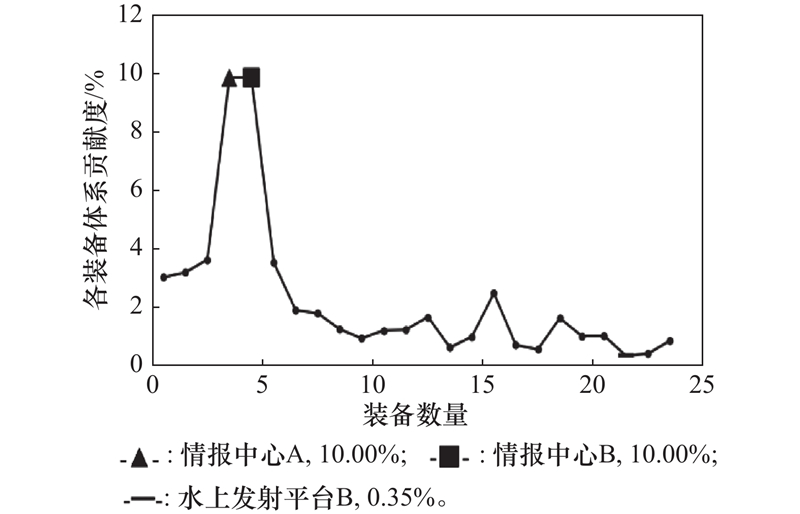

图10

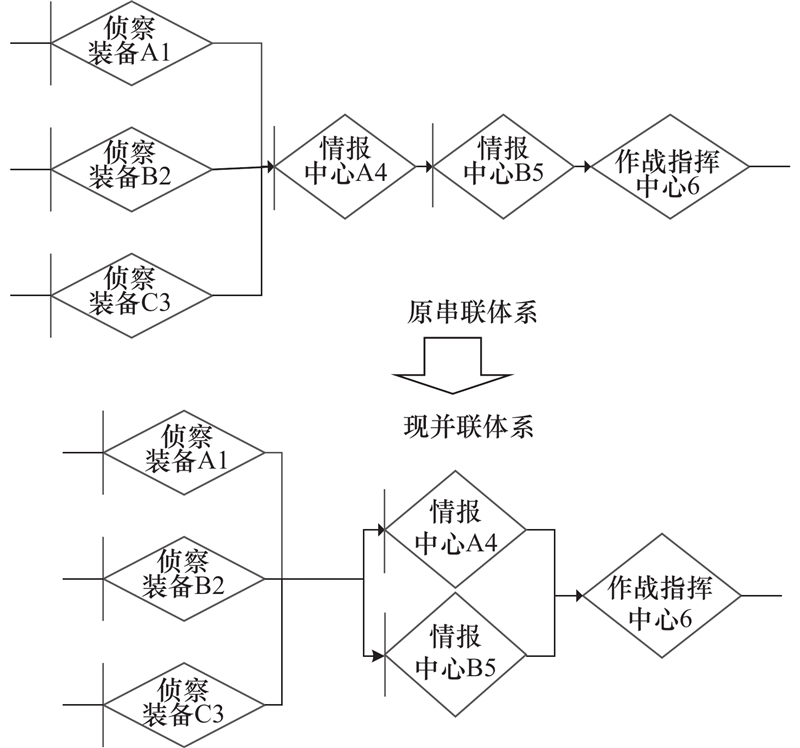

图11

参考文献 33

1	徐程程. 基于MBSE的某联合反航母作战体系效能评估问题[D]. 南京: 南京航空航天大学, 2022.
	XU C C. Efficiency assessment of a joint anti-aircraft carrier combat system based on MBSE[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2022.
2	孙云柯. 不确定信息下武器装备体系能-效综合评估技术研究[D]. 南京: 南京航空航天大学, 2021.
	SUN Y K. Research on comprehensive evaluation technology of capability and effectiveness for weapon equipment system-of-systems under uncertain information[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2021.
3	杨克巍, 杨志伟, 谭跃进, 等. 面向体系贡献率的装备体系评估方法研究综述[J]. 系统工程与电子技术, 2019, 41 (2): 311- 321.
	YANG K W, YANG Z W, TAN Y J, et al. Review of the evaluation methods of equipment system of systems facing the contribution rate[J]. Systems Engineering and Electronics, 2019, 41 (2): 311- 321.
4	孙建彬. 模型与数据混合驱动的武器装备评估方法研究[D]. 长沙: 国防科技大学, 2018.
	SUN J B. Model and data hybrid-driven approachesfor weapon equipment assessment[D]. Changsha: National University of Defense Technology, 2018.
5	鲁延京, 程贲, 陈英武, 等. 基于BN的武器装备体系能力重要度分析[J]. 系统工程与电子技术, 2012, 34(8): 1605−1612.
	LU Y J, CHENG B, CHEN Y W. BN-based importance analysis of weaponry system capabilities[J]. Systems Engineering and Electronics, 2012, 34(8): 1605−1621.
6	LEE B, SEO Y A. A design of operational test & evaluation system for weapon systems thru process-based modeling[J]. Journal of the Korea Society for Simulation, 2014, 23 (4): 211- 218. doi: 10.9709/JKSS.2014.23.4.211
7	ZHONG Y F, LI H X, SUN Q, et al. A kill chain optimization method for improving the resilience of unmanned combat system-of-systems[J]. Chaos, Solitons & Fractals, 2024, 181: 114685.
8	WU J, TAN S Y, TAN Y J, et al. Analysis of invulnerability in complex networks based on natural connectivity[J]. Complex Systems & Complexity Science, 2014, 11 (1): 77- 86.
9	苏泓嘉, 罗宇成, 刘飞. 装备体系效能评估及支撑技术综述[J]. 空天防御, 2023, 6 (3): 29- 38. doi: 10.3969/j.issn.2096-4641.2023.03.005
	SU H J, LUO Y C, LIU F. Review of equipment effectiveness evaluation and supporting technologies[J]. Air & Space Defense, 2023, 6 (3): 29- 38. doi: 10.3969/j.issn.2096-4641.2023.03.005
10	赖文星, 王创维, 顾村峰, 等. 一体化防空协同组网作战研究[J]. 空天防御, 2022, 5 (4): 92- 96.
	LAI W X, WANG C W, GU C F, et al. Integrated air defense cooperative networking operation research[J]. Air & Space Defense, 2022, 5 (4): 92- 96.
11	CHEN W Y, LI W M, ZHANG T. Complex network-based resilience capability assessment for a combat system of systems[J]. System, 2024, 12 (1): 31. doi: 10.3390/systems12010031
12	SONG Z F, CAO Z Y, FAN C L, et al. Mathematical modeling of operation loop ratio and its effect in combat networks[J]. Chaos, Solitons & Fractals, 2025, 195: 116318.
13	XU R J, LIU J H, LI J C, et al. Link-centric research on the capability resilience of heterogeneous information combat networks[J]. IEEE Trans. on Network Science and Engineering, 2025, 12 (4): 2921- 2931. doi: 10.1109/TNSE.2025.3555384
14	于冰倩, 李学艳, 程思齐, 等. 基于复杂网络的陆空协同作战体系效能评估方法[J]. 火力与指挥控制, 2024, 49 (1): 105- 110. doi: 10.3969/j.issn.1002-0640.2024.01.013
15	NIE Y Y, FANG Z G, LIU S F, et al. Survivability model of LEO satellite constellation based on gert with limited backup resources[J]. Journal of Systems Engineering and Electronics, 2024, 35 (4): 976- 986. doi: 10.23919/JSEE.2024.000089
16	ZHAO Q S, DING J Y, LI J C, et al. Mission-oriented scheme generation method for weapon system of system[J]. IEEE Access, 2020, 8, 70981- 70996. doi: 10.1109/ACCESS.2020.2987062
17	HUA C C, FANG Z G, ZHANG Y H, et al. GERT-Q-learning model for intelligent QoS dynamic optimization of Inmarsat STN based on grey clustering of delay and delay variation[J]. Grey Systems: Theory and Application, 2023, 13 (3): 445- 463. doi: 10.1108/GS-08-2022-0092
18	ZHANG J R, FANG Z G, DONG W J. A novel equipment contribution evaluation framework for ESoS from a comprehensive perspective[J]. Expert Systems with Applications, 2024, 265, 126042. doi: 10.1016/j.eswa.2024.126042
19	彭征明, 李云芝, 罗小明. 基于贝叶斯网的作战效能评估方法研究[J]. 装备学院学报, 2007, 18 (2): 105- 109.
	PENG Z M, LI Y Z, LUO X M. Research on method of force effectiveness evaluation based on Bayesian belief net[J]. Journal of the Academy of Equipment Command & Technology, 2007, 18 (2): 105- 109.
20	王耀祖, 尚柏林, 宋笔锋, 等. 基于杀伤链的作战体系网络关键节点识别方法[J]. 系统工程与电子技术, 2023, 45 (3): 736- 744.
	WANG Y Z, SHANG B L, SONG B F, et al. Identification method of key node in operational system-of-systems network based on kill chain[J]. Systems Engineering and Electronics, 2023, 45 (3): 736- 744.
21	周琛, 尚柏林, 宋笔锋, 等. 基于作战环的航空武器装备体系贡献率评估[J]. 航空学报, 2022, 43 (2): 224958.
	ZHOU C, SHANG B L, SONG B F, et al. Contribution evaluation of aviation armament system-of-systems based on operation loop[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43 (2): 224958.
22	郭健, 王磊, 张常龙. 基于仿真推演的航天侦察体系效能评估[J]. 信息工程大学学报, 2023, 24 (3): 364- 369.
	GUO J, WANG L, ZHANG C L. Effectiveness evaluation of space reconnaissance system based on simulation deduction[J]. Journal of Information Engineering University, 2023, 24 (3): 364- 369.
23	李兴兵. 武器装备体系作战效能探索性评估与分析方法及应用研究[D]. 长沙: 国防科技大学, 2010.
	LI X B. Exploratory evaluation and analysis methods for operational effectiveness of weapon equipment systems, and their application research[D]. Changsha: National University of Defense Technology, 2010.
24	李际超. 基于武器装备体系作战网络模型的装备贡献度评估[D]. 长沙: 国防科学技术大学, 2015.
	LI J C. Research on equipment contribution of weapon system-of-systems based on combat network model[D]. Changsha: National University of Defense Technology, 2015.
25	伍文峰, 胡晓峰. 基于大数据的网络化作战体系能力评估框架[J]. 军事运筹与系统工程, 2016, 30 (2): 26- 32. doi: 10.3969/j.issn.1672-8211.2016.02.005
	WU W F, HU X F. Evaluation framework for the capability of network-centric warfare systems based on big data[J]. Military Operations Research and Systems Engineering, 2016, 30 (2): 26- 32. doi: 10.3969/j.issn.1672-8211.2016.02.005
26	曹强, 荆涛, 周少平. 武器装备体系能力矩阵评估方法[J]. 火力与指挥控制, 2016, 41 (2): 142- 147.
	CAO Q, JING T, ZHOU S P. Matrix methodology based capability evaluation of weapon system of systems[J]. Fire Control & Command Control, 2016, 41 (2): 142- 147.
27	ZHANG J R, FANG Z G, DONG W J, et al. A mission success probability assessment framework for phased-mission-systems using extended graphical evaluation and review technique[J]. Reliability Engineering & System Safety, 2024, 249, 110248. doi: 10.1016/j.ress.2024.110248
28	HAO X T, FANG Z G, ZHANG J R, et al. Reinforcement model for unmanned combat system of systems based on multi-layer grey target[J]. Journal of Grey System, 2024, 36(2): 54−67.
29	FANG Z G, ZHANG J R, XIA Y X, et al. Dynamic optimization model of weapon equipment system effectiveness based on A-GERT network[J]. Scientific Insights and Discoveries Review, 2024, 1 (1): 68- 81. doi: 10.59782/sidr.v1i1.29
30	WANG Z, LIU S F, FANG Z G. Research on SoS-GERT network model for equipment system of systems contribution evaluation based on joint operation[J]. IEEE Systems Journal, 2019, 14 (3): 4188- 4196. doi: 10.1109/jsyst.2019.2956549
31	赵陆昊, 阮拥军, 张耀龙. 基于IDEF0-QFD的装备保障能力需求分析方法[J]. 火力指挥与控制, 2023, 48 (4): 94- 101.
	ZHAO L H, RUAN Y J, ZHANG Y L. A requirement analysis method of equipment support ability based on IDEF0-QFD[J]. Fire Control & Command Control, 2023, 48 (4): 94- 101.
32	丁泽坚, 孙松涛, 何志文, 等. 基于区间直觉模糊数ANP的体系贡献率计算方法[J]. 系统仿真学报, 2022, 34 (11): 2386- 2395. doi: 10.16182/j.issn1004731x.joss.21-0597
	DING Z J, SUN S T, HE Z W, et al. Contribution rate calculation method to system-of-systems based on interval-valued intuitionistic fuzzy number ANP[J]. Journal of System Simulation, 2022, 34 (11): 2386- 2395. doi: 10.16182/j.issn1004731x.joss.21-0597
33	孟科. 改进的多指标智能加权区间数灰靶决策模型及其应用[J]. 火力指挥与控制, 2013, 38 (5): 98- 101.
	MENG K. Improvements on decision making model of multi-attribute intelligent grey target based on interval number and application[J]. Fire Control & Command Control, 2013, 38 (5): 98- 101.

一级指标	二级指标	单位	取值	结果
可用性A	任务可用性	MTBF/h	5	0.9259
可用性A	任务可用性	MTTR/h	0.4	0.9259
可信度D	任务可信度	−	0.92	0.92
固有能力C	侦察时长	min	15	0.9438
	侦察覆盖率	%	80
	目标定位误差	km	5
	目标识别置信度	%	70

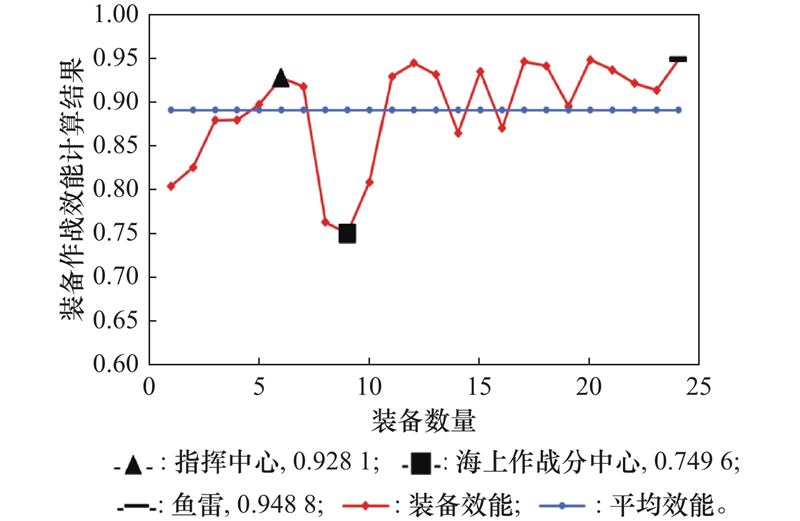

装备	效能计算值	装备	效能计算值
侦察装备A	0.8040	空中平台B	0.9314
侦察装备B	0.8255	无人机	0.8647
侦察装备C	0.8795	发射车A	0.9353
情报中心A	0.8799	发射车B	0.8704
情报中心B	0.8973	陆基导弹A	0.9465
指挥中心	0.9281	陆基导弹B	0.9417
空中作战分中心	0.9179	水上平台A	0.8952
陆上作战分中心	0.7627	海基导弹A	0.9485
海上作战分中心	0.7496	海基导弹B	0.9369
空中平台A	0.8085	水上平台B	0.9216
空基导弹A	0.9295	水下平台	0.9139
空基导弹B	0.9448	鱼雷	0.9488

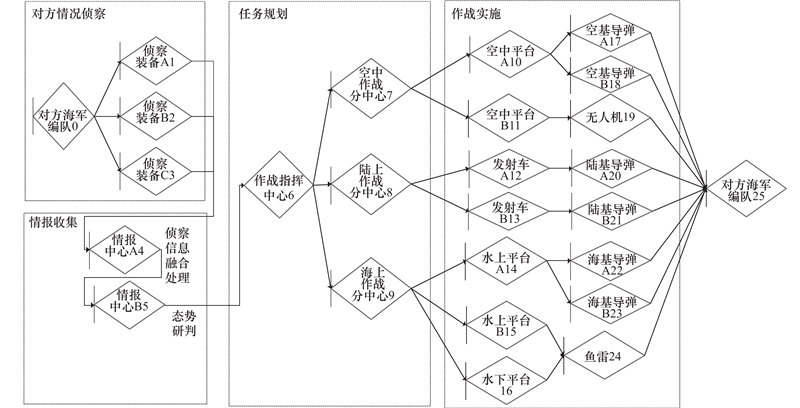

（i, j）	活动	概率	效能	效能修正后概率	传递函数（α=0）
（0,1）	侦察装备A侦察对方舰艇编队	0.3333	0.8040	0.2653	0.3204
$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $
（2,4）	侦察信息传递到情报中心	1.0000	0.8255	0.8255	−
$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $
（6,7）	规划作战方案	0.3333	0.9281	0.3093	−
$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $
（7,10）	下达作战方案	0.5000	0.9179	0.4590	−
$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $
（15,24）	下达作战指令	1.0000	0.9216	0.9216	−
$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $	$ \vdots $
（24,25）	攻击对方海军编队及舰船	1.0000	0.9488	0.9488	0.9488
