系统工程与电子技术 ›› 2024, Vol. 46 ›› Issue (2): 561-569.doi: 10.12305/j.issn.1001-506X.2024.02.20
• 系统工程 • 上一篇
胡涛, 申立群, 朱镜达, 孙成会, 董伟锋
收稿日期:
2022-12-20
出版日期:
2024-01-25
发布日期:
2024-02-06
通讯作者:
申立群
作者简介:
胡涛(1976—), 男, 副教授, 博士, 主要研究方向为先进仿真与体系建模技术、效能评估、图像处理Tao HU, Liqun SHEN, Jingda ZHU, Chenghui SUN, Weifeng DONG
Received:
2022-12-20
Online:
2024-01-25
Published:
2024-02-06
Contact:
Liqun SHEN
摘要:

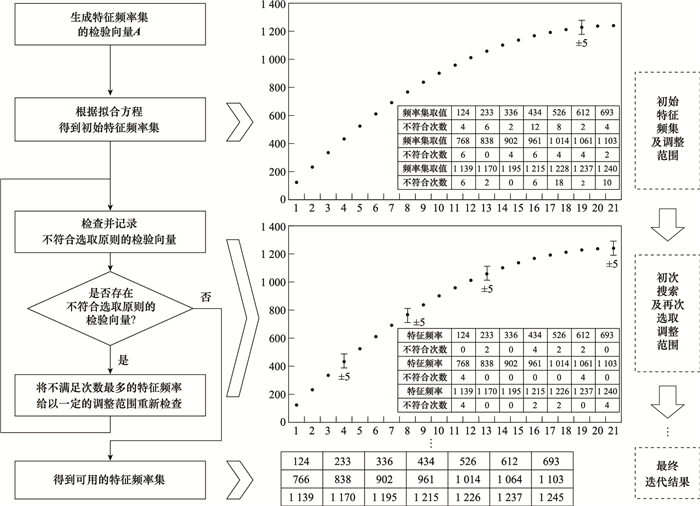

为了以较小的代价快速提升对空探测雷达系统的综合效能, 首先搭建了对空探测雷达系统综合效能的评估指标体系, 在此基础上完成了综合效能评估模型的建立。选择两种基于方差原理的全局敏感性分析方法, 即傅里叶幅度敏感性测试(Fourier amplitudes sensitivity test, FAST)和Sobol指数法, 分别从频域和时域对建立的评估模型进行敏感性分析。在基于FAST进行敏感性分析时, 提出了21维输入指标所对应的特征频率集的选取方法; 在基于Sobol指数法进行敏感性分析时, 考虑了二阶及高阶敏感性指数的影响。对比FAST和Sobol指数法的分析结果, 两种方法获得的敏感性分析结果具有较好的一致性。其中, 功率和频率为对空探测雷达系统的主要影响指标, 为雷达系统的研发和升级提供了可靠性依据。
中图分类号:
胡涛, 申立群, 朱镜达, 孙成会, 董伟锋. 基于FAST和Sobol指数法的雷达系统效能敏感性分析[J]. 系统工程与电子技术, 2024, 46(2): 561-569.
Tao HU, Liqun SHEN, Jingda ZHU, Chenghui SUN, Weifeng DONG. Sensitivity analysis of radar system effectiveness based on FAST and Sobol index method[J]. Systems Engineering and Electronics, 2024, 46(2): 561-569.
表1
指标权重汇总"
能力层 | 权重 | 指标层 | 权重 | 全局权重 |
空域探测能力 | 0.320 4 | 多目标处理性能 | 0.200 0 | 0.064 1 |
最大作用距离 | 0.400 0 | 0.128 2 | ||
方位观察范围 | 0.200 0 | 0.064 1 | ||
俯仰观察范围 | 0.200 0 | 0.064 1 | ||
目标测量能力 | 0.242 6 | 距离测量精度 | 0.250 0 | 0.060 6 |
方位角测量精度 | 0.250 0 | 0.060 6 | ||
俯仰角测量精度 | 0.250 0 | 0.060 6 | ||
速度测量精度 | 0.250 0 | 0.060 7 | ||
抗干扰能力 | 0.124 7 | 抗主瓣干扰性能 | 0.249 2 | 0.031 1 |
抗副瓣干扰性能 | 0.326 9 | 0.040 8 | ||
频率捷变 | 0.141 3 | 0.017 6 | ||
频率分集 | 0.141 3 | 0.017 6 | ||
旁瓣相消 | 0.141 3 | 0.017 6 | ||
数据处理能力 | 0.164 7 | 数据处理速度 | 0.400 0 | 0.065 9 |
数据容量 | 0.200 0 | 0.032 9 | ||
系统识别技术 | 0.400 0 | 0.065 9 | ||
生存与适应能力 | 0.147 6 | 系统可靠性 | 0.500 0 | 0.073 8 |
环境适应性 | 0.250 0 | 0.036 9 | ||
抗毁伤性 | 0.250 0 | 0.036 9 |

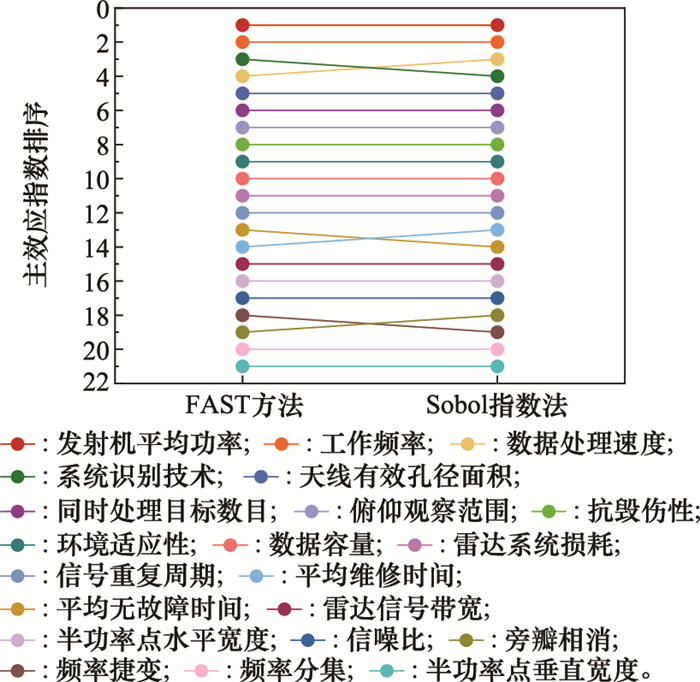

表6
FAST方法和Sobol指数法的敏感性分析结果"
指标名称 | FAST主效应 | Sobol主效应 | Sobol全效应 |
同时处理目标数目 | 0.053 6 | 0.053 2 | 0.053 2 |
发射机平均功率 | 0.210 3 | 0.212 6 | 0.212 5 |
天线有效孔径面积 | 0.091 7 | 0.091 4 | 0.092 0 |
信号重复周期 | 0.023 0 | 0.024 1 | 0.024 2 |
雷达系统损耗 | 0.024 5 | 0.025 2 | 0.024 8 |
信噪比 | 0.011 9 | 0.013 6 | 0.013 8 |
工作频率 | 0.157 1 | 0.156 4 | 0.157 1 |
俯仰观察范围 | 0.037 2 | 0.036 4 | 0.036 4 |
雷达信号带宽 | 0.013 4 | 0.014 5 | 0.014 5 |
半功率点水平宽度 | 0.013 2 | 0.013 7 | 0.013 7 |
半功率点垂直宽度 | 0.003 3 | 0.003 2 | 0.003 2 |
频率捷变 | 0.008 1 | 0.008 1 | 0.008 1 |
频率分集 | 0.007 2 | 0.006 2 | 0.006 2 |
旁瓣相消 | 0.008 1 | 0.008 3 | 0.008 3 |
数据处理速度 | 0.100 5 | 0.099 5 | 0.099 5 |
数据容量 | 0.028 3 | 0.027 6 | 0.027 6 |
系统识别技术 | 0.100 5 | 0.099 4 | 0.099 4 |
平均无故障时间 | 0.019 5 | 0.017 9 | 0.018 9 |
平均维修时间 | 0.019 3 | 0.019 8 | 0.020 8 |
环境适应性 | 0.031 5 | 0.031 9 | 0.031 9 |
抗毁伤性 | 0.035 6 | 0.035 2 | 0.035 2 |
