基于多源卫星遥感数据的舰船航迹关联与融合

doi:10.12305/j.issn.1001-506X.2026.04.06

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (4): 1154-1164.doi: 10.12305/j.issn.1001-506X.2026.04.06

• 传感器与信号处理 • 上一篇

基于多源卫星遥感数据的舰船航迹关联与融合

李鑫晟¹(), 冯书谊², 郝禹哲¹, 叶曦², 张海超², 李元祥¹^,*()

1. 上海交通大学航空航天学院上海 200240
2. 上海航天电子通讯设备研究所上海 201109

收稿日期:2025-02-13 修回日期:2025-05-19 接受日期:2026-03-02 出版日期:2026-03-19 发布日期:2026-03-19
通讯作者: 李元祥 E-mail:lxs1176639444@qq.com;yuanxli@sjtu.edu.cn
作者简介:李鑫晟（1999—），男，硕士研究生，主要研究方向为多目标数据关联与融合
冯书谊（1984—），男，研究员，硕士，主要研究方向为智能图像处理
郝禹哲（1998—），男，硕士研究生，主要研究方向为时序分析、故障诊断
叶　曦（1985—），男，研究员，硕士，主要研究方向为数据处理与传输
张海超（1989—），男，高级工程师，博士，主要研究方向为机器学习
基金资助:
上海航天先进技术联合研究基金 (USCAST2022-38)资助课题

Association and fusion of ship tracks based on multi-source satellite remote sensing data

Xinsheng LI¹(), Shuyi FENG², Yuzhe HAO¹, Xi YE², Haichao ZHANG², Yuanxiang LI¹^,*()

1. School of Aeronautics and Astronautics，Shanghai Jiao Tong University，Shanghai 200240，China
2. Shanghai Aerospace Electronic Technology Institute，Shanghai 201109，China

Received:2025-02-13 Revised:2025-05-19 Accepted:2026-03-02 Online:2026-03-19 Published:2026-03-19
Contact: Yuanxiang LI E-mail:lxs1176639444@qq.com;yuanxli@sjtu.edu.cn

摘要/Abstract

摘要：

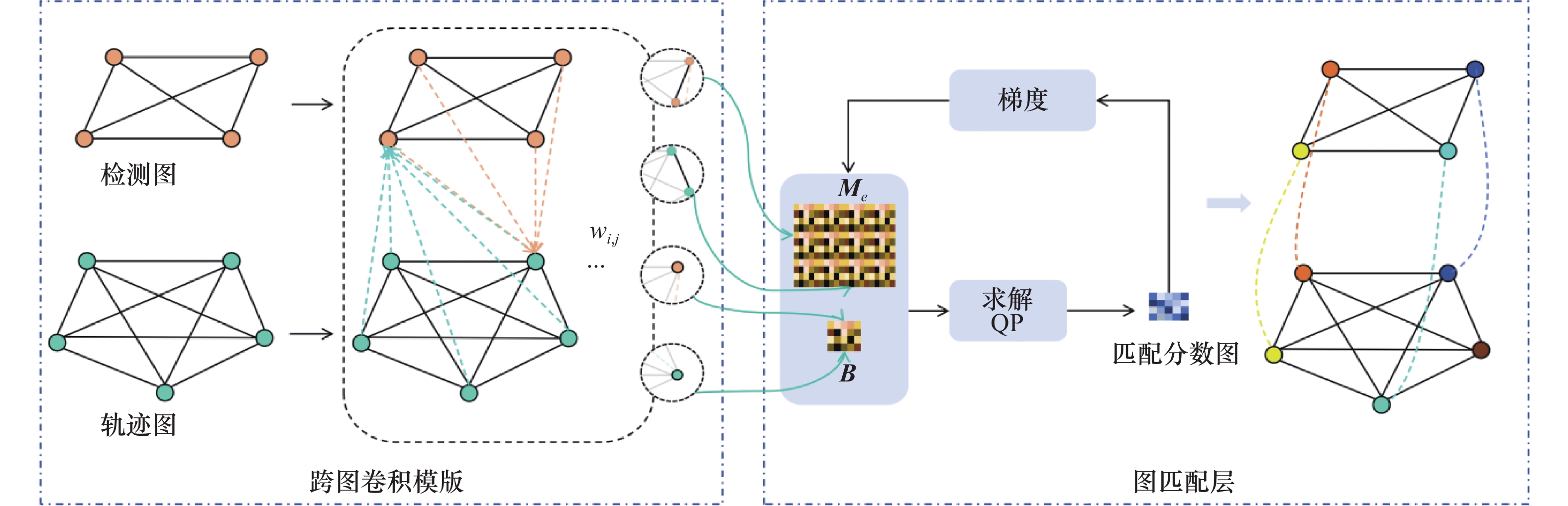

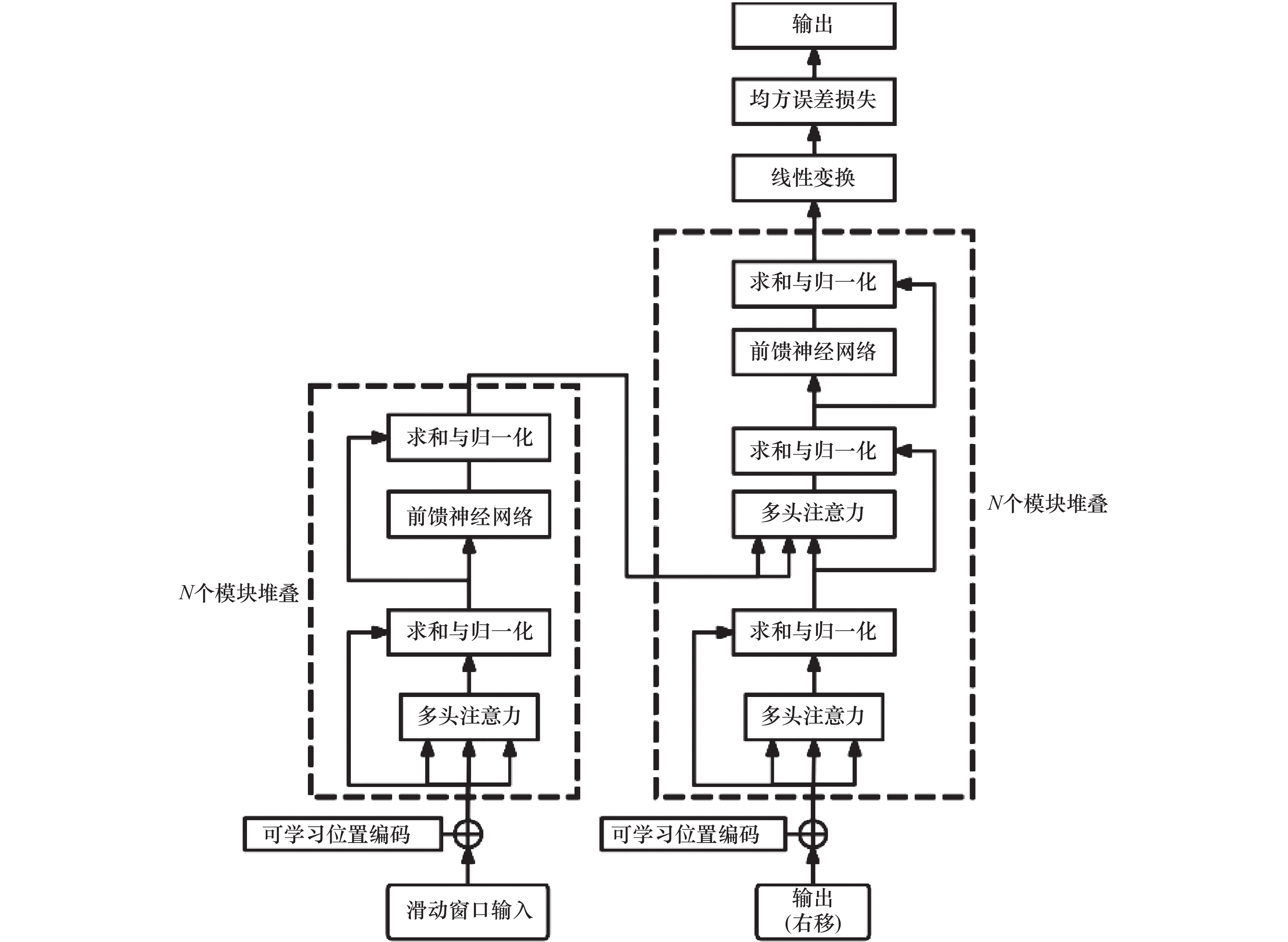

针对多传感器数据的舰船航迹关联与融合问题，利用电子侦察、微波雷达和合成孔径雷达等卫星遥感数据，提出一种结合GMN与Transformer架构的解决方案。通过双图建模框架和跨图卷积网络，捕捉多传感器数据间复杂关联，将目标关联问题转化为二次规划，并引入带权二分类交叉熵损失函数，有效降低误匹配率。在融合阶段，采用可学习的位置编码与滑动窗口技术，降低计算复杂度，解码器通过多头注意力机制强化时间依赖建模能力。实验结果表明，该方案在数据关联准确率及融合后航迹预测精度上显著优于传统方法，为多传感器数据关联与融合提供创新技术支持。

关键词: 多源卫星, 航迹关联, 航迹融合, GMN, Transformer

Abstract:

To address the problem of ship tracks association and fusion for multi-sensor data, integrating electronic reconnaissance, radar, and synthetic aperture radar data, a solution combining graph matching network （GMN） and Transformer architecture is proposed. Utilize a dual-graph modeling framework and cross-graph convolutional network to capture complex relationships between sensor data and transform the track association problem into a quadratic programming task, a weighted binary cross-entropy loss function is introduced to reduce mismatches effectively. In the fusion stage, learnable positional encoding and a sliding window mechanism are applied to reduce computational complexity, while the decoder leverages multi-head attention mechanisms to enhance temporal dependency modeling. Experimental results show that the proposed method significantly outperforms traditional approaches in data association accuracy and fused track prediction precision, offering innovative technical support for multi-sensor data association and fusion.

Key words: multi-source satellite, track association, track fusion, graph matching network, Transformer

中图分类号:

V 24

李鑫晟, 冯书谊, 郝禹哲, 叶曦, 张海超, 李元祥. 基于多源卫星遥感数据的舰船航迹关联与融合[J]. 系统工程与电子技术, 2026, 48(4): 1154-1164.

Xinsheng LI, Shuyi FENG, Yuzhe HAO, Xi YE, Haichao ZHANG, Yuanxiang LI. Association and fusion of ship tracks based on multi-source satellite remote sensing data[J]. Systems Engineering and Electronics, 2026, 48(4): 1154-1164.

图/表 17

图1

图2

图3

图4

图5

表1

表2

表3

图6

图7

图8

图9

图10

图11

图12

表4

表5

参考文献 31

1	龙昊, 张思佳, 周晶, 等. 基于改进YOLOv5-ResNet的海上舰船SAR图像快速检测[J]. 宇航计测技术, 2024, 44 (2): 52- 59. doi: 10.12060/j.issn.1000-7202.2024.02.09
	LONG H, ZHANG S J, ZHOU J, et al. Rapid detection of SAR images of naval vessels based on improved YOLOv5-ResNet[J]. Journal of Astronautic Metrology and Measurement, 2024, 44 (2): 52- 59. doi: 10.12060/j.issn.1000-7202.2024.02.09
2	KAZIMIERSKI W. Proposal of neural approach to maritime radar and automatic identification system tracks association[J]. IET Radar, Sonar & Navigation, 2017, 11 (5): 729- 735.
3	卜瑞宇, 王彪, 李宏成, 等. 地形跟随中航迹跟踪模型预测控制方案设计[J]. 系统工程与电子技术, 2024, 46 (4): 1383- 1392. doi: 10.12305/j.issn.1001-506X.2024.04.27
	BU R Y, WANG B, LI H C, et al. Design of trajectory tracking model predictive control scheme in terrain following[J]. Systems Engineering and Electronics, 2024, 46 (4): 1383- 1392. doi: 10.12305/j.issn.1001-506X.2024.04.27
4	NAZARI M, PASHAZADEH S, MOHAMMAD-KHANLI L. An adaptive density-based fuzzy clustering track association for distributed tracking system[J]. IEEE Access, 2019, 7, 135972- 135981. doi: 10.1109/ACCESS.2019.2941184
5	SUN K, WEN Y J, CHEN X, et al. A method for track association using dynamic programming[C]//Proc. of the 6th International Conference on Control, Decision and Information Technologies, 2019: 1373−1378.
6	ZHANG X, HUANG H, CHEN Q L, et al. An improved track association and fusion method[C]//Proc. of the IEEE 14th International Conference on Signal Processing, 2018: 854−858.
7	MA M Y , WANG D J , ZHANG T , et al. Track-to-track association algorithm for passive multi-sensor system based on trajectory parameter[J]. IET Radar, Sonar & Navigation, 2021, 15 (4): 348- 358.
8	ZHENG J C, WANG Y, LIN C C, et al. A fusion algorithm of target dynamic information for asynchronous multi-sensors[J]. Microsystem Technologies, 2018, 24 (10): 3995- 4005. doi: 10.1007/s00542-017-3603-6
9	SINGER R A. Computer control of multiple site track data[J]. Automation, 1971, 7 (3): 455- 463. doi: 10.1016/0005-1098(71)90096-3
10	BAR-SHALOM Y, FORTMAN T E. Tracking and association[M]. New York: Aeademic Press, 1988.
11	何友, 陆大, 彭应宁, 等. 多传感器数据融合系统中两种新的航迹相关算法[J]. 电子学报, 1997, 25 (9): 10- 14，19.
	HE Y, LU D, PENG Y N, et al. Two new track association algorithms in multi-sensor data fusion systems[J]. Acta Electronica Sinica, 1997, 25 (9): 10- 14，19.
12	AZIZ A M. Fuzzy track-to-track association and track fusion approach in distributed multisensor-multitarget multiple-attribute environment[J]. Signal Processing, 2007, 87 (6): 1474- 1492. doi: 10.1016/j.sigpro.2007.01.001
13	TUMMALA M, MIDWOOD S A. A fuzzy associative data fusion algorithm for vessel traffic system[R]. Monterey: Naval Postgraduate School, 1998.
14	TUMMALA M, GLEM I, MIDWOOD S A. Multisensor data fusion for the vessel traffic system[R]. Monterey: Naval Postgraduate School, 1996.
15	崔亚奇, 何友, 唐田田, 等. 一种深度学习航迹关联方法[J]. 电子学报, 2022, 50 (3): 759- 763.
	CUI Y Q , HE Y , TANG T T, et al. A deep learning track correlation method[J]. Acta Electronica Sinica, 2022, 50 (3): 759- 763.
16	黄虹玮, 刘玉娇, 沈卓恺, 等. 基于深度学习网络模型的端到端航迹关联[J]. 计算机科学, 2020, 47 (3): 200- 205. doi: 10.11896/jsjkx.190400037
	HUANG H W, LIU Y J, SHEN Z K, et al. End-to-end track association based on deep learning network model[J]. Computer Science, 2020, 47 (3): 200- 205. doi: 10.11896/jsjkx.190400037
17	赵翻东, 蔡益朝, 李浩. 基于GRNN神经网络的多目标航迹关联[J]. 信息系统工程, 2021 (7): 135- 136，140.
	ZHAO F D, CAI Y C, LI H. Multi-target track association based on GRNN neural network[J]. Information Systems Engineering, 2021 (7): 135- 136，140.
18	SITTLER R W. An optimal data association problem in surveillance theory[J]. IEEE Trans. on Military Electronics, 1964, 8 (2): 125- 139. doi: 10.1109/tme.1964.4323129
19	RAOL J R. Data fusion mathematics: theory and practice[M]. Boca Raton: CRC Press, 2015.
20	MAHLER R P S. Multitarget Bayes filtering via first-order multitarget moments[J]. IEEE Trans. on Aerospace and Electronic Systems, 2003, 39 (4): 1152- 1178. doi: 10.1109/TAES.2003.1261119
21	KIM K T. Focusing of high range resolution profiles of moving targets using stepped frequency waveforms[J]. IET Radar, Sonar & Navigation, 2010, 4 (4): 564- 575.
22	UHLMANN J K. General data fusion for estimates with unknown cross covariances[J]. SPIE Proceedings, 1996, 2755, 536- 547. doi: 10.1117/12.243195
23	ZHU J, GAO J. Dynamic fusion algorithm of building surface data in heterogeneous environment[J]. Mobile Networks and Applications, 2021, 26 (1): 449- 458. doi: 10.1007/s11036-020-01677-2
24	PUNITHAKUMAR K, BEN AYED I, SOLIMAN A S, et al. 3D motion estimation of left ventricular dynamics using MRI and track-to-track fusion[J]. IEEE Journal of Translational Engineering in Health and Medicine, 2020, 8, 1800209. doi: 10.1109/jtehm.2020.2989390
25	潘超凡, 李润生, 胡庆, 等. 基于惯性预测的遥感场景舰船多目标跟踪模型[J]. 系统工程与电子技术, 2025, 47 (1): 41- 51. doi: 10.12305/j.issn.1001-506X.2025.01.05
	PAN C F, LI R S, HU Q, et al. Ship multiple-object tracking model in remote sensing scene based on inertial prediction[J]. Systems Engineering and Electronics, 2025, 47 (1): 41- 51. doi: 10.12305/j.issn.1001-506X.2025.01.05
26	LOVE A. In memory of Carl A[J]. IEEE Antennas and Propagation Society Newsletter, 1985, 27 (3): 17- 18.
27	颜上取, 付耀文, 张文鹏, 等. 视频合成孔径雷达技术发展现状综述[J]. 系统工程与电子技术, 2024, 46 (8): 2650- 2666.
	YAN S Q, FU Y W, ZHANG W P, et al. Review of the development status for ViSAR techniques[J]. Systems Engineering and Electronics, 2024, 46 (8): 2650- 2666.
28	单靖原, 卢雨, 凌寒羽. 鲁棒自适应的机载外辐射源雷达多目标跟踪算法[J]. 系统工程与电子技术, 2024, 46 (9): 2902- 2915.
	SHAN J Y, LU Y, LING H Y. Robust adaptive multi-target tracking algorithm for airborne passive bistatic radar[J]. Systems Engineering and Electronics, 2024, 46 (9): 2902- 2915.
29	侯磊, 刘金环, 于旭, 等. 图神经网络研究综述[J]. 计算机科学, 2024 (6): 282- 298.
	HOU L, LIU J H, YU X, et al. Review of graph neural networks[J]. Computer Science, 2024 (6): 282- 298.
30	GORI M, MONFARDINI G, SCARSELLI F. A new model for learning in graph domains[C]//Proc. of the IEEE International Joint Conference on Neural Networks, 2005, 2: 729−734.
31	孔建国, 李亚彬, 张时雨, 等. 基于CNN- LSTM- attention模型航迹预测研究[J]. 航空计算技术, 2023, 53 (1): 1- 5.
	KONG J G, LI Y B, ZHANG S Y, et al. Research on trajectory prediction based on CNN-LSTM-attention model[J]. Aerospace Computing Technology, 2023, 53 (1): 1- 5.

算法	σ
算法	0.5	0.6	0.7	0.8	0.9
模糊理论算法	13.3	14.8	22.5	11.1	12.4
混合序列相似度算法	11.8	10.3	9.7	8.5	8.7
文献[9]	11.2	8.62	7.54	7.27	7.66
GMN算法	9.6	8.4	7.9	6.3	6.54

算法	σ
算法	0.5	0.6	0.7	0.8	0.9
模糊理论算法	64.5	67.1	69.8	71.2	72.5
混合序列相似度算法	71.6	74.4	79.4	76.1	78.2
文献[9]	73.5	76.8	88.6	89.7	87.1
GMN算法	76.8	82.3	87.7	90.2	88.6

算法	场景
算法	5 km×5 km	10 km×10 km	20 km×20 km
模糊理论算法	12.5	6.8	5.4
混合序列相似度算法	9.7	6.3	4.6
文献[9]	8.23	5.78	4.01
GMN算法	7.4	5.1	3.2

场景	凸组合融合算法	CI 融合算法	LSTM+Attention	本文方法
5×5	9.46	12.66	7.53	5.36
10×10	7.21	8.53	6.11	3.32
20×20	4.13	6.42	3.54	1.81

场景	凸组合融合算法	CI 融合算法	LSTM+Attention	本文方法
5×5	2.53	2.4	2.03	1.86
10×10	2.46	2.25	1.97	1.82
20×20	2.27	2.02	1.94	1.79
