基于辅助矢量的双支路捕获与跟踪算法

doi:10.12305/j.issn.1001-506X.2026.03.28

摘要/Abstract

摘要：

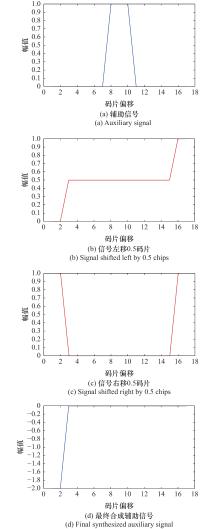

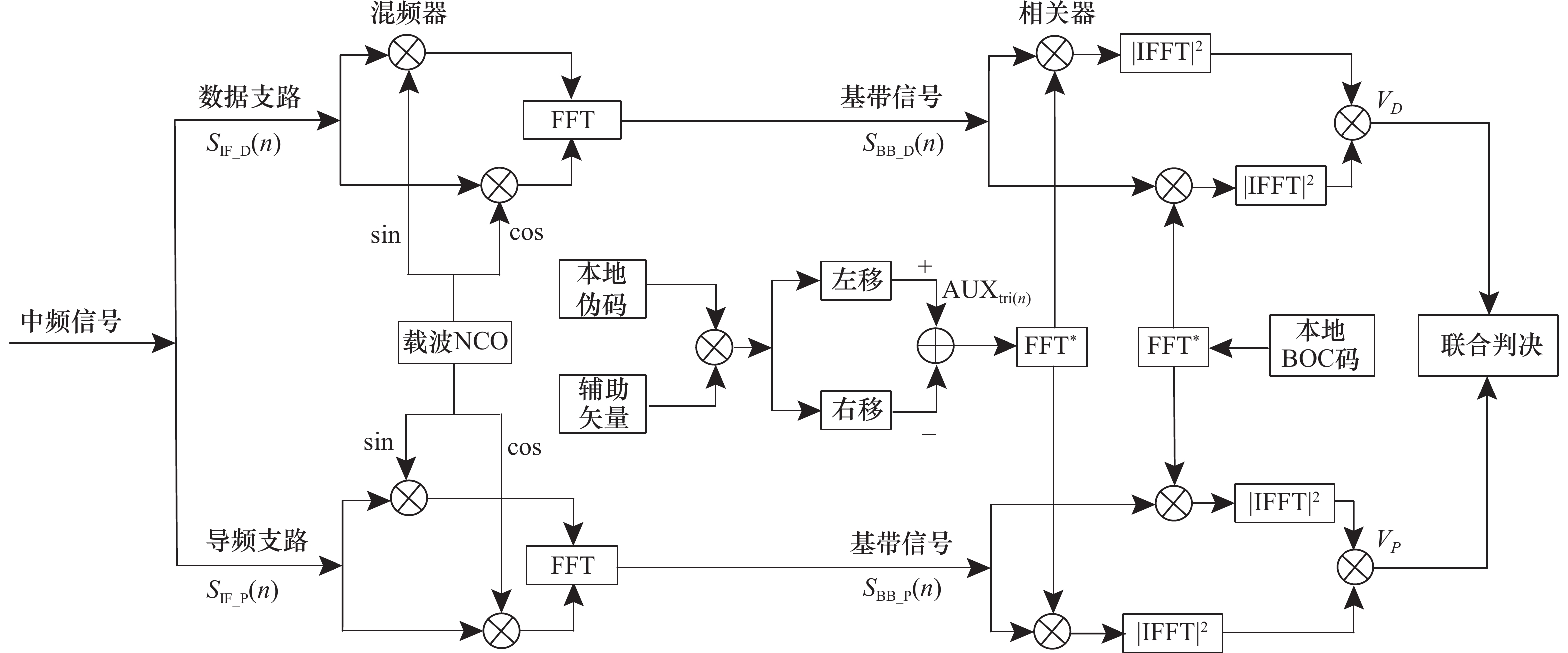

面向二进制偏移载波（binary offset carrier，BOC）信号捕获跟踪算法功率利用率低、抗噪性能差的难题，提出利用辅助矢量结合双支路联合捕获跟踪算法。首先设计可配置辅助矢量生成方法，合成无副峰曲线，再结合双支路联合捕获跟踪，显著提升功率利用率和抗噪声性能。仿真结果表明，算法在实现副峰消除的同时，能够维持较高的捕获精度，在信噪比为?20 dB的条件下，捕获概率超过90%，码相位跟踪精度控制在1/2 000个码片以内。与现有方法相比，所提算法实现了BOC信号处理中模糊性消除与功率优化的统一，提高了抗噪声性能，为新一代导航接收机设计提供了理论支撑。

关键词: 二进制偏移载波, 联合捕获, 跟踪, 辅助矢量, 高精度

Abstract:

To address the challenges of low power utilization and poor noise resistance in binary offset carrier (BOC) signal capture and tracking algorithms, a dual-branch joint acquisition and tracking algorithm using auxiliary vectors is proposed. Firstly, a configurable auxiliary vector generation method is designed to synthesize a vice peak curve, and then combined with dual-branch joint acquisition and tracking, significantly improving power utilization and noise resistance performance. The simulation results show that the algorithm can maintain high acquisition accuracy while achieving vice peak elimination. Under the condition of a signal-to-noise ratio of ?20 dB, the acquisition probability exceeds 90%, and the code phase tracking accuracy is controlled within 1/2 000 chips. Compared with existing methods, the proposed algorithm achieves the unity of ambiguity elimination and power optimization in BOC signal processing, improves noise resistance performance, and provides theoretical support for the design of new generation navigation receivers.

Key words: binary offset carrier （BOC）, joint acquisition, tracking, auxiliary vectors, high precision

中图分类号:

TN 967.1

陈娥, 郭乙颗, 夏文龙, 郭庆功. 基于辅助矢量的双支路捕获与跟踪算法[J]. 系统工程与电子技术, 2026, 48(3): 1039-1049.

E CHEN, Yike GUO, Wenlong XIA, Qinggong GUO. Dual-branch acquisition and tracking algorithm based on auxiliary vectors[J]. Systems Engineering and Electronics, 2026, 48(3): 1039-1049.

图/表 16

图1

图2

图3

图4

图5

表1

图6

图7

表2

图8

图9

图10

表3

图11

图12

图13

参考文献 35

1	LI X, ZHOU P, ZHANG Y S, et al. Research on a high-dynamics acquisition algorithm for new binary offset carrier signal in UAV Communication[J]. Drones, 2024, 8 (10): 548. doi: 10.3390/drones8100548
2	HE Y F, JIN A Z, CHEN L, et al. Acquisition algorithm of high-order BOC modulation satellite communication signal based on big data[C]//Proc. of the IEEE/ACIS 20th International Fall Conference on Computer and Information Science, 2021: 285−288.
3	PADOKHIN A M, MYLNIKOVA A A, YASYUKEVICH Y V, et al. Galileo E5 AltBOC signals: application for single-frequency total electron content estimations[J]. Remote Sensing, 2021, 13 (19): 3973. doi: 10.3390/rs13193973
4	BETZ J W. Binary offset carrier modulations for radio navigation[J]. Navigation, 2001, 48 (4): 227- 246. doi: 10.1002/j.2161-4296.2001.tb00247.x
5	都文杰, 荆文芳, 陈校非, 等. 低轨卫星高动态信号捕获算法研究[J]. 时间频率学报, 2023, 46 (2): 150- 160. doi: 10.13875/j.issn.1674-0637.2023-02-0150-11
	DU W J, JING W F, CHEN X F, et al. Research on high dynamic signal acquisition algorithm of low Earth orbit satellite[J]. Journal of Time and Frequency, 2023, 46 (2): 150- 160. doi: 10.13875/j.issn.1674-0637.2023-02-0150-11
6	刘瀛翔, 谢郁辰, 唐小妹. 基于多相分解的BOC信号高效捕获算法[J]. 电子学报, 2023, 51 (1): 1- 10.
	LIU Y X, XIE Y C, TANG X M. An efficient BOC signal acquisition method based on polyphase decomposition[J]. Acta Electronica Sinica, 2023, 51 (1): 1- 10.
7	QI Y H, YAO Z, LU M Q. Carrier assisted robust unambiguous positioning technique for subcarrier modulated signals in GNSS[J]. IEEE Trans. on Vehicular Technology, 2023, 72 (6): 7450- 7462. doi: 10.1109/tvt.2023.3282291
8	QI Y H, YAO Z, LU M Q. Dual-assisted high-precision tracking technique for wideband multiplexed signals in new generation GNSS[J]. Satellite Navigation, 2024, 5 (1): 52- 73. doi: 10.1186/s43020-023-00125-2
9	REN J W, JIA W M, CHEN H H, et al. Unambiguous tracking method for alternative binary offset carrier modulated signals based on dual estimate loop[J]. IEEE Communications Letters, 2012, 16 (11): 1737- 1740. doi: 10.1109/LCOMM.2012.092112.121853
10	SUN X Y, SONG S J, JI Y F, et al. An unambiguous synchronization scheme for GNSS BOC signals based on reconstructed correlation function[J]. Sensors, 2021, 21 (6): 1982. doi: 10.3390/s21061982
11	HUANG X M, KE Z, LI J Y, et al. DPCCRW: an unambiguous acquisition technique for high-order binary offset carrier modulated signal[C]//Proc. of the China Satellite Navigation Conference, 2021: 456−465.
12	孙希延, 郝放, 纪元法, 等. 基于相关移位BOC（n, n）无模糊度捕获算法[J]. 北京理工大学学报, 2021, 41 (7): 812- 818. doi: 10.15918/j.tbit1001-0645.2018.078
	SUN X Y, HAO F, JI Y F, et al. An unambiguous acquisition algorithm based on correlation shift for BOC（n, n）[J]. Journal of Beijing Institute of Technology, 2021, 41 (7): 812- 818. doi: 10.15918/j.tbit1001-0645.2018.078
13	舒翊, 胡辉, 谢虹群, 等. 适用于任意阶数的BOC信号无模糊度捕获算法[J]. 哈尔滨理工大学学报, 2024, 29 (3): 90- 98. doi: 10.15938/j.jhust.2024.03.011
	SHU Y, HU H, XIE H Q, et al. An unambiguous acquisition algorithm for BOC signal with arbitrary order[J]. Journal of Harbin University of Science and Technology, 2024, 29 (3): 90- 98. doi: 10.15938/j.jhust.2024.03.011
14	孟振, 刘昌迪, 沈锋. 基于形状码向量设计的卫星导航BOC调制信号无模糊捕获方法[J]. 系统科学与数学, 2025, 45 (1): 41- 55. doi: 10.12341/jssms23246
	MENG Z, LIU C D, SHEN F. Unambiguous acquisition method for satellite navigation BOC modulated signals based on the design of shape code vector[J]. Journal of Systems Science and Mathematics, 2025, 45 (1): 41- 55. doi: 10.12341/jssms23246
15	张莹. BOC体制下GNSS信号同步算法研究[D]. 桂林: 桂林电子科技大学, 2024.
	ZHANG Y. Research on GNSS signal synchronization algorithm of BOC modulation[D]. Guilin: Guilin University of Electronic Technology, 2024.
16	FISHMAN P, BETZ J W. Predicting performance of direct acquisition for the m code signal[C]//Proc. of the National Technical Meeting of the Institute of Navigation, 2000: 574−582.
17	MARTIN N, LEBLOND V, GUILLOTEL G, et al. BOC(x, y) signal acquisition techniques and performances[C]//Proc. of the 16th International Technical Meeting of the Satellite Division of the Institute of Navigation, 2003: 188−198.
18	张天骐, 唐娟, 谭霜, 等. 多分量LFM干扰及动态环境下DBOC信号的捕获[J]. 信号处理, 2024, 40 (7): 1287- 1297.
	ZHANG T Q, TANG J, TAN S, et al. Acquisition of DBOC signals in a multicomponent LFM interference and dynamic environment[J]. Signal Processing, 2024, 40 (7): 1287- 1297.
19	张天骐, 方竹, 汪锐, 等. 窄带干扰及动态环境BOC调制信号多通道并行捕获[J]. 系统工程与电子技术, 2023, 45 (4): 1222- 1230. doi: 10.12305/j.issn.1001-506X.2023.04.32
	ZHANG T Q, FANG Z, WANG R, et al. Multi-channel parallel acquisition of BOC modulated signals in narrowband interference and dynamic environment[J]. Systems Engineering and Electronics, 2023, 45 (4): 1222- 1230. doi: 10.12305/j.issn.1001-506X.2023.04.32
20	JULIEN O, MACABIAU C, CANNON M, et al. ASPeCT: unambiguous sine-BOC(n, n) acquisition/tracking technique for navigation applications[J]. IEEE Trans. on Aerospace & Electronic Systems, 2007, 43(1): 150−162.
21	YAO Z, LU M Q, FENG Z M. Unambiguous sine-phased binary offset carrier modulated signal acquisition technique[J]. IEEE Trans. on Wireless Communications, 2010, 9 (2): 577- 580. doi: 10.1109/TWC.2010.02.091066
22	HAO F, YU B G, GAN X L, et al. Unambiguous acquisition/tracking technique based on sub-correlation functions for GNSS Sine-BOC signals[J]. Sensors, 2020, 20 (2): 485. doi: 10.3390/s20020485
23	DU J Y, DENG Z L, DING Z K, et al. An improved algorithm of unambiguous acquisition based on BOC signal[C]//Proc. of the China Satellite Navigation Conference, 2024: 525-534.
24	JI Y F, ZHANG Y, SUN X Y, et al. Enhanced synchronization algorithms for BOC signals based on reconstructed sub-correlation functions[J]. Electronics, 2023, 12 (13): 2839. doi: 10.3390/electronics12132839
25	YAN T, WEI J L, TANG Z P, et al. Unambiguous acquisition/tracking technique for high-order sine-phased binary offset carrier modulated signal[J]. Wireless Personal Communications, 2015, 84 (4): 2835- 2857. doi: 10.1007/s11277-015-2769-4
26	YAO Z, CUI X W, LU M Q, et al. Pseudo-correlation-function-based unambiguous tracking technique for sine BOC signals[J]. IEEE Trans. on Aerospace and Electronic Systems, 2023, 59 (4): 3456- 3467. doi: 10.1109/taes.2010.5595594
27	陈林, 靳云迪, 黄杰, 等. 基于副峰叠加的BOC导航信号捕获算法[J]. 系统工程与电子技术, 2023, 45 (7): 2211- 2219. doi: 10.12305/j.issn.1001-506X.2023.07.32
	CHEN L, JIN Y D, HUANG J, et al. Acquisition algorithm for BOC navigation signals based on sub-peak superposition[J]. Systems Engineering and Electronics, 2023, 45 (7): 2211- 2219. doi: 10.12305/j.issn.1001-506X.2023.07.32
28	吴涛. 北斗新体制信号性能分析与联合接收技术研究[D]. 长沙: 国防科技大学, 2020.
	WU T. Research on performance analysis of BDS new generation signals and joint receiving technology[D]. Changsha: National University of Defense Technology, 2020.
29	黄杰. 面向BOC导航信号的捕获跟踪算法研究及实现[D]. 成都: 电子科技大学, 2022.
	HUANG J. Research and implementation of the acquisition and tracking algorithms for BOC navigation signal[D]. Chengdu: University of Electronic Science and Technology of China, 2022.
30	KUMAR R G, GIREDDY A K R. Enhanced global navigation satellite system signal processing using field programmable gate array and system-on-chip based software receivers[J]. International Journal of Electrical and Computer Engineering, 2025, 15 (1): 480- 492. doi: 10.11591/ijece.v15i1.pp480-492
31	MAJORAL M, ARRIBAS J, FERNÁNDEZ-PRADES C. Implementation of a high-sensitivity global navigation satellite system receiver on a system-on-chip field-programmable gate array platform[J]. Sensors, 2024, 24 (5): 1416. doi: 10.3390/s24051416
32	贾茹尚. 卫星导航信号捕获算法基于ZYNQ平台的研究与实现[D]. 济南: 山东大学, 2022.
	JIA R S. Research and implementation of satellite navigation signal acquisition algorithm based on ZYNQ platform[D]. Jinan: Shandong University, 2022.
33	杜君宇. 复杂环境下的BOC信号无模糊定位算法研究[D]. 北京: 北京邮电大学, 2024.
	DU J Y. Research on unambiguous location algorithm for BOC signal in complex environment[D]. Beijing: Beijing University of Posts and Telecommunications, 2024.
34	刘李纯子. 新体制导航信号的低功耗捕获跟踪研究[D]. 长沙: 中南大学, 2023.
	LIU L C Z. Research on low-power capture and tracking of new type navigation signals[D]. Changsha: Central South University, 2023.
35	谢钢. GPS原理与接收机设计[M]. 北京: 电子工业出版社, 2017.
	XIE G. Principles of GPS and receiver design[M]. Beijing: Publishing House of Electronics Industry, 2017.

算法类型	处理增益/dB	抗数据反转	复杂度	适用场景
非相干联合	3	强	低	高动态
相干联合	6	弱	高	静态
差分联合	4.5	中	中	动态

名称	参数/MHz
采样频率	16.384
载波频率	1.023
副载波频率	6.138
伪码频率	1.023
数据频率	0.001

名称	参数
码环阻尼系数$ \xi $	0.707
前后相关器间距$ d $	0.04 T_c
码环噪声带宽/Hz	2
锁相环阻尼系数$ \xi $	0.707
锁相环噪声带宽/Hz	4
锁频环噪声带宽/Hz	120
