面向多机异步测向系统的多目标数据关联算法

doi:10.12305/j.issn.1001-506X.2026.02.02

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (2): 392-401.doi: 10.12305/j.issn.1001-506X.2026.02.02

• 电子技术 • 上一篇

面向多机异步测向系统的多目标数据关联算法

周晓¹, 孙子豪¹, 苏盈², 王丽², 牟新刚¹^,*()

1. 武汉理工大学机电工程学院，湖北武汉 430070
2. 武汉高德红外股份有限公司，湖北武汉 430223

收稿日期:2024-12-10 修回日期:2025-03-26 出版日期:2025-05-23 发布日期:2025-05-23
通讯作者: 牟新刚 E-mail:sunnymou@whut.edu.cn
作者简介:周　晓（1979—），男，教授，博士，主要研究方向为数字图像处理、多机协同
孙子豪（2001—），男，硕士研究生，主要研究方向为数字图像处理、多机协同
苏　盈（1987—），女，高级工程师，硕士，主要研究方向为光电系统工程技术、伺服控制技术
王　丽（1989—），女，工程师，硕士，主要研究方向为图像检测、跟踪算法
基金资助:
国家自然科学基金（62475200）资助课题

Multi-target data association algorithm for multi-sensor asynchronous direction finding system

Xiao ZHOU¹, Zihao SUN¹, Ying SU², Li WANG², Xingang MOU¹^,*()

1. Institute of Electronic and Mechanical Engineering，Wuhan University of Technology，Wuhan 430070，China
2. Wuhan Guide Infrared Company Limited，Wuhan 430223，China

Received:2024-12-10 Revised:2025-03-26 Online:2025-05-23 Published:2025-05-23
Contact: Xingang MOU E-mail:sunnymou@whut.edu.cn

摘要/Abstract

摘要：

针对多载机协同光电探测系统执行多目标搜索任务时的测向数据关联问题，提出一种基于异步测向定位模型的数据关联算法。首先分析出传统关联代价模型的代价函数受测向数据异步采集的影响较大，再利用传感器误差等先验参数构建基本约束对关联组合进行初步筛选，然后再通过光电探测系统的搜索原理构建异步测向关联模型进行代价关联。仿真实验结果表明，相比于其他关联模型，所提算法模型关联正确率维持在90%以上，受载机和目标数量影响更小，算法耗时相对较低，性能更高。

关键词: 测向定位模型, 多目标, 关联代价函数, 数据关联算法

Abstract:

Aiming at the problem of direction finding data association when multi-sensor cooperative photoelectric detection system performs multi-target search tasks, a data association algorithm based on asynchronous direction finding positioning model is proposed. It is first analyzed that the cost function of the traditional correlation cost model is greatly affected by the asynchronous acquisition of direction finding data. Then, the basic constraints are constructed by using the prior parameters such as sensor error to preliminarily screen the association combination, and then the asynchronous direction finding association model is constructed by the search principle of the photoelectric detection system for cost association. The simulation results show that compared with other association models, the proposed algorithm model association accuracy is maintained at 90% and above, less affected by the number of aircraft and targets, and the algorithm consumes relatively less time and has higher performance.

Key words: direction finding positioning model, multi-target, associated cost function, data association algorithm

中图分类号:

TP 391

周晓, 孙子豪, 苏盈, 王丽, 牟新刚. 面向多机异步测向系统的多目标数据关联算法[J]. 系统工程与电子技术, 2026, 48(2): 392-401.

Xiao ZHOU, Zihao SUN, Ying SU, Li WANG, Xingang MOU. Multi-target data association algorithm for multi-sensor asynchronous direction finding system[J]. Systems Engineering and Electronics, 2026, 48(2): 392-401.

图/表 14

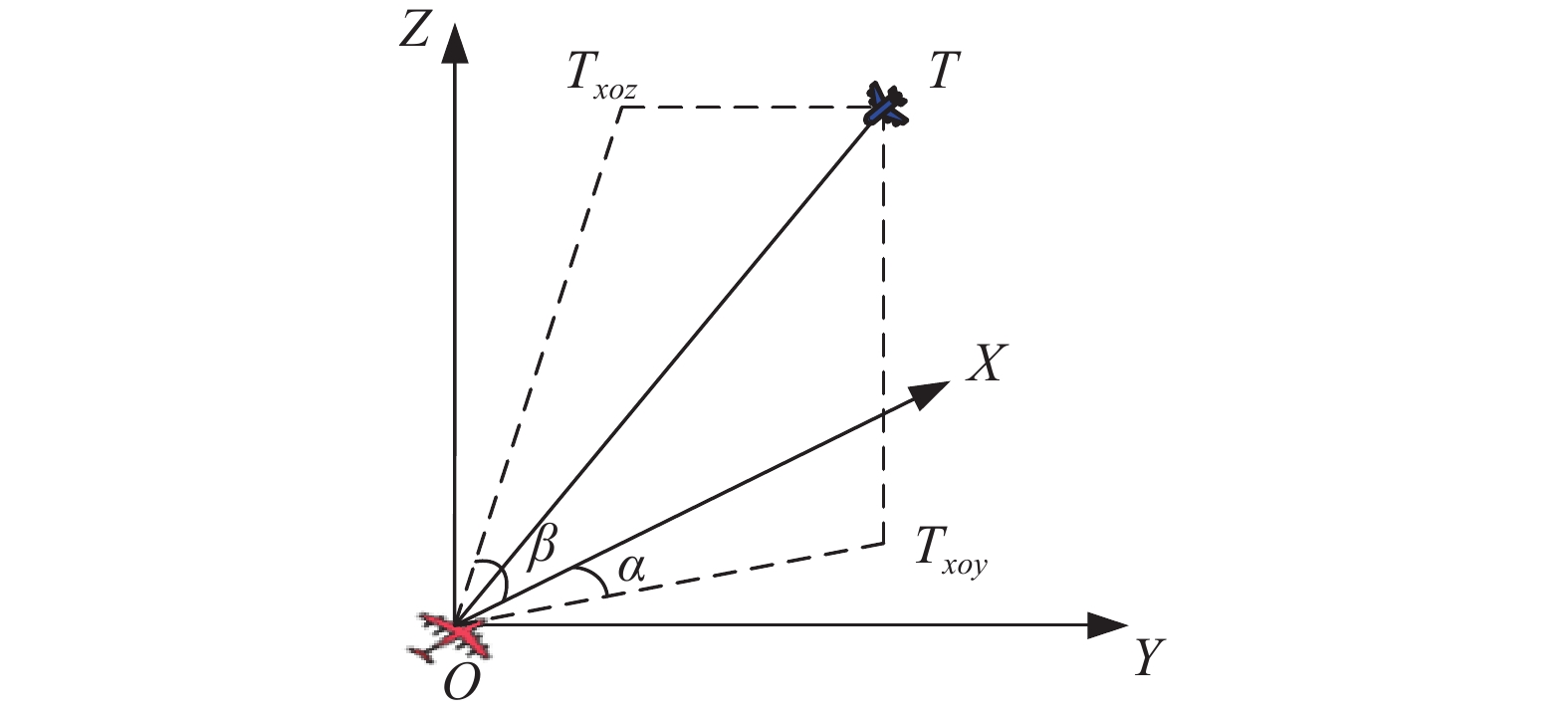

图1

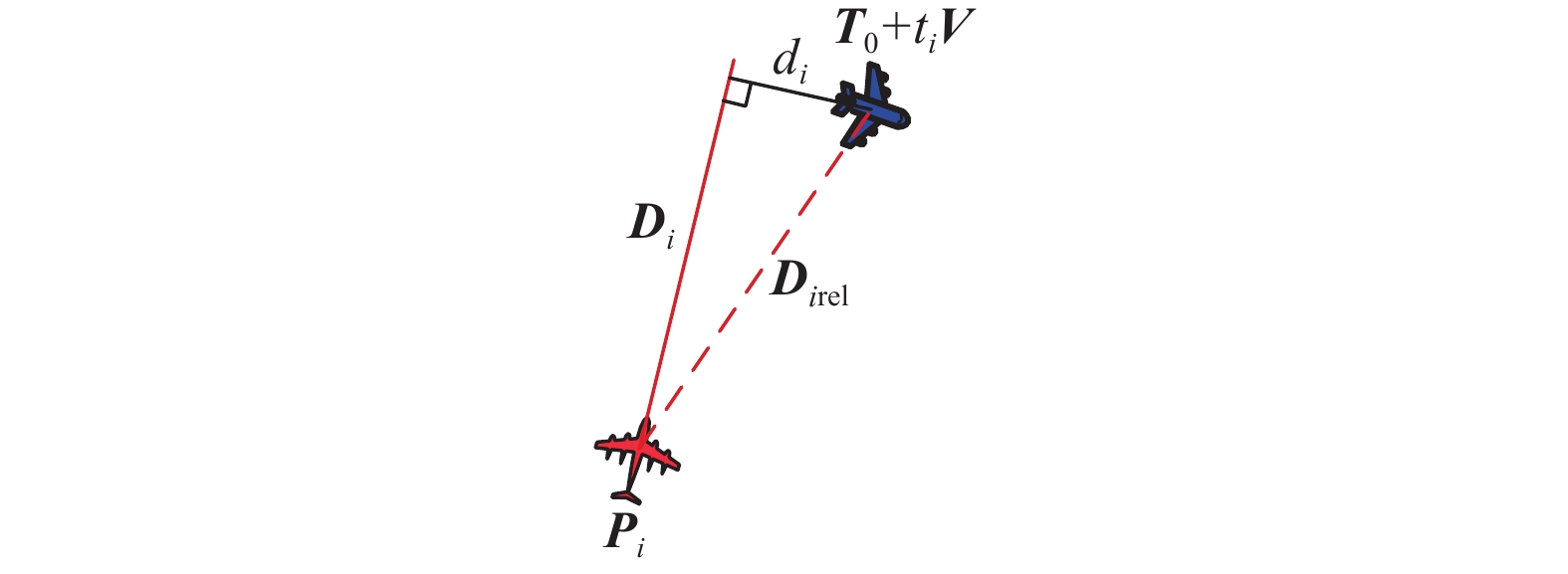

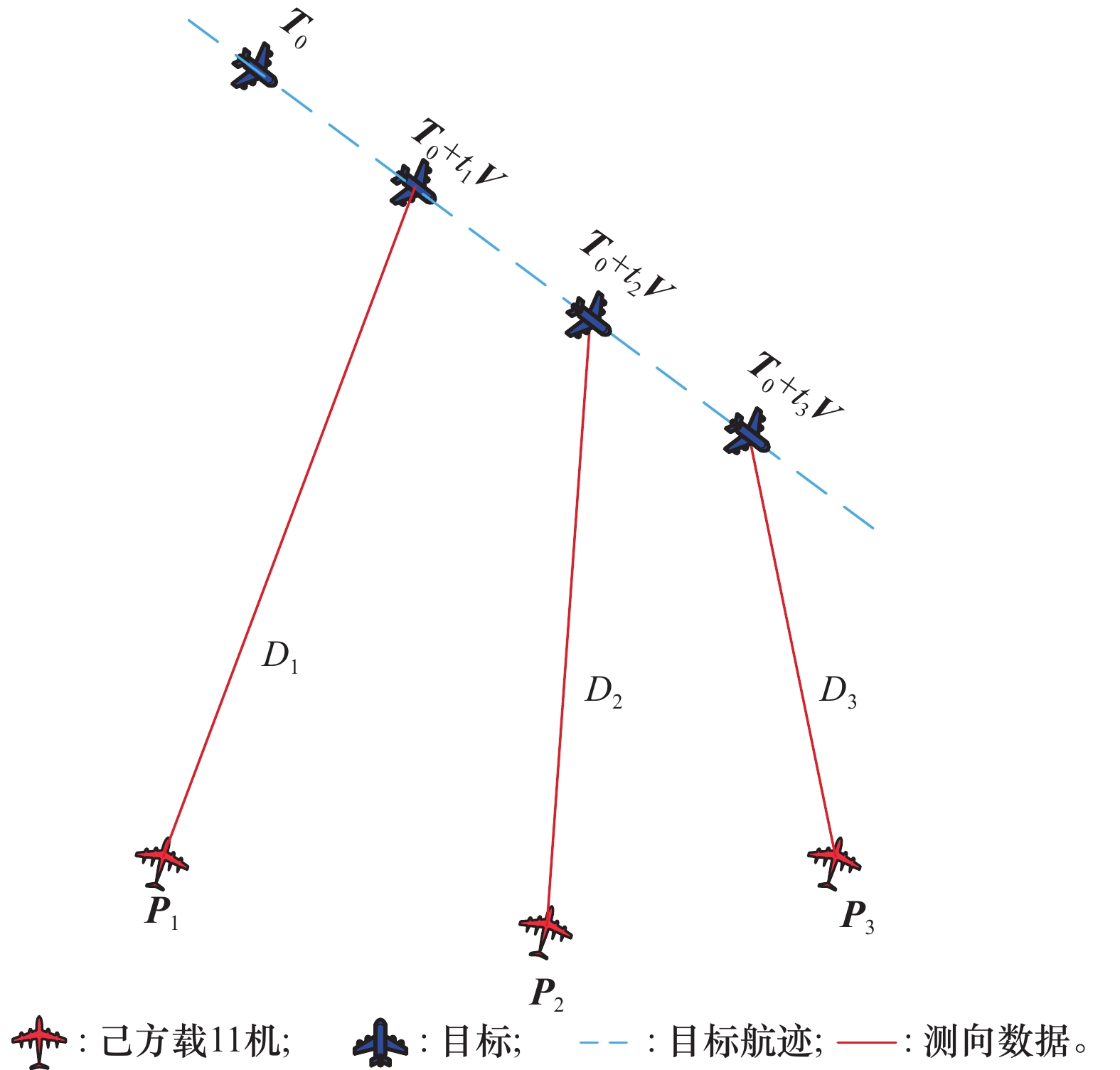

图2

图3

图4

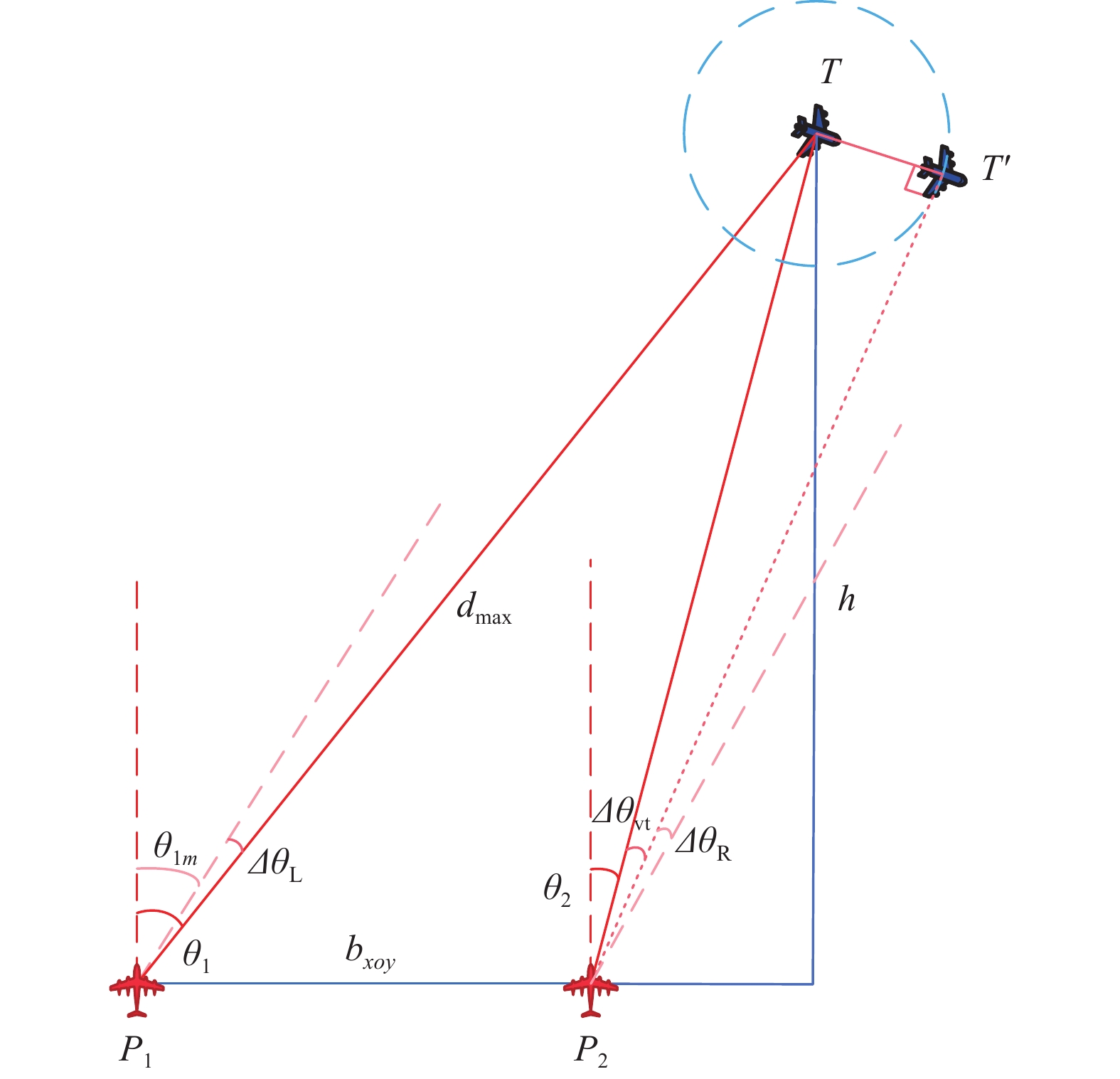

图5

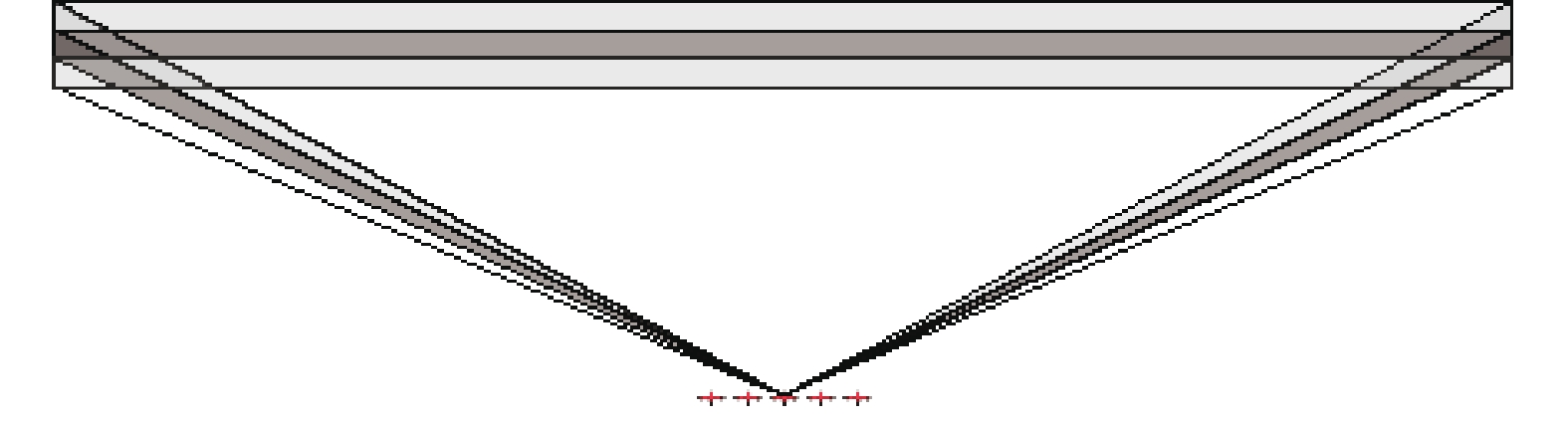

图6

表1

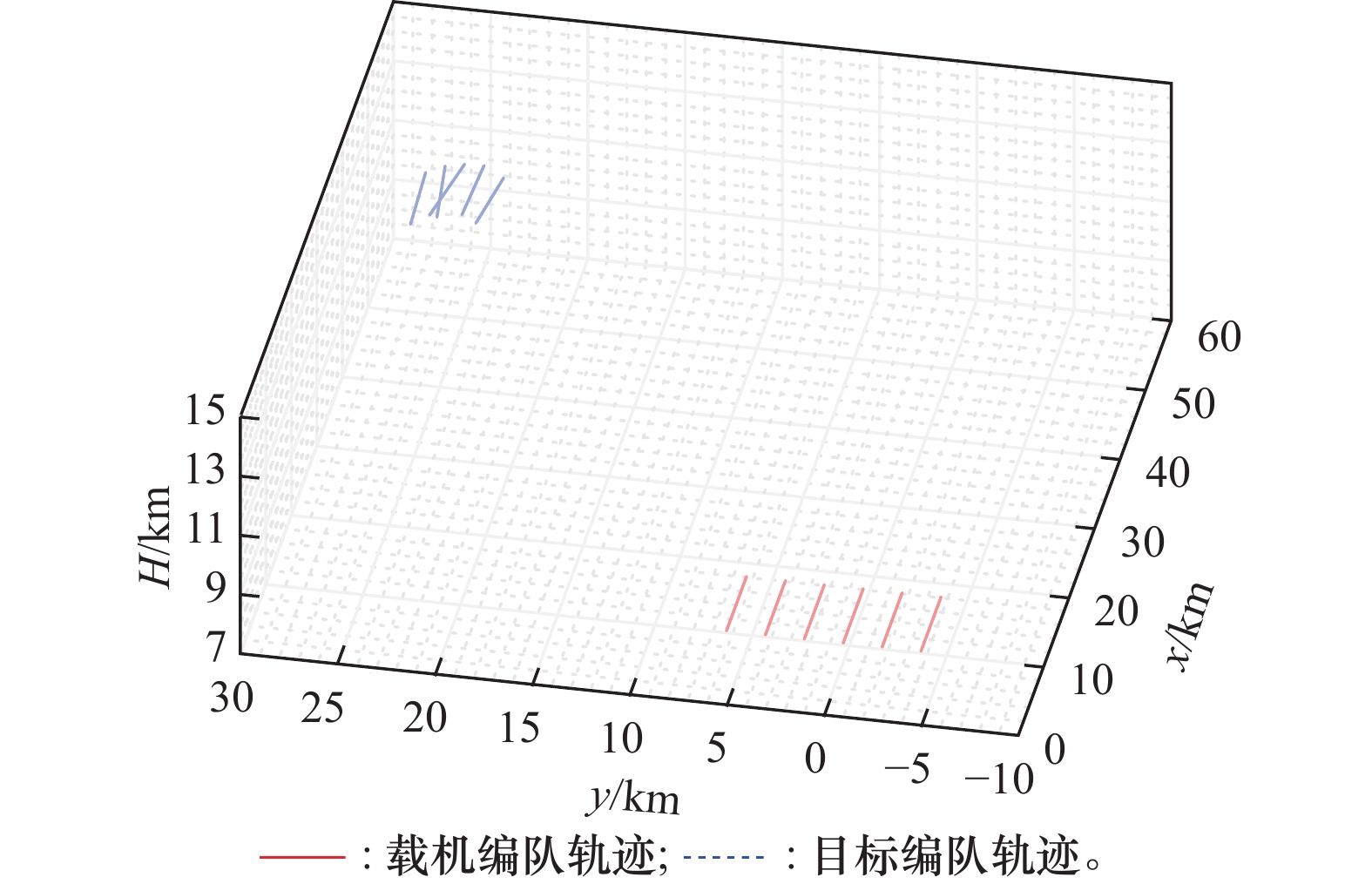

图7

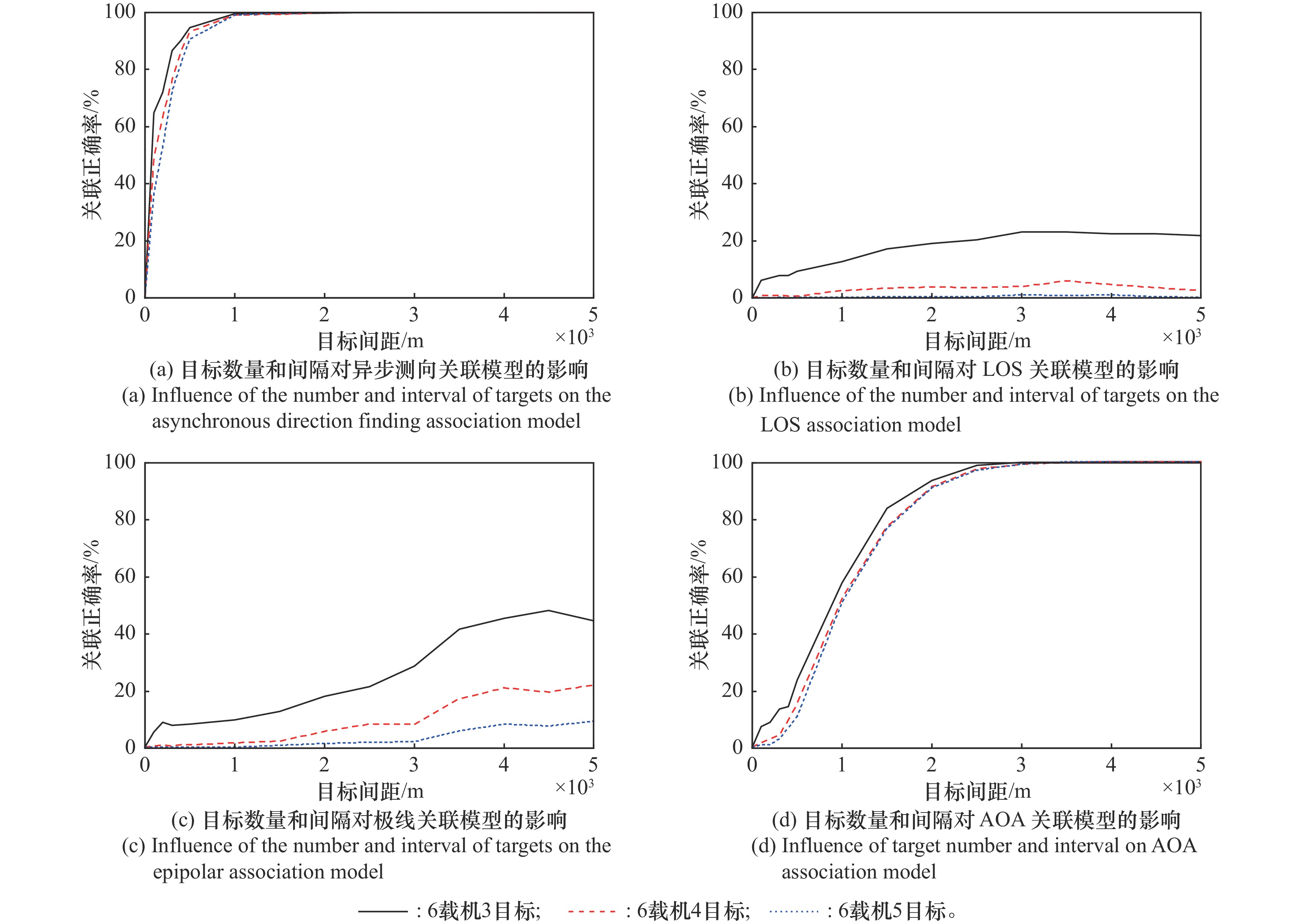

图8

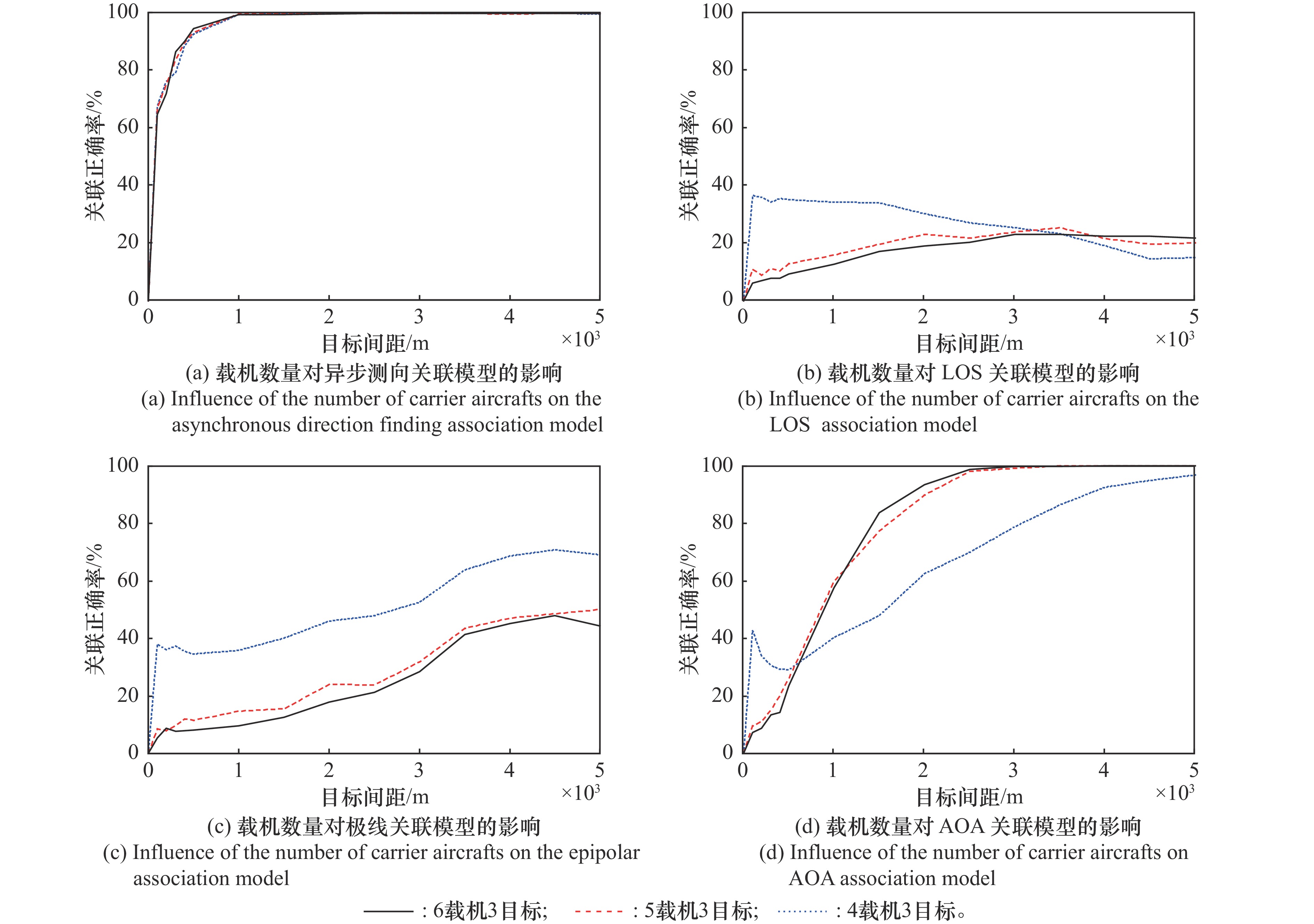

图9

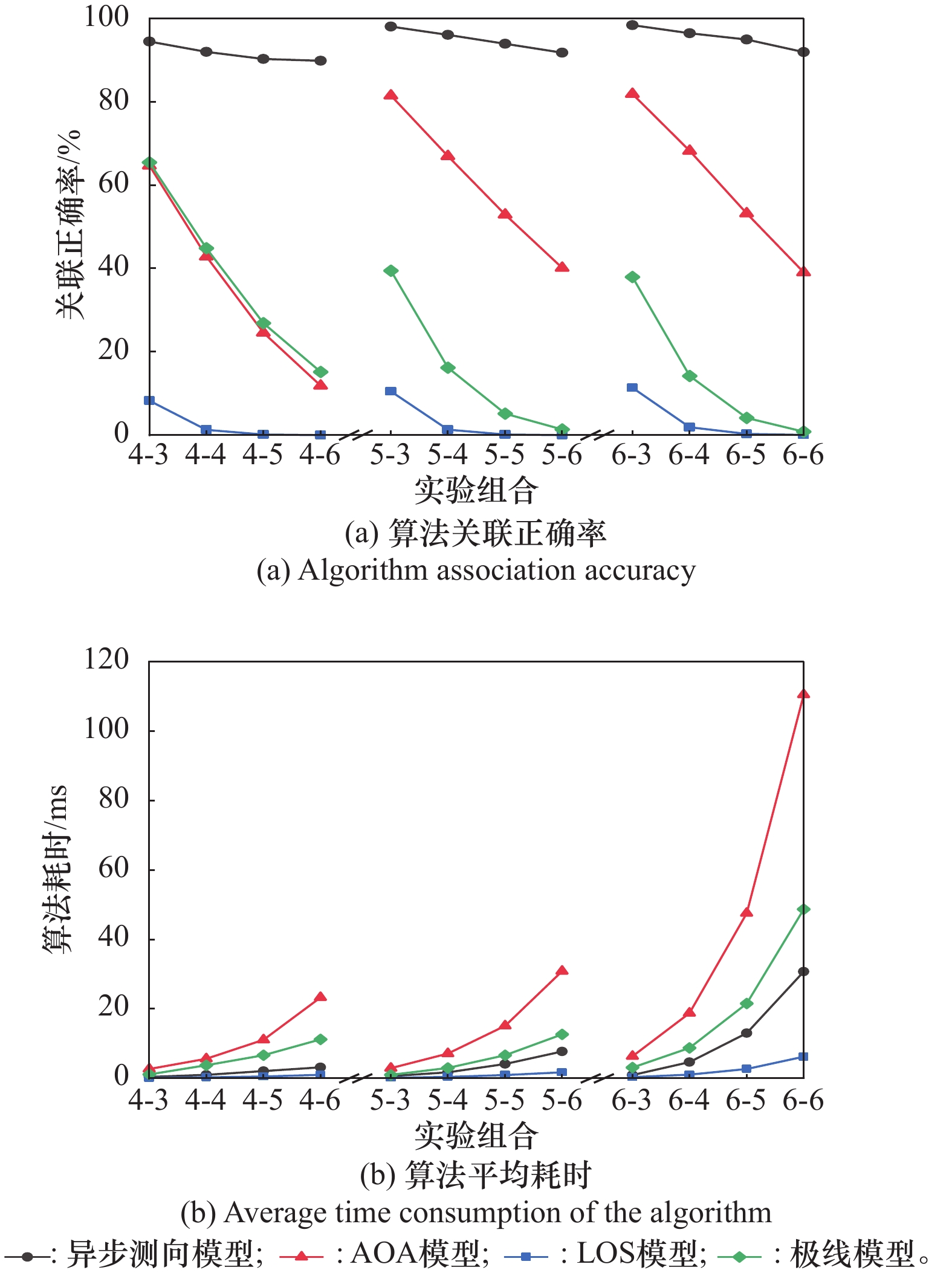

图10

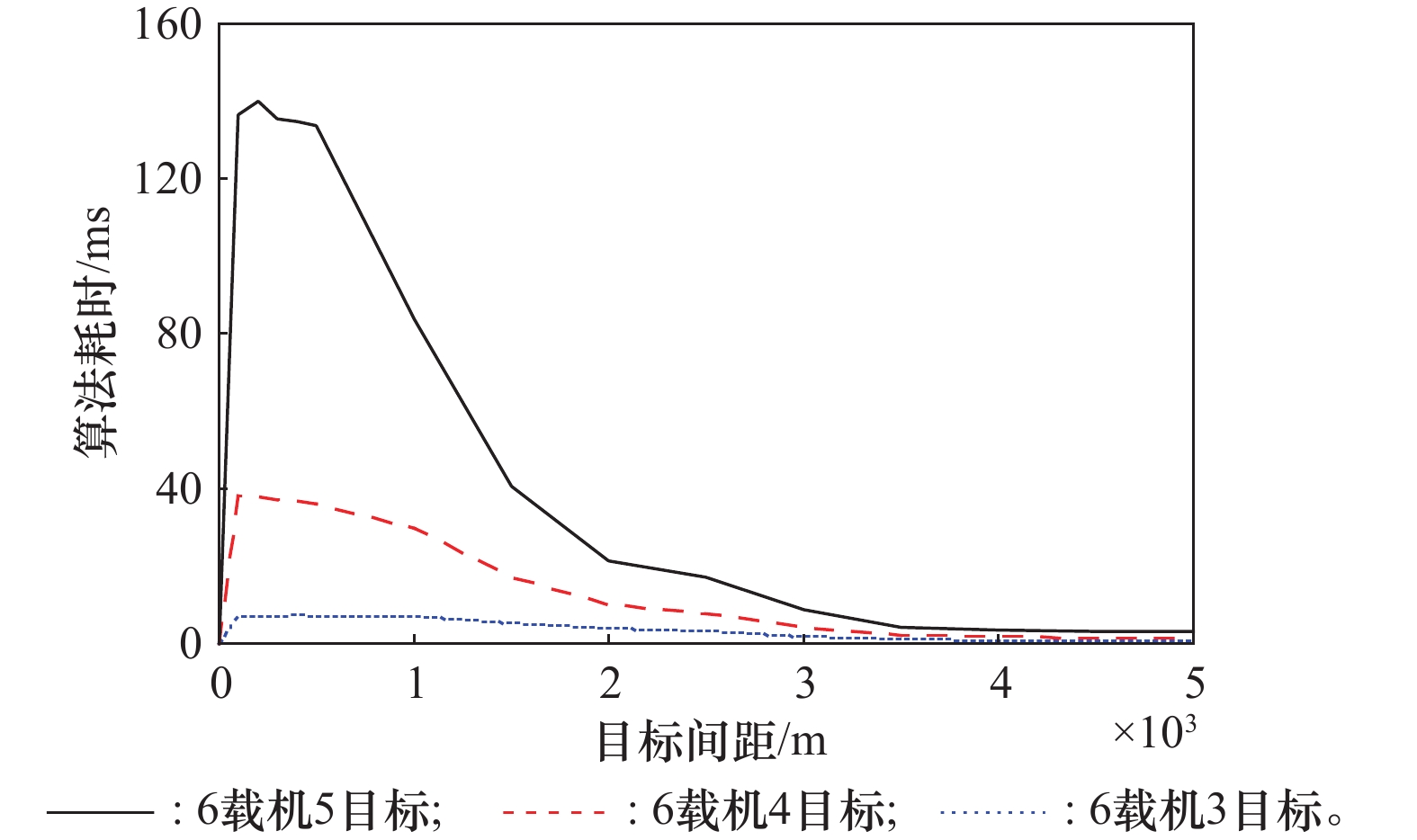

图11

图12

表2

参考文献 32

1	SNARSKI S, BARNES R, KHAN N, et al. Infrared search and track （IRST） for long-range, wide-area detect and avoid （DAA） on small unmanned aircraft systems （sUAS）[J]. Autonomous Systems: Sensors, Processing and Security for Ground, Air, Sea and Space Vehicles and Infrastructure, 2022, 1, 1211504.
2	YANG X W, YIN H, HE S M, et al. Trajectory optimization for multi-sensor multi-target search and tracking with bearing-only measurements[J]. Aerospace, 2023, 10 (652): 652. doi: 10.3390/aerospace10070652
3	AILNENI S, KASHYAP S K, NAIDU V, et al. Angle only tracking for infrared search and track (IRST) system mounted on an aircraft[C]// Proc. of the 7th Indian Control Conference, 2021.
4	CAI Q, WANG X P. Multi-UAV cooperative detection method for ballistic missile boosting section[C]// Proc. of the 2nd World Conference on Mechanical Engineering and Intelligent Manufacturing, 2019.
5	BAI G B, LIU J H, SONG Y M, et al. Two-UAV intersection localization system based on the airborne optoelectronic platform[J]. Sensors, 2017, 17 (1): 98. doi: 10.3390/s17010098
6	HE K Y, HONG H J, JIANG G L, et al. Analysis of assembly error effect on stability accuracy of unmanned aerial vehicle photoelectric detection system[J]. Applied Sciences, 2020, 10 (7): 2311. doi: 10.3390/app10072311
7	WEI Z, DUAN Z S, HAN Y N, et al. A new coarse gating strategy driven multidimensional assignment for two-stage MHT of bearings-only multisensor-multitarget tracking[J]. Sensors, 2022, 22 (5): 1802. doi: 10.3390/s22051802
8	MA F, LU H Z, SHEN X L. A data association algorithm based on the minimal angular distance sum for angle-only measurements with the sensor position unknown[J]. IET Radar, Sonar & Navigation, 2025, 19 (1): 12696.
9	WANG L H, LI Z Y, ZHOU S H, et al. Data association with passive angle measurements[C]// Proc. of the International Conference on Control, Automation and Information Sciences, 2021: 313−318.
10	WANG L H, ZHOU S H, MIN G, et al. Three-dimensional signal source localization with angle-only measurements in passive sensor networks[J]. Remote Sensing, 2024, 16 (8): 1319. doi: 10.3390/rs16081319
11	ZHOU S H, WANG L H, LIU R. et al. Signal source localization with long-term observations in distributed angle-only sensors[J]. Sensors, 2022, 22 (24): 9655. doi: 10.3390/s22249655
12	刘冉. 多源被动协同定位[D]. 西安: 西安电子科技大学, 2023.
	LIU R. Multi-source passive cooperative location[D]. Xi’an: Xidian University, 2023.
13	刘忠, 周丰, 石章松, 等. 纯方位目标运动分析[M]. 北京: 国防工业出版社, 2009.
	LIU Z, ZHOU F, SHI Z S, et al. Bearing-only target motion analysis[M]. Beijing: National Defense Industry Press, 2009.
14	CHEN Y D, WANG L H, ZHOU S H, et al. Signal source positioning based on angle-only measurements in passive sensor networks[J]. Sensors, 2022, 22 (4): 1554. doi: 10.3390/s22041554
15	DENG Z A, WANG Z G, ZHANG T B, et al. A novel density-based clustering method for effective removal of spurious intersections in bearings-only localization[J]. EURASIP Journal on Advances in Signal Processing, 2023, 23 (1): 19. doi: 10.1186/s13634-023-00974-8
16	BISHOP A N, PATHIRANA P N. Localization of emitters via the intersection of bearing lines: a ghost elimination approach[J]. IEEE Trans. on Vehicular Technology, 2007, 56 (5): 3106- 3110. doi: 10.1109/TVT.2007.900504
17	HU C X, ZHANG B, YANG X S, et al. Cyclic peak extraction from a spatial likelihood map for multi-array multi-target bearing-only localization[J]. Journal of Marine Science and Engineering, 2025, 13 (1): 109. doi: 10.3390/jmse13010109
18	蒋雯, 刘真, 王彦平, 等. 基于Hough变换的被动雷达交叉定位虚假点剔除方法[J]. 信号处理, 2023, 39 (11): 1978- 1986. doi: 10.16798/j.issn.1003-0530.2023.11.007
	JIANG W, LIU Z, WANG Y P, et al. A false points eliminating method in passive radar cross-location based on Hough transform[J]. Journal of Signal Processing, 2023, 39 (11): 1978- 1986. doi: 10.16798/j.issn.1003-0530.2023.11.007
19	ALEXIEV K M, BOJILOV L V. A Hough transform track initiation algorithm for multiple passive sensors[C]// Proc. of the 3rd International Conference on Information Fusion, 2002: 11−16.
20	LEI M, TIAN L. A cluster-based passive direction finding cross location method[C]// Proc. of the 3rd International Conference on Information Science and Control Engineering, 2016: 9−12.
21	ZHANG D P, HOU X, DING L, et al. Research on passive localization method with high detection rate[C]// Proc. of the IEEE 98th Vehicular Technology Conference, 2023.
22	YAO S Y, XU J L, SHEN W G, et al. Research on multi-target data association and location algorithm based on passive multi-sensor system[C]// Proc. of the 18th International Computer Conference on Wavelet Active Media Technology and Information Processing, 2022: 617−624.
23	MA F, LU H Z, ZHANG L P, et al. A data association approach for angle-only sensors based on faster clustering and multidimensional assignment[C]// Proc. of the IEEE 2nd International Conference on Software Engineering and Artificial Intelligence, 2022: 166−171.
24	蒋文涛, 孙利民, 吕俊伟, 等. 面向测向交叉定位的2级消元数据关联算法[J]. 华中科技大学学报（自然科学版）, 2012, 40 (3): 63- 67.
	JIANG W T, SUN L M, LYU J W, et al. Bearing-crossing localization oriented data association algorithm for two-hierarchic elimination[J]. Journal of Huazhong University of Science and Technology （Natural Science Edition）, 2012, 40 (3): 63- 67.
25	LIU H, DOU L H, PAN F, et al. Research on data association in three passive sensors network[C]// Proc. of the IEEE International Conference on Control and Automation, 2007: 3235−3238.
26	MA F, LU H Z, ZHANG L P, et al. Epipolar geometric association distance: a new cost function for passive sensor data association[J]. IET Radar, Sonar & Navigation, 2021, 15 (1): 101- 110.
27	王成, 李少洪, 黄槐. 测向交叉定位系统的多目标测量数据关联[J]. 系统工程与电子技术, 2002, 24 (9): 104- 106. doi: 10.3321/j.issn:1001-506X.2002.09.031
	WANG C, LI S H, HUANG H. Multi-target measurement data association for passive location systems based on direction of arrival[J]. Systems Engineering and Electronics, 2002, 24 (9): 104- 106. doi: 10.3321/j.issn:1001-506X.2002.09.031
28	沈乃鹏. 基于多假设的运动多站多目标AOA定位算法研究[J]. 电子质量, 2022, 43 (5): 5- 10. doi: 10.3969/j.issn.1003-0107.2022.05.003
	SHEN N P. Research on moving multi-targets localization use AOAs of multi-observers based on multiple hypotheses[J]. Electronics Quality, 2022, 43 (5): 5- 10. doi: 10.3969/j.issn.1003-0107.2022.05.003
29	邓兵, 姚山峰, 杨宇翔, 等. 到达时间差与扫描时间差定位精度分析[J]. 兵器装备工程学报, 2024, 45 (1): 249- 255. doi: 10.11809/bqzbgcxb2024.01.033
	DENG B, YAO S F, YANG Y X, et al. Precision analysis for TDOA-TDOS localization[J]. Journal of Ordnance Equipment Engineering, 2024, 45 (1): 249- 255. doi: 10.11809/bqzbgcxb2024.01.033
30	NARANIYA O P, KUMAR S, KUMAR A. Scene simulation and modeling of infrared search and track sensor for air-borne long range point targets[C]// Proc. of the 2nd International Conference on Range Technology, 2021.
31	XU B X, YI J X, CHENG F, et al. High-accuracy target tracking for multistatic passive radar based on a deep feedforward neural network[J]. Frontiers of Information Technology & Electronic Engineering, 2023, 24 (8): 1214- 1230. doi: 10.1631/FITEE.2200260
32	HODSON T O. Root-mean-square error （RMSE） or mean absolute error （MAE）: when to use them or not[J]. Geoscientific Model Development, 2022, 15 (14): 5481- 5487.

误差项	误差水平	误差分布
载机定位精度/m	10	高斯
航向姿态误差/（°）	0.05	高斯
俯仰角误差/（°）	0.01	高斯
光电方位角测角误差/mard	1	高斯
光电俯仰角测角误差/mard	1	高斯

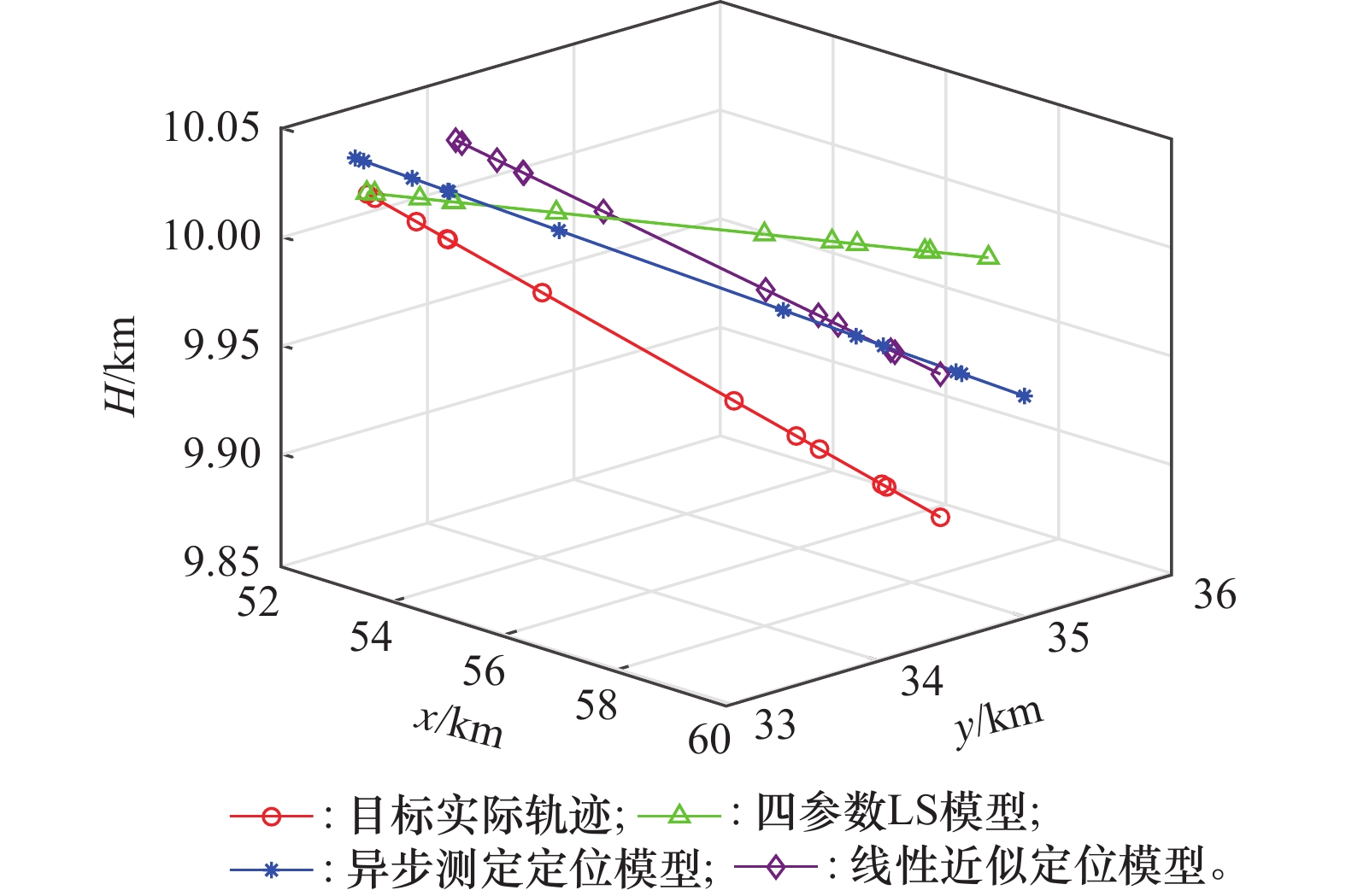

定位算法模型	RMSE_p/m	RMSE_v/（m/s）
异步测向定位模型	1 102	254.3
四参数LS模型	1 217	261.3
线性近似定位模型	5 189	948.5
