相干FDA雷达收发联合多波束方法

doi:10.12305/j.issn.1001-506X.2025.05.11

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (5): 1487-1494.doi: 10.12305/j.issn.1001-506X.2025.05.11

• 传感器与信号处理 • 上一篇

相干FDA雷达收发联合多波束方法

张军¹^,², 许京伟¹^,*, 王柯祎¹, 廖桂生¹, 李军¹, 蔡兴雨²

1. 西安电子科技大学雷达信号处理全国重点实验室, 陕西西安 710071
2. 西安电子工程研究所, 陕西西安 710100

收稿日期:2024-04-11 出版日期:2025-06-11 发布日期:2025-06-18
通讯作者: 许京伟
作者简介:张军 (1989—), 男, 博士研究生, 主要研究方向为频率分集阵列雷达
许京伟 (1987—), 男, 教授, 博士, 主要研究方向为频率分集阵列雷达、机载/天基雷达动目标、同时多功能雷达
王柯祎 (1998—), 女, 博士研究生, 主要研究方向为频率分集阵雷达、运动目标检测
廖桂生 (1963—), 男, 教授, 博士, 主要研究方向为阵列信号处理、空时自适应处理、天基预警雷达系统
李军 (1972—), 男, 教授, 博士, 主要研究方向为阵列信号处理、空时自适应处理、多通道雷达信号处理
蔡兴雨 (1967—), 男, 研究员, 硕士, 主要研究方向为雷达系统设计
基金资助:
国家自然科学基金(61931016);国家自然科学基金(62071344);陕西省自然科学基础研究计划(2023-JC-JQ-55);陕西省自然科学基础研究计划(2024JC-TBZC-19)

Transceiver joint multi-beam method for coherent FDA radar

Jun ZHANG¹^,², Jingwei XU¹^,*, Keyi WANG¹, Guisheng LIAO¹, Jun LI¹, Xingyu CAI²

1. National Key Laboratory of Radar Signal Processing, Xidian University, Xi'an 710071, China
2. Xi'an Electronic Engineering Research Institute, Xi'an 710100, China

Received:2024-04-11 Online:2025-06-11 Published:2025-06-18
Contact: Jingwei XU

摘要/Abstract

摘要：

针对相干频率分集阵列雷达距离/时间-角度依赖的信号收、发处理问题, 提出一种基于角度依赖匹配滤波的频率分集阵雷达收发联合多波束设计方法。该方法可以同时实现等效发射数字波束形成和信号脉冲压缩匹配处理。且不同空间角度的雷达回波信号可以独立进行处理, 通过联合接收数字波束形成技术, 可以同时进行收发联合波束形成, 实现同时多波束广域宽角覆盖, 满足雷达广域搜索任务的需要。仿真实验证明了所提方法的有效性。

关键词: 相干频率分集阵列, 角度依赖匹配滤波, 收发联合波束形成, 广域宽角覆盖

Abstract:

Focused on the range/time-angle-dependent signal transceiver and processing issue with the coherent frequency diverse array (FDA) radar, an FDA radar transceiver joint multi-beam design method based on angle-dependent matched filter (ADMF) is proposed. This method can realize equivalent transmit digital beamforming and signal pulse compression matching processing at the same time. Echo signals from different spatial angles can be processed in parallels. Combining with the joint receiving digital beamforming technology, it is possible to implement joint transceiver beamforming simultaneously to realize the simultaneous wide-field wide-angle coverage of multi-beam, and meet the requirement of radar wide-field search task. Simulation examples demonstrate the effectiveness of the proposed method.

Key words: coherent frequency diverse array, angle-dependent matched filter (ADMF), joint transceiver beamforming, wide-field wide-angular coverage

中图分类号:

TN957.52

张军, 许京伟, 王柯祎, 廖桂生, 李军, 蔡兴雨. 相干FDA雷达收发联合多波束方法[J]. 系统工程与电子技术, 2025, 47(5): 1487-1494.

Jun ZHANG, Jingwei XU, Keyi WANG, Guisheng LIAO, Jun LI, Xingyu CAI. Transceiver joint multi-beam method for coherent FDA radar[J]. Systems Engineering and Electronics, 2025, 47(5): 1487-1494.

图/表 10

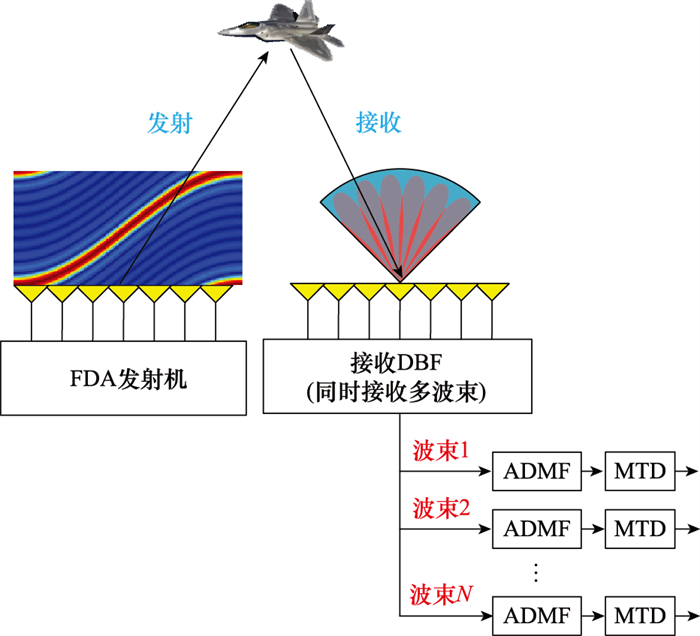

图1

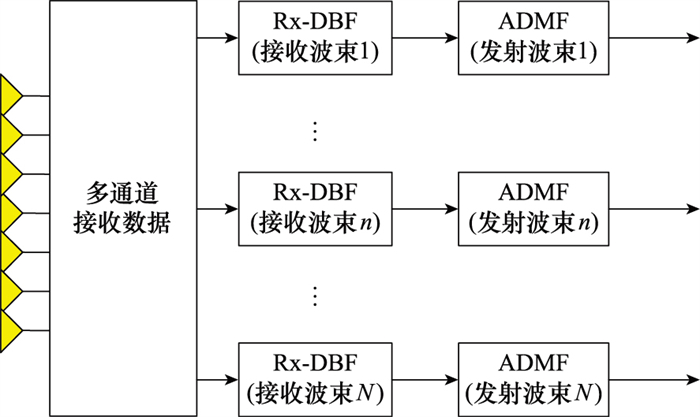

图2

表1

表2

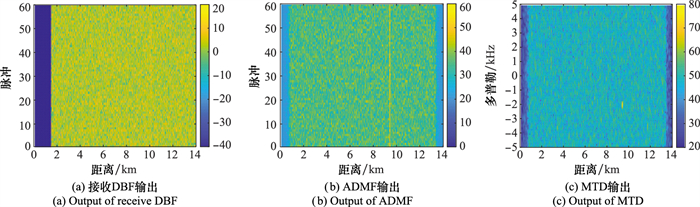

图3

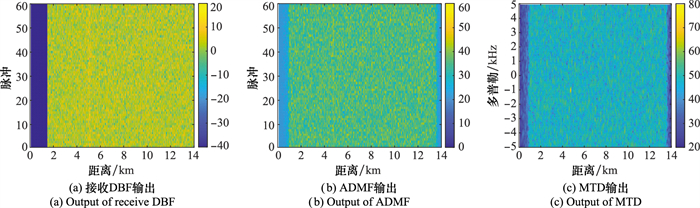

图4

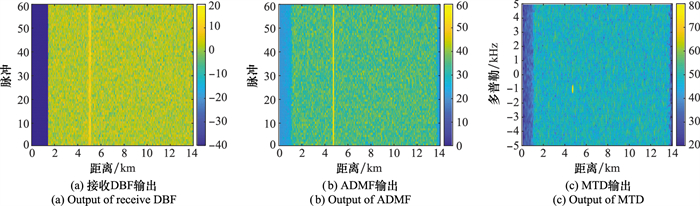

图5

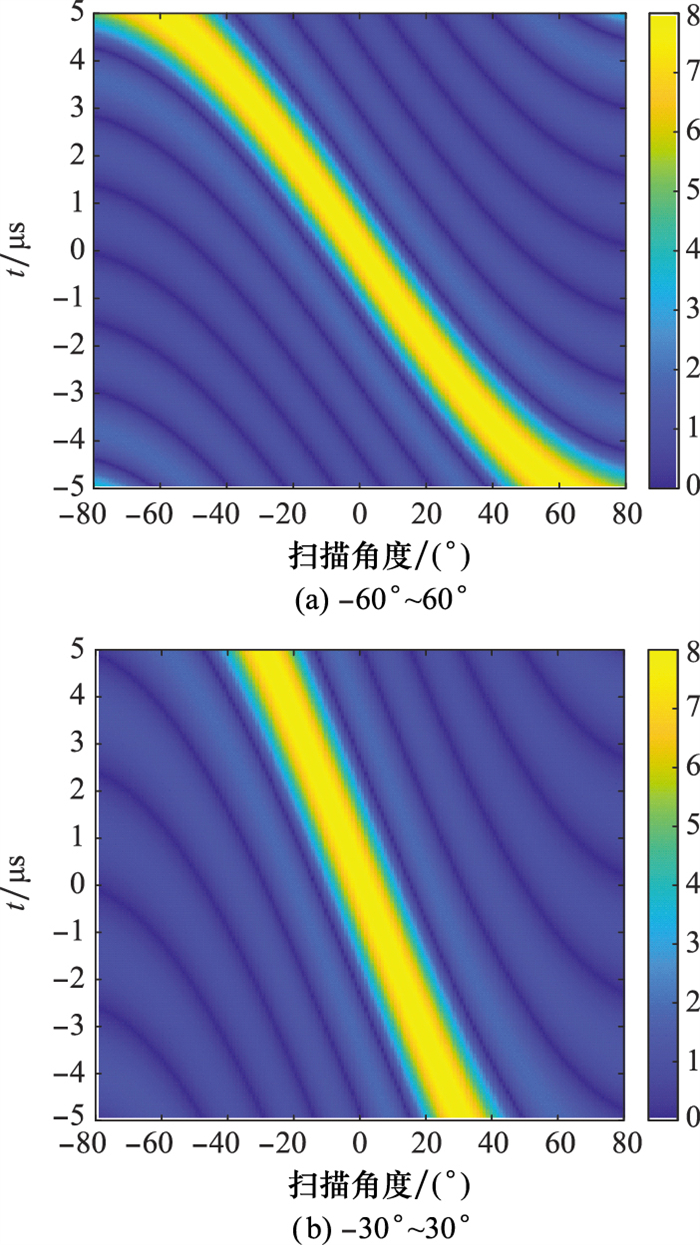

图6

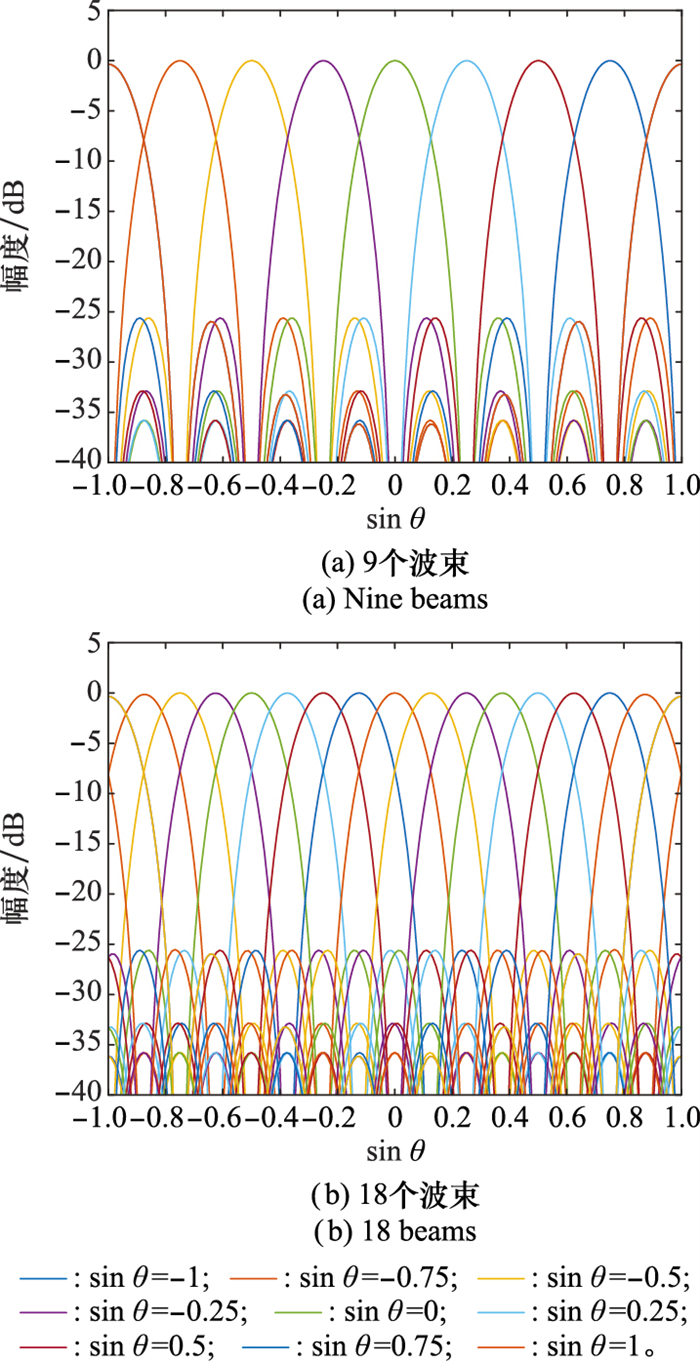

图7

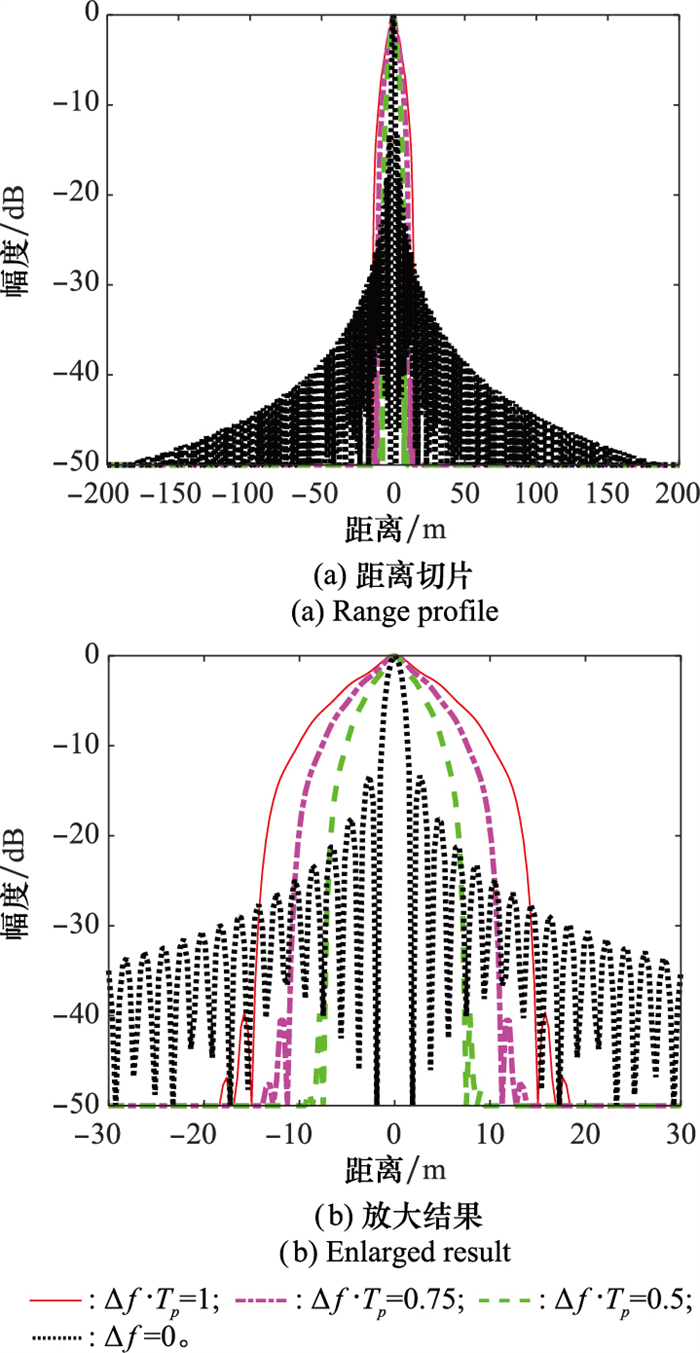

图8

参考文献 32

1	WANG W Q . Frequency diverse array antenna: new opportuni ties[J]. IEEE Antennas and Propagation Magazine, 2015, 57 (2): 145- 152. doi: 10.1109/MAP.2015.2414692
2	许京伟, 朱圣棋, 廖桂生, 等. 频率分集阵雷达技术探讨[J]. 雷达学报, 2018, 7 (2): 167- 182.
	XU J W , ZHU S Q , LIAO G S , et al. An overview of frequency diverse array radar technology[J]. Journal of Radars, 2018, 7 (2): 167- 182.
3	ANTONIK P, WICKS M C, GRIFFITHS H D, et al. Frequency diverse array radars[C]//Proc. of the IEEE Conference on Radar, 2006: 215-217.
4	ANTONIK P, WICKS M C, GRIFFITHS H D, et al. Range dependent beamforming using element level waveform diversity[C]// Proc. of the International Waveform Diversity & Design Confe-rence, 2006: 140-144.
5	SECMEN M, DEMIR S, HIZAL A, et al. Frequency diverse array antenna with periodic time modulated pattern in range and angle[C]// Proc. of the IEEE Radar Conference, 2007: 427-430.
6	HUANG J J, TONG K F, BAKER C J. Frequency diverse array with beam scanning feature[C]//Proc. of the IEEE Antennas and Propagation Society International Symposium, 2008.
7	HUANG J J, TONG K F, BAKER C J. Frequency diverse array: simulation and design[C]//Proc. of the International Antennas & Propagation Radar Conference, 2009.
8	ANTONIK P, WICKS M C, GRIFFITHS H D, et al. Multi-mission multimode waveform diversity[C]//Proc. of the IEEE Radar Conference, 2006: 580-582.
9	XU J W , LIAO G S , ZHU S Q , et al. Joint range and angle estimation using MIMO radar with frequency diverse array[J]. IEEE Trans. on Signal Processing, 2015, 63 (13): 3396- 3410. doi: 10.1109/TSP.2015.2422680
10	XU J W , LIAO G S , ZHU S Q , et al. Deceptive jamming suppression with frequency diverse MIMO radar[J]. Signal Processing, 2015, 113, 9- 17. doi: 10.1016/j.sigpro.2015.01.014
11	许京伟, 廖桂生, 张玉洪, 等. 波形分集阵雷达抗欺骗式干扰技术[J]. 电子学报, 2019, 47 (3): 545- 551.
	XU J W , LIAO G S , ZHANG Y H , et al. On anti-jamming technique with waveform diverse array radar[J]. Acta Electronica Sinica, 2019, 47 (3): 545- 551.
12	LIU Y B , WANG C Y , GONG J , et al. Discrimination of main-lobe deceptive target with meter-wave FDA-MIMO radar[J]. IEEE Communications Letters, 2022, 26 (5): 1131- 1135. doi: 10.1109/LCOMM.2022.3155371
13	LAN L , XU J W , XU Y H , et al. Beampattern synthesis based on novel receive delay array for mainlobe interference mitigation[J]. IEEE Trans. on Antennas Propagations, 2023, 71 (5): 4470- 4485. doi: 10.1109/TAP.2023.3247916
14	XU J W , LIAO G S , ZHANG Y H , et al. An adaptive range-angle-Doppler processing approach for FDA-MIMO radar using three-dimensional localization[J]. IEEE Journal of Selected Topics in Signal Processing, 2017, 11 (2): 309- 320. doi: 10.1109/JSTSP.2016.2615269
15	LIU Z X , ZHU S Q , XU J W , et al. Range-ambiguous clutter suppression for STAP-based radar with vertical coherent frequency diverse array[J]. IEEE Trans. on Geoscience and Remote Sensing, 2023, 61, 5106517.
16	CHEN W , XIE W C , WANG Y L . Range-dependent ambiguous clutter suppression for airborne SSF-STAP radar[J]. IEEE Trans. on Aerospace and Electronic Systems, 2022, 58 (2): 855- 867. doi: 10.1109/TAES.2021.3104528
17	CHEN Z , ZHANG Z M , ZHOU Y S , et al. Elevated frequency diversity array: a novel approach to high resolution and wide swath imaging for synthetic aperture radar[J]. IEEE Geoscience and Remote Sensing Letters, 2022, 19, 4001505.
18	ZHAO X H, YU L, HE F, Wide range swath SAR imaging method based on coherent frequency diverse array radar[C]//Proc. of the 7th International Conference on Signal and Image Processing, 2022.
19	LOU M Y , YANG J Y , LI Z Y , et al. Joint optimal and adaptive 2-D spatial filtering technique for FDA-MIMO SAR deception jamming separation and suppression[J]. IEEE Trans. on Geoscience and Remote Sensing, 2022, 60, 5238414.
20	XU J W, LAN L, LIAO G S, et al. Range-angle matched receiver for coherent FDA radars[C]//Proc. of the IEEE Radar Conference, 2017: 324-328.
21	许京伟, 兰岚, 朱圣棋, 等. 相干频率分集阵雷达匹配滤波器设计[J]. 系统工程与电子技术, 2018, 40 (8): 1720- 1728. doi: 10.3969/j.issn.1001-506X.2018.08.08
	XU J W , LAN L , ZHU S Q , et al. Design of matched filter for coherent FDA radar[J]. Systems Engineering and Electronics, 2018, 40 (8): 1720- 1728. doi: 10.3969/j.issn.1001-506X.2018.08.08
22	WANG H K , LIAO G S , XU J W , et al. Transmit beampattern design for coherent FDA by piecewise LFM waveform[J]. Signal Processing, 2019, 161, 14- 24. doi: 10.1016/j.sigpro.2019.03.010
23	WANG H K , LIAO G S , XU J W , et al. Subarray-based coherent pulsed-LFM frequency diverse array for range resolution enhancement[J]. IET Signal Process, 2020, 14 (4): 251- 258. doi: 10.1049/iet-spr.2018.5566
24	YU L , HE F , ZHANG Y S , et al. Low-PSL mismatched filter design for coherent FDA radar using phase-coded waveform[J]. IEEE Geoscience and Remote Sensing Letters, 2023, 20, 3507405.
25	YU L, ZHANG Q L, YUAN T, et al. Effective detection and localization of small maneuvering UAV swarm via coherent FDA radar[C]//Proc. of the IET International Radar Confe-rence, 2023.
26	YU L , HE F , SU Y . Multiscale observation in wide-spatial radar surveillance based on coherent FDA design[J]. Science China, 2024, 67 (2): 232- 252.
27	GUI R H , WANG W Q , CUI C , et al. Coherent pulsed-FDA radar receiver design with time-variance consideration: SINR and CRB analysis[J]. IEEE Trans. on Signal Processing, 2018, 66 (1): 200- 214. doi: 10.1109/TSP.2017.2764860
28	LIU M J , WANG C Y , GONG J , et al. Ambiguity function analysis and optimization of coherent FDA radar[J]. IEEE Geo-science and Remote Sensing Letters, 2024, 21, 3507205.
29	JIA W , WANG W Q , ZHANG S . Joint design of the transmit and receive weights for coherent FDA radar[J]. Signal Processing, 2022, 204, 108834.
30	JIA W K , JAKOBSSON A , WANG W Q , et al. Coherent FDA receiver and joint range-space-time processing[J]. IEEE Trans. on Antennas and Propagation, 2024, 72 (1): 745- 755. doi: 10.1109/TAP.2023.3321344
31	XU J W , ZHANG Y H , LIAO G S , et al. Angle-dependent matched filtering for moving target indication with coherent FDA radar[J]. IEEE Trans. on Aerospace and Electronic Systems, 2024, 60 (3): 3523- 3536. doi: 10.1109/TAES.2024.3362935
32	EKER T , DEMIR S , HIZAL A . Exploitation of linear frequency modulated continuous waveform (LFMCW) for frequency diverse arrays[J]. IEEE Trans. on Antennas and Propagation, 2013, 61 (7): 3546- 3553. doi: 10.1109/TAP.2013.2258393

参数	参数值	参数	参数值
参考载频/GHz	3	频率步进量/kHz	100
发射(接收)阵元数	8	阵元间距/m	0.05
信号带宽/MHz	20	采样率/MHz	40
脉冲重复频率/kHz	10	脉冲数	64

目标	目标角度/(°)	目标距离/km	目标速度/(m/s)	SNR/dB
目标1	0	10	-100	-20
目标2	30	5	-50	-10
