基于INS/UWB紧组合的行人室内定位方法

doi:10.12305/j.issn.1001-506X.2025.04.26

摘要/Abstract

摘要：

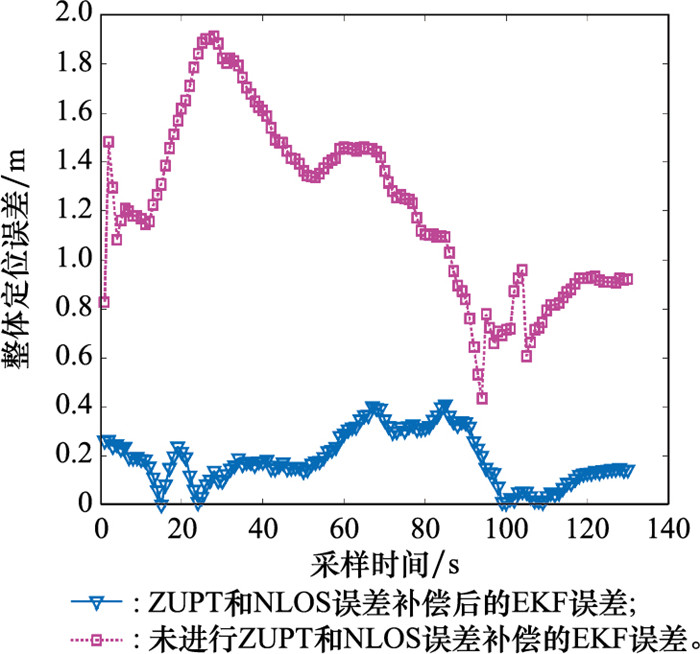

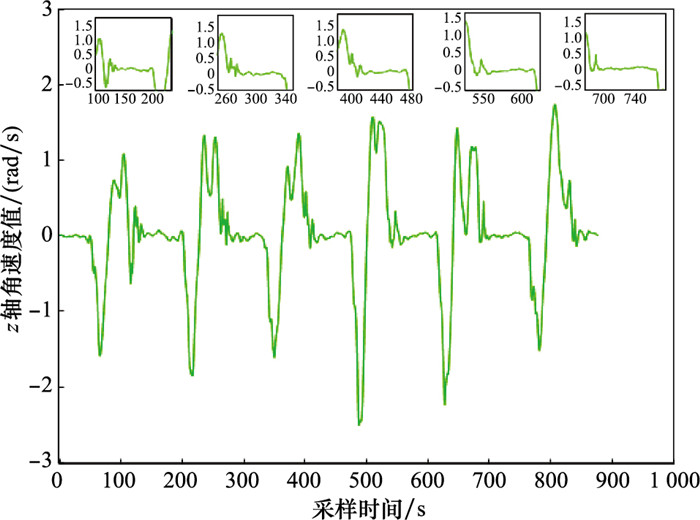

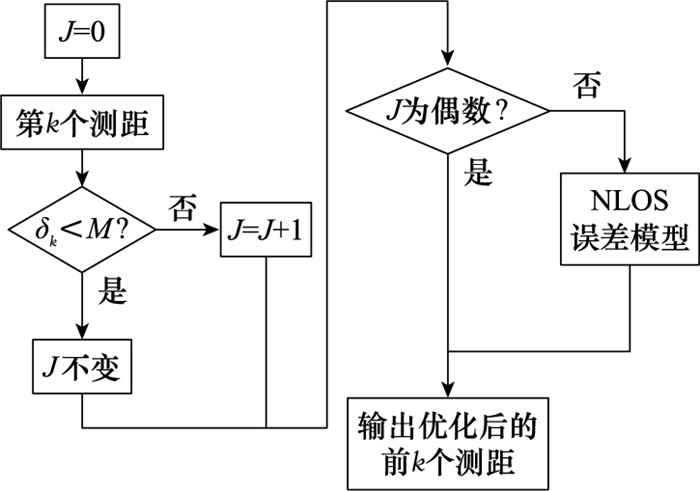

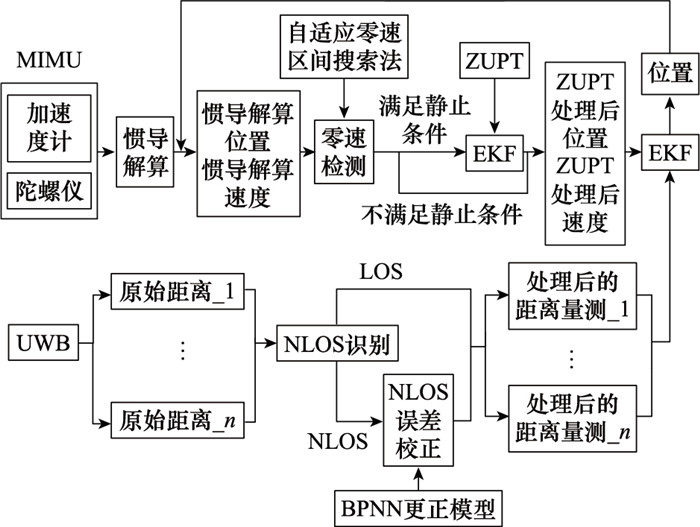

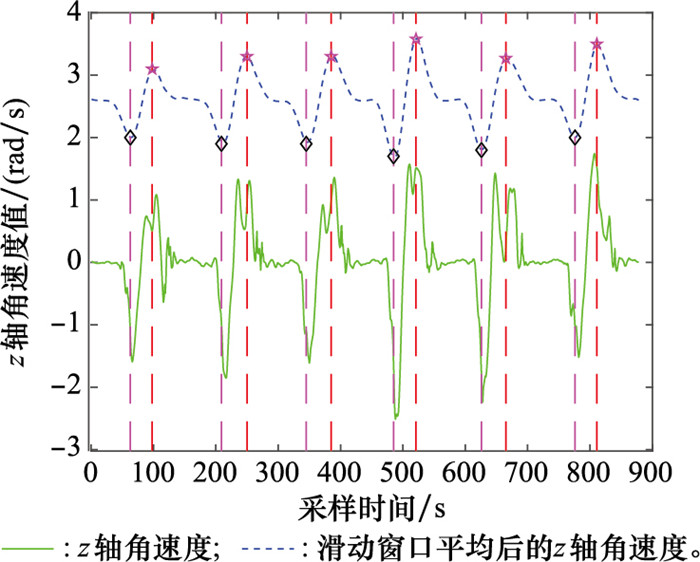

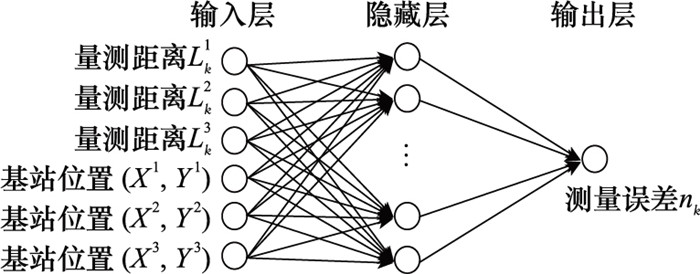

针对室内复杂应用场景下行人定位精度低的问题, 提出一种基于惯性导航系统/超宽带(inertial navigation system/ultra-wide band, INS/UWB)紧组合定位方法。以脚部运动的一个步态周期为基本搜索单元, 通过行人脚部运动分析, 利用z轴角速度信息实现行人复合运动下的精确零速检测, 进一步利用零速校正(zero velocity update, ZUPT)抑制惯性解算累积误差。同时, 考虑UWB测距精度受非视距(non-line-of-sight, NLOS)影响问题, 利用反向传播神经网络自适应学习方法建立NLOS误差模型并据此对UWB测距误差进行补偿。实验结果表明, 在室内复杂应用场景下，所提INS/UWB紧组合算法定位误差为0.19 m, 相比未进行ZUPT和NLOS误差补偿的INS/UWB紧组合定位方法，定位精度提高84.6%。

关键词: 行人室内定位, 超宽带, 紧组合, 零速校正, 非视距误差

Abstract:

In view of the problem of poor pedestrian positioning accuracy in the indoor complex application scene, the inertial navigation system/ultra-wide band (INS/UWB) tight integrated positioning algorithm is proposed. Taking one gait cycle of foot motion as a basic search unit and by analyzing pedestrian's foot motion, z-axis angular velocity information is used to detect zero-speed state under composite motions of pedestrians accurately, so as to further suppress inertial solution accumulative error with zero velocity update (ZUPT). Meanwhile, considering the impact of non-line-of-sight (NLOS) on UWB ranging accuracy, an NLOS error model is established using a backpropagation neural network adaptive learning method to compensate for UWB ranging errors. The experimental results show that the INS/UWB tight integration algorithm proposed in indoor complex application scene has a positioning error of 0.19 m, which is 84.6% higher than the INS/UWB tight integration positioning method without ZUPT and NLOS error compensation.

Key words: pedestrian indoor positioning, ultra-wide band (UWB), tight integration, zero velocity update (ZUPT), non-line-of-sight (NLOS) error

中图分类号:

TH89

奔粤阳, 黄原, 黄鸿殿, 李倩. 基于INS/UWB紧组合的行人室内定位方法[J]. 系统工程与电子技术, 2025, 47(4): 1300-1310.

Yueyang BEN, Yuan HUANG, Hongdian HUANG, Qian LI. Pedestrian indoor positioning method based on INS/UWB tight integration[J]. Systems Engineering and Electronics, 2025, 47(4): 1300-1310.

图/表 21

图1

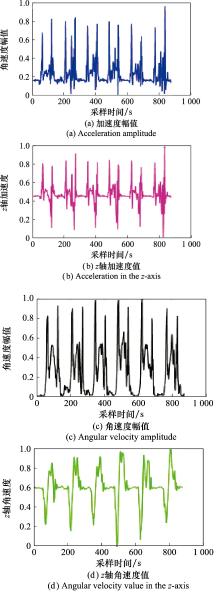

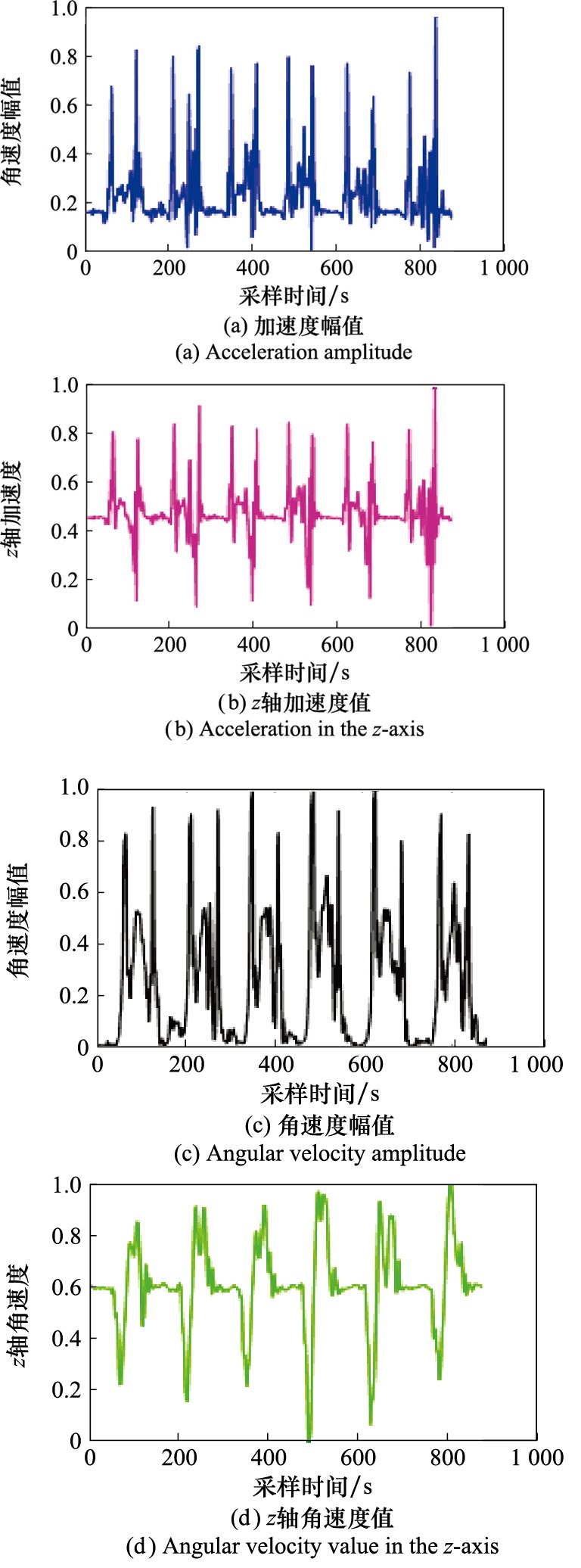

图2

图3

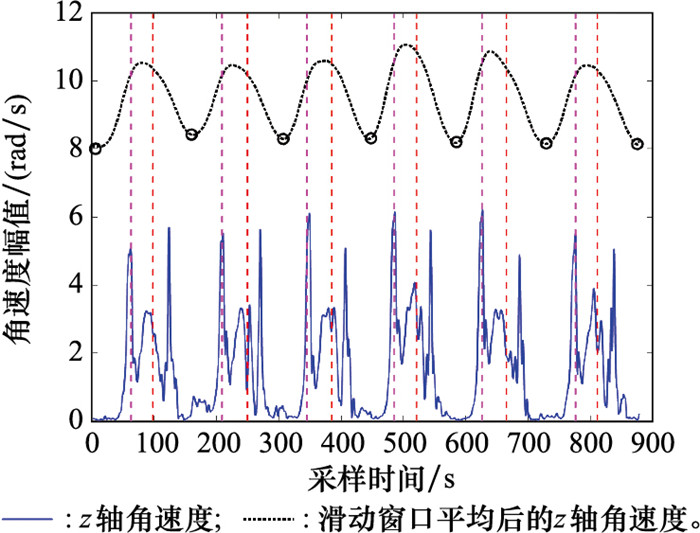

图4

图5

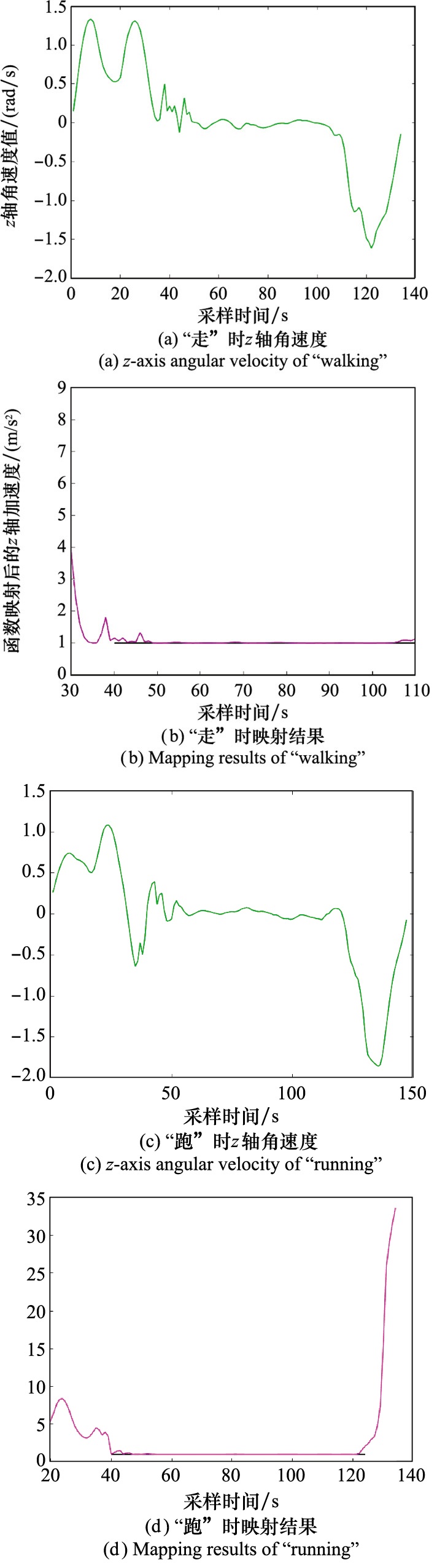

图6

图7

图8

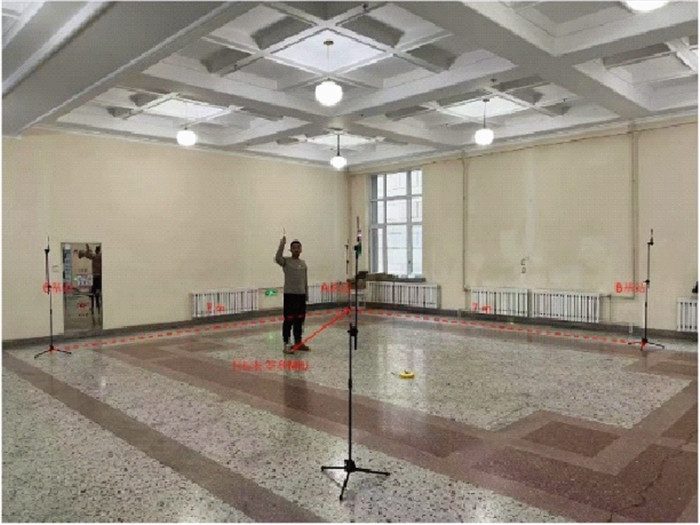

图9

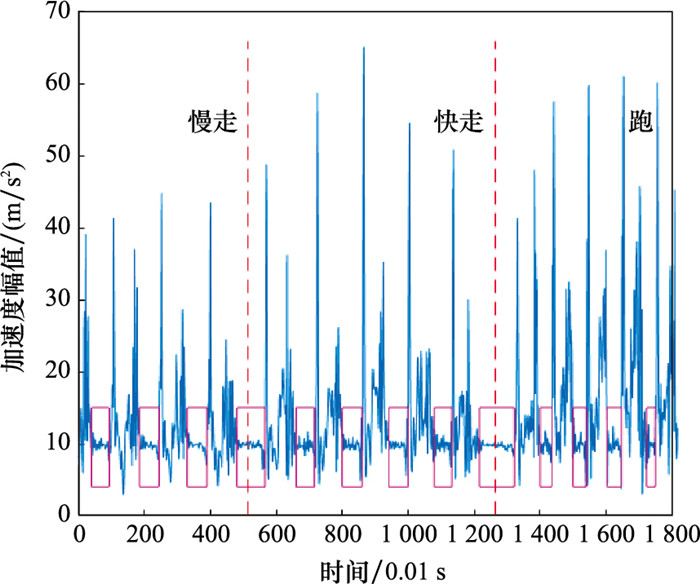

图10

图11

表1

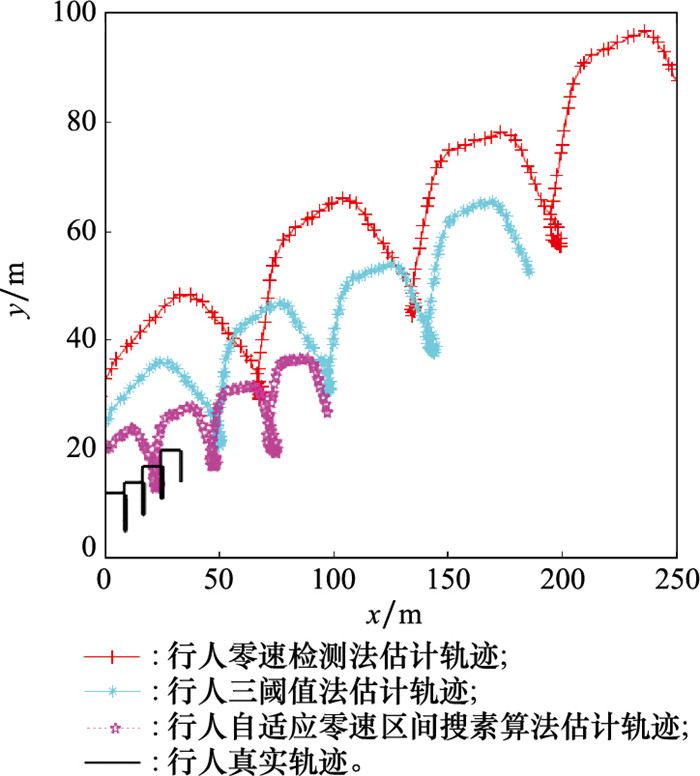

图12

表2

表3

表4

表5

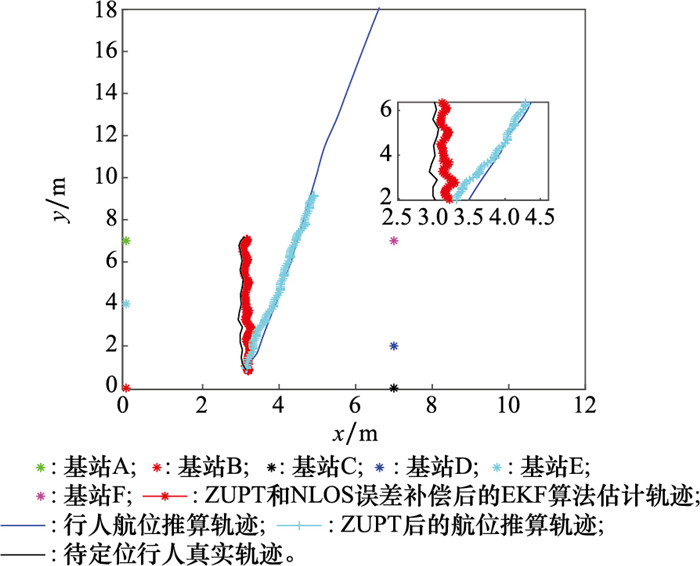

图13

图14

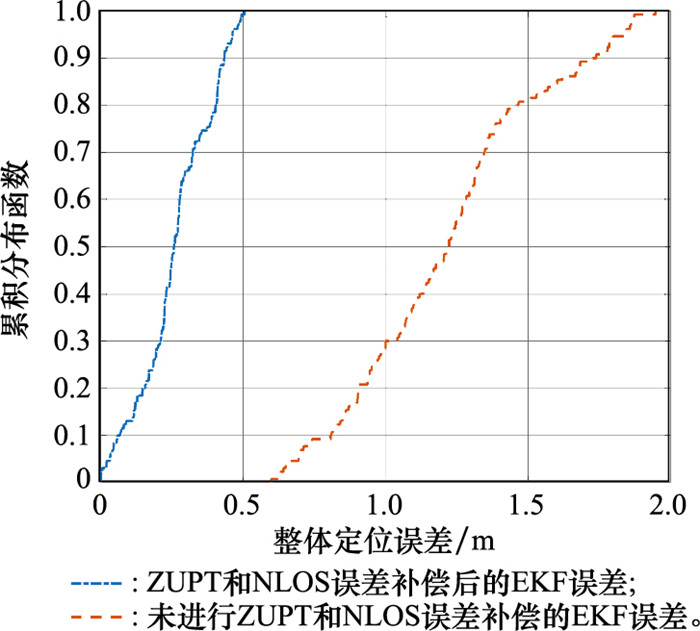

图15

表6

参考文献 36

1	ASHRAF I , HUR S , PARK Y . Smartphone sensor based indoor positioning: current status, opportunities, and future cha-llenges[J]. Electronics, 2024, 9 (6): 891.
2	YU Q. Indoor location methods of fire personnel based on GPS and sensor network[C]//Proc. of the 4th International Conference on Informatics Engineering & Information Science, 2022, 12161: 357-363.
3	MIAO C W , CHEN G Z , YAN C L , et al. Path planning optimization of indoor mobile robot based on adaptive ant colony algorithm[J]. Computers & Industrial Engineering, 2021, 15, 107230.
4	HUANG J H , JUNGINGER S , LIU H , et al. Indoor positioning systems of mobile robots: a review[J]. Robotics, 2023, 12 (2): 47. doi: 10.3390/robotics12020047
5	SESYUK A , IOANNOU S , RASPOPOULOS M . A survey of 3D indoor localization systems and technologies[J]. Sensors, 2022, 22 (23): 9380. doi: 10.3390/s22239380
6	TEYMOURI M S, BHATTACHARYA S. Landmark-based distributed topological mapping and navigation in GPS-denied urban environments using teams of low-cost robots[EB/OL]. [2024-03-01]. https://link.springer.com/article/10.1007/s10458-024-09635-y.
7	YAN J , YANG C , FAN W Y , et al. GNSS/UWB integrated positioning with robust Helmert variance component estimation[J]. Advances in Space Research, 2024, 73 (5): 2532- 2547. doi: 10.1016/j.asr.2023.12.020
8	CHIANG K W , CHANG H W , LI Y H , et al. Assessment for INS/GNSS/odometer/barometer integration in loosely-coupled and tightly-coupled scheme in a GNSS-degraded environment[J]. IEEE Sensors Journal, 2019, 20 (6): 3057- 3069.
9	ZHOU P , WANG H , GRAVINA R , et al. WIO-EKF: extended Kalman filtering-based Wi-Fi and inertial odometry fusion method for indoor localization[J]. IEEE Internet of Things Journal, 2024, 11 (13): 23592- 23603. doi: 10.1109/JIOT.2024.3386889
10	JURDI R , CHEN H , ZHU Y M , et al. WhereArtThou: a WiFi-RTT-based indoor positioning system[J]. IEEE Access, 2024, 12, 41084- 41101. doi: 10.1109/ACCESS.2024.3377237
11	NIU J W , WANG B W , SHU L , et al. ZIL: an energy-efficient indoor localization system using ZigBee radio to detect WiFi fingerprints[J]. IEEE Journal on Selected Areas in Communications, 2015, 33 (7): 1431- 1442. doi: 10.1109/JSAC.2015.2430171
12	GUO G Y , CHEN R Z , YAN K , et al. Multi-channel and multi-RSS based BLE range estimation for indoor tracking of commercial smartphones[J]. IEEE Sensors Journal, 2023, 23 (24): 30728- 30738. doi: 10.1109/JSEN.2023.3328711
13	XU S H , CHEN R Z , GUO G Y , et al. Bluetooth, floor-plan, and microelectromechanical systems-assisted wide-area audio indoor localization system: apply to smartphones[J]. IEEE Trans.on Industrial Electronics, 2021, 69 (11): 11744- 11754.
14	FAN Q G , SUN B W , AN S , et al. Performance enhancement of MEMS-based INS/UWB integration for indoor navigation applications[J]. IEEE Sensors Journal, 2017, 17 (10): 3116- 3130. doi: 10.1109/JSEN.2017.2689802
15	LI M G , ZHU H , YOU S Z , et al. UWB-based localization system aided with inertial sensor for underground coal mine applications[J]. IEEE Sensors Journal, 2020, 20 (12): 6652- 6669. doi: 10.1109/JSEN.2020.2976097
16	DE-COCK C , TANGHE E , JOSEPH W , et al. Robust IMU-based mitigation of human body shadowing in UWB indoor positioning[J]. Sensors, 2023, 23 (19): 8289. doi: 10.3390/s23198289
17	LIU A, LIN S W, WANG J G, et al. A method for non-line of sight identification and delay correction for UWB indoor positioning[C]//Proc. of the IEEE 17th Conference on Industrial Electronics and Applications, 2022: 9-14.
18	李倩, 蒋正华, 孙炎, 等. 基于因子图的INS/UWB室内行人紧组合定位技术[J]. 仪器仪表学报, 2022, 43 (5): 32- 45.
	LI Q , JIANG Z H , SUN Y , et al. INS/UWB tight integrated localization technology for pedestrian indoor based on factor graph[J]. Chinese Journal of Scientific Instrument, 2022, 43 (5): 32- 45.
19	NAHEEM K , KIM M S . A robust indoor pedestrian localization approach against human body shadowing for UWB-enabled smartphones[J]. IEEE Trans.on Instrumentation and Mea-surement, 2024, 73, 9505013.
20	ZHANG H , WANG Q , LI Z H , et al. Research on high precision positioning method for pedestrians in indoor complex environments based on UWB/IMU[J]. Remote Sensing, 2023, 15 (14): 3555. doi: 10.3390/rs15143555
21	ZHU J , KIA S S . Decentralized cooperative localization with LOS and NLOS UWB inter-agent ranging[J]. IEEE Sensors Journal, 2021, 22 (6): 5447- 5456.
22	LI Z , DENG Z H , MENG Z D , et al. Coriolis-based heading estimation for pedestrian inertial localization based on MEMS MIMU[J]. IEEE Internet of Things Journal, 2024, 11 (16): 27509- 27517. doi: 10.1109/JIOT.2024.3398431
23	GUO H M, URADZINSKI M. The usability of MTI IMU sensor data in PDR indoor positioning[C]//Proc. of the IEEE 25th International Conference on Integrated Navigation Systems, 2018.
24	ELSANHOURY M , MAKELA P , KOLJONEN J , et al. Precision positioning for smart logistics using ultra-wideband technology-based indoor navigation: a review[J]. IEEE Access, 2022, 10, 44413- 44445. doi: 10.1109/ACCESS.2022.3169267
25	NAHEEM K , KIM M S . A low-cost foot-placed UWB and IMU fusion-based indoor pedestrian tracking system for IoT applications[J]. Sensors, 2022, 22 (21): 8160. doi: 10.3390/s22218160
26	文张建, 赵立业, 沈翔. GRU-DNN改进的行人导航零速检测方法[J]. 导航定位学报, 2022, 10 (5): 97- 104. doi: 10.3969/j.issn.2095-4999.2022.05.014
	WEN Z J , ZHAO L Y , SHEN X . An improved zero-velocity detection method of pedestrian navigation based on GRU-DNN[J]. Journal of Navigation and Positioning, 2022, 10 (5): 97- 104. doi: 10.3969/j.issn.2095-4999.2022.05.014
27	陈泽, 潘献飞, 陈昶昊, 等. 一种用于足绑式行人惯性导航的区间搜索零速检测器[J]. 中国惯性技术学报, 2020, 28 (6): 709- 715.
	CHEN Z , PAN X F , CHEN C H . A zero-velocity detector based on interval search for foot-mounted pedestrian inertial navigation[J]. Journal of Chinese Inertial Technology, 2020, 28 (6): 709- 715.
28	杨海, 李威, 张禾, 等. 复杂坏境下基于SINS/UWB的容错组合定位技术研究[J]. 仪器仪表学报, 2017, 38 (9): 2177- 2185. doi: 10.3969/j.issn.0254-3087.2017.09.011
	YANG H , LI W , ZHANG H , et al. Fault tolerant integrated positioning system based on SINS/UWB in complex environment[J]. Chinese Journal of Scientific Instrument, 2017, 38 (9): 2177- 2185. doi: 10.3969/j.issn.0254-3087.2017.09.011
29	YUAN S W , ZHANG Y B , SHI Y T , et al. A novel ESKF based ZUPT using midpoint integration approach for indoor pedestrian navigation[J]. IEEE Sensors Journal, 2024, 24 (7): 10920- 10932. doi: 10.1109/JSEN.2024.3365979
30	WANG Q , FU M X , WANG J Q , et al. Free-walking: pedestrian inertial navigation based on dual foot-mounted IMU[J]. Defence Technology, 2024, 33, 573. doi: 10.1016/j.dt.2023.03.001
31	NILSSON J O, GUPTA A K, HANDEL P. Foot-mounted inertial navigation made easy[C]// Proc. of the IEEE International Conference on Indoor Positioning and Indoor Navigation, 2014: 24-29.
32	WANG Y, CHERNYSHOFF A, SHKEL A M. Error analysis of ZUPT-aided pedestrian inertial navigation[C]//Proc. of the IEEE International Conference on Indoor Positioning and Indoor Navigation, 2018: 206-212.
33	WANG J Y , LIU J H , XU X B , et al. A yaw correction method for pedestrian positioning using two low-cost MIMUs[J]. Mea-surement, 2023, 217, 112992.
34	刘培原, 王坚, 盛坤鹏, 等. 非视距误差神经网络改正的超宽带定位模型研究[J]. 导航定位与授时, 2020, 7 (3): 93- 104.
	LIU P Y , WANG J , SHENG K P , et al. Research on UWB positioning model corrected by non-line-of-sight error neural network[J]. Navigation Positioning & Timing, 2020, 7 (3): 93- 104.
35	李得海, 吴文坛, 马会林, 等. 室内测距型基站组网定位性能分析[J]. 武汉大学学报(信息科学版), 2025, 50 (1): 1- 10.
	LI D H , WU W T , MA H L , et al. Positioning performance of the indoor networks of range-based reference stations[J]. Geomatics and Information Science of Wuhan University, 2025, 50 (1): 1- 10.
36	ZHANG X D, REN M R, WANG P, et al. A new zero velocity update algorithm for the shoe-mounted personal navigation system based on IMU[C]//Proc. of the 34th Chinese Control Conference, 2015.

检测器	零速数量/帧	终点误差/m
无	0	23.970
三阈值法	438	7.863
零速检测法	589	9.642
自适应零速区间搜索算法	657	4.851

检测器	零速数量/帧	终点误差/m
无	0	48 575
三阈值法	9 936	270.412
零速检测法	6 892	192.108
自适应零速区间搜索算法	14 860	100.606

检测器	相同零速数量/帧	匹配度/%
三阈值法	400	91.324
零速检测法	559	94.907

检测器	相同零速数量/帧	匹配度/%
三阈值法	9 936	90.58
零速检测法	6 892	94.31

样本	点位测量数据			BPNN预测
样本	真实距离/m	测量距离/m	更正前绝对误差/m	更正后测量距离/m	更正后绝对误差/m
A1	4.30	4.53	0.23	4.29	0.01
A2	5.30	5.52	0.22	5.28	0.02
A3	4.89	5.21	0.32	4.90	0.01
A4	3.50	3.68	0.18	3.53	0.03
A5	2.03	2.39	0.36	2.01	0.02
A6	2.11	2.50	0.39	2.12	0.01
A7	1.92	2.10	0.18	1.94	0.02
A8	4.05	4.28	0.23	4.08	0.03
A9	3.46	3.70	0.26	3.47	0.01
A10	2.59	2.86	0.27	2.62	0.03
