基于改进EMD-CIIT降噪算法的INS/5G组合导航方法

doi:10.12305/j.issn.1001-506X.2024.12.29

系统工程与电子技术 ›› 2024, Vol. 46 ›› Issue (12): 4203-4212.doi: 10.12305/j.issn.1001-506X.2024.12.29

• 制导、导航与控制 • 上一篇

基于改进EMD-CIIT降噪算法的INS/5G组合导航方法

赵云龙¹^,², 孙骞¹^,²^,*, 简鑫¹^,², 李一兵¹^,², 于飞³

1. 哈尔滨工程大学信息与通信工程学院, 黑龙江哈尔滨 150001
2. 哈尔滨工程大学先进船舶通信与信息技术重点实验室, 黑龙江哈尔滨 150001
3. 哈尔滨工程大学数学科学学院, 黑龙江哈尔滨 150001

收稿日期:2024-01-18 出版日期:2024-11-25 发布日期:2024-12-30
通讯作者: 孙骞
作者简介:赵云龙(2000—), 男, 硕士研究生, 主要研究方向为组合导航
孙骞(1988—), 男, 副教授, 博士, 主要研究方向为组合导航、通信导航一体化设计
简鑫(2001—), 男, 硕士研究生, 主要研究方向为多传感器融合
李一兵(1967—), 男, 教授, 博士, 主要研究方向为组合导航、多传感器融合、通信导航一体化设计
于飞(1974—), 男, 教授, 博士, 主要研究方向为组合导航
基金资助:
国家自然科学基金(52271311)

INS/5G integrated navigation method based on improved EMD-CIIT denoising algorithm

Yunlong ZHAO¹^,², Qian SUN¹^,²^,*, Xin JIAN¹^,², Yibing LI¹^,², Fe YU³

1. College of Information and Communication Engineering, Harbin Engineering University, Harbin 150001, China
2. Key Laboratory of Advanced Marine Communication and Information Technology, Harbin Engineering University, Harbin 150001, China
3. College of Mathematical Sciences, Harbin Engineering University, Harbin 150001, China

Received:2024-01-18 Online:2024-11-25 Published:2024-12-30
Contact: Qian SUN

摘要/Abstract

摘要：

以惯性导航系统(inertial navigation system, INS)/5G组合导航系统为研究对象, 首先, 针对低成本的惯性传感器信噪比(signal to noise ratio, SNR)较低进而影响组合导航精度的问题, 提出一种改进阈值的清除迭代经验模态分解间隔阈值(clear iterative empirical mode decomposition interval-thresholding, EMD-CIIT)算法, 有效提升惯性传感器的SNR, 以及提升组合导航系统的定位精度。然后, 针对同频5G机会信号的同频干扰、钟差、钟漂等因素导致伪距值异常的问题, 提出一种基于自适应卡尔曼滤波的紧组合导航算法, 利用基于马氏距离的5G伪距置信度方案, 实时调整观测协方差矩阵, 从而抑制伪距异常值对定位精度的影响, 进一步提高定位的可靠性。最后, 分别采用数值仿真与实验手段验证所提方案的有效性和优越性。

关键词: 5G机会信号定位, 经验模态分解, 自适应卡尔曼滤波, 紧组合

Abstract:

This paper focuses on the inertial navigation system (INS)/5G integrated navigation system. Firstly, an improved thresholding algorithm called clear iterative empirical mode decomposition interval-thresholding (EMD-CIIT) is proposed to effectively enhance the signal-to-noise ratio (SNR) of inertial sensors and thereby improve the positioning accuracy of the integrated navigation system, which addresses the issue of low SNR in low-cost inertial sensors that impacts the accuracy of integrated navigation systems. Additionally, to address the issues of co-frequency interference, clock bias, and clock drift in 5G opportunity signals that cause abnormal pseudo-range values, a tightly-integrated navigation algorithm based on adaptive Kalman filtering is proposed. The proposed algorithm utilizes a 5G pseudo-range confidence scheme based on Mahalanobis distance to adjust the observation covariance matrix in real time, which mitigates the impact of abnormal pseudo-range values on positioning accuracy and further enhances the reliability of positioning. Finally, the effectiveness and superiority of the proposed solution tests are validated through numerical simulation tests and experimental methods.

Key words: 5G opportunity signals positioning, empirical mode decomposition (EMD), adaptive Kalman filtering, tightly integration

中图分类号:

赵云龙, 孙骞, 简鑫, 李一兵, 于飞. 基于改进EMD-CIIT降噪算法的INS/5G组合导航方法[J]. 系统工程与电子技术, 2024, 46(12): 4203-4212.

Yunlong ZHAO, Qian SUN, Xin JIAN, Yibing LI, Fe YU. INS/5G integrated navigation method based on improved EMD-CIIT denoising algorithm[J]. Systems Engineering and Electronics, 2024, 46(12): 4203-4212.

图/表 18

图1

图2

图3

图4

图5

图6

图7

表1

表2

表3

图8

图9

图10

表4

图11

图12

图13

表5

参考文献 31

1	GUOX S,ANSARIN,LIL,et al.A hybrid positioning system for location-based services: design and implementation[J].IEEE Communications Magazine,2020,58(5):90-96. doi: 10.1109/MCOM.001.1900737
2	王巍,邢朝洋,冯文帅.自主导航技术发展现状与趋势[J].航空学报,2021,42(11):525049.
	WANGW,XINGZ Y,FENGW S.State of the art and perspectives of autonomous navigation technology[J].Acta Aeronautica et Astronautica Sinica,2021,42(11):525049.
3	刘涵,方胜良,范有臣,等.机会信号导航综述[J].兵器装备工程学报,2022,43(7):78-86, 158.
	LIUH,FANGS L,FANY C,et al.Review of navigation via signals of opportunity[J].Journal of Ordnance Equipment Engineering,2022,43(7):78-86, 158.
4	NEINAVAIEM,KHALIFEJ,KASSASZ M.Cognitive detection of unknown beacons of terrestrial signals of opportunity for localization[J].IEEE Trans.on Wireless Communications,2023,22(8):5613-5627. doi: 10.1109/TWC.2023.3235681
5	DWIVEDIS,SHREEVASTAVR,MUNIERF,et al.Positioning in 5G networks[J].IEEE Communications Magazine,2021,59(11):38-44. doi: 10.1109/MCOM.011.2100091
6	MOGYOROSIF,REVISNYEIP,PASICA,et al.Positioning in 5G and 6G networks—a survey[J].Sensors,2022,22(13):4757. doi: 10.3390/s22134757
7	WYMEERSCHH,SECO-GRANADOSG,DESTINOG,et al.5G mmWave positioning for vehicular networks[J].IEEE Wireless Communications,2017,24(6):80-86. doi: 10.1109/MWC.2017.1600374
8	BOCCARDIF,HEATHR W,LOZANOA,et al.Five disruptive technology directions for 5G[J].IEEE Communications Magazine,2014,52(2):74-80. doi: 10.1109/MCOM.2014.6736746
9	DAMJANCEVICS A,MATUSE,UTYANSKYD,et al.Channel estimation for advanced 5G/6G use cases on a vector digital signal processor[J].IEEE Open Journal of Circuits and Systems,2021,2,265-277. doi: 10.1109/OJCAS.2020.3047007
10	POHLMANN R, ZHANG S, DAMMANN A, et al. Manifold optimization based beamforming for DOA and DOD estimation with a single multi-mode antenna[C]//Proc. of the 28th European Signal Processing Conference, 2021: 1841-1845.
11	CAMAJORIT B,BRAMBILLAM,ITALIANOL,et al.A feasibility study of 5G positioning with current cellular network deployment[J].Scientific Reports,2023,13(1):15281. doi: 10.1038/s41598-023-42426-1
12	金天,姚钧天,刘波,等.基于5G移动通信参考信号的机会信号测距测向技术[J].无线电工程,2023,53(12):2834-2841.
	JINT,YAOJ T,LIUB,et al.Ranging and direction-finding technology of signal of opportunity based on reference signal of 5G mobile communication system[J].Radio Engineering,2023,53(12):2834-2841.
13	赵新平,李高飞,冀杰,等.基于自适应粒子群算法的煤矿井下高精度定位方法[J].电子设计工程,2023,31(8):25-31.
	ZHAOX P,LIG F,JIJ,et al.High-precision positioning method for underground coal mine based on adaptive PSO algorithm[J].Electronic Design Engineering,2023,31(8):25-31.
14	SHAMAEIK,KASSASZ M.Receiver design and time of arrival estimation for opportunistic localization with 5G signals[J].IEEE Trans.on Wireless Communications,2024,20(7):4716-4731.
15	CHENL,ZHOUX,CHENF F,et al.Carrier phase ranging for indoor positioning with 5G NR signals[J].IEEE Internet of Things Journal,2021,9(13):10908-10919.
16	LIW G,XUY Q,ZHANGC M,et al.Multi-frequency-ranging positioning algorithm for 5G OFDM communication systems[J].Chinese Journal of Electronics,2023,32(4):773-784. doi: 10.23919/cje.2021.00.124
17	KASSASZ,ABDALLAHA,ORABIM.Carpe signum: seize the signal-opportunistic navigation with 5G[J].Inside GNSS Magazine,2021,16(1):52-57.
18	NARAYANAN A, ZHANG X, ZHU R, et al. A variegated look at 5G in the wild: performance, power, and QoE implications[C]//Proc. of the ACM SIGCOMM Conference, 2021: 610-625.
19	ZHANGQ,NIUX J,SHIC.Impact assessment of various IMU error sources on the relative accuracy of the GNSS/INS systems[J].IEEE Sensors Journal,2020,20(9):5026-5038. doi: 10.1109/JSEN.2020.2966379
20	HUANGH C,CRESSIEN.Deterministic/stochastic wavelet decomposition for recovery of signal from noisy data[J].Technometrics,2000,42(3):262-276. doi: 10.1080/00401706.2000.10486047
21	HALIDOUA,MOHAMADOUY,ARIA A A,et al.Review of wavelet denoising algorithms[J].Multimedia Tools and Applications,2023,82(27):41539-41569. doi: 10.1007/s11042-023-15127-0
22	OSADCHIYA,KAMENEVA,SAHAROVV,et al.Signal processing algorithm based on discrete wavelet transform[J].Designs,2021,5(3):41. doi: 10.3390/designs5030041
23	KLIONSKIYD,KUPRIYANOVM,KAPLUND.Signal denoising based on empirical mode decomposition[J].Journal of Vibroengineering,2017,19(7):5560-5570. doi: 10.21595/jve.2017.19239
24	JENAB B,MISHRAL N,PAIKRAYS K,et al.Approximation of signals by general matrix summability with effects of Gibbs phenomenon[J].Boletim da Sociedade Paranaense de Matematica,2020,38(6):141-158.
25	CHENJ,LIX,MOHAMEDM A,et al.An adaptive matrix pencil algorithm based-wavelet soft-threshold denoising for analysis of low frequency oscillation in power systems[J].IEEE Access,2020,8,7244-7255. doi: 10.1109/ACCESS.2020.2963953
26	秦品乐,林焰,陈明.基于平移不变小波阈值算法的经验模态分解方法[J].仪器仪表学报,2008,29(12):2637-2641.
	QINP L,LINY,CHENM.Empirical mode decomposition method based on wavelet with translation invariance algorithm[J].Chinese Journal of Scientific Instrument,2008,29(12):2637-2641.
27	ASHRAFH,WARISA,GILANIS O,et al.Threshold parameters selection for empirical mode decomposition-based EMG signal denoising[J].Intelligent Automation and Soft Computing,2021,27(3):799-815. doi: 10.32604/iasc.2021.014765
28	ASHRAFH,SHAFIQU,SAJJADQ,et al.Variational mode decomposition for surface and intramuscular EMG signal denoising[J].Biomedical Signal Processing and Control,2023,82,104560. doi: 10.1016/j.bspc.2022.104560
29	KOPSINISY,MCLAUGHLINS.Development of EMD-based denoising methods inspired by wavelet thresholding[J].IEEE Trans.on Signal Processing,2009,57(4):1351-1362. doi: 10.1109/TSP.2009.2013885
30	NEZHADSHAHBODAGHIM,MOSAVIM R.A loosely-coupled EMD-denoised stereo VO/INS/GPS integration system in GNSS- denied environments[J].Measurement,2021,183,109895. doi: 10.1016/j.measurement.2021.109895
31	TANG G J, YAN X L, WANG X L. Chaotic signal denoising based on adaptive smoothing multiscale morphological filtering[EB/OL]. [2023-12-18]. https://onlinelibrary.wiley.com/doi/10.1155/2020/7242943.

5G基站	纬度	经度	高度/m	5G基站	纬度	经度	高度/m
gNB1	114°8′50.82″	22°17′6.94″	108.8	gNB11	114°8′49.63″	22°17′5.22″	20
gNB2	114°8′50.46″	22°17′6.43″	108.8	gNB12	114°8′49.58″	22°17′5.18″	20
gNB3	114°8′51.18″	22°17′6.76″	108.8	gNB13	114°8′49.74″	22° 17′5.04″	20
gNB4	114°8′52.3″	22°17′6.31″	108.8	gNB14	114°8′49.83″	22°17′5.02″	54
gNB5	114°8′52.32″	22°17′6.3″	68.0	gNB15	114°8′49.64″	22°17′5.43″	10
gNB6	114°8′52.45″	22°17′5.98″	68.0	gNB16	114°8′49.93″	22°17′5.76″	10
gNB7	114°8′52.91″	22°17′6.59″	20.0	gNB17	114°8′49.68″	22°17′6.29″	21
gNB8	114°8′49.98″	22°17′5.04″	41.0	gNB18	114°8′49.63″	22°17′6.68″	21
gNB9	114°8′51.58″	22°17′5.57″	20.0	gNB19	114°8′51.44″	22°17′5.96″	68
gNB10	114°8′49.92″	22°17′5.07″	20.0	gNB20	114°8′51.43″	22°17′5.31″	68

采样点	纬度	经度	高度/m
1	114°8′49.27″	22°17′2.65″	0
2	114°8′52.2″	22°17′6.27″	0
3	114°8′50.08″	22°17′4.86″	0
4	114°8′49.08″	22°17′5.64″	0
5	114°8′52.33″	22°17′3.74″	0
6	114°8′50.78″	22°17′5.35″	0
7	114°8′50.64″	22°17′ 4.38″	0

参数	数值
加速度计零偏/mg	1.0
陀螺仪零偏/(0°/h)	65
加速度计噪声/(m·s^-1·h^-0.5)	0.02
陀螺仪噪声/(°·h^-0.5)	0.15
加速度计随机游走/(m·s^-2·Hz^-0.5)	0.000 2
陀螺仪随机游走/(°·h^-0.5)	0.034 4

定位算法	RMSE	均值
改进卡尔曼滤波	1.95	1.66
卡尔曼滤波	2.05	1.73
5G伪距多边测距	7.04	5.64

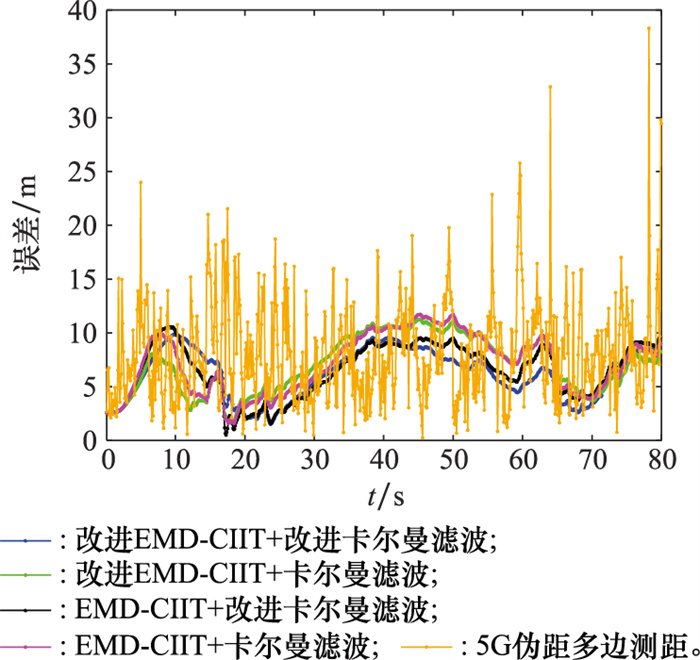

定位算法	RMSE	均值
改进EMD-CIIT+改进卡尔曼滤波	6.60	6.18
改进EMD-CIIT+传统卡尔曼滤波	7.46	7.00
传统EMD-CIIT+改进卡尔曼滤波	6.93	6.48
传统EMD-CIIT+传统卡尔曼滤波	7.64	7.14
5G伪距多边测距	9.31	8.09
