脉间捷变频SAR快速补偿频域成像处理算法

doi:10.12305/j.issn.1001-506X.2025.03.12

系统工程与电子技术 ›› 2025, Vol. 47 ›› Issue (3): 797-806.doi: 10.12305/j.issn.1001-506X.2025.03.12

• 传感器与信号处理 • 上一篇

脉间捷变频SAR快速补偿频域成像处理算法

陈世龙¹^,², 刘霖¹^,²^,*, 王晓蓓¹, 曾翰森¹^,², 刘亚波¹^,², 刘翔¹

1. 中国科学院空天信息创新研究院, 北京 100094
2. 中国科学院大学电子电气与通信工程学院, 北京 100049

收稿日期:2023-12-29 出版日期:2025-03-28 发布日期:2025-04-18
通讯作者: 刘霖
作者简介:陈世龙 (2000—), 男, 硕士研究生, 主要研究方向为抗有源欺骗干扰下的参数捷变波形设计及成像处理算法
刘霖 (1982—), 男, 副研究员, 硕士, 主要研究方向为星载成像雷达、星载情报雷达、星载SAR实时成像处理、SAR目标实时检测与识别
王晓蓓 (1991—), 女, 助理研究员, 硕士, 主要研究方向为相控阵雷达系统信号处理
曾翰森 (2001—), 男, 硕士研究生, 主要研究方向为相控阵雷达天线
刘亚波 (1984—), 男, 副研究员, 博士, 主要研究方向为微波成像理论、雷达目标识别
刘翔 (1979—), 男, 工程师, 主要研究方向为微流控芯片、系统可靠性
基金资助:
国家自然科学基金(61971026)

Fast compensation frequency-domain imaging processing algorithm for inter-pules frequency agility SAR

Shilong CHEN¹^,², Lin LIU¹^,²^,*, Xiaobei WANG¹, Hansen ZENG¹^,², Yabo LIU¹^,², Xiang LIU¹

1. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China
2. School of Electronic, Electrical and Communication Engineering, University of Chinese Academy of Sciences, Beijing 100049, China

Received:2023-12-29 Online:2025-03-28 Published:2025-04-18
Contact: Lin LIU

摘要/Abstract

摘要：

合成孔径雷达(synthetic aperture radar, SAR)脉间载频捷变技术通过随机改变每个脉冲信号的载频, 主动增加了雷达波形的复杂度和不确定性, 能够有效对抗有源欺骗干扰, 但脉间载频捷变会导致多普勒调频率捷变、方位向无法压缩等问题。对此, 提出一种快速补偿频域成像处理方案。考虑到脉间捷变频信号脉间相位历程变化、脉内线性调频的特性, 在距离向脉冲压缩后能避免相位随距离空变, 并通过对距离向主瓣精准补偿和旁瓣近似补偿, 实现在快速成像的同时, 抑制距离向旁瓣, 提升弱目标显示能力, 其计算量与传统固定波形SAR成像计算量相当。仿真数据处理得到了点目标、面目标在有源欺骗干扰下的成像结果, 验证了该方案的有效性及抗干扰性能。此外, 该处理方案下点目标的峰值旁瓣比和积分旁瓣比对比传统固定波形处理方案能分别有效提升12 dB和10 dB。

关键词: 合成孔径雷达, 抗干扰, 脉间捷变频信号, 频域成像, 有源欺骗干扰

Abstract:

Synthetic aperture radar (SAR) inter-pulse carrier frequency agility technology actively increases the complexity and uncertainty of radar waveforms by randomly varying the signal carrier frequency between pulses, effectively countering active deception interference. However, frequency agility between pulses can introduce Doppler frequency modulation agility, resulting in the inability to compress in the azimuth direction. To address this, a rapid compensation frequency-domain imaging processing approach is proposed. By considering the changes in phase history between pulses and the characteristics of intra-pulse linear frequency modulation, phase spatial variation with range after range pulse compression is avoided. It achieves rapid imaging while suppressing range sidelobes and enhancing the detection of weak targets by accurately compensating the main lobe and approximately compensating the sidelobes in the range direction. The computational complexity of this scheme is comparable to traditional fixed waveform SAR imaging. Simulation data processing demonstrates the effectiveness and anti-interference performance of this approach by obtaining imaging results for point and area targets under active deception interference. Furthermore, the proposed processing scheme effectively improves the peak sidelobe ratio and integrated sidelobe ratio of point targets by 12 dB and 10 dB, respectively, compared to traditional fixed waveform processing.

Key words: synthetic aperture radar (SAR), anti-interference, inter-pulse frequency agile signal, frequency-domain imaging, active deception interference

中图分类号:

TN974

陈世龙, 刘霖, 王晓蓓, 曾翰森, 刘亚波, 刘翔. 脉间捷变频SAR快速补偿频域成像处理算法[J]. 系统工程与电子技术, 2025, 47(3): 797-806.

Shilong CHEN, Lin LIU, Xiaobei WANG, Hansen ZENG, Yabo LIU, Xiang LIU. Fast compensation frequency-domain imaging processing algorithm for inter-pules frequency agility SAR[J]. Systems Engineering and Electronics, 2025, 47(3): 797-806.

图/表 20

图1

图2

图3

图4

图5

图6

图7

表1

图8

图9

表2

图10

表3

表4

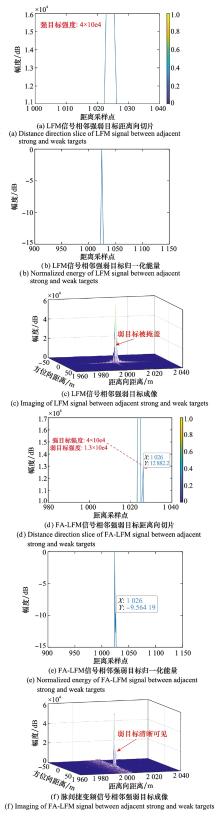

图11

图12

表5

图13

图14

图15

参考文献 33

1	黄岩, 赵博, 陶明亮, 等. 合成孔径雷达抗干扰技术综述[J]. 雷达学报, 2020, 9 (1): 86- 106.
	HUANG Y , ZHAO B , TAO M L , et al. A review of anti-jamming technology of synthetic aperture radar[J]. Radar Journal, 2020, 9 (1): 86- 106.
2	戴少奇. 合成孔径雷达有源欺骗式干扰关键技术研究[D]. 长沙: 国防科技大学, 2021.
	DAI S Q. Research on key technology of active deceptive jamming for synthetic aperture radar[D]. Changsha: National University of Defence Technology, 2021.
3	XU L, YU Y, WEI P T. Research on active jamming recognition in complex electromagnetic environment[C]//Proc. of the IEEE International Conference on Signal, Information and Data Processing, 2019.
4	LIN J J, FAN X L. Radar active jamming recognition based on recurrence plot and convolutional neural network[C]//Proc. of the IEEE 4th Advanced Information Management, Communicates, Electronic and Automation Control Conference, 2021: 1511-1515.
5	HAO W B, FENG X Y, JIANG X Y. Radar active jamming signal identification method based on time-frequency image features[C]// Proc. of the 2nd International Conference on Image Processing and Media Computing, 2023: 64-70.
6	WANG K T, DONG Z Y, WAN T, et al. Research on radar active deception jamming identification method based on RESNET and bispectrum features[C]//Proc. of the International Conference on Computer Engineering and Application, 2021: 491-495.
7	张顺生, 陈爽, 陈晓莹, 等. 面向小样本的多模态雷达有源欺骗干扰识别方法[J]. 雷达学报, 2023, 12 (4): 882- 891.
	ZHANG S S , CHEN S , CHEN X Y , et al. Small-sample oriented active spoofing interference identification method for multimodal radar[J]. Radar Journal, 2023, 12 (4): 882- 891.
8	赵荣琦, 张陆唯, 王湛. 基于时频域分析的雷达有源干扰识别方法及实现[J]. 舰船电子对抗, 2023, 46 (5): 30- 36.
	ZHAO R Q , ZHANG L W , WANG Z . Identification method and implementation of radar active interference based on time-frequency domain analysis[J]. Ship Electronic Countermeasures, 2023, 46 (5): 30- 36.
9	王宇. 抗有源欺骗干扰波形设计与信号相参处理方法[D]. 西安: 西安电子科技大学, 2022.
	WANG Y. Anti-active spoofing interference waveform design and signal phase reference processing method[D]. Xi'an: Xidian University, 2022.
10	田思雨. 雷达抗干扰波形设计方法研究[D]. 西安: 西安电子科技大学, 2022.
	TIAN S Y. Research on radar anti-jamming waveform design method[D]. Xi'an: Xidian University, 2022.
11	ZHENG Z X , LI W , ZOU K . Airborne radar anti-jamming waveform design based on deep reinforcement learning[J]. Sensors, 2022, 22 (22): 8689. doi: 10.3390/s22228689
12	LI K , JIU B , WANG P H , et al. Radar active antagonism through deep reinforcement learning: a way to address the challenge of mainlobe jamming[J]. Signal Processing, 2021, 186, 108130. doi: 10.1016/j.sigpro.2021.108130
13	蒋思源, 吕幼新. 基于调频率捷变的抗移频干扰SAR成像方法[J]. 雷达科学与技术, 2015, 13 (6): 622- 626. doi: 10.3969/j.issn.1672-2337.2015.06.011
	JIANG S Y , LYU Y X . Anti-shift interference SAR imaging method based on tuning frequency shortcut[J]. Radar Science and Technology, 2015, 13 (6): 622- 626. doi: 10.3969/j.issn.1672-2337.2015.06.011
14	CHANG W S , TAO H H , HU X C , et al. Research on UAV noisy SAR regime with randomly varying PRF and pulse width[J]. Modern Radar, 2020, 42 (6): 7-14, 29.
15	YANG B Y, LI K, JIU B, et al. An intelligent jamming strategy design method against frequency agility radar[C]//Proc. of the IEEE International Radar Conference, 2023.
16	SHAN S W , ZHENG L , RONG X , et al. Reinforcement learning for compressed-sensing based frequency agile radar in the presence of active interference[J]. Remote Sensing, 2022, 14 (4): 968- 968. doi: 10.3390/rs14040968
17	AXEISSON J . Analysis of random step frequency radar and comparison with experiments[J]. IEEE Trans. on Geoscience and Remote Sensing, 2007, 45 (4): 890- 904. doi: 10.1109/TGRS.2006.888865
18	刘天鹏, 刘振, 魏玺章. 基于压缩感知的脉间捷变频SAR成像研究[J]. 电子学报, 2012, 40 (6): 1073- 1078.
	LIU T P , LIU Z , WEI X Z . Research on intervein jitter frequency SAR imaging based on compressed sensing[J]. Journal of Electronics, 2012, 40 (6): 1073- 1078.
19	冯韵岚. 基于压缩感知技术的ISAR成像方法研究[D]. 西安: 西安电子科技大学, 2022.
	FENG Y L. Research on ISAR imaging method based on compressed perception technology[D]. Xi'an: Xidian University, 2022.
20	ZHENG Y , ZHU D Y , NIU S L , et al. Studies on high-resolution airborne synthetic aperture radar image formation with pseudo-random agility of interpulse waveform parameters[J]. Remote Sensing, 2024, 16 (1): 164.
21	SU M Y S , FANG C J . Analysis of synthetic aperture radar imaging and signal processing[J]. Advanced Materials Research, 2012, 433-440, 2004- 2010. doi: 10.4028/www.scientific.net/AMR.433-440.2004
22	ZHOU K , LI D , HE F H , et al. A sparse imaging method for frequency agile SAR[J]. IEEE Trans. on Geoscience and Remote Sensing, 2022, 60, 5223616.
23	HUANG T Y , LIU Y M , XU X Y , et al. Analysis of frequency agile radar via compressed sensing[J]. IEEE Trans. on Signal Processing, 2018, 66 (23): 6228- 6240. doi: 10.1109/TSP.2018.2876301
24	XI Y H , WEI A O , SONG Q , et al. FUSAR-ship: building a high-resolution SAR-AIS matchup dataset of Gaofen-3 for ship detection and recognition[J]. SCIENCE CHINA Information Sciences, 2020, 63 (4): 40- 58. doi: 10.1007/s11432-019-2772-5
25	XIA R F , CHEN J , HUANG Z X , et al. TransSar: a visual transformer based on contextual joint representation learning for sar ship detection[J]. Remote Sensing, 2022, 14 (6): 1488- 1488. doi: 10.3390/rs14061488
26	YANG W H, CHEN Y G. The waveform agile FJB signal for SAR and GMTI[C]//Proc. of the International Conference on Wireless Communication and Sensor Network, 2014: 110-113.
27	LI D, BABAKHANI A. A 4. 3 to 5. 7 GHz frequency-agile receiver for rapidly-changing channels[C]//Proc. of the IEEE 60th International Midwest Symposium on Circuits and Systems, 2017: 1458-1460.
28	ISKER H , OZDER C . Adaptation of stepped frequency continuous waveform to range-Doppler algorithm for SAR signal processing[J]. Digital Signal Processing, 2020, 106, 102826. doi: 10.1016/j.dsp.2020.102826
29	LIU Z X , QUAN Y H , DU S Y , et al. A novel ECCM scheme against interrupted-sampling repeater jamming using intra-pulse dual-parameter agile waveform[J]. Digital Signal Processing, 2022, 129, 103652. doi: 10.1016/j.dsp.2022.103652
30	YING X C , YING L , CHENG W . DRFM-based jamming signal recognition method guided by target detection[J]. Procedia Computer Science, 2023, 221, 1013- 1020. doi: 10.1016/j.procs.2023.08.082
31	ZENG Z , TIAN H , ZHAO T , et al. A two-dimensional mixed baseline method for countering deceptive jamming based on multi-channel SAR[J]. Procedia Computer Science, 2021, 187, 383- 389. doi: 10.1016/j.procs.2021.04.076
32	CHENG G J, FU X J, MA S S, et al. Anti-jamming technology of dense co-frequency synchronous range false targets[C]//Proc. of the CIE International Conference on Radar, 2016.
33	LIU Y, LI T, GU Z J. Research on SAR active deception jamming scenario generation technique[C]//Proc. of the 5th International Conference on Instrumentation and Measurement, Computer, Communication and Control, 2015: 152-156.

参数	值	参数	值
信号载频f_c/GHz	5.4	平台高度H/m	2 000
捷变带宽Δf/MHz	200	移动速度V/(m/s)	100
信号脉宽T_p/μs	4	天线长度D/m	1.2
带宽B_W/MHz	200	重复频率PRF/Hz	1 000
入射角R_a/(°)	45	斜视角S_a/(°)	0
方位采样点	1 024	距离采样点	2 048

算法及捷变范围	峰值旁瓣比	积分旁瓣比
RD-0 MHz	-12.78	-9.77
BP-0 MHz	-13.94	-10.77
RD-200 MHz	-25.86	-21.90
BP-200 MHz	-15.36	-16.28

算法及捷变范围	峰值旁瓣比	积分旁瓣比
RD-0 MHz	-13.58	-10.24
BP-0 MHz	-15.08	-11.40
RD-200 MHz	-13.57	-9.52
BP-200 MHz	-14.88	-5.22

捷变频调频范围/MHz	峰值旁瓣比		积分旁瓣比
捷变频调频范围/MHz	距离向	方位向	距离向	方位向
20	-13.04	-13.61	-11.19	-10.35
300	-20.54	-14.50	-15.38	-9.32
400	-15.21	-16.07	-10.29	-8.59
600	-15.21	-15.60	-10.40	-8.36
800	-16.61	-13.95	-10.88	-7.50

算法	二阶熵/dB			平均用时/s
算法	船舶	飞机	码头	平均用时/s
LFM_(RD)	7.020 7	6.323 8	9.540 4	2.35
FA-LFM_(RD)	6.974 1	6.037 6	9.509 2	2.59
FA-LFM_(BP)	6.598 0	5.727 5	9.214 2 dB	51.91
