基于指标函数的舰载机机队回收调度优化研究

doi:10.12305/j.issn.1001-506X.2021.10.27

Abstract

Abstract:

Due to the random occurrence of factors such as go-around escape and flight failure, the traditional static scheduling method is difficult to effectively solve the dynamic random scheduling problem. Aiming at this problem, the real-time scheduling algorithm of the Monte Carlo simulation and differential evolution search based on an index function to complete aircraft priority evaluation is propased. In the offline simulated recovery environment, the optimal index function coefficients are searching by the algorithm based on the stochastic model, by which the real-time evaluation-sorting of the fleet landing priority is achieved, and then generates dynamic scheduling plan online.The simulation results showed the algorithm could effectively solve the problem. In same initial input of the fleet, the expectation of target value presenting good statistical characteristics could converge to a certain range quickly, and the target value of the landing time window was significantly normal without a missed approach; the distribution of the optimal values of the index coefficients among different recovery fleet inputs was small, which indicated that the index function evaluating priority had good generality and effectiveness; the simulated recovery dispatch experiment showed that the increase in the success rate of landing would significantly reduce the number of missed approach and improve recovery efficiency.

Key words: carrier-based aircraft, recovery scheduling, index function, Monte Carlo simulation, differential evolution

CLC Number:

U469.72

Bing WAN, Wei HAN, Yong LIANG, Xichao SU. Research on optimization of carrier-based aircraft fleetrecovery scheduling based on index function[J]. Systems Engineering and Electronics, 2021, 43(10): 2918-2930.

Figures/Tables 15

Fig.1

Fig.2

Fig.3

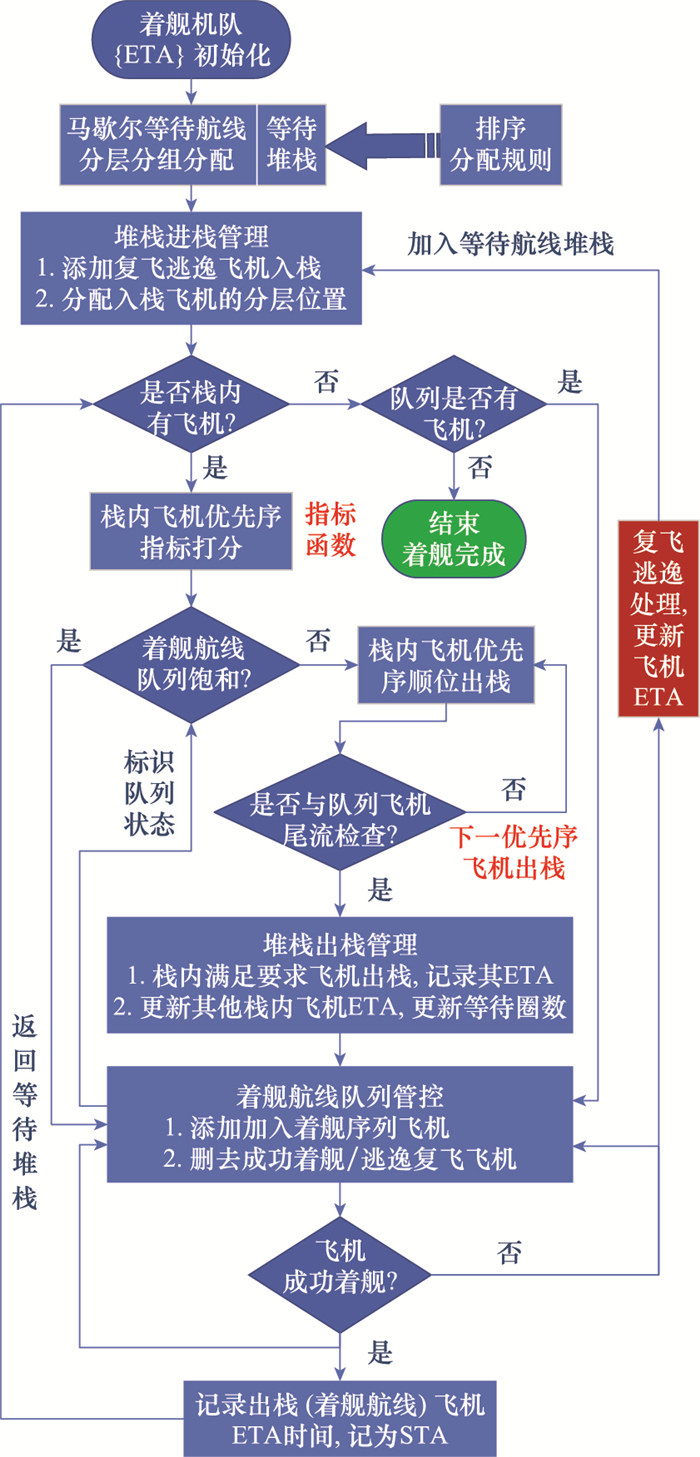

Fig.4

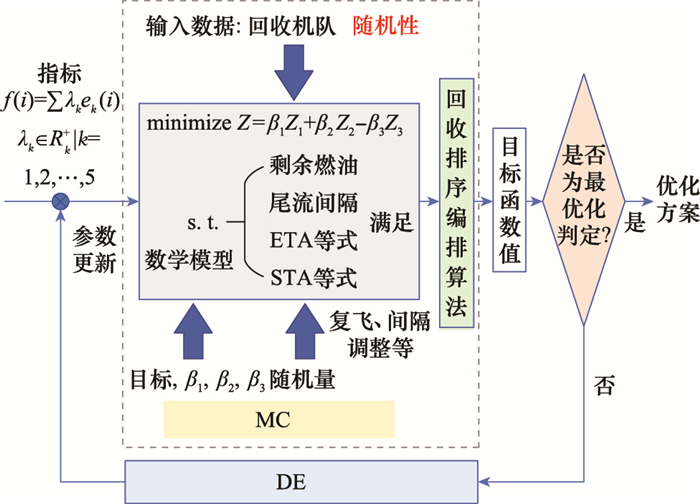

Fig.5

Table 1

Fig.6

Fig.7

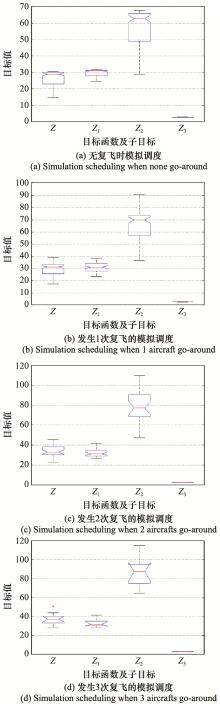

Fig.8

Table 2

Table 3

Table 4

Fig.9

Fig.10

Fig.11

References 39

1	姜龙光. 国外航母航空保障系统[M]. 北京: 国防工业出版社, 2016.
	JIANG L G . Foreign aircraft carrier aviation support system[M]. Beijing: National Defense Industry Press, 2016.
2	DASTIDAR R G, FRAZZOLI E. A queueing network based approach to distributed aircraft carrier deck scheduling[C]//Proc. of the AIAA Infotech at Aerospace Conference, 2011.
3	RYAN J C. Evaluating safety protocols for manned unmanned environments through agent based simulation[D]. Massachusetts: Massachusetts Institute of Technology, 2014.
4	RYAN J C , BANERJEE A G , CUMMINGS M L , et al. Comparing the performance of expert user heuristics and an integer linear program in aircraft carrier deck operations[J]. IEEE Trans.on Cybernetics, 2014, 44 (6): 761- 773. doi: 10.1109/TCYB.2013.2271694
5	RYAN J C , CUMMINGS M L . A systems analysis of the introduction of unmanned aircraft into aircraft carrier operations[J]. IEEE Trans.on Hum-Mach Systems, 2016, 46 (2): 209- 220. doi: 10.1109/THMS.2014.2376355
6	刘翱, 刘克. 舰载机保障作业调度问题研究进展[J]. 系统工程理论与实践, 2017, 37 (1): 49- 60.
	LIU A , LIU K . Advances in carrier-based aircraft deck operation scheduling[J]. Systems Engineering Theory & Practice, 2017, 37 (1): 49- 60.
7	WANG X W , LIU J . A review on carrier aircraft dispatch path planning and control on deck[J]. Chinese Journal of Aeronautics, 2020, 33 (12): 3039- 3057. doi: 10.1016/j.cja.2020.06.020
8	苏析超, 韩维, 萧卫, 等. 基于Memetic算法的舰载机舰面一站式保障调度[J]. 系统工程与电子技术, 2016, 38 (10): 2303- 2309. doi: 10.3969/j.issn.1001-506X.2016.10.12
	SU X C , HAN W , XIAO W , et al. Pit-stop support scheduling on deck of carrier plane based on Memetic algorithm[J]. Systems Engineering and Electronics, 2016, 38 (10): 2303- 2309. doi: 10.3969/j.issn.1001-506X.2016.10.12
9	CAO Y , RATHINAM S , SUN D F . Greedy-heuristic-aided mixed-integer linear programming approach for arrival scheduling[J]. Journal of Aerospace Information Systems, 2013, 10 (7): 323- 336. doi: 10.2514/1.I010030
10	ZHANG J F , ZHAO P . A new metaheuristic approach for aircraft landing problem[J]. Transactions of Nanjing University of Aeronautics and Astronautics, 2020, 37 (2): 197- 208.
11	ZHANG J F , ZHAO P , ZHANG Y , et al. Criteria selection and multi-objective optimization of aircraft landing problem[J]. Journal of Air Transport Management, 2020, 82, 101734. doi: 10.1016/j.jairtraman.2019.101734
12	ZHANG J F , ZHENG Z , GE T . Sequencing approach of arrival aircrafts based on composite dispatching rules[J]. Journal of Traffic and Transportation Engineering, 2017, 17 (3): 141- 150.
13	刘洪, 杨红雨, 刘宇, 等. 基于单一移动平台的飞机进近排序模型研究[J]. 四川大学学报, 2014, 51 (6): 1149- 1155. doi: 10.3969/j.issn.0490-6756.2014.06.009
	LIU H , YANG H Y , LIU Y , et al. Study of approach aircraft sequencing model based on single mobile landing platform[J]. Journal of Sichuan University, 2014, 51 (6): 1149- 1155. doi: 10.3969/j.issn.0490-6756.2014.06.009
14	WU Y , SUN L G , QU X J . A sequencing model for a team of aircraft landing on the carrier[J]. Aerospace Science and Technology, 2016, 54, 72- 87. doi: 10.1016/j.ast.2016.04.007
15	CUI J P, WU Y, SU X C, et al. A task allocation model for a team of aircraft launching on the carrier[J]. Mathematical Problems in Engineering, 2018(2018): 7920806/2018/7920806.
16	KWASIBORSKA A . Sequencing landing aircraft process to minimize schedule length[J]. Transportation Research Procedia, 2017, 28, 111- 116. doi: 10.1016/j.trpro.2017.12.175
17	SHI W , JIANG S , LIANG X , et al. A heuristic algorithm for solving the aircraft landing scheduling problem with a landing sequence division[J]. IEICE Trans.on Fundamentals of Electronics, Communications and Computer Sciences, 2019, E102.A (8): 966- 973. doi: 10.1587/transfun.E102.A.966
18	LIEDER A , BRISKORN D , STOLLETZ R . A dynamic programming approach for the aircraft landing problem with aircraft classes[J]. European Journal of Operational Research, 2015, 243 (1): 61- 69. doi: 10.1016/j.ejor.2014.11.027
19	GHONIEM A , FARHADI F . A column generation approach for aircraft sequencing problems: a computational study[J]. Journal of the Operational Research Society, 2015, 66 (10): 1717- 1729. doi: 10.1057/jors.2014.131
20	SU X C , HAN W . A proactive robust scheduling method for aircraft carrier flight deck operations with stochastic durations[J]. Complexity, 2018, (2018): 6932985.
21	刘继新, 江灏, 董欣放, 等. 基于空中交通密度的进场航班动态协同排序方法[J]. 航空学报, 2020, 41 (7): 323717.
	LIU J X , JIANG H , DONG X F , et al. Dynamic collaborative sequencing method for arrival flights based on air traffic density[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41 (7): 323717.
22	BENNELL J A , MESGARPOUR M , POTTS C N . Dynamic scheduling of aircraft landings[J]. European Journal of Operational Research, 2017, 258 (1): 315- 327. doi: 10.1016/j.ejor.2016.08.015
23	FURINI F , KIDD M P , PERSIANI C A , et al. Improved rolling horizon approaches to the aircraft sequencing problem[J]. Journal of Scheduling, 2015, 18, 435- 447. doi: 10.1007/s10951-014-0415-8
24	ERDOGAN S A , DENTON B . Dynamic appointment scheduling of a stochastic server with uncertain demand[J]. Journal on Computing, 2013, 25 (1): 116- 132.
25	CASTAING J. Scheduling under uncertainty: applications to aviation, healthcare and aerospace[D]. Michigan: University of Michigan, 2017.
26	ERDOGAN S A , GOSE A , DENTON B . On-line appointment sequencing and scheduling[J]. IIE Transactions, 2015, 47, 1267- 1286. doi: 10.1080/0740817X.2015.1011355
27	STORN R . Designing nonstandard filters with differential evolution[J]. IEEE Signal Processing Magazine, 2005, 22 (1): 103- 106. doi: 10.1109/MSP.2005.1407721
28	LI Y Z , WANG S H . Differential evolution algorithm with elite archive and mutation strategies collaboration[J]. Artificial Intelligence Review, 2020, 53 (3): 4005- 4050. doi: 10.1007/s10462-019-09786-5
29	CARLO M D , VASILE M , MINISCI E . Adaptive multi-population inflationary differential evolution[J]. Soft Computing, 2020, 24 (6): 3861- 3891.
30	甄子洋, 王新华, 江驹, 等. 舰载机自动着舰引导与控制研究进展[J]. 航空学报, 2017, 38 (2): 020435.
	ZHEN Z Y , WANG X H , JIANG J , et al. Research progress in guidance and control of automatic carrier landing of carrier-based aircraft[J]. Acta Aeronautica et Astronautica Sinica, 2017, 38 (2): 020435.
31	PINEDO M L . Scheduling theory, algorithms, and systems[M]. 5th ed. Heidelberg/New York: Springer Science & Business Media, 2016.
32	CCAR-93-R5. 民用航空空中交通管理规则[S]. 北京: 中国民用航空局, 2018.
39	CCAR-93-R5. Civil aviation air traffic management rules[S]. Beijing: Civil Aviation Administration of China, 2018.

飞机编号	ETA₀/min(相对t₀)	Oil₀-预计最终剩余油量
1	18.36	0.31
2	24.48	0.30
3	37.67	0.13
4	40.86	0.14
5	21.70	0.31
6	19.82	0.28
7	20.95	0.22
8	26.50	0.20
9	18.44	0.25
10	23.23	0.28
11	18.38	0.30
12	38.86	0.15
13	30.59	0.20
14	20.04	0.24

状态	频次		目标均值
状态	次数	占比	总目标	时间窗/mm	总等待/mm	总余油/%
无复飞情况	68	0.23	26.30	29.56	57.00	2.79
1次复飞	91	0.30	29.73	30.81	65.94	2.73
2次复飞	86	0.28	35.25	33.15	79.83	2.64
3次复飞	34	0.11	37.01	32.80	85.99	2.59
4次复飞	14	0.05	42.56	33.47	102.65	2.48
5次复飞	5	0.02	51.42	38.94	122.18	2.35
6次复飞	2	0.01	50.11	34.21	125.54	2.33

参数	无复飞	1架飞机复飞	2架飞机复飞	3架飞机复飞
总目标Z	16.08	26.49	29.27	37.55
Z₁	24.55	27.96	35.28	33.47
Z₂	32.35	60.14	57.35	86.67
Z₃	2.98	2.79	2.82	2.61
着舰顺序(含复飞)	-	1-9-7-11-6-5-9-2-10-14-8-3-12-13-4	1-9-7-11-14-2-10-6-5-8-2-3-13-12-4-4	1-9-7-11-14-1-10-6-5-2-8-5-12-3-13-4-13
成功着舰顺序	1-9-7-11-14-2-8-6-10-5-13-3-12-4	1-7-11-6-5-9-2-10-14-8-3-12-13-4	1-9-7-11-14-10-6-5-8-2-3-13-12-4	9-7-11-14-1-10-6-2-8-5-12-3-4-13
盘旋圈数	0-0-0-1-1-0-0-2-2-3-1-0-0-1	0-0-1-1-1-1-1-2-3-2-0-0-4-2	0-0-0-1-1-1-2-2-1-1-0-3-1-3	0-0-1-1-1-1-2-2-2-3-0-2-3-6
复飞飞机	-	9	2、4	1、2、13
复飞次数	-	1	2	3
总盘旋圈数	11	18	16	24

状态	频次		目标均值
状态	次数	占比	总目标	时间窗/min	总等待/min	总余油
无复飞情况	155	0.52	25.95	29.43	56.09	2.79%
1次复飞	99	0.33	29.72	30.55	66.33	2.73%
2次复飞	32	0.11	33.91	31.56	78.09	2.65%
3次复飞	11	0.04	37.52	33.11	87.13	2.59%
4次复飞	2	0.01	39.41	36.11	88.37	2.58%
