基于Petri网的导航卫星星座备份策略分析评估方法

doi:10.12305/j.issn.1001-506X.2021.02.18

Abstract

Abstract:

Aiming at the backup strategy of the medium orbit earth Walker navigation constellation of BDS-3, an analysis and evaluation method based on stochastic time Petri net (STPN) is proposed. By building a three layers STPN model of satellite, orbital plane and navigation constellation, the logical behavior characteristics of constellation operation and the timing relationship of operation event under different backup strategies are analyzed. The availability model and operation cost model of the navigation constellation are established as the evaluation index of the backup strategy of the navigation constellation. Finally, the Monte Carlo method is used to evaluate the accuracy of the proposed analysis model, and the optimal backup strategy of the constellation under different conditions is obtained based on the minimum cost under the availability. The results show that the method can effectively analyze the influence of the different backup strategies on constellation operation parameters, and provide quantitative bais for the design and optimization of the navigation constellation backup strategy.

Key words: Walker navigation constellation, Petri net, backup strategy, availability, operation cost, Monte Carlo simulation

CLC Number:

Xuyu WANG, Min HU, Xueyang ZHANG, Yulong ZHAO, Jiuyang LI. Analysis and evaluation method of navigation satellite constellation backup strategy based on Petri net[J]. Systems Engineering and Electronics, 2021, 43(2): 434-442.

Figures/Tables 16

Fig.1

Table 1

Fig.2

Table 2

Fig.3

Table 3

Table 4

Table 5

Fig.4

Table 6

Fig.5

Fig.6

Fig.7

Table 7

Fig.8

Table 8

References 30

1	王许煜, 胡敏, 赵玉龙, 等. 星座备份策略研究进展[J]. 中国空间科学技术, 2020, 40 (3): 43- 55.
	WANG X Y , HU M , ZHAO Y L , et al. Research progress of constellation backup strategy[J]. Chinese Space Science and Technology, 2020, 40 (3): 43- 55.
2	刘家兴,崔小准,董海青,等.一种导航星座卫星备份方法: 201110337755.7[P]. 2012-07-04.
	LIU J X, CUI X Z, DONG H Q, et al. A kind of navigation constellation satellite spare method: 201110337755.7[P]. 2012-07-04.
3	刘广军, 沈怀荣. 星座设计中的卫星备份策略与置信度研究[J]. 装备指挥技术学院学报, 2005, 16 (1): 67- 70. doi: 10.3783/j.issn.1673-0127.2005.01.016
	LIU G J , SHEN H R . Research on spare satellites strategy and confidence for the constellation design[J]. Journal of the Academy of Equipment Command & Technology, 2005, 16 (1): 67- 70. doi: 10.3783/j.issn.1673-0127.2005.01.016
4	LANG T J , ADAMS W S . A comparison of satellite constellations for continuous global coverage[M]. Darmstadt: Springer, 1998: 51- 62.
5	LANSARD E , PALMADE J L . Satellite constellation design: Searching for global cost-efficiency trade-offs[M]. Darmstadt: Springer, 1998: 23- 31.
6	PALMADE J L , FRAYSSINHES E , MARTINOT V , et al. The SkyBridge constellation design[M]. Darmstadt: Springer, 1998: 133- 140.
7	CORNARA S, BEECH T, BELLÓ-MORA M, et al. Satellite constellation launch, deployment, replacement and end-of-life strategies[C]//Proc.of the 13th Annual AIAA/USU Conference on Small Satellites, 1999.
8	EREAU J F, SALEMAN M. Modeling and simulation of a satellite constellation based on Petri nets[C]//Proc.of the International Symposium on Reliability and Maintainability Symposium, 1996: 66-72.
9	SALGADO G, ABBONDANZA S, BLONDEL R, et al. Constellation availability concepts for Galileo[C]//Proc.of the National Technical Meeting of the Institute of Navigation, 2001: 778-786.
10	胡敏, 宋旭民, 杨雪榕. 基于Petri网的Walker导航星座备份策略研究[J]. 航天器工程, 2017, 26 (2): 14- 21.
	HU M , SONG X M , YANG X R . Research on spare strategy of walker navigation constellation based on Petri net[J]. Spacecraft Engineering, 2017, 26 (2): 14- 21.
11	SUMTERB R. Optimal replacement policies for satellite constellations[R]. Air Force Institute of Technology, Wright-Patterson Air Force Base, 2003.
12	KELLEY C , DESSOUKY M . Minimizing the cost of availability of coverage from a constellation of satellites: evaluation of optimization methods[J]. Systems Engineering, 2004, 7 (2): 113- 122. doi: 10.1002/sys.10059
13	赵海涛.某星座可靠性与备份策略分析[C]//中国宇航学会飞行器总体专业委员会2004年学术研讨会论文集, 2004: 80-87.
	ZHAO H T. Analysis of reliability and redundancy strategy for one constellation[C]//Proc.of the Symposium Proceedings, Professional Committee of Spacecraft System Engineering, Chinese Society of Astronautics, 2004: 80-87.
14	项军华, 张育林. 基于卫星可靠度和MTTR星座空间备份策略设计[J]. 系统工程与电子技术, 2007, 29 (9): 1576- 1580. doi: 10.3321/j.issn:1001-506x.2007.09.042
	XIANG J H , ZHANG Y L . Design of spatial backup strategy for constellation based on satellite reliability and MTTR[J]. Systems Engineering and Electronics, 2007, 29 (9): 1576- 1580. doi: 10.3321/j.issn:1001-506x.2007.09.042
15	LI H S, ZHENG H, WANG W, et al. Research on spare satellites strategy of navigation constellation based on system availability[C]//Proc.of the 4th China Satellite Navigation Conference, 2013: 293-304.
16	JAKOB P C M , SHIMIZU S , YOSHIKAWA S , et al. Optimal satellite constellation spare strategy using multi-echelon inventory control[J]. Journal of Spacecraft and Rockets, 2019, 56 (5): 1449- 1461. doi: 10.2514/1.A34387
17	卢光松, 葛运建. 随机时间Petri网综述[J]. 计算机科学, 2005, 32 (3): 26- 30.
	LU G S , GE Y J . Overview of stochastic timed Petri nets[J]. Computer Science, 2005, 32 (3): 26- 30.
18	VAHIDIPOUR S M , MEYBODI M R , ESNAASHARI M . Cellular adaptive Petri net based on learning automata and its application to the vertex coloring problem[J]. Discrete Event Dynamic Systems, 2017, 27 (4): 609- 640.
19	ZUBEREK W M . Timed Petri nets definitions, properties, and applications[J]. Microelectronics and Reliability, 1991, 31 (4): 627- 644.
20	ZHOU J N , WANG J C , WANG J . A simulation engine for stochastic timed Petri nets and application to emergency healthcare systems[J]. IEEE/CAA Journal of Automatica Sinica, 2019, 6 (4): 969- 980.
21	HELOUET L, KECIR K. Realizability of schedules by stochastic time Petri nets with blocking semantics[C]//Proc.of the International Conference on Applications and Theory of Petri Nets and Concurrency, 2017: 71-102.
22	ZHANG H , MENG D B , ZONG Y Y , et al. A modeling and analysis strategy of constellation availability using on-orbit and ground added launch backup and its application in the reliability design for a remote sensing satellite[J]. Advances in Mechanical Engineering, 2018, 10 (4): 1- 6.
23	YANG Z P, GOU Y J, ZHU Y H, et al. Availability modeling and simulation of satellite navigation system based on integration of PDOP and reliability maintainability supportability[C]//Proc.of the China Satellite Navigation Conference, 2018: 241-256.
24	侯洪涛, 谢菲, 张旺勋, 等. 基于Markov过程的导航系统星座可用性分析[J]. 系统工程与电子技术, 2014, 36 (4): 685- 690.
	HOU H T , XIE F , ZHANG W X , et al. Availability analysis for constellation of GNSS based on Markov process[J]. Systems Engineering and Electronics, 2014, 36 (4): 685- 690.
25	MENG Q , LIU J Y , ZENG Q H , et al. Impact of one satellite outage on ARAIM depleted constellation configurations[J]. Chinese Journal of Aeronautics, 2019, 32 (4): 967- 977.
26	WANG E S , HU Z M , QU P P , et al. Evaluation algorithm based on Markov process for GPS per-slot and constellation availability[J]. Journal of Aeronautics, Astronautics and Aviation, 2017, 49 (2): 139- 148.
27	KAPLAN E D , HEGARTY C . Understanding GPS: principles and applications[M]. Boston: Artech House, 2005.
28	中国卫星导航系统管理办公室.北斗卫星导航系统公开服务性能规范(2.0版)[EB/OL].[2020-04-01]. http://www.beidou.gov.cn/xt/gfxz/201812/P020181227529210661088.pdf.
	China Satellite Navigation Office. BeiDou navigation satellite system open service performance criterion (version 2.0)[EB/OL].[2020-04-01]. http://www.beidou.gov.cn/xt/gfxz/201812/P020181227529210661088.pdf.
29	陈志鹏,胡彩波,刘昌洁,等.基于系统服务性能提升的北斗卫星备份星轨位方案分析[C]//第七届中国卫星导航学术年会论文集, 2016: 69-77.
	CHEN Z P, HU C B, LIU C J, et al. Analysis of BDS backup satellite orbit plan based on system service performance enhancement[C]//Proc.of the 7th China Satellite Navigation Conference, 2016: 69-77.
30	杨卓鹏, 郑恒, 角淑媛, 等. 一种导航卫星的系统效能建模与分析方法[J]. 宇航学报, 2017, 38 (6): 647- 654.
	YANG Z P , ZHENG H , JIAO S Y , et al. A system effectiveness modeling and analysis method of single navigation satellite[J]. Journal of Astronautics, 2017, 38 (6): 647- 654.

库所	含义	变迁	含义
P112	正常运行	T112	故障触发
P113	长期故障触发	T113	发生长期故障
P114	维护故障触发	T114	发生短期故障
P115	短期故障触发	T115	发生维护故障
P116	短期故障	T116	维护故障修复
P117	维护故障	T117	短期故障修复
P118	长期故障	-	-

库所	含义	变迁	含义
P10	备份卫星等待替换	T11、T12、T13、T14、T15、T16、T17、T18	选择故障卫星
P11、P12、P13、P14、P15、P16、P17、P18	决定替换故障卫星	T111、T121、T131、T141、T151、T161、T171、T181	替换故障卫星
P19	备份卫星入轨	T118、T128、T138、T148、T158、T168、T178、T188	发出替换需求
P101	替换需求总数	T19	获取备份卫星
P102	替换指令	T101	收到替换指令
P103	发射需求总数	T103	发出发射需求
P104	发射需求	T104	备份卫星在轨测试
P105	在轨备份卫星完成测试	-	-

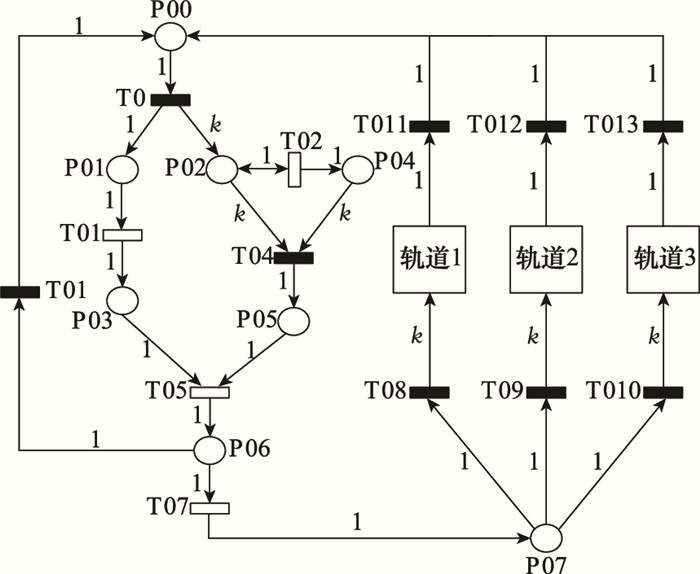

库所	含义	变迁	含义
P00	发射需求总数	T0	收到发射指令
P01	运载火箭生产指令	T01	生产运载火箭
P02	卫星生产指令	T02	生产卫星
P03	运载火箭完成生产	T04	获取卫星
P04	地面库存	T05	总装测试
P05	卫星等待发射	T06	重新发出发射需求
P06	完成总装测试	T07	发射卫星
P07	卫星发射成功	T011、T012、T013	获取发射需求
-	-	T08、T09、T010	选择轨道面

取值	星座状态
取值	P1	P2	P3	P4
最大值	100	100	99.98	99.73
最小值	100	100	99.30	96.01

参数	取值/年
尺度参数	33.80
形状参数	1.46
均值	10.60
标准差	1.10

Analysis and evaluation method of navigation satellite constellation backup strategy based on Petri net

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 16

References 30

Related Articles 15

Recommended Articles

Metrics

Comments

变迁	类型	参数
T01	确定分布	t=8 760 h
T02	确定分布	t=17 520 h
T05	确定分布	t=1 080 h
T07	确定分布	t=4 h
T104	确定分布	t=2 160 h
T114	指数分布	λ=1.1×10^-4 h^-1
T115	确定分布	t=12 h
T116	泊松分布	λ=4.6×10^-5 h^-1
T117	确定分布	t=3 h
T111、T121、T131、T141、T151、T161、T171、T181	确定分布	t=168 h

成本	取值
卫星成本	20 000
运载火箭成本	5 000
单星发射成本	6 000
每小时单星的储存成本	2

短缺成本/万元	最优备份策略			运行成本/万元
短缺成本/万元	每个轨道在轨备份/颗	地面备份/颗	发射方式	运行成本/万元
5	2	0	一箭一星	4.39×10⁵
20	2	0	一箭一星	9.76×10⁵
50	2	2	一箭双星	2.07×10⁶
100	2	4	一箭双星	3.52×10⁶
