WPA-IGA-BP神经网络的模拟电路故障诊断

doi:10.12305/j.issn.1001-506X.2021.04.32

Abstract

Abstract:

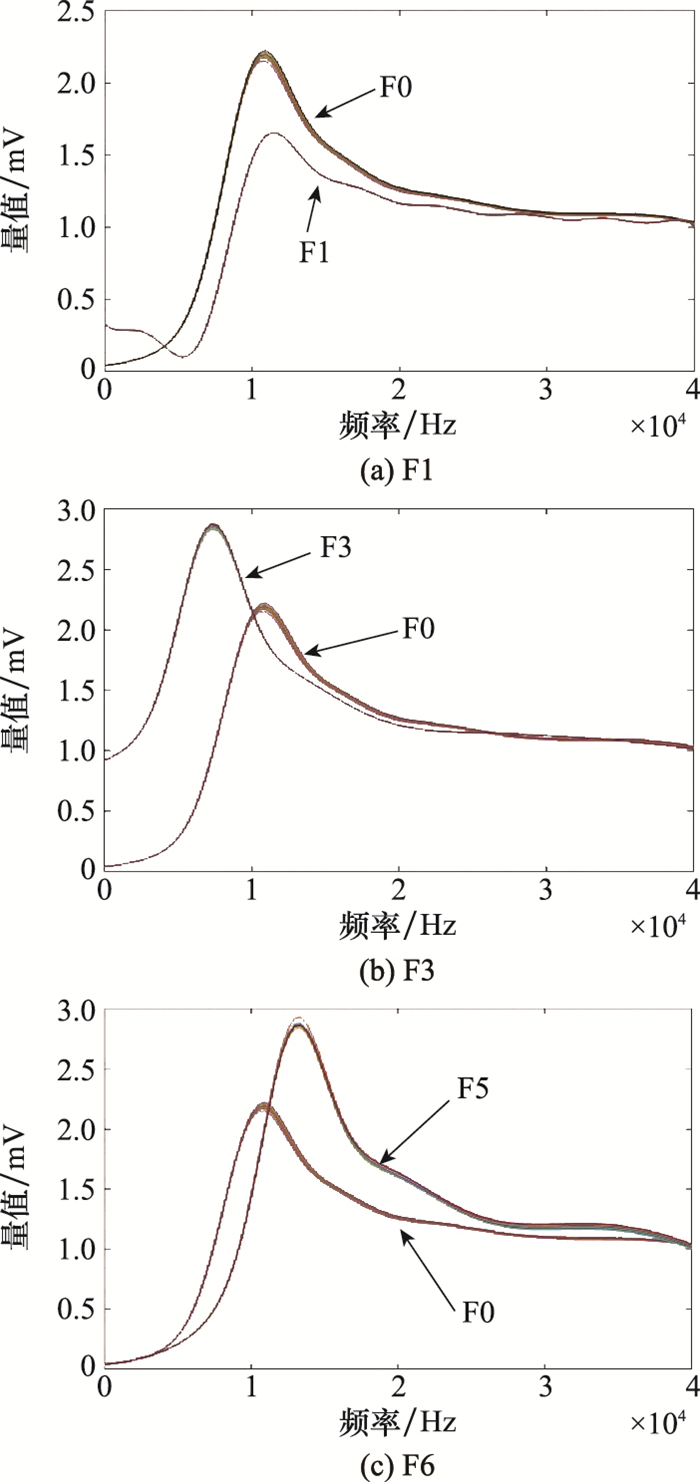

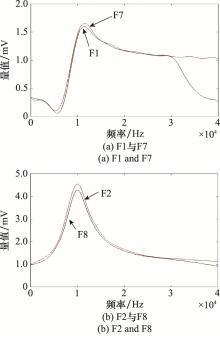

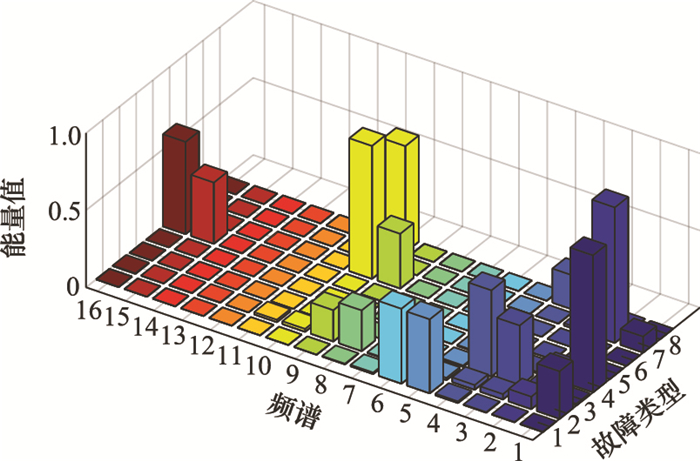

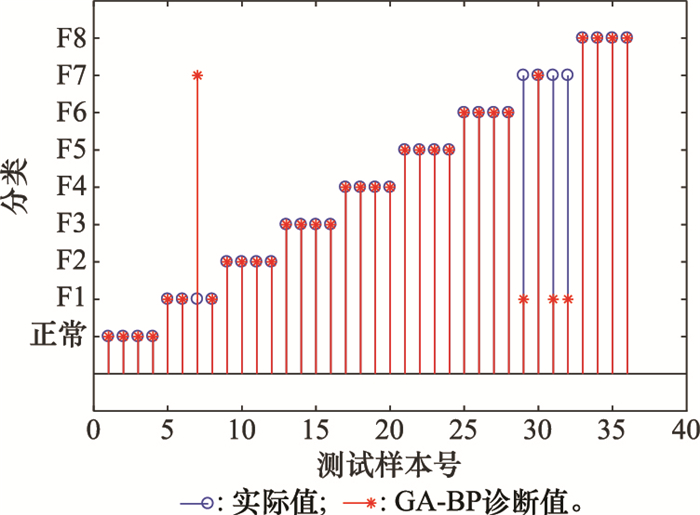

In the view of the difficulty in feature extraction and failure signal classification in analog circuit with gradual change, an immune genetic algorithm (IGA) is proposed to optimize the parameter optimization process in back propagation (BP) neural network, so as to realize analog circuit fault diagnosis. Firstly, the wavelet package analysis (WPA) is used to decompose and reconstruct the output response of analog circuit in four layers, and the feature vector is extracted. Then, the IGA optimized BP neural network is used for training and testing to realize fault diagnosis of different faults. Finally, the two simulation methods are verified by simulation. The experimental results show that, compared with the BP neural network before optimization, the proposed method improves the accuracy of fault diagnosis by about 15%.

Key words: back propagation (BP) neural network, immune genetic algorithm (IGA), analog circuit, feature extraction, fault diagnosis

CLC Number:

Li WANG, Ziqi LIU. Fault diagnosis of analog circuit for WPA-IGA-BP neural network[J]. Systems Engineering and Electronics, 2021, 43(4): 1133-1143.
