随机参数摄动下的高超声速飞行器姿态控制

doi:10.12305/j.issn.1001-506X.2024.02.34

摘要/Abstract

摘要：

针对高超声速飞行器随机参数摄动的姿态控制问题, 提出一种基于轨迹线性化和扩展卡尔曼滤波(extended Kalman filter, EKF)的预测滑模控制方法。首先, 针对随机参数摄动的高超声速飞行器非线性模型, 采用轨迹线性化方法建立线性时变误差调节模型。通过分析参数误差的统计特性, 将统计信息以参数协方差矩阵的形式进行表示, 并设计EKF对受扰误差状态进行滤波。然后, 采用预测滑模控制方法设计误差稳定调节器, 使系统快速趋于稳定。所提方法对随机参数摄动和非线性干扰都具有强鲁棒性。仿真验证了所提方法的有效性。

关键词: 高超声速飞行器, 随机参数摄动, 轨迹线性化, 扩展卡尔曼滤波, 预测滑模

Abstract:

In view of the attitude control problem of a hypersonic vehicle with range of random parameter perturbations a predictive sliding mode control method based on trajectory linearization and extended Kalman filter (EKF) is proposed. Using trajectory linearization method, a linear time-varying error adjustment model is established from the nonlinear model of hypersonic vehicle. The statistical information in the linearized model caused by parameter perturbations is expressed in the form of parameter covariance matrix by analysis of the statistical characteristics of parameter errors, then the EKF is designed to filter the disturbed error state. Finally, the predictive sliding mode control method is used to design the error stabilization regulator to realize the rapid stabilization of the system. The proposed method is robust to both nonlinear disturbances and random parameter perturbations. Simulation results verify the effectiveness of the proposed method.

Key words: hypersonic aircraft, random parameter perturbation, trajectory linearization control, extended Kalman filter (EKF), predicted sliding mode

中图分类号:

TP13

刘正洋, 周丽, 张瑞. 随机参数摄动下的高超声速飞行器姿态控制[J]. 系统工程与电子技术, 2024, 46(2): 703-714.

Zhengyang LIU, Li ZHOU, Rui ZHANG. Attitude control of hypersonic vehicle with random parameter perturbations[J]. Systems Engineering and Electronics, 2024, 46(2): 703-714.

图/表 14

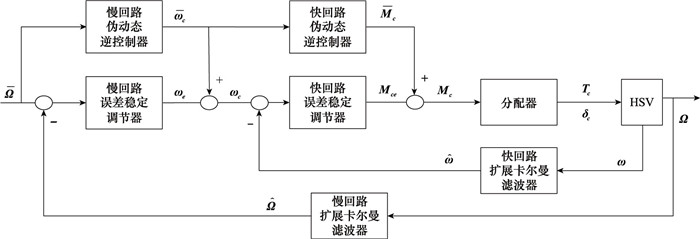

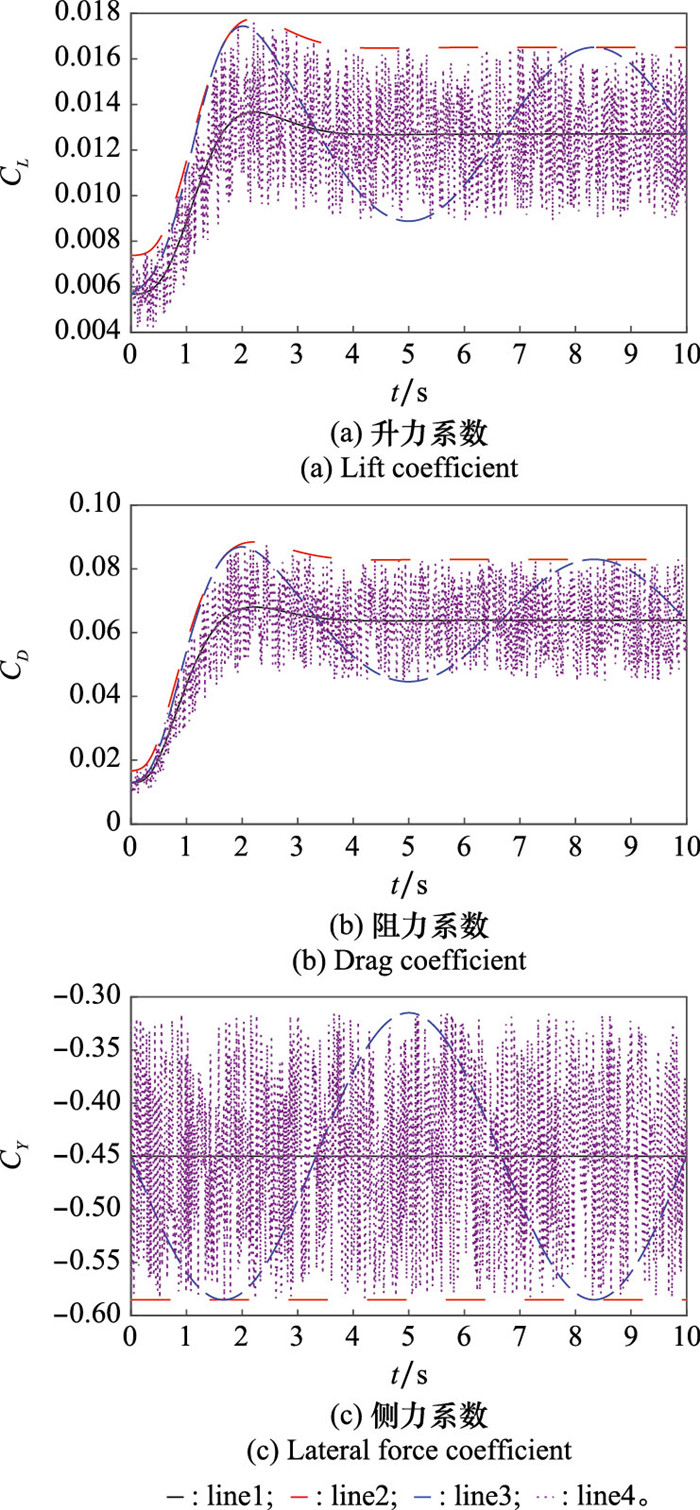

图1

图2

表1

表2

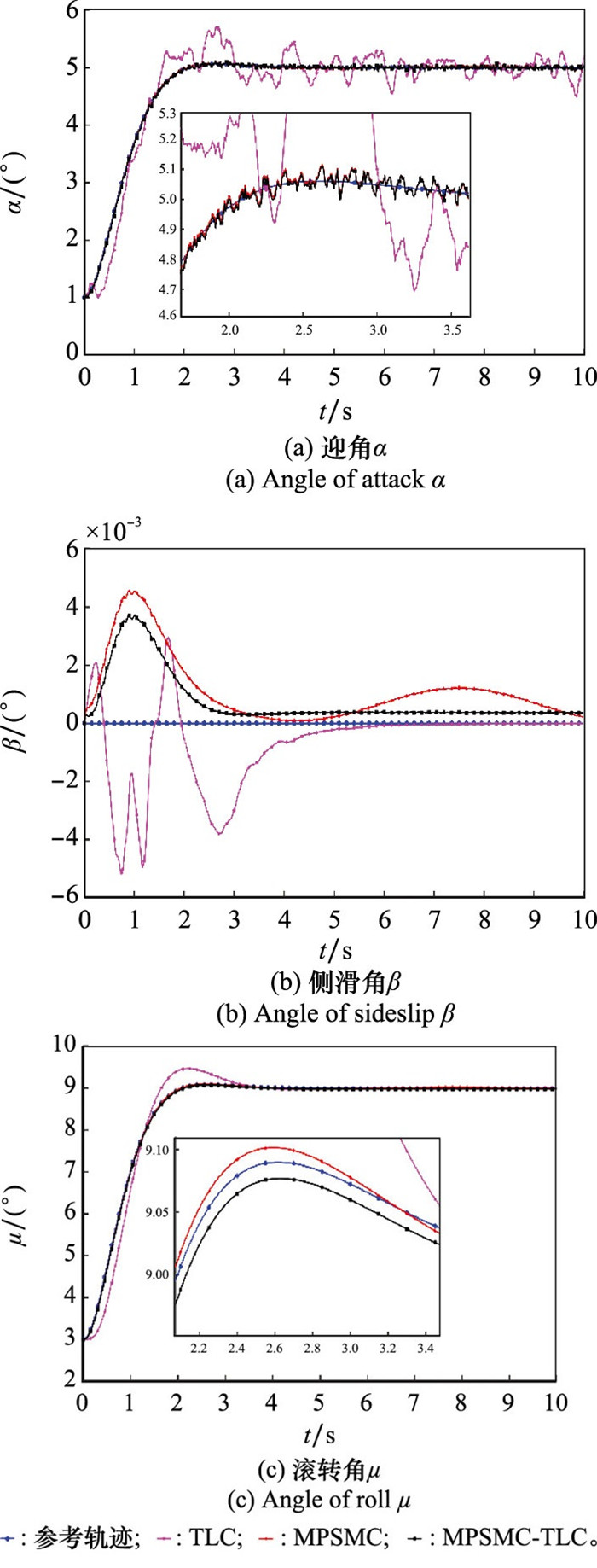

图3

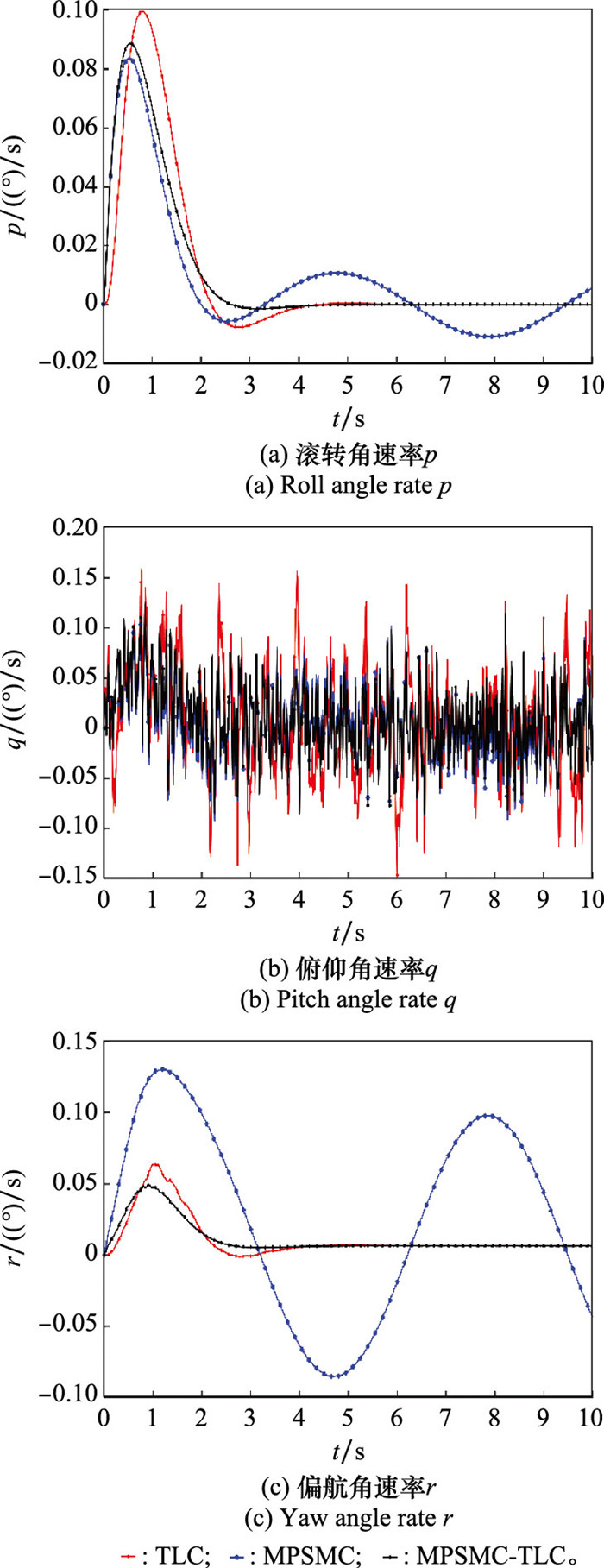

图4

图5

表3

表4

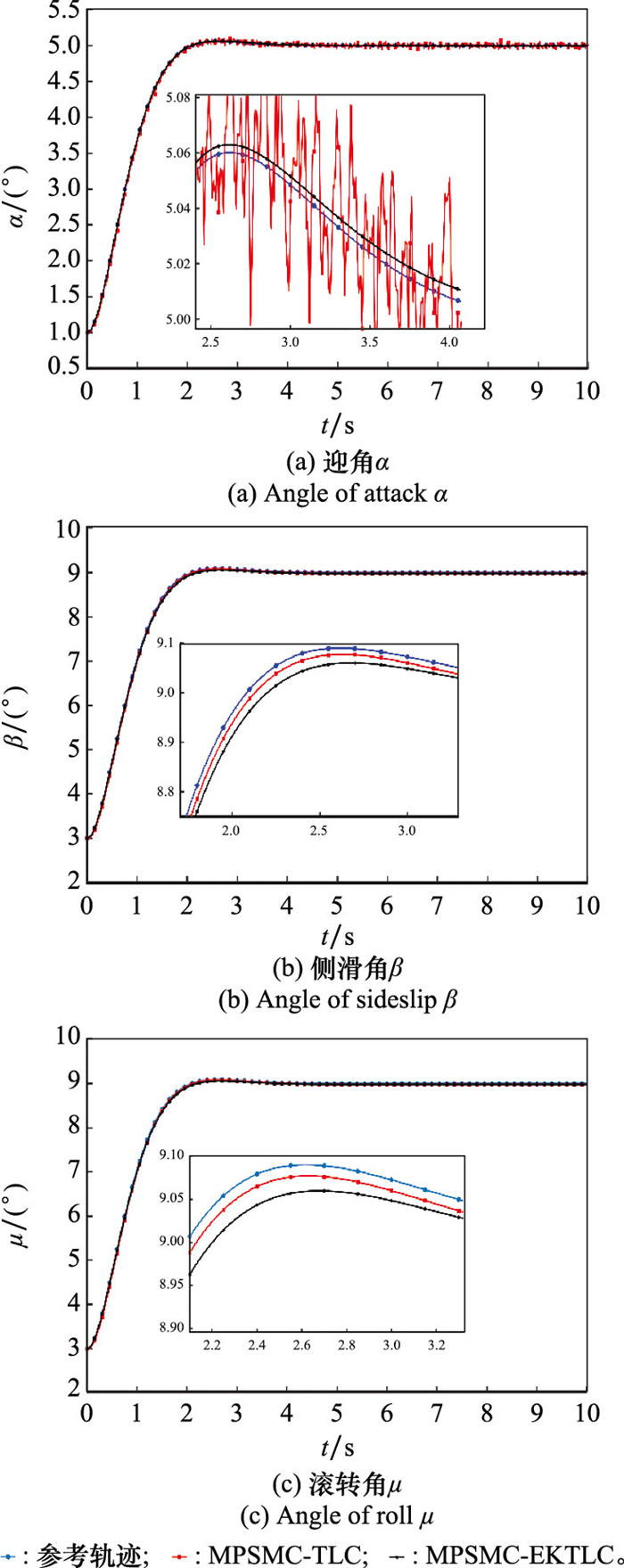

图6

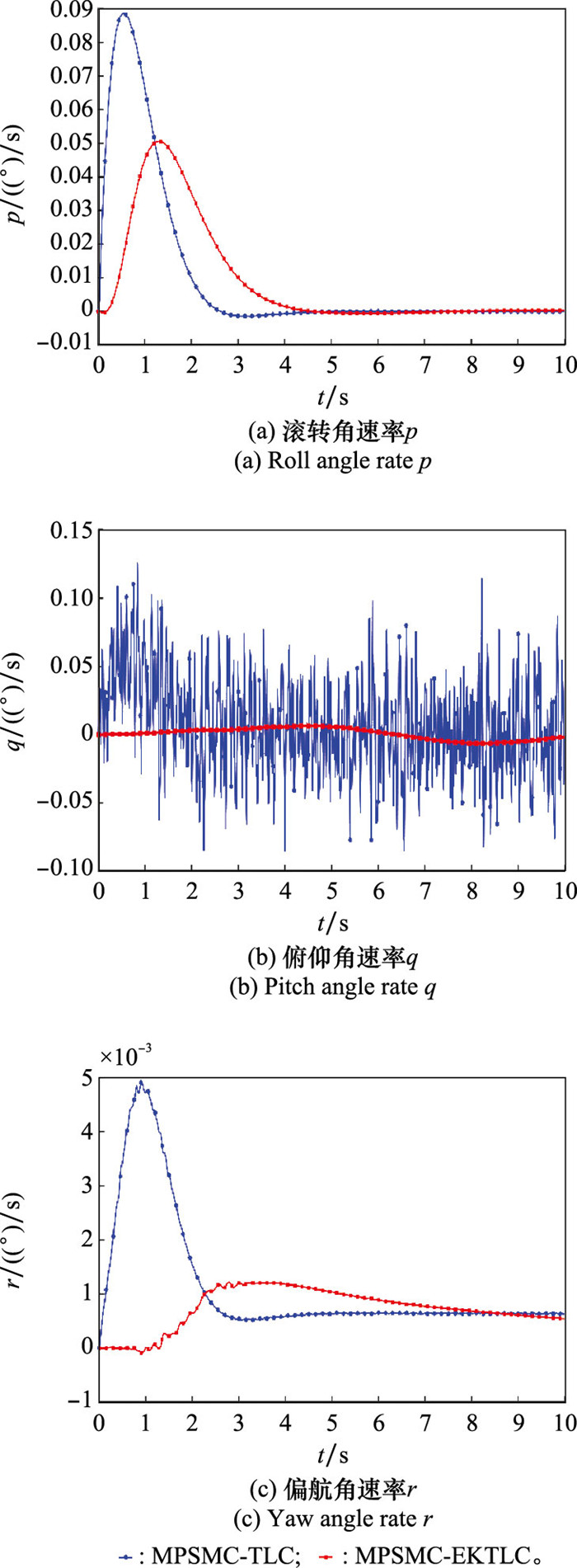

图7

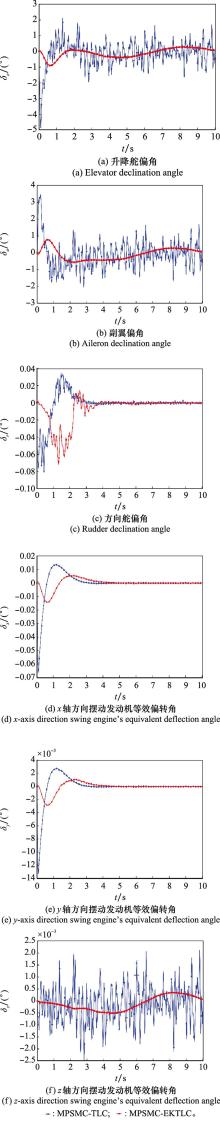

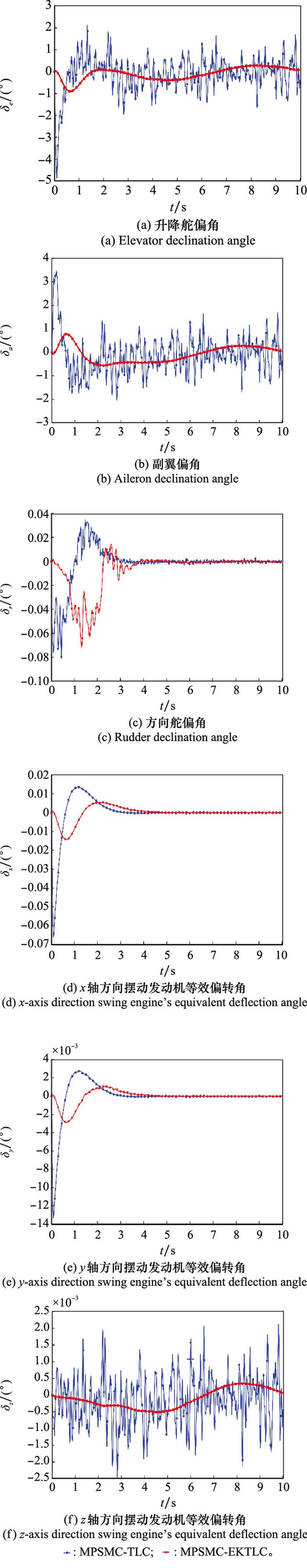

图8

表5

表6

参考文献 30

1	DING Y B , YUE X K , CHEN G S , et al. Review of control and guidance technology on hypersonic vehicle[J]. Chinese Journal of Aeronautics, 2022, 35 (7): 1- 18. doi: 10.1016/j.cja.2021.10.037
2	WANG X , WEI Z , ZHANG R , et al. Autonomous reliable intelligent control design under condition monitoring mechanism: applied to hypersonic flight vehicles[J]. Control Engineering Practice, 2023, 137, 105577. doi: 10.1016/j.conengprac.2023.105577
3	MA Q W , GUO J G , ZHOU J . A finite-time sliding mode control for hypersonic vehicle[J]. Transactions of the Institute of Measurement and Control, 2019, 41 (15): 4339- 4350. doi: 10.1177/0142331219857301
4	董泽洪, 李颖晖, 吕茂隆, 等. 考虑输入受限的高超声速飞行器非奇异固定时间自适应切换控制[J]. 系统工程与电子技术, 2023, 45 (5): 1476- 1488.
	DONG Z H , LI Y H , LYU M L , et al. Singularity-free fixed-time adaptive switching control for hypersonic flight vehicle with input constraints[J]. Systems Engineering and Electronics, 2023, 45 (5): 1476- 1488.
5	张康康, 周彬, 蔡光斌, 等. 高超声速飞行器指定时间时变高增益反馈跟踪控制[J]. 自动化学报, 2023, doi: 10.16383/j.aas.c210895
	ZHANG K K , ZHOU B , CAI G B , et al. Time-varying high gain feedback tracking control for hypersonic vehicle[J]. Automatica Sinica, 2023, doi: 10.16383/j.aas.c210895
6	QIU B B , WANG G F , FAN Y S . Trajectory linearization-based robust course keeping control of unmanned surface vehicle with disturbances and input saturation[J]. ISA Transactions, 2021, 112, 168- 175. doi: 10.1016/j.isatra.2020.12.013
7	QIU B B , WANG G F , FAN Y S . Predictor LOS-based trajectory linearization control for path following of underactuated unmanned surface vehicle with input saturation[J]. Ocean Engineering, 2020, 214, 107874. doi: 10.1016/j.oceaneng.2020.107874
8	YAO D Q, WEI Y Y, CUI N G. Research on integrated design of guidance and control for hypersonic vehicle based on trajectory linearization control method[C]//Proc. of the IEEE International Conference on Unmanned Systems, 2019: 450-456.
9	LASEMI N , SHAKER H R . Spacecraft attitude control: application of fine trajectory linearization control[J]. Advances in Space Research, 2021, 68 (9): 3663- 3676. doi: 10.1016/j.asr.2021.08.018
10	刘凯, 郭健, 周文雅, 等. 吸气式组合动力高超声速飞行器上升段制导方法研究[J]. 宇航学报, 2020, 41 (8): 1023- 1031.
	LIU K , GUO J , ZHOU W Y , et al. Study on guidance method of ascending stage of air-breathing combined power hypersonic vehicle[J]. Journal of Astronautics, 2020, 41 (8): 1023- 1031.
11	HOSSEINPOUR J , SADATI S H , ABBASI Y . Enhanced composite nonlinear extended state observer based on trajectory linearization control in presence of external and internal distur-bance[J]. Aerospace Systems, 2023, 6 (2): 353- 364. doi: 10.1007/s42401-023-00198-6
12	GUO P , XU K , DENG H C , et al. Modeling and control of a hexacopter with a passive manipulator for aerial manipulation[J]. Complex & Intelligent Systems, 2021, 7 (6): 3051- 3065.
13	GALVÁ G R , VELÁZQUEZ V J E , FRIDMAN L , et al. Robust output trajectory linearization control for a class of linear time-varying systems[J]. IET Control Theory & Applications, 2021, 15 (6): 877- 889.
14	SHEKOOFEH F J , FARUD S , MARZIEH K , et al. Tractable robust model predictive control with adaptive sliding mode for uncertain nonlinear systems[J]. International Journal of Systems Science, 2020, 51 (12): 2204- 2216. doi: 10.1080/00207721.2020.1793230
15	MOUSAVI A , MARKAZI A H D . A predictive approach to adaptive fuzzy sliding-mode control of under-actuated nonlinear systems with input saturation[J]. International Journal of Systems Science, 2021, 52 (8): 1599- 1617. doi: 10.1080/00207721.2020.1867775
16	SEYED S T A , NAJMEH E . Feedback-based cooperative ramp metering for highway traffic flow control: a model predictive sliding mode control approach[J]. Journal of Robotics & Machine Learning, 2020, 30 (18): 8259- 8277.
17	XIAO H L , ZHAO D Y , GAO A L , et al. Sliding mode predictive control: a survey[J]. Annual Reviews in Control, 2022, 54, 148- 166. doi: 10.1016/j.arcontrol.2022.07.003
18	HUANG C , NAGHDY F , DU H P . Sliding mode predictive tracking control for uncertain steer-by-wire system[J]. Control Engineering Practice, 2019, 85, 194- 205. doi: 10.1016/j.conengprac.2018.12.010
19	ZHANG Y W , ZHENG H , XU J , et al. Radial basis function model-based adaptive model predictive control for trajectory tracking of a clapping-wing micro air vehicle[J]. Aerospace, 2023, 10 (3): 253- 273. doi: 10.3390/aerospace10030253
20	张远, 黄旭, 路坤锋, 等. 高超声速飞行器控制技术研究进展与展望[J]. 宇航学报, 2022, 43 (7): 866- 879.
	ZHANG Y , HUANG X , LU K F , et al. Research progress and prospect of hypersonic vehicle control technology[J]. Journal of Astronautics, 2022, 43 (7): 866- 879.
21	YOUSSEF M , AYMAN E B . Sliding mode control of directly excited structural dynamic model of twin-tailed fighter aircraft[J]. Journal of the Franklin Institute, 2021, 358 (18): 9721- 9740. doi: 10.1016/j.jfranklin.2021.10.017
22	闫晓辉. 随机干扰下的近空间飞行器鲁棒控制[D]. 南京: 南京航空航天大学, 2020.
	YAN X H. Robust control of near-space vehicle under random interference[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020.
23	LIU Y B , TONG Y H , JIN F T . Control law design of hypersonic vehicles using the elastic surrogate model[J]. Journal of Low Frequency Noise, Vibration and Active Control, 2020, 39 (1): 216- 229. doi: 10.1177/1461348419835131
24	LIU L T , TIAN B W . Comprehensive engineering frequency domain analysis and vibration suppression of flexible aircraft based on active disturbance rejection controller[J]. Sensors, 2022, 22 (16): 6207- 6226. doi: 10.3390/s22166207
25	ZHOU Z , WANG Z A , GONG Z , et al. Design of thrust vectoring vertical/short takeoff and landing aircraft stability augmentation controller based on L1 adaptive control law[J]. Symmetry, 2022, 14 (9): 1837- 1851. doi: 10.3390/sym14091837
26	FELIX B , HARALD P . Finite horizon analysis of autolanded aircraft in final approach under crosswind[J]. Control Engineering Practice, 2022, 122, 105105.
27	曹瑞, 刘燕斌, 陆宇平. 基于马尔可夫蒙特卡罗法的系统辨识方法研究及应用[J]. 宇航学报, 2022, 43 (4): 423- 433.
	CAO R , LIU Y B , LU Y P . Research and application of system identification method based on Markov chain Monte Carlo method[J]. Journal of Astronautics, 2022, 43 (4): 423- 433.
28	TATSUYA T , SHINTARO N , HISASHI D . Clustering method for Monte Carlo model predictive control[J]. IFAC Papers OnLine, 2021, 54 (14): 251- 256. doi: 10.1016/j.ifacol.2021.10.361
29	BETHGE J, YU S Y, FINDEISEN R. Model predictive control with guarantees for discrete linear stochastic systems subject to additive disturbances with chance constraints[C]//Proc. of the IEEE American Control Conference, 2020: 1943-1948.
30	孙经广, 宋申民, 陈海涛, 等. 高超声速飞行器有限时间饱和跟踪控制[J]. 控制理论与应用, 2017, 34 (10): 1349- 1360.
	SUN J G , SONG S M , CHEN H T , et al. Finite time saturation tracking control for hypersonic vehicle[J]. Control Theory and Applications, 2017, 34 (10): 1349- 1360.

飞行器参数	取值
飞行器质量M/kg	136 820
重力加速度g/(m/s²)	9.8
飞行速度V/(m/s)	2 400
倾斜角γ/(°)	0
推力T/N	208 000
翼面参考面积S/m²	334.73
动压$\hat{q}$/Pa	82 877
惯性矩I_xx/(kg·m²)	915 300
惯性矩I_yy/(kg·m²)	903 600
惯性矩I_zz/(kg·m²)	903 600
参考力矩中心X_cg/m	4.466 8
翼展b/m	18.288
平均气动弦长c/m	24.384

控制器参数	控制回路
控制器参数	慢回路	快回路
C_e	$\left[\begin{array}{ccc}10 & 0 & 5 \\5 & 10 & 0 \\0 & 5 & 10\end{array}\right]$	$\left[\begin{array}{lll}1 & 1 & 5 \\5 & 1 & 1 \\1 & 5 & 1\end{array}\right]$
p_m	5	5
q_m	150	60
ε	0.8	0.3
T_r/s	0.02	0.02
T_s/s	0.001	0.001
ω_diff/(rad/s)	5	15

参数	MPSMC	TLC	MPSMC-TLC
姿态角α/(°)	0.086	0.698	0.093
姿态角β/(°)	0.005	0.005	0.004
姿态角μ/(°)	0.082	0.901	0.094
角速率p/(°/s)	0.084	0.100	0.089
角速率q/(°/s)	0.118	0.158	0.126
角速率r/(°/s)	0.013	0.006	0.005

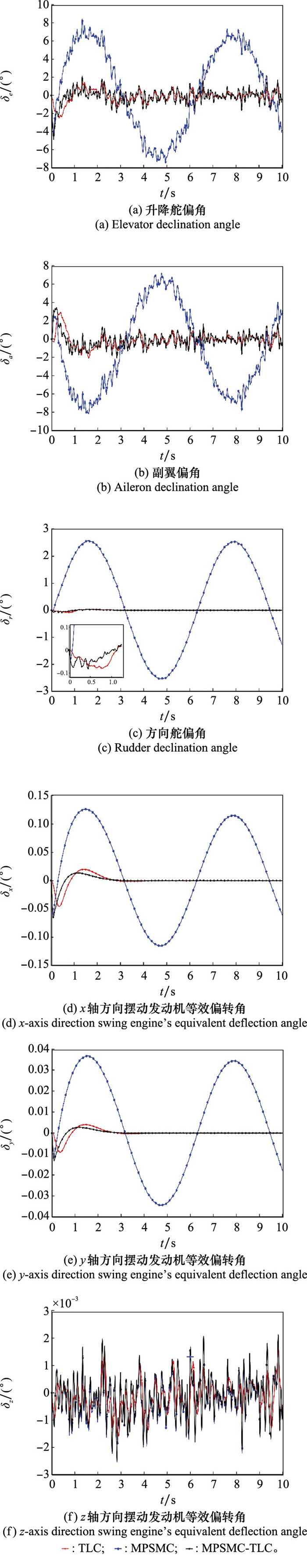

舵面/(°)	MPSMC	TLC	MPSMC-TLC
δ_e	[-7.365, 8.484]	[-2.506, 1.522]	[-4.865, 2.117]
δ_a	[-8.197, 7.214]	[-2.089, 2.931]	[-2.039, 3.462]
δ_r	[-2.543, 2.576]	[-0.080, 0.420]	[-0.081, 0.034]
δ_x	[-0.116, 0.126]	[-0.046, 0.020]	[-0.066, 0.014]
δ_z	[-0.035, 0.037]	[-0.009, 0.004]	[-0.013, 0.003]
δ_z	[-0.003, 0.002]	[-0.002, 0.002]	[-0.003, 0.002]

参数	MPSMC-TLC	MPSMC-EKTLC
姿态角α/(°)	0.093	0.004
姿态角β/(°)	0.004	0.001
姿态角μ/(°)	0.094	0.060
角速率p/(°/s)	0.089	0.051
角速率q/(°/s)	0.126	0.006
角速率r/(°/s)	0.005	0.001
