一种核密度估计与多域特征相结合的组合ISRJ-SMSP干扰识别方法

doi:10.12305/j.issn.1001-506X.2026.06.06

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (6): 1838-1847.doi: 10.12305/j.issn.1001-506X.2026.06.06

一种核密度估计与多域特征相结合的组合ISRJ-SMSP干扰识别方法

王思宇(), 宋志勇(), 王占领

国防科技大学电子科学学院，湖南长沙 410073

收稿日期:2025-01-21 修回日期:2025-05-05 接受日期:2026-04-09 出版日期:2026-06-25 发布日期:2025-07-03
通讯作者: 宋志勇 E-mail:2862639595@qq.com;songzhiyong08@nudt.edu.cn
作者简介:王思宇（2001—），男，硕士研究生，主要研究方向为雷达信号处理、雷达干扰识别
王占领（1988—），男，助理研究员，博士，主要研究方向为极化射频制导
基金资助:
国家自然科学基金（62301580）；湖南省科技创新计划（2024RC3138）资助课题

Combined ISRJ-SMSP jamming identification based on kernel density estimation and multi-domain feature fusion

Siyu WANG(), Zhiyong SONG(), Zhanling WANG

College of Electronic Science and Technology，National University of Defense Technology，Changsha 410073，China

Received:2025-01-21 Revised:2025-05-05 Accepted:2026-04-09 Online:2026-06-25 Published:2025-07-03
Contact: Zhiyong SONG E-mail:2862639595@qq.com;songzhiyong08@nudt.edu.cn

摘要/Abstract

摘要：

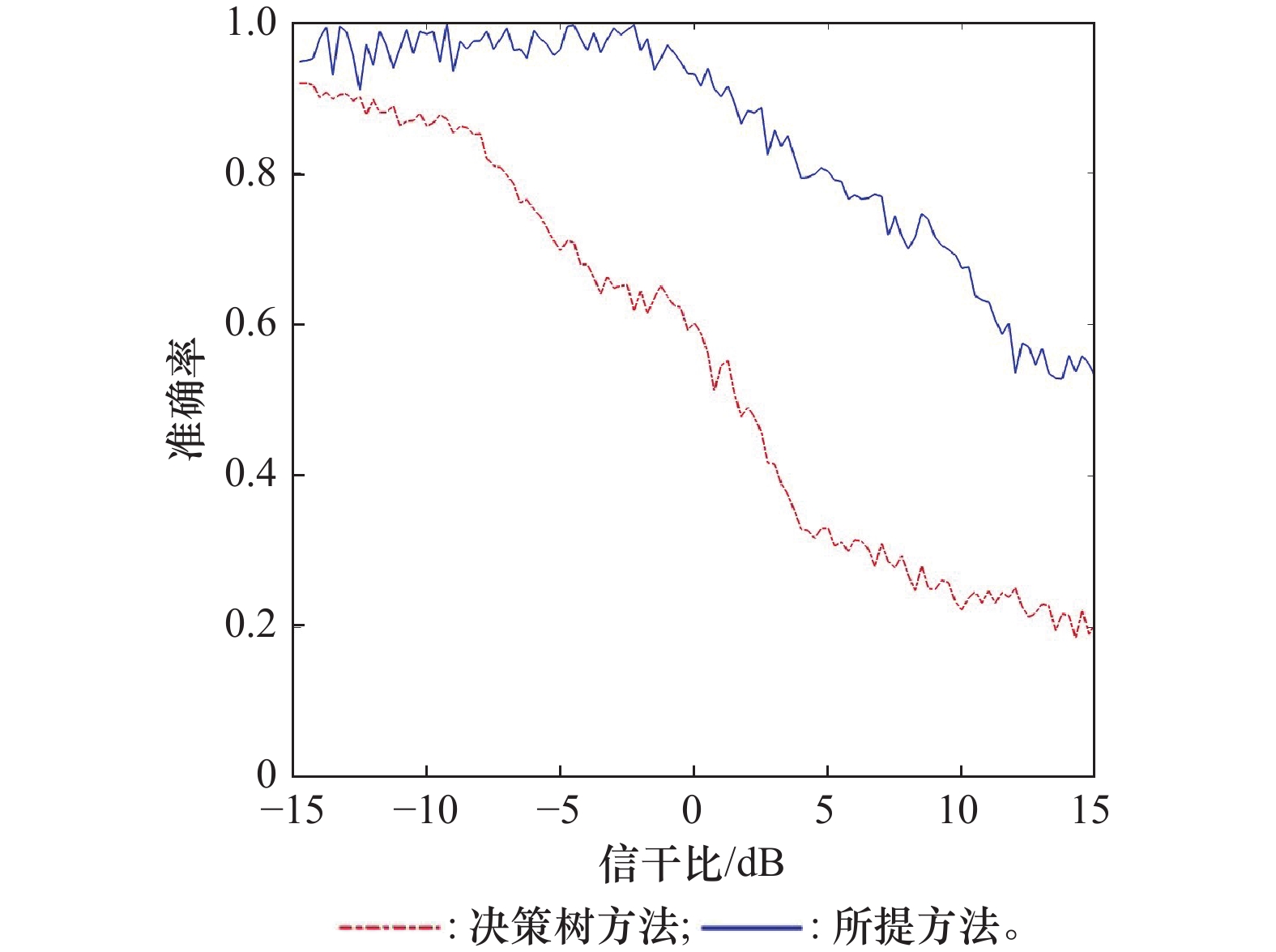

间歇采样转发干扰、频谱弥散干扰及其组合干扰识别特征不稳定、分散性强，存在单一特征方法识别困难且神经网络方法受限于样本不足和时效性差的问题。对此，提出一种基于核密度估计的似然函数构建方法，通过结合多种特征的统计分布实现对单类及其组合干扰的精准识别，克服组合干扰特征不稳定的问题。数字仿真实验显示，在不同信干比条件下，所提方法准确率均高于决策树方法10%以上，且所需样本远少于神经网络方法，为复杂电磁环境下雷达有源干扰识别提供了一种有效途径。

关键词: 间歇采样转发干扰, 频谱弥散干扰, 组合干扰, 核密度估计

Abstract:

To address the problems of instability and strong dispersion of characteristics in the identification of interrupted sampling repeater jamming （ISRJ）, smeared spectrum （SMSP） jamming, and their combined forms, which make single-characteristic methods ineffective and neural network methods limited by insufficient training samples and timeliness issues, a likelihood function construction method is proposed based on kernel density estimation, which achieves accurate identification of single-class and combined jamming by combining the statistical distributions of multiple characteristics, overcoming the problem of unstable combined jamming characteristics. Digital simulation experiments show that under different signal to interference ratio csonditions, the accuracy of the proposed method is more than 10% higher than that of the decision tree method, and the required samples are much fewer than those of the neural network method, providing an effective approach for radar active jamming identification in complex electromagnetic environments.

Key words: interrupted sampling repeater jamming (ISRJ), smeared spectrum (SMSP) jamming, combined jamming, kernel density estimation

中图分类号:

TN 974

王思宇, 宋志勇, 王占领. 一种核密度估计与多域特征相结合的组合ISRJ-SMSP干扰识别方法[J]. 系统工程与电子技术, 2026, 48(6): 1838-1847.

Siyu WANG, Zhiyong SONG, Zhanling WANG. Combined ISRJ-SMSP jamming identification based on kernel density estimation and multi-domain feature fusion[J]. Systems Engineering and Electronics, 2026, 48(6): 1838-1847.

图/表 17

图1

图2

表1

图3

图4

图5

图6

图7

图8

表2

表3

表4

图9

图10

图11

图12

图13

参考文献 30

1	GRECO M, GINI F, FARINA A. Radar detection and classification of jamming signals belonging to a cone class）[J]. IEEE Trans. on Signal Processing, 2008, 56 (5): 1984- 1993. doi: 10.1109/TSP.2007.909326
2	王雪松, 刘建成, 张文明, 等. 间歇采样转发干扰的数学原理[J]. 中国科学, 2006, 36 (8): 891- 901. doi: 10.3969/j.issn.1674-7259.2006.08.007
	WANG X S, LIU J C, ZHANG W M, et al. Mathematic principles of interrupted-sampling repeater jamming （ISRJ）[J]. Science in China: Information Sciences, 2006, 36 (8): 891- 901. doi: 10.3969/j.issn.1674-7259.2006.08.007
3	ZHOU H P, WANG L, GUO Z Y. A radar compound jamming recognition method based on blind source separation[J]. IEEE Trans. on Aerospace and Electronic Systems, 2024, 60 (6): 9073- 9084. doi: 10.1109/TAES.2024.3437337
4	DU L, LI F, HE X Z, et al. Radar deception jamming identification based on multi-dimensional feature extraction[C]// Proc. of the IEEE International Conference on Signal, Information and Data Processing, 2024.
5	HAN X R, WANG B, ZHANG J X, et al. A bistatic radar passive jamming identification method based on HRRP feature[C]//Proc. of the IEEE International Conference on Signal, Information and Data Processing, 2024.
6	杨林, 张翔宇, 李林, 等. 基于时空频特征融合的距离-速度复合欺骗干扰识别技术研究[J]. 系统工程与电子技术, 2019, 41 (12): 2684- 2691.
	YANG L, ZHANG X Y, LI L, et al. Research on range-velocity deception jamming recognition technology based on time-space-frequency feature fusion[J]. Systems Engineering and Electronics, 2019, 41 (12): 2684- 2691.
7	阳鹏飞, 何羚, 王茜, 等. 基于混合信号多域特征和Transformer的干扰识别[J]. 系统工程与电子技术, 2024, 46 (6): 2138- 2145. doi: 10.12305/j.issn.1001-506X.2024.06.32
	YANG P F, HE L, WANG Q, et al. Interference identification based on mixed signal multidomain feature and Transformer framework[J]. Systems Engineering and Electronics, 2024, 46 (6): 2138- 2145. doi: 10.12305/j.issn.1001-506X.2024.06.32
8	CHEN J H, LIU Y, SONG H L. Active blanket jamming identification method based on rough set and decision tree[C]// Proc. of the 21st International Symposium on Distributed Computing and Applications for Business Engineering and Science, 2022: 141−145.
9	范伟. 雷达有源干扰信号特征分析与识别算法研究[D]. 成都: 电子科技大学, 2007.
	FAN W. Research on the characteristic analysis and identification algorithm of radar active interference signal [D]. Chengdu: University of Electronic Science and Technology of China, 2007.
10	檀鹏超. 雷达有源欺骗干扰多维特征提取与识别技术研究[D]. 成都: 电子科技大学, 2016.
	TAN P C. Research on multidimensional feature extraction and identification technology of radar active spoof interference[D]. Chengdu: University of Electronic Science and Technology of China, 2016.
11	JIANG R , LIU J , WAN K , et al. Research on interference identification technology based on frequency hopping communication[C]//Proc. of the IEEE 23rd International Conference on Communication Technology, 2023: 166−170.
12	祝存海. 基于特征提取的雷达有源干扰信号分类研究[D]. 西安: 西安电子科技大学, 2017.
	ZHU C H. Research on classification of radar active interference signals based on feature extraction [D]. Xi’an: Xidian University, 2017.
13	李永平. SMSP和C&I距离假目标欺骗干扰识别和抑制方法研究[D]. 成都: 电子科技大学, 2012.
	LI Y P. Research on the identification and inhibition of SMSP and C&I distance false target spoof interference [D]. Chengdu: University of Electronic Science and Technology of China, 2016.
14	ZHANG Y, DING X H, LI G Y, et al. Offline real-world wireless interference signal classification algorithm utilizing denoising diffusion probability model[J]. IEEE Signal Processing Letters, 2023: 1132−1136.
15	DONG X, GUO S H, FANG W, et al. Radar active composite jamming recognition based on characteristic parameters[C]// Proc. of the IEEE 4th International Conference on Electronic Technology, Communication and Information, 2024: 415−420.
16	WANG P Y, MA K, BAI Y S, et al. Wireless interference recognition with multimodal learning[J]. IEEE Trans. on Wireless Communications, 2024, 23 (12): 18576- 18591. doi: 10.1109/TWC.2024.3470244
17	周红平, 马明辉, 吴若无, 等. 基于稀疏表示分类的雷达欺骗干扰识别方法[J]. 系统工程与电子技术, 2022, 44 (9): 2791- 2799.
	ZHOU H P, MA M H, WU R W, et al. Deception jamming recognition of radar based on sparse representation classification[J]. Systems Engineering and Electronics, 2022, 44 (9): 2791- 2799.
18	HASSANPOUR S, PEZESHK A M. Automatic digital modulation recognition based on novel features and support vector machine [C]// Proc. of the 12th International Conference on Signal-Image Technology & Internet-Based Systems, 2016: 172177.
19	HAO W B, FENG X Y, JIANG X Y. Radar active jamming signal identification method based on time-frequency image features[C]// Proc. of the 2nd International Conference on Image Processing and Media Computing, 2023: 64−70.
20	孙闽红, 丁辰伟, 张树奇, 等. 基于统计相关差异的多基地雷达拖引欺骗干扰识别[J]. 电子与信息学报, 2020, 42 (12): 2992- 2998. doi: 10.11999/JEIT190634
	SUN M H, DING C W, ZHANG S Q, et al. Recognition of deception jamming based on statistical correlation difference in a multistatic radar system[J]. Journal of Electronics & Information Technology, 2020, 42 (12): 2992- 2998. doi: 10.11999/JEIT190634
21	WANG Z J, YU W B, LI J M, et al. A fast-implemented signal identification scheme for active blanket jamming[C]// Proc. of the 3rd International Symposium on Computer Technology and Information Science, 2023: 534−538.
22	LI J X, SHEN Q, YAN H, et al. Signal feature analysis and experimental verification of radar deception jamming[C]// Proc. of the CIE International Conference on Radar, 2011: 230−233.
23	TAIWO O, VIJAY K S, DANIEL J J, et al. Keep it simple: CNN model complexity studies for interference classification tasks[C]// Proc. of the IEEE Conference on Computer Communications Workshops, 2023.
24	YAN H L, WANG G P, GAO F F, et al. Dynamic convolutional neural network for wireless interference identification[J]. IEEE Communications Letters, 2024, 28 (1): 83- 87. doi: 10.1109/LCOMM.2023.3336938
25	GIANMARCO B, FAUSTO B, JEAN M C. Wireless interference identification with convolutional neural networks based on the FPGA implementation of the LTE cell-specific reference signal （CRS）[J]. IEEE Trans. on Cognitive Communications and Networking, 2024, 10 (1): 4863. doi: 10.1109/tccn.2023.3319536
26	SHUKLA S, MISHRA S, ANANDAN V, et al. Deep learning-based radio frequency interference classification and mitigation in radar images: a CNN and DnCNN approach[C]//Proc. of the IEEE Space, Aerospace and Defence Conference, 2024: 419−423.
27	孙闽红, 陈鑫伟, 仇兆炀, 等. 融合注意力机制的雷达欺骗干扰域适应识别方法[J]. 电子与信息学报, 2022, 44 (11): 3891- 3899.
	SUN M H, CHEN X W, QIU Z Y, et al. Radar deception jamming recognition method based on domain adaptation and attention mechanism[J]. Journal of Electronics & Information Technology, 2022, 44 (11): 3891- 3899.
28	ZHAO Y L, LI Z, WANG D Y, et al. Communication interference recognition based on multiscale convolutional feature extraction[C]//Proc. of the International Conference on Ubiquitous Communication, 2023: 281−286.
29	GAO J N, WANG M, CHEN L B, et al. DRFM jamming mode identification leveraging deep neural networks[C]// Proc. of the 10th International Conference on Control, Automation and Information Sciences, 2021: 444−449.
30	LI T P, PENG D H, WANG M X, et al. Identification of jamming factors in electronic information system based on deep learning[C]//Proc. of the IEEE 18th International Conference on Communication Technology, 2018: 1426−1430.

干扰	简称

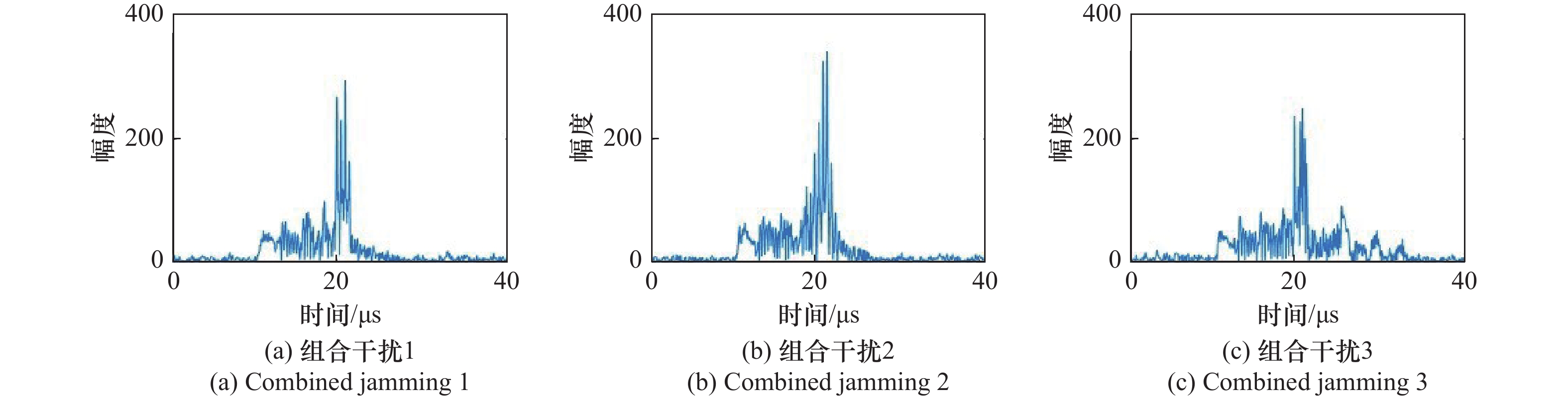

间歇采样直接转发干扰+SMSP干扰（R=4）	组合干扰1
间歇采样重复转发干扰+SMSP干扰（R=4）	组合干扰2
间歇采样循环转发干扰+SMSP干扰（R=4）	组合干扰3

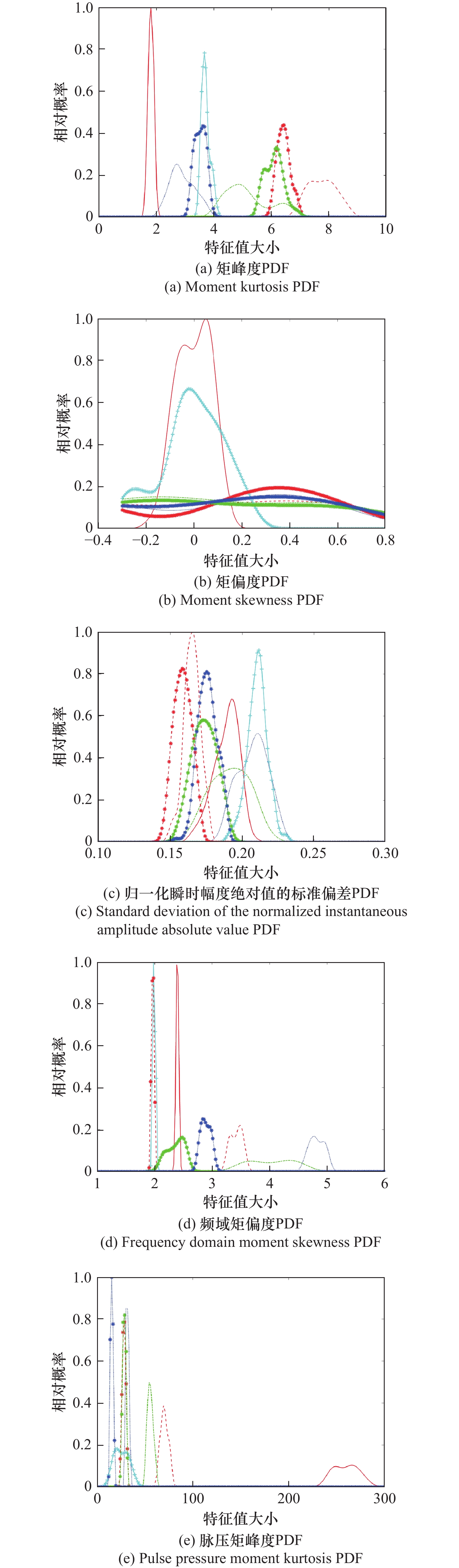

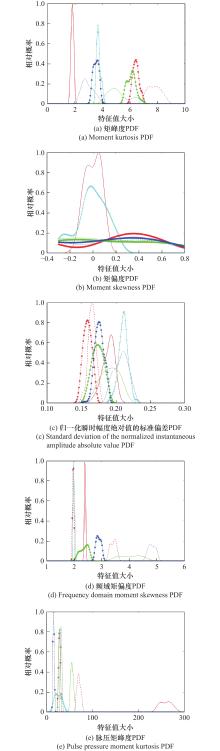

特征	离散度

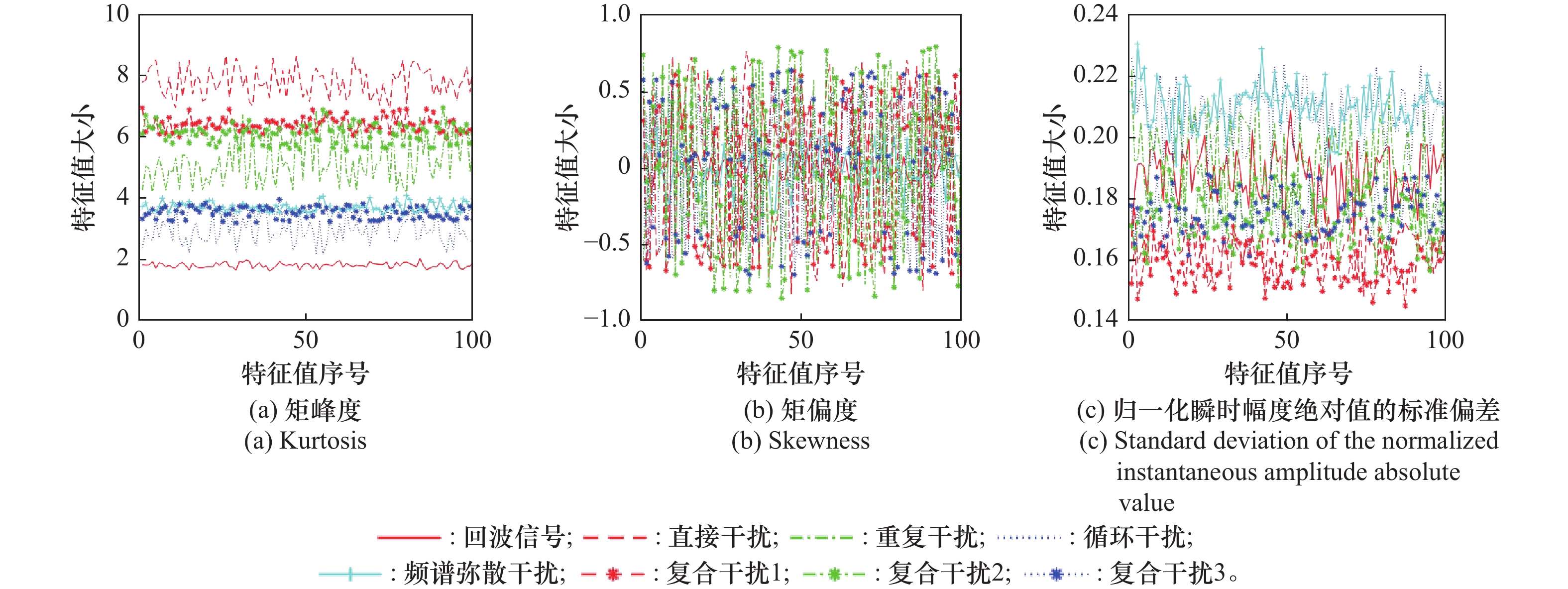

矩峰度	0.1790
矩偏度	0.0028
归一化瞬时幅度绝对值的标准偏差	0.0177
频域矩偏度	0.5036
脉压矩峰度	1.0000

方法	训练复杂度	估计复杂度
所提方法	$ O\left(m\cdot {n}^{2}\right) $	$ O\left(m\cdot k\right) $
决策树	$ O\left(m\cdot n\cdot \log_2 n\right) $	$ O\left(\log_2 n\right) $
CNN	$ O\left(T\cdot L\cdot {k}^{2}\cdot h\cdot w\right) $	$ O\left(L\cdot {k}^{2}\cdot h\cdot w\right) $

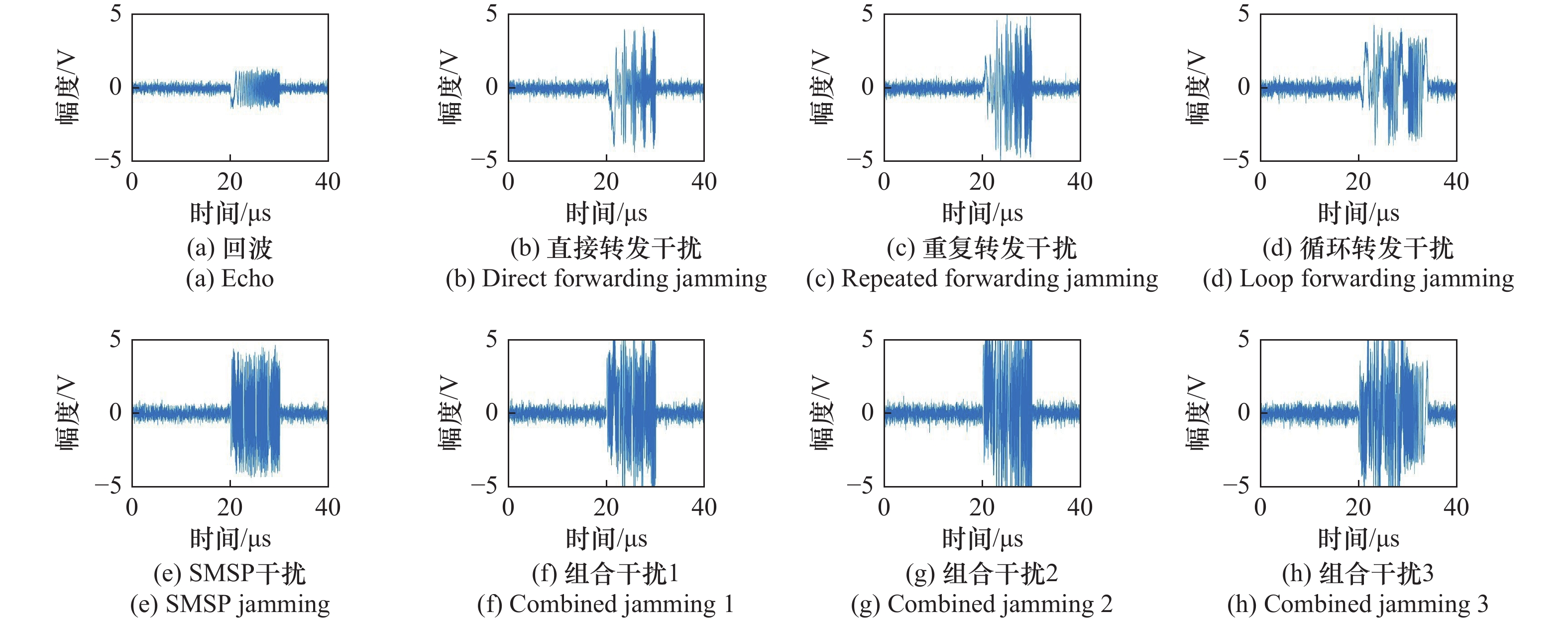

参数类别	参数值
发射信号	线性调频信号
脉冲宽度/μs	10
带宽/MHz	10
采样率/MHz	100
脉冲重复间隔/μs	100
信噪比/dB	5
SIR/dB	−10
直接转发干扰采样时间/μs	1
重复转发干扰采样时间/μs	0.5
重复转发干扰转发次数	3
循环转发干扰采样时间/μs	1
SMSP干扰子波形数	4
