抗间歇采样转发干扰的发射波形与失配滤波器联合优化算法

doi:10.12305/j.issn.1001-506X.2024.06.04

摘要/Abstract

摘要：

间歇采样转发干扰(interrupted sampling repeater jamming, ISRJ)与发射信号之间具有强相关性，若在接收端采用匹配滤波处理则会产生多个数量可控的高逼真假目标，对雷达的检测性能具有极大的干扰。针对上述问题，提出了一种抗ISRJ的发射波形和接收滤波器联合优化算法，将失配滤波体制下的信噪比(signal to noise ratio, SNR)损失、发射信号恒模约束以及滤波器能量约束考虑在内，以最小化干扰信号归一化脉压后峰值、失配滤波输出信号积分副主比以及输出干信比，并采用主分量最小化(majorization-minimization, MM)方法与平方迭代加速算法提高算法运行速度。仿真结果表明, 与其他同类方法相比，所提算法能在保证可靠抗干扰性能的同时，极大缩短运行时间，具有较好的实时性。

关键词: 间歇采样转发干扰, 失配滤波, 主分量最小化, 平方迭代方法, 恒模约束

Abstract:

Interrupted sampling repeater jamming (ISRJ) has a strong correlation with the transmitting signal, if the matched filtering processing is still adopted at the receiving end, multiple high-fidelity false targets with controllable quantity will be generated, which seriously affects the detection performance of radar. To solve the above problem, a joint optimization algorithm for transmitting waveform and receiving filter against the ISRJ is proposed, which takes into account the signal to noise ratio (SNR) loss under the mismatched filtering system, the constant modulus constraint of transmitting signal and the energy constraint of filter, to minimize the normalized peak of the interference signal after pulse compression, the ratio of the energy of the integral side lobe to main lobe and the interference to signal ratio of the output of the mismatched filter, the majorization-minimization (MM) method and the square iterative acceleration algorithm are adopted to accelerate the running speed of the proposed algorithm. The simulation results show that compared with other similar methods, the proposed algorithm can greatly shorten the running time and has better real-time performance on the basis of ensuring reliable anti-interference performance.

Key words: interrupted sampling repeater jamming (ISRJ), mismatched filter, majorization-minimization (MM), squared iterative method, constant modulus constraint

中图分类号:

TN974

刘茜, 戴奉周. 抗间歇采样转发干扰的发射波形与失配滤波器联合优化算法[J]. 系统工程与电子技术, 2024, 46(6): 1855-1866.

Qian LIU, Fengzhou DAI. A joint optimization algorithm for transmitting waveform and mismatched filter against interrupted sampling repeater jamming[J]. Systems Engineering and Electronics, 2024, 46(6): 1855-1866.

图/表 12

表1

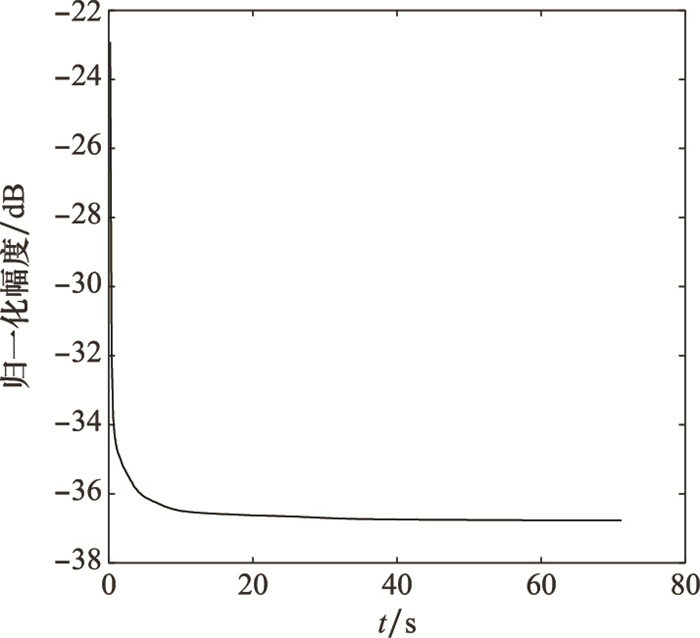

图1

图2

表2

表3

图3

图4

表4

图5

图6

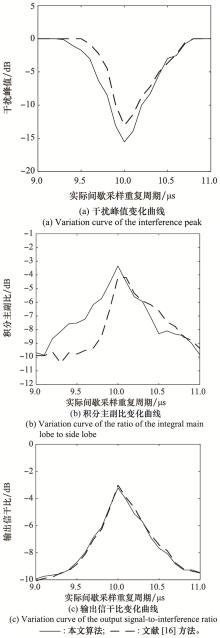

图7

图8

参考文献 31

1	GONG S X , WEI X Z , LI X . ECCM scheme against interrupted sampling repeater jammer based on time-frequency analysis[J]. Journal of Systems Engineering and Electronics, 2014, 25 (6): 996- 1003. doi: 10.1109/JSEE.2014.00114
2	ZHANG Y , WEI Y S , YU L . Interrupted sampling repeater jamming recognition and suppression based on phase-coded signal processing[J]. Signal Processing, 2022, 198 (14): 108596.
3	HE J Y , CHENG Z Y , HE Z S . Joint design of detecting and screening waveforms against interrupted sampling repeater jamming with inaccurate jamming knowledge[J]. Digital Signal Processing, 2022, 130 (3): 103679.
4	LU L , GAO M G . A truncated matched filter method for interrupted sampling repeater jamming suppression based on jamming reconstruction[J]. Remote Sensing, 2021, 14 (1): 97. doi: 10.3390/rs14010097
5	ZHOU C , LIU Q H , CHEN X L . Parameter estimation and suppression for DRFM-based interrupted sampling repeater jammer[J]. IET Radar, Sonar & Navigation, 2018, 12 (1): 56- 63.
6	LIU Y X , ZHANG Q , LIU Z D , et al. An anti-jmming method against interrupted sampling repeater jamming based on compressed sensing[J]. Sensors, 2022, 22 (6): 2239. doi: 10.3390/s22062239
7	FENG D J , XU L T , PAN X Y , et al. Jamming wideband radar using interrupted-sampling repeater[J]. IEEE Trans.on Aerospace and Electronic Systems, 2017, 53 (3): 1341- 1354. doi: 10.1109/TAES.2017.2670958
8	SUN J W, WANG C, SHI Q Z, et al. Interrupted sampling repeater signal based on phase modulation[C]//Proc. of the International Conference on Microwave and Millimeter Wave Technology, 2021.
9	CHEN J , XU S Y , ZOU J W , et al. Interrupted-sampling repeater jamming suppression based on stacked bidirectional gated recurrent unit network and infinite training[J]. IEEE Access, 2019, 7, 107428- 107437. doi: 10.1109/ACCESS.2019.2932793
10	沈健君, 刘晓斌, 艾小锋, 等. 宙斯盾雷达典型信号处理方法仿真分析[J]. 太赫兹科学与电子信息学报, 2022, 20 (3): 228- 234.
	SHEN J J , LIU X B , AI X F , et al. Simulation analysis of typical signal's processing methods of Aegis radar[J]. Journal of Te-rahertz Science and Electronic Information Technology, 2022, 20 (3): 228- 234.
11	ZHONG S Z, HUANG X, WANG H J, et al. Anti-intermittent sampling repeater jamming waveform design based on immune genetics[C]//Proc. of the IEEE International Conference on Power, Intelligent Computing and Systems, 2019: 553-559.
12	张彦, 叶春茂, 鲁耀兵, 等. 双曲调频波形抑制间歇采样转发干扰效果分析[J]. 系统工程与电子技术, 2021, 43 (11): 3169- 3176. doi: 10.12305/j.issn.1001-506X.2021.11.16
	ZHANG Y , YE C M , LU Y B , et al. Hyperbolic frequency modulated waveform for interrupted sampling repeater jamming suppression[J]. Systems Engineering and Electronics, 2021, 43 (11): 3169- 3176. doi: 10.12305/j.issn.1001-506X.2021.11.16
13	李思文, 王国宏, 张亮, 等. 一种强干扰背景下间歇采样转发干扰抑制算法[J]. 现代电子技术, 2021, 44 (15): 1- 6.
	LI S W , WANG G H , ZHANG L , et al. Suppression algorithm for interrupted-sampling forwarding jamming under background of stronginte rference[J]. Modern Electronics Technique, 2021, 44 (15): 1- 6.
14	ZHOU C , LIU F F , LIU Q H . An adaptive transmitting scheme for interrupted sampling repeater jamming suppression[J]. Sensors, 2017, 17 (11): 2480. doi: 10.3390/s17112480
15	何金阳, 程子扬, 李绽蕾, 等. 低多普勒敏感的抗间歇采样干扰波形设计方法[J]. 系统工程与电子技术, 2023, 45 (5): 1333- 1341. doi: 10.12305/j.issn.1001-506X.2023.05.09
	HE J Y , CHENG Z Y , LI Z L , et al. Low Doppler sensitive waveform design method against interrupted sampling repeater jamming[J]. Systems Engineering and Electronics, 2023, 45 (5): 1333- 1341. doi: 10.12305/j.issn.1001-506X.2023.05.09
16	周凯, 何峰, 粟毅. 一种快速抗间歇采样转发干扰波形和滤波器联合设计算法[J]. 雷达学报, 2022, 11 (2): 264- 277.
	ZHOU K , HE F , SU Y . Fast algorithm for joint waveform and filter design against interrupted sampling repeater jamming[J]. Journal of Radar, 2022, 11 (2): 264- 277.
17	ZHOU K , LI D X , SU Y , et al. Joint design of transmit waveform and mismatch filter in the presence of interrupted sampling repeater jamming[J]. IEEE Signal Processing Letters, 2020, 27, 1610- 1614. doi: 10.1109/LSP.2020.3021667
18	ZHOU K , LI D X , QUAN S N , et al. SAR waveform and mismatched filter design for countering interrupted-sampling repeater jamming[J]. IEEE Tran.on Geoscience and Remote Sensing, 2022, 60, 5214514.
19	SONG J X , BABU P , PALOMAR D P . Optimization methods for designing sequences with low autocorrelation sidelobes[J]. IEEE Trans.on Signal Processing, 2015, 63 (15): 3998- 4009. doi: 10.1109/TSP.2015.2425808
20	SONG J X , BABU P , PALOMAR D P . Sequence design to minimize the weighted integrated and peak sidelobe levels[J]. IEEE Trans.on Signal Processing, 2016, 64 (8): 2051- 2064. doi: 10.1109/TSP.2015.2510982
21	GEIPING J , MOELLER M . Composite optimization by nonconvex majorization-minimization[J]. SIAM Journal on Imaging Sciences, 2018, 11 (4): 2494- 2528. doi: 10.1137/18M1171989
22	SUN Y , BABU P , PALOMAR D P . Majorization-minimization algorithms in signal processing, communications, and machine learning[J]. IEEE Trans.on Signal Processing, 2017, 65 (3): 794- 816. doi: 10.1109/TSP.2016.2601299
23	HUNTER D R , LANGE K . A tutorial on MM algorithms[J]. The American Statistician, 2004, 58 (1): 30- 37. doi: 10.1198/0003130042836
24	何金阳, 程子扬, 何子述. 抗间歇采样转发干扰的认知恒模波形设计方法[J]. 系统工程与电子技术, 2021, 43 (9): 2448- 2456. doi: 10.12305/j.issn.1001-506X.2021.09.10
	HE J Y , CHENG Z Y , HE Z S . Cognitive constant modulus waveform design method against interrupted sampling repeater jamming[J]. Systems Engineering and Electronics, 2021, 43 (9): 2448- 2456. doi: 10.12305/j.issn.1001-506X.2021.09.10
25	WU L H , ZOU Y B . Majorization-minimization method for elliptic localization in the absence of transmitter position[J]. Sensors, 2022, 23 (1) doi: 10.3390/s23010373
26	GONG S Q , XING C W , LAU V K N , et al. Majorization-minimization aided hybrid transceivers for MIMO interference channels[J]. IEEE Trans.on Signal Processing, 2020, 68, 4903- 4918. doi: 10.1109/TSP.2020.3018548
27	ZHAO L C , SONG J X , BABU P , et al. A unified framework for low autocorrelation sequence design via majorization-minimization[J]. IEEE Trans.on Signal Processing, 2017, 65 (2): 438- 453. doi: 10.1109/TSP.2016.2620113
28	VARADHAN R , ROLAND C . Simple and globally convergent methods for accelerating the convergence of any EM algorithm[J]. Scandinavian Journal of Statistics, 2008, 35 (2): 335- 353. doi: 10.1111/j.1467-9469.2007.00585.x
29	王福来, 庞晨, 殷加鹏, 等. 一种多普勒容忍的抗间歇采样转发干扰恒模互补波形和接收滤波器联合设计方法[J]. 雷达学报, 2022, 11 (2): 278- 288.
	WANG F L , PANG C , YIN J P , et al. Joint design of Doppler-tolerant complementary sequences and receiving filters against interrupted sampling repeater jamming[J]. Journal of Radars, 2022, 11 (2): 278- 288.
30	马菊侠. 关于矩阵迹的运算[J]. 陕西师范大学学报(自然科学版), 2003, (S1): 39- 41.
	MA J X . Operations about matrix trace[J]. Journal of Shaanxi Normal University (Natural Science Edition), 2003, (S1): 39- 41.
31	于雷, 位寅生, 孟芸芸, 等. 一种间歇采样转发干扰的参数辨识方法[P]. 中国:
	CN 110794374B, 2022-05-17. YU L, WEI Y S, MENG Y Y, et al. A parameter identification method for intermittent sampling and forwarding interference[P]. China: CN 110794374B, 2022-05-17.

参数	数值
发射信号时宽/μs	40
间歇采样重复周期/μs	10
采样序列时宽/μs	2.5
间歇采样占空比/%	25
发射信号长度	256

参数	发射信号与接收滤波器长度N
参数	16	32	64	128	256
发射信号与接收滤波器相关函数旁瓣峰值	-15.21	-22.75	-22.84	-27.69	-29.6
ISRJ信号与接收滤波器相关函数峰值	-24.24	-27.16	-27.66	-29.89	-31.28

信号长度	本文方法平均运行时间	文献[16]方法平均运行时间
16	0.137 5	0.449 0
32	0.883 2	1.514 9
64	2.413 2	7.244 5
128	34.295 2	73.168 0
256	105.757 4	318.943 5

算法	SNRL	输出积分主副比	输出信干比	干扰信号峰值
本文算法	1.324 6	-3.330 2	-3.207 1	-15.808 6
文献[16]方法	1.340 3	-4.041 6	-3.021 0	-13.629 4
