组合角反射体极化模型构建与分析

doi:10.12305/j.issn.1001-506X.2026.02.01

摘要/Abstract

摘要：

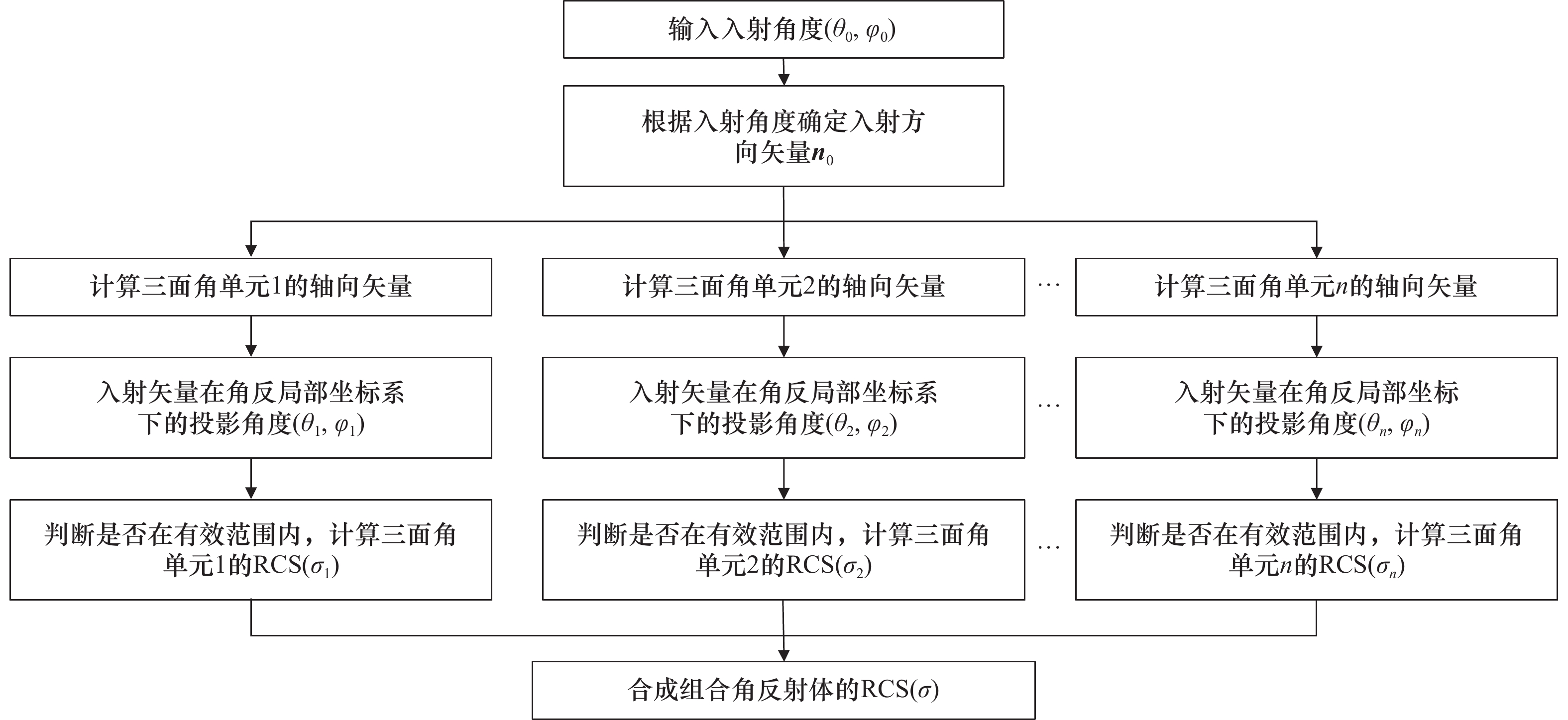

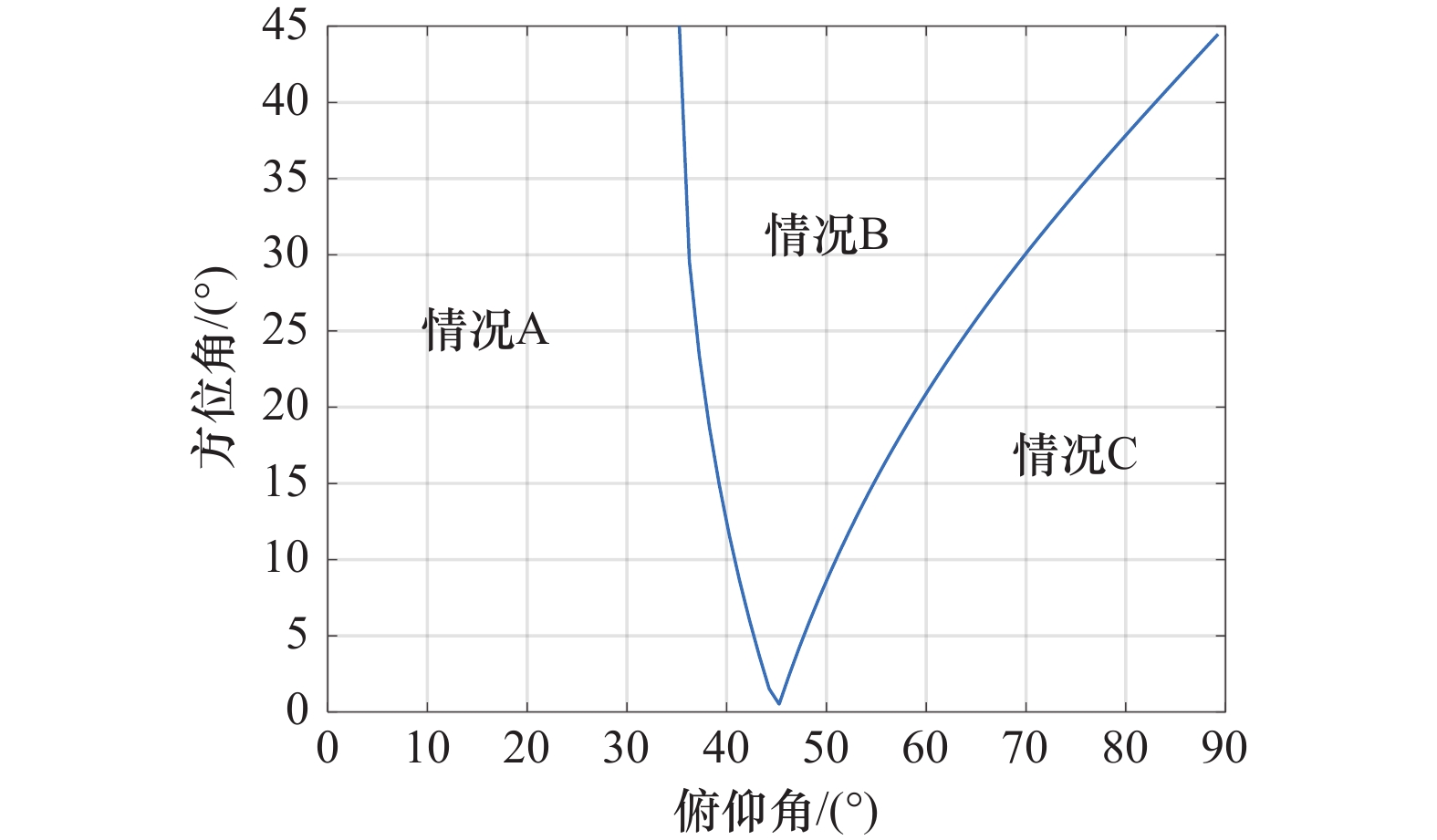

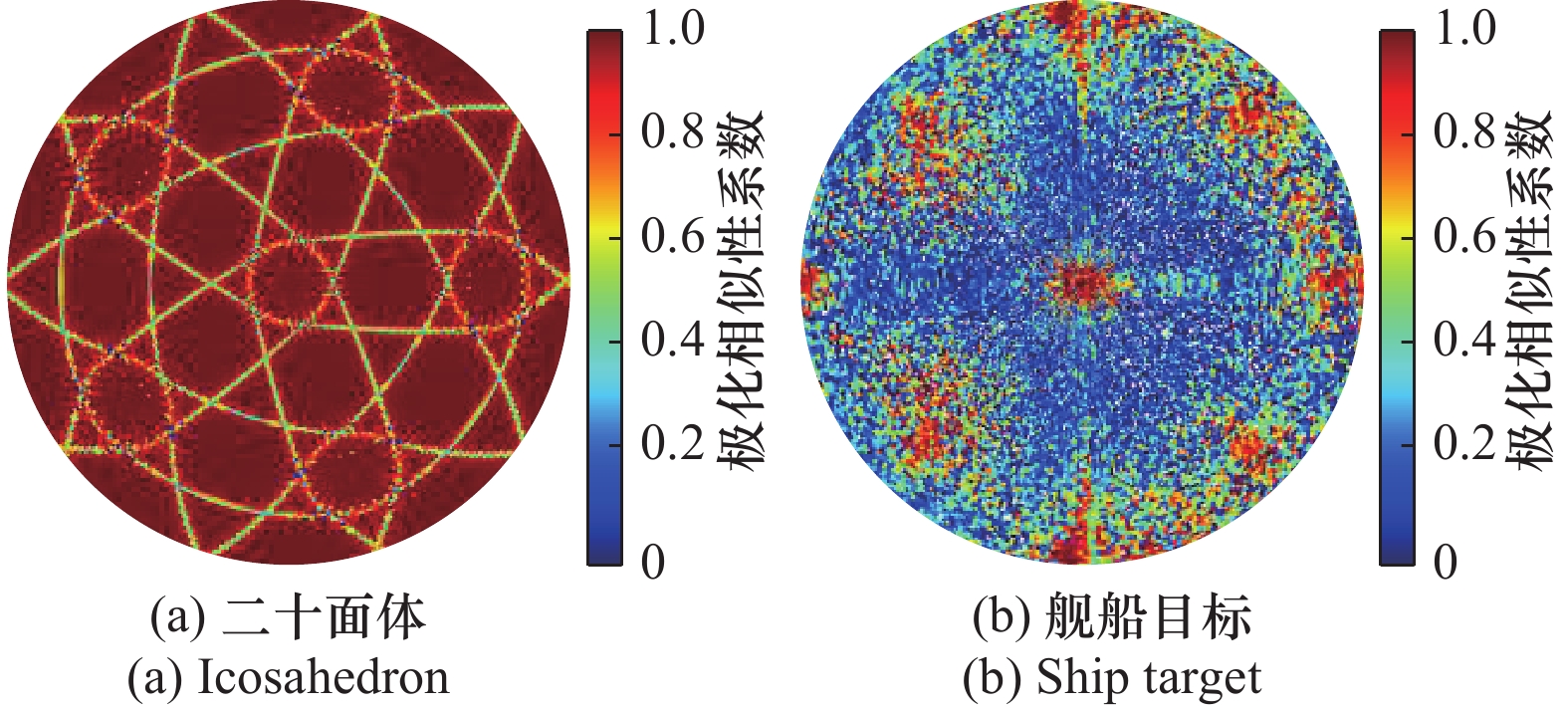

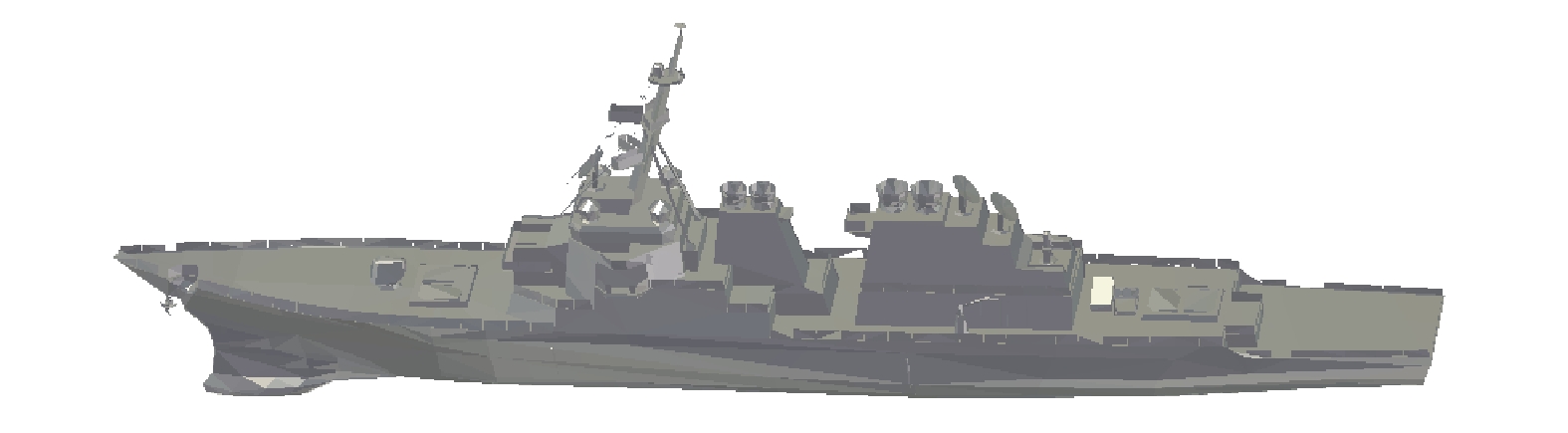

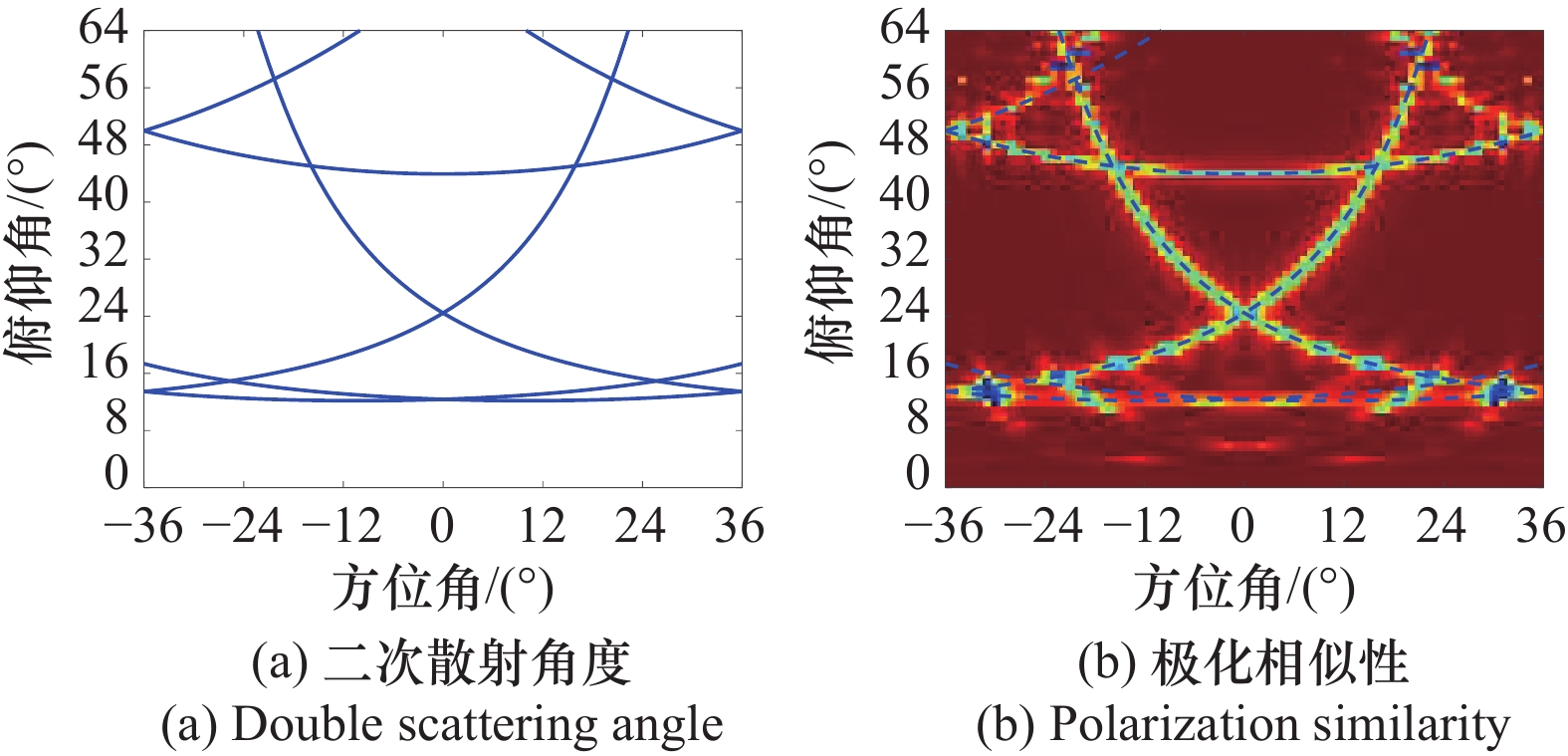

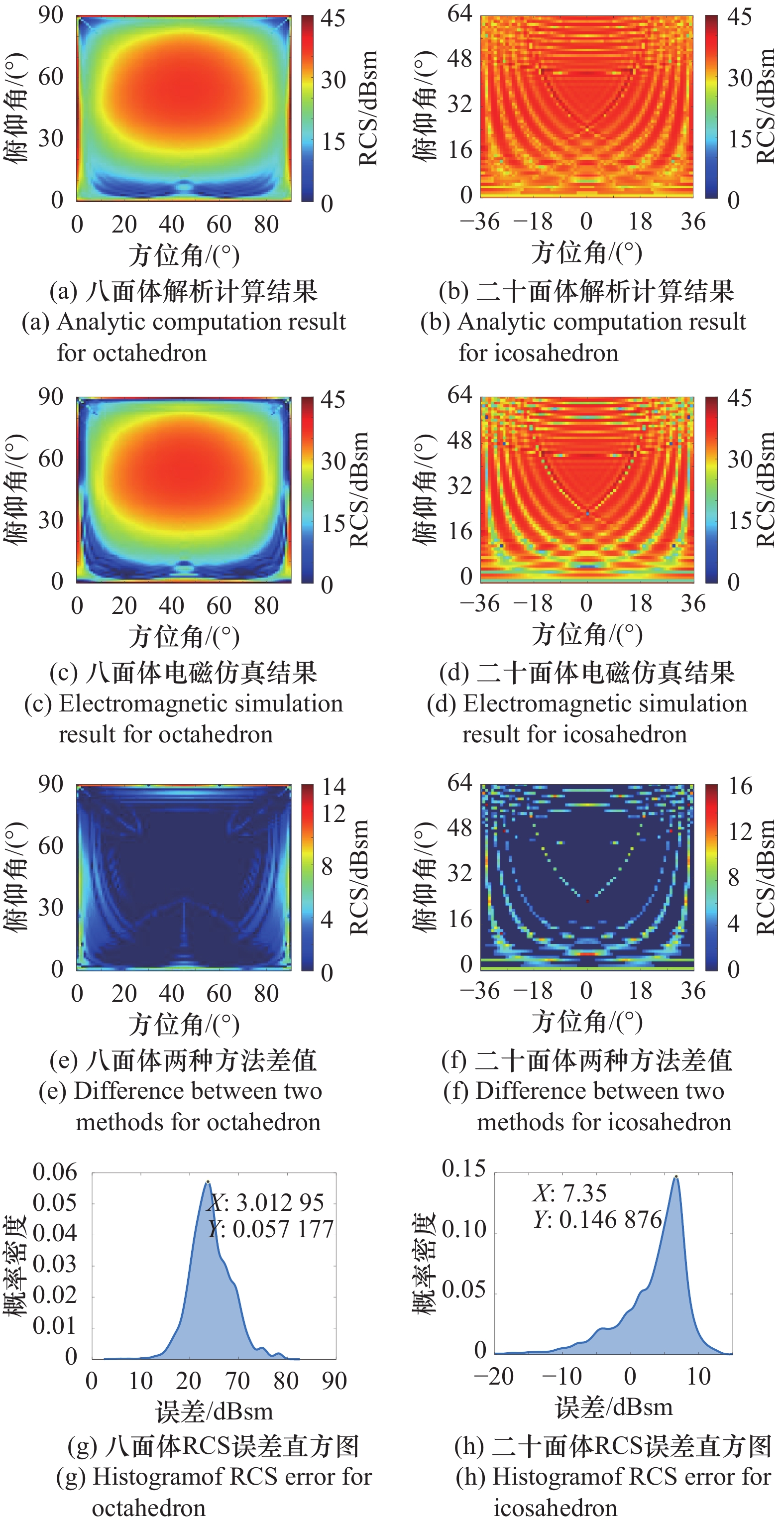

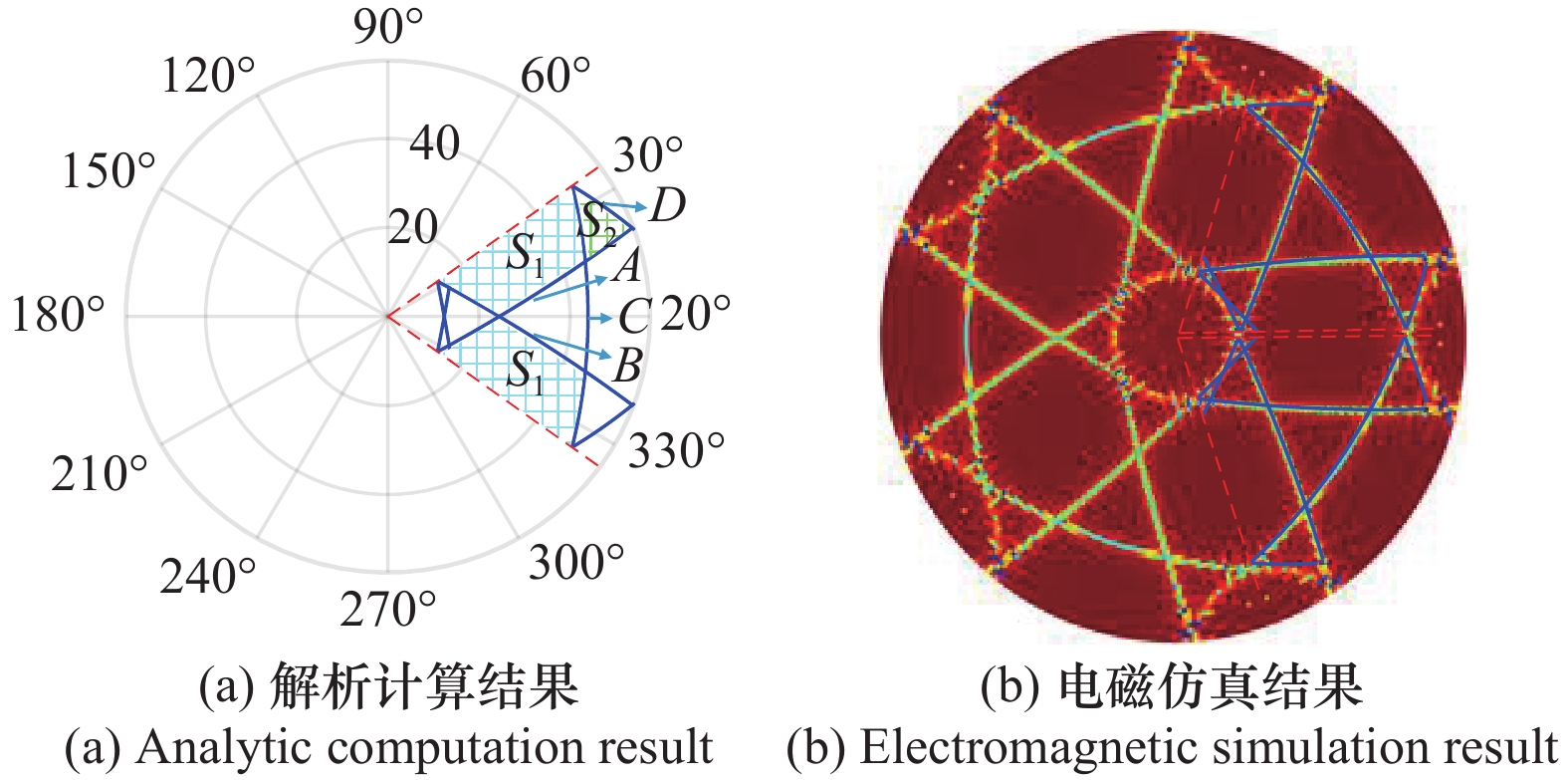

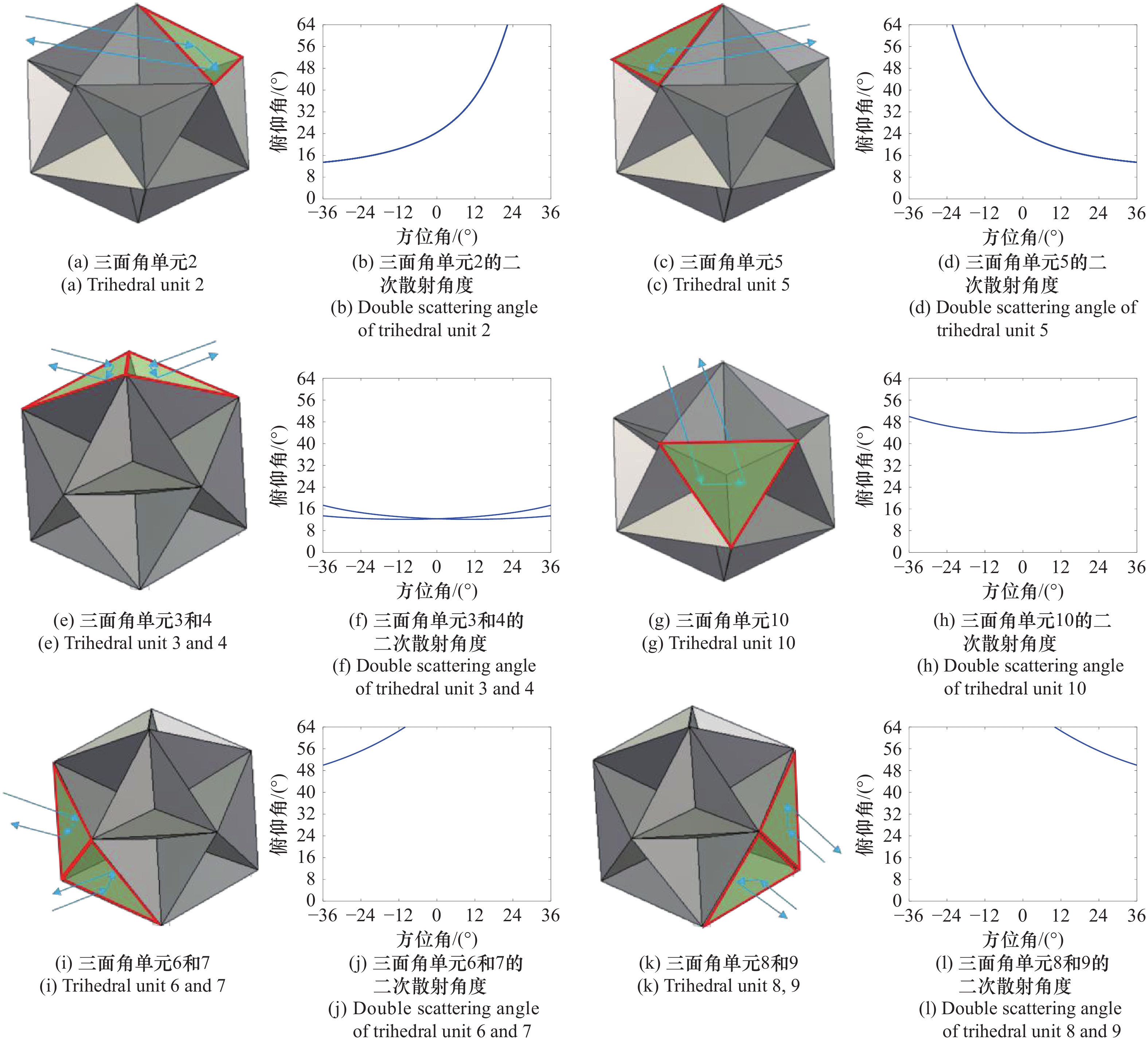

角反射器是海面战场上重要的无源干扰装备，对角反射器散射特性的准确认知是无源干扰对抗博弈的基础。针对组合角反射器雷达散射截面积（radar cross section，RCS）和极化散射特性认知不足等问题，提出一种基于物理光学法的组合角反射体RCS模型。在此基础上，重点分析二十面体的极化特性，推导偏离奇次散射特性情况下方位角与俯仰角的解析表达式，并提出立体保极化角域的计算方法，分析二十面角反射体和舰船目标的差异。通过与电磁仿真软件结果的对比分析可知，所提RCS模型得到的八面体和二十面体RCS均值误差分别为3.2 dBsm和7.1 dBsm，所提极化散射特性模型得到的二次散射对应角度与仿真结果基本一致。所提方法可用于快速分析复杂组合角反射器的散射特性，为后续角反鉴别应用提供基础。

关键词: 角反射器, 八面体, 二十面体, 极化, 散射模型

Abstract:

Corner reflector is an important passive jamming equipment in the sea battlefield, and an accurate understanding of its scattering characteristics is the foundation of jamming confrontation. To address the insufficient understanding of the radar cross section (RCS) and polarimetric scattering characteristics of combined corner reflector, a RCS model for combined corner reflector based on the physical optics method is proposed. On this basis, the polarization characteristics of the icosahedron is analyzed and the analytical expression of the azimuth and pitch angle where the scattering deviate from the odd scattering is deduced. Moreover, a calculation method of the consistent-polarization solid angle domain is proposed, and the differences between the icosahedral corner reflector and ship target is analyzed. Through the comparison with the results of electromagnetic simulation software, the mean RCS errors of octahedron and icosahedron obtained by the proposed RCS model are 3.2 dBsm and 7.1 dBsm, respectively. The angle corresponding to the double scattering obtained by the proposed polarization scattering characteristic model is basically consistent with the simulation results. The proposed method can be used to quickly analyze the scattering characteristics of the combined corner reflectors and provide the basis for the application of corner reflector discrimination.

Key words: corner reflector, octahedral, icosahedral, polarization, scattering model

中图分类号:

TN 974

吴国庆, 王罗胜斌, 王平, 宋志勇, 李永祯. 组合角反射体极化模型构建与分析[J]. 系统工程与电子技术, 2026, 48(2): 381-391.

Guoqing WU, Luoshengbin WANG, Ping WANG, Zhiyong SONG, Yongzhen LI. Polarization model construction and analysis for combined corner reflector[J]. Systems Engineering and Electronics, 2026, 48(2): 381-391.

图/表 20

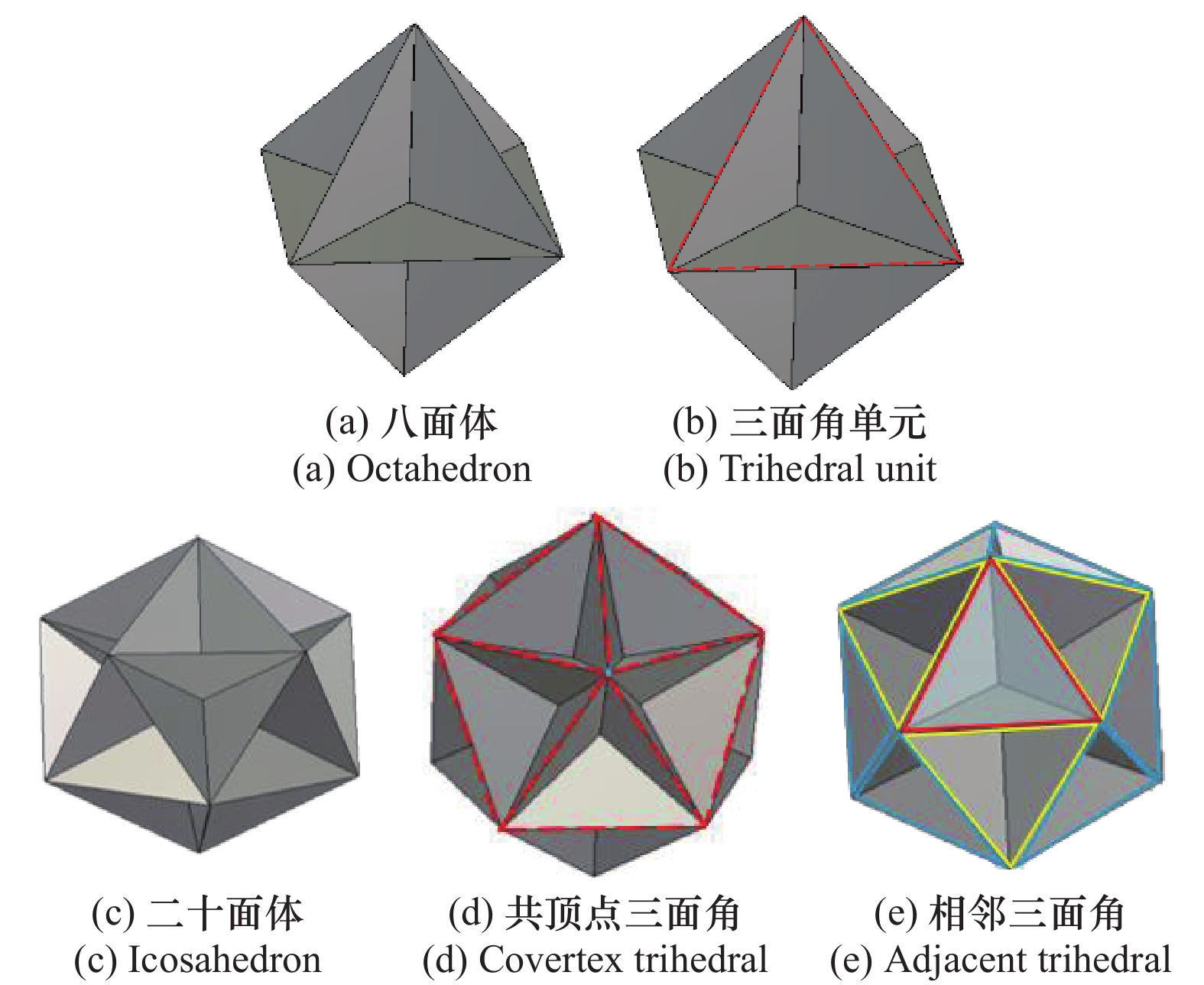

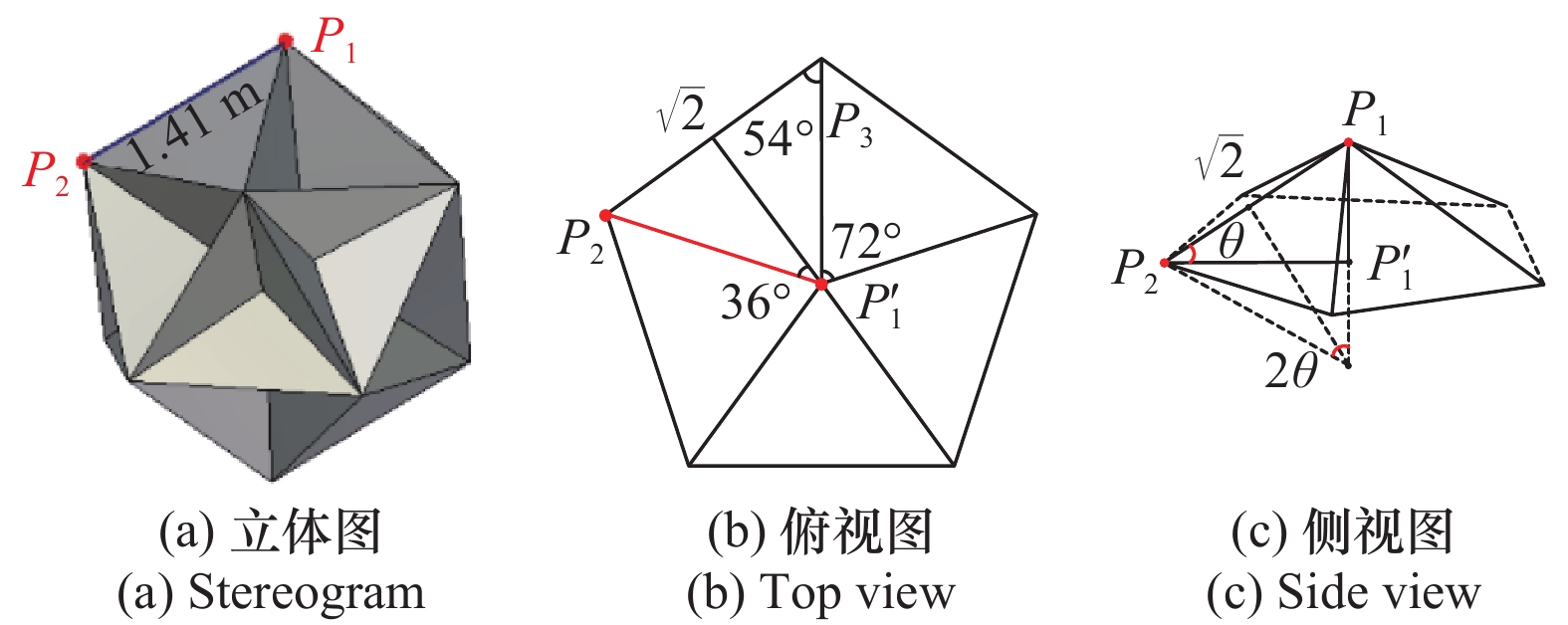

图1

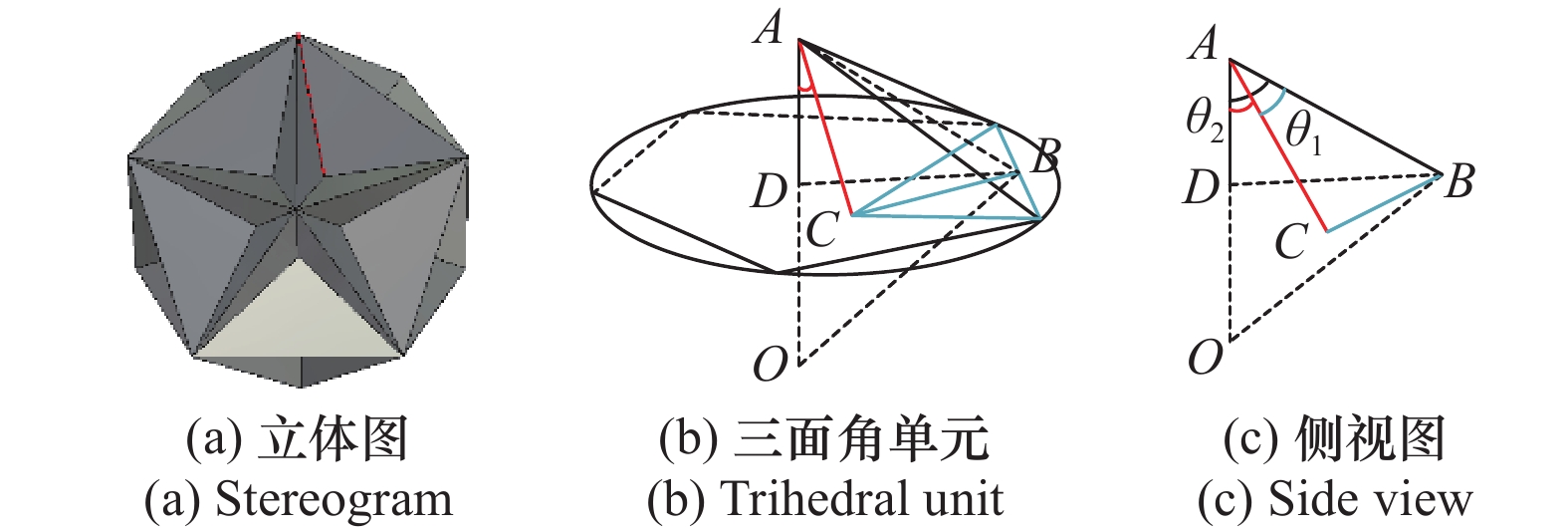

图2

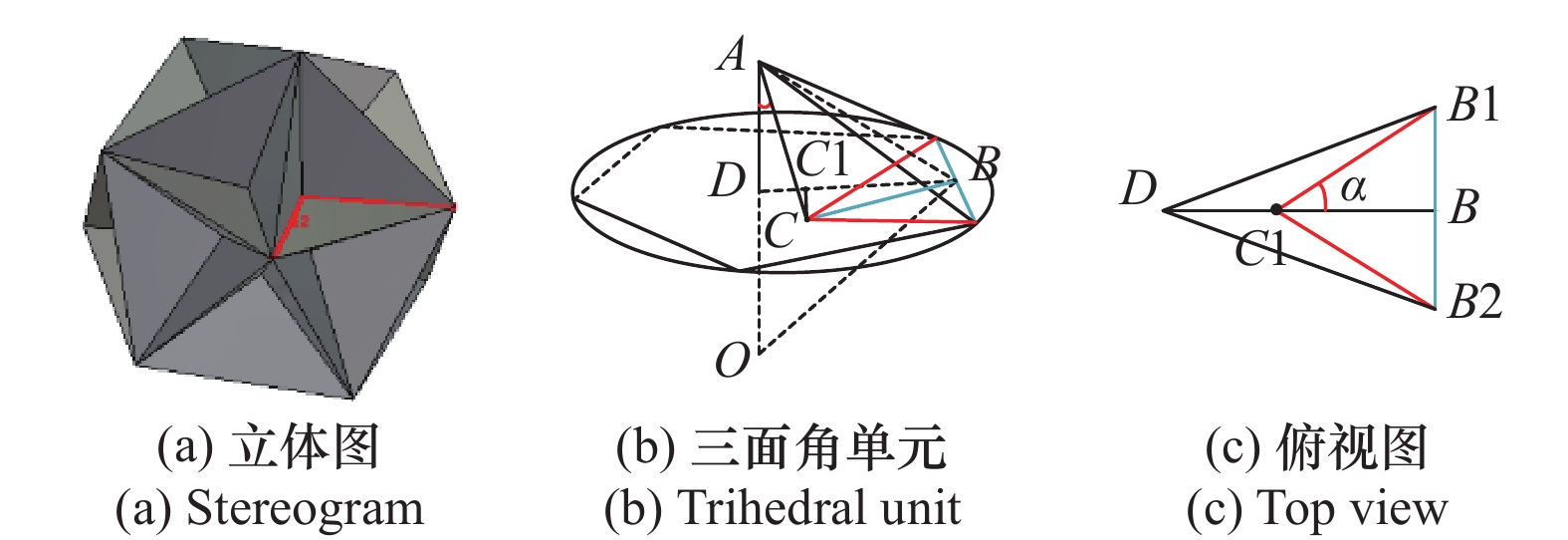

图3

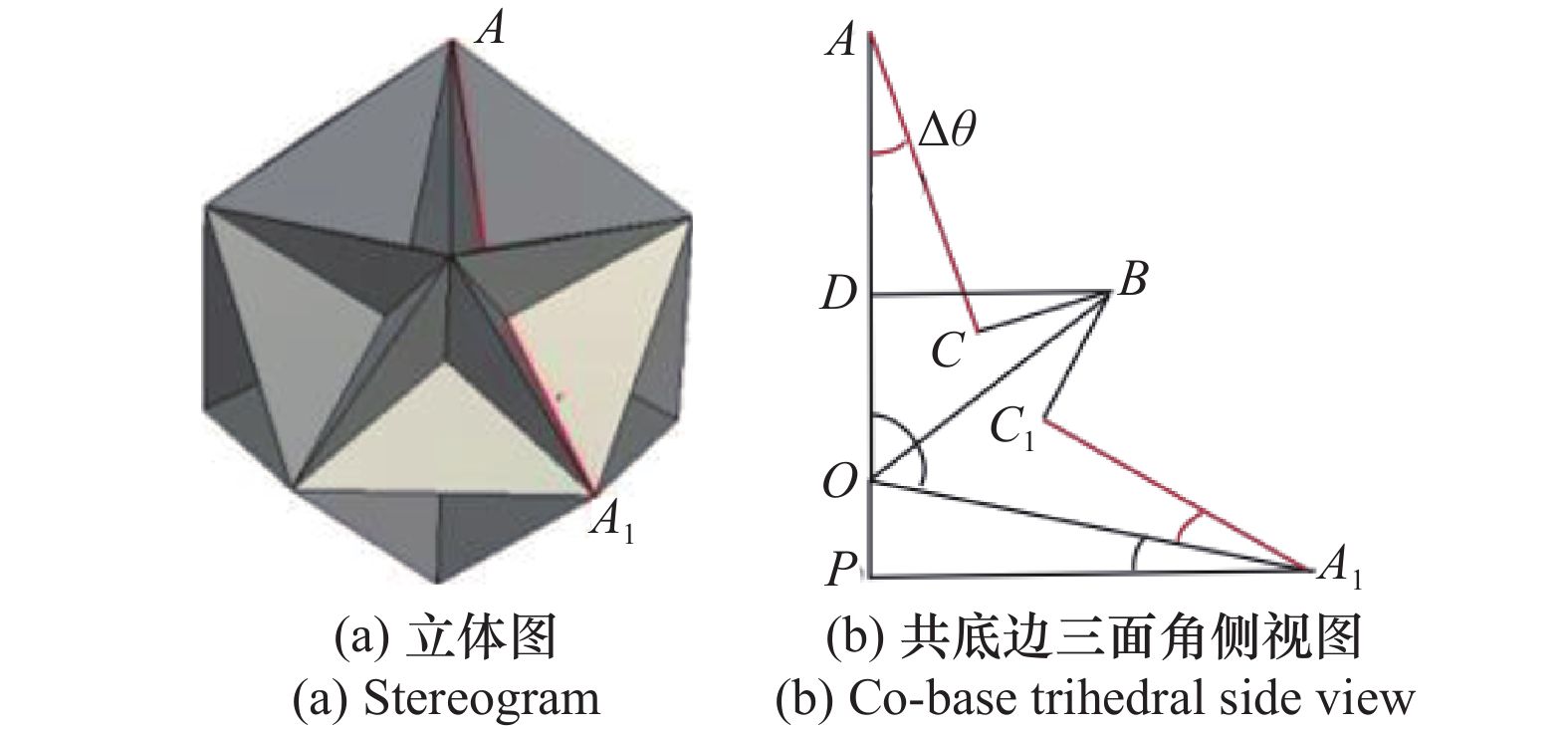

图4

图5

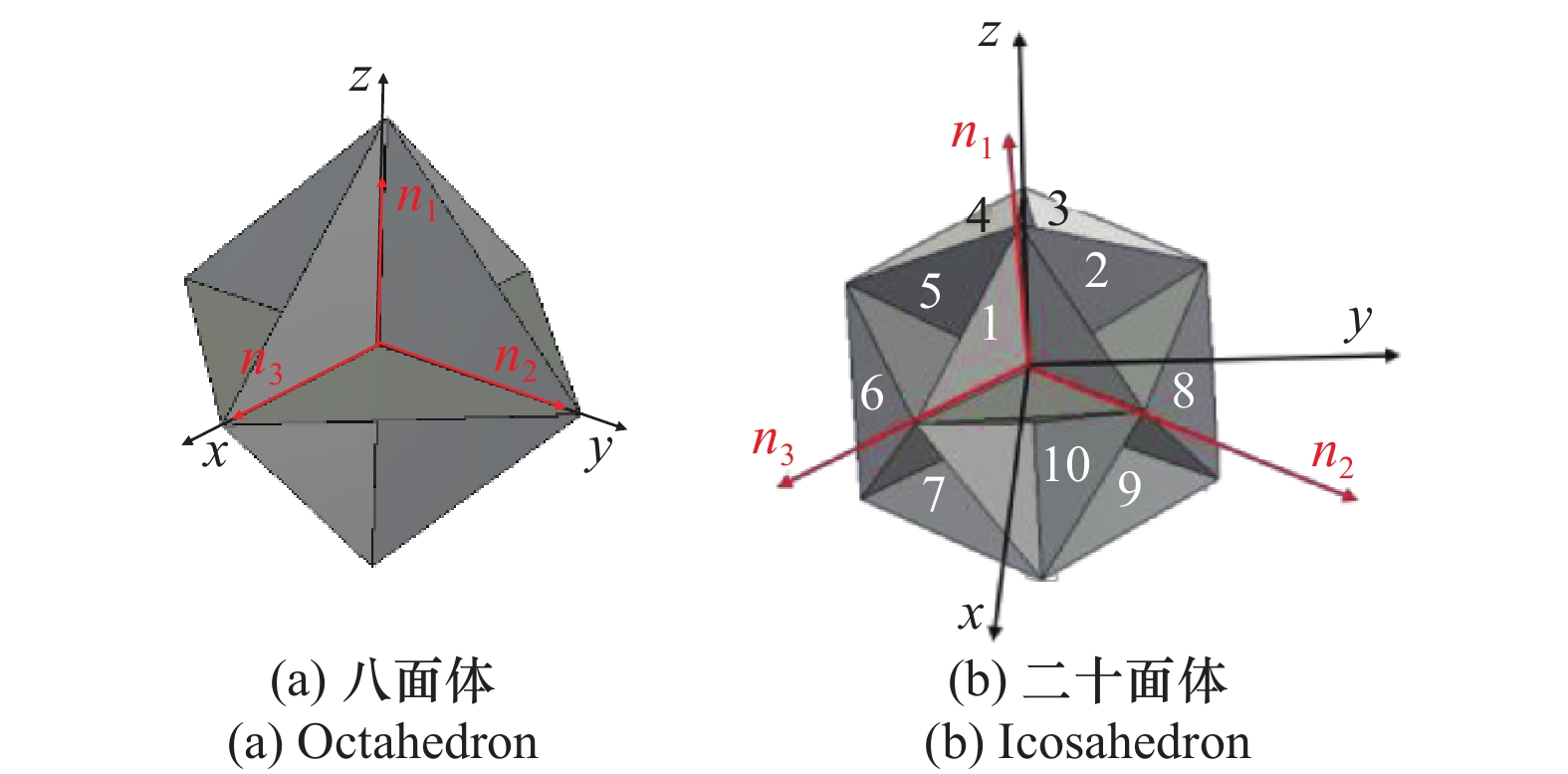

图6

图7

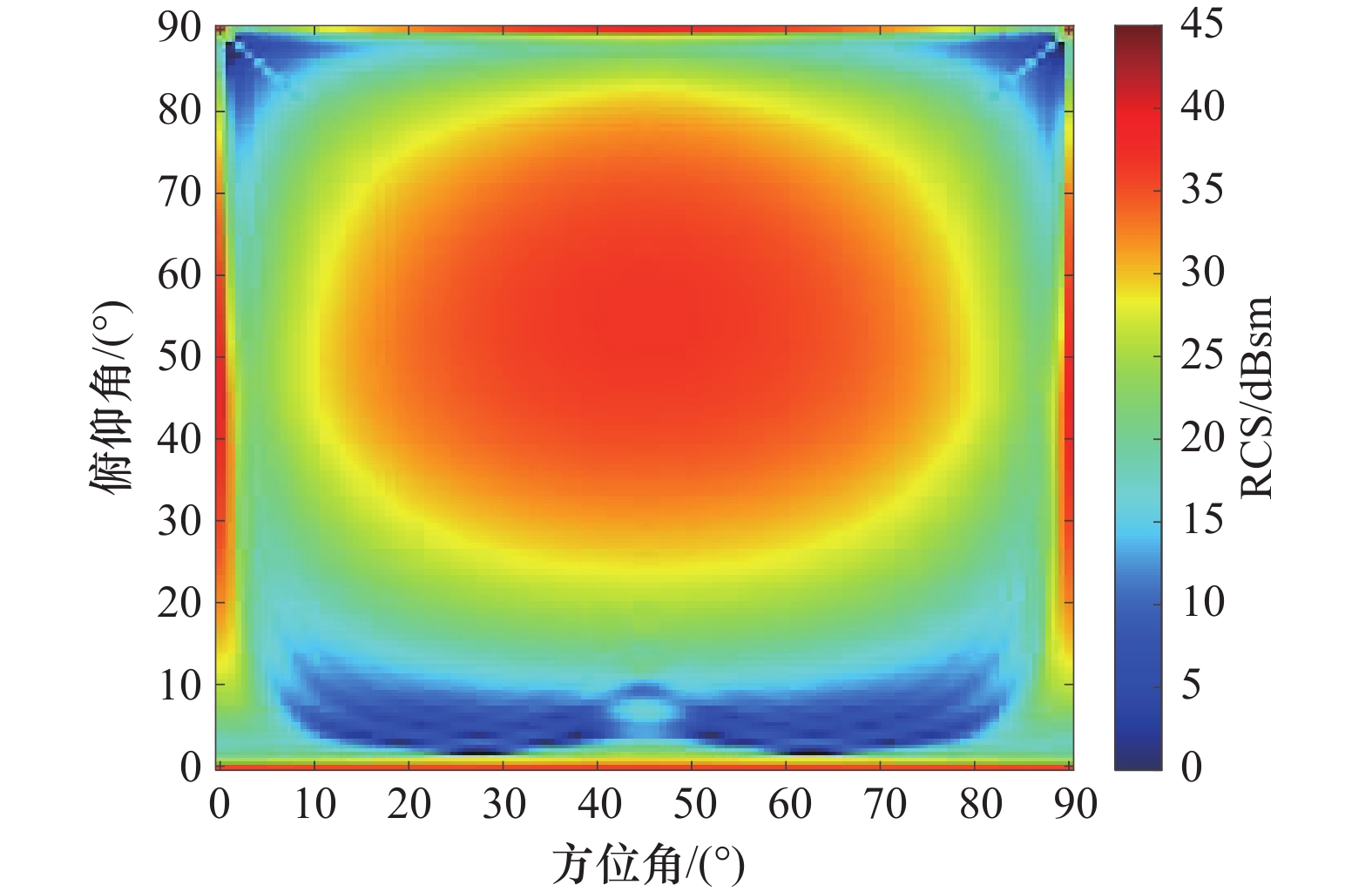

图8

图9

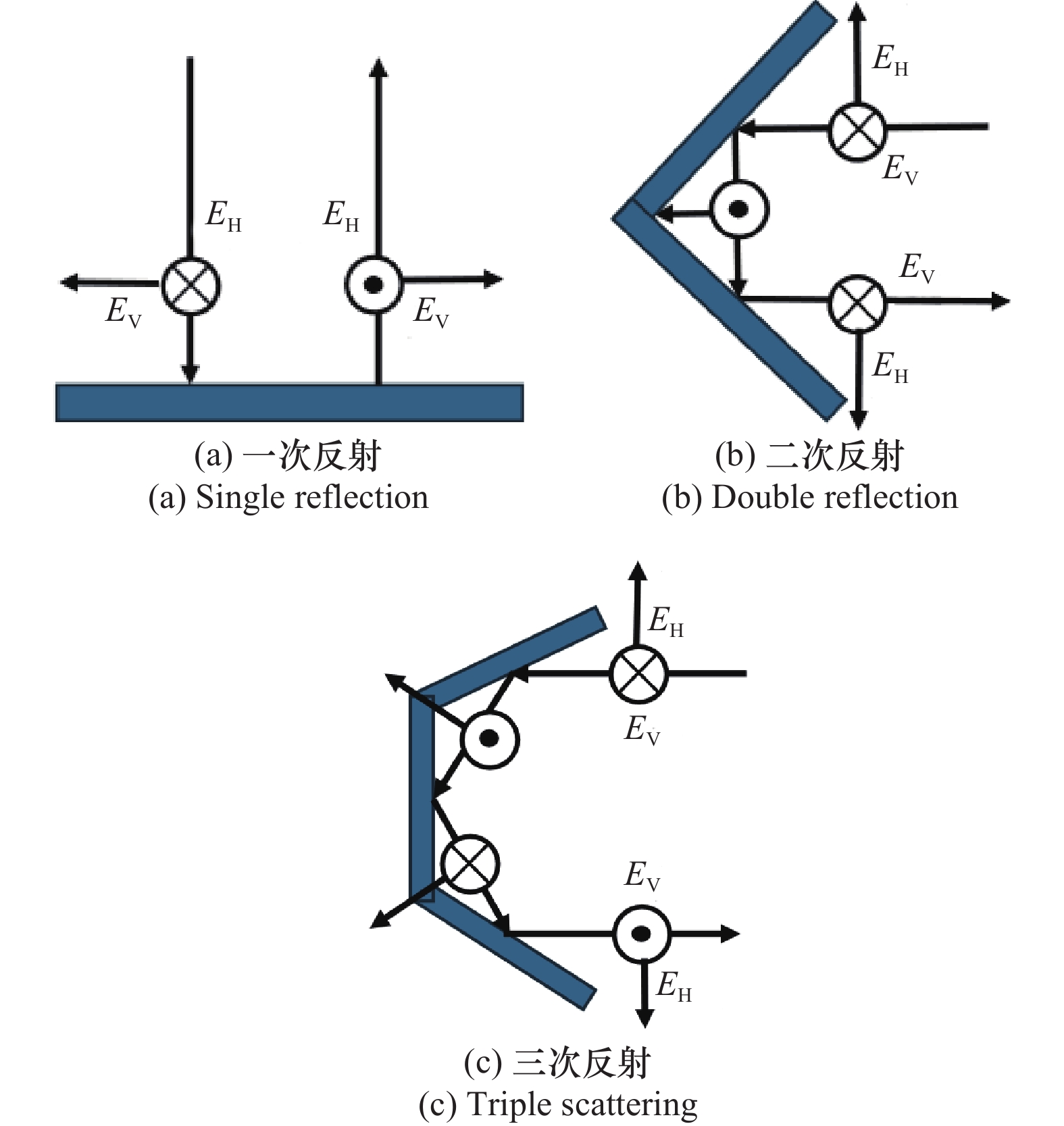

图10

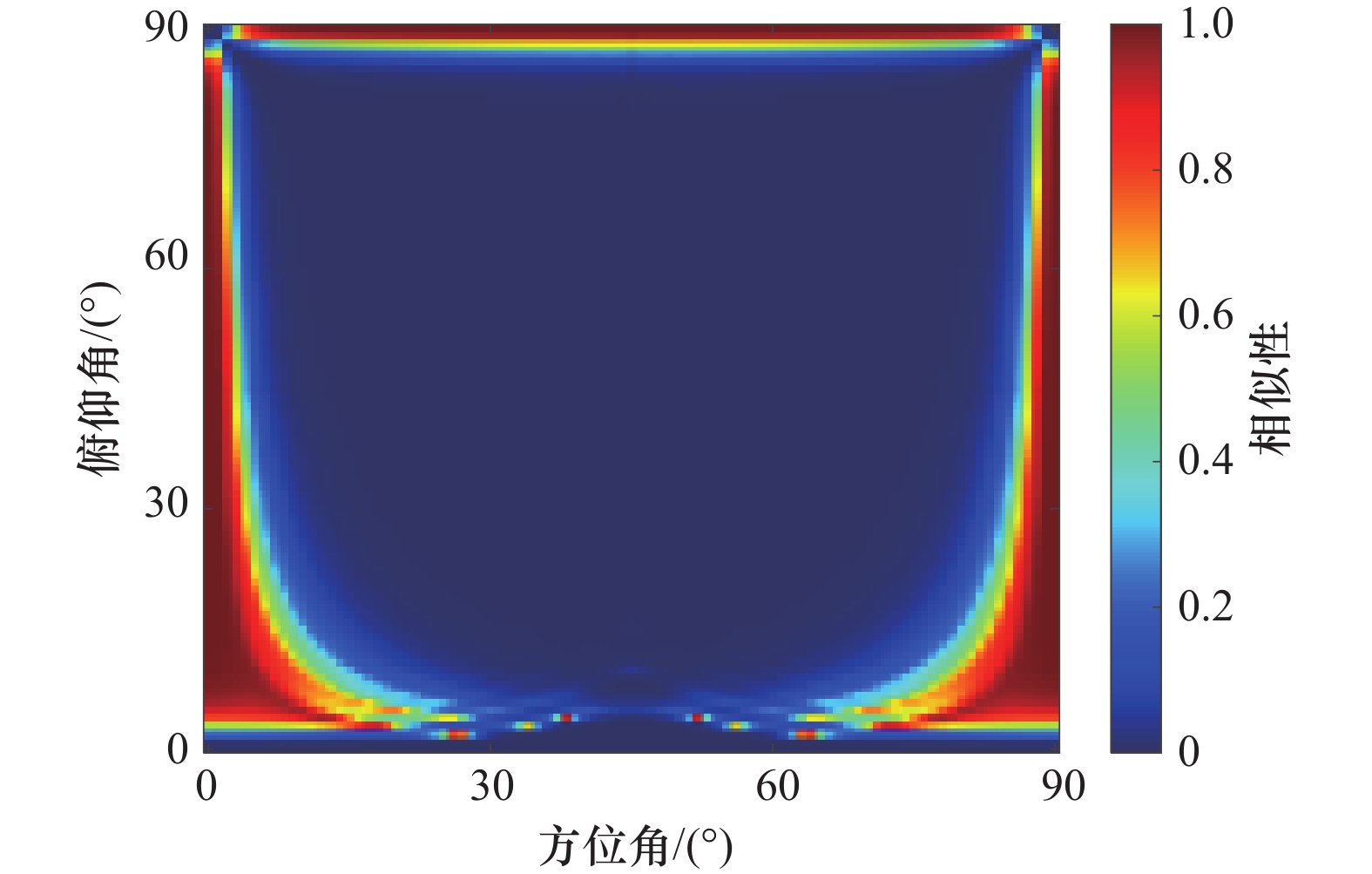

图11

图12

图13

图14

图15

图16

图17

图18

图19

图20

参考文献 31

1	汤广富, 李华, 甘荣兵, 等. 海战场环境下角反射器干扰分析[J]. 电子信息对抗技术, 2015, 30 (5): 39- 45，84.
	TANG G F, LI H, GAN R B, et al. Analysis of corner reflector under naval battlefield[J]. Electronic Information Warfare Technology, 2015, 30 (5): 39- 45，84.
2	胡海, 张林, 张小东. 舰载充气式角反射体反导装备发展及运用[J]. 国防科技, 2018, 39 (2): 74- 77.
	HU H, ZHANG L, ZHANG X D. A study on equipment developments and operational using of ship-born gas-filled anti-missile multi-corner reflector[J]. National Defense Technology, 2018, 39 (2): 74- 77.
3	王浩. 以色列海军“巫师”角反射器[J]. 光电技术应用, 2008, 23 (3): 53.
	WANG H. Israeli Navy “wizard” corner reflector[J]. Application of Photoelectric Technology, 2008, 23 (3): 53.
4	张志远, 张介秋, 屈绍波, 等. 雷达角反射器的研究进展及展望[J]. 飞航导弹, 2014 (4): 64- 70.
	ZHANG Z Y, ZHANG J Q, QU S B, et al. Research progress and prospect of radar corner reflector[J]. Aero Dynamic Missile Journal, 2014 (4): 64- 70.
5	ZHENG W J, HE Z, DING D Z, et al. RCS analysis on low-altitude chaff clouds above sea surface[J]. IEEE Trans. on Antennas and Propagation, 2023, 71 (8): 6766- 6778. doi: 10.1109/TAP.2023.3278871
6	MIANROODI R Y, HEIDAR H, ARMAKI H M. Expandable shipboard decoy including adequate RCS by using trihedral corner reflectors[J]. IET Science, Measurement & Technology, 2016, 10 (5): 485- 491.
7	KUBICKE G, BOURLIER C, SAILLARD J. Polarimetric bistatic signature of a faceted octahedron in high-frequency domain[J]. Progress in Electromagnetics Research, 2007, 71, 173- 209. doi: 10.2528/PIER07022801
8	吴林罡, 胡生亮, 张俊, 等. 双棱锥型角反射器RCS快速预估方法[J]. 战术导弹技术, 2021, 5, 29- 35.
	WU L G, HU S L, ZHANG J, et al. Fast RCS estimation method for bipyramid corner reflector[J]. Tactical Missile Technology, 2021, 5, 29- 35.
9	KUBICKE G, BOURLIER C, SAILLARD J. High-frequency bistatic scattering by depolarizing, nearly omnidirectional reflectors: higher order polyhedral reflectors[J]. IEEE Trans. on Antennas and Propagation, 2008, 56 (9): 3029- 3035. doi: 10.1109/TAP.2008.928779
10	WU L G, XU J H, HU S L. High-frequency backscattering properties of quasi-omnidirectional corner reflector: the great-icosahedral-like reflector[J]. AIP Advances, 2022, 12 (10): 105225. doi: 10.1063/5.0123981
11	张志远, 赵原源. 新型二十面体三角形角反射器的电磁散射特性分析[J]. 指挥控制与仿真, 2018, 40 (4): 133- 137. doi: 10.3969/j.issn.1673-3819.2018.04.030
	ZHANG Z Y, ZHAO Y Y. Analysis of electromagnetic scattering characteristic for new type icosahedrons triangular trihedral corner reflectors[J]. Command Control and Simulation, 2018, 40 (4): 133- 137. doi: 10.3969/j.issn.1673-3819.2018.04.030
12	WU L G, HU S L, XU J H. Dynamic sequential radar cross section properties of airborne corner reflector in array[J]. IET Radar, Sonar & Navigation, 2023, 17 (9): 1405- 1419.
13	XU F, JIN Y Q. Bidirectional analytic ray tracing for fast computation of composite scattering from electric-large target over a randomly rough surface[J]. IEEE Trans. on Antennas and Propagation, 2009, 57 (5): 1495- 1505. doi: 10.1109/TAP.2009.2016691
14	JOHNSON J T. A numerical study of scattering from an object above a rough surface[J]. IEEE Trans. on Antennas and Propagation, 2002, 50 (10): 1361- 1367. doi: 10.1109/TAP.2002.802152
15	KNOTT E. RCS reduction of dihedral corners[J]. IEEE Trans. on Antennas and Propagation, 1977, 25 (3): 406- 409.
16	JOHNSON J T. A study of the four-path model for scattering from an object above a half space[J]. Microwave and Optical Technology Letters, 2001, 30 (2): 130- 134. doi: 10.1002/mop.1242
17	JACKSON J A. Analytic physical optics solution for bistatic, 3D scattering from a dihedral corner reflector[J]. IEEE Trans. on Antennas and Propagation, 2012, 60 (3): 1486- 1495.
18	胡生亮, 范学满, 贺静波. 基于改进GO/AP法的三面角反射体RCS预估[J]. 雷达科学与技术, 2017, 15 (2): 185- 190. doi: 10.3969/j.issn.1672-2337.2017.02.013
	HU S L, FAN X M, HE J B. Evaluation of radar cross section of trihedral corner reflectors based on improved GO/AP method[J]. Radar Science and Technology, 2017, 15 (2): 185- 190. doi: 10.3969/j.issn.1672-2337.2017.02.013
19	张俊, 胡生亮, 王聘, 等. 基于PO/AP的角反射体RCS模型构建及分析[J]. 系统工程与电子技术, 2018, 40 (7): 1478- 1485. doi: 10.3969/j.issn.1001-506X.2018.07.10
	ZHANG J, HU S L, WANG P, et al. RCS model construction and analysis for corner reflector based on PO/AP algorithm[J]. Systems Engineering and Electronics, 2018, 40 (7): 1478- 1485. doi: 10.3969/j.issn.1001-506X.2018.07.10
20	VERLY J. Physical optics polarization scattering matrix for a right-angle dihedral, ESC-TR-94-092 [R]. Maxwell AFB: U.S. Department of Air Force, 1995.
21	HE Y M, HE H F, HU C H, et al. Polarization analysis of trihedral corner reflector with high-frequency approximation[J]. IEEE Trans. on Antennas and Propagation, 2022, 70 (10): 9607- 9620. doi: 10.1109/TAP.2022.3177536
22	HE Y M, LU D W, HE H F, et al. The analysis of cross-polarization characteristic based on high-frequency electromagnetic theory[J]. IEEE Trans. on Antennas and Propagation, 2024, 72 (4): 3778- 3782. doi: 10.1109/TAP.2024.3356120
23	HE Y M, YANG H Z, HE H F, et al. A ship discrimination method based on high-frequency electromagnetic theory[J]. Remote Sensing, 2022, 14 (16): 3893. doi: 10.3390/rs14163893
24	LV Q Z, FAN H X, ZHAO Y H, et al. Agile frequency RCS-based deep fusion network for ship and corner reflector identification[J]. IEEE Geoscience and Remote Sensing Letters, 2024, 21, 3504505.
25	WU L G, HU S L, XU J H, et al. Ship HRRP target recognition against decoy jamming based on CNN-BiLSTM-SE model[J]. IET Radar, Sonar & Navigation, 2024, 18 (2): 361- 378.
26	XIA L, WANG F L, PANG C, et al. An identification method of corner reflector array based on mismatched filter through changing the frequency modulation slope[J]. Remote Sensing, 2024, 16 (12): 2114. doi: 10.3390/rs16122114
27	YUAN H D, FU X J, ZHAO C X, et al. Ship and corner reflector identification based on extreme learning machine[C]//Proc. of the IEEE International Conference on Signal, Information and Data Processing, 2020.
28	朱珍珍, 汤广富, 程翥, 等. 基于极化分解的舰船和角反射器鉴别方法[J]. 舰船电子对抗, 2010, 33 (6): 15- 21. doi: 10.3969/j.issn.1673-9167.2010.06.003
	ZHU Z Z, TANG G F, CHENG Z, et al. Discrimination method of ship and corner reflector based on polarization decomposition[J]. Shipboard Electronic Countermeasure, 2010, 33 (6): 15- 21. doi: 10.3969/j.issn.1673-9167.2010.06.003
29	韩静雯, 杨勇, 连静, 等. 基于极化与距离像特征融合的雷达导引头角反射器鉴别方法[J]. 系统工程与电子技术, 2024, 46 (11): 3658- 3670.
	HAN J W, YANG Y, LIAN J, et al. Identification method of corner reflector based on polarization and HRRP feature fusion for radar seeker[J]. Systems Engineering and Electronics, 2024, 46 (11): 3658- 3670.
30	YANG J, PENG Y N, LIN S M. Similarity between two scattering matrices[J]. Electronics Letters, 2001, 37 (3): 193- 194. doi: 10.1049/el:20010104
31	吴佳妮. 人造目标几何结构反演与极化雷达识别研究[D]. 长沙: 国防科技大学, 2017.
	WU J N. Study on geometrical structure retrieval and polarization radar recognition of man-made targets[D]. Changsha: National University of Defense Technology, 2017.
