面向点群与大区域目标的成像卫星任务规划模型与算法研究

doi:10.12305/j.issn.1001-506X.2025.09.15

摘要/Abstract

摘要：

针对点群、大区域等新型复杂目标的成像需求，为提高卫星资源的利用效率和观测任务的完成收益，研究面向点群与大区域目标的成像卫星任务规划模型与算法。首先，构建统一的决策模型，引入条带延长率作为决策变量解决点群目标合并成像表示的问题；考虑执行时序、电量、固存、转换时间等约束；针对目标特点，分别建立基于条带延长率、网格覆盖率的任务收益模型。然后，设计实现一种结合禁忌策略的自适应波动温控模拟退火算法，通过波动温控和内循环次数更新策略提升全局寻优能力，并引入禁忌策略增强局部搜索能力，提供自适应和高效智能的模型求解手段。仿真实验表明模型与算法能够有效提升规划效果。所提模型与算法适用于面向点群与大区域目标的成像卫星任务规划问题。

关键词: 卫星任务规划, 点群目标, 大区域目标, 波动温控, 模拟退火

Abstract:

Aiming at the imaging requirements of new complex targets such as point-cluster and large-region targets, to improve utilization efficiency of satellite resources and complpete income of observation tasks, the imaging satellite mission planning model and algorithm for point-cluster and large-region targets are studied. Firstly, a unified decision model is constructed, and the stripe elongation rate is introduced as a decision variable to solve the problem of imaging representation of point-cluster targets. Constraints are considered including execution timing, power, sequestration, and conversion time. The task benefit model based on stripe elongation rate and grid coverage rate is established separately according to the characteristics of targets. Then, an adaptive wave-temperature control simulated annealing algorithm combined with tabu strategy is designed to provide adaptive and efficient intelligent model solving methods, which improves the global optimization ability through the wave-temperature control and internal-cycle-number update strategies, and enhances the local search ability by tabu strategy. Simulation experiments show that the model and algorithm can effectively improve the planning effect. The proposed algorithm and model are suitable for imaging satellite mission planning problems for point-cluster and large-region targets.

Key words: satellite mission planning, point-cluster target, large-region target, wave-temperature control, simulated annealing

中图分类号:

V 19
TP 18

袁健波, 杜永浩, 陈盈果, 何永明. 面向点群与大区域目标的成像卫星任务规划模型与算法研究[J]. 系统工程与电子技术, 2025, 47(9): 2939-2950.

Jianbo YUAN, Yonghao DU, Yingguo CHEN, Yongming HE. Research on imaging satellite mission planning model and algorithm for point-cluster and large-region targets[J]. Systems Engineering and Electronics, 2025, 47(9): 2939-2950.

图/表 22

表1

符号说明"

符号	释义
T	任务集，T = $T^{\mathrm{P}} $∪$T^{\mathrm{A}} $ = {t_i \| i=1,2,3···}
$T^{\mathrm{P}} $, $T^{\mathrm{A}} $	点群目标任务集、大区域目标任务集
A	大区域目标集合，A = {a_i \| i=1,2,3···}
S	卫星集合，S = {s_j \| j = 1,2,3···}
H	数传站集合，H = {h_k \| k = 1,2,3···}
G	离散化的网格点集合，G = {g_m \| m = 1,2,3···}
c_i	第i个大区域目标的总面积
$ g_m^{a_i} $	第m个网格点包含大区域目标a_i的面积
X_i	任务t_i的成像机会集合
Y_i	任务t_i的数传机会集合

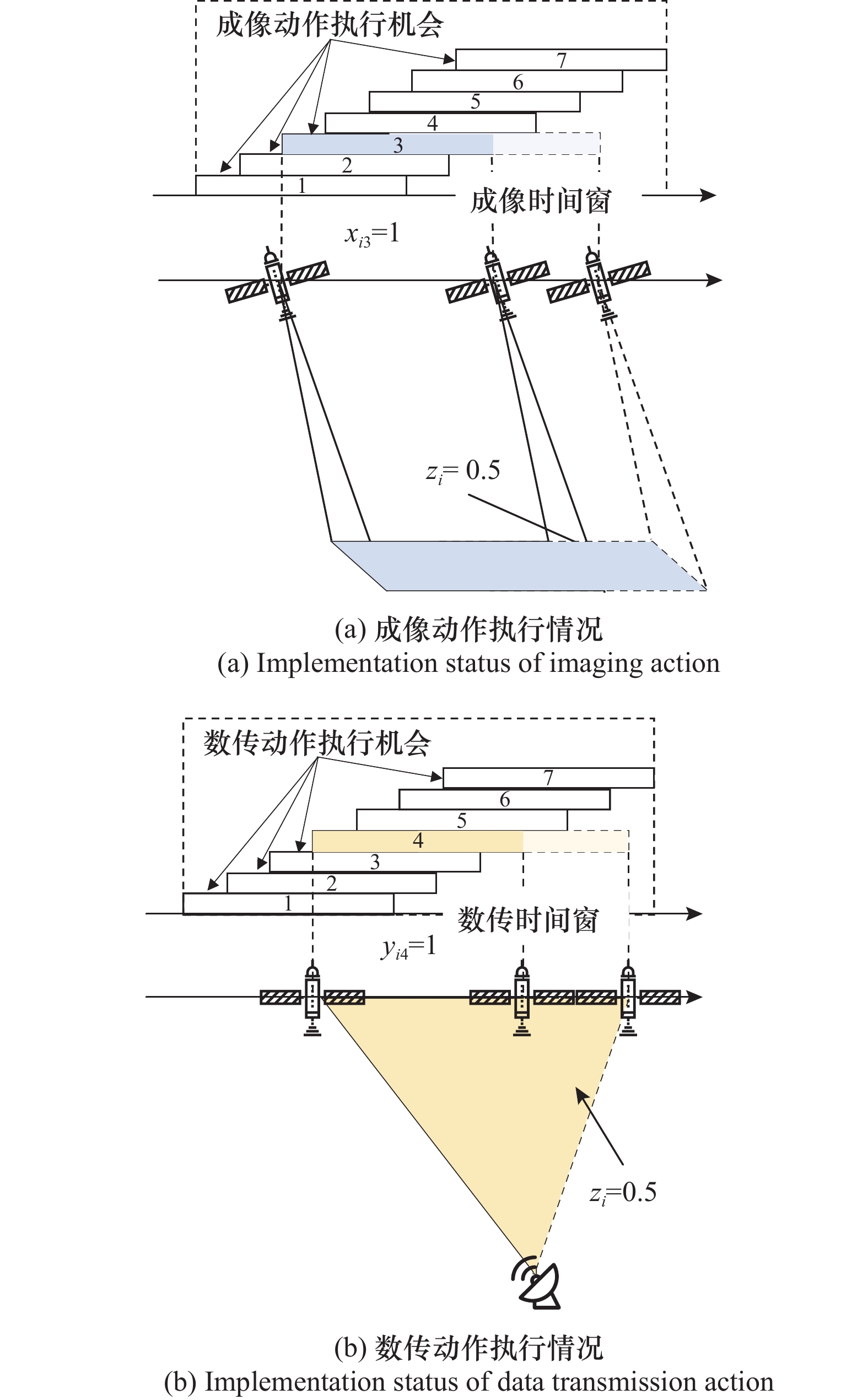

x_ij	0-1决策变量，若任务t_i的成像动作在其第j个成像机会内执行，则 x_ij = 1；否则x_ij = 0
y_ij	0-1决策变量，若任务t_i的数传动作在其第j个数传机会内执行，则 y_ij = 1；否则y_ij = 0
z_i	决策变量，表示任务t_i的成像条带在其成像方向上的延长比例，简称条带延长率
f_i	任务t_i的收益
m_i	任务t_i成像动作所产生的数据量
q_i	任务t_i成像动作耗电量
$ b_i^{\mathrm{O}},e_i^{\mathrm{O}} $	任务t_i成像动作的开始时间、结束时间
$b^\mathrm{D}_ {i},e^\mathrm{D}_{i} $	任务t_i数传动作的开始时间、结束时间
s_o（t_i）	执行任务t_i成像动作的卫星
s_d（t_i）	执行任务t_i数传动作的卫星
s（t_i）	执行任务t_i的卫星
h（t_i）	执行任务t_i的数传站
o（t_i）	执行任务t_i所在的卫星轨道
O_j	卫星s_j的轨道集合
o_jk	卫星s_j第k次过境形成的轨道
M_j	卫星s_j的固存容量上限
Q_j	卫星s_j的电量上限
∆K（$t_i $, $t_{i' }$）	任务$t_i $和$t_{i' } $的成像动作间转换时间最小值
∆N	卫星执行成像动作与数传动作间转换时间最小值
∆D	同一卫星对不同数传站执行数传动作转换时间最小值
∆P	同一数传站接收不同卫星数传动作转换时间最小值
T_j	卫星s_j执行的任务序列
w（t_i, time）	0-1变量，若time时刻下任务t_i已完成成像动作，则w(t_i, time) = 1，否则w(t_i, time) = 0
d（t_i, time）	0-1变量，若time时刻下任务t_i已完成数传动作，则d(t_i, time) = 1，否则d(t_i, time) = 0
v_m	0-1变量，若网格g_m被条带所覆盖，则v_m = 1；否则v_m = 0
φ_i	第i个大区域目标的覆盖率

表1

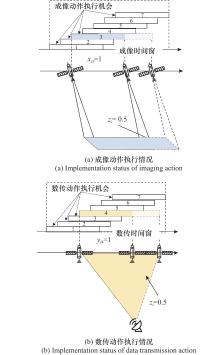

图1

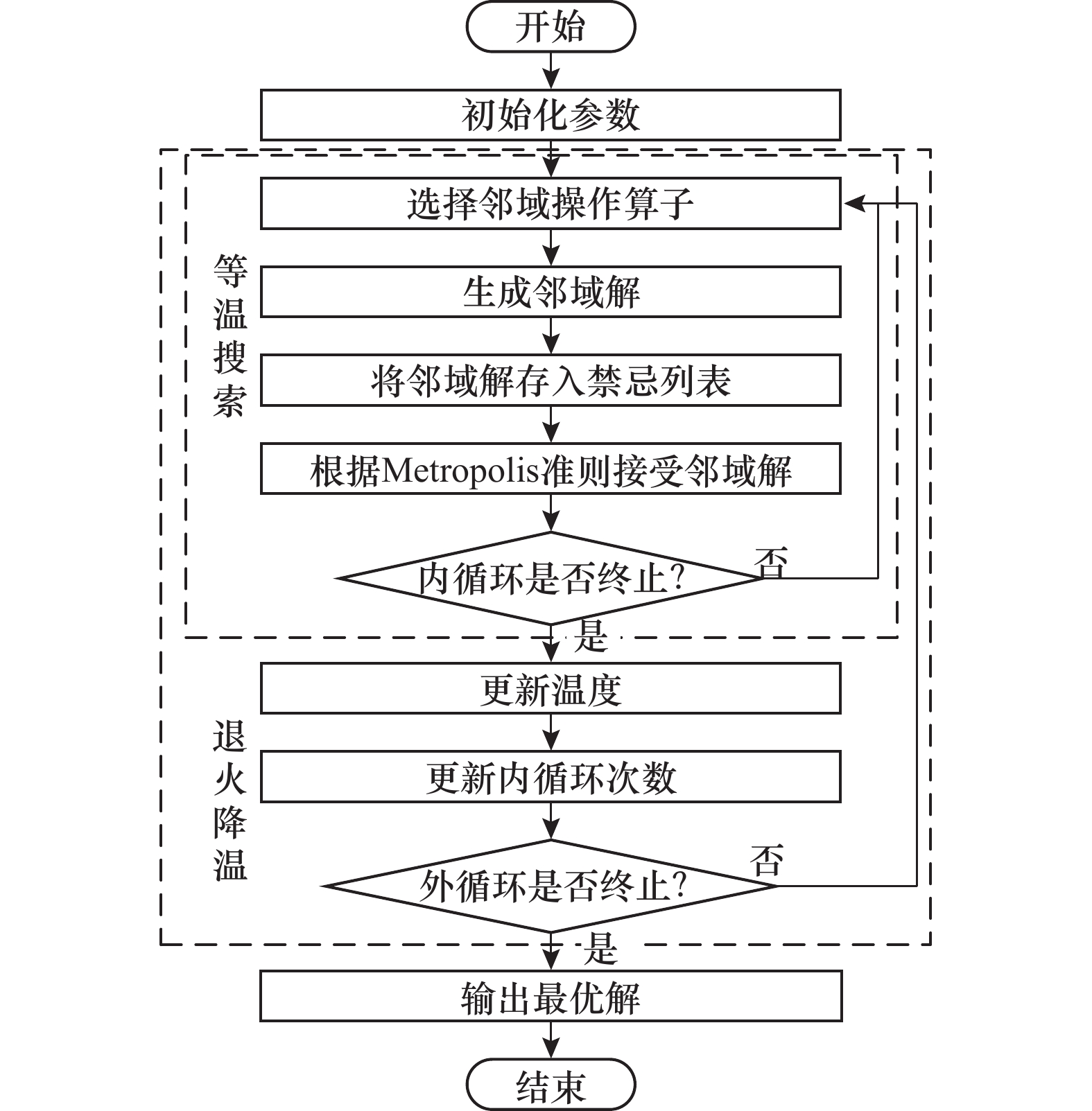

图2

图3

图4

表2

表3

图5

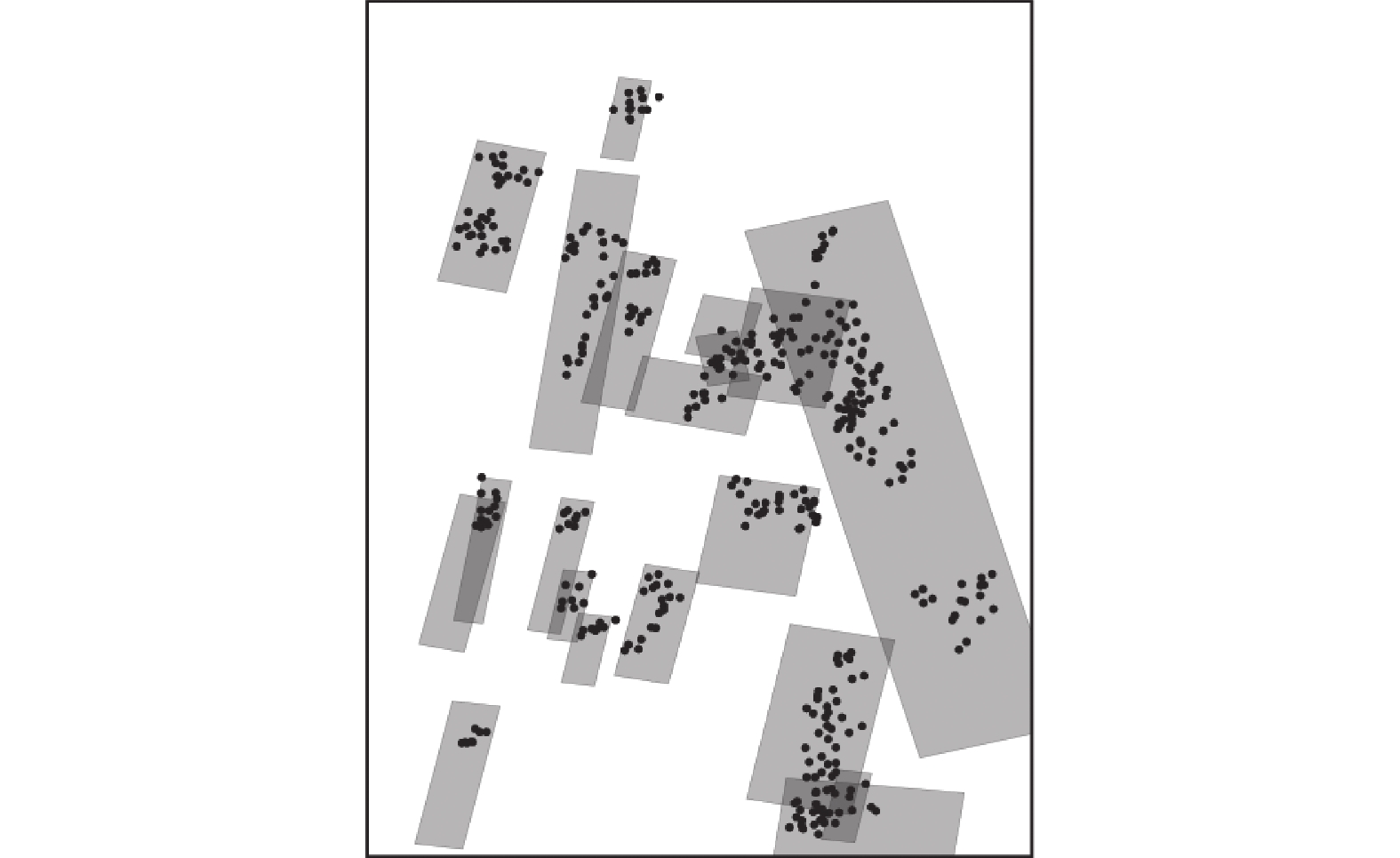

图6

表4

表5

表6

图7

表7

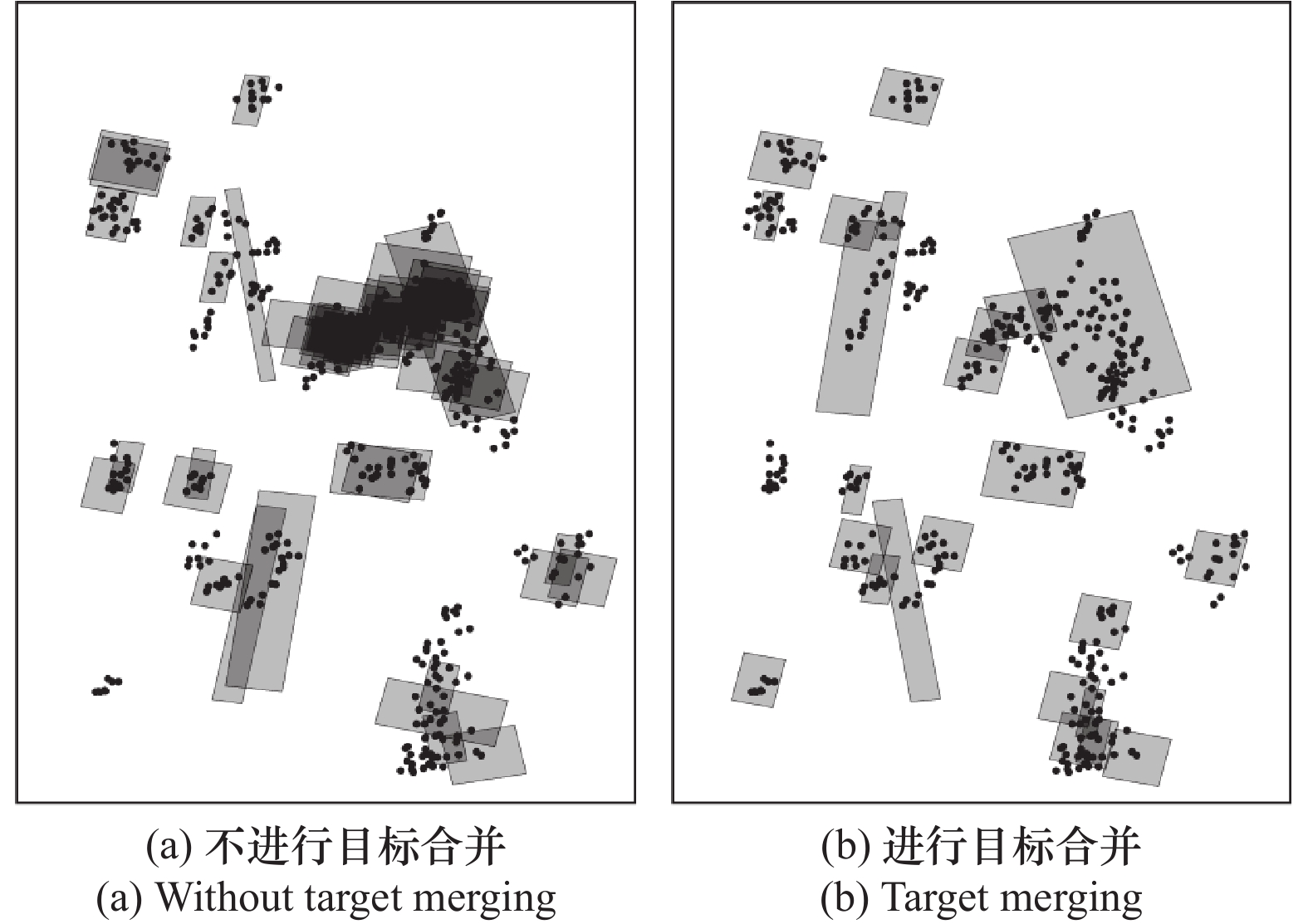

图8

表8

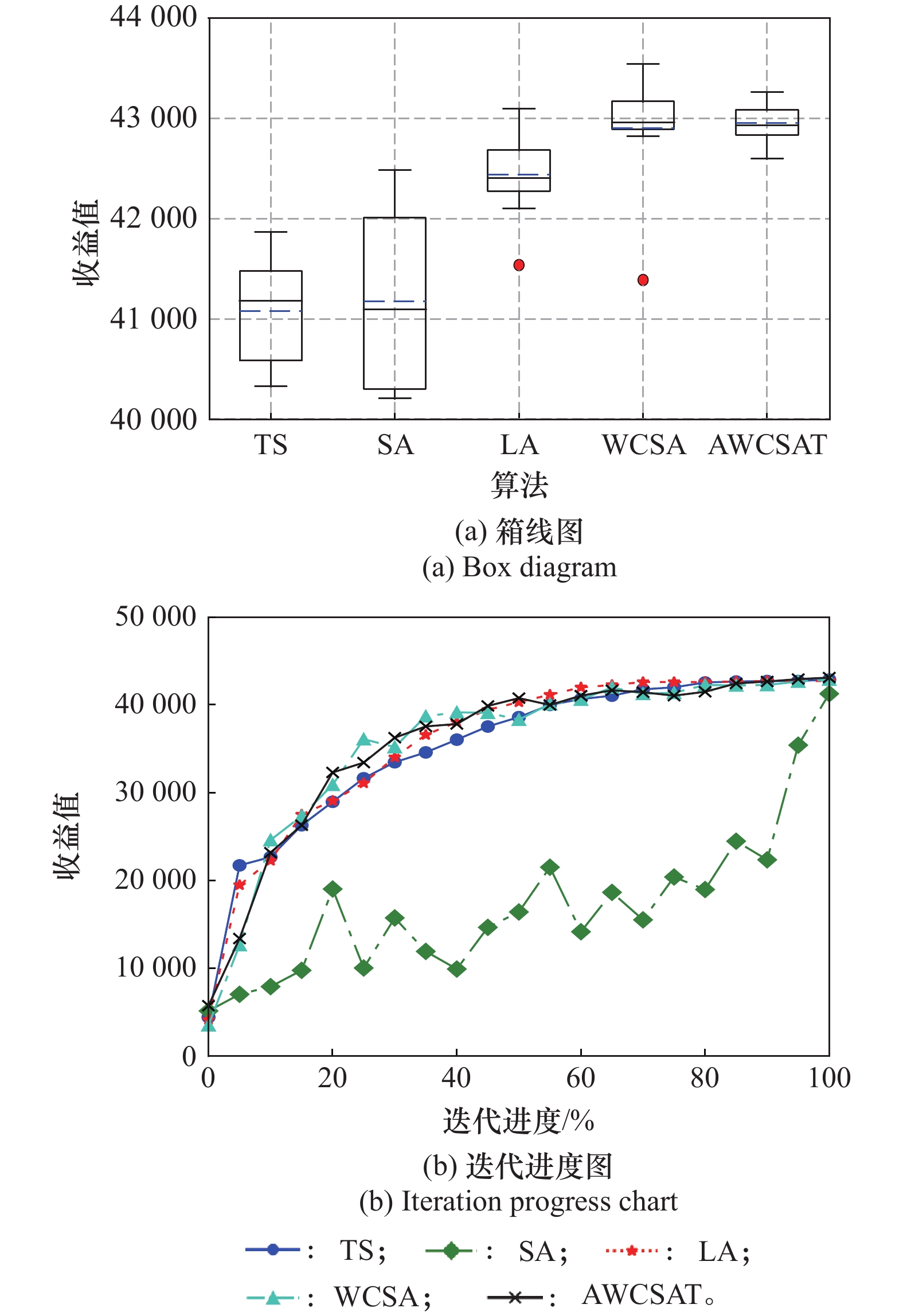

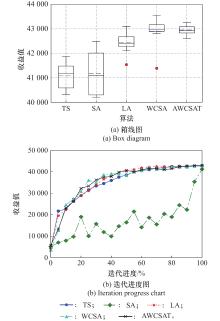

图9

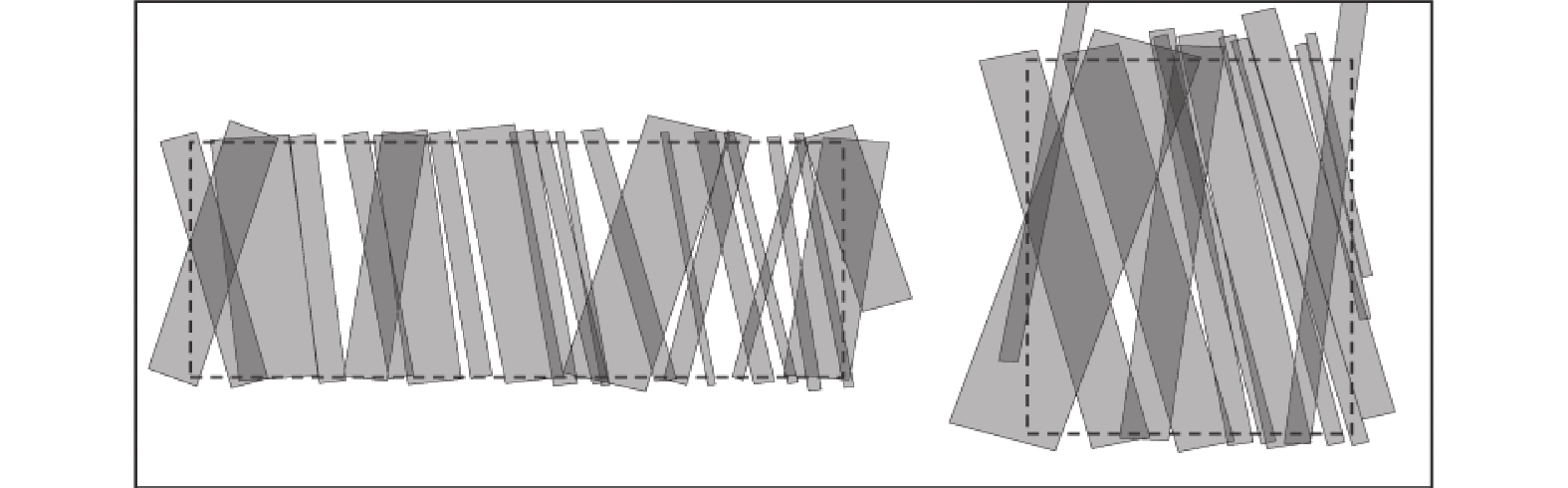

图10

表9

表10

表11

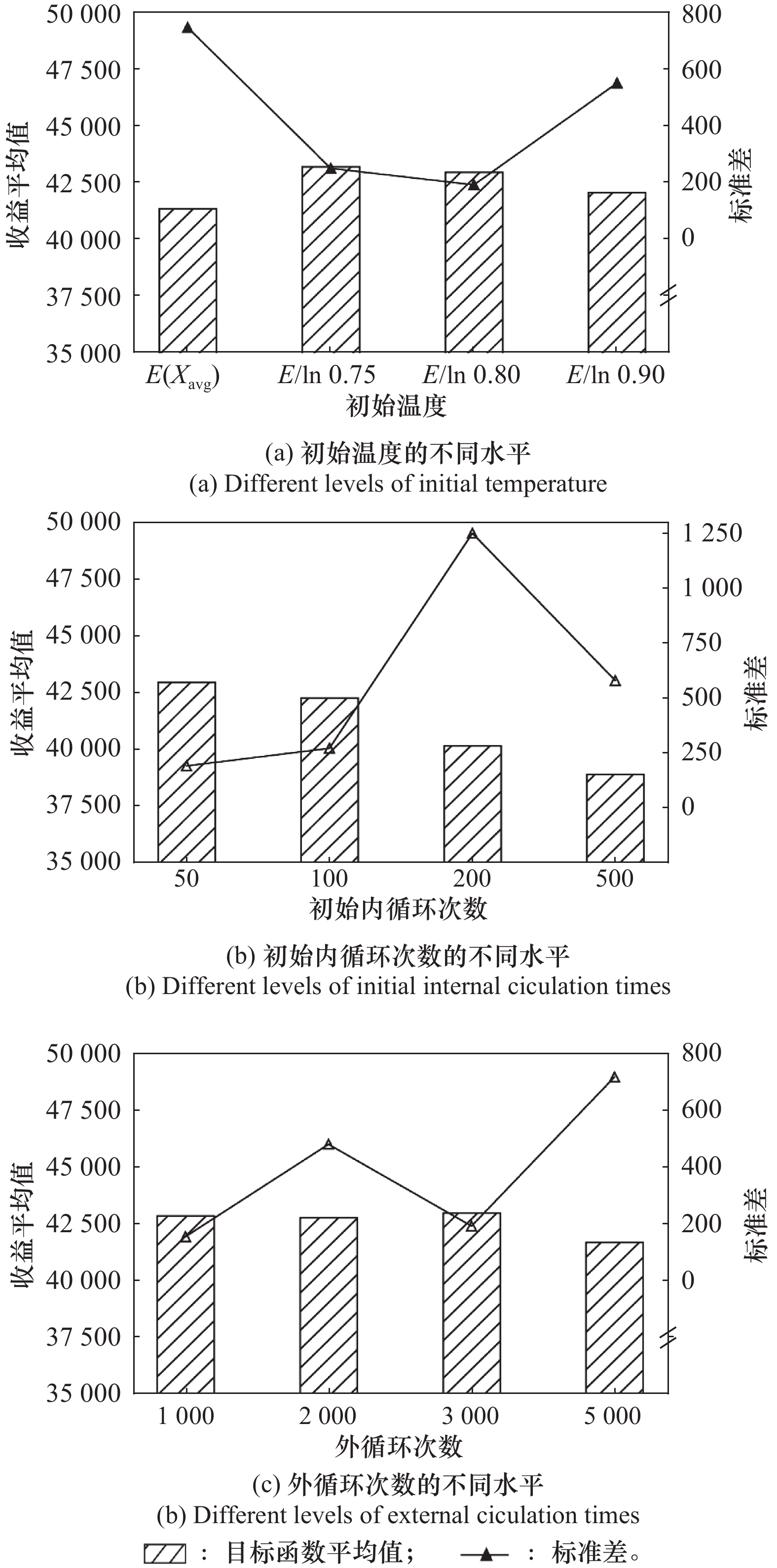

图11

参考文献 30

1	LIU X L, LAPORTE G, CHEN Y W, et al. An adaptive large neighborhood search metaheuristic for agile satellite scheduling with time dependent transition time[J]. Computers and Operations Research, 2017, 86, 41- 53. doi: 10.1016/j.cor.2017.04.006
2	XU R, CHEN H P, LIANG X L, et al. Priority based constructive algorithms for scheduling agile earth observation satellites with total priority maximization[J]. Expert Systems with Applications, 2016, 51, 195- 206. doi: 10.1016/j.eswa.2015.12.039
3	QI J T, GUO J J, WANG M M, et al. A cooperative autonomous scheduling approach for multiple earth observation satellites with intensive missions[J]. IEEE Access, 2021, 9, 61646- 61661. doi: 10.1109/ACCESS.2021.3075059
4	WANG S, LIN Z, CHENG J H, et al. Task scheduling and attitude planning for agile earth observation satellite with intensive tasks[J]. Aerospace Science and Technology, 2019, 90 (4): 23- 33.
5	BARKAOUI M, BERGER J. A new hybrid genetic algorithm for the collection scheduling problem for a satellite constellation[J]. Journal of the Operational Research Society, 2020, 71 (9): 1390- 1410. doi: 10.1080/01605682.2019.1609891
6	CHANG Z X, ZHOU Z B, YAO F, et al. Observation scheduling problem for AEOS with a comprehensive task clustering[J]. Journal of Systems Engineering and Electronics, 2021, 32 (2): 347- 364. doi: 10.23919/JSEE.2021.000029
7	WU G H, WANG H L, PEDRYCZ W, et al. Satellite observation scheduling with a novel adaptive simulated annealing algorithm and a dynamic task clustering strategy[J]. Computers and Industrial Engineering, 2017, 113, 576- 588. doi: 10.1016/j.cie.2017.09.050
8	LU Z H, SHEN X, LI D R, et al. Integrated imaging mission planning modeling method for multi-type targets for super-agile earth observation satellite[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2022, 15, 4156- 4169. doi: 10.1109/JSTARS.2022.3176951
9	LIU X L, BAI B C, CHEN Y W, et al. Multi satellites scheduling algorithm based on task merging mechanism[J]. Applied Mathematics and Computation, 2014, 230, 687- 700. doi: 10.1016/j.amc.2013.12.109
10	DU B, LI S. A new multi-satellite autonomous mission allocation and planning method[J]. Acta Astronautica, 2019, 163, 287- 298. doi: 10.1016/j.actaastro.2018.11.001
11	ZHAO Y B, DU B, LI S. Agile satellite mission planning via task clustering and double-layer tabu algorithm[J]. Computer Modeling in Engineering and Sciences, 2020, 122 (1): 235- 257. doi: 10.32604/cmes.2020.08070
12	潘耀, 饶启龙, 池忠明, 等. 改进的遥感卫星成像任务单轨最优团划分聚类方法[J]. 上海航天, 2018, 35 (3): 34- 40.
	PAN Y, RAO Q L, CHI Z M, et al. Improved clustering method of spot target based on best clique partition in single orbit for remote sensing satellite imaging[J]. Aerospace Shanghai, 2018, 35 (3): 34- 40.
13	张聪, 袁利, 王云鹏, 等. 基于智能聚类的遥感卫星成像任务自主聚合方法[J]. 空间控制技术与应用, 2022, 48 (5): 47- 55. doi: 10.3969/j.issn.1674-1579.2022.05.006
	ZHANG C, YUAN L, WANG Y P, et al. Autonomous aggregation method for imaging task of observation satellite based on intelligent clustering[J]. Aerospace Control and Application, 2022, 48 (5): 47- 55. doi: 10.3969/j.issn.1674-1579.2022.05.006
14	耿远卓, 郭延宁, 李传江, 等. 敏捷凝视卫星密集点目标聚类与最优观测规划[J]. 控制与决策, 2020, 35 (3): 613- 621.
	GENG Y Z, GUO Y N, LI C J, et al. Optimal mission planning with task clustering for intensive point targets observation of staring mode agile satellite[J]. Control and Decision, 2020, 35 (3): 613- 621.
15	余婧, 喜进军, 于龙江, 等. 敏捷卫星同轨多条带拼幅成像模式研究[J]. 航天器工程, 2015, 24 (2): 27- 34. doi: 10.3969/j.issn.1673-8748.2015.02.005
	YU J, XI J J, YU L J, et al. Study of one-orbit multi-stripes splicing imaging for agile satellite[J]. Spacecraft Engineering, 2015, 24 (2): 27- 34. doi: 10.3969/j.issn.1673-8748.2015.02.005
16	LEMAITRE M, VERFAILLIE G, JOUHAUD F, et al. Selecting and scheduling observations of agile satellites[J]. Aerospace Science and Technology, 2002, 6 (5): 367- 381. doi: 10.1016/S1270-9638(02)01173-2
17	章登义, 郭雷, 王骞, 等. 一种面向区域目标的敏捷成像卫星单轨调度方法[J]. 武汉大学学报（信息科学版）, 2014, 39 (8): 901- 905.
	ZHANG D Y, GUO L, WANG Q, et al. An improved single-orbit scheduling method for agile imaging satellite towards area target[J]. Geomatics and Information Science of Wuhan University, 2014, 39 (8): 901- 905.
18	杨文沅, 贺仁杰, 耿西英智, 等. 面向区域目标的敏捷卫星非沿迹条带划分方法[J]. 科学技术与工程, 2016, 16 (22): 82- 87. doi: 10.3969/j.issn.1671-1815.2016.22.014
	YANG W Y, HE R J, GENG X Y Z, et al. Area target oriented non-along-with-track strip partitioning method for agile satellite[J]. Science Technology and Engineering, 2016, 16 (22): 82- 87. doi: 10.3969/j.issn.1671-1815.2016.22.014
19	GU Y, HAN C, CHEN Y H, et al. Large region targets observation scheduling by multiple satellites using resampling particle swarm optimization[J]. IEEE Trans. on Aerospace and Electronic Systems, 2023, 59 (2): 1800- 1815.
20	LU Z H, SHEN X, LI D R, et al. Multiple super-agile satellite collaborative mission planning for area target imaging[J]. International Journal of Applied Earth Observation and Geoinformation, 2023, 117, 103211. doi: 10.1016/j.jag.2023.103211
21	陈晟宗, 张纪会, 于守水, 等. 求解旅行商问题的波动温控模拟退火算法[J]. 控制与决策, 2023, 38 (4): 911- 920.
	CHEN S Z, ZHANG J H, YU S S, et al. A Simulated annealing algorithm with wave temperature control for the traveling salesman problem[J]. Control and Decision, 2023, 38 (4): 911- 920.
22	ZHANG C, CHEN J Y, LI Y B, et al. Satellite group autonomous operation mechanism and planning algorithm for marine target surveillance[J]. Chinese Journal of Aeronautics, 2019, 32 (4): 991- 998. doi: 10.1016/j.cja.2019.02.005
23	SONG Y J, XING L N, CHEN Y W. Two-stage hybrid planning method for multi-satellite joint observation planning problem considering task splitting[J]. Computers and Industrial Engineering, 2022, 174, 108795. doi: 10.1016/j.cie.2022.108795
24	ZHIBO E, SHI R H, GAN L, et al. Multi-satellites imaging scheduling using individual reconfiguration based integer coding genetic algorithm[J]. Acta Astronautica, 2021, 178, 645- 657. doi: 10.1016/j.actaastro.2020.08.041
25	DU Y H, WANG T, XIN B, et al. A data-driven parallel scheduling approach for multiple agile earth observation satellites[J]. IEEE Trans. on Evolutionary Computation, 2020, 24 (4): 679- 693. doi: 10.1109/TEVC.2019.2934148
26	JIANG X M, SONG Y J, XING L N. Dual-population artificial bee colony algorithm for joint observation satellite mission planning problem[J]. IEEE Access, 2022, 10, 28911- 28921. doi: 10.1109/ACCESS.2022.3157286
27	SERGE R, IGOR T, SERGEI I, et al. Quantum algorithms applied to satellite mission planning for earth observation[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2023, 16, 7062- 7075. doi: 10.1109/JSTARS.2023.3287154
28	CHEN Y X, SHEN X, ZHANG G, et al. Large-scale multi-objective imaging satellite task planning algorithm for vast area mapping[J]. Remote Sensing, 2023, 15 (17): 4178.
29	LONG J, WU S M, HAN X D, et al. Autonomous task planning method for multi-satellite system based on a hybrid genetic algorithm[J]. Aerospace, 2023, 10 (1): 70.
30	LIN F T, KAO C Y, HSU C C. Applying the genetic approach to simulated annealing in solving some NP-Hard problems[J]. IEEE Trans. on Systems, Man, and Cybernetics, 1993, 23 (6): 1752- 1767. doi: 10.1109/21.257766

场景	卫星	成像窗口	成像动作执行机会	数传站	数传窗口	数传动作执行机会
点群目标	24	1 902	117 569	23	2 003	505 006
大区域目标	13	2 306	2 306	23	2 784	689 553

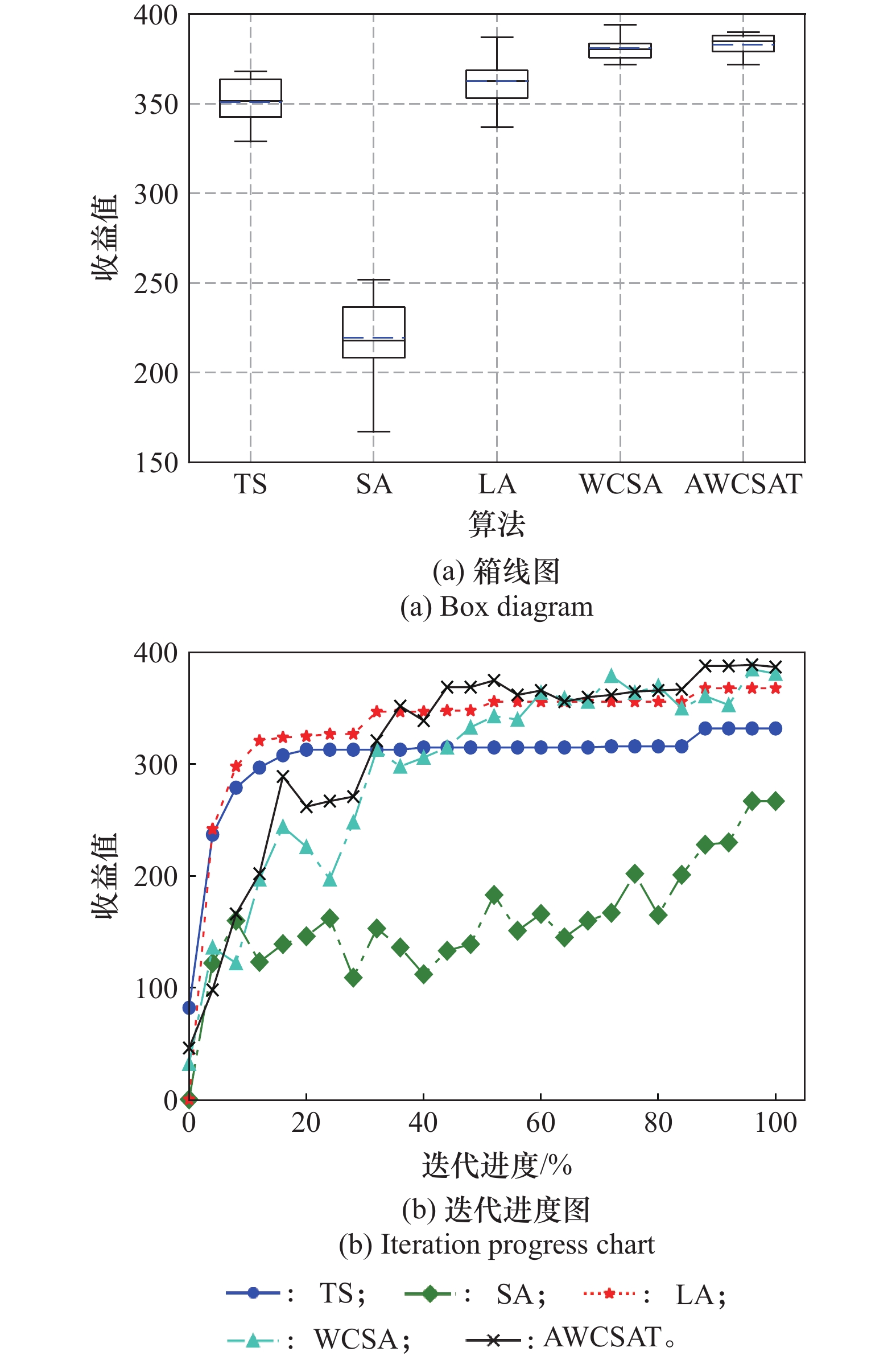

指标	TS	SA	LA	WCSA	AWCSAT
收益	351	219	362.7	381	383.1
标准差	13.30	24.35	14.22	7.13	6.33

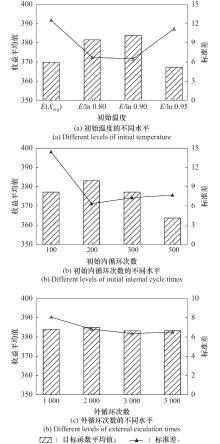

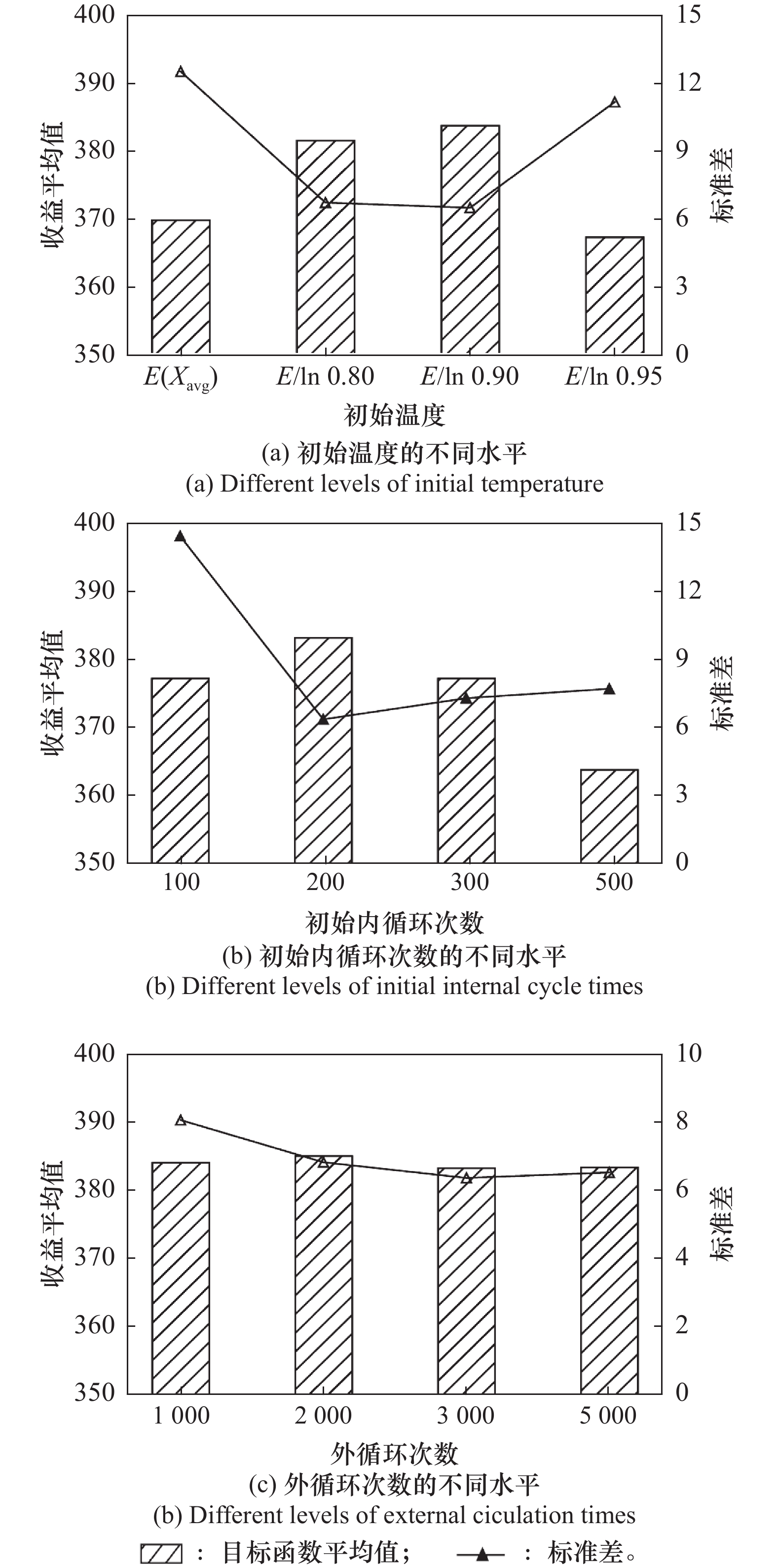

T₀	收益	标准差
E（X_avg）	369.3	12.28
∆E/ln 0.8	380.9	6.57
∆E/ln 0.9	383.1	6.33
∆E/ln 0.95	366.8	10.96

L₀	收益	标准差
100	377.1	14.41
200	383.1	6.33
300	377.1	7.26
500	363.7	7.69

K	收益	标准差
1000	383.9	8.03
2000	384.9	6.79
3000	383.1	6.33
5000	383.2	6.49
