多星协同观测遗传-演进双层任务规划算法

doi:10.12305/j.issn.1001-506X.2024.06.22

摘要/Abstract

摘要：

多星协同任务规划方法是天基卫星系统管控的关键支撑。围绕多星协同对地观测任务展开分析, 首先建立多星协同任务规划模型, 包括卫星轨道参数、约束条件和待观测目标点等; 其次设计了遗传-演进双层求解架构, 将多星任务规划问题拆解为顶层多星任务分配问题和底层单星任务调度问题, 上层采用基于引导的多种群遗传算法(multi-population genetic algorithm, MPGA), 将启发式结果融入到任务分配算法中, 下层采用改进遗传算法对单星任务调度问题进行求解; 最后针对适用性问题, 设定随机和均匀分布两组目标, 采用不同卫星数量设计实验验证了遗传-演进双层求解框架的有效性。

关键词: 卫星任务规划, 遗传-演进架构, 多种群遗传算法, 并行算法

Abstract:

Multi-satellite cooperative mission planning method is a key node in the space-based satellite system architecture. Firstly, the multi-satellite cooperative for Earth observation mission is analyzed and a multi-satellite cooperative mission planning model is established, including satellite orbit parameters, constraint conditions, and target points to be observed. Then, a genetic-evolutionary bi-level solution architecture is designed, which decomposes the multi-satellite mission planning problem into a top multi-satellite mission assignment problem and a bottom single-satellite mission scheduling problem. The upper level uses the guided multi-population genetic algorithm (MPGA) to integrate the heuristic results into the task allocation algorithm, and the lower level uses the improved genetic algorithm to solve the single-satellite task scheduling problem. Finally, aiming at the applicability problem, two groups of objectives are set randomly and uniformly distributed, and experiments are designed with different numbers of satellites to prove the effectiveness of the genetic-evolutionary bi-level solution framework.

Key words: satellite task planning, genetic-evolutionary architecture, multi-population genetic algorithm (MPGA), parallel algorithm

中图分类号:

李阳阳, 罗俊仁, 张万鹏, 项凤涛. 多星协同观测遗传-演进双层任务规划算法[J]. 系统工程与电子技术, 2024, 46(6): 2044-2053.

Yangyang LI, Junren LUO, Wanpeng ZHANG, Fengtao XIANG. Genetic-evolutionary bi-level mission planning algorithm for multi-satellite cooperative observation[J]. Systems Engineering and Electronics, 2024, 46(6): 2044-2053.

图/表 19

图1

图2

图3

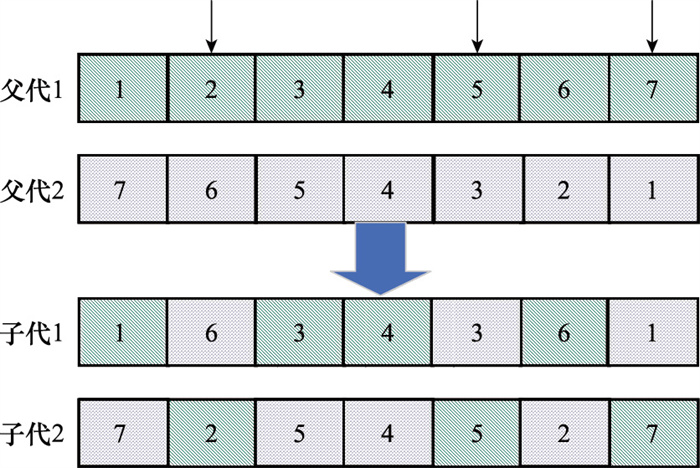

图4

图5

图6

表1

图7

图8

表2

表3

表4

图9

图10

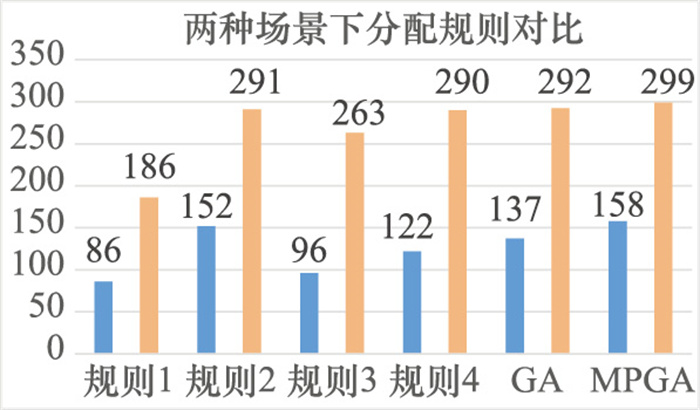

图11

图12

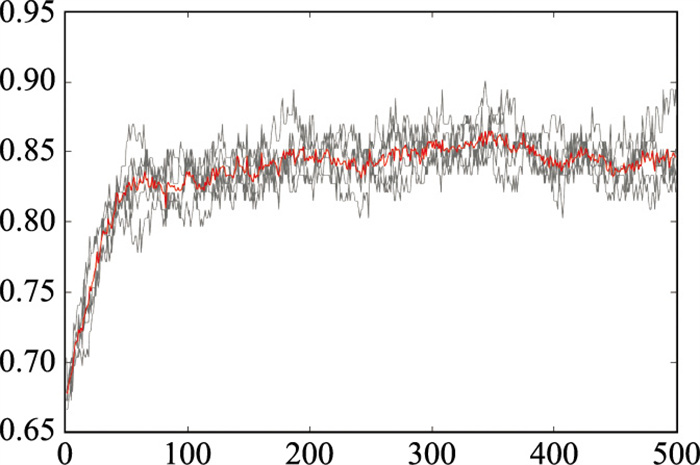

图13

图14

图15

参考文献 30

1	ZHENG Z X , GUO J , GILL E . Distributed onboard mission planning for multi-satellite systems[J]. Aerospace Science and Technology, 2019, 89, 111- 122. doi: 10.1016/j.ast.2019.03.054
2	XIAO Y Y , ZHANG S Y , YANG P , et al. A two-stage flow-shop scheme for the multi-satellite observation and data-downlink scheduling problem considering weather uncertainties[J]. Reliability Engineering and System Safety, 2019, 188, 263- 275. doi: 10.1016/j.ress.2019.03.016
3	VALICKA C G , GARCIA D , STAID A , et al. Mixed-integer programming models for optimal constellation scheduling given cloud cover uncertainty[J]. European Journal of Operational Research, 2019, 275 (2): 431- 445. doi: 10.1016/j.ejor.2018.11.043
4	CHU X G , CHEN Y N , TAN Y J . An anytime branch and bound algorithm for agile earth observation satellite onboard scheduling[J]. Advances in Space Research, 2017, 60 (9): 2077- 2090. doi: 10.1016/j.asr.2017.07.026
5	LIU Z B , FENG Z R , REN Z G . Route-reduction-based dynamic programming for large-scale satellite range scheduling problem[J]. Engineering Optimization, 2019, 51 (11): 1944- 1964. doi: 10.1080/0305215X.2018.1558445
6	PELLERIN R , PERRIER N , BERTHAUT F . A survey of hybrid metaheuristics for the resource-constrained project scheduling problem[J]. European Journal of Operational Research, 2020, 280 (2): 395- 416. doi: 10.1016/j.ejor.2019.01.063
7	HE L , LIU X L , LAPORTE G , et al. An improved adaptive large neighborhood search algorithm for multiple agile satellites scheduling[J]. Computers & Operations Research, 2018, 100, 12- 25.
8	WANG J J , HU X J , HE C . Reactive scheduling of multiple EOSs under cloud uncertainties: model and algorithms[J]. Journal of Systems Engineering and Electronics, 2021, 32 (1): 163- 177. doi: 10.23919/JSEE.2021.000015
9	YAO F , LI J T , CHEN Y N , et al. Task allocation strategies for cooperative task planning of multi-autonomous satellite constellation[J]. Advances in Space Research, 2019, 63 (2): 1073- 1084. doi: 10.1016/j.asr.2018.10.002
10	WU G H , LUO Q Z , DU X , et al. Ensemble of meta-heuristic and exact algorithm based on the divide and conquer framework for multi-satellite observation scheduling[J]. IEEE Trans.on Aerospace and Electronic Systems, 2022, 58 (5): 4396- 4408. doi: 10.1109/TAES.2022.3160993
11	SUN H Q , XIA W , HU X X , et al. Earth observation satellite scheduling for emergency tasks[J]. Journal of Systems Engineering and Electronics, 2019, 30 (5): 931- 945. doi: 10.21629/JSEE.2019.05.11
12	陈浩, 罗棕, 杜春, 等. 一种基于Bi-GRU的卫星对地观测任务可调度性预测方法[J]. 湖南大学学报(自然科学版), 2021, 48 (6): 88- 95.
	CHEN H , LUO Z , DU C , et al. A prediction method for schedulability of satellite earth observation task based on Bi-GRU[J]. Journal of Hunan University (Natural Science Edition), 2021, 48 (6): 88- 95.
13	PENG S , CHEN H , DU C , et al. On board observation task planning for an autonomous earth observation satellite using long short-term memory[J]. IEEE Access, 2018, 6, 65118- 65129. doi: 10.1109/ACCESS.2018.2877687
14	WANG H J , YANG Z , ZHOU W G , et al. Online scheduling of image satellites based on neural networks and deep reinforcement learning[J]. Chinese Journal of Aeronautics, 2019, 32 (4): 1011- 1019. doi: 10.1016/j.cja.2018.12.018
15	WANG X , WU J , SHI Z , et al. Deep reinforcement learning-based autonomous mission planning method for high and low orbit multiple agile earth observing satellites[J]. Advances in Space Research, 2022, 70 (11): 3478- 3493. doi: 10.1016/j.asr.2022.08.016
16	HUANG Y X , MU Z C , WU S F , et al. Revising the observation satellite scheduling problem based on deep reinforcement learning[J]. Remote Sensing, 2021, 13 (12): 2377. doi: 10.3390/rs13122377
17	DU Y H , WANG T , XIN B , et al. A data-driven parallel scheduling approach for multiple agile earth observation satellites[J]. IEEE Trans.on Evolutionary Computation, 2019, 24 (4): 679- 693.
18	杜永浩, 邢立宁, 姚锋, 等. 航天器任务调度模型, 算法与通用求解技术综述[J]. 自动化学报, 2021, 47 (12): 2715- 2741.
	DU Y H , XING L N , YAO F , et al. Survey on models, algorithms and general techniques for spacecraft mission scheduling[J]. Acta Automatica Sinica, 2021, 47 (12): 2715- 2741.
19	ZHU W M , HU X X , XIA W , et al. A two-phase genetic annealing method for integrated Earth observation satellite sche-duling problems[J]. Soft Computing, 2019, 23 (1): 181- 196. doi: 10.1007/s00500-017-2889-8
20	ZHAO M , LI D C . A hierarchical parallel evolutionary algorithm of distributed and multi-threaded two-level structure for multi-satellite task planning[J]. International Journal of Automation and Control, 2020, 14 (5/6): 612- 633. doi: 10.1504/IJAAC.2020.110075
21	LI Z L , LI X J . A multi-objective binary-encoding differential evolution algorithm for proactive scheduling of agile earth observation satellites[J]. Advances in Space Research, 2019, 63 (10): 3258- 3269. doi: 10.1016/j.asr.2019.01.043
22	毛李恒, 邓清, 刘柔妮, 等. 针对多星多任务仿真调度的关键路径遗传算法[J]. 系统仿真学报, 2021, 33 (1): 205- 214.
	MAO L H , DENG Q , LIU R N , et al. CPM-GA for multi-satellite and multi-task simulation scheduling[J]. Journal of System Simulation, 2021, 33 (1): 205- 214.
23	QI J T , GUO J J , WANG M M , et al. A cooperative autonomous scheduling approach for multiple earth observation satellites with intensive missions[J]. IEEE Access, 2021, 9, 61646- 61661. doi: 10.1109/ACCESS.2021.3075059
24	李德仁, 丁霖, 邵振峰. 面向实时应用的遥感服务技术[J]. 遥感学报, 2021, 25 (1): 15- 24.
	LI D R , DING L , SHAO Z F . Application-oriented real-time remote sensing service technology[J]. Journal of Remote Sensing, 2021, 25 (1): 15- 24.
25	WANG C , TANG J H , CHENG X H , et al. Distributed cooperative task planning algorithm for multiple satellites in delayed communication environment[J]. Journal of Systems Engineering and Electronics, 2016, 27 (3): 619- 633. doi: 10.1109/JSEE.2016.00066
26	CHANG Z X , ZHOU Z B , YAO F , et al. Observation scheduling problem for AEOS with a comprehensive task clustering[J]. Journal of Systems Engineering and Electronics, 2021, 32 (2): 347- 364. doi: 10.23919/JSEE.2021.000029
27	LI Y Q , WANG R X , YU L , et al. Satellite range scheduling with the priority constraint: an improved genetic algorithm using a station ID encoding method[J]. Chinese Journal of Aeronautics, 2015, 28 (3): 789- 803. doi: 10.1016/j.cja.2015.04.012
28	ANGELOVA M , PENCHEVA T . Genetic operators'significance assessment in multi-population genetic algorithms[J]. International Journal of Metaheuristics, 2014, 3 (2): 162- 173. doi: 10.1504/IJMHEUR.2014.063146
29	张佳唯. 面向航天侦察的任务优先级模型与算法研究[D]. 长沙: 国防科技大学, 2018.
	ZHANG J W. Research on task priority model and algorithm for space reconnaissance[D]. Changsha: National University of Defense Technology, 2018.
30	于龙江, 吴限德, 毛一岚, 等. 分布式遥感卫星任务分配的合同网络算法[J]. 哈尔滨工程大学学报, 2020, 41 (7): 1059- 1065.
	YU L J , WU X D , MAO Y L , et al. Task allocation for distributed remote sensing satellites based contract network algorithm[J]. Journal of Harbin Engineering University, 2020, 41 (7): 1059- 1065.

任务内存消耗/MB	下传电量消耗/(J/s)	传输速率/(MB/s)	充电速率/W	卫星存储容量/GB	卫星电池容量/J
[32, 64]	5	1	5	16	20 000

卫星编号	半长轴/m	离心率	轨道倾角/(°)	近地点辐角/(°)	升交点赤经/(°)	真近点角/(°)
Sat1	7 171.393	0	96.576	0	175.72	0.075
Sat2	7 171.393	0	96.576	0	145.72	30.075
Sat3	7 171.393	0	96.576	0	115.72	60.075
Sat4	7 171.393	0	96.576	0	85.72	90.075
Sat5	7 171.393	0	96.576	0	55.72	120.075
Sat6	7 171.393	0	96.576	0	25.72	150.075
Sat7	7 193.589	0	98.726	77.105	107.085	184.637
Sat8	6 891.852	0	97.325	237.611	333.934	112.26
Sat9	6 836.068	0	97.326	81.466	76.8	136.42
Sat10	7 046.723	0	98.138	80.162	178.688	244.539

参数设置	任务类型
参数设置	多星任务分配	单星任务调度
种群个体数量	10个种群, 100个体	10
交叉概率	0.7	0.4
变异概率	0.3	0.4
遗传代数	最优值持续10代时终止循环	最优值迭代5代终止循环或指定代数
选择方法	轮盘赌	轮盘赌
