基于改进鲸鱼优化算法的AUV三维路径规划

doi:10.12305/j.issn.1001-506X.2023.07.28

Abstract

Abstract:

Autonomous underwater vehicle (AUV) have become one kind of the most effective equipment for multiple underwater operations in different fields. A solution method for AUV global path planning is proposed based on improved whale optimization algorithm. Firstly, for the modelling of the problem, in the process of environment modelling, in view of the complexity of waypoint setting in 3D space, a modelling method based on the connected rapidly-exploring random tree (RRT-Connect) is presented; in the mathematical optimization model, three evaluation criteria including the path smoothness, the diving gradient and the navigation time are integrated, and the relevant constraints caused by strong currents and obstacles are considered. Then for the above models, an improved whale optimization algorithm is proposed. The optimization idea based on the linkage structure of the problem is introduced. And families of key subsets and effective subsets are constructed online according to it, which are adopted to discover the linkage sets with high criticality and effectiveness in real time, and increase the probability of their reuse rate, so as to improve the convergence speed and accuracy of proposed algorithm. In addition, to take advantage of historical evolution information more comprehensively and effectively, the method of constructing individual leaders with multiple learning sets and the corresponding joint guidance strategies are designed to further enhance the overall performance of the algorithm. Finally, according to the practical seabed terrain information and different ocean current models, several path planning scenarios are set up for simulation experiments. The results show that compared with other whale optimization algorithms and classical intelligent algorithms presented in references, the proposed algorithm is more superior in terms of solving accuracy, stability and convergence speed, which better meet the requirements of AUV path planning.

Key words: path planning, whale optimization algorithm (WOA), autonomous underwater vehicle (AUV), environment modeling

CLC Number:

TP242

Guangqiang LI, Wenchao DONG, Daqing ZHU, Yue YU, Hao CHEN, Shuanghe YU. 3D path planning for AUV based on improved whaleoptimization algorithm[J]. Systems Engineering and Electronics, 2023, 45(7): 2170-2182.

Figures/Tables 10

Fig.1

Fig.2

Fig.3

Table 1

Table 2

Fig.4

Fig.5

Table 3

Table 4

Table 5

References 23

24	CENCINI M , LACORATA G , VULPIANI A , et al. Mixing in a meandering jet: a markovian approximation[J]. Journal of Physical Oceanography, 1999, 29 (10): 2578- 2594. doi: 10.1175/1520-0485(1999)029<2578:MIAMJA>2.0.CO;2
25	KALA R , WARWICK K . Multi-vehicle planning using RRT-connect[J]. Paladyn, Journal of Behavioral Robotics, 2011, 2 (3): 134- 144.
26	BOUTER A , ALDERLIESTEN T , BOSMAN P A N . Achieving highly scalable evolutionary real-valued optimization by exploiting partial evaluations[J]. Evolutionary Computation, 2021, 29 (1): 129- 155.
27	BOUTER A, ALDERLIESTEN T, WITTEVEEN C, et al. Exploiting linkage information in real-valued optimization with the real-valued gene-pool optimal mixing evolutionary algorithm[C]//Proc. of the Genetic and Evolutionary Computation Conference, 2017: 705-712.
28	OLIEMAN C , BOUTER A , BOSMAN P A N . Fitness-based linkage learning in the real-valued gene-pool optimal mixing evolutionary algorithm[J]. IEEE Trans.on Evolutionary Computation, 2021, 25 (2): 358- 370.
29	WANG Y P , LIU H Y , WEI F , et al. Cooperative coevolution with formula-based variable grouping for large-scale global optimization[J]. Evolutionary Computation, 2018, 26 (4): 569- 596.
30	LIU Y H , CAO B Y , LI H H . Improving ant colony optimization algorithm with epsilon greedy and levy flight[J]. Complex & Intelligent Systems, 2021, 7 (4): 1711- 1722.
31	LI G Q, DONG W C, WANG Y J, et al. Path planning of underwater vehicles based on improved whale optimization algorithm[C]//Proc. of the International Conference on Automation, Control and Robotics Engineering, 2021: 444-448.
32	WANG M , LUO J , WALTER U . Trajectory planning of free-floating space robot using particle swarm optimization (PSO)[J]. Acta Astronautica, 2015, 112, 77- 88.
33	ZAMUDA A , HERNÁNDEZ SOSA J D . Differential evolution and underwater glider path planning applied to the short-term opportun-nistic sampling of dynamic mesoscale ocean structures[J]. Applied Soft Computing, 2014, 24, 95- 108.
34	GEBCO Compilation Group. The GEBCO_2020 grid[EB/OL]. [2022-04-17]. https://www.gebco.net/data_and_products/gridded_bathymetry_data/gebco_2020.
1	ATAEI M , YOUSEFI-KOMA A . Three-dimensional optimal path planning for waypoint guidance of an autonomous underwater vehicle[J]. Robotics and Autonomous Systems, 2015, 67, 23- 32. doi: 10.1016/j.robot.2014.10.007
2	ZENG Z , LIAN L , SAMMUT K , et al. A survey on path planning for persistent autonomy of autonomous underwater vehicles[J]. Ocean Engineering, 2015, 110, 303- 313. doi: 10.1016/j.oceaneng.2015.10.007
3	LI Y , MA T , CHEN P Y , et al. Autonomous underwater vehicle optimal path planning method for seabed terrain matching navigation[J]. Ocean Engineering, 2017, 133, 107- 115. doi: 10.1016/j.oceaneng.2017.01.026
4	LIU X A , MA D L , YANG M Q , et al. Modified block A^* path-planning method for hybrid-driven underwater gliders[J]. IEEE Journal of Oceanic Engineering, 2021, 47 (1): 20- 31.
5	GE H Q , CHEN G B , XU G . Multi-AUV cooperative target hunting based on improved potential field in a surface-water environment[J]. Applied Sciences, 2018, 8 (6): 973. doi: 10.3390/app8060973
6	冯豪博, 胡桥, 赵振轶. 基于精英族系遗传算法的AUV集群路径规划[J]. 系统工程与电子技术, 2022, 44 (7): 2251- 2262.
	FENG H B , HU Q , ZHAO Z Y . AUV swarm path planning based on elite family genetic algorithm[J]. Systems Engineering and Electronics, 2022, 44 (7): 2251- 2262.
7	张岳星, 王轶群, 李硕, 等. 基于海图和改进粒子群优化算法的AUV全局路径规划[J]. 机器人, 2020, 42 (1): 120- 128.
	ZHANG Y X , WANG Y Q , LI S , et al. Global path planning for AUV based on charts and the improved particle swarm optimization algorithm[J]. Robot, 2020, 42 (1): 120- 128.
8	TAHERI E , FERDOWSI M H , DANESH M . Closed-loop randomized kinodynamic path planning for an autonomous underwater vehicle[J]. Applied Ocean Research, 2019, 83, 48- 64. doi: 10.1016/j.apor.2018.12.008
9	CHEN M Z , ZHU D Q . Optimal time-consuming path planning for autonomous underwater vehicles based on a dynamic neural network model in ocean current environments[J]. IEEE Trans.on Vehicular Technology, 2020, 69 (12): 14401- 14412. doi: 10.1109/TVT.2020.3034628
10	ALBARAKATI S , LIMA R M , GIRALDI L , et al. Optimal 3D trajectory planning for AUVs using ocean general circulation models[J]. Ocean Engineering, 2019, 188, 106266. doi: 10.1016/j.oceaneng.2019.106266
11	ALBARAKATI S , LIMA R M , THEUSSL T , et al. Optimal 3D time-energy trajectory planning for auvs using ocean general circulation models[J]. Ocean Engineering, 2020, 218, 108057. doi: 10.1016/j.oceaneng.2020.108057
12	MA Y N , GONG Y J , XIAO C F , et al. Path planning for autonomous underwater vehicles: an ant colony algorithm incorporating alarm pheromone[J]. IEEE Trans.on Vehicular Technology, 2019, 68 (1): 141- 154. doi: 10.1109/TVT.2018.2882130
13	ZENG Z , LAMMAS A , SAMMUT K , et al. Shell space decomposition based path planning for AUVs operating in a variable environment[J]. Ocean Engineering, 2014, 91, 181- 195. doi: 10.1016/j.oceaneng.2014.09.001
14	MIRJALILI S , LEWIS A . The whale optimization algorithm[J]. Advances in Engineering Software, 2016, 95, 51- 67. doi: 10.1016/j.advengsoft.2016.01.008
15	BUI D T , ABDULLAHI M M , GHAREH S , et al. Fine-tuning of neural computing using whale optimization algorithm for predicting compressive strength of concrete[J]. Engineering with Computers, 2021, 37 (1): 701- 712. doi: 10.1007/s00366-019-00850-w
16	PETROVIC M , MILJKOVIC Z , JOKIC A . A novel methodo-logy for optimal single mobile robot scheduling using whale optimization algorithm[J]. Applied Soft Computing, 2019, 81, 105520. doi: 10.1016/j.asoc.2019.105520
17	SAAFAN M M , EL-GENDY E M . IWOSSA: an improved whale optimization salp swarm algorithm for solving optimization problems[J]. Expert Systems with Applications, 2021, 176, 114901. doi: 10.1016/j.eswa.2021.114901
18	ZHANG X M , WEN S C . Hybrid whale optimization algorithm with gathering strategies for high-dimensional problems[J]. Expert Systems with Applications, 2021, 179, 115032. doi: 10.1016/j.eswa.2021.115032
19	褚鼎立, 陈红, 王旭光. 基于自适应权重和模拟退火的鲸鱼优化算法[J]. 电子学报, 2019, 47 (5): 992- 999.
	CHU D L , CHEN H , WANG X G . Whale optimization algorithm based on adaptive weight and simulated annealing[J]. Acta Electronica Sinica, 2019, 47 (5): 992- 999.
20	HEIDARI A A , ALJARAH I , FARIS H , et al. An enhanced associative learning-based exploratory whale optimizer for glo-bal optimization[J]. Neural Computing & Applications, 2020, 32 (9): 5185- 5211.
21	ABD ELAZIZ M , LU S F , HE S B . A multi-leader whale optimization algorithm for global optimization and image segmentation[J]. Expert Systems with Applications, 2021, 175, 114841. doi: 10.1016/j.eswa.2021.114841
22	SUN Y J , CHEN Y . Multi-population improved whale optimization algorithm for high dimensional optimization[J]. Applied Soft Computing, 2021, 112, 107854. doi: 10.1016/j.asoc.2021.107854
23	HADSELL R, BAGNELL J A, HUBER D, et al. Accurate rough terrain estimation with space-carving kernels[C]//Proc. of the Robotics: Science and Systems, 2009.

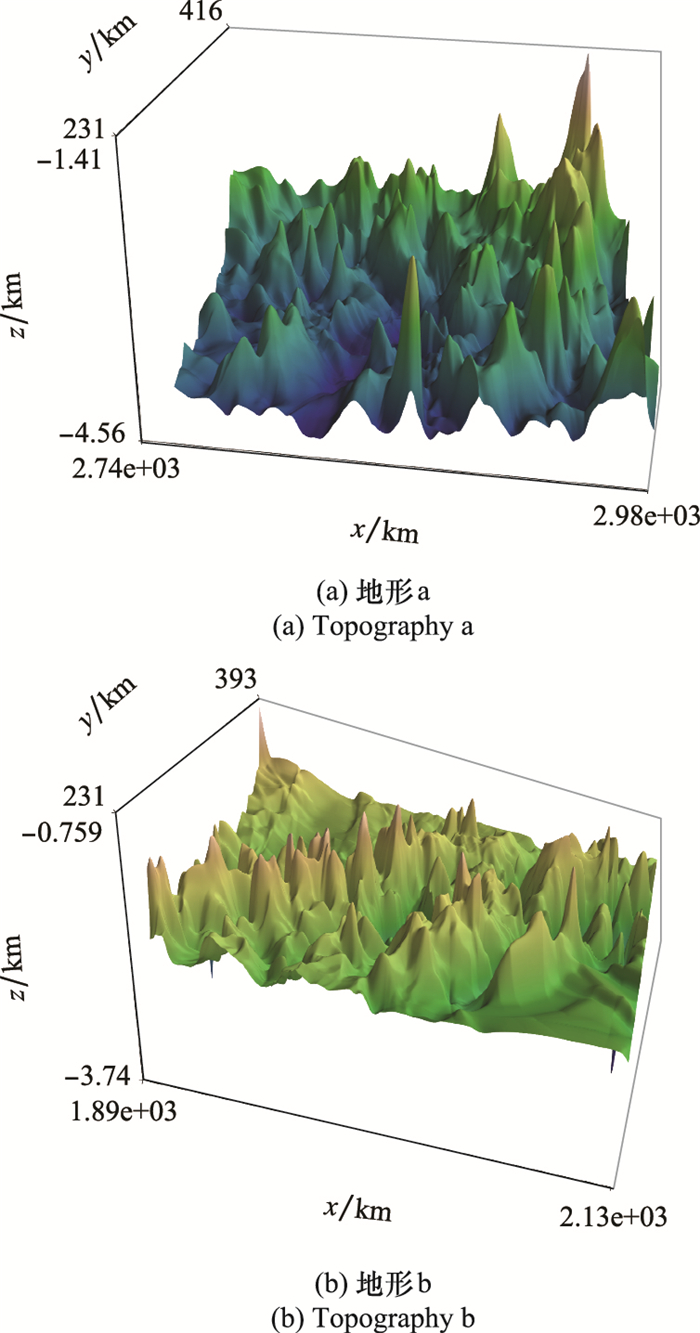

情形	地形	海流	起始点/km	目标点/km
1	a	m	(2 758.82, 415.89, -1.43)	(2 964.60, 301.25, -4.01)
2	b	n	(1 910.45, 236.25, -0.47)	(2 113.89, 351.25, -3.16)
3	a	n	(2 758.82, 415.89, -3.09)	(2 964.60, 301.25, -4.01)
4	b	m	(1 910.45, 236.25, -1.98)	(2 113.89, 351.25, -3.16)

情形	路径点数	WOA	BMWOA	IWOSSA	HWOAG	PSO	DE	IWOA
1	5	336 161.0	336 414.8	366 179.6	358 860.0	339 030.2	335 388.0	335 451.2
	10	341 506.8	336 081.4	428 444.0	395 198.4	344 247.0	335 874.2	333 080.8
	15	656 472.4	491 059.8	#	498 216.6	458 622.6	341 501.6	332 501.4
2	6	242 808.8	241 502.8	241 340.0	249 229.2	312 066.2	241 209.0	242 209.8
	12	272 312.4	267 106.2	271 696.6	268 900.2	#	239 711.4	238 370.6
	18	#	#	#	#	#	262 821.6	237 803.2
3	6	276 393.6	276 022.8	277 964.8	279 114.0	276 084.8	274 896.6	274 514.0
	12	293 664.4	292 704.6	293 966.2	291 643.0	295 763.0	268 731.4	267 984.8
	18	#	#	#	#	#	270 212.2	266 882.4
4	7	354 772.8	349 677.8	365 973.0	376 550.0	350 856.0	343 702.8	345 397.0
	14	348 429.8	383 541.2	430 427.4	419 801.8	349 842.8	345 915.6	343 171.4
	21	463 174.0	780 443.4	#	437 306.6	369 718.6	353 991.0	344 885.4

情形	路径点数	WOA	BMWOA	IWOSSA	HWOAG	PSO	DE	IWOA
1	5	37 120	34 545	89 620	93 010	34 460	34 670	23 790
2	12	53 690	51 458	95 821	91 161	#	67 350	21 555
3	12	71 522	87 215	93 630	92 012	73 345	51 180	18 185
4	21	59 583	89 338	#	12 240	23 969	24 290	15 205

情形	路径点数	性能指标	WOA	BMWOA	IWOSSA	HWOAG	PSO	DE	IWOA
1	5	成功率/%	100	100	100	100	100	100	100
	5	相关标准差	15 220.0	8 523.0	10 316.2	57 898.4	28 723.2	4 149.2	412.2
	10	成功率/%	100	100	50	100	100	100	100
	10	相关标准差	84 120.0	96 531.8	110 657.2	33 609.4	85 818.8	11 422.2	2 700.0
	15	成功率/%	90	90	0	100	50	100	100
	15	相关标准差	37 331.8	104 553.8	#	13 016.0	103 182.4	18 616.4	7 307.1
2	6	成功率/%	50	90	30	40	20	100	100
	6	相关标准差	6 953.8	1 169.4	7 935.6	9 259.2	10 552.6	881.8	385.4
	12	成功率/%	20	40	30	30	0	90	100
	12	相关标准差	79 273.2	76 167.8	106 734.6	25 870.6	#	3 844.2	457.6
	18	成功率/%	0	0	0	0	0	50	90
	18	相关标准差	#	#	#	#	#	58 781.6	4 809.2
3	6	成功率/%	30	30	40	30	20	100	100
	6	相关标准差	3 187.6	5 630.0	7 450.2	2 852.6	3 867.0	382.4	338.0
	12	成功率/%	30	20	30	30	20	100	100
	12	相关标准差	57 039.6	63 058.2	94 418.4	26 315.4	87 847.8	1 475.4	699.2
	18	成功率/%	0	0	0	0	0	60	100
	18	相关标准差	#	#	#	#	#	15 598.6	1 074.1
4	7	成功率/%	100	100	100	100	90	100	100
	7	相关标准差	15 595.6	14 198.8	9 887.6	9 218.0	8 257.4	1 740.0	1 185.2
	14	成功率/%	90	80	70	90	50	100	100
	14	相关标准差	51 063.6	90 897.0	71 124.6	11 736.0	61 446.6	6 098.2	6 858.7
	21	成功率/%	70	60	0	100	40	100	100
	21	相关标准差	109 533.2	91 635.6	#	28 546.6	55 493.0	16 471.6	13 157.1
