三段判别域与最小二乘拟合的抗差滤波算法

doi:10.12305/j.issn.1001-506X.2021.05.23

Abstract

Abstract:

The satellite signal of integrated navigation system is susceptible to interference during the propagation process, which causes the satellite navigation observation value to fail. For this problem, according to the distribution state of the detection quantity, a robust filtering algorithm based on the principle of least squares fitting ia proposed, and the fault is divided into three discriminant domains, which are respectively no fault, deviation and out of tolerance. No processing is performed when there is no fault. When there is a deviation, the observation value is reduced in weight. For out of tolerance, a fitting function composed of the measured values at the previous few moments is used to extend a moment, instead of the fault observation value at the current moment. The simulation results show that the three discriminant domain has more processing for deviation than the two discriminant domain, and the navigation accuracy is improved. When an out of tolerance situation occurs in a continuous time, compared to the use of the reduced weight method, the robust filtering algorithm based on the least square fitting has higher navigation accuracy and better stability.

Key words: integrated navigation, Kalman filtering, chi-square test, least square fitting

CLC Number:

V448

Baojie CAI, Lei SHAO. Robust filtering algorithm based on three discriminant domain and least squares fitting[J]. Systems Engineering and Electronics, 2021, 43(5): 1346-1353.

Figures/Tables 21

Fig.1

Table 1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

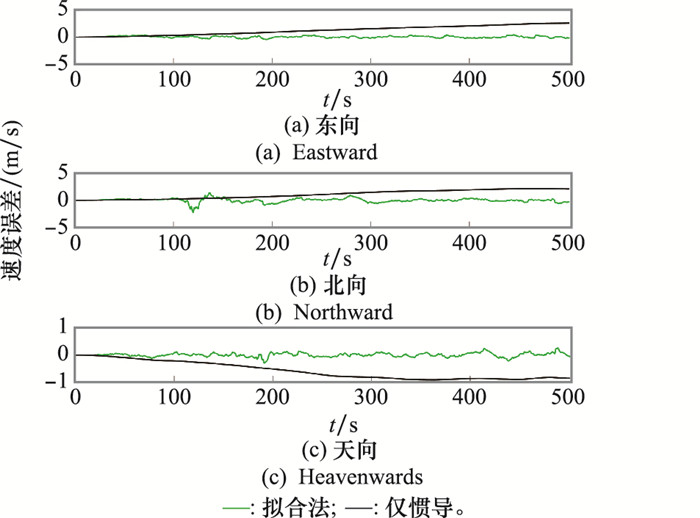

Fig.12

Fig.13

Fig.14

Table 2

Fig.15

Fig.16

Table 3

Fig.17

Fig.18

References 30

1	ABOLHASANI M , RAHMANI M . Robust Kalman filtering for discrete-time systems with stochastic uncertain time-varying parameters[J]. Electronics Letters, 2017, 53 (3): 146- 148. doi: 10.1049/el.2016.2520
2	BHATTIUI , OCHIENG W Y , FENG S J . Performance of rate detector algorithm for an integrated GPS/INS system in the presence of slowly growing error[J]. GPS Solutions, 2012, 16 (3): 293- 301. doi: 10.1007/s10291-011-0231-y
3	KRARUP T , JUHL J , KUBIK K . Gotterdammerung over least squares adjustment[J]. Int Arch Photogramm, 1980, 23 (B3): 369- 378.
4	CASPARY W , BORUTTA H . Robust estimation in deformation models[J]. Survey Review, 1987, 29 (223): 29- 45. doi: 10.1179/sre.1987.29.223.29
5	付心如. INS/GNSS组合导航抗差自适应Kalman滤波方法研究[D]. 阜新: 辽宁工程技术大学, 2017.
	FU X R. The robust adaptive kalman filter research of INS/GNSS integrated navigation[D]. Fuxin: Liaoning Technical University, 2017.
6	徐波. GNSS/INS组合导航滤波算法研究[D]. 徐州: 中国矿业大学, 2016.
	XU B. GNSS/INS integrated navigation filter method research[D]. Xuzhou: China University of Mining and Technology, 2016.
7	GAO X L , LUO H , NING B K , et al. RL-AKF: an adaptive Kalman filter navigation algorithm based on reinforcement learning for ground vehicles[J]. Remote Sensing, 2020, 12 (11): 1704. doi: 10.3390/rs12111704
8	WANG J L , ZHANG C X , JIA Q X , et al. Suboptimal adaptive Kalman filtering based on the proportional control of prior error covariance[J]. ISA Transactions, 2020, 100, 145- 154. doi: 10.1016/j.isatra.2019.12.008
9	LIU Y , FAN X , LYU C , et al. An innovative information fusion method with adaptive Kalman filter for integrated INS/GPS navigation of autonomous vehicles[J]. Mechanical Systems and Signal Processing, 2008, 100, 605- 616.
10	张建, 喻国荣, 潘树国, 等. 基于卡方检验的GNSS观测值部分粗差抗差滤波算法[J]. 仪器仪表学报, 2019, 40 (8): 102- 109.
	ZHANG J , YU G R , PAN S G , et al. Partial gross error robust filtering algorithm for GNSS observations based on chi-square test[J]. Chinese Journal of Scientific Instrument, 2019, 40 (8): 102- 109.
11	许长辉, 高井祥, 王坚. GNSS/INS组合系统的抗差卡尔曼滤波[J]. 中国矿业大学学报, 2010, 39 (5): 773- 778.
	XU C H , GAO J X , WANG J . Robust Kalman filtering of GNSS/INS integrated system[J]. Journal of China University of Mining & Technology, 2010, 39 (5): 773- 778.
12	QIAO G, LI Z, SUN Z, et al. Kalman filter restraining outliers for short baseline system[C]//Proc. of Intelligent Control and Automation, 2012: 322-325.
13	秦永元. 卡尔曼滤波与组合导航原理[M]. 西安: 西北工业大学出版社, 2017.
	QIN Y Y . The theory of Kalman filter and integrated navigation[M]. Xi'an: Northwestern Polytechnical University Press, 2017.
14	ZHANG D , DAI H , HU Q , et al. Robust adaptive UKF based on SVR for inertial based integrated navigation[J]. Defence Technology, 2020, 16, 846- 855. doi: 10.1016/j.dt.2019.10.012
15	赵琳, 王小旭, 丁继成, 等. 组合导航系统非线性滤波算法综述[J]. 中国惯性技术学报, 2009, 17 (01): 46- 52, 58.
	ZHAO L , WANG X X , DING J C , et al. Overview of nonlinear filter methods applied in integrated navigation system[J]. Journal of Chinese Inertial Technology, 2009, 17 (01): 46- 52, 58.
16	CHEN J , SHU B Z . A novel adaptively-robust strategy based on the mahalanobis distance for GPS/INS integrated navigation systems[J]. Sensors, 2018, 18 (3): 695- 699. doi: 10.3390/s18030695
17	YAO Y Q , XU X S , ZHU C C . A hybrid algorithm for GPS/INS integration during GPS outages[J]. Measurement, 2017, 103, 42- 51. doi: 10.1016/j.measurement.2017.01.053
18	XU X , XU X S , ZHANG T , et al. A Kalman filter for SINS self-alignment based on vector observation[J]. Sensors, 2017, 17 (2): 264- 282. doi: 10.3390/s17020264
19	GROVE P D . Principles of GNSS, inertial, and multisensor integrated navigation systems[M]. London: Artech House, 2008.
20	SHIN E H. Estimation techniques for low-cost inertial navigation[D]. Calgary: The university of Calgary, 2003.
21	王新龙. SINS/GPS组合导航技术[M]. 北京: 北京航空航天大学出版社, 2015.
	WANG X L . SINS/GPS integrated navigation technology[M]. Beijing: Beijing University of Aeronautics and Astronautics press, 2015.
22	GERASIMOS G. RIGATOS . Nonlinear Kalman filters and particle filters for integrated navigation of unmanned aerial vehicles[J]. Robotics and Autonomous Systems, 2012, 60 (7): 978- 995. doi: 10.1016/j.robot.2012.03.001
23	MAHALANOBIS P C . On the generalized distance in statistics[J]. Proceedings of the National Institute of Sciences of India, 1936, 2, 49- 55.
24	SIMON PARKINSON , SAAD KHAN . Identifying irregularities in security event logs through an object-based chi-squared test of independence[J]. Journal of Information Security & Applications, 2018, 40, 52- 62.
25	FENG K , LI J , ZHANG X , et al. An improved strong tracking cubature Kalman filter for GPS/INS integrated navigation systems[J]. Sensors, 2018, 18 (6): 1919. doi: 10.3390/s18061919
26	ZHAO X , WANG S C , LIAO S Y , et al. An ultra-tightly coupled tracking method based on robust adaptive cubature Kalman filter[J]. Acta Automatica Sinica, 2014, 40 (11): 2530- 2540.
27	苗岳旺, 周巍, 田亮, 等. 基于新息χ²检测的扩展卡尔曼滤波及其应用[J]. 武汉大学学报·信息科学版, 2008, 41 (2): 269- 273.
	MIAO Y W , ZHOU W , TIAN L , et al. Extended robust Kalman filter based on innovation chi-square test algorithm and its application[J]. Geomatics and Information Science of Wuhan University, 2008, 41 (2): 269- 273.
28	CARCINER J M , KHIAR Y , PENA J M . Central orderings for the Newton interpolation formula[J]. BIT Numerical Mathematics, 2019, 59 (2): 371- 386. doi: 10.1007/s10543-018-00743-2
29	HE F W , HUA X . Quantum algorithm for total least squares data fitting[J]. Physics Letters A, 2019, 383 (19): 2235- 2240. doi: 10.1016/j.physleta.2019.04.037
30	GONG X L , LIU H J , FANG J C , et al. Multi-node transfer alignment based on mechanics modeling for airborne DPOS[J]. IEEE Sensors Journal, 2017, 18 (2): 669- 679.

显著性水平α	阈值T(1)
0.975	0.001
0.950	0.004
0.900	0.016
0.750	0.102
0.250	1.323
0.100	2.706
0.050	3.841
0.025	5.024
0.010	6.635
0.005	7.879

	抗差滤波	无抗差滤波
东向位置误差/m	-11.8~6.06	-25.8~32.6
北向位置误差/m	-6.64~7.54	-20.5~34.9
天向位置误差/m	-2.62~2.57	-7.9~13.9
东向速度误/(m/s)	-0.3~0.3	-1.16~1.11
东向速度误差/(m/s)	-1.3~1.2	-1.8~5.2
东向速度误差/(m/s)	-0.2~0.3	-0.8~1.11

	降权法	拟合法
东向位置误差/m	-6.86~5.41	-8.11~12.09
北向位置误差/m	-4.89~9.74	-8.26~8.58
天向位置误差/m	-2.72~6.52	-3.65~2.37
东向速度误差/(m/s)	-0.30~0.25	-0.38~0.41
东向速度误差/(m/s)	-0.63~0.68	-0.67~1.06
天向速度误差/(m/s)	-0.15~0.11	-0.17~1.18
